NISSAN 370Z 2009 Service Manual
Manufacturer: NISSAN, Model Year: 2009, Model line: 370Z, Model: NISSAN 370Z 2009Pages: 313, PDF Size: 3.15 MB
Page 41 of 313
SPA1644
1-24
Safety — Seats, seat belts and supplemental restraint system
Page 42 of 313
Page 43 of 313

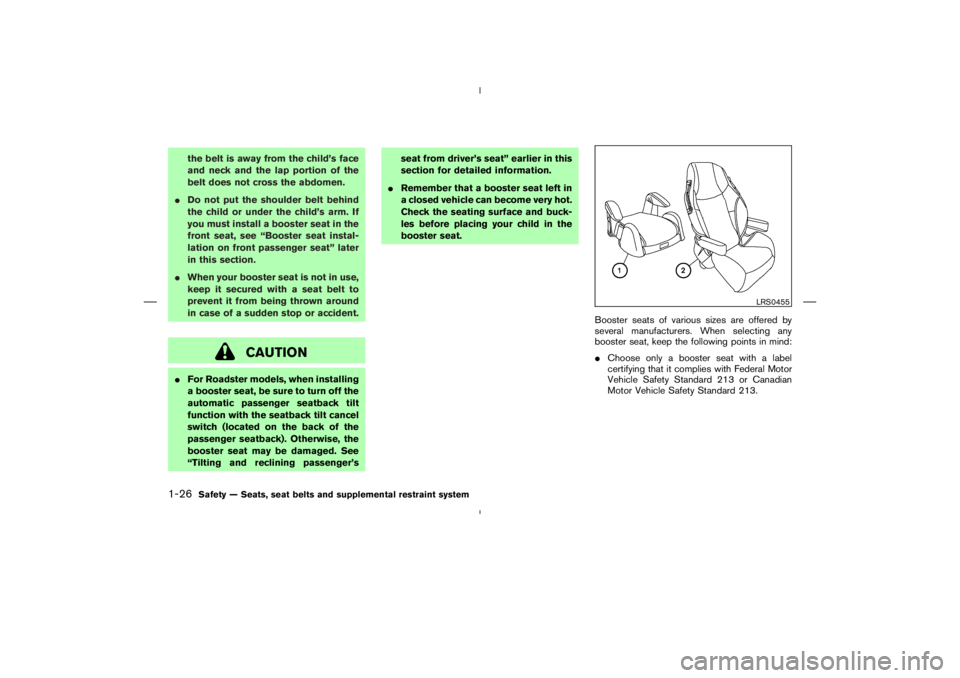

CAUTION
For Roadster models, when installing
a booster seat, be sure to turn off the
automatic passenger seatback tilt
function with the seatback tilt cancel
switch (located on the back of the
passenger seatback). Otherwise, the
booster seat may be damaged. See
“Tilting and reclining passenger’sseat from driver’s seat” earlier in this
section for detailed information.
Remember that a booster seat left in
a closed vehicle can become very hot.
Check the seating surface and buck-
les before placing your child in the
booster seat.
Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
LRS0455
1-26
Safety — Seats, seat belts and supplemental restraint system
Page 44 of 313
SSS0363
LRS0454
Safety — Seats, seat belts and supplemental restraint system
1-27
Page 45 of 313
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front pas-
senger air bag and status light” later in this
section.
PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEMThis Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the following systems:
Driver and passenger supplemental front-
impact air bag (NISSAN Advanced Air Bag
System)
Front seat-mounted side-impact supplemen-
tal air bag (if so equipped)
Roof-mounted curtain side-impact supple-
mental air bag (if so equipped for Coupe
models)
Seat belt pretensioner
Supplemental front-impact air bag system:
NISSAN Advanced Air Bag System can help
cushion the impact force to the head and chest
of the driver and front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system (if so equipped):This
system can help cushion the impact force to the
chest area of the driver and front passenger in
certain side impact collisions. The side air bags
are designed to inflate on the side where the
vehicle is impacted.
LRS0454
SUPPLEMENTAL RESTRAINT
SYSTEM
1-28
Safety — Seats, seat belts and supplemental restraint system
Page 46 of 313
WARNING
The front air bags ordinarily will not
inflate in the event of a side impact,
rear impact, rollover, or lower sever-
ity frontal collision. Always wear your
seat belts to help reduce the risk or
severity of injury in various kinds of
accidents.
The front passenger air bag will not
inflate if the passenger air bag statuslight is lit or if the front passenger
seat is unoccupied. See “Front pas-
senger air bag and status light” later
in this section.
The seat belts and the front air bags
are most effective when you are sit-
ting well back and upright in the seat
with both feet on the floor. The front

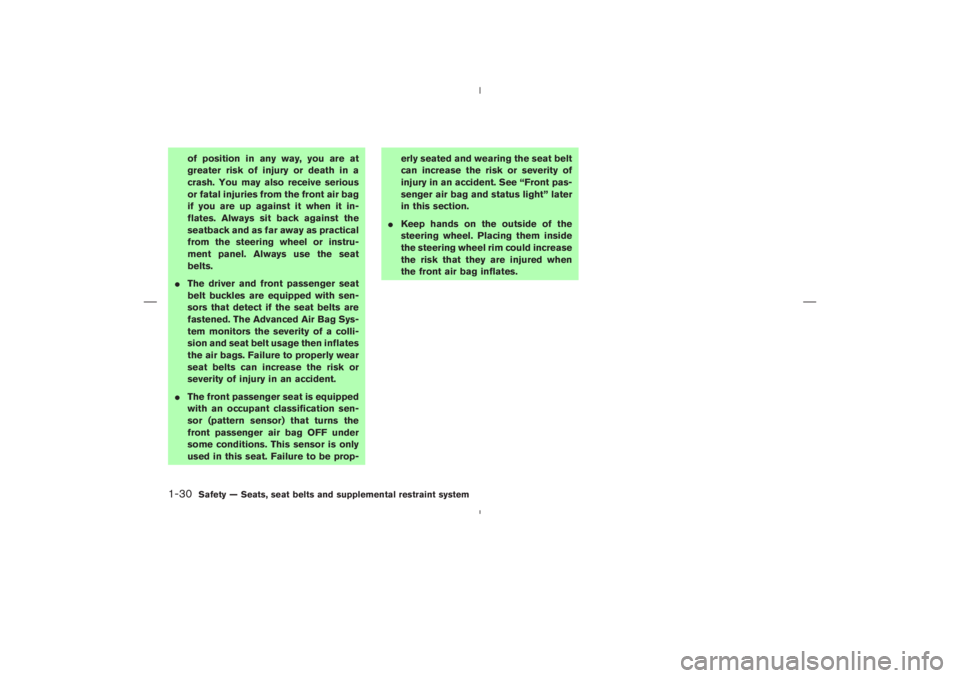

air bags inflate with great force. Even
with the NISSAN Advanced Air Bag
System, if you are unrestrained, lean-
ing forward, sitting sideways or out
Page 47 of 313
Page 48 of 313
SSS0016SSS0006
Safety — Seats, seat belts and supplemental restraint system
1-31
Page 49 of 313
SSS0008
SSS0009SSS0099
SSS0100
1-32
Safety — Seats, seat belts and supplemental restraint system
Page 50 of 313
WARNING
Front seat-mounted side-impact
supplemental air bags and roof-
mounted curtain side-impact supple-
mental air bags (if so equipped):
The side air bags and curtain air bags
ordinarily will not inflate in the event
of a frontal impact, rear impact, roll-
over or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injuryin various kinds of accidents.
The seat belts, side air bags and
curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bags
and curtain air bags inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback of
the front seat or near the side roof
rails. Do not allow anyone sitting in
the front seat to extend their hand
out of the window or lean against the
SSS0159
Safety — Seats, seat belts and supplemental restraint system
1-33
