NISSAN 370Z 2020 Owner´s Manual

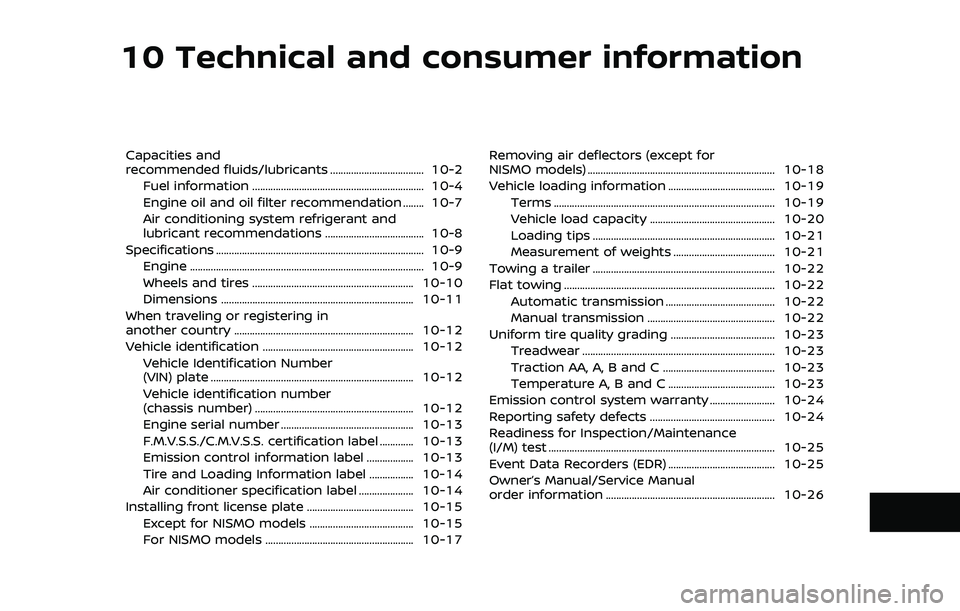

10 Technical and consumer information
Capacities and
recommended fluids/lubricants .................................... 10-2Fuel information .................................................................. 10-4
Engine oil and oil filter recommendation ........ 10-7

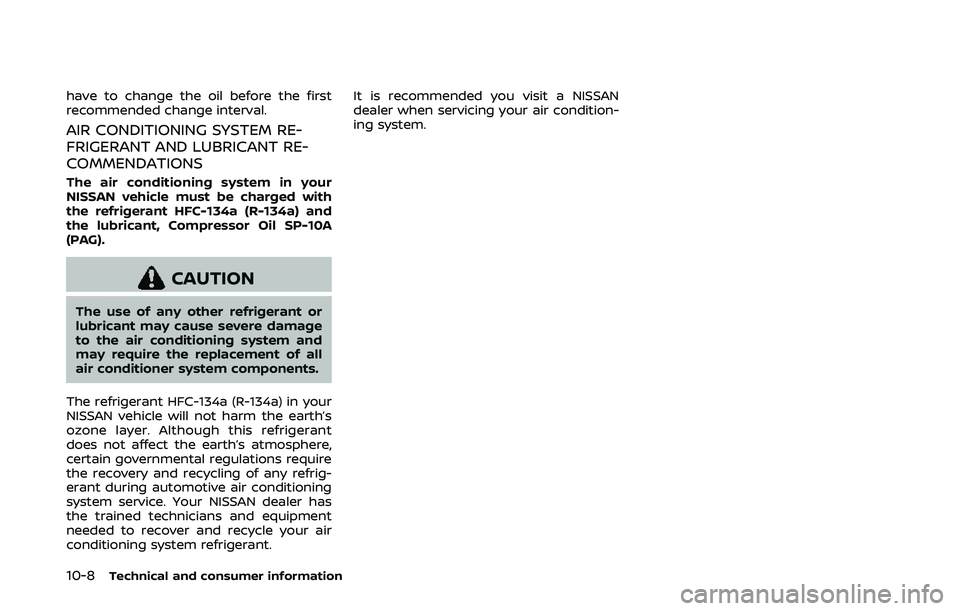

Air conditioning system refrigerant and
lubricant recommendations ...................................... 10-8
Specifications ........................................................................\

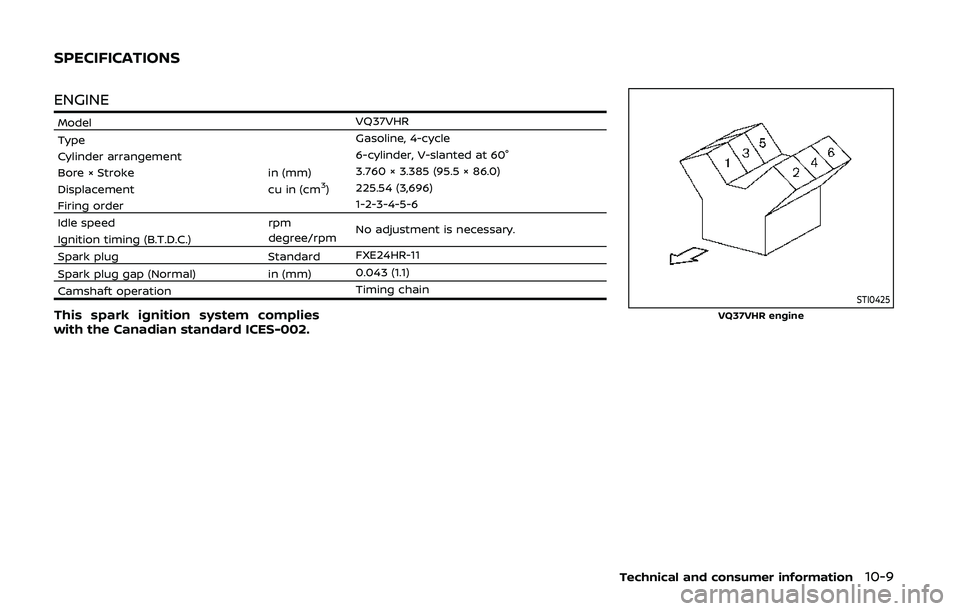

........ 10-9 Engine ........................................................................\
.................. 10-9

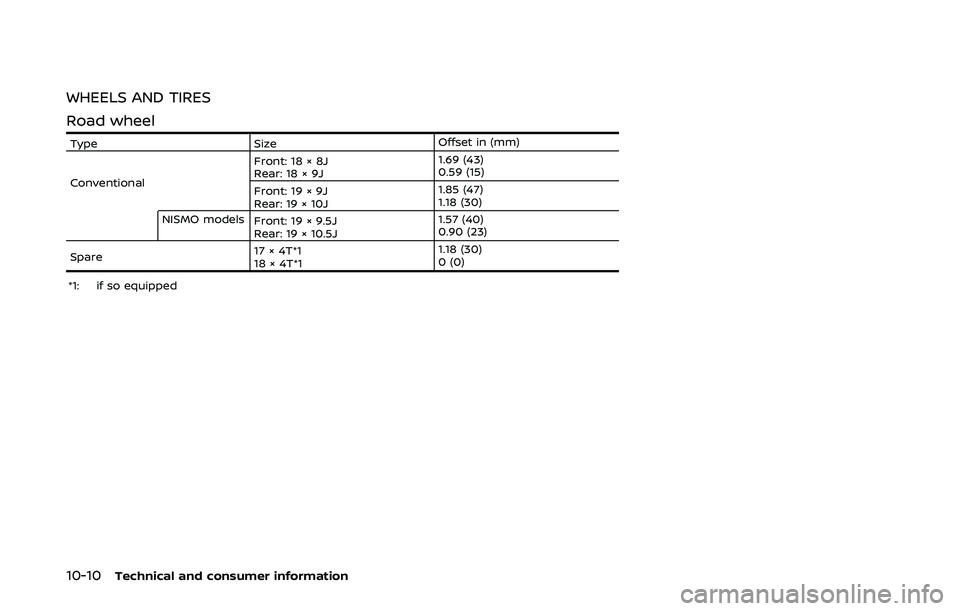

Wheels and tires .............................................................. 10-10
Dimensions ........................................................................\
.. 10-11
When traveling or registering in
another country ..................................................................... 10-12
Vehicle identification .......................................................... 10-12 Vehicle Identification Number
(VIN) plate ........................................................................\
...... 10-12
Vehicle identification number
(chassis number) ............................................................. 10-12
Engine serial number ................................................... 10-13
F.M.V.S.S./C.M.V.S.S. certification label ............. 10-13
Emission control information label .................. 10-13
Tire and Loading Information label ................. 10-14
Air conditioner specification label ..................... 10-14
Installing front license plate ......................................... 10-15
Except for NISMO models ........................................ 10-15
For NISMO models ......................................................... 10-17 Removing air deflectors (except for
NISMO models) ........................................................................\
10-18
Vehicle loading information ......................................... 10-19
Terms ........................................................................\
............. 10-19
Vehicle load capacity ................................................ 10-20
Loading tips ...................................................................... 10-21
Measurement of weights ....................................... 10-21
Towing a trailer ...................................................................... 10-22
Flat towing ........................................................................\
......... 10-22 Automatic transmission .......................................... 10-22
Manual transmission ................................................. 10-22
Uniform tire quality grading ........................................ 10-23 Treadwear ........................................................................\
.. 10-23
Traction AA, A, B and C ........................................... 10-23
Temperature A, B and C ......................................... 10-23
Emission control system warranty ......................... 10-24
Reporting safety defects ................................................ 10-24
Readiness for Inspection/Maintenance
(I/M) test ........................................................................\
............... 10-25
Event Data Recorders (EDR) ......................................... 10-25
Owner’s Manual/Service Manual
order information ................................................................. 10-26

10-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the
procedure instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid type Capacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure
Fuel 71.9 L 19 gal 15-7/8 gal


See “Fuel information” (P.10-4).
Engine oil
*1Drain and refill*1: For additional informa-
tion, see “Changing engine
oil and filter” (P.8-6). With oil filter change
4.9 L 5-1/8 qt 4-3/8 qt


Genuine “NISSAN Motor Oil Ester 5W-30 SN” (or equivalent) is recom-
mended.


If the above motor oil (or engine oil) is not available, a synthetic SAE 5W-
30 GF-5 SN motor oil (or engine oil) may be used.
Damage caused by the use of motor oil (or engine oil) other than as
recommended is not covered under NISSAN’s New Vehicle Limited
Warranty.
For additional information, refer to “Engine oil and oil filter recommen-
dation” (P.10-7).
Without oil filter change
4.6 L 4-7/8 qt4qt
Engine coolant With reservoirAutomatic Transmis-
sion model
9.1 L 9-5/8 qt 8 qt


Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Manual Transmission
model 9.2 L 9-3/4 qt
8-1/8 qt
Reservoir 0.8 L 7/8 qt3/4 qt
Automatic Transmission fluid ———


Genuine NISSAN Matic S ATF


NISSAN recommends using Genuine NISSAN Matic S ATF ONLY in NISSAN
automatic transmissions. Do not mix with other fluids. Using fluids that
are not equivalent to Genuine NISSAN Matic S ATF may damage the
automatic transmission. Damage caused by the use of fluids other than
as recommended is not covered under the NISSAN’s New Vehicle Limited
warranty.
Manual Transmission gear oil ———


Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85


If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi is not
available, API GL-4, Viscosity SAE 75W-85 may be used as a temporary
replacement. However, use Genuine NISSAN Manual Transmission Fluid
(MTF) HQ Multi as soon as it is available.
Differential gear oil ———For AT and NISMO models:


Genuine NISSAN HYPOID FLUID·S1 GL-5 75W-80 or equivalent
Except for AT and NISMO models:

Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent
conventional (non-synthetic) oil
Power steering fluid (PSF) Refill to the proper oil level according
to the instructions in the “8. Do-it-
yourself” section.


Genuine NISSAN PSF or equivalent


DEXRON
TMVI type ATF may also be used.
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
Measure US
Measure Imperial
Measure

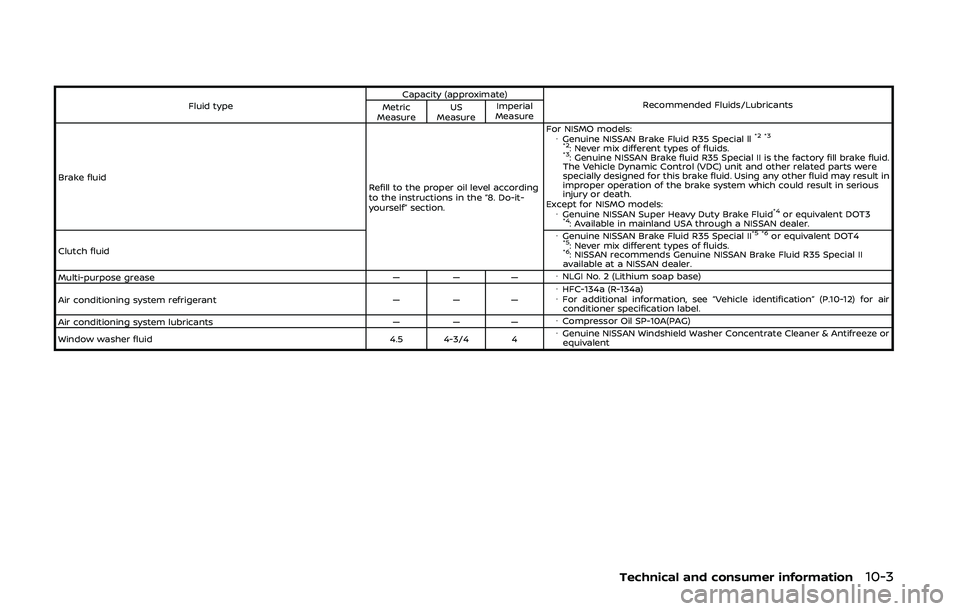

Brake fluid Refill to the proper oil level according
to the instructions in the “8. Do-it-
yourself” section.For NISMO models:


Genuine NISSAN Brake Fluid R35 Special ll
*2 *3
*2: Never mix different types of fluids.*3: Genuine NISSAN Brake fluid R35 Special II is the factory fill brake fluid.
The Vehicle Dynamic Control (VDC) unit and other related parts were
specially designed for this brake fluid. Using any other fluid may result in
improper operation of the brake system which could result in serious
injury or death.
Except for NISMO models:


Genuine NISSAN Super Heavy Duty Brake Fluid
*4or equivalent DOT3*4: Available in mainland USA through a NISSAN dealer.
Clutch fluid


Genuine NISSAN Brake Fluid R35 Special II*5 *6or equivalent DOT4*5: Never mix different types of fluids.*6: NISSAN recommends Genuine NISSAN Brake Fluid R35 Special II
available at a NISSAN dealer.
Multi-purpose grease ———


NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ———


HFC-134a (R-134a)


For additional information, see “Vehicle identification” (P.10-12) for air
conditioner specification label.
Air conditioning system lubricants ———


Compressor Oil SP-10A(PAG)
Window washer fluid 4.5 4-3/4 4


Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
Technical and consumer information10-3

10-4Technical and consumer information

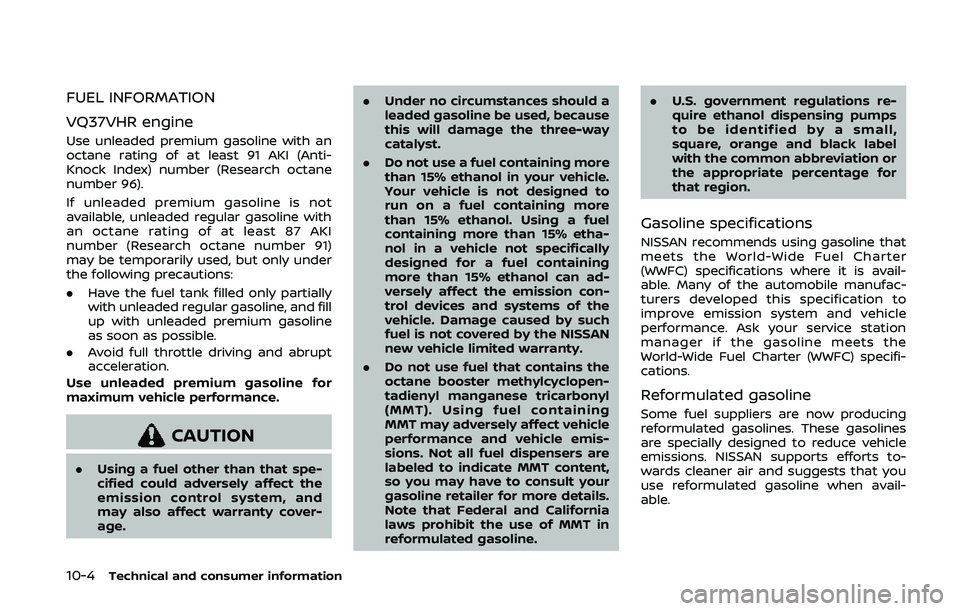

FUEL INFORMATION
VQ37VHR engine
Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-
Knock Index) number (Research octane
number 96).
If unleaded premium gasoline is not
available, unleaded regular gasoline with
an octane rating of at least 87 AKI
number (Research octane number 91)
may be temporarily used, but only under
the following precautions:
.Have the fuel tank filled only partially
with unleaded regular gasoline, and fill
up with unleaded premium gasoline
as soon as possible.
. Avoid full throttle driving and abrupt
acceleration.
Use unleaded premium gasoline for
maximum vehicle performance.
CAUTION
. Using a fuel other than that spe-
cified could adversely affect the
emission control system, and
may also affect warranty cover-
age. .
Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way
catalyst.
. Do not use a fuel containing more
than 15% ethanol in your vehicle.
Your vehicle is not designed to
run on a fuel containing more
than 15% ethanol. Using a fuel
containing more than 15% etha-
nol in a vehicle not specifically
designed for a fuel containing
more than 15% ethanol can ad-
versely affect the emission con-
trol devices and systems of the
vehicle. Damage caused by such
fuel is not covered by the NISSAN
new vehicle limited warranty.
. Do not use fuel that contains the
octane booster methylcyclopen-
tadienyl manganese tricarbonyl
(MMT). Using fuel containing
MMT may adversely affect vehicle
performance and vehicle emis-
sions. Not all fuel dispensers are
labeled to indicate MMT content,
so you may have to consult your
gasoline retailer for more details.
Note that Federal and California
laws prohibit the use of MMT in
reformulated gasoline. .
U.S. government regulations re-
quire ethanol dispensing pumps
to be identified by a small,
square, orange and black label
with the common abbreviation or
the appropriate percentage for
that region.
Gasoline specifications
NISSAN recommends using gasoline that
meets the World-Wide Fuel Charter
(WWFC) specifications where it is avail-
able. Many of the automobile manufac-
turers developed this specification to
improve emission system and vehicle
performance. Ask your service station
manager if the gasoline meets the
World-Wide Fuel Charter (WWFC) specifi-
cations.
Reformulated gasoline
Some fuel suppliers are now producing
reformulated gasolines. These gasolines
are specially designed to reduce vehicle
emissions. NISSAN supports efforts to-
wards cleaner air and suggests that you
use reformulated gasoline when avail-
able.

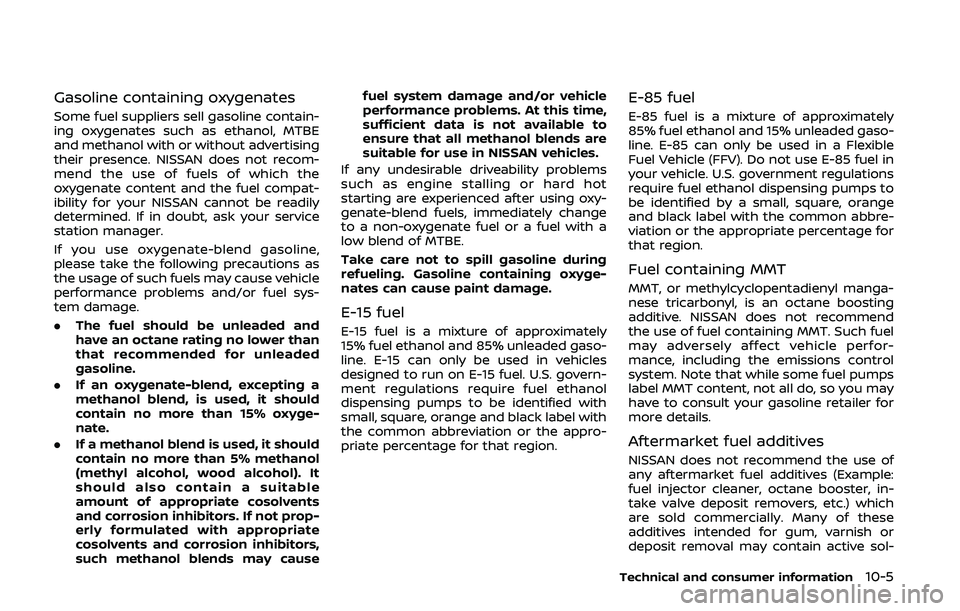

Gasoline containing oxygenates
Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, MTBE
and methanol with or without advertising
their presence. NISSAN does not recom-
mend the use of fuels of which the
oxygenate content and the fuel compat-
ibility for your NISSAN cannot be readily
determined. If in doubt, ask your service
station manager.
If you use oxygenate-blend gasoline,
please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel sys-
tem damage.
.The fuel should be unleaded and
have an octane rating no lower than
that recommended for unleaded
gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 15% oxyge-
nate.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable
amount of appropriate cosolvents
and corrosion inhibitors. If not prop-
erly formulated with appropriate
cosolvents and corrosion inhibitors,
such methanol blends may cause fuel system damage and/or vehicle
performance problems. At this time,
sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any undesirable driveability problems
such as engine stalling or hard hot
starting are experienced after using oxy-
genate-blend fuels, immediately change
to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxyge-
nates can cause paint damage.
E-15 fuel
E-15 fuel is a mixture of approximately
15% fuel ethanol and 85% unleaded gaso-
line. E-15 can only be used in vehicles
designed to run on E-15 fuel. U.S. govern-
ment regulations require fuel ethanol
dispensing pumps to be identified with
small, square, orange and black label with
the common abbreviation or the appro-
priate percentage for that region.
E-85 fuel
E-85 fuel is a mixture of approximately
85% fuel ethanol and 15% unleaded gaso-
line. E-85 can only be used in a Flexible
Fuel Vehicle (FFV). Do not use E-85 fuel in
your vehicle. U.S. government regulations
require fuel ethanol dispensing pumps to
be identified by a small, square, orange
and black label with the common abbre-
viation or the appropriate percentage for
that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. NISSAN does not recommend
the use of fuel containing MMT. Such fuel
may adversely affect vehicle perfor-
mance, including the emissions control
system. Note that while some fuel pumps
label MMT content, not all do, so you may
have to consult your gasoline retailer for
more details.
Aftermarket fuel additives
NISSAN does not recommend the use of
any aftermarket fuel additives (Example:
fuel injector cleaner, octane booster, in-
take valve deposit removers, etc.) which
are sold commercially. Many of these
additives intended for gum, varnish or
deposit removal may contain active sol-
Technical and consumer information10-5

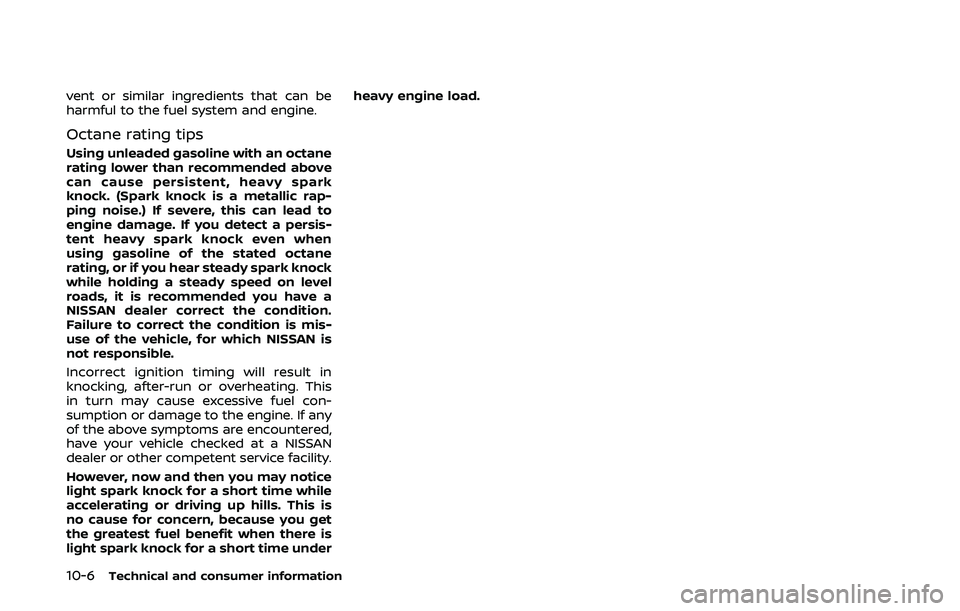

10-6Technical and consumer information
vent or similar ingredients that can be
harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above
can cause persistent, heavy spark
knock. (Spark knock is a metallic rap-
ping noise.) If severe, this can lead to
engine damage. If you detect a persis-
tent heavy spark knock even when
using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, it is recommended you have a
NISSAN dealer correct the condition.
Failure to correct the condition is mis-
use of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in
knocking, after-run or overheating. This
in turn may cause excessive fuel con-
sumption or damage to the engine. If any
of the above symptoms are encountered,
have your vehicle checked at a NISSAN
dealer or other competent service facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is
no cause for concern, because you get
the greatest fuel benefit when there is
light spark knock for a short time underheavy engine load.

JVT0159X
API certification markAPI service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2). NISSAN recommends
the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the
American Petroleum Institute (API) certifi-
cation or International Lubricant Standar-dization and Approval Committee (ILSAC)
certification and SAE viscosity standard.
These oils have the API certification mark
on the front of the container. Oils which
do not have the specified quality label
should not be used as they could cause
engine damage.
Oil additives
NISSAN does not recommend the use of
oil additives. The use of an oil additive is
not necessary when the proper oil type is
used and maintenance intervals are fol-
lowed.
Oil which may contain foreign matter or
has been previously used should not be
used.
Oil viscosity
The engine oil viscosity or thickness
changes with temperature. Because of
this, it is important that the engine oil
viscosity be selected based on the tem-
peratures at which the vehicle will be
operated before the next oil change.
Choosing an oil viscosity other than that
recommended could cause serious en-
gine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervals
The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Oil and
filter other than the specified quality, or
oil and filter change intervals longer than
recommended could reduce engine life.
Damage to engines caused by improper
maintenance or use of incorrect oil and
filter quality and/or viscosity is not cov-
ered by the new NISSAN vehicle limited
warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not
Technical and consumer information10-7

10-8Technical and consumer information
have to change the oil before the first
recommended change interval.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
The air conditioning system in your
NISSAN vehicle must be charged with
the refrigerant HFC-134a (R-134a) and
the lubricant, Compressor Oil SP-10A
(PAG).
CAUTION
The use of any other refrigerant or
lubricant may cause severe damage
to the air conditioning system and
may require the replacement of all
air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s
ozone layer. Although this refrigerant
does not affect the earth’s atmosphere,
certain governmental regulations require
the recovery and recycling of any refrig-
erant during automotive air conditioning
system service. Your NISSAN dealer has
the trained technicians and equipment
needed to recover and recycle your air
conditioning system refrigerant. It is recommended you visit a NISSAN
dealer when servicing your air condition-
ing system.

ENGINE
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 60°
Bore × Stroke in (mm) 3.760 × 3.385 (95.5 × 86.0)
Displacement cu in (cm
3) 225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies
with the Canadian standard ICES-002.
STI0425VQ37VHR engine
Technical and consumer information10-9
SPECIFICATIONS

10-10Technical and consumer information
WHEELS AND TIRES
Road wheel
TypeSize Offset in (mm)
Conventional Front: 18 × 8J
Rear: 18 × 9J
1.69 (43)
0.59 (15)
Front: 19 × 9J
Rear: 19 × 10J 1.85 (47)
1.18 (30)
NISMO models Front: 19 × 9.5J
Rear: 19 × 10.5J 1.57 (40)
0.90 (23)
Spare 17 × 4T*1
18 × 4T*1 1.18 (30)
0 (0)
*1: if so equipped
