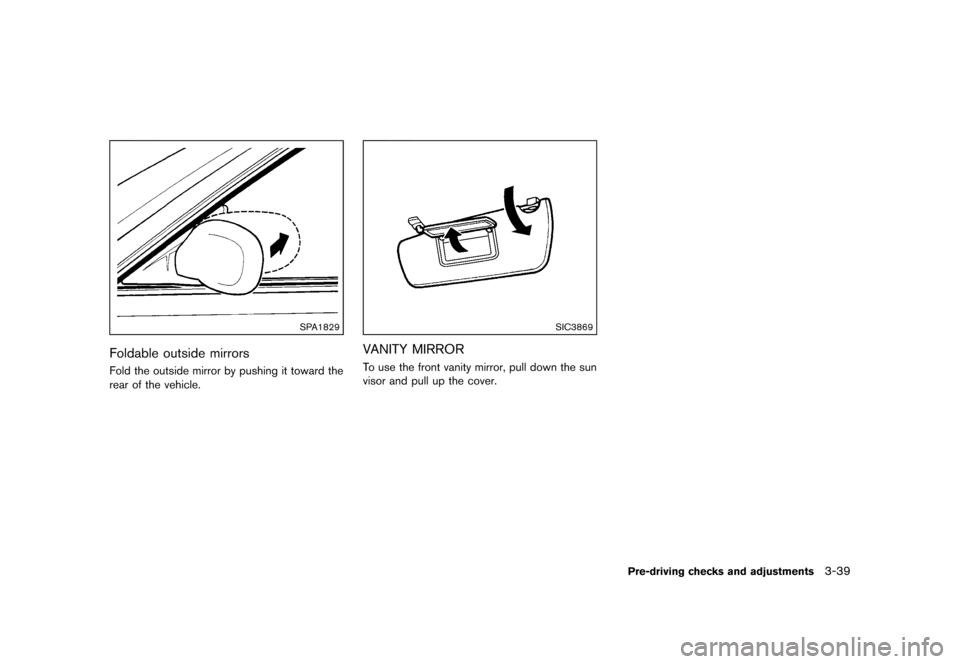

Foldable outside mirrorsGUID-04D17BAA-A19D-410B-8EBE-9A888C9CD553Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-38DA8E6D-FED6-40B3-8A3A-839D89CFEFDBTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-39
Page 162 of 427
Black plate (160,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
3-40Pre-driving checks and adjustments
MEMO
Page 163 of 427
Black plate (161,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-3
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-4
Menu options ...
........................................................................\
4-6
How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-7
How to use STATUS button ...
............................................. 4-7
How to use brightness control and display
ON/OFF button ...
................................................................... 4-7
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-18
How to read displayed lines ...
.......................................... 4-18
How to park with predictive course lines ...
.................. 4-19
Difference between predictive and
actual distances ...
................................................................ 4-20
Predictive course line settings ...
...................................... 4-23
How to adjust screen ...
...................................................... 4-23
Operating tips ...
................................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-24
Automatic air conditioner (Type A) ...
............................ 4-25
Automatic air conditioner (Type B) ...
........................... 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-31
Audio operation precautions ...
....................................... 4-31
FM-AM radio with Compact Disc (CD) player ...
....... 4-45
FM-AM-SAT radio with Compact Disc
(CD) changer ...
.................................................................. 4-49
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-54
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-58
USB memory operation (models with
navigation system) ...
......................................................... 4-61
Bluetooth
®streaming audio (models with
navigation system) ...
......................................................... 4-65
iPod
®player operation (models with
navigation system) ...
......................................................... 4-70
Auxiliary input jacks (models with
navigation system) ...
......................................................... 4-72
CD/DVD/USB memory care and cleaning ...
.............. 4-73
Steering-wheel-mounted controls for audio ...
........... 4-74
Antenna ...
........................................................................\
.... 4-75
Page 164 of 427
Black plate (162,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Car phone or CB radio...
........................................................ 4-76
Bluetooth®hands-free phone system (models with
navigation system) ...
................................................................. 4-77
Regulatory information ...
.................................................... 4-78
Voice commands ...
.............................................................. 4-79
Control buttons ...
................................................................. 4-79
Connecting procedure ...
.................................................... 4-79
Phone selection ...
................................................................ 4-80
Vehicle phonebook ...
.......................................................... 4-80
Making a call ...
..................................................................... 4-83
Receiving a call ...
................................................................. 4-84
During a call ...
...................................................................... 4-84
Phone setting ...
.................................................................... 4-85
Troubleshooting guide ...
..................................................... 4-87 Bluetooth
®hands-free phone system (models without
navigation system) (if so equipped) ...
................................. 4-88
Regulatory information ...
.................................................. 4-89
Using the system ...
........................................................... 4-90
Control buttons ...
............................................................... 4-92
Getting started ...
............................................................... 4-92
List of voice commands ...
............................................... 4-94
Speaker Adaptation (SA) mode ...
................................. 4-97
Troubleshooting guide ...
............................................... 4-100
NISSAN Voice Recognition System (models with
navigation system) ...
............................................................. 4-101
NISSAN voice recognition Standard Mode ...
......... 4-101
Using the system ...
........................................................ 4-104
NISSAN voice recognition Alternate
Command Mode ...
......................................................... 4-112
Using the system ...
........................................................ 4-121
Troubleshooting guide ...
............................................... 4-126
Page 165 of 427
Black plate (163,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-15C1CD10-4271-48AA-8811-D9BDDF26B26E
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-31E22E02-D69E-4C69-8490-23F0291D8FF8
SAA2273

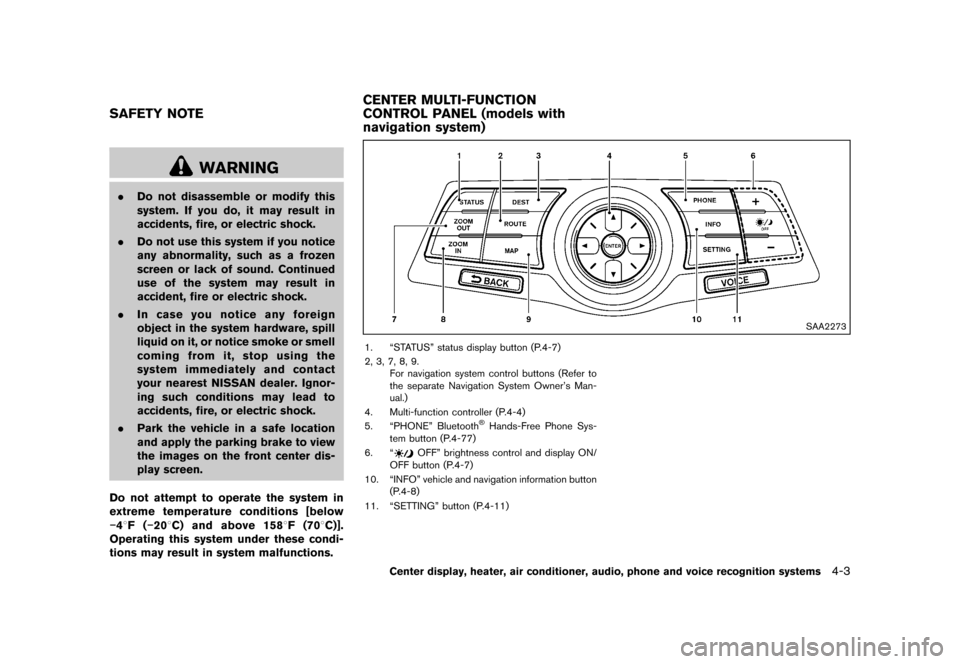

1. “STATUS” status display button (P.4-7)
2, 3, 7, 8, 9. For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)
4. Multi-function controller (P.4-4)
5. “PHONE” Bluetooth
®Hands-Free Phone Sys-
tem button (P.4-77)
6. “
OFF” brightness control and display ON/
OFF button (P.4-7)
10. “INFO” vehicle and navigation information button (P.4-8)
11. “SETTING” button (P.4-11)
Center display, heater, air conditioner, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION
CONTROL PANEL (models with
navigation system)
Page 166 of 427
Black plate (164,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-4Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2274

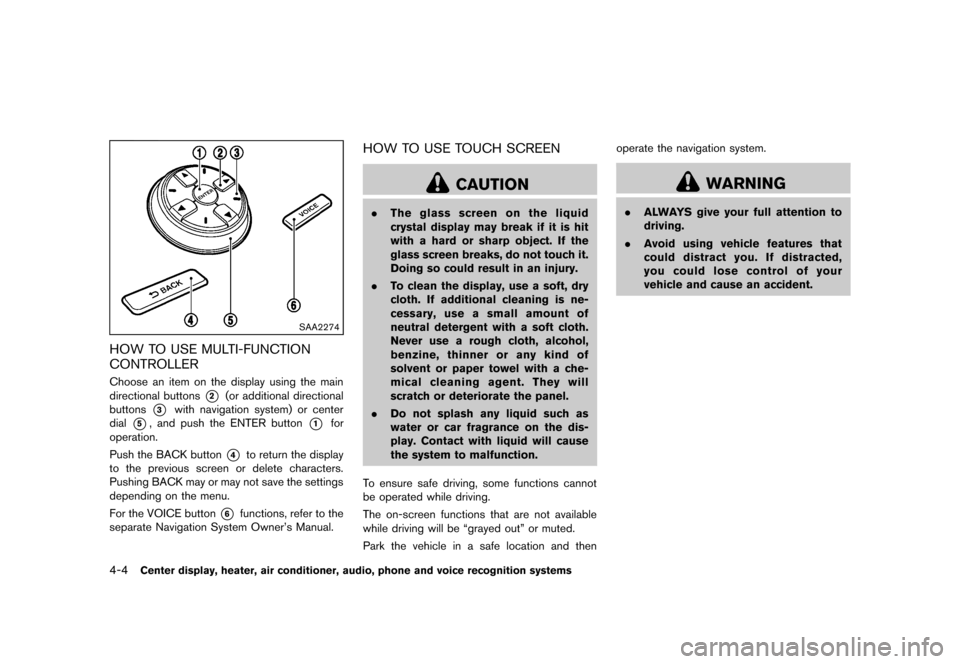

HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-AE64BCF1-714A-4BD6-BBBB-45BCC99AE297Choose an item on the display using the main
directional buttons
*2(or additional directional
buttons
*3with navigation system) or center
dial
*5, and push the ENTER button*1for
operation.
Push the BACK button
*4to return the display
to the previous screen or delete characters.
Pushing BACK may or may not save the settings
depending on the menu.
For the VOICE button
*6functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREENGUID-7BDC2B44-A42D-44B7-9342-FEC4371E6C0F
CAUTION
. The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then operate the navigation system.
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
Page 167 of 427
Black plate (165,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2473

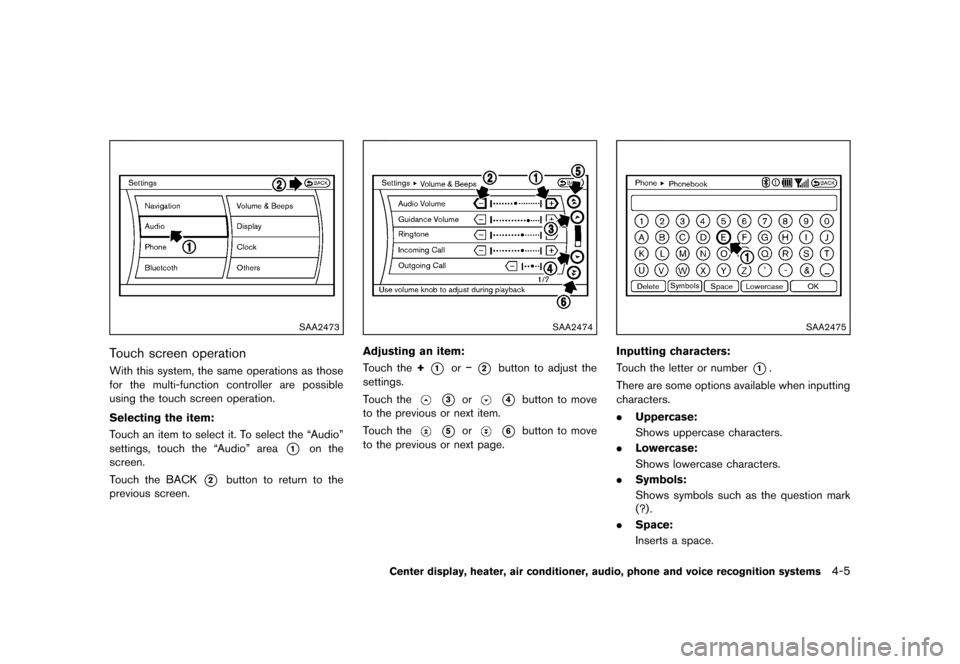

Touch screen operationGUID-A8D29382-F80A-407F-BB0D-54E0203E135CWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
*1on the
screen.
Touch the BACK
*2button to return to the
previous screen.
SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the +*1or−*2button to adjust the
settings.
Touch the
*3or*4button to move
to the previous or next item.
Touch the
*5or*6button to move
to the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when inputting
characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question mark
(?) .
. Space:
Inserts a space.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-5
Page 168 of 427
Black plate (166,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems

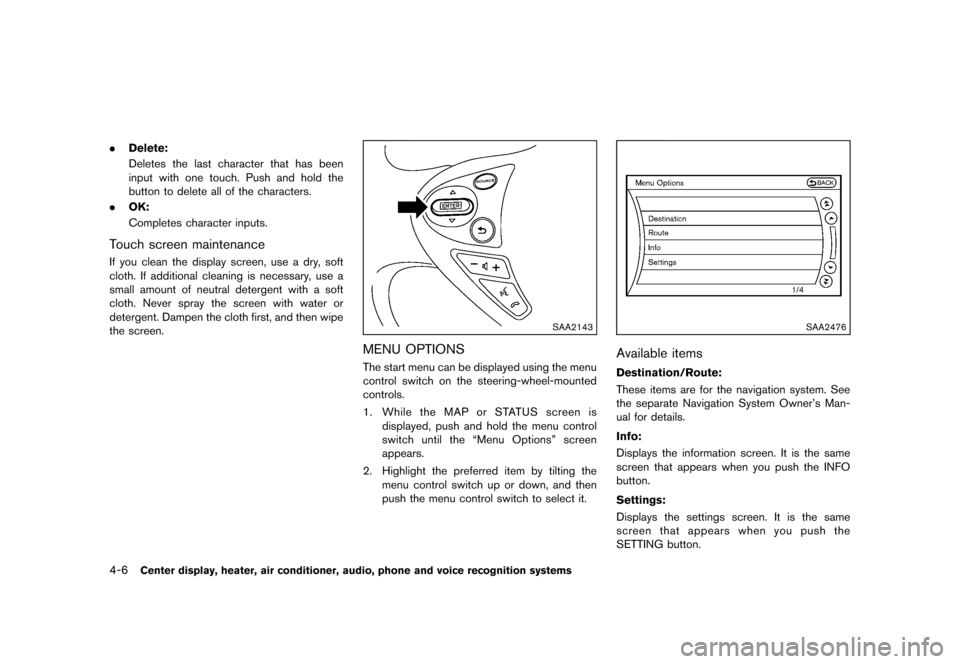

.Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-C3F61A56-7B6A-4CBA-AEA3-9EEB5497B563If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then wipe
the screen.
SAA2143
MENU OPTIONSGUID-F0D47342-E539-4A34-A32F-3CC02A22DEF3The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-AA78AE73-5181-4235-9F62-8F622DB5EE87
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner’s Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
Page 169 of 427
Black plate (167,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2477
HOW TO SELECT MENUS ON THE
SCREEN

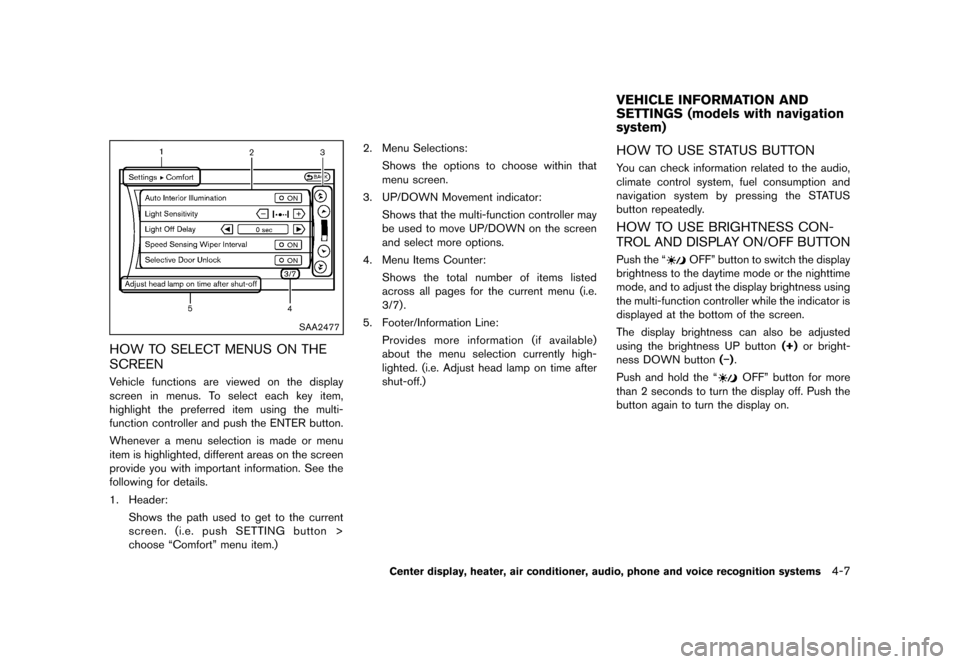

GUID-971A50BB-99E3-49FF-93FC-8115615E85A0Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (i.e. push SETTING button >
choose “Comfort” menu item.) 2. Menu Selections:
Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (i.e.
3/7) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted. (i.e. Adjust head lamp on time after
shut-off.)
GUID-1E8011D4-3695-404E-93CF-8F50DBA72472HOW TO USE STATUS BUTTONGUID-668201AC-867A-448C-9421-28170B799009You can check information related to the audio,
climate control system, fuel consumption and
navigation system by pressing the STATUS
button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A5BA766E-74EF-4431-8E3D-BC70BE50C9EDPush the “OFF” button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button (−).
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-7
VEHICLE INFORMATION AND
SETTINGS (models with navigation
system)
Page 170 of 427
Black plate (168,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-8Center display, heater, air conditioner, audio, phone and voice recognition systems

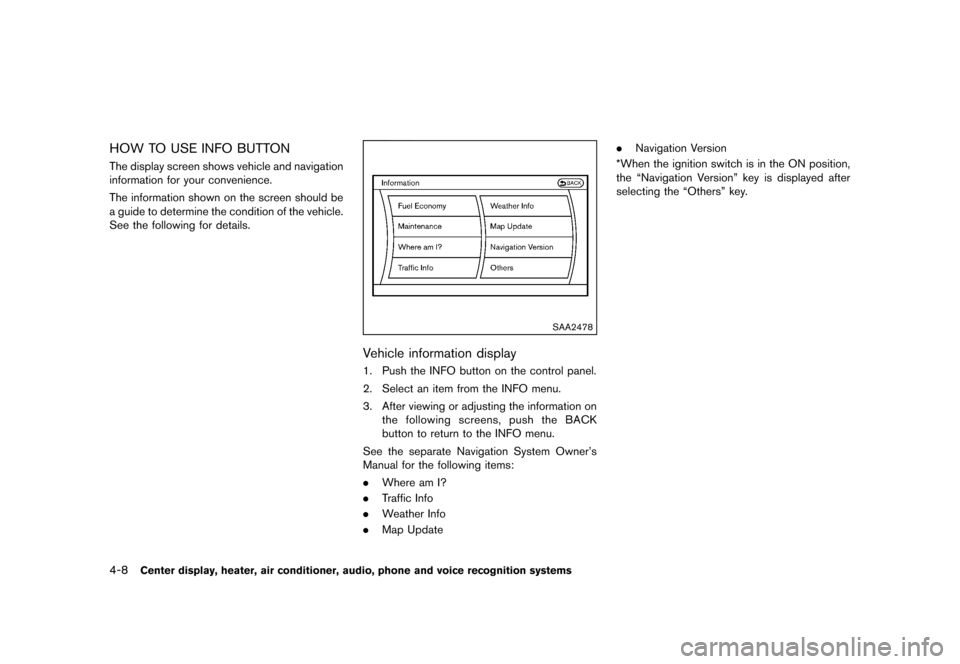

HOW TO USE INFO BUTTONGUID-56322B57-F87C-4FE4-82E9-6B70EBD9025AThe display screen shows vehicle and navigation
information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the vehicle.
See the following for details.
SAA2478
Vehicle information displayGUID-572DCD7F-B846-4353-8469-627DEB7D4C281. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the information onthe following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update .
Navigation Version
*When the ignition switch is in the ON position,
the “Navigation Version” key is displayed after
selecting the “Others” key.
