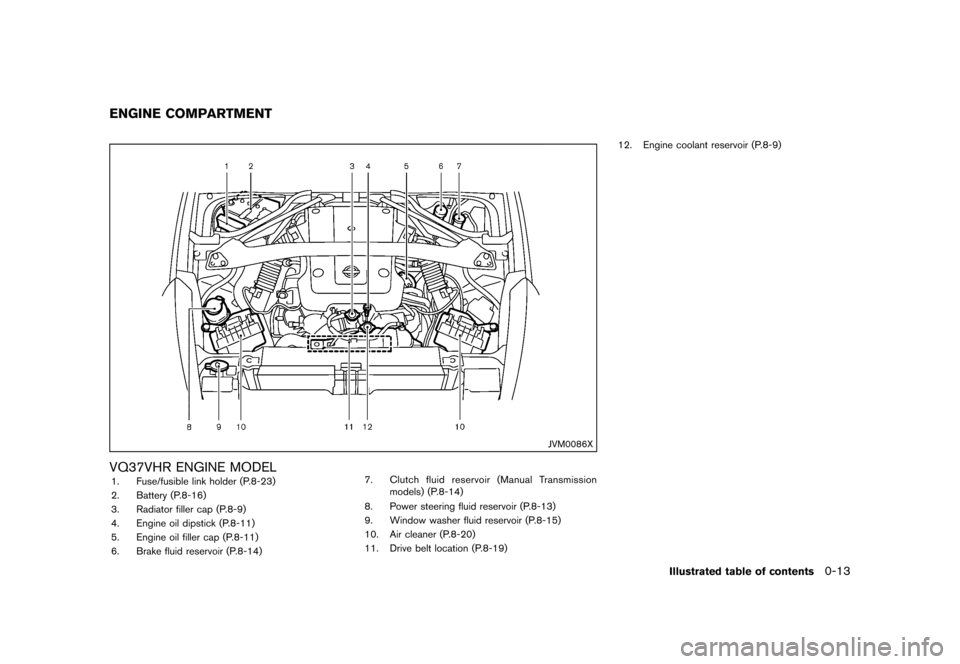

VQ37VHR ENGINE MODELGUID-CA1603F1-4C1A-4216-AA17-F6627E0A896D1. Fuse/fusible link holder (P.8-23)
2. Battery (P.8-16)
3. Radiator filler cap (P.8-9)
4. Engine oil dipstick (P.8-11)
5. Engine oil filler cap (P.8-11)
6. Brake fluid reservoir (P.8-14)7.
Clutch fluid reservoir (Manual Transmission
models) (P.8-14)
8. Power steering fluid reservoir (P.8-13)
9. Window washer fluid reservoir (P.8-15)
10. Air cleaner (P.8-20)
11. Drive belt location (P.8-19) 12. Engine coolant reservoir (P.8-9)
Illustrated table of contents0-13
ENGINE COMPARTMENT
Page 22 of 427
Black plate (20,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
0-14Illustrated table of contents
GUID-2A805EB9-8ED6-49C4-8B1B-5A6F6731FA9F

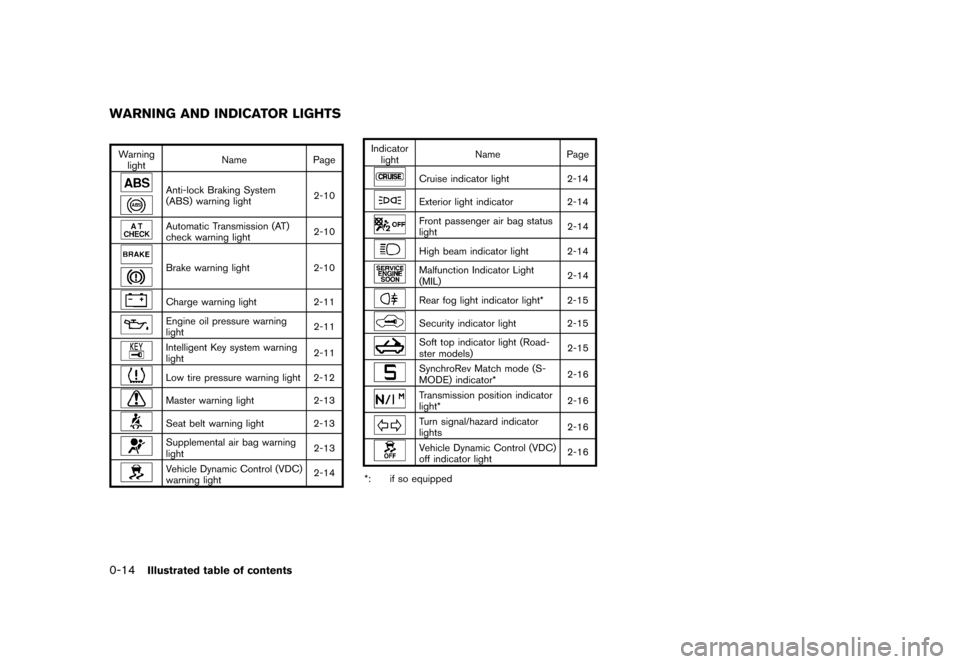

Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-10
Automatic Transmission (AT)
check warning light2-10
Brake warning light
2-10
Charge warning light2-11
Engine oil pressure warning
light 2-11
Intelligent Key system warning
light2-11
Low tire pressure warning light 2-12
Master warning light
2-13
Seat belt warning light 2-13
Supplemental air bag warning
light 2-13
Vehicle Dynamic Control (VDC)
warning light2-14Indicator
light Name Page
Cruise indicator light
2-14
Exterior light indicator2-14
Front passenger air bag status
light 2-14
High beam indicator light 2-14
Malfunction Indicator Light
(MIL)2-14
Rear fog light indicator light* 2-15
Security indicator light
2-15
Soft top indicator light (Road-
ster models) 2-15
SynchroRev Match mode (S-
MODE) indicator*2-16
Transmission position indicator
light*2-16
Turn signal/hazard indicator
lights
2-16
Vehicle Dynamic Control (VDC)
off indicator light2-16
*: if so equipped
WARNING AND INDICATOR LIGHTS
Page 23 of 427
Black plate (21,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

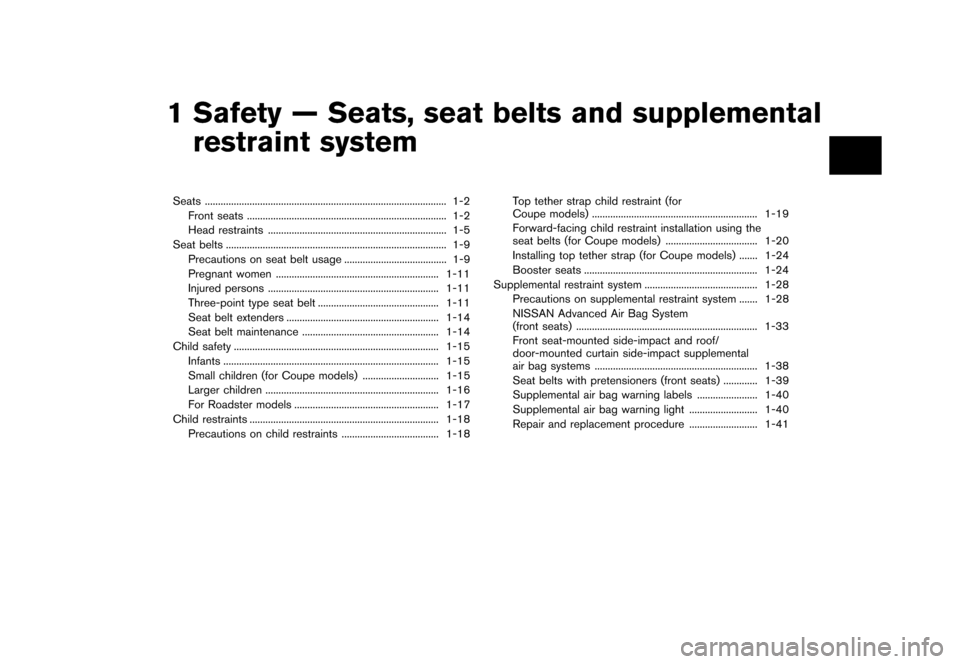

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-2
Head restraints ...
.................................................................... 1-5
Seat belts ...
........................................................................\
............ 1-9
Precautions on seat belt usage ...
....................................... 1-9
Pregnant women ...
.............................................................. 1-11
Injured persons ...
................................................................. 1-11
Three-point type seat belt ...
.............................................. 1-11
Seat belt extenders ...
.......................................................... 1-14
Seat belt maintenance ...
.................................................... 1-14
Child safety ...
........................................................................\
...... 1-15
Infants ...
........................................................................\
.......... 1-15
Small children (for Coupe models) ...
............................. 1-15
Larger children ...
.................................................................. 1-16
For Roadster models ...
....................................................... 1-17
Child restraints ...
........................................................................\
1-18
Precautions on child restraints ...
..................................... 1-18 Top tether strap child restraint (for
Coupe models)
...
............................................................... 1-19
Forward-facing child restraint installation using the
seat belts (for Coupe models) ...
................................... 1-20
Installing top tether strap (for Coupe models) ...
....... 1-24
Booster seats ...
.................................................................. 1-24
Supplemental restraint system ...
........................................... 1-28
Precautions on supplemental restraint system ...
....... 1-28
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-33
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact supplemental
air bag systems ...
.............................................................. 1-38
Seat belts with pretensioners (front seats) ...
............. 1-39
Supplemental air bag warning labels ...
....................... 1-40
Supplemental air bag warning light ...
.......................... 1-40
Repair and replacement procedure ...
.......................... 1-41
Page 24 of 427
Black plate (22,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
GUID-5AA59FCF-5AAE-4C17-AFA7-074376CD08B4
SSS0133

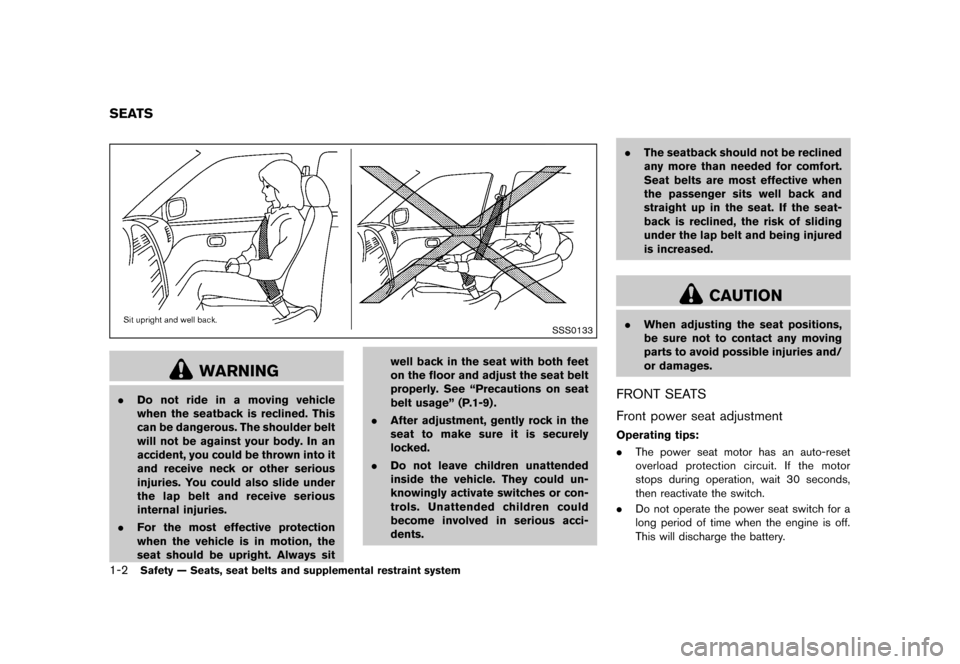

WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat belt
properly. See “Precautions on seat
belt usage” (P.1-9) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
FRONT SEATSGUID-C6067234-6222-4802-A21C-99B3011E856D
Front power seat adjustmentGUID-94CA7C16-FDB7-4D8E-9B77-534547D10839
Operating tips:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
SEATS
Page 25 of 427
Black plate (23,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SSS0928

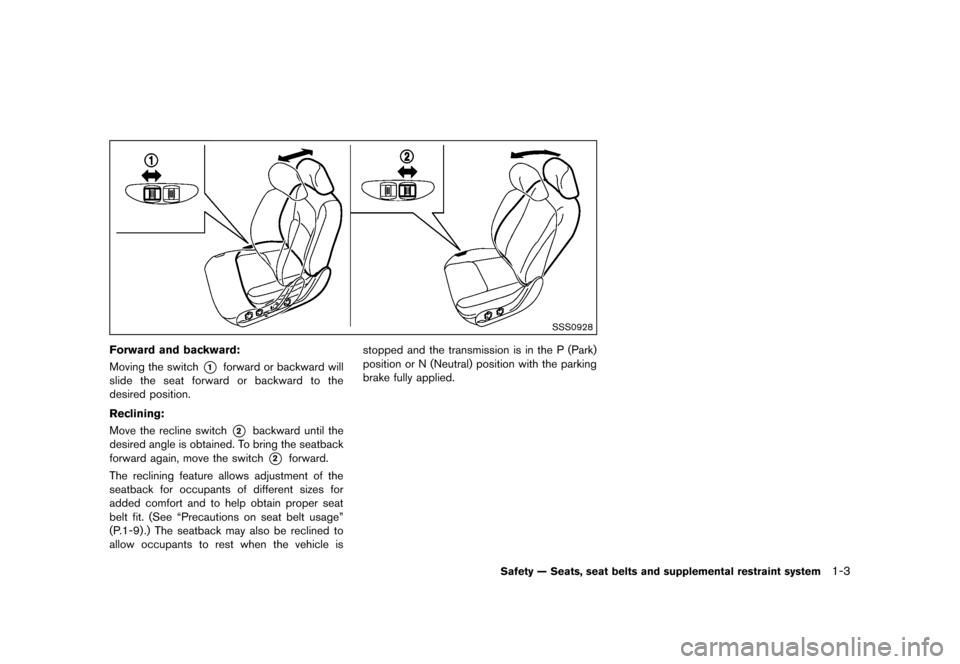

Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Move the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-9) .) The seatback may also be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Safety — Seats, seat belts and supplemental restraint system1-3
Page 26 of 427
Black plate (24,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS0394

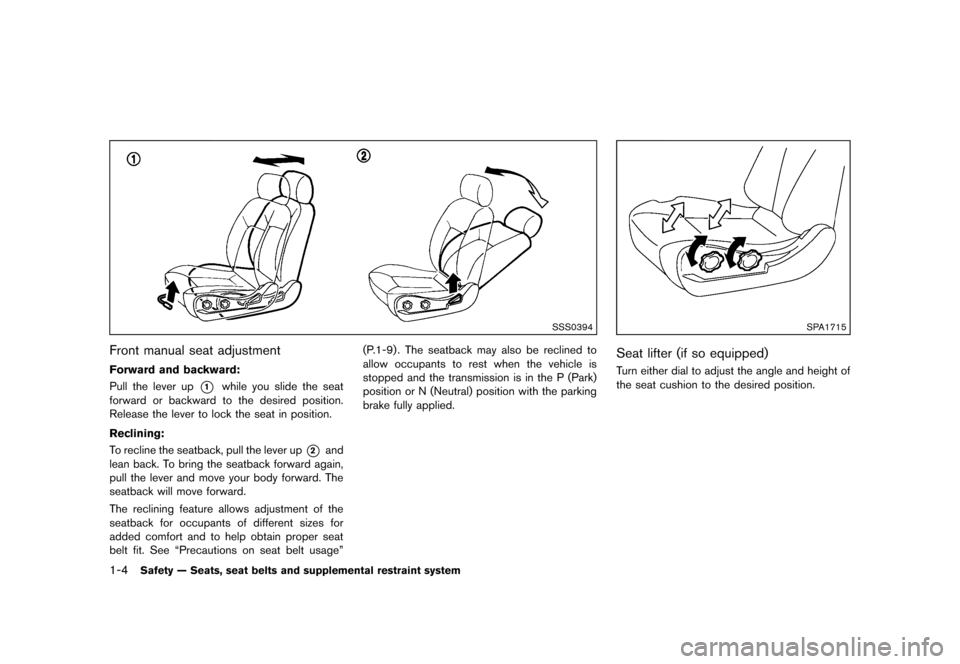

Front manual seat adjustmentGUID-017634F1-4144-4E7F-A116-2A3E82265041
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever up*1while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever up*2and
lean back. To bring the seatback forward again,
pull the lever and move your body forward. The
seatback will move forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” (P.1-9) . The seatback may also be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SPA1715
Seat lifter (if so equipped)GUID-1E5F24FB-9AF8-46E6-B5D6-1FC65C4F02ACTurn either dial to adjust the angle and height of
the seat cushion to the desired position.
Page 27 of 427
Black plate (25,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SSS0684

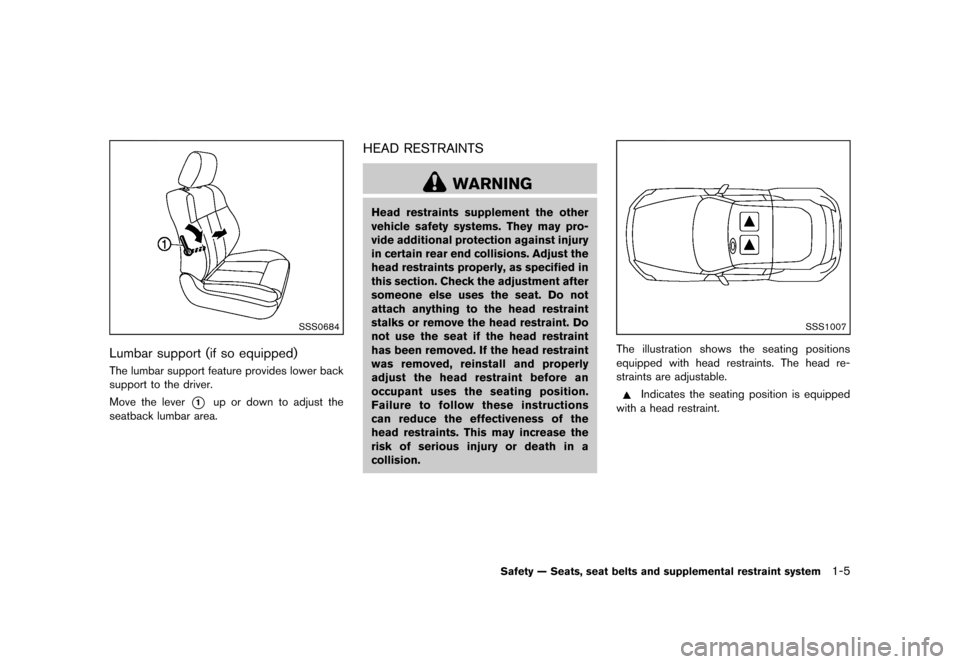

Lumbar support (if so equipped)GUID-0A5814DF-B450-4B33-A364-33910EC58FD3The lumbar support feature provides lower back
support to the driver.
Move the lever
*1up or down to adjust the
seatback lumbar area.
HEAD RESTRAINTSGUID-2AE05AEA-9085-44D8-83F0-78B6E81AA242
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, reinstall and properly
adjust the head restraint before an
occupant uses the seating position.
Failure to follow these instructions
can reduce the effectiveness of the
head restraints. This may increase the
risk of serious injury or death in a
collision.
SSS1007
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is equipped
with a head restraint.
Safety — Seats, seat belts and supplemental restraint system1-5
Page 28 of 427
Black plate (26,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0992

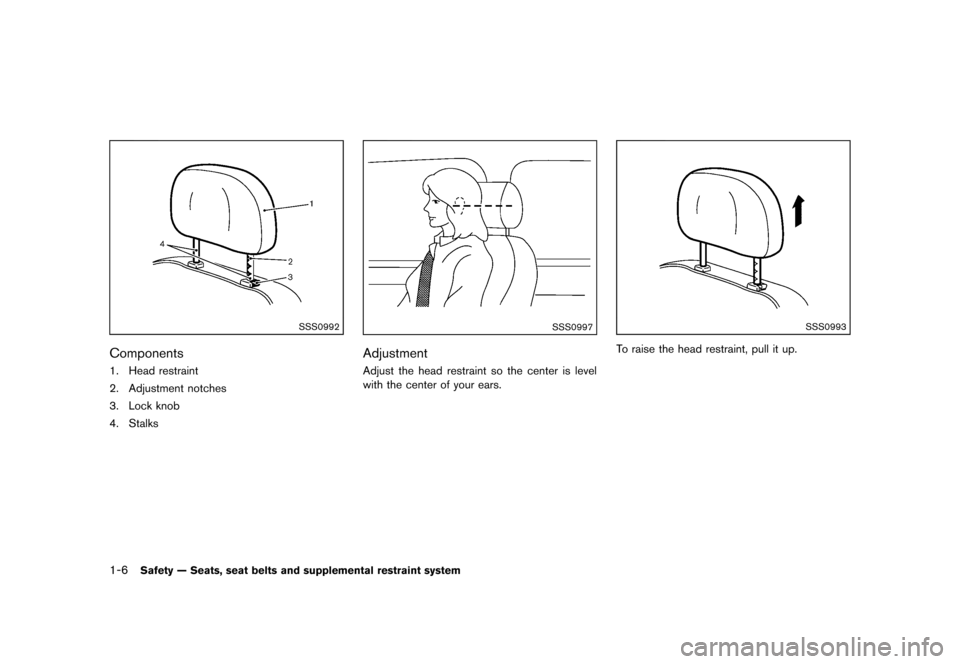

ComponentsGUID-B1205C36-6780-42F8-9197-12134298DEE81. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
SSS0997
AdjustmentGUID-C938F836-4594-4C0E-BD89-AC3175D217E2Adjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
Page 29 of 427
Black plate (27,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SSS0994

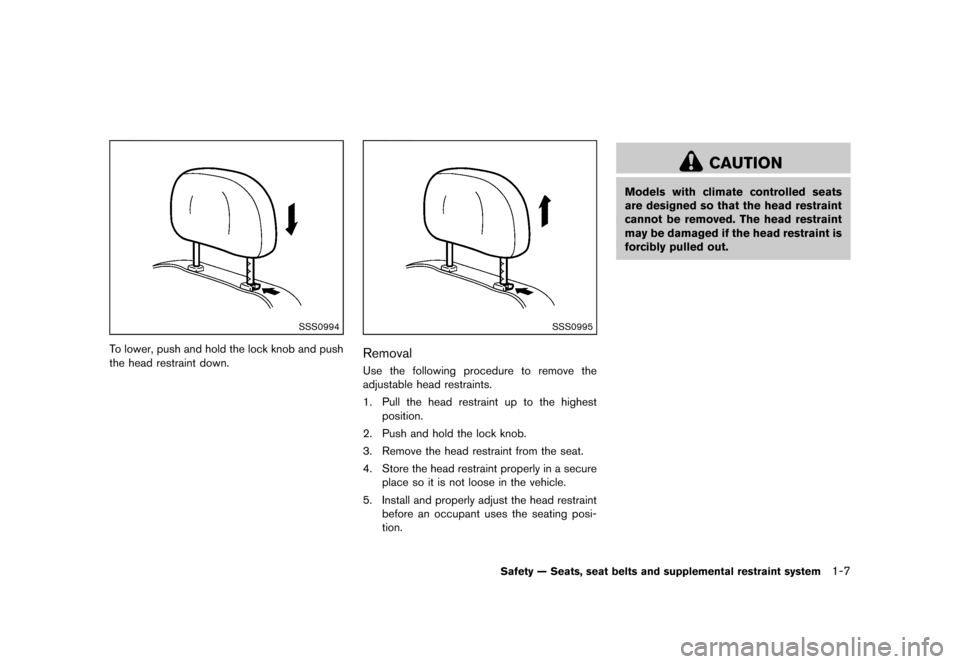

To lower, push and hold the lock knob and push
the head restraint down.
SSS0995
RemovalGUID-6830C919-3C1B-4C08-8974-1EE0A1317B7FUse the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Install and properly adjust the head restraint before an occupant uses the seating posi-
tion.
CAUTION
Models with climate controlled seats
are designed so that the head restraint
cannot be removed. The head restraint
may be damaged if the head restraint is
forcibly pulled out.
Safety — Seats, seat belts and supplemental restraint system1-7
Page 30 of 427
Black plate (28,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-8Safety — Seats, seat belts and supplemental restraint system
SSS0996

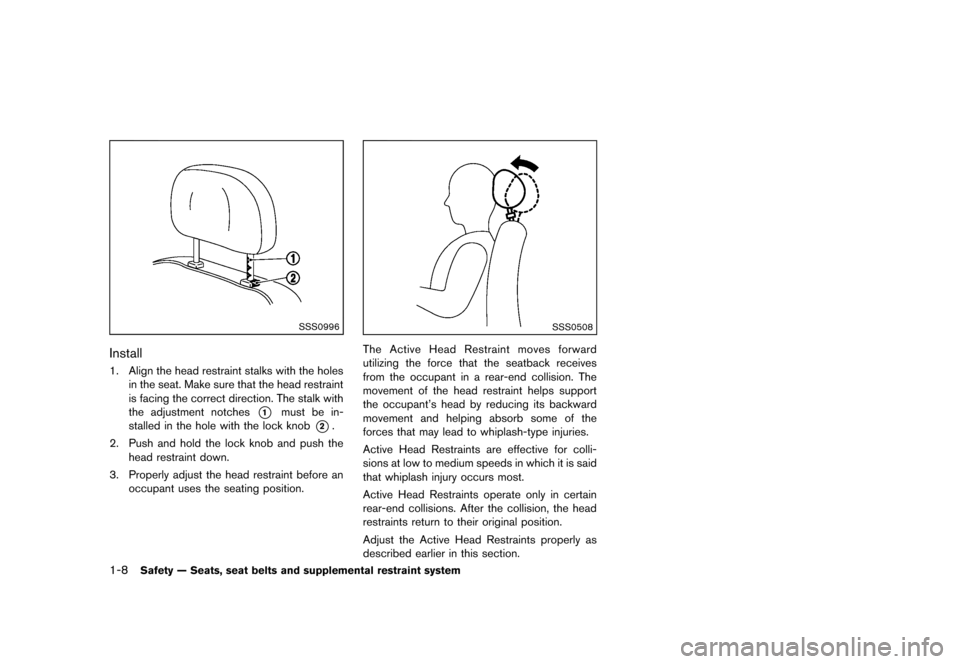

InstallGUID-CCCB2D90-71F2-4E2C-9A23-7EF9F041B52A1. Align the head restraint stalks with the holesin the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
SSS0508
The Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.
Adjust the Active Head Restraints properly as
described earlier in this section.
