air bag inflates.
. Right after inflation, several side air
bags and curtain air bag system
components will be hot. Do not
touch them; you may severely burn
yourself.
. No unauthorized changes should be
made to any components or wiring
of side air bag and curtain air bag
systems. This is to prevent acciden-
tal inflation of the side air bag and
curtain air bag or damage to side air
bag and curtain air bag systems.
. Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.
. Tampering with the air bag system
may result in serious personal in-
jury. For example, do not change the
front seats by placing material near
the seatback or by installing addi-
tional trim material, such as seat
covers, around the side air bags.
. Work around and on the side air bag
and curtain air bag systems should be done by a NISSAN dealer. In-
stallation of electrical equipment
should also be done by a NISSAN
dealer. The SRS wiring harnesses*
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the side-
impact air bag system.
*
The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats)
GUID-FDDDAA52-32AA-4A18-8F0A-ABA4C2466A02
WARNING
.The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.
. If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if necessary, replaced by a NISSAN
dealer.
. No unauthorized changes should be
made to any components or wiring
of the pretensioner system. This is
to prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
. Work around and on the preten-
sioner system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be
done by a NISSAN dealer. Un-
authorized electrical test equipment
and probing devices should not be
used on the pretensioner system.
. If you need to dispose of the
pretensioner or scrap the vehicle,
contact a NISSAN dealer. Correct
pretensioner disposal procedures
are set forth in the appropriate
NISSAN Service Manual. Incorrect
disposal procedures could cause
personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
Safety — Seats, seat belts and supplemental restraint system1-39

Black plate (60,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-40Safety — Seats, seat belts and supplemental restraint system
collisions. Working with the seat belt retractor, it
helps tighten the seat belt when the vehicle
becomes involved in certain types of collisions,
helping to restrain front seat occupants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner seat belt activates, smoke
is released and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get fresh
air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See “Supplemental air bag warning
light” (P.1-40) for more details.) If the supple-
mental air bag warning light indicates there is a
malfunction, have the system checked by a
NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the seat belt preten-
sioners and guide the buyer to the appropriate
sections in this Owner’s Manual.
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-549222CF-B492-4E1B-B5E6-20F84501EEC6Warning labels about the supplemental front-
impact air bag are placed in the vehicle as
shown in the illustration.
*1SRS air bagGUID-2F5CAC5A-23BD-4BB6-B2E5-31EFC6715046The warning labels are located on the surface of
the sun visors.
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-7D5BB605-BB36-4779-89FA-F532F2873F23The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front-impact air bag,
front seat-mounted side-impact supplemental
air bag, roof-mounted (Coupe models) or door-
mounted (Roadster models) curtain side-impact
supplemental air bag, and seat belt pretensioner
systems. The monitored circuits include the air
bag systems, pretensioners and all related
wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.

Black plate (61,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems need servicing:
.The supplemental air bag warning light
remains on approximately 7 seconds after
the ignition switch is pushed to the ON
position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-C7BC35D5-D3D0-48A1-908C-5838D89C73C1The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts should
be pointed out to the person conducting the
maintenance. The ignition switch should always
be in the LOCK position when working under
the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag, or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioner must
also be replaced. The air bag mod-
ule and pretensioner system should
be replaced by a NISSAN dealer.
The air bag module and preten-
sioner system cannot be repaired. .
The front air bag, side air bag and
curtain air bag systems and the
pretensioner system should be in-
spected by a NISSAN dealer if there
is any damage to the front end or
side portion of the vehicle.
. If you need to dispose of the
supplemental air bag or preten-
sioner systems or scrap the vehicle,
contact a NISSAN dealer. Correct
supplemental air bag and seat belt
pretensioner system disposal pro-
cedures are set forth in the appro-
priate NISSAN Service Manual.
Incorrect disposal procedures could
cause personal injury.
Safety — Seats, seat belts and supplemental restraint system1-41

Black plate (62,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
1-42Safety — Seats, seat belts and supplemental restraint system
MEMO

Black plate (63,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-7
Triple meter ...
........................................................................\
... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Operational indicators ...
..................................................... 2-18
Warnings and alerts ...
........................................................ 2-20
Maintenance indicators ...
................................................... 2-21
Trip computer ...
.................................................................... 2-22
Security systems ...
.................................................................... 2-27
Vehicle Security System ...
................................................. 2-27
NISSAN Vehicle Immobilizer System ...
.......................... 2-28
Windshield wiper and washer switch ...
............................... 2-30
Rear window defroster switch ...
............................................ 2-31
Headlight and turn signal switch ...
....................................... 2-32
Xenon headlights ...
.............................................................. 2-32 Headlight switch
...
............................................................ 2-32
Turn signal switch ...
.......................................................... 2-35
Fog light switch (if so equipped) ...
.............................. 2-35
Hazard warning flasher switch ...
........................................... 2-36
Horn ...
........................................................................\
.................. 2-36
Heated seats (if so equipped) ...
........................................... 2-37
Climate controlled seats (if so equipped) ...
...................... 2-38
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-39
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-41
Instrument pocket (except for navigation system
equipped models) ...
.......................................................... 2-41
Cup holders ...
..................................................................... 2-41
Glove box ...
........................................................................\
. 2-42
Console box ...
.................................................................... 2-42
Rear parcel box ...
.............................................................. 2-43
Cargo cover (if so equipped) ...
..................................... 2-43
Windows ...
........................................................................\
......... 2-44
Power windows ...
.............................................................. 2-44
Interior lights ...
........................................................................\
... 2-47
Map lights ...
........................................................................\
2-47
Interior light control switch ...
.......................................... 2-47
Vanity mirror lights ...
................................................................. 2-48
Cargo area courtesy light (Roadster models) ...
............... 2-49
Cargo light (Coupe models) ...
.............................................. 2-49>

Black plate (64,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Trunk light (Roadster models)...
............................................ 2-49
HomeLink®Universal Transceiver (Type A) (if
so equipped) ...
........................................................................\
... 2-50
Programming HomeLink
®...
............................................... 2-50
Programming HomeLink®for
Canadian customers ...
........................................................ 2-52
Operating the HomeLink
®Universal Transceiver ...
..... 2-52
Programming trouble-diagnosis ...
.................................... 2-52
Clearing the programmed information ...
........................ 2-53
Reprogramming a single HomeLink
®button ...
............ 2-53
If your vehicle is stolen ...
................................................... 2-53 HomeLink
®Universal Transceiver (Type B)
(if so equipped) ...
..................................................................... 2-54
Programming HomeLink
®...
............................................. 2-54
Programming HomeLink®for Canadian customers
and gate openers ...
........................................................... 2-56
Operating the HomeLink
®
Universal Transceiver ...
.................................................... 2-56
Programming troubleshooting ...
..................................... 2-57
Clearing the programmed information ...
...................... 2-57
Reprogramming a single HomeLink
®button ...
.......... 2-57
If your vehicle is stolen ...
................................................. 2-57

Black plate (65,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-DACA7269-B34B-4621-8C57-828D42730C1C
SSI0652
1. Vehicle Dynamic Control (VDC) OFF switch(P.5-28)
2. Headlight, fog light and turn signal switch (P.2-32)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8)
5. Windshield wiper and washer switch (P.2-30) 6. Hood release handle (P.3-16)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)
9. Steering-wheel-mounted controls (left side)
— Menu control switch or tuning switch
(P.4-74)
— BACK switch (P.4-74) — Phone switch (if so equipped) (P.4-77)
— Volume control switches (P.4-74)
— Source select switch (P.4-74)
10. Tilt steering lever (P.3-36)
11. Steering wheel — Horn (P.2-36)
— Driver supplemental air bag (P.1-28)
12. Steering-wheel-mounted controls (right side)
— Cruise control switches (P.5-21)
13. Selector lever for automatic transmission (P.5-12)/Shift lever for manual transmission
(P.5-16)
14. Parking brake (P.5-21)
Instruments and controls2-3

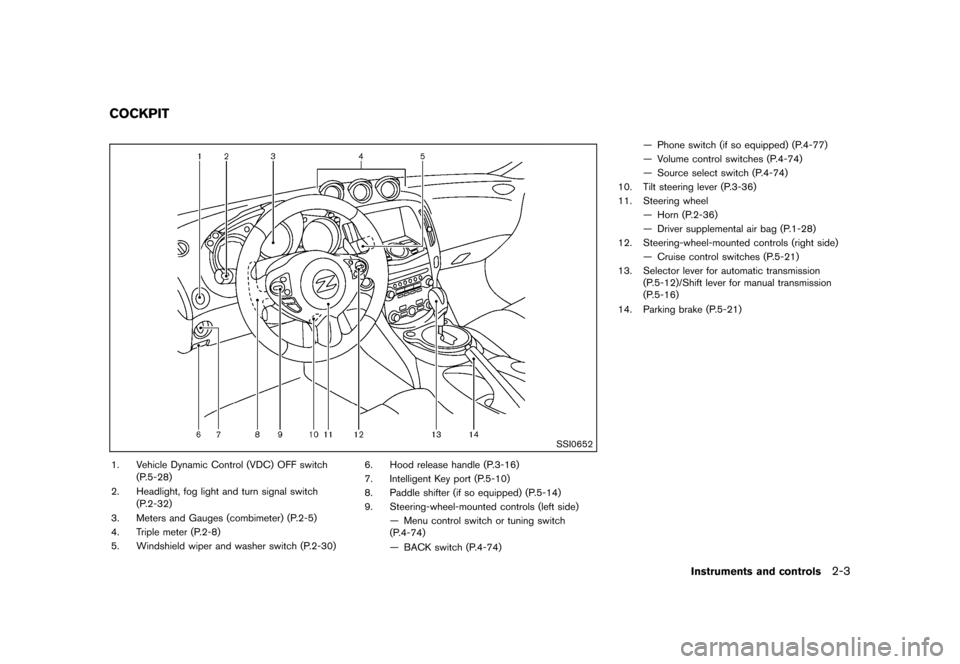

COCKPIT

Black plate (66,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-4Instruments and controls
GUID-354CD56D-BD15-4FBC-90E5-D8EA13355C2F
SSI0653
1. Ventilator (P.4-24)
2. Center display and multi-function control panel(if so equipped) (P.4-3) or Instrument pocket (if
so equipped) (P.2-41)
— Navigation system* (if so equipped)
— Vehicle information and setting buttons (if so
equipped) (P.4-7) — Bluetooth®Hands-Free Phone System (if so
equipped) (P.4-77, P.4-88)
3. Front passenger air bag status light (P.1-33)
4. Front passenger supplemental air bag (P.1-28)
5. Fuse box cover (P.8-23)
6. Push-button ignition switch (P.5-8)
7. Hazard warning flasher switch (P.2-36) 8. Seat heater switch (if so equipped) (P.2-37) or
Climate controlled seat switch (if so equipped)
(P.2-38)
9. Soft top operating switch (for Roadster models) (P.3-21)
10. SynchroRev Match mode (S-MODE) switch (if so equipped) (P.5-17)
11. Heater and air conditioner (P.4-24) — Rear window defroster switch (P.2-31)
12. Audio system (P.4-31)
13. Power outlet (P.2-40)
14. Glove box (P.2-42)
*: Refer to the separate Navigation System
Owner’s Manual.
INSTRUMENT PANEL

Black plate (67,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-278D386A-E7FF-4693-9355-A651D337A72C
SSI0509
1. ENTER/NEXT switch (P.2-22)
2. Fuel gauge (P.2-7)
3. Warning/Indicator lights (P.2-9)
4. Tachometer (P.2-6)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-35)
7. Vehicle information display (P.2-17)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-16)
— SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-8)
14. Clock (P.2-8, P.2-25)
Instruments and controls2-5

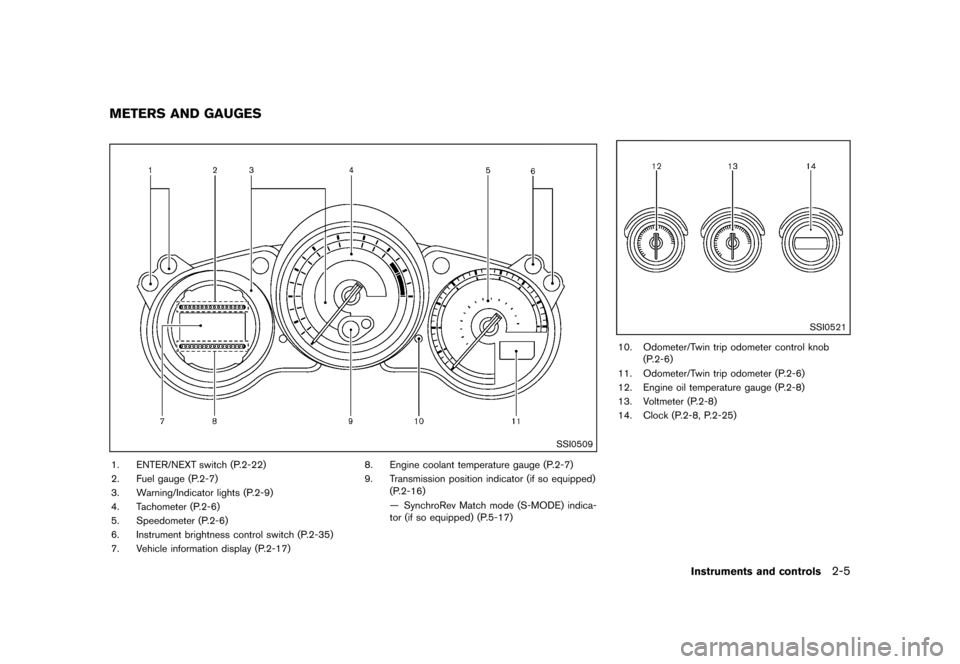

METERS AND GAUGES

Black plate (68,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-6Instruments and controls
SIC3973

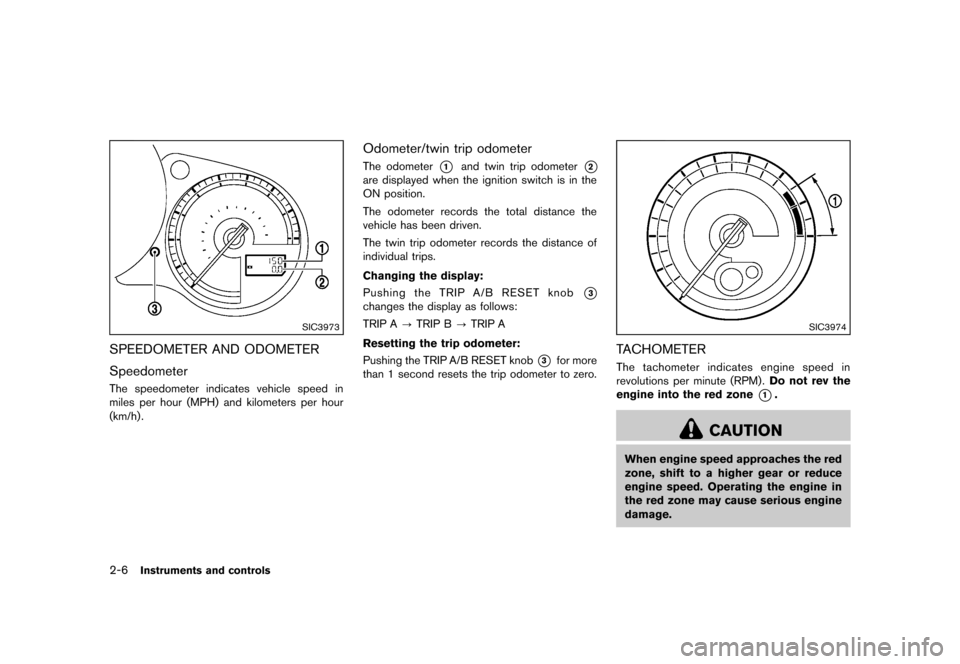

SPEEDOMETER AND ODOMETERGUID-93CE6073-278E-4C4D-BC4E-35570E774ACE
SpeedometerGUID-08F72CE7-EB0D-4E47-9EB4-124017502CD5The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
Odometer/twin trip odometerGUID-69490912-23C9-4D2E-A755-B281FE0D418EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3
changes the display as follows:
TRIP A?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET knob*3for more
than 1 second resets the trip odometer to zero.
SIC3974
TACHOMETERGUID-F3C55EE6-1677-452A-BD8F-55CD280C88A3The tachometer indicates engine speed in
revolutions per minute (RPM) . Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
