NISSAN 370Z COUPE 2014 Z34 Owners Manual

NISSAN 370Z COUPE 2014 Z34 Owners Manual https://www.carmanualsonline.info/img/5/356/w960_356-0.png NISSAN 370Z COUPE 2014 Z34 Owners Manual

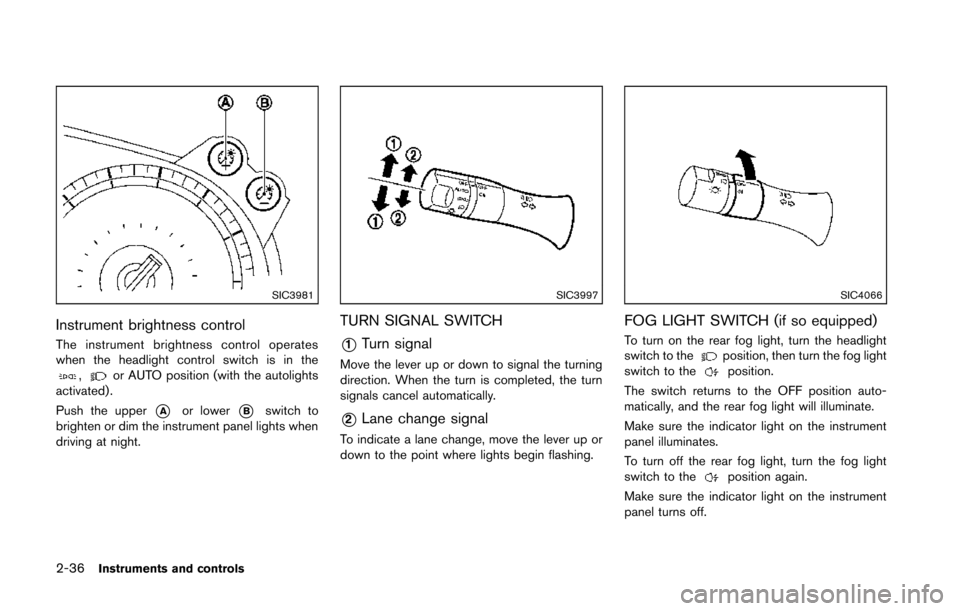

Page 101 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 2-36Instruments and controls
SIC3981
Instrument brightness control
The instrument brightness control operates
when the headlight control switch is in the
,or AUTO position (with the autolights
activat

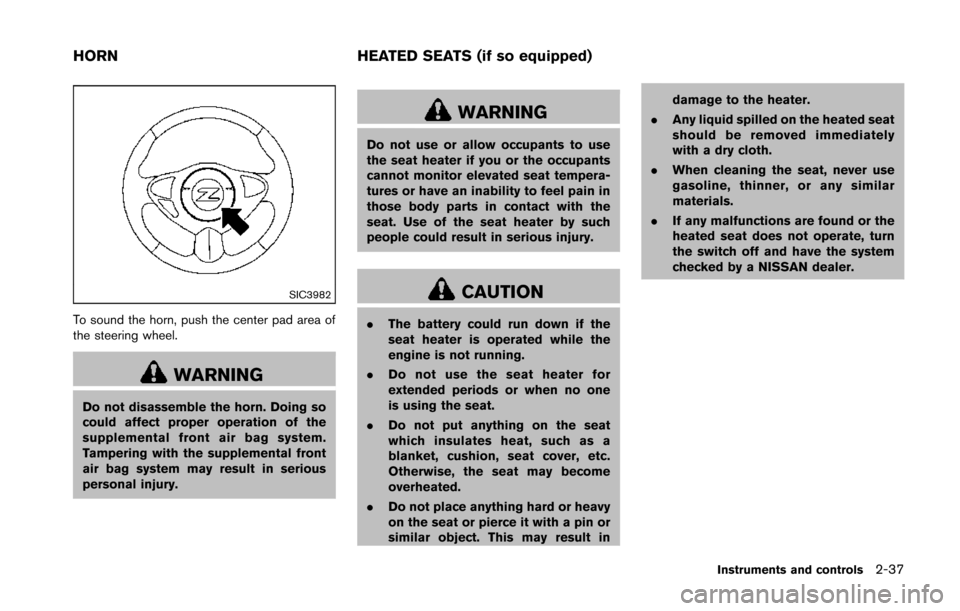

Page 102 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual SIC3982
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tamperi

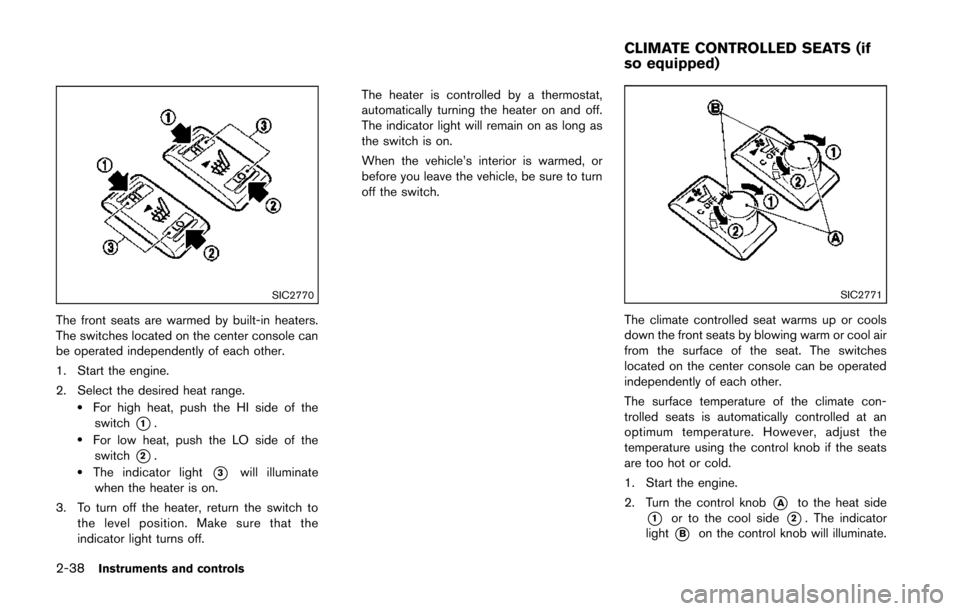

Page 103 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 2-38Instruments and controls
SIC2770
The front seats are warmed by built-in heaters.
The switches located on the center console can
be operated independently of each other.
1. Start the engine.
2. Sel

Page 104 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 3. Adjust the desired amount of the air usingthe control knob
*A.
4. When the vehicle’s interior is warmed or cooled, and/or before you leave the vehicle,
be sure to turn the control knob to the OFF

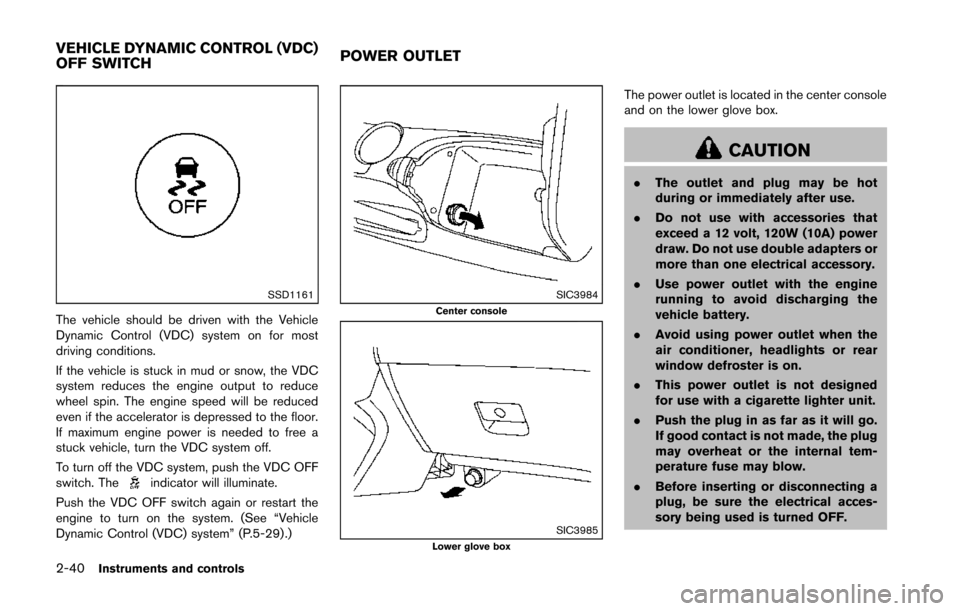

Page 105 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 2-40Instruments and controls
SSD1161
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system r

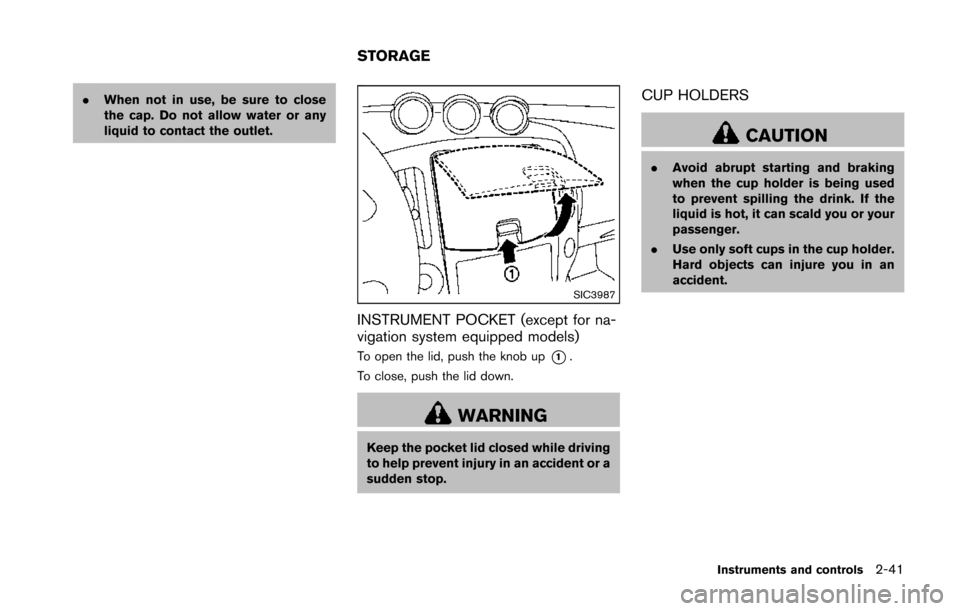

Page 106 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual .When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
SIC3987
INSTRUMENT POCKET (except for na-
vigation system equipped models)
To open the lid, push the

Page 107 of 428

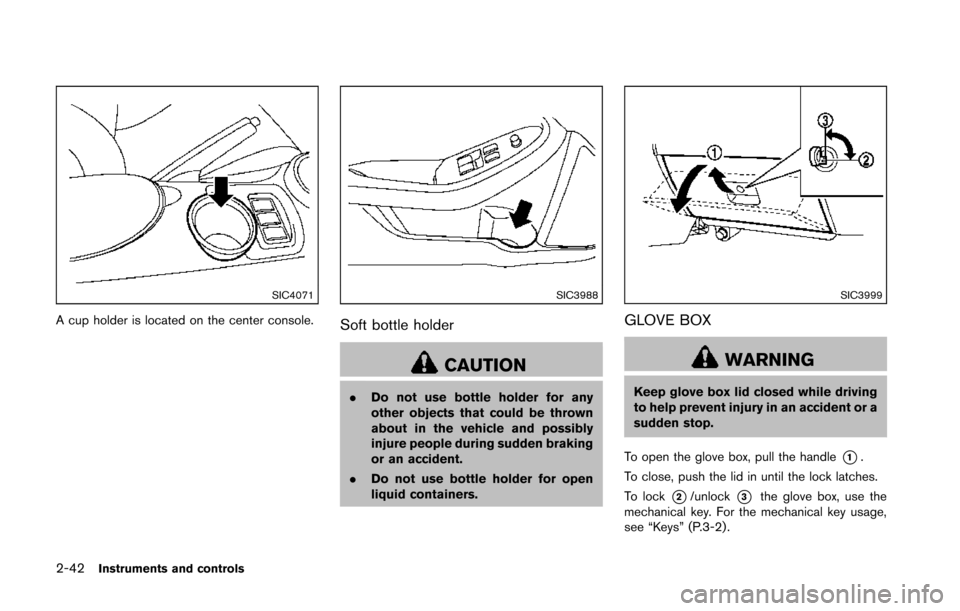

NISSAN 370Z COUPE 2014 Z34 Owners Manual 2-42Instruments and controls
SIC4071
A cup holder is located on the center console.
SIC3988
Soft bottle holder
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the

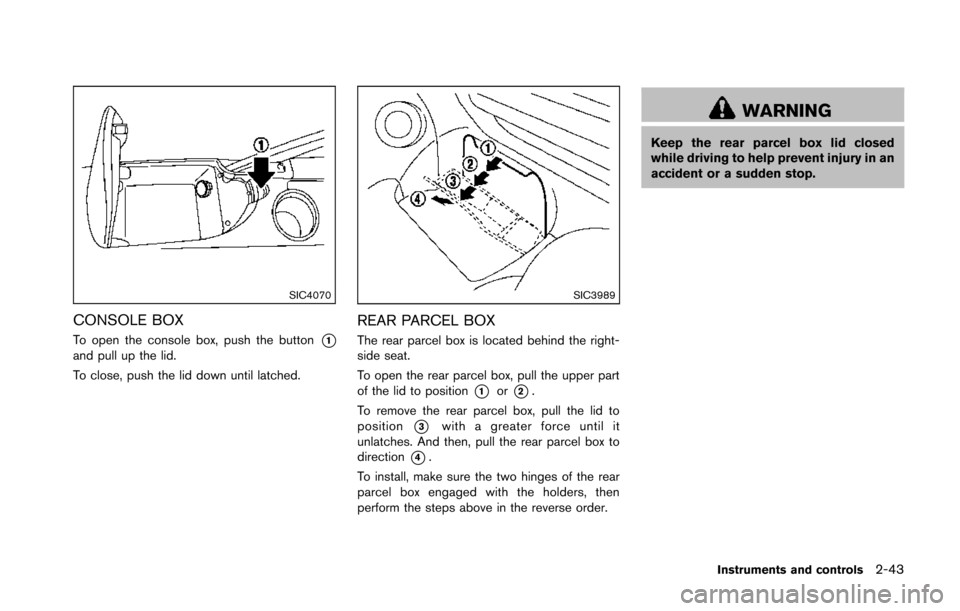

Page 108 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual SIC4070
CONSOLE BOX
To open the console box, push the button*1and pull up the lid.
To close, push the lid down until latched.
SIC3989
REAR PARCEL BOX
The rear parcel box is located behind the right-
s

Page 109 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 2-44Instruments and controls
SIC4026
CARGO COVER (if so equipped)
The cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides

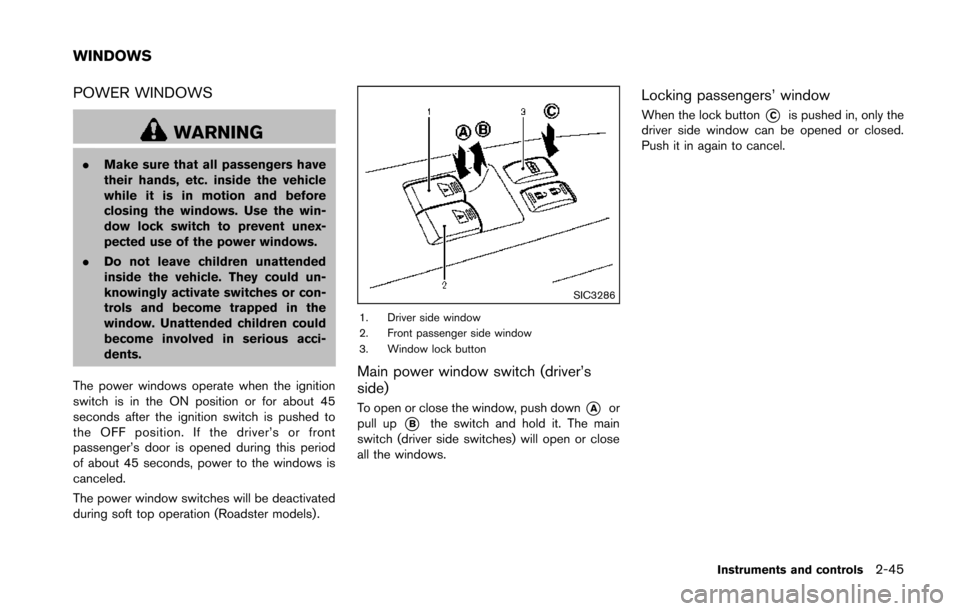

Page 110 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual POWER WINDOWS
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pecte
