Page 381 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8-28Maintenance and do-it-yourself

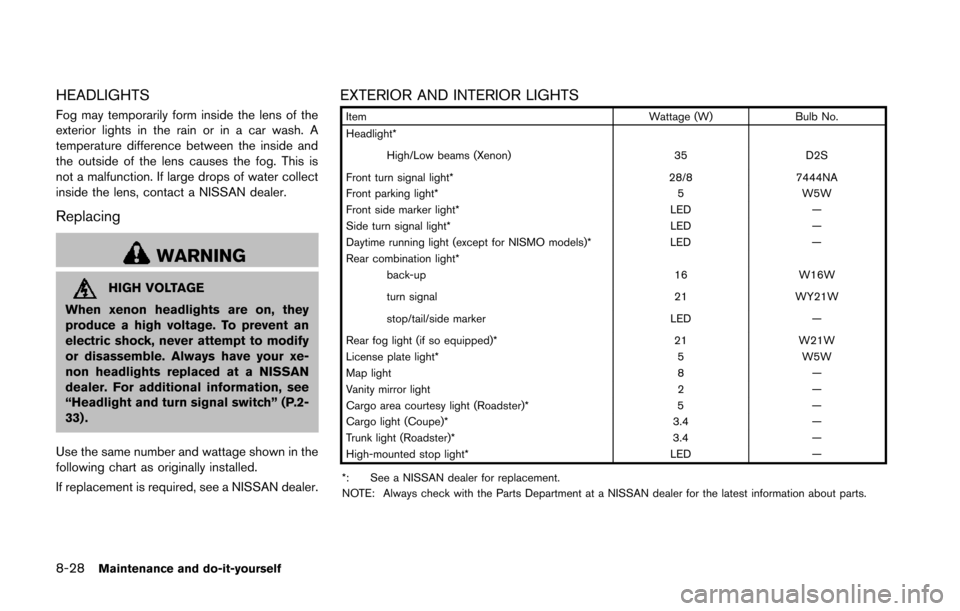

HEADLIGHTS
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside

Page 382 of 428

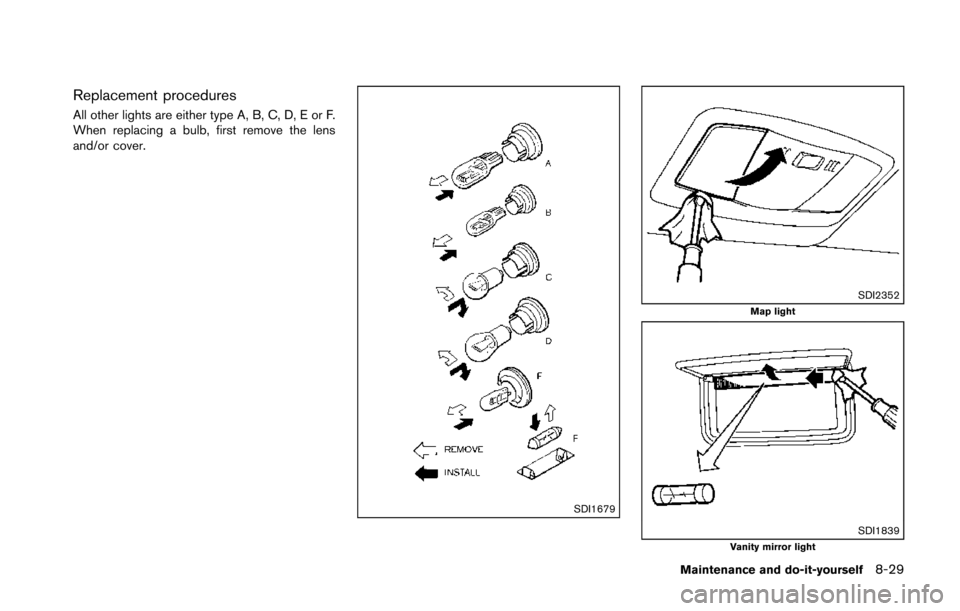

NISSAN 370Z COUPE 2014 Z34 Owners Manual Replacement procedures
All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2352Map light
SDI1839Vanity mirror light
Maintenance a

Page 383 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8-30Maintenance and do-it-yourself

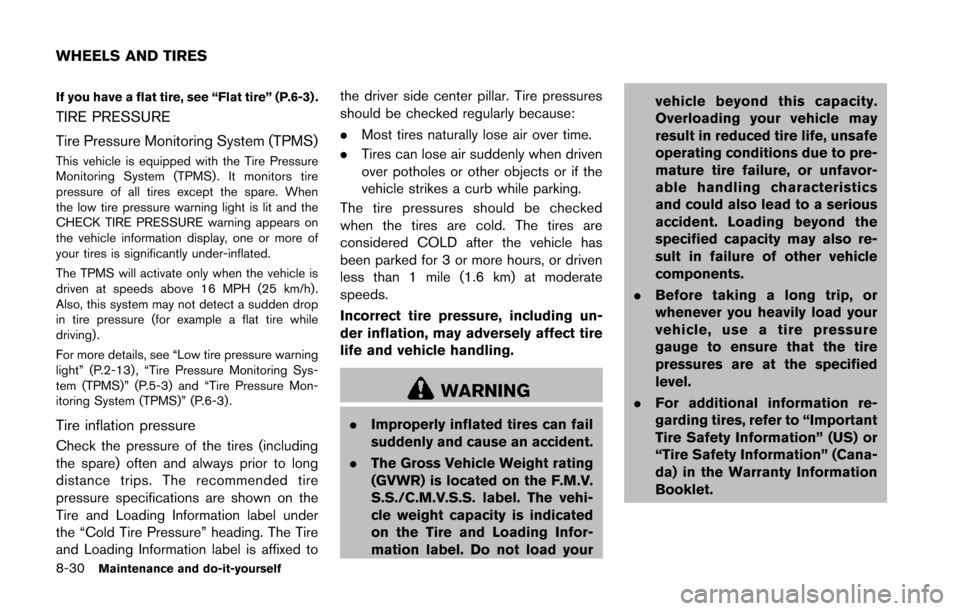

If you have a flat tire, see “Flat tire” (P.6-3) .
TIRE PRESSURE
Tire Pressure Monitoring System (TPMS)
This vehicle is equipped with the Tire Pressure
Monitorin

Page 384 of 428

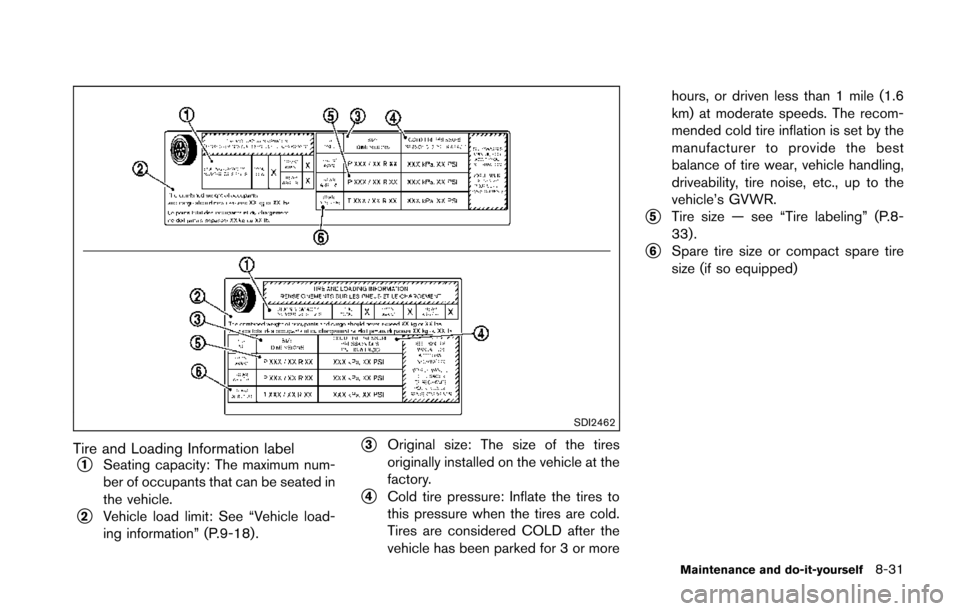

NISSAN 370Z COUPE 2014 Z34 Owners Manual SDI2462
Tire and Loading Information label*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” (P.9-18

Page 385 of 428

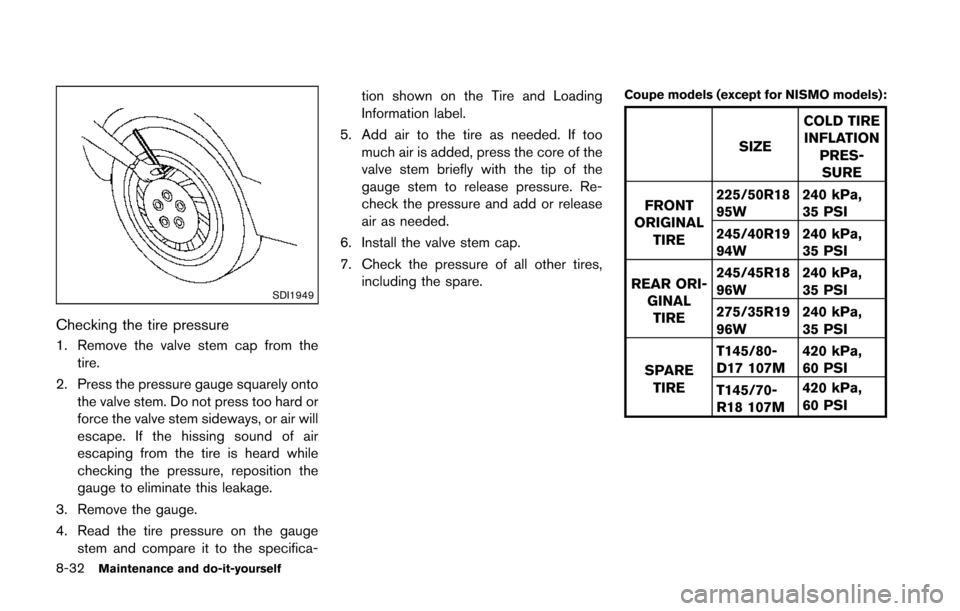

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8-32Maintenance and do-it-yourself
SDI1949
Checking the tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too hard or
forc

Page 386 of 428

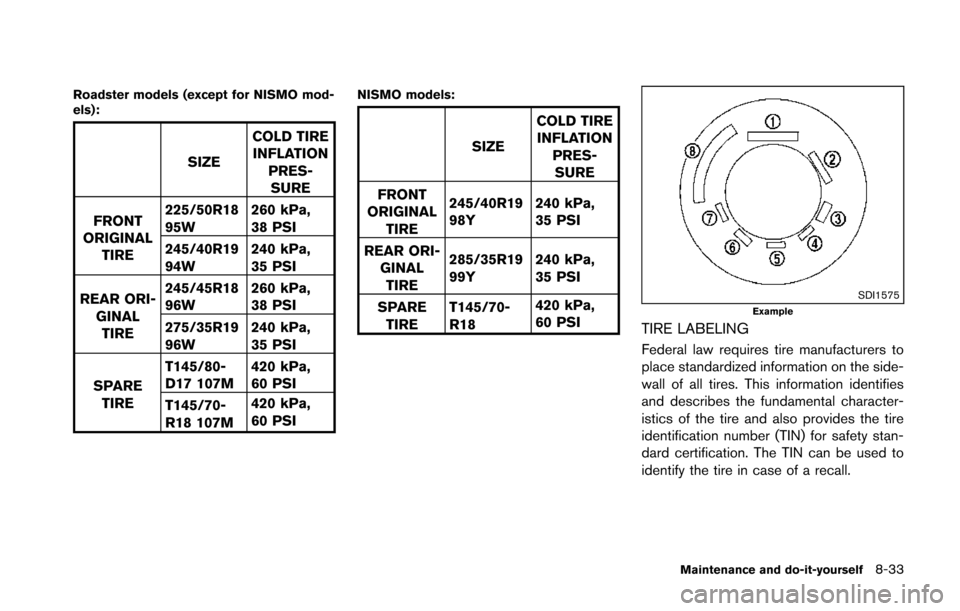

NISSAN 370Z COUPE 2014 Z34 Owners Manual Roadster models (except for NISMO mod-
els):
SIZECOLD TIRE
INFLATION
PRES-SURE
FRONT
ORIGINAL TIRE 225/50R18
95W
260 kPa,
38 PSI
245/40R19
94W 240 kPa,
35 PSI
REAR ORI- GINAL
TIRE 245/45R18
96W
260 kP

Page 387 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8-34Maintenance and do-it-yourself

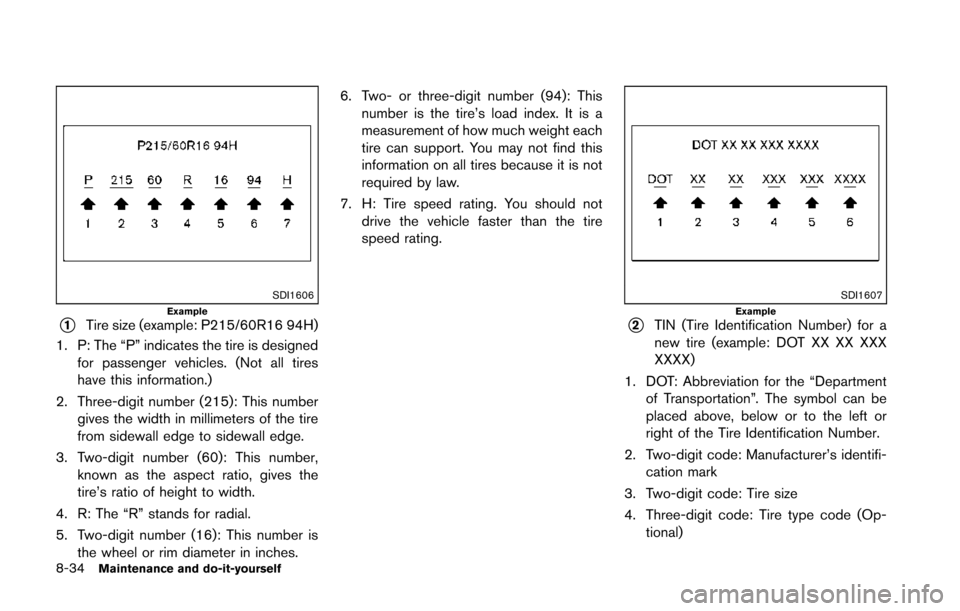

SDI1606Example*1Tire size (example: P215/60R16 94H)
1. P: The “P” indicates the tire is designed for passenger vehicles. (Not all tires
have this information.)
2

Page 388 of 428

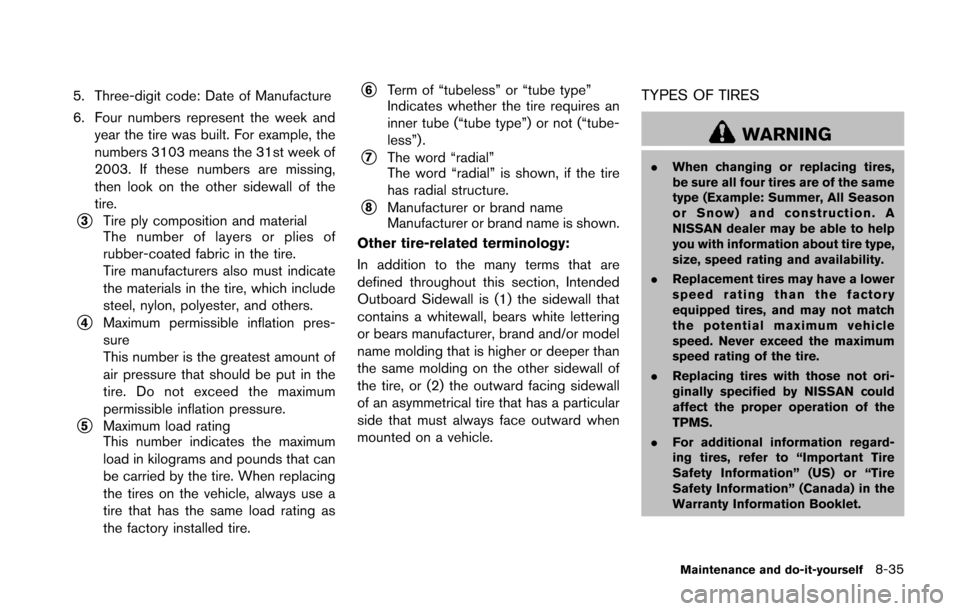

NISSAN 370Z COUPE 2014 Z34 Owners Manual 5. Three-digit code: Date of Manufacture
6. Four numbers represent the week andyear the tire was built. For example, the
numbers 3103 means the 31st week of
2003. If these numbers are missing,
then lo

Page 389 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8-36Maintenance and do-it-yourself

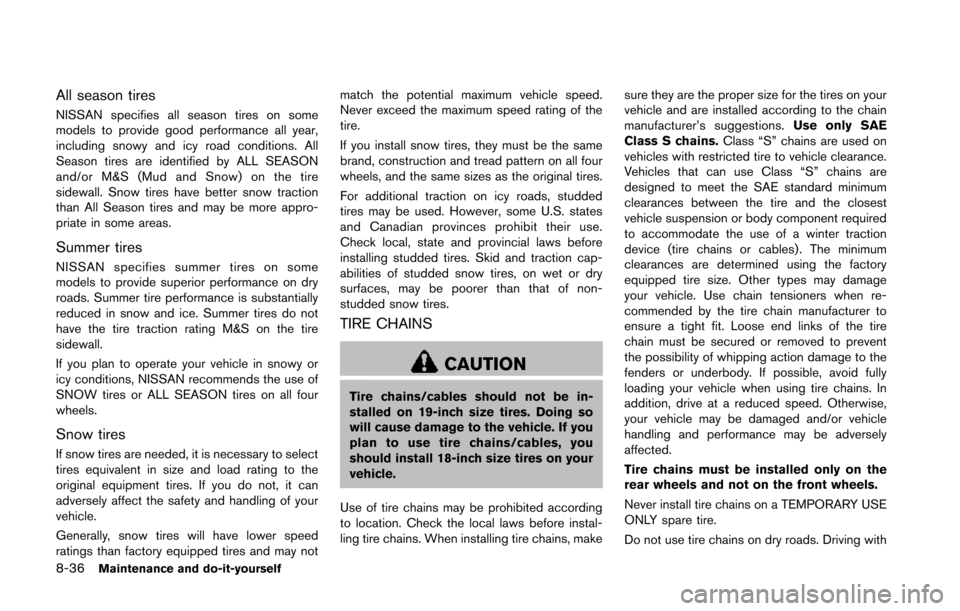

All season tires
NISSAN specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are

Page 390 of 428

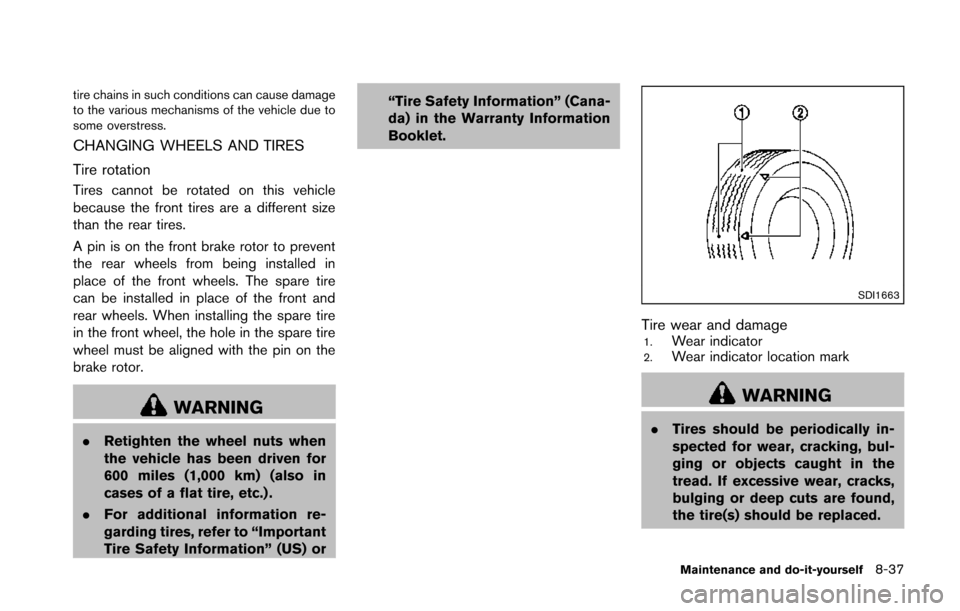

NISSAN 370Z COUPE 2014 Z34 Owners Manual tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.
CHANGING WHEELS AND TIRES
Tire rotation
Tires cannot be rotated on this vehicle
because
