Page 401 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 9-8Technical and consumer information

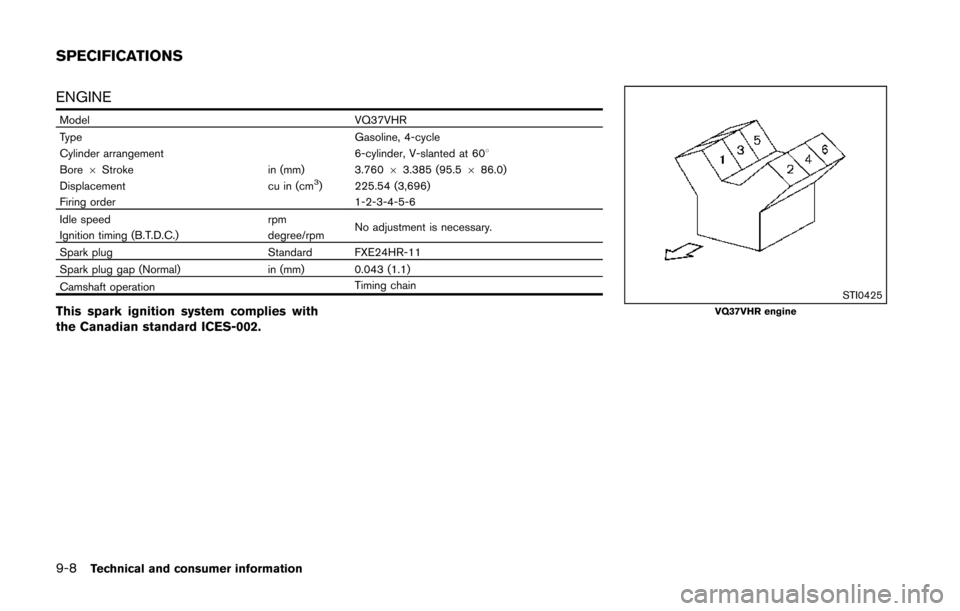

ENGINE
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.76063.385 (95.5 686.0)
Displacement cu in (cm

Page 402 of 428

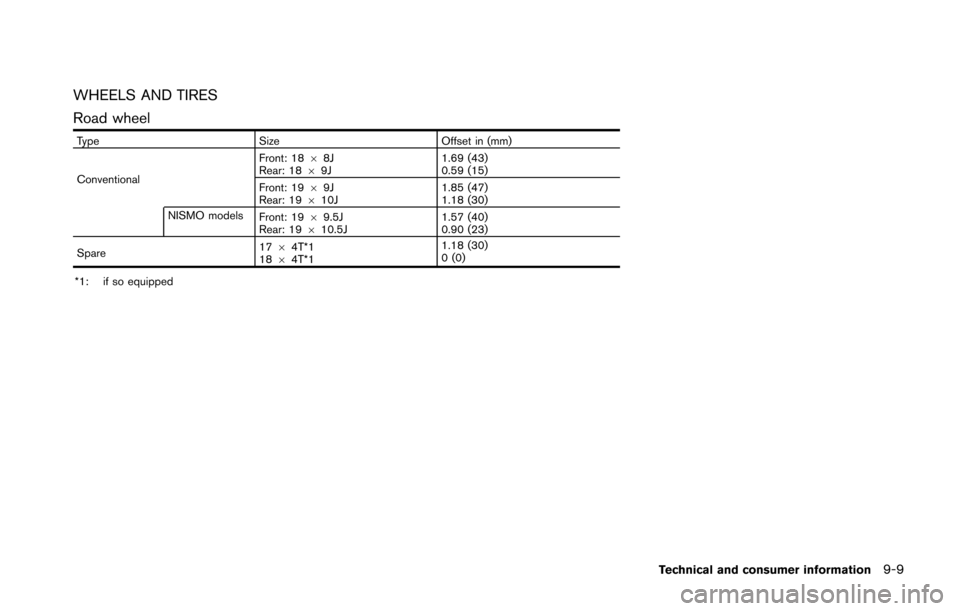

NISSAN 370Z COUPE 2014 Z34 Owners Manual WHEELS AND TIRES
Road wheel
TypeSize Offset in (mm)
Conventional Front: 18
68J
Rear: 18 69J 1.69 (43)
0.59 (15)
Front: 19 69J
Rear: 19 610J 1.85 (47)
1.18 (30)
NISMO models Front: 1969.5J
Rear: 19 610

Page 403 of 428

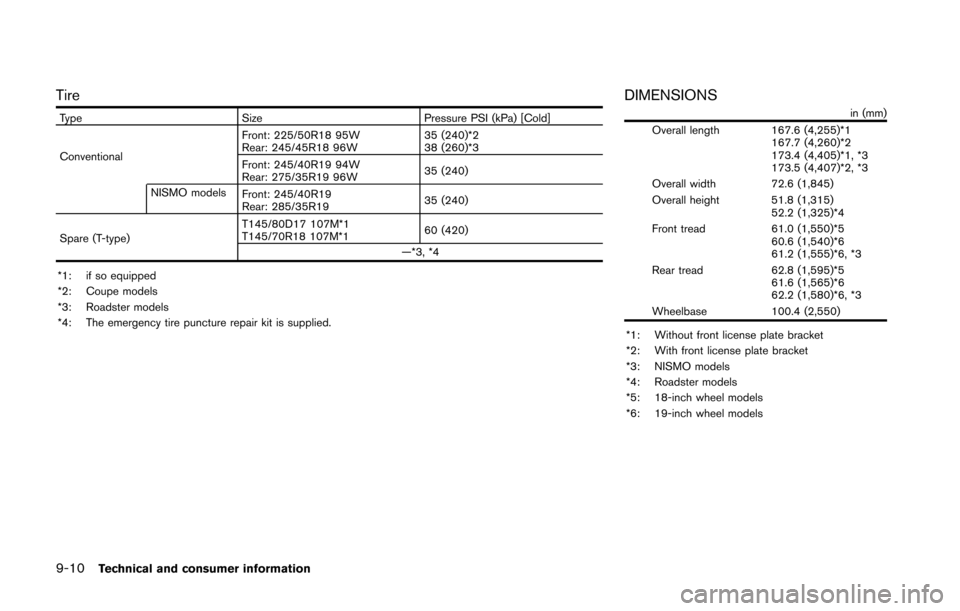

NISSAN 370Z COUPE 2014 Z34 Owners Manual 9-10Technical and consumer information
Tire
TypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18 95W
Rear: 245/45R18 96W
35 (240)*2
38 (260)*3
Front: 245/40R19 94W
Rear: 275/35R19 96W 35 (

Page 404 of 428

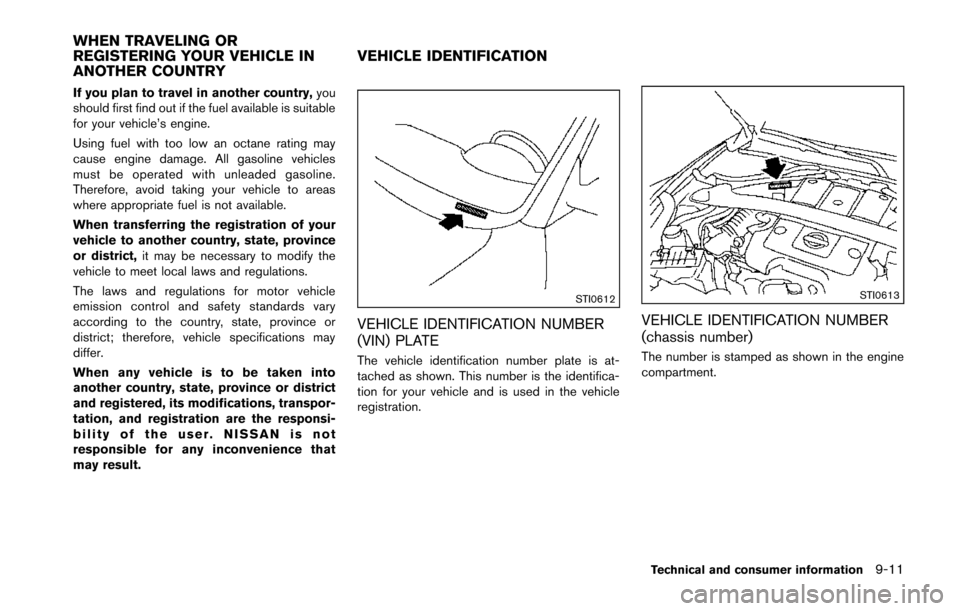

NISSAN 370Z COUPE 2014 Z34 Owners Manual If you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All

Page 405 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 9-12Technical and consumer information
STI0509

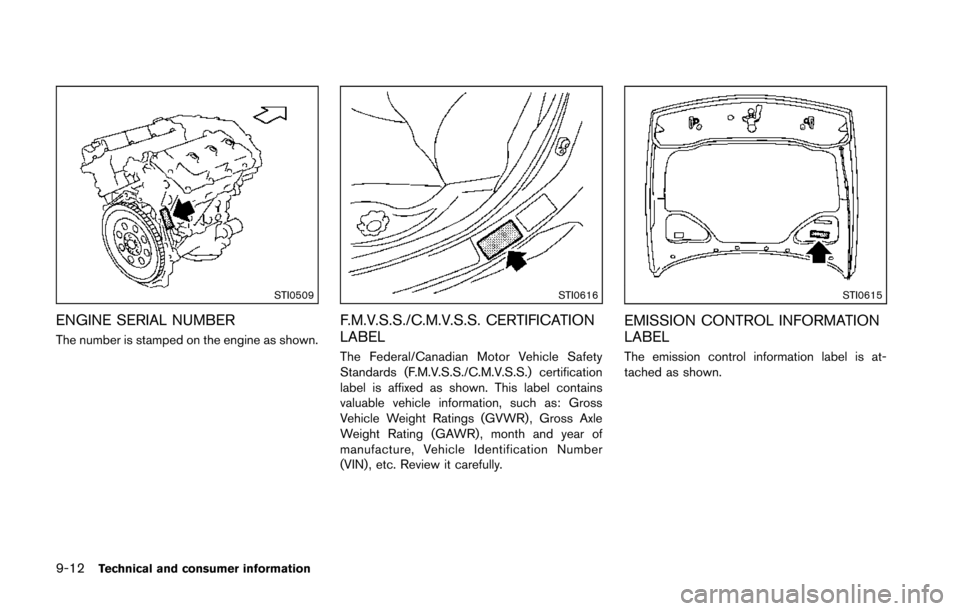

ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
STI0616
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle S

Page 406 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual STI0614

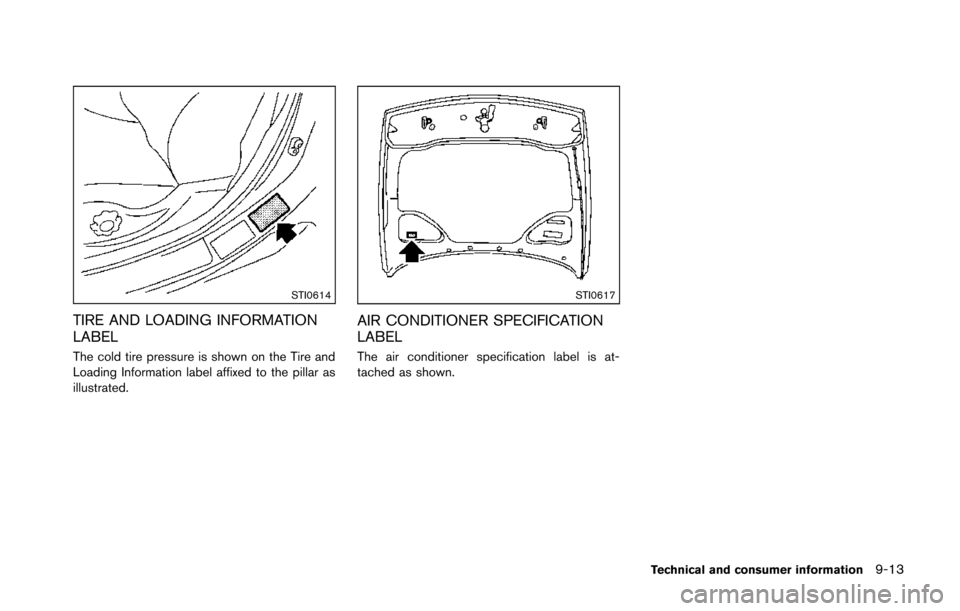

TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABEL
T

Page 407 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 9-14Technical and consumer information
STI0618

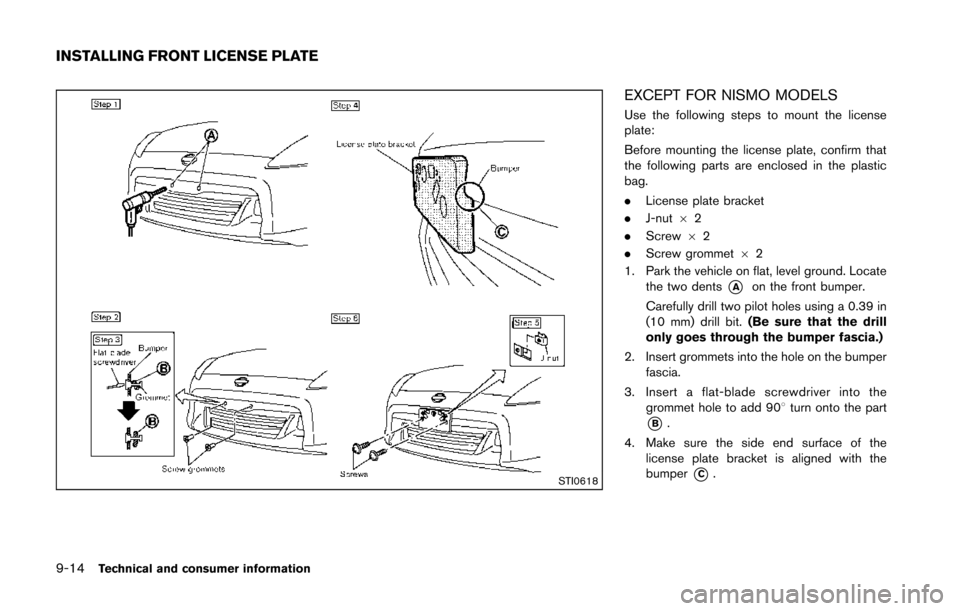

EXCEPT FOR NISMO MODELS
Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclo

Page 408 of 428

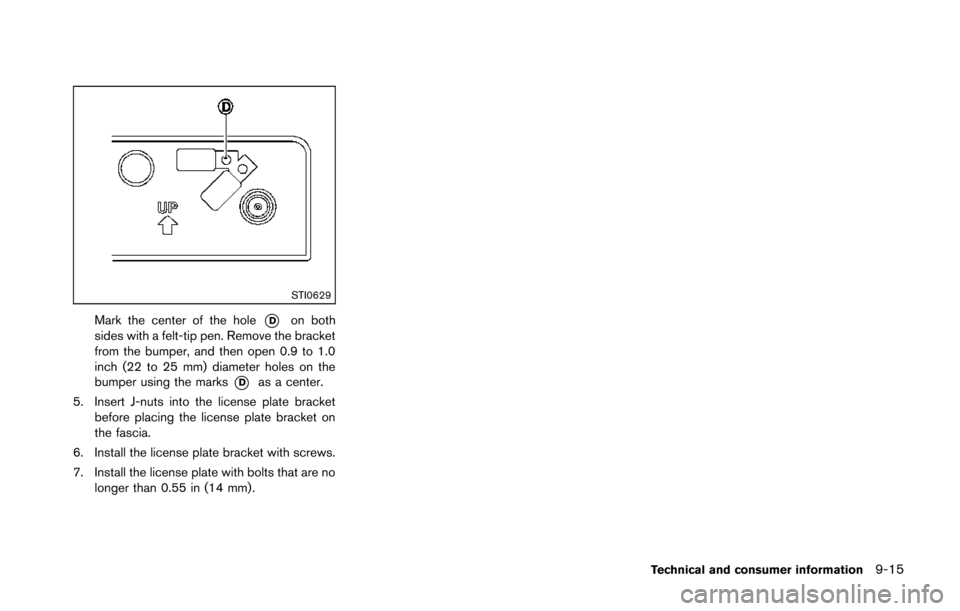

NISSAN 370Z COUPE 2014 Z34 Owners Manual STI0629
Mark the center of the hole*Don both
sides with a felt-tip pen. Remove the bracket
from the bumper, and then open 0.9 to 1.0
inch (22 to 25 mm) diameter holes on the
bumper using the marks
*Da

Page 409 of 428

NISSAN 370Z COUPE 2014 Z34 Owners Manual 9-16Technical and consumer information
STI0650

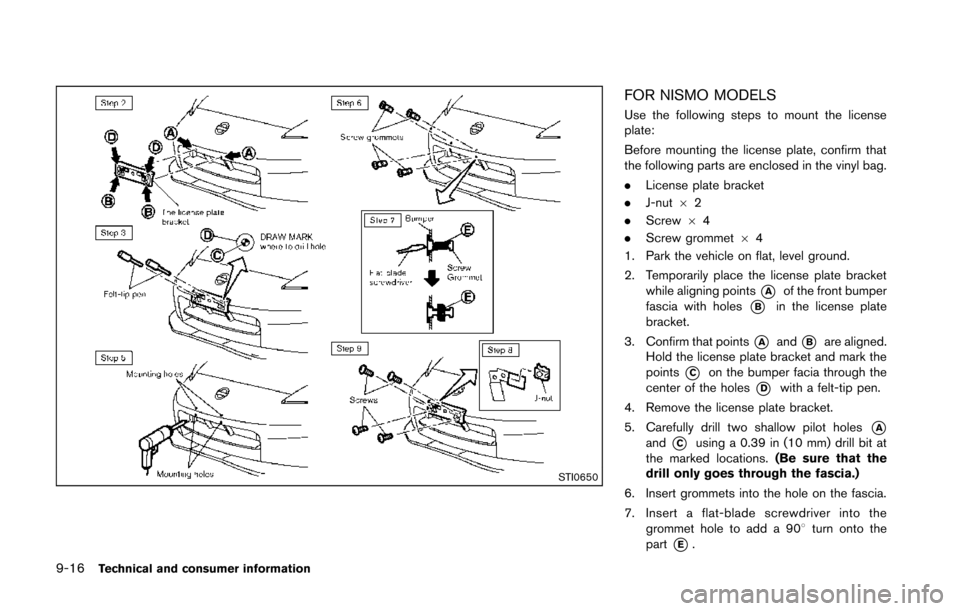

FOR NISMO MODELS
Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in

Page 410 of 428

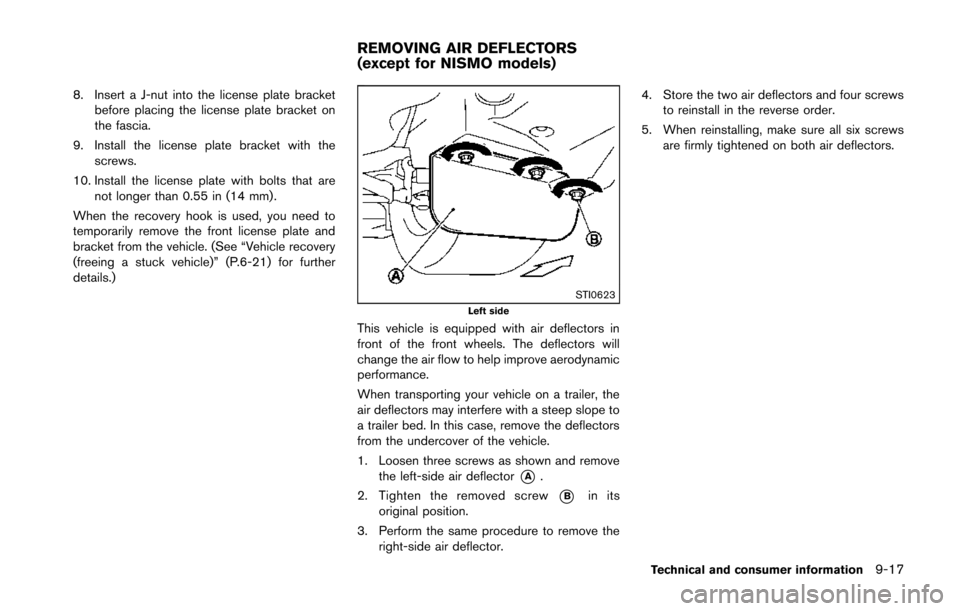

NISSAN 370Z COUPE 2014 Z34 Owners Manual 8. Insert a J-nut into the license plate bracketbefore placing the license plate bracket on
the fascia.
9. Install the license plate bracket with the screws.
10. Install the license plate with bolts t
