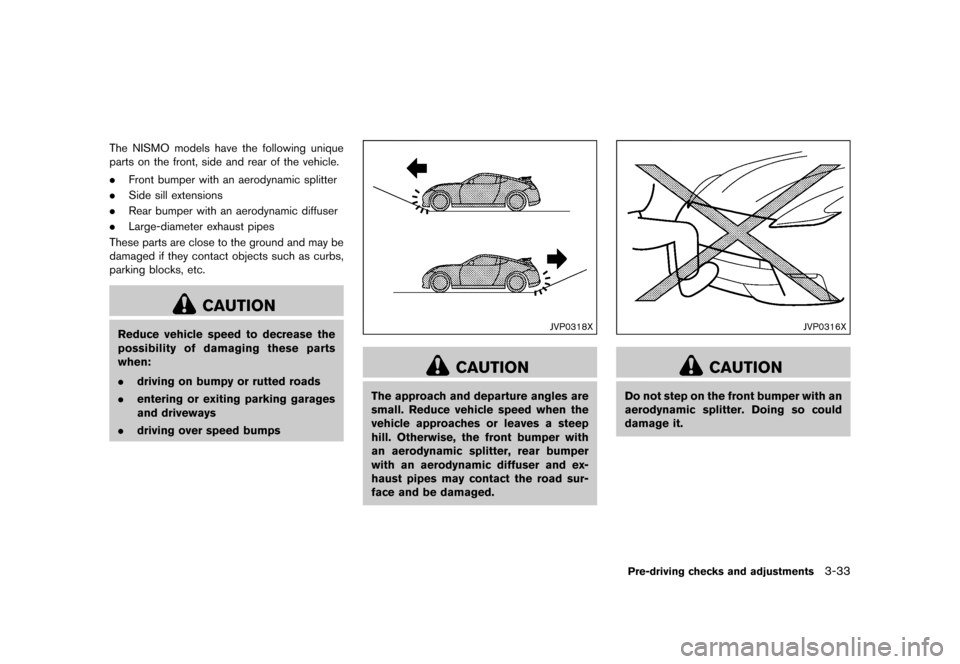

The NISMO models have the following unique
parts on the front, side and rear of the vehicle.
.Front bumper with an aerodynamic splitter
. Side sill extensions
. Rear bumper with an aerodynamic diffuser
. Large-diameter exhaust pipes
These parts are close to the ground and may be
damaged if they contact objects such as curbs,
parking blocks, etc.
CAUTION
Reduce vehicle speed to decrease the
possibility of damaging these parts
when:
. driving on bumpy or rutted roads
. entering or exiting parking garages
and driveways
. driving over speed bumpsJVP0318X
CAUTION
The approach and departure angles are
small. Reduce vehicle speed when the
vehicle approaches or leaves a steep
hill. Otherwise, the front bumper with
an aerodynamic splitter, rear bumper
with an aerodynamic diffuser and ex-
haust pipes may contact the road sur-
face and be damaged.
JVP0316X
CAUTION
Do not step on the front bumper with an
aerodynamic splitter. Doing so could
damage it.
Pre-driving checks and adjustments3-33
& R Q G L W L R Q
Page 152 of 419
> ( G L W 0 R G H O = ' @
3-34Pre-driving checks and adjustments
GUID-F2B665C4-5BB7-4D57-9808-7F75A71E5098
SPA2581

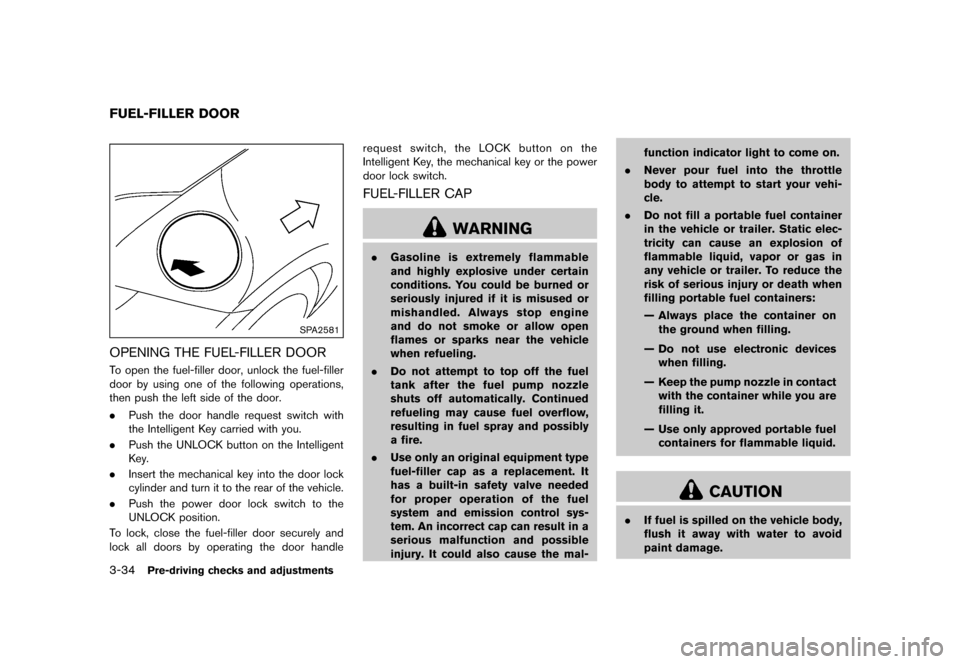

OPENING THE FUEL-FILLER DOORGUID-A7E5E50E-15FB-4E66-A7BD-9CE3CF25C812To open the fuel-filler door, unlock the fuel-filler
door by using one of the following operations,
then push the left side of the door.
.Push the door handle request switch with
the Intelligent Key carried with you.
. Push the UNLOCK button on the Intelligent
Key.
. Insert the mechanical key into the door lock
cylinder and turn it to the rear of the vehicle.
. Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely and
lock all doors by operating the door handle request switch, the LOCK button on the
Intelligent Key, the mechanical key or the power
door lock switch.
FUEL-FILLER CAPGUID-E7760C6A-57DD-427D-80BE-EA84F9BA6E4A
WARNING
.
Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal- function indicator light to come on.
. Never pour fuel into the throttle
body to attempt to start your vehi-
cle.
. Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
Ð Always place the container on
the ground when filling.
Ð Do not use electronic devices when filling.
Ð Keep the pump nozzle in contact with the container while you are
filling it.
Ð Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
FUEL-FILLER DOOR
& R Q G L W L R Q
Page 153 of 419
> ( G L W 0 R G H O = ' @

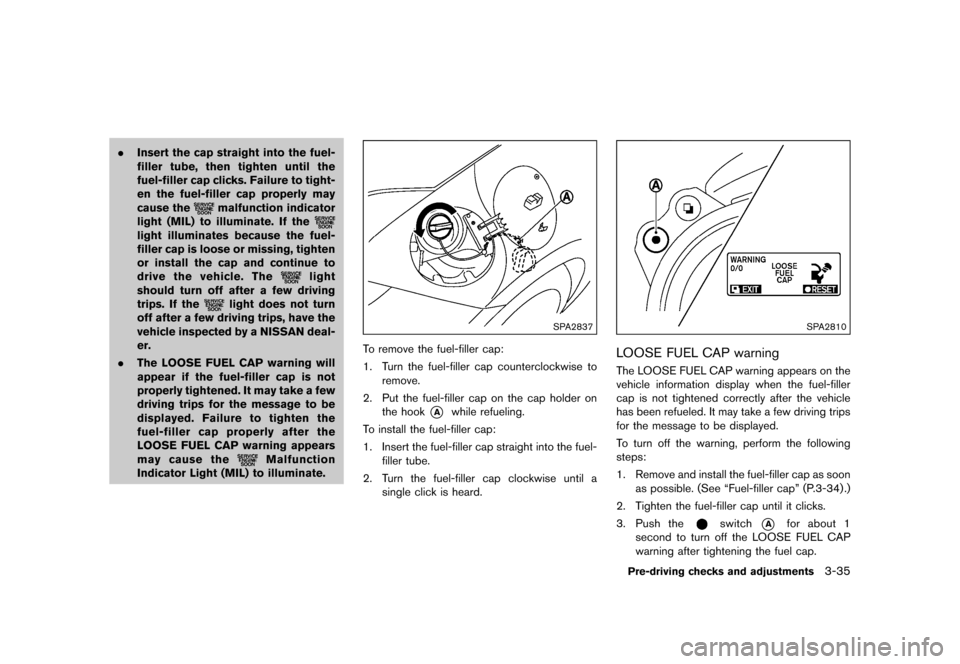

.Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the
Malfunction
Indicator Light (MIL) to illuminate.
SPA2837
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder on the hook
*Awhile refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
SPA2810
LOOSE FUEL CAP warningGUID-70CE73BB-66D0-4B83-9B44-278897F832F1The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed.
To turn off the warning, perform the following
steps:
1. Remove and install the fuel-filler cap as soonas possible. (See ªFuel-filler capº (P.3-34) .)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch*Afor about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
Pre-driving checks and adjustments3-35
& R Q G L W L R Q
Page 154 of 419
> ( G L W 0 R G H O = ' @
3-36Pre-driving checks and adjustments
GUID-625E91EC-4C5B-4DFB-AEE0-87E5912C1068

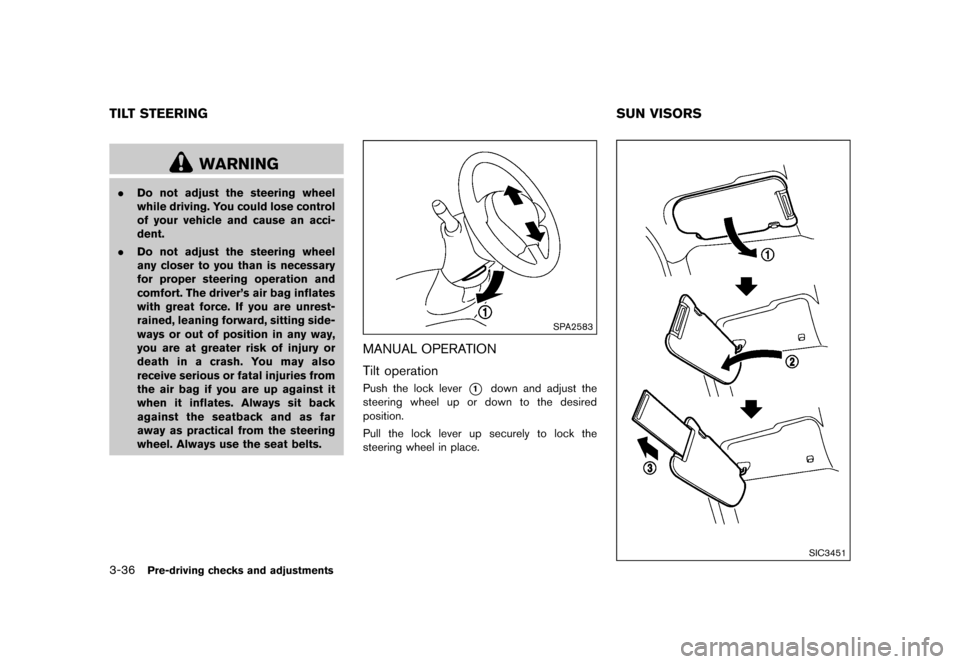

WARNING
.Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver's air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
SPA2583
MANUAL OPERATIONGUID-48F32EB9-2F4C-460E-BAC4-2144D0C68A52
Tilt operationGUID-E706101B-9EE6-4103-ADF2-104B71F80673Push the lock lever*1down and adjust the
steering wheel up or down to the desired
position.
Pull the lock lever up securely to lock the
steering wheel in place.
GUID-B719E6B4-8076-485D-9891-56677F847F47
SIC3451
TILT STEERING SUN VISORS
& R Q G L W L R Q
Page 155 of 419
> ( G L W 0 R G H O = ' @

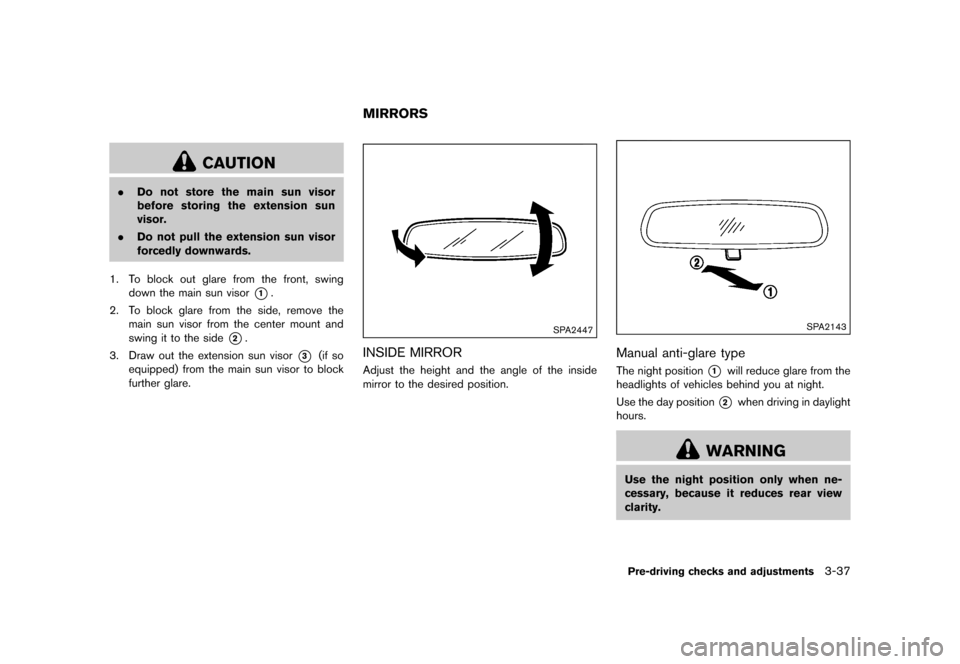

CAUTION
.Do not store the main sun visor
before storing the extension sun
visor.
. Do not pull the extension sun visor
forcedly downwards.
1. To block out glare from the front, swing down the main sun visor
*1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
*2.
3. Draw out the extension sun visor
*3(if so
equipped) from the main sun visor to block
further glare.
GUID-67C77E38-3B6C-4157-8718-7D042F48BFEA
SPA2447
INSIDE MIRRORGUID-7190F975-2909-4F79-AFDC-B28AE6D3CC82Adjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeGUID-D305CFE2-A329-4695-B49B-EAFF25D4D082The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
Pre-driving checks and adjustments3-37
MIRRORS
& R Q G L W L R Q
Page 156 of 419
> ( G L W 0 R G H O = ' @
3-38Pre-driving checks and adjustments
SPA2450

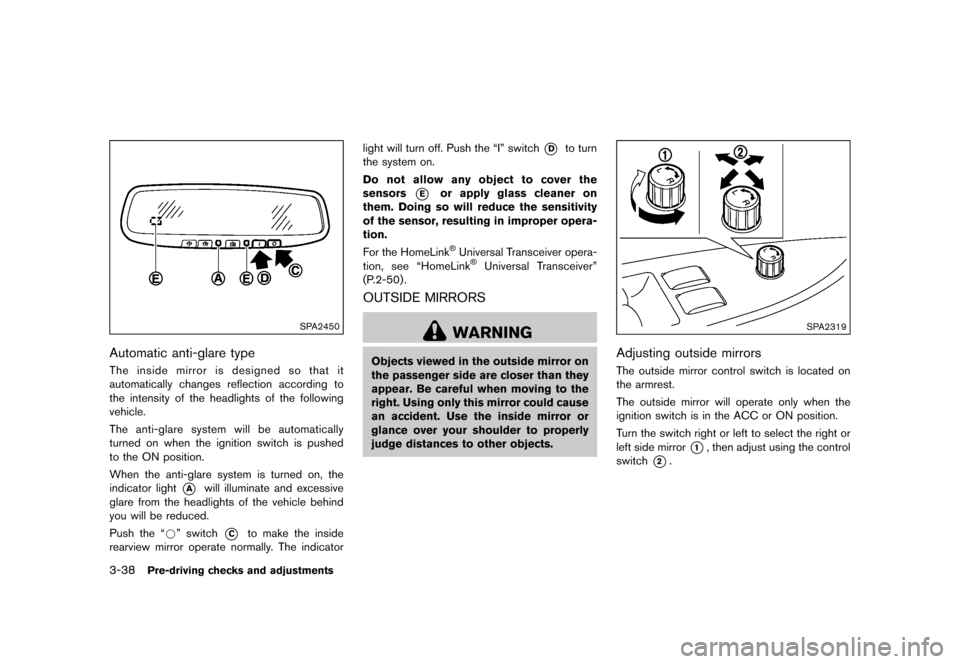

Automatic anti-glare typeGUID-19DC64A6-67BD-481F-BAB1-0D06BE7C5D4EThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the ª*º switch
*Cto make the inside
rearview mirror operate normally. The indicator light will turn off. Push the ªIº switch
*Dto turn
the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the HomeLink
Page 157 of 419
> ( G L W 0 R G H O = ' @

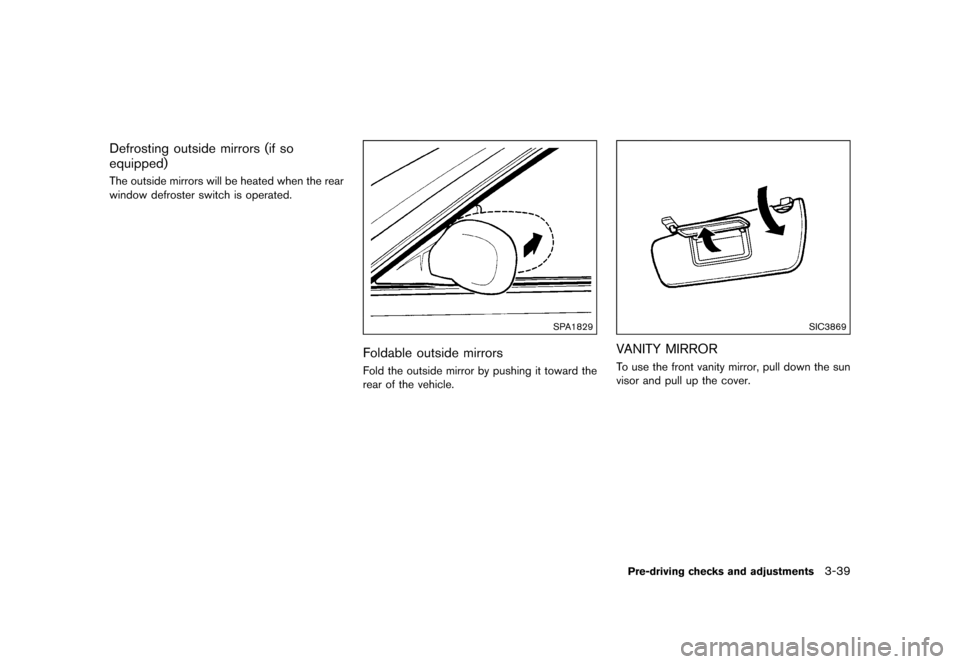

Defrosting outside mirrors (if so
equipped)
GUID-4D5D3A44-0E2D-46BF-95C5-C8D8BD23C98DThe outside mirrors will be heated when the rear
window defroster switch is operated.
SPA1829
Foldable outside mirrorsGUID-04D17BAA-A19D-410B-8EBE-9A888C9CD553Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-38DA8E6D-FED6-40B3-8A3A-839D89CFEFDBTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-39
& R Q G L W L R Q
Page 158 of 419
> ( G L W 0 R G H O = ' @
3-40Pre-driving checks and adjustments

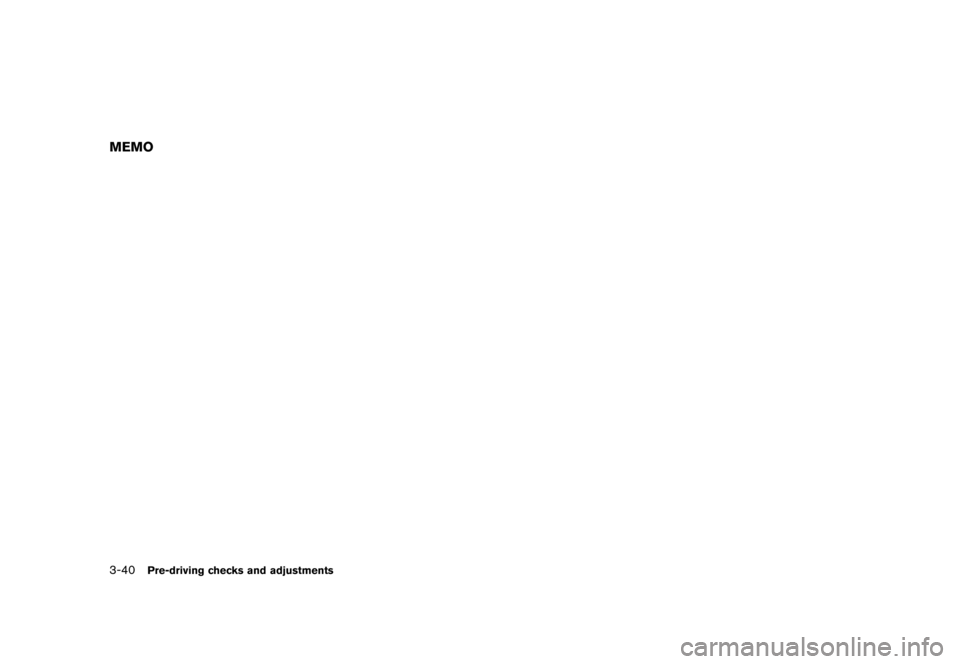

MEMO
& R Q G L W L R Q
Page 159 of 419
> ( G L W 0 R G H O = ' @
4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-3
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-4
Menu options ...
........................................................................\
4-6
How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-7
How to use STATUS button ...
............................................. 4-7
How to use brightness control and display
ON/OFF button ...
................................................................... 4-7
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-17
How to read displayed lines ...
.......................................... 4-18
How to park with predictive course lines ...
.................. 4-19
Difference between predictive and
actual distances ...
................................................................ 4-20
Predictive course line settings ...
...................................... 4-23
How to adjust screen ...
...................................................... 4-23
Operating tips ...
................................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-24
Automatic air conditioner (Type A) ...
............................ 4-26
Automatic air conditioner (Type B) ...
........................... 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-31
Audio operation precautions ...
....................................... 4-31
FM-AM radio with Compact Disc (CD) player ...
....... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-52
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-55
USB (Universal Serial Bus) connection port
(models with navigation system) ...
................................ 4-58
Bluetooth
Page 160 of 419
> ( G L W 0 R G H O = ' @
Bluetooth
