NISSAN 370Z COUPE 2018 Owners Manual

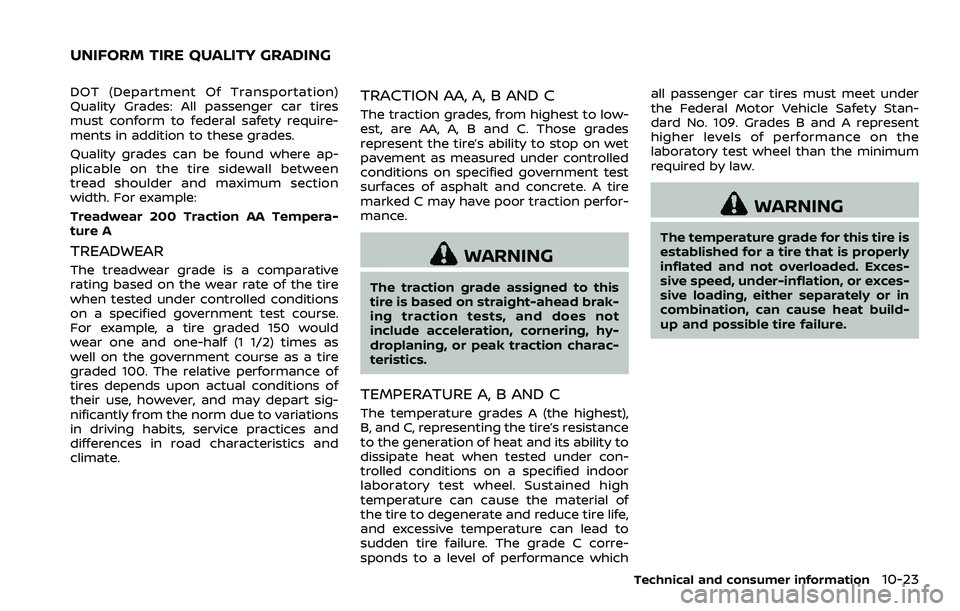

DOT (Department Of Transportation)
Quality Grades: All passenger car tires
must conform to federal safety require-
ments in addition to these grades.
Quality grades can be found where ap-
plicable on the tire sidewall between
tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA Tempera-
ture A
TREADWEAR
The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course.
For example, a tire graded 150 would
wear one and one-half (1 1/2) times as
well on the government course as a tire
graded 100. The relative performance of
tires depends upon actual conditions of
their use, however, and may depart sig-
nificantly from the norm due to variations
in driving habits, service practices and
differences in road characteristics and
climate.
TRACTION AA, A, B AND C
The traction grades, from highest to low-
est, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to this
tire is based on straight-ahead brak-
ing traction tests, and does not
include acceleration, cornering, hy-
droplaning, or peak traction charac-
teristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest),
B, and C, representing the tire’s resistance
to the generation of heat and its ability to
dissipate heat when tested under con-
trolled conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material of
the tire to degenerate and reduce tire life,
and excessive temperature can lead to
sudden tire failure. The grade C corre-
sponds to a level of performance whichall passenger car tires must meet under
the Federal Motor Vehicle Safety Stan-
dard No. 109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the minimum
required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Exces-
sive speed, under-inflation, or exces-
sive loading, either separately or in
combination, can cause heat build-
up and possible tire failure.
Technical and consumer information10-23
UNIFORM TIRE QUALITY GRADING

10-24Technical and consumer information

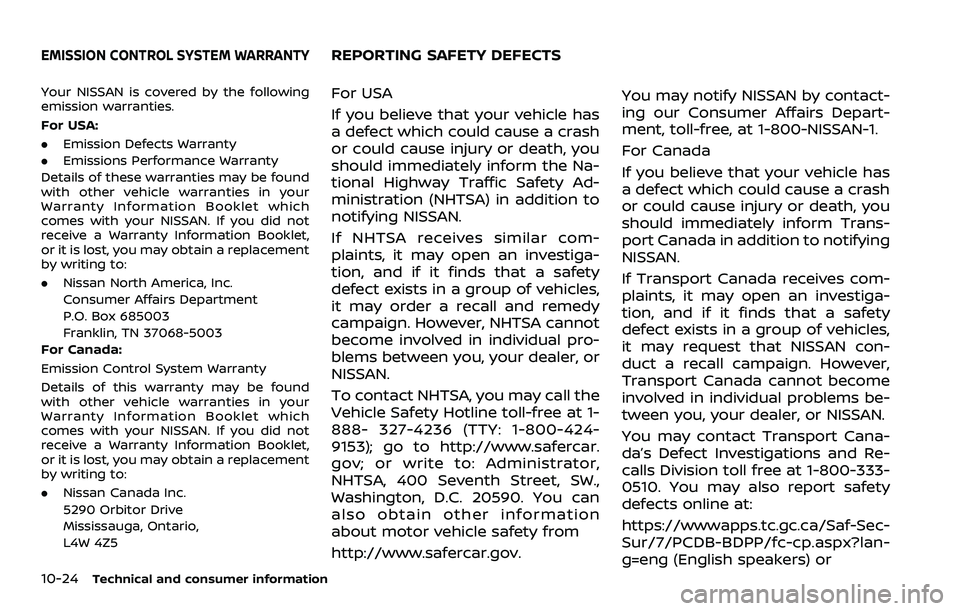

Your NISSAN is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found
with other vehicle warranties in your
Warranty Information Booklet which
comes with your NISSAN. If you did not
receive a Warranty Information Booklet,
or it is lost, you may obtain a replacement
by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of this warranty may be found
with other vehicle warranties in your
Warranty Information Booklet which
comes with your NISSAN. If you did not
receive a Warranty Information Booklet,
or it is lost, you may obtain a replacement
by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5For USA
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform the Na-
tional Highway Traffic Safety Ad-
ministration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehicles,
it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual pro-
blems between you, your dealer, or
NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888- 327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.
gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW.,
Washington, D.C. 20590. You can
also obtain other information
about motor vehicle safety from
http://www.safercar.gov. You may notify NISSAN by contact-
ing our Consumer Affairs Depart-
ment, toll-free, at 1-800-NISSAN-1.
For Canada
If you believe that your vehicle has
a defect which could cause a crash
or could cause injury or death, you
should immediately inform Trans-
port Canada in addition to notifying
NISSAN.
If Transport Canada receives com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of vehicles,
it may request that NISSAN con-
duct a recall campaign. However,
Transport Canada cannot become
involved in individual problems be-
tween you, your dealer, or NISSAN.
You may contact Transport Cana-
da’s Defect Investigations and Re-
calls Division toll free at 1-800-333-
0510. You may also report safety
defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-cp.aspx?lan-
g=eng (English speakers) or
EMISSION CONTROL SYSTEM WARRANTYREPORTING SAFETY DEFECTS

https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-cp.aspx?
lang=fra (French speakers).

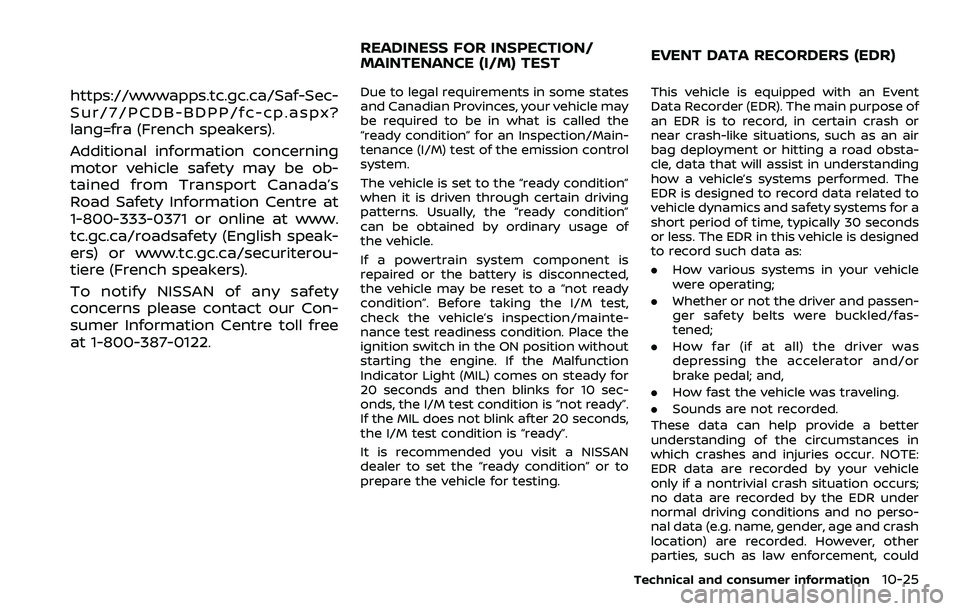

Additional information concerning
motor vehicle safety may be ob-
tained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at www.
tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiterou-
tiere (French speakers).
To notify NISSAN of any safety
concerns please contact our Con-
sumer Information Centre toll free
at 1-800-387-0122.Due to legal requirements in some states
and Canadian Provinces, your vehicle may
be required to be in what is called the
“ready condition” for an Inspection/Main-
tenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of
the vehicle.
If a powertrain system component is
repaired or the battery is disconnected,
the vehicle may be reset to a “not ready
condition”. Before taking the I/M test,
check the vehicle’s inspection/mainte-
nance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10 sec-
onds, the I/M test condition is “not ready”.
If the MIL does not blink after 20 seconds,
the I/M test condition is “ready”.
It is recommended you visit a NISSAN
dealer to set the “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an Event
Data Recorder (EDR). The main purpose of
an EDR is to record, in certain crash or
near crash-like situations, such as an air
bag deployment or hitting a road obsta-
cle, data that will assist in understanding
how a vehicle’s systems performed. The
EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed
to record such data as:
.
How various systems in your vehicle
were operating;
. Whether or not the driver and passen-
ger safety belts were buckled/fas-
tened;
. How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur. NOTE:
EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs;
no data are recorded by the EDR under
normal driving conditions and no perso-
nal data (e.g. name, gender, age and crash
location) are recorded. However, other
parties, such as law enforcement, could
Technical and consumer information10-25
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)

10-26Technical and consumer information

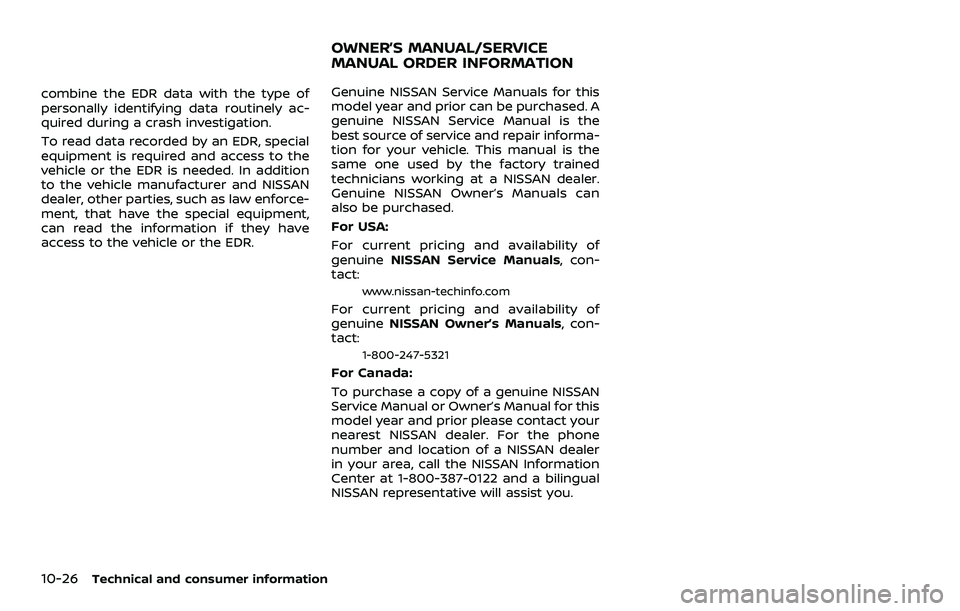

combine the EDR data with the type of
personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition
to the vehicle manufacturer and NISSAN
dealer, other parties, such as law enforce-
ment, that have the special equipment,
can read the information if they have
access to the vehicle or the EDR.Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the
best source of service and repair informa-
tion for your vehicle. This manual is the
same one used by the factory trained
technicians working at a NISSAN dealer.
Genuine NISSAN Owner’s Manuals can
also be purchased.
For USA:
For current pricing and availability of
genuine
NISSAN Service Manuals, con-
tact:
www.nissan-techinfo.com
For current pricing and availability of
genuine NISSAN Owner’s Manuals, con-
tact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior please contact your
nearest NISSAN dealer. For the phone
number and location of a NISSAN dealer
in your area, call the NISSAN Information
Center at 1-800-387-0122 and a bilingual
NISSAN representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION

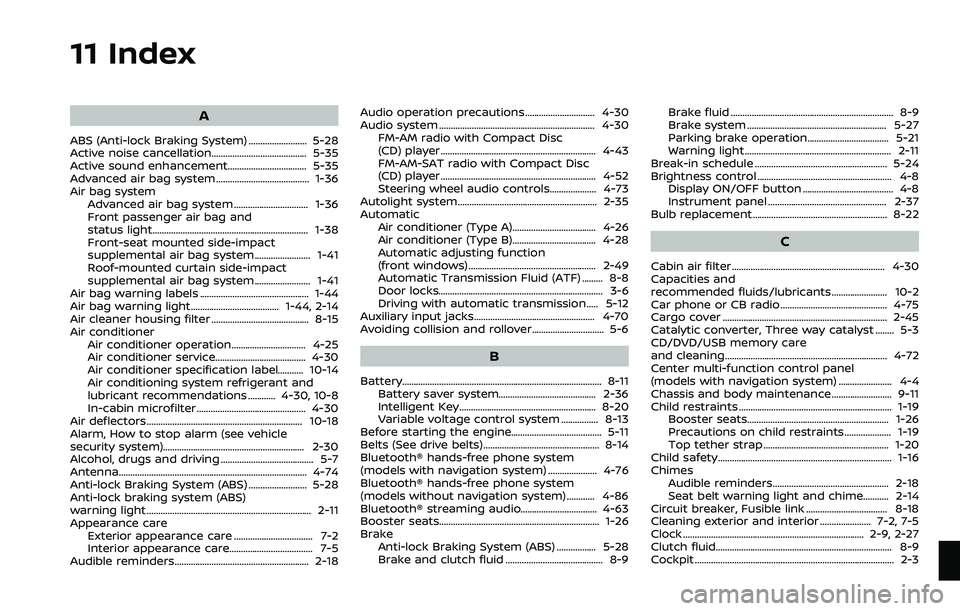

11 Index
A
ABS (Anti-lock Braking System) ......................... 5-28
Active noise cancellation......................................... 5-35
Active sound enhancement.................................. 5-35
Advanced air bag system ........................................ 1-36
Air bag systemAdvanced air bag system ................................ 1-36
Front passenger air bag and
status light................................................................... 1-38
Front-seat mounted side-impact
supplemental air bag system........................ 1-41
Roof-mounted curtain side-impact
supplemental air bag system........................ 1-41
Air bag warning labels ............................................... 1-44
Air bag warning light...................................... 1-44, 2-14
Air cleaner housing filter .......................................... 8-15
Air conditioner Air conditioner operation................................ 4-25
Air conditioner service....................................... 4-30
Air conditioner specification label........... 10-14
Air conditioning system refrigerant and
lubricant recommendations ............ 4-30, 10-8
In-cabin microfilter ............................................... 4-30
Air deflectors ................................................................... 10-18
Alarm, How to stop alarm (see vehicle
security system)............................................................. 2-30
Alcohol, drugs and driving ........................................ 5-7
Antenna........................................................................\
......... 4-74
Anti-lock Braking System (ABS) ......................... 5-28
Anti-lock braking system (ABS)
warning light ....................................................................... 2-11
Appearance care Exterior appearance care .................................. 7-2
Interior appearance care.................................... 7-5
Audible reminders.......................................................... 2-18 Audio operation precautions .............................. 4-30
Audio system ................................................................... 4-30
FM-AM radio with Compact Disc
(CD) player ................................................................... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ................................................................... 4-52
Steering wheel audio controls.................... 4-73
Autolight system............................................................ 2-35
Automatic Air conditioner (Type A).................................... 4-26
Air conditioner (Type B).................................... 4-28
Automatic adjusting function
(front windows) ....................................................... 2-49
Automatic Transmission Fluid (ATF) ......... 8-8
Door locks....................................................................... 3-6
Driving with automatic transmission..... 5-12
Auxiliary input jacks.................................................... 4-70
Avoiding collision and rollover............................... 5-6
B
Battery........................................................................\
.............. 8-11 Battery saver system.......................................... 2-36
Intelligent Key........................................................... 8-20
Variable voltage control system ................ 8-13
Before starting the engine....................................... 5-11
Belts (See drive belts).................................................. 8-14
Bluetooth® hands-free phone system
(models with navigation system) ..................... 4-76
Bluetooth® hands-free phone system
(models without navigation system) ............ 4-86
Bluetooth® streaming audio................................. 4-63
Booster seats...................................................................\
.. 1-26
Brake Anti-lock Braking System (ABS) ................. 5-28
Brake and clutch fluid .......................................... 8-9 Brake fluid ...................................................................... 8-9
Brake system ............................................................ 5-27
Parking brake operation................................... 5-21
Warning light............................................................... 2-11
Break-in schedule ......................................................... 5-24
Brightness control .......................................................... 4-8 Display ON/OFF button ....................................... 4-8
Instrument panel ................................................... 2-37
Bulb replacement .......................................................... 8-22
C
Cabin air filter .................................................................. 4-30
Capacities and
recommended fluids/lubricants........................ 10-2
Car phone or CB radio .............................................. 4-75
Cargo cover ....................................................................... 2-45
Catalytic converter, Three way catalyst ........ 5-3
CD/DVD/USB memory care
and cleaning...................................................................... 4-72
Center multi-function control panel
(models with navigation system) ....................... 4-4
Chassis and body maintenance.......................... 9-11
Child restraints .................................................................. 1-19 Booster seats............................................................. 1-26
Precautions on child restraints.................... 1-19
Top tether strap ...................................................... 1-20
Child safety........................................................................\
... 1-16
Chimes Audible reminders.................................................. 2-18
Seat belt warning light and chime........... 2-14
Circuit breaker, Fusible link ................................... 8-18
Cleaning exterior and interior ...................... 7-2, 7-5
Clock ........................................................................\
...... 2-9, 2-27
Clutch fluid........................................................................\
.... 8-9
Cockpit ........................................................................\
.............. 2-3

11-2
Cold weather driving .................................................. 5-33
Compact Disc (CD) player (See
audio system) ................................................................... 4-54
Compact spare tire...................................................... 8-36
Console box ....................................................................... 2-44
CoolantCapacities and
recommended fluids/lubricants................. 10-2
Changing engine coolant .................................. 8-5
Checking engine coolant level....................... 8-5
Corrosion protection ..................................................... 7-8
Cover, Cargo cover....................................................... 2-45
Cruise control ................................................................... 5-22
Cup holders........................................................................\
2-43
D
Dampers, Performance dampers...................... 5-32
Daytime running light system............................. 2-36
Defroster switch, Rear window
defroster switch ............................................................. 2-33
Dimensions ........................................................................\
10-11
Drive belts...................................................................\
.......... 8-14
Driving Cold weather driving .......................................... 5-33
Driving with automatic transmission..... 5-12
Driving with manual transmission............ 5-17
Precautions when starting
and driving..................................................................... 5-2
DVD player operation................................................. 4-55
E
Economy, Fuel.................................................................. 5-25
Elapsed time...................................................................... 2-25
Emergency tire puncture repair kit ................... 6-9
Emission control information label............... 10-13 Emission control system maintenance ......... 9-8
Emission control system warranty .............. 10-24
Engine
Before starting the engine............................... 5-11
Break-in schedule ................................................. 5-24
Capacities and
recommended fluids/lubricants................. 10-2
Changing engine coolant .................................. 8-5
Changing engine oil and filter ....................... 8-6
Checking engine coolant level....................... 8-5
Checking engine oil level.................................... 8-6
Coolant temperature gauge ........................... 2-7
Emergency engine shut off............................ 5-10
Engine block heater ............................................ 5-34
Engine compartment check locations..... 8-3
Engine cooling system ......................................... 8-4
Engine oil.....................................................................\
.... 8-6
Engine oil and oil
filter recommendation ....................................... 10-7
Engine oil replacement indicator ............. 2-23
Engine oil temperature gauge....................... 2-8
Engine oil viscosity ................................................ 10-7
Engine serial number ........................................ 10-13
Engine specifications........................................... 10-9
Engine start operation indicator................ 2-19
Engine start operation indicator
(Manual Transmission models)................... 2-20
If your vehicle overheats .................................. 6-17
Starting the engine................................................ 5-11
Event Data Recorders (EDR)............................... 10-25
Exhaust gas (carbon monoxide) .......................... 5-2
Explanation of scheduled
maintenance items ......................................................... 9-5
Extended storage fuse warning ........................ 2-22
Exterior light indicator................................................ 2-15
F
F.M.V.S.S./C.M.V.S.S. certification label ......... 10-13
Filter Air cleaner housing filter .................................. 8-15
Changing engine oil and filter ....................... 8-6
Flashers (See hazard warning
flasher switch)..................................................................... 6-2
Flat tire........................................................................\
.............. 6-3 Repairing flat tire (with emergency tire
puncture repair kit) ................................................. 6-9
Flat towing........................................................................\
10-22
Floor mat cleaning .......................................................... 7-6
Floor mat installation.................................................... 7-7
Fluid Automatic Transmission Fluid (ATF) ......... 8-8
Brake and clutch fluid .......................................... 8-9
Brake fluid ...................................................................... 8-9
Capacities and
recommended fluids/lubricants................. 10-2
Engine coolant............................................................ 8-4
Engine oil.....................................................................\
.... 8-6
Power steering fluid ............................................... 8-8
Window washer fluid ........................................... 8-10
FM-AM radio with Compact Disc
(CD) player ........................................................................\
... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ........................................................................\
... 4-52
Fog light switch .............................................................. 2-38
Front manual seat adjustment .............................. 1-4
Front passenger air bag and status light ..... 1-38
Front power seat adjustment ................................. 1-3
Front seat, Front seat adjustment ...................... 1-3
Front-seat active head restraints ........................ 1-9
Fuel Capacities and
recommended fluids/lubricants................. 10-2

Fuel economy........................................................... 5-25
Fuel economy information (display).......... 4-9
Fuel information...................................................... 10-4
Fuel octane rating ................................................. 10-4
Fuel-filler cap............................................................. 3-35
Fuel-filler door.......................................................... 3-35
Gauge........................................................................\
......... 2-8
LOOSE FUEL CAP warning.............................. 3-37
Fuel efficient driving tips ......................................... 5-24
Fuses........................................................................\
................ 8-18
Fusible links........................................................................\
8-18
G
Garage door opener, HomeLink®
Universal Transceiver ................................................. 2-52
Gas cap........................................................................\
.......... 3-35
Gauge........................................................................\
................. 2-5 Engine coolant temperature gauge.......... 2-7
Fuel gauge ..................................................................... 2-8
Odometer........................................................................\
2-6
Speedometer ............................................................... 2-6
Tachometer................................................................... 2-7
Trip computer .......................................................... 2-23
General maintenance.................................................... 9-2
Glove box ........................................................................\
..... 2-44
H
Hands-free phone system, Bluetooth®
(models with navigation system) ..................... 4-76
Hands-free phone system, Bluetooth®
(models without navigation system) ............ 4-86
Hatch, Rear hatch .......................................................... 3-18
Hazard warning flasher switch ............................. 6-2
Head restraints/headrests......................................... 1-6 Headlights
Bulb replacement .................................................. 8-23
Headlight switch .................................................... 2-34
Xenon headlights................................................... 2-34
Heated seats ..................................................................... 2-38
Heater Engine block heater ............................................ 5-34
Heater and air conditioner operation..... 4-25
HomeLink® Universal Transceiver .................... 2-52
Hood release ...................................................................... 3-17
Horn........................................................................\
.................. 2-38
I
Ignition switch (Push-button)............................................................... 5-8
Manual transmission models........................ 5-17
Immobilizer system..................................................... 2-30
In-cabin microfilter ...................................................... 4-30
Indicator lights.................................................................. 2-15
INFO button ........................................................................\
. 4-8
Inside mirror ...................................................................... 3-39
Inspection/maintenance (I/M) test .............. 10-25
Instrument brightness control ........................... 2-37
Instrument panel .............................................................. 2-4
Instrument pocket........................................................ 2-43
Intelligent Key...................................................................... 3-3
Intelligent Key battery
discharge indicator ..................................................... 2-20
Intelligent Key removal indicator..................... 2-20
Intelligent Key system .................................................. 3-7 Battery replacement........................................... 8-20
Intelligent Key system warning light ...... 2-12
Key operating range .............................................. 3-9
Key operation ............................................................ 3-10
Warning signals........................................................ 3-12
Interior light control switch ................................. 2-50 Interior light replacement....................................... 8-24
Interior lights.................................................................... 2-50
Interior trunk lid release ........................................... 3-21
iPod® player operation............................................. 4-68
J
Jump starting .................................................................... 6-15
K
Keyless entry (See remote keyless
entry system) ..................................................................... 3-14
Keys ........................................................................\
..................... 3-3
For Intelligent Key system................................. 3-7
L
LabelsAir bag warning labels ....................................... 1-44
Air conditioner specification label........... 10-14
Emission control information label........ 10-13
Engine serial number ........................................ 10-13
F.M.V.S.S./C.M.V.S.S.
certification label .................................................. 10-13
Tire and Loading
information label..................................... 8-27, 10-14
Vehicle identification number (VIN)........ 10-12
License plate, Installing front
license plate..................................................................... 10-15
Light
Air bag warning light........................................... 1-44
Bulb replacement .................................................. 8-22
Cargo area courtesy light................................ 2-51
Cargo light .................................................................. 2-52
Fog light switch ...................................................... 2-38
Headlight switch .................................................... 2-34
11-3

11-4
Headlights bulb replacement ...................... 8-23
Indicator lights.......................................................... 2-15
Interior light control switch .......................... 2-50
Interior lights............................................................. 2-50
Map lights .................................................................... 2-50
Replacement ............................................................. 8-22
Trunk light................................................................... 2-52
Vanity mirror lights ............................................... 2-51
Warning lights, indicator lights and
audible reminders ................................................... 2-11
Xenon headlights................................................... 2-34
Lights check/instrument panel............................ 2-11
Lights, Exterior and interior
light replacement .......................................................... 8-24
Loading information (See vehicle
loading information) ................................................. 10-19
Lock Automatic door locks............................................ 3-6
Door locks....................................................................... 3-5
Power door lock ........................................................ 3-5
Rear hatch lock........................................................ 3-18
Trunk lid ........................................................................\
3-20
Locking with mechanical key ................................. 3-5
Low tire pressure warning light ......................... 2-13
Low tire pressure warning system (See Tire
Pressure Monitoring System (TPMS)) ............... 5-3
M
Maintenance Battery........................................................................\
...... 8-11
General maintenance............................................ 9-2
Inside the vehicle...................................................... 9-3
Maintenance indicators.................................... 2-23
Maintenance log...................................................... 9-14
Maintenance precautions.................................. 8-2
Maintenance requirement................................. 9-2 Maintenance schedules....................................... 9-6
Maintenance under severe
driving conditions .................................................. 9-13
Outside the vehicle ................................................. 9-2
Seat belt maintenance........................................ 1-15
Standard maintenance ........................................ 9-7
Maintenance schedules............................................... 9-6
Malfunction indicator light (MIL)......................... 2-16
Manual front seat adjustment ................................ 1-4
Map lights ........................................................................\
... 2-50
Master warning light.................................................... 2-14
Mechanical key (Intelligent Key system) ........ 3-4
Meter Trip computer .......................................................... 2-23
Meters and gauges ......................................................... 2-5 Instrument brightness control ................... 2-37
Mirror
Inside mirror .............................................................. 3-39
Outside mirrors ....................................................... 3-40
Vanity mirror .............................................................. 3-41
Multi-function controller............................................ 4-4
N
New vehicle break-in .................................................. 5-24
NISSAN Vehicle Immobilizer System ............. 2-30
NISSAN voice recognition system ................... 4-99
No key warning.............................................................. 2-20
O
Odometer........................................................................\
........ 2-6
Off-road recovery ............................................................. 5-6
Oil Capacities and
recommended fluids/lubricants................. 10-2
Changing engine oil and filter ....................... 8-6 Checking engine oil level.................................... 8-6
Engine oil.....................................................................\
.... 8-6
Engine oil viscosity ................................................ 10-7
Oil filter replacement indicator .................. 2-23
Opening the soft top.................................................. 3-23
Operation, Operational indicators .................... 2-19
Outside mirrors .............................................................. 3-40
Overheat, If your vehicle overheats................. 6-17
Owner’s Manual/Service Manual
order information....................................................... 10-26
P
Panic alarm........................................................................\
.. 3-15
Parking Brake break-in ......................................................... 5-28
Parking brake operation................................... 5-21
Parking on hills........................................................ 5-26
Performance dampers .............................................. 5-32
Phone Bluetooth® hands-free phone system
(models with navigation system) ............. 4-76
Bluetooth® hands-free phone system
(models without navigation system) ..... 4-86
Car phone or CB radio ...................................... 4-75
Power Front seat adjustment .......................................... 1-3
Power door lock ........................................................ 3-5
Power outlet.............................................................. 2-42
Power steering ........................................................ 5-27
Power steering fluid ............................................... 8-8
Power windows ...................................................... 2-46
Precautions ........................................................................\
5-22 Audio operation...................................................... 4-30
Braking precautions............................................ 5-27
Child restraints .......................................................... 1-19
Cruise control operations................................ 5-18

Maintenance................................................................. 8-2
Seat belt usage ......................................................... 1-10
Supplemental restraint system................... 1-30
When starting and driving................................. 5-2
Predictive course line settings............................ 4-22
Push starting................................................................\
...... 6-17
Push warning (Automatic
Transmission models)............................................... 2-20
Push-button ignition switch......................... 5-8, 5-9
R
Radio........................................................................\
............... 4-30 Car phone or CB radio ...................................... 4-75
Rapid air pressure loss................................................. 5-6
Readiness for inspection/maintenance
(I/M) test........................................................................\
..... 10-25
Rear hatch........................................................................\
.... 3-18
Rear hatch opener ........................................................ 3-18
Rear hatch opener switch....................................... 3-18
Rear hatch release switch....................................... 3-19
Rear parcel box ............................................................... 2-45
Rear window defroster switch ........................... 2-33
RearView Monitor (models with
navigation system)........................................................ 4-17
Recorders, Event data ............................................ 10-25
Registering your vehicle in
another country ........................................................... 10-12
Remote keyless entry system .............................. 3-14
Repairing flat tire (with emergency tire
puncture repair kit) ......................................................... 6-9
Reporting safety defects ...................................... 10-24
Roadside assistance program ............................... 6-2
Rollover ........................................................................\
............. 5-6
Roof, Soft top.................................................................... 3-23
S
Safety, Child seat belts................................................ 1-16
Satellite radio operation .......................................... 4-53
Seat adjustment Front manual seat adjustment ...................... 1-4
Front power seat adjustment ......................... 1-3
Front seats...................................................................... 1-3
Seat belt(s) Child safety................................................................... 1-16
Infants.................................................................\
.............. 1-16
Injured persons ......................................................... 1-12
Larger children .......................................................... 1-17
Precautions on seat belt usage................... 1-10
Pregnant women..................................................... 1-12
Seat belt cleaning ..................................................... 7-7
Seat belt extenders................................................ 1-15
Seat belt maintenance........................................ 1-15
Seat belt warning light and chime........... 2-14
Seat belts ....................................................................... 1-10
Seat belts with pretensioners ...................... 1-43
Three-point type ...................................................... 1-12
Seat(s) Climate controlled seats.................................. 2-40
Heated seats ............................................................. 2-38
Seats ........................................................................\
............ 1-2
Secondary rear hatch release............................ 3-20
Secondary trunk lid release .................................. 3-22
Security system (NISSAN Vehicle
Immobilizer System), Engine start .................. 2-30
Security system, Vehicle
security system ............................................................... 2-29
Servicing air conditioner......................................... 4-30
SETTING button ................................................................ 4-11
Shift lever, Shift lock release.................................. 5-17
Shift lock release, Transmission ......................... 5-17 Shift “P” warning (Automatic
Transmission models)............................................... 2-20
Shifting
Automatic transmission.................................... 5-12
Manual transmission ........................................... 5-17
Soft top Care and cleaning.................................................... 7-3
If the top does not open or close............ 3-30
Opening using the Intelligent Key ........... 3-28
Soft top indicator light.......................... 2-17, 3-26
Soft top operation ................................................ 3-23
Spare tire........................................................................\
.... 10-10
Spark plugs........................................................................\
.. 8-14
Speedometer ....................................................................... 2-6
Standard maintenance ................................................ 9-7
Starting Before starting the engine............................... 5-11
Jump starting ............................................................ 6-15
Precautions when starting
and driving..................................................................... 5-2
Push starting.............................................................. 6-17
Starting the engine................................................ 5-11
STATUS button .................................................................. 4-8
Status light, Front passenger air bag ............ 1-38
Steering Power steering ........................................................ 5-27
Power steering fluid ............................................... 8-8
Steering-wheel-mounted controls
for audio ....................................................................... 4-73
Storage ........................................................................\
.......... 2-43
Sun visors ........................................................................\
.... 3-38
Supplemental air bag warning labels ............ 1-44
Supplemental air bag warning light .... 1-44, 2-14
Supplemental restraint system.......................... 1-30 Precautions on supplemental
restraint system ...................................................... 1-30
11-5

11-6
SwitchAutolight switch ..................................................... 2-35
Fog light switch ...................................................... 2-38
Hazard warning flasher switch ..................... 6-2
Headlight switch .................................................... 2-34
Ignition switch .......................................................... 5-12
Ignition switch manual
transmission models ........................................... 5-17
Power door lock switch ...................................... 3-6
Rear hatch release switch............................... 3-19
Rear window defroster switch ................... 2-33
Turn signal switch ................................................ 2-37
Vehicle dynamic control (VDC)
off switch ...................................................................... 2-41
SynchroRev Match mode (S-MODE) ................ 5-18
T
Tachometer........................................................................\
... 2-7
Temperature gauge, Engine coolant
temperature gauge ........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System),
Engine start...................................................................\
.... 2-30
Three-way catalyst.......................................................... 5-3
Tilt steering ........................................................................\
3-38
Tire Pressure, Low tire pressure
warning light .............................................................. 2-13
Sealant ........................................................................\
...... 6-9
Tire replacement indicator ............................ 2-23
Tires Emergency tire puncture repair kit ........... 6-9
Flat tire........................................................................\
...... 6-3
Low tire pressure warning system ............ 5-3
Spare tire...................................................................... 8-36
Tire and Loading
information label..................................... 8-27, 10-14 Tire chains................................................................... 8-33
Tire dressing................................................................. 7-5
Tire pressure ............................................................. 8-26
Tire Pressure Monitoring
System (TPMS) ................................................. 5-3, 6-3
Tire rotation............................................................... 8-33
Types of tires ............................................................ 8-32
Uniform tire quality grading ....................... 10-23
Wheel/tire size ....................................................... 10-10
Wheels and tires ..................................................... 8-26
Tonneau cover (see cargo cover) .................... 2-45
Top, Soft top...................................................................... 3-23
Touch screen ....................................................................... 4-5
Towing Flat towing................................................................ 10-22
Tow truck towing................................................... 6-19
Towing a trailer..................................................... 10-22
TPMS, Tire Pressure
Monitoring System ............................................... 5-3, 6-3
Trailer towing ................................................................. 10-22
Transceiver, HomeLink®
Universal Transceiver ................................................. 2-52
Transmission Automatic Transmission Fluid (ATF) ......... 8-8
Driving with automatic transmission..... 5-12
Driving with manual transmission............ 5-17
Transmission shift lever lock release ..... 5-17
Transmitter (See remote keyless
entry system) ..................................................................... 3-14
Traveling or registering your vehicle in
another country ........................................................... 10-12
Trip computer .................................................................. 2-23
Trip odometer .................................................................. 2-25
Triple meter........................................................................\
... 2-8
Trunk Interior trunk lid release ................................... 3-21
Light ........................................................................\
......... 2-52 Secondary trunk lid release .......................... 3-22
Trunk lid ........................................................................\
3-20
Trunk release power cancel switch......... 3-21
Turn signal switch ........................................................ 2-37
U
Underbody cleaning ....................................................... 7-4
Uniform tire quality grading .............................. 10-23
USB (Universal Serial Bus)
connection port................................................ 4-47, 4-59
V
Vanity mirror ...................................................................... 3-41
Vanity mirror lights ....................................................... 2-51
Variable voltage control system ........................ 8-13
Vehicle Dimensions ................................................................. 10-11
Identification number (VIN)........................... 10-12
Information and settings (models with
navigation system).................................................. 4-8
Information display ............................................... 2-19
Loading information .......................................... 10-19
Recovery (freeing a stuck vehicle) ........... 6-22
Security system....................................................... 2-29
Vehicle dynamic control (VDC)
off switch ...................................................................... 2-41
Vehicle dynamic control
(VDC) system ............................................................. 5-30
Ventilators ........................................................................\
... 4-24
Voice command (Bluetooth® Hands-Free
Phone System)................................................................\
. 4-92
Voice command (NISSAN voice
recognition system).................................................. 4-105
Voltmeter ........................................................................\
........ 2-9
