NISSAN 370Z ROADSTER 2013 Z34 Owners Manual

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual 370Z ROADSTER 2013 Z34 NISSAN NISSAN https://www.carmanualsonline.info/img/5/306/w960_306-0.png NISSAN 370Z ROADSTER 2013 Z34 Owners Manual

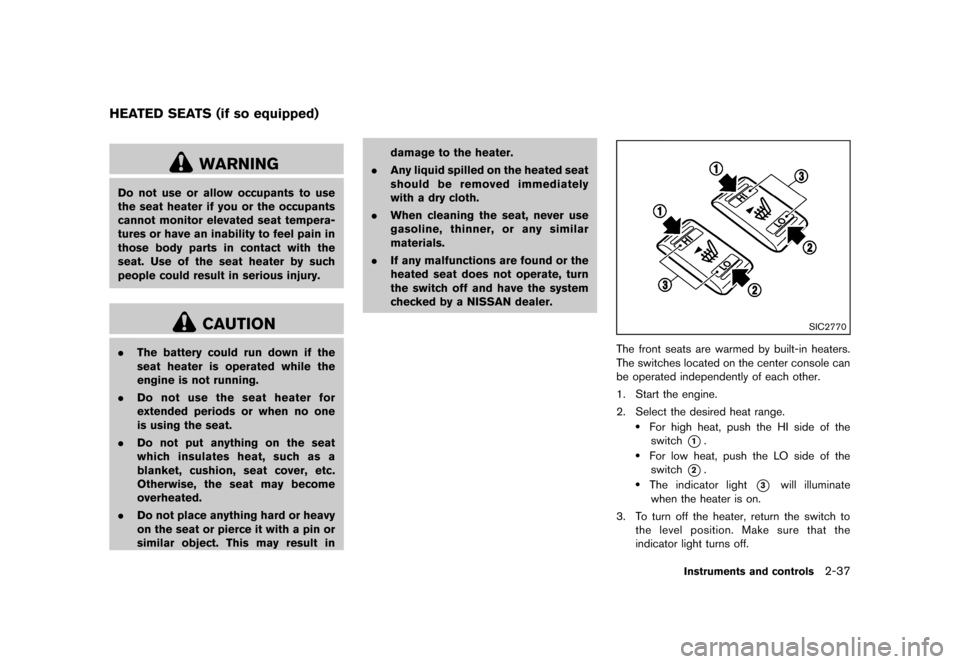

Page 101 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (99,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-A40EA62A-A0E6-4B1C-9878-C0B3220EE84A
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elev

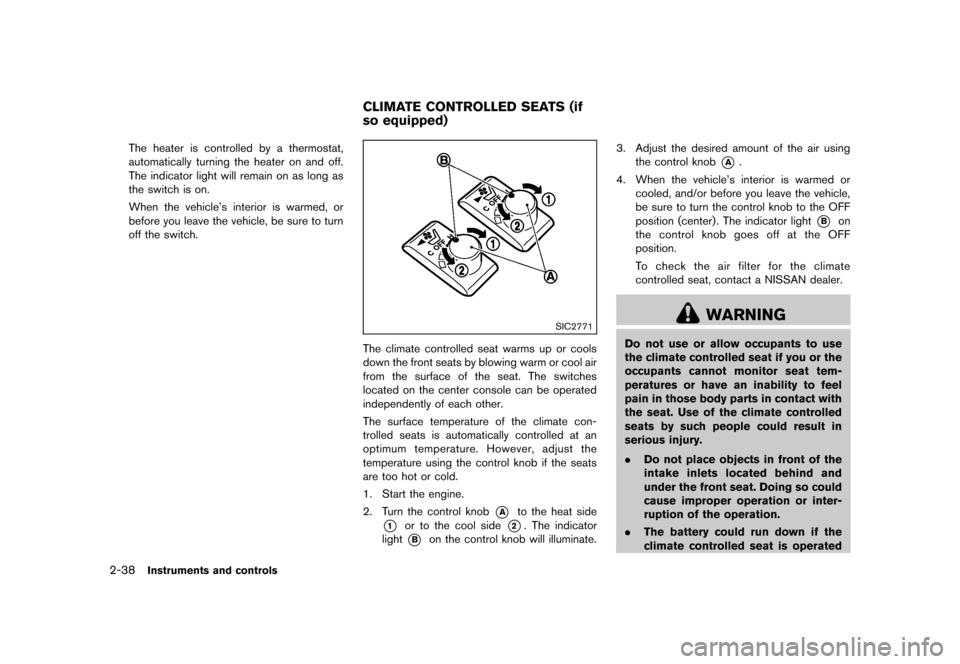

Page 102 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (100,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-38Instruments and controls
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will rema

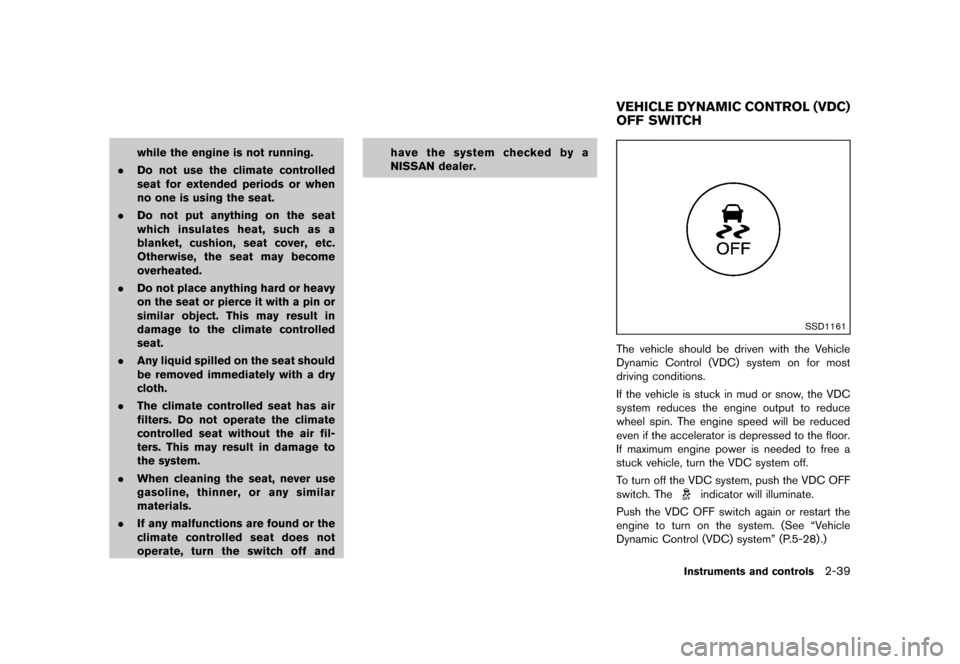

Page 103 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (101,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
while the engine is not running.
. Do not use the climate controlled
seat for extended periods or when
no one is using the seat.
. Do not put any

Page 104 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (102,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-40Instruments and controls
GUID-A61C6338-78D5-4DAF-A3E8-7A6F44563A7B
SIC3984
Center console
SIC3985
Lower glove box
The power outlet is located

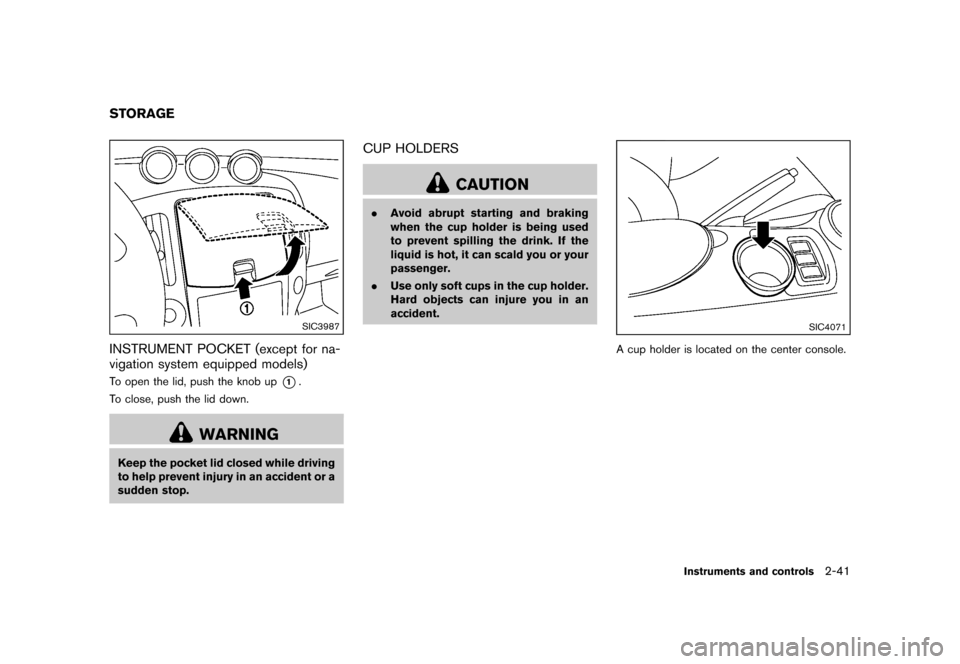

Page 105 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (103,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-16A30D13-F4E3-41C3-8AEE-E4BBFB34B56F
SIC3987
INSTRUMENT POCKET (except for na-
vigation system equipped models)
GUID-B7889FC9-125B-4268-B6D6

Page 106 of 427

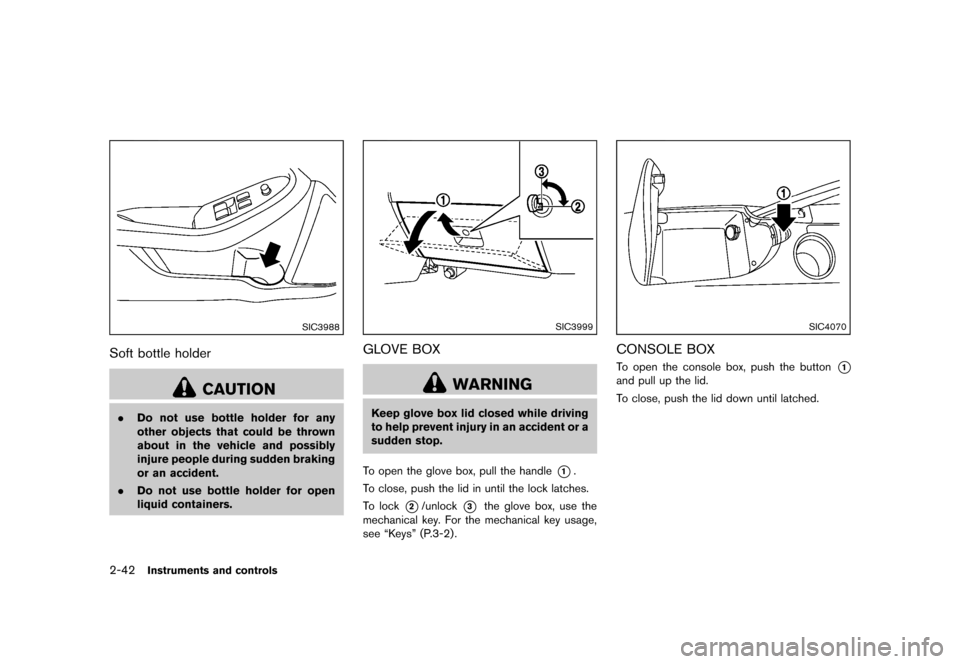

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (104,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-42Instruments and controls
SIC3988
Soft bottle holderGUID-F4814257-41A0-4BAC-96BA-7D68DD1370A9
CAUTION
.Do not use bottle holder for any
other

Page 107 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (105,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SIC3989
REAR PARCEL BOXGUID-FD7D3071-2A0F-4FAD-8F8C-D01EB215AA6DThe rear parcel box is located behind the right-
side seat.
To open the rear parc

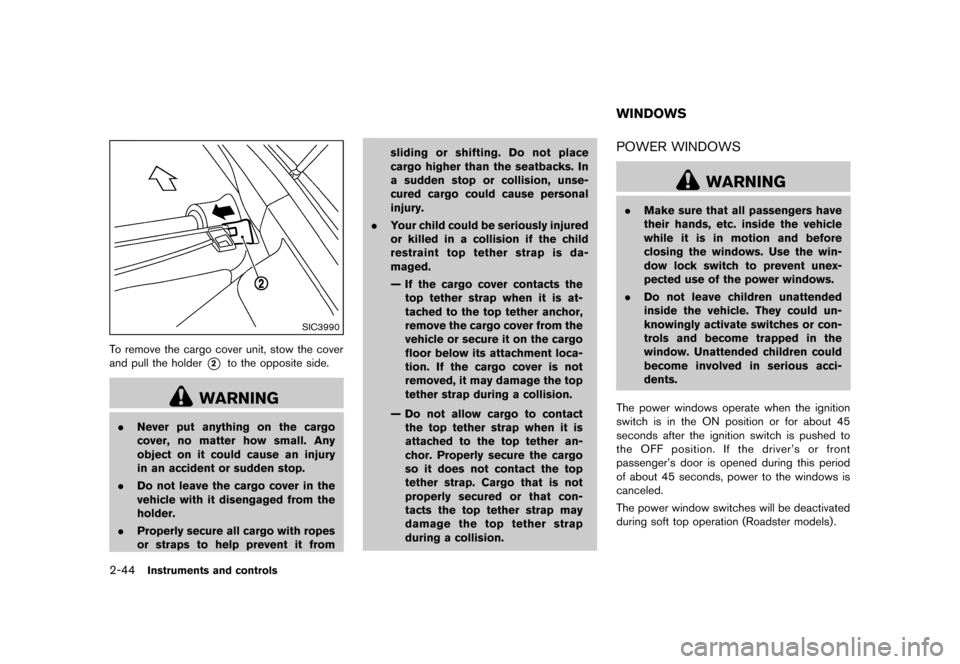

Page 108 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (106,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-44Instruments and controls
SIC3990
To remove the cargo cover unit, stow the cover
and pull the holder
*2to the opposite side.
WARNING
.Never pu

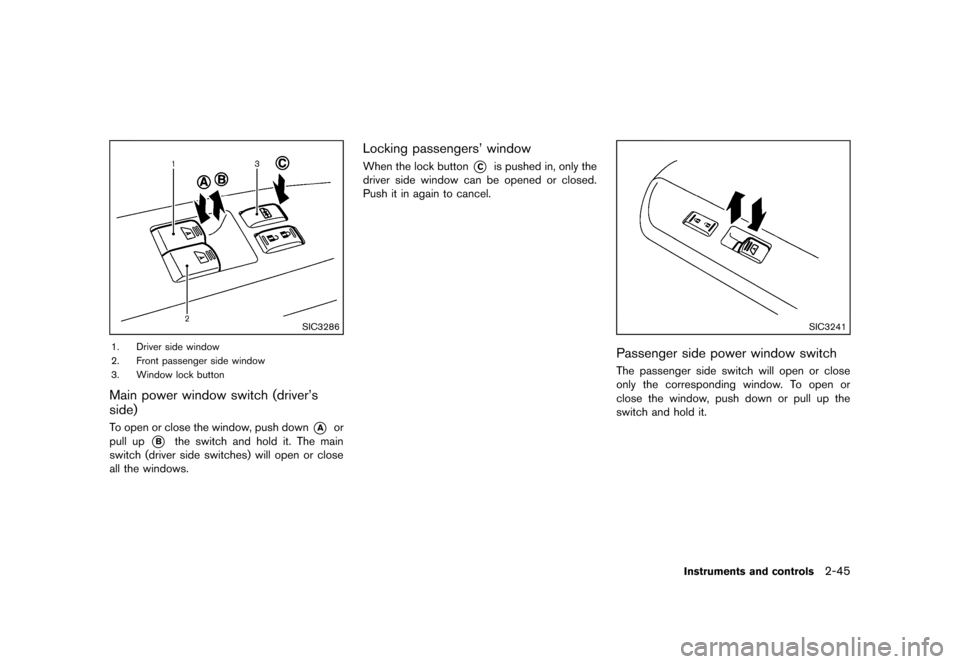

Page 109 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (107,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SIC3286
1. Driver side window
2. Front passenger side window
3. Window lock button
Main power window switch (driver’s
side)
GUID-0CBE7503-24CC-

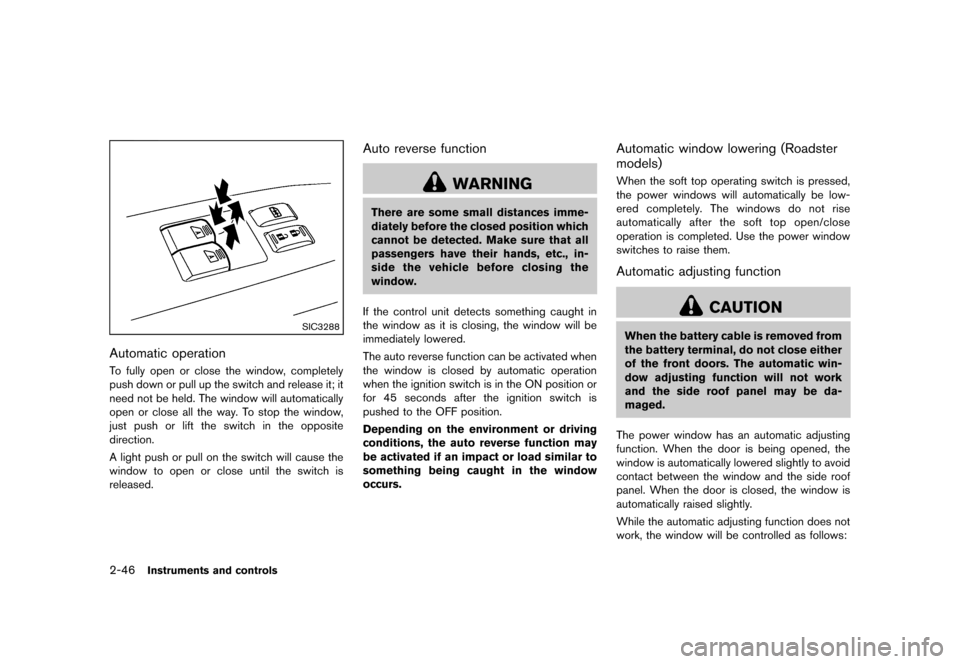

Page 110 of 427

NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (108,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-46Instruments and controls
SIC3288
Automatic operationGUID-B744ECF4-D5F8-4FAC-9828-1E32D5E42FB6To fully open or close the window, completely
pu
