NISSAN 370Z ROADSTER 2013 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: 370Z ROADSTER, Model: NISSAN 370Z ROADSTER 2013 Z34Pages: 427, PDF Size: 4.4 MB
Page 181 of 427
Black plate (179,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

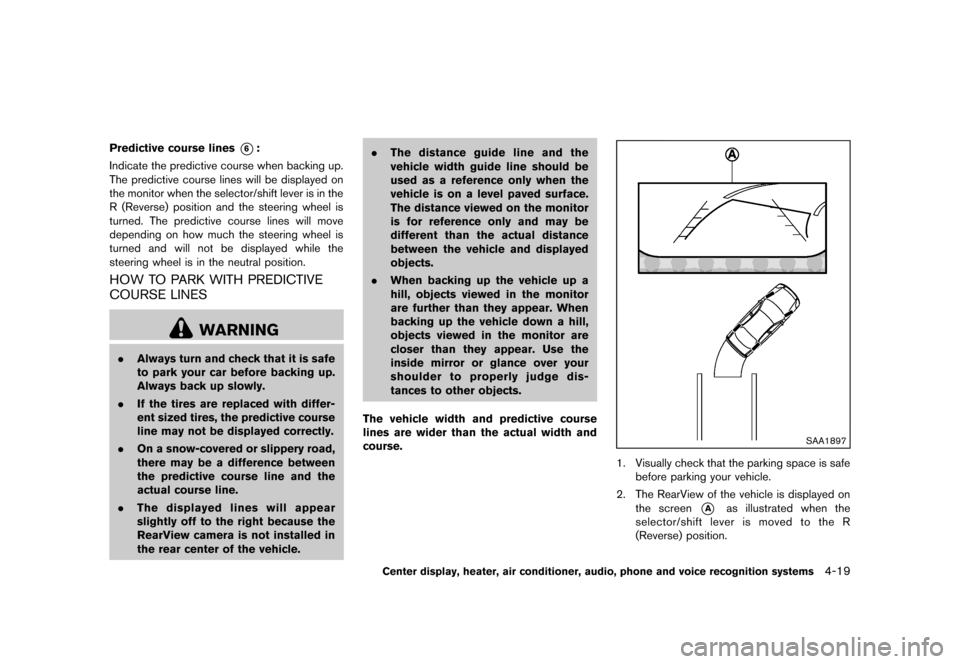

Predictive course lines*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the selector/shift lever is in the
R (Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-E553930F-FF31-4E97-94EA-691A1691E761
WARNING
. Always turn and check that it is safe
to park your car before backing up.
Always back up slowly.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines will appear
slightly off to the right because the
RearView camera is not installed in
the rear center of the vehicle. .
The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
The vehicle width and predictive course
lines are wider than the actual width and
course.
SAA1897
1. Visually check that the parking space is safe before parking your vehicle.
2. The RearView of the vehicle is displayed on the screen
*Aas illustrated when the
selector/shift lever is moved to the R
(Reverse) position.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-19
Page 182 of 427
Black plate (180,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-20Center display, heater, air conditioner, audio, phone and voice recognition systems

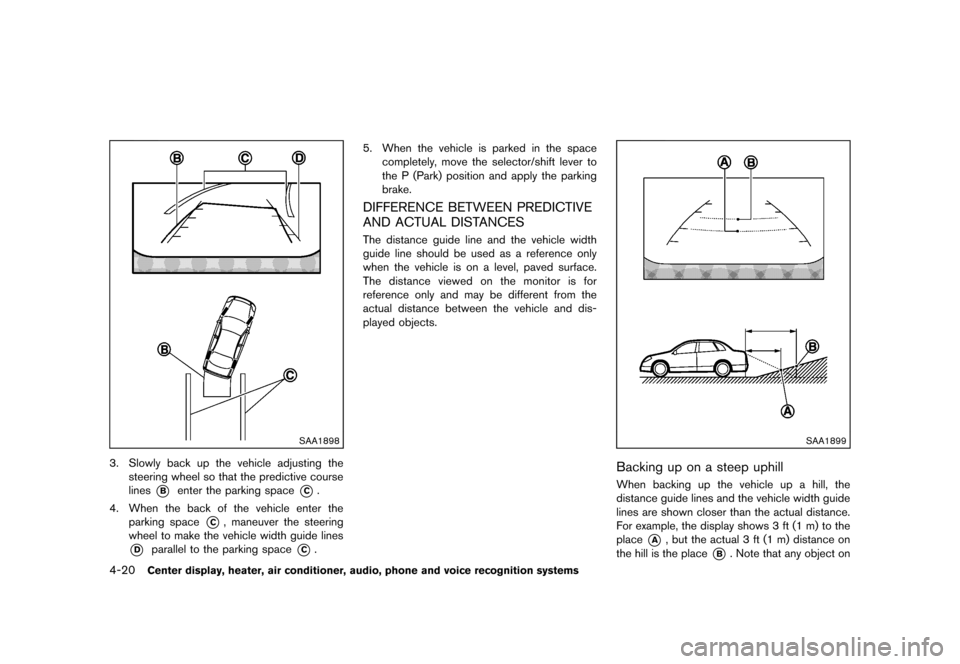

SAA1898
3. Slowly back up the vehicle adjusting thesteering wheel so that the predictive course
lines
*Benter the parking space*C.
4. When the back of the vehicle enter the parking space
*C, maneuver the steering
wheel to make the vehicle width guide lines
*Dparallel to the parking space*C. 5. When the vehicle is parked in the space
completely, move the selector/shift lever to
the P (Park) position and apply the parking
brake.
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-7CBBC06A-987D-450D-98D2-B2FE3AAD4FAFThe distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different from the
actual distance between the vehicle and dis-
played objects.
SAA1899
Backing up on a steep uphillGUID-4449290B-1137-4764-A904-3A701DB530B5When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
Page 183 of 427
Black plate (181,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
the hill is further than it appears on the monitor.

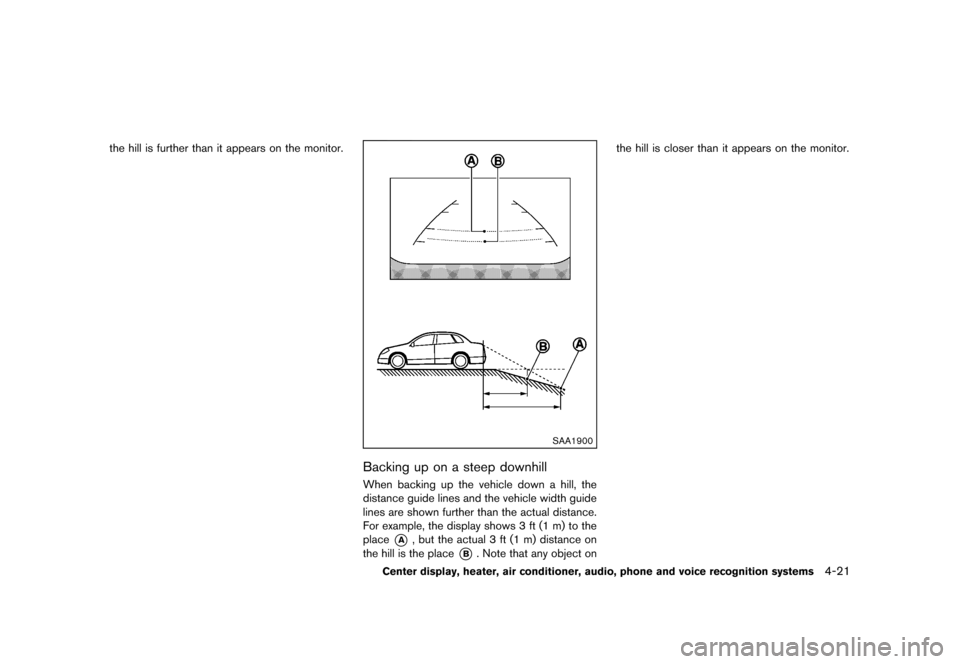

SAA1900
Backing up on a steep downhillGUID-45EDA4C2-A39C-4211-BECB-7CE65FAD972DWhen backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is closer than it appears on the monitor.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-21
Page 184 of 427
Black plate (182,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-22Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA1923
Backing up near a projecting objectGUID-9D27E7BF-C195-4F98-93A1-7F030AD7D8C0The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
SAA1924
Backing up behind a projecting objectGUID-0AC8F8DB-D71C-439B-89F1-BE07F9D62E1DThe position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
Page 185 of 427
Black plate (183,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

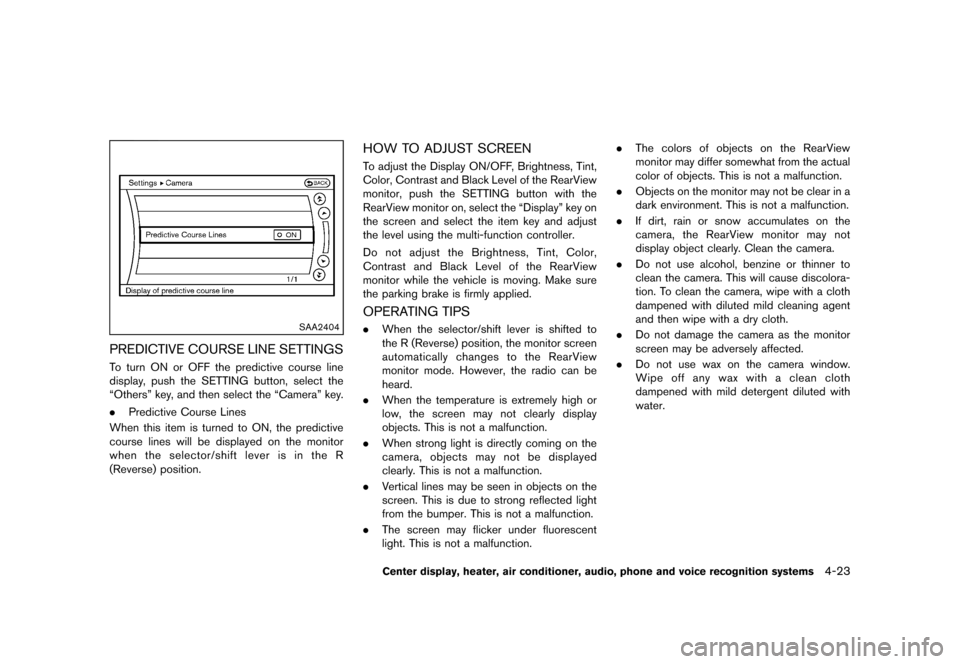

SAA2404
PREDICTIVE COURSE LINE SETTINGSGUID-AAECF1B8-4C6B-4110-BDDC-38B8FF00F2FATo turn ON or OFF the predictive course line
display, push the SETTING button, select the
“Others” key, and then select the “Camera” key.
.Predictive Course Lines
When this item is turned to ON, the predictive
course lines will be displayed on the monitor
when the selector/shift lever is in the R
(Reverse) position.
HOW TO ADJUST SCREENGUID-6909FA34-339A-4CA3-8E7D-96A8841A81F8To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
monitor, push the SETTING button with the
RearView monitor on, select the “Display” key on
the screen and select the item key and adjust
the level using the multi-function controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
OPERATING TIPSGUID-09E04EEF-4E5D-4D36-954A-9B1C5D42E313. When the selector/shift lever is shifted to
the R (Reverse) position, the monitor screen
automatically changes to the RearView
monitor mode. However, the radio can be
heard.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction. .
The colors of objects on the RearView
monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView monitor may not
display object clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-23
Page 186 of 427
Black plate (184,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-24Center display, heater, air conditioner, audio, phone and voice recognition systems

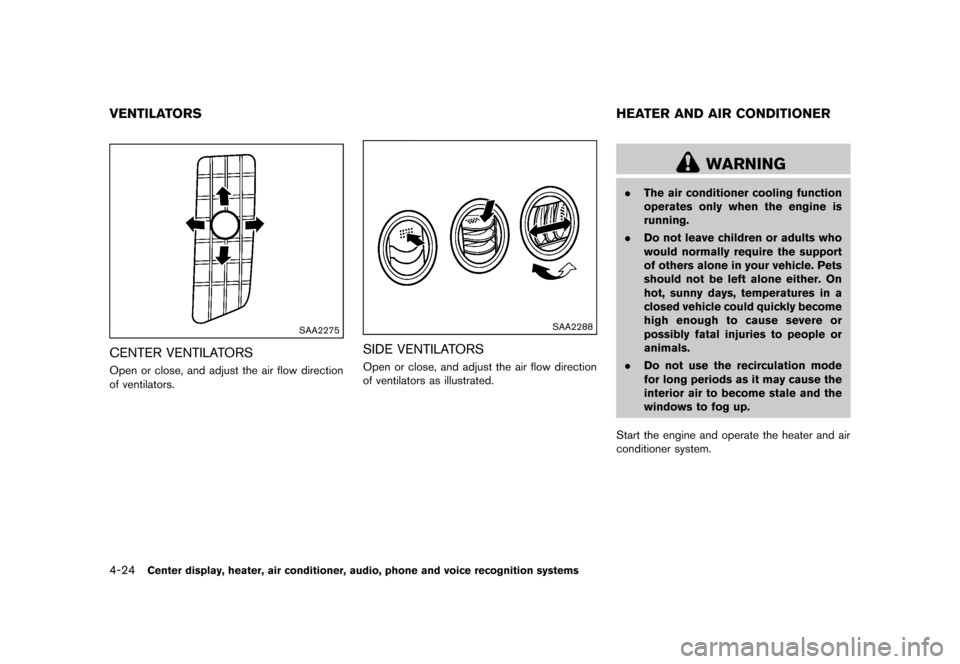

GUID-1C6EB93E-A5D2-49F9-B017-6F98330AAC50
SAA2275
CENTER VENTILATORSGUID-1054DC92-6C4F-4BE8-B77D-8D7266A09E61Open or close, and adjust the air flow direction
of ventilators.
SAA2288
SIDE VENTILATORSGUID-33F58919-39BA-4879-8F3C-81581BA26D58Open or close, and adjust the air flow direction
of ventilators as illustrated.
GUID-4071BB55-3DE6-43CF-85FF-0AC92D6936BD
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
VENTILATORS HEATER AND AIR CONDITIONER
Page 187 of 427
Black plate (185,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

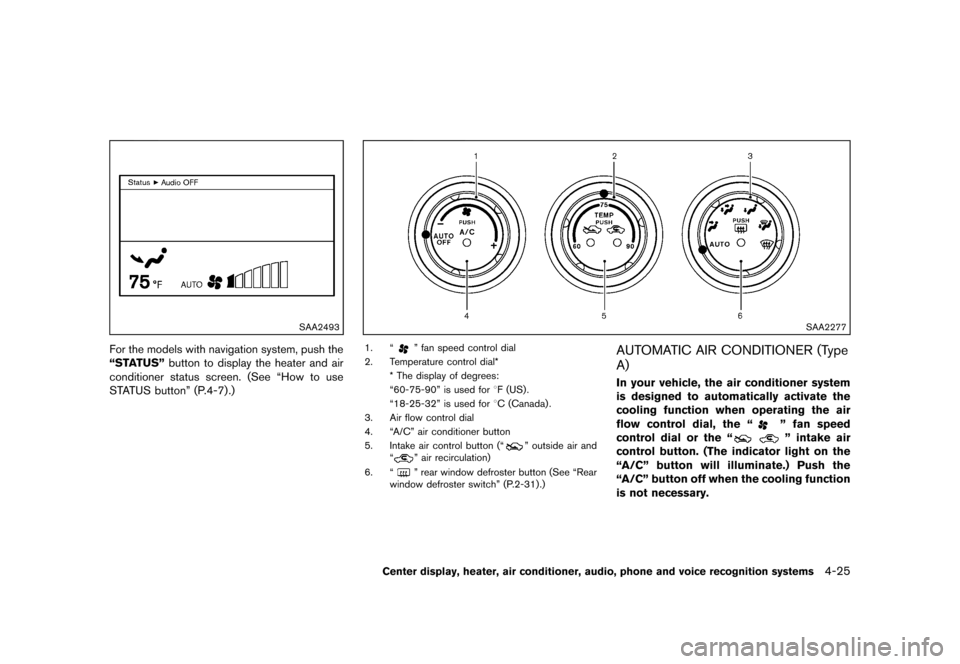

SAA2493
For the models with navigation system, push the
“STATUS”button to display the heater and air
conditioner status screen. (See “How to use
STATUS button” (P.4-7) .)
SAA2277
1. “” fan speed control dial
2. Temperature control dial*
* The display of degrees:
“60-75-90” is used for 8F (US) .
“18-25-32” is used for 8C (Canada) .
3. Air flow control dial
4. “A/C” air conditioner button
5. Intake air control button (“
” outside air and
“” air recirculation)
6. “
” rear window defroster button (See “Rear
window defroster switch” (P.2-31) .)
AUTOMATIC AIR CONDITIONER (Type
A)
GUID-C93D6B5D-FA80-460F-A562-56C71A29D5FEIn your vehicle, the air conditioner system
is designed to automatically activate the
cooling function when operating the air
flow control dial, the “
” fan speed
control dial or the “
” intake air
control button. (The indicator light on the
“A/C” button will illuminate.) Push the
“A/C” button off when the cooling function
is not necessary.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-25
Page 188 of 427
Black plate (186,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-26Center display, heater, air conditioner, audio, phone and voice recognition systems

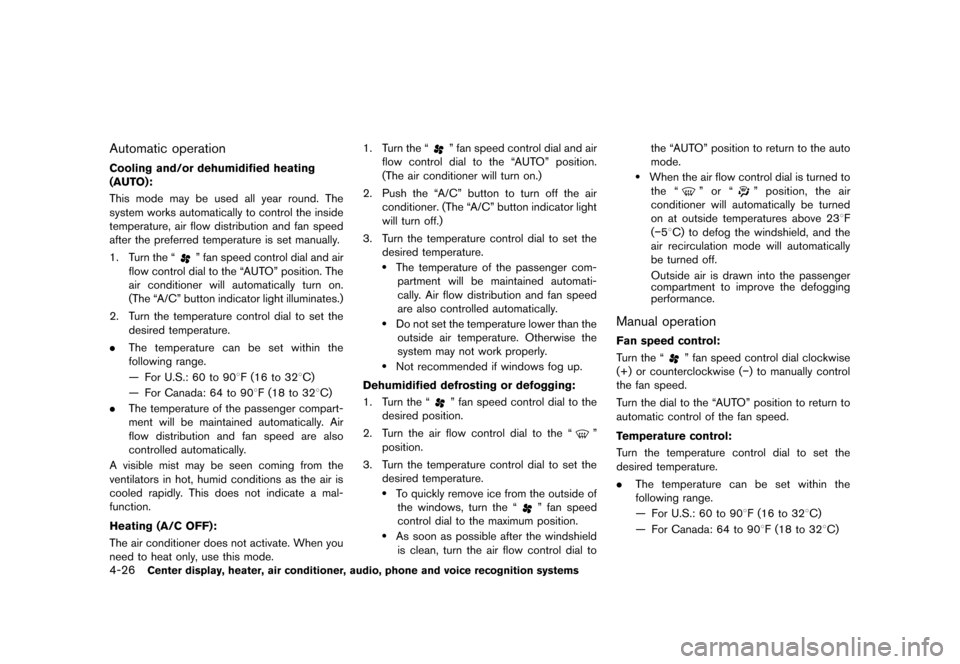

Automatic operationGUID-92EAE646-5525-472B-9AE3-A7DEA9F97904
Cooling and/or dehumidified heating
(AUTO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.
1. Turn the “
” fan speed control dial and air
flow control dial to the “AUTO” position. The
air conditioner will automatically turn on.
(The “A/C” button indicator light illuminates.)
2. Turn the temperature control dial to set the desired temperature.
. The temperature can be set within the
following range.
— For U.S.: 60 to 908F (16 to 328C)
— For Canada: 64 to 908F (18 to 328C)
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The air conditioner does not activate. When you
need to heat only, use this mode. 1. Turn the “
” fan speed control dial and air
flow control dial to the “AUTO” position.
(The air conditioner will turn on.)
2. Push the “A/C” button to turn off the air conditioner. (The “A/C” button indicator light
will turn off.)
3. Turn the temperature control dial to set the desired temperature.
.The temperature of the passenger com-partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
.Do not set the temperature lower than theoutside air temperature. Otherwise the
system may not work properly.
.Not recommended if windows fog up.
Dehumidified defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Turn the “” fan speed control dial to the
desired position.
2. Turn the air flow control dial to the “
”
position.
3. Turn the temperature control dial to set the desired temperature.
.To quickly remove ice from the outside ofthe windows, turn the “
” fan speed
control dial to the maximum position.
.As soon as possible after the windshield is clean, turn the air flow control dial to the “AUTO” position to return to the auto
mode.
.When the air flow control dial is turned to
the “
” or “” position, the air
conditioner will automatically be turned
on at outside temperatures above 238F
(−58C) to defog the windshield, and the
air recirculation mode will automatically
be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
Manual operationGUID-D4ECE9C9-CBEA-470E-836B-9368674BB657
Fan speed control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the “” fan speed control dial clockwise
(+) or counterclockwise (−) to manually control
the fan speed.
Turn the dial to the “AUTO” position to return to
automatic control of the fan speed.
Temperature control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature.
. The temperature can be set within the
following range.
— For U.S.: 60 to 908F (16 to 328C)
— For Canada: 64 to 908F (18 to 328C)
Page 189 of 427
Black plate (187,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

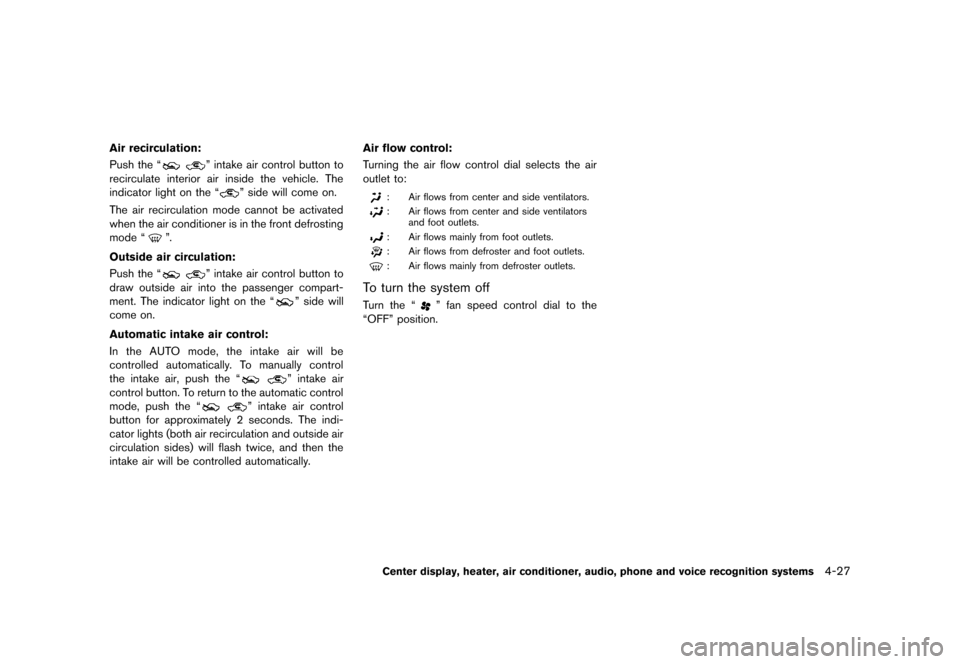

Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
recirculate interior air inside the vehicle. The
indicator light on the “
” side will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode “
”.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
draw outside air into the passenger compart-
ment. The indicator light on the “
” side will
come on.
Automatic intake air control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the “
” intake air
control button. To return to the automatic control
mode, push the “
” intake air control
button for approximately 2 seconds. The indi-
cator lights (both air recirculation and outside air
circulation sides) will flash twice, and then the
intake air will be controlled automatically. Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turning the air flow control dial selects the air
outlet to:
: Air flows from center and side ventilators.
: Air flows from center and side ventilators
and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
: Air flows mainly from defroster outlets.
To turn the system offGUID-9960B75D-133E-4A51-AD59-9BF285804F38Turn the “” fan speed control dial to the
“OFF” position.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-27
Page 190 of 427
Black plate (188,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

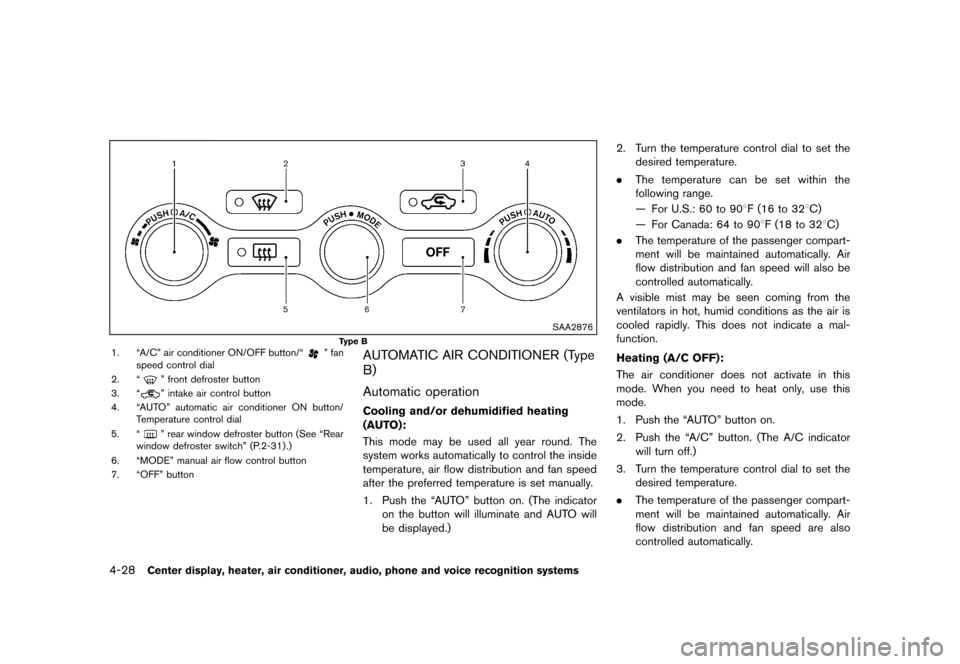

4-28Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2876
Type B1. “A/C” air conditioner ON/OFF button/“” fan
speed control dial
2. “
” front defroster button
3. “
” intake air control button
4. “AUTO” automatic air conditioner ON button/ Temperature control dial
5. “
” rear window defroster button (See “Rear
window defroster switch” (P.2-31) .)
6. “MODE” manual air flow control button
7. “OFF” button
AUTOMATIC AIR CONDITIONER (Type
B)
GUID-B173E5B5-AD75-4667-9B53-8DAE9B17EA55
Automatic operationGUID-04C96339-0F7B-43AF-853F-29401B4D6CC5
Cooling and/or dehumidified heating
(AUTO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.
1. Push the “AUTO” button on. (The indicator on the button will illuminate and AUTO will
be displayed.) 2. Turn the temperature control dial to set the
desired temperature.
. The temperature can be set within the
following range.
— For U.S.: 60 to 908F (16 to 328C)
— For Canada: 64 to 908F (18 to 328C)
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed will also be
controlled automatically.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicator will turn off.)
3. Turn the temperature control dial to set the desired temperature.
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
