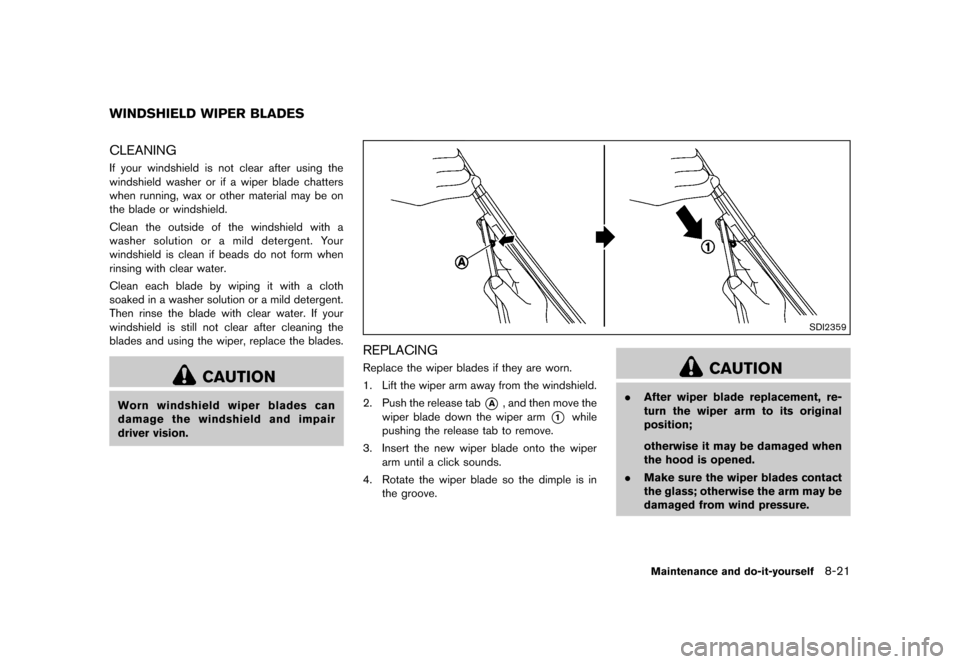

GUID-EA3F29BB-5B6C-447E-AA40-B292CA44802FCLEANINGGUID-1210C031-55CD-45E6-8731-C0F3DB8E46A1If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild detergent.
Then rinse the blade with clear water. If your
windshield is still not clear after cleaning the
blades and using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can
damage the windshield and impair
driver vision.
SDI2359
REPLACINGGUID-5722BAD9-B5FD-447E-8511-8124F5642587Replace the wiper blades if they are worn.
1. Lift the wiper arm away from the windshield.
2. Push the release tab
*A, and then move the
wiper blade down the wiper arm
*1while
pushing the release tab to remove.
3. Insert the new wiper blade onto the wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in the groove.
CAUTION
.After wiper blade replacement, re-
turn the wiper arm to its original
position;
otherwise it may be damaged when
the hood is opened.
. Make sure the wiper blades contact
the glass; otherwise the arm may be
damaged from wind pressure.
Maintenance and do-it-yourself8-21
WINDSHIELD WIPER BLADES

Black plate (370,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-22Maintenance and do-it-yourself
SDI2362

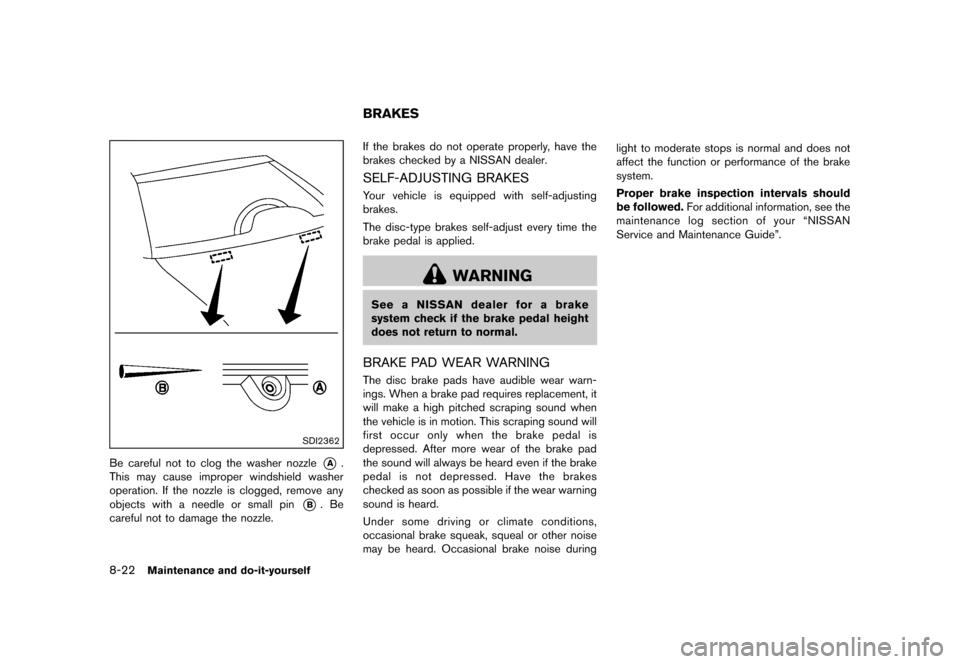

Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
GUID-855346CF-06F2-4876-9874-5E616615D19AIf the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
SELF-ADJUSTING BRAKESGUID-61D336D2-08DE-43D0-99D7-3D69BDA664E2Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake
system check if the brake pedal height
does not return to normal.
BRAKE PAD WEAR WARNINGGUID-86DD85AB-9C8D-4D47-BD3B-B1650EF16BFFThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance log section of your “NISSAN
Service and Maintenance Guide”.
BRAKES

Black plate (371,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-EAEC7372-8402-42CB-9CF1-BDC17D1D5274
SDI1479A

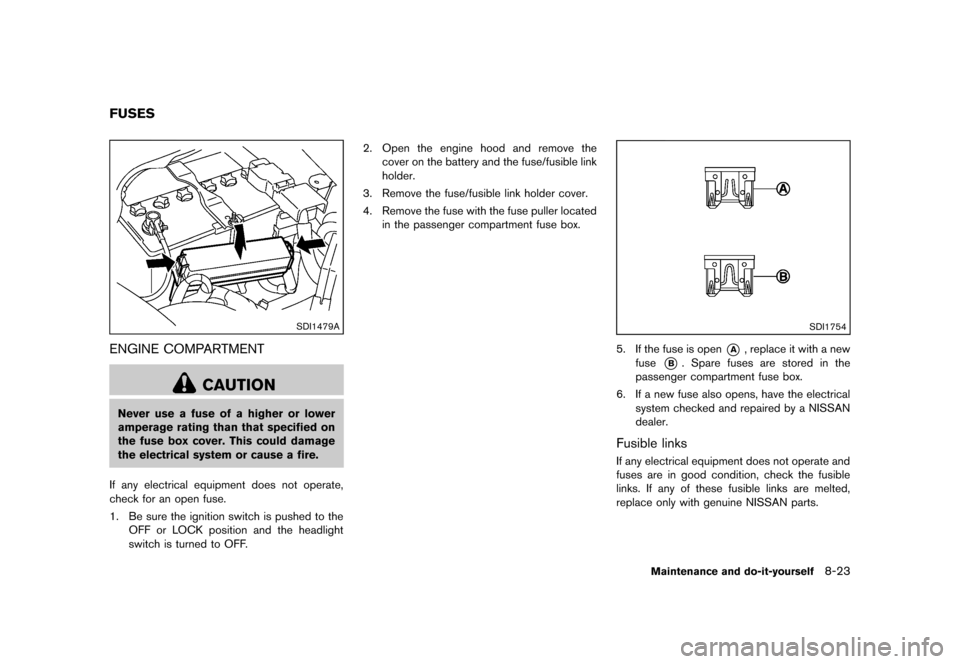

ENGINE COMPARTMENTGUID-1B0A5555-4C9F-4826-AA7F-FB5D14CE6B40
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open*A, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksGUID-A55E79C4-7290-4054-99DD-46FA7A621AD1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
Maintenance and do-it-yourself8-23
FUSES

Black plate (372,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-24Maintenance and do-it-yourself
SDI2361

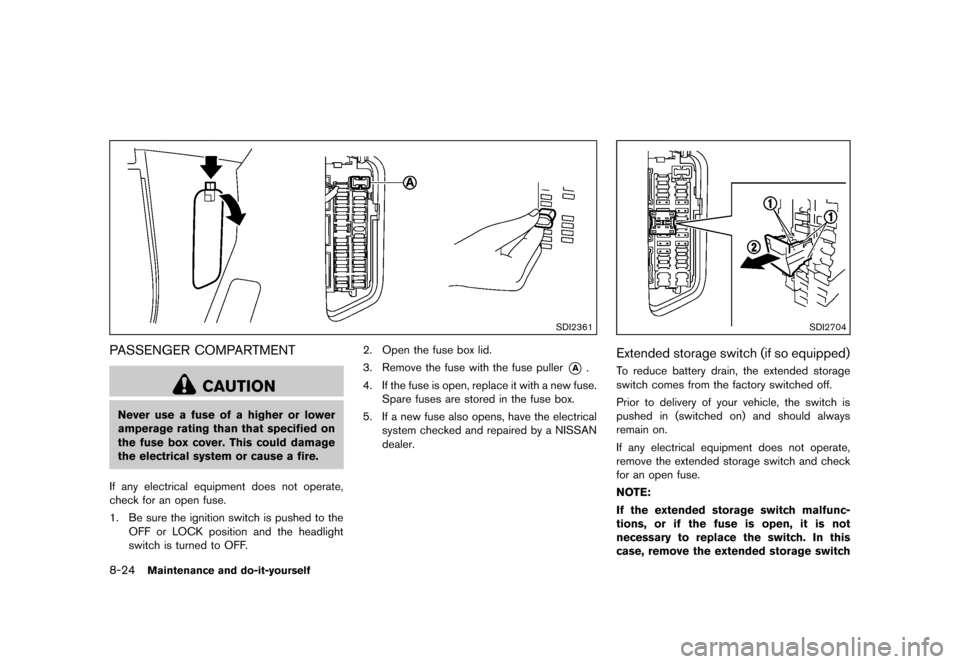

PASSENGER COMPARTMENTGUID-6D518851-BE98-467C-B161-6C604CC60083
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse box.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
SDI2704
Extended storage switch (if so equipped)GUID-9D73A26D-98E9-48FD-AC49-4B6A3894BA9BTo reduce battery drain, the extended storage
switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If any electrical equipment does not operate,
remove the extended storage switch and check
for an open fuse.
NOTE:
If the extended storage switch malfunc-
tions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage switch

Black plate (373,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
and replace it with a new fuse of the same
rating.

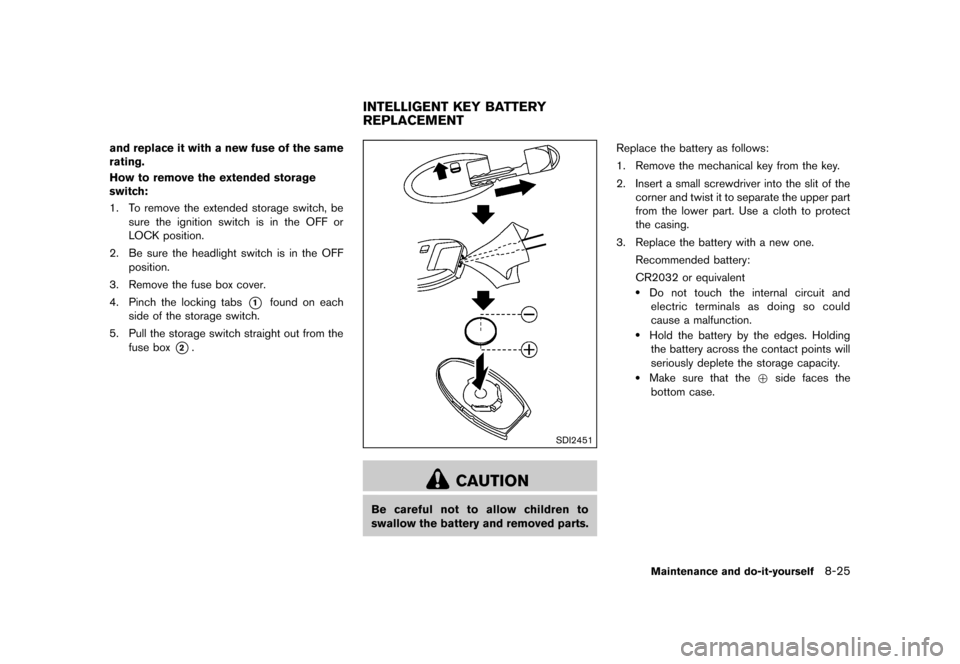

How to remove the extended storage
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage switch, besure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the storage switch.
5. Pull the storage switch straight out from the fuse box
*2.
GUID-19ADB578-1FFA-465C-AF0A-55E3EFD6FDE2
SDI2451
CAUTION
Be careful not to allow children to
swallow the battery and removed parts. Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2032 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.
Maintenance and do-it-yourself8-25
INTELLIGENT KEY BATTERY
REPLACEMENT

Black plate (374,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-26Maintenance and do-it-yourself
SDI2452

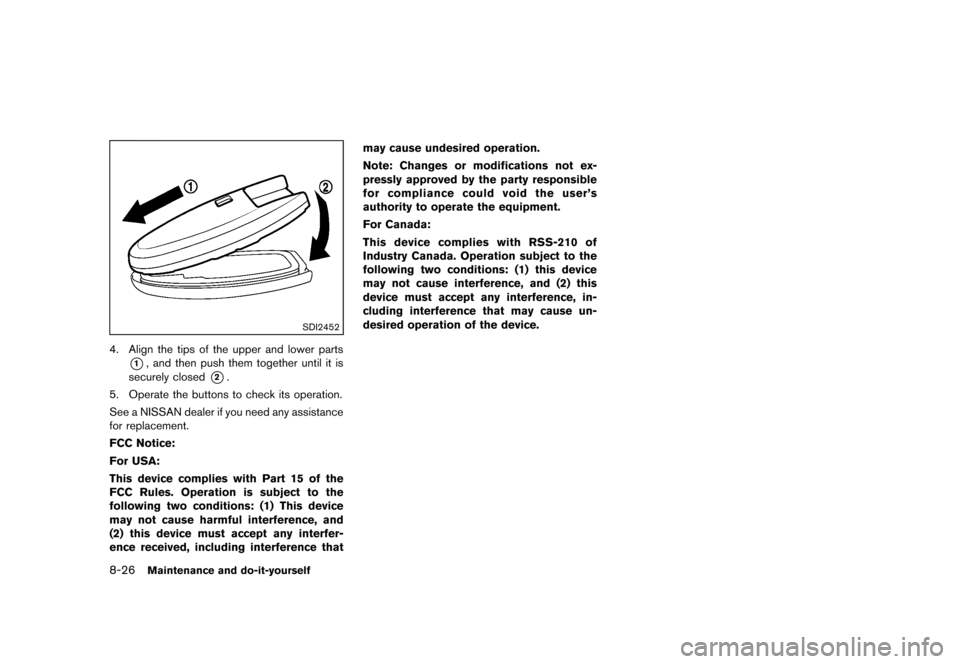

4. Align the tips of the upper and lower parts
*1, and then push them together until it is
securely closed
*2.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause un-
desired operation of the device.

Black plate (375,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-EB65B981-E72F-4FAC-ADF0-40E2A575A79F
JVM0139X

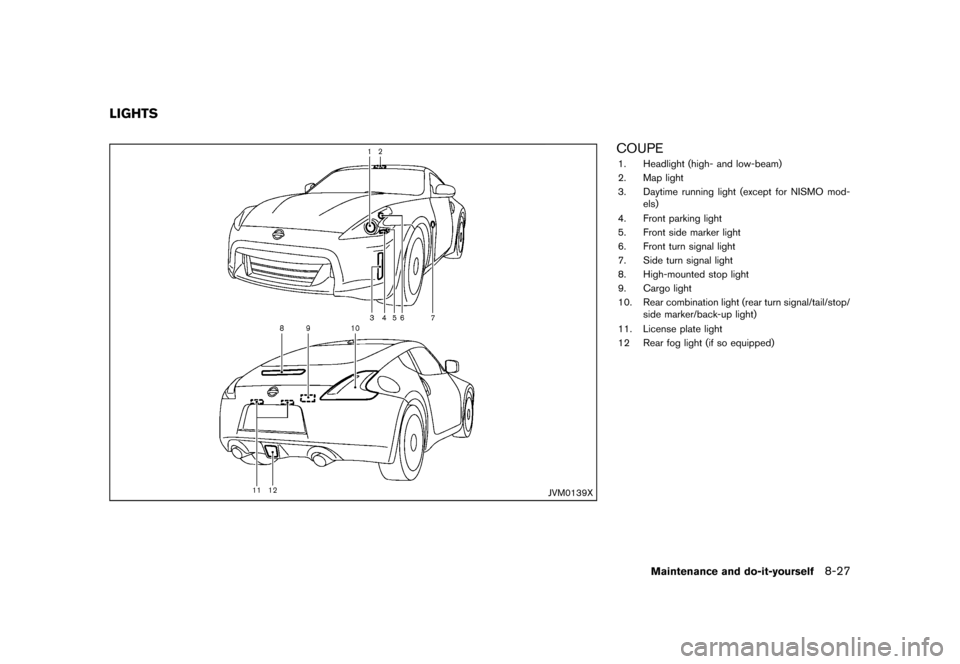

COUPEGUID-D2ED99C7-EF8E-4A18-AFC1-576969341A871. Headlight (high- and low-beam)
2. Map light
3. Daytime running light (except for NISMO mod-els)
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Cargo light
10. Rear combination light (rear turn signal/tail/stop/ side marker/back-up light)
11. License plate light
12 Rear fog light (if so equipped)
Maintenance and do-it-yourself8-27
LIGHTS

Black plate (376,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-28Maintenance and do-it-yourself
JVM0140X
ROADSTERGUID-DD6E3D5F-4BF6-4D01-9DFF-ADB1800DCFEF1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-mounted stop light
9. Trunk light
10. Cargo area courtesy light
11. Rear combination light (rear turn signal/tail/stop/side marker/back-up light)
12. License plate light
13. Rear fog light (if so equipped)

Black plate (377,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

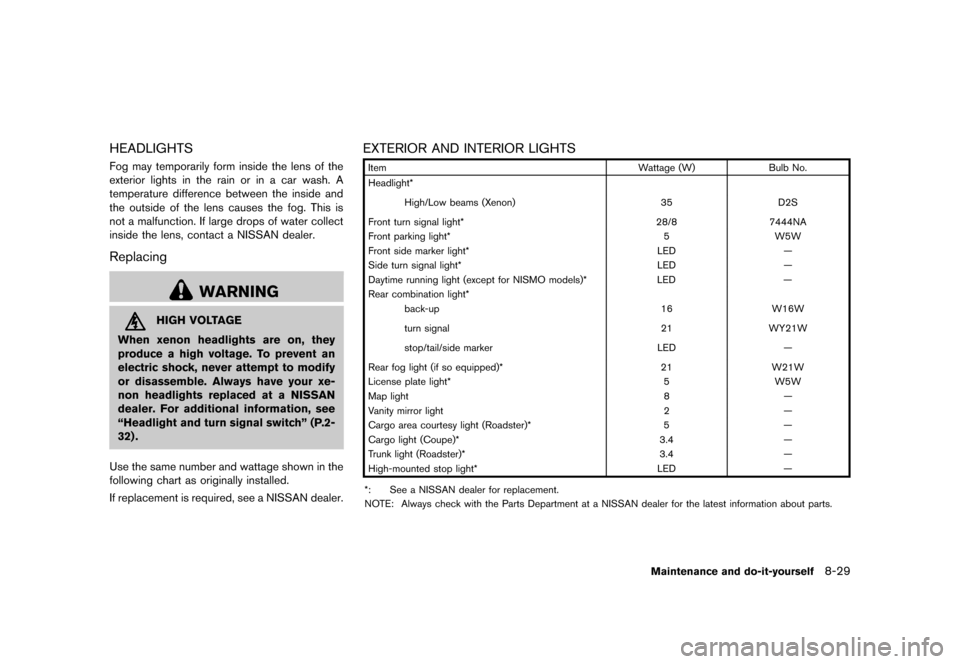

HEADLIGHTSGUID-68508CC1-7E92-42CD-BC8E-938EDC02B062Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” (P.2-
32) .
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see a NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35 D2S
Front turn signal light* 28/8 7444NA
Front parking light* 5 W5W
Front side marker light* LED —
Side turn signal light* LED —
Daytime running light (except for NISMO models)* LED —
Rear combination light* back-up 16 W16W
turn signal 21WY21W
stop/tail/side marker LED—
Rear fog light (if so equipped)* 21 W21W
License plate light* 5 W5W
Map light 8 —
Vanity mirror light 2 —
Cargo area courtesy light (Roadster)* 5 —
Cargo light (Coupe)* 3.4 —
Trunk light (Roadster)* 3.4 —
High-mounted stop light* LED —
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
Maintenance and do-it-yourself8-29

Black plate (378,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-30Maintenance and do-it-yourself
Replacement proceduresGUID-BE5E958F-B1EB-45FE-9F88-37F2E0CC655BAll other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2352
Map light
SDI1839
Vanity mirror light
