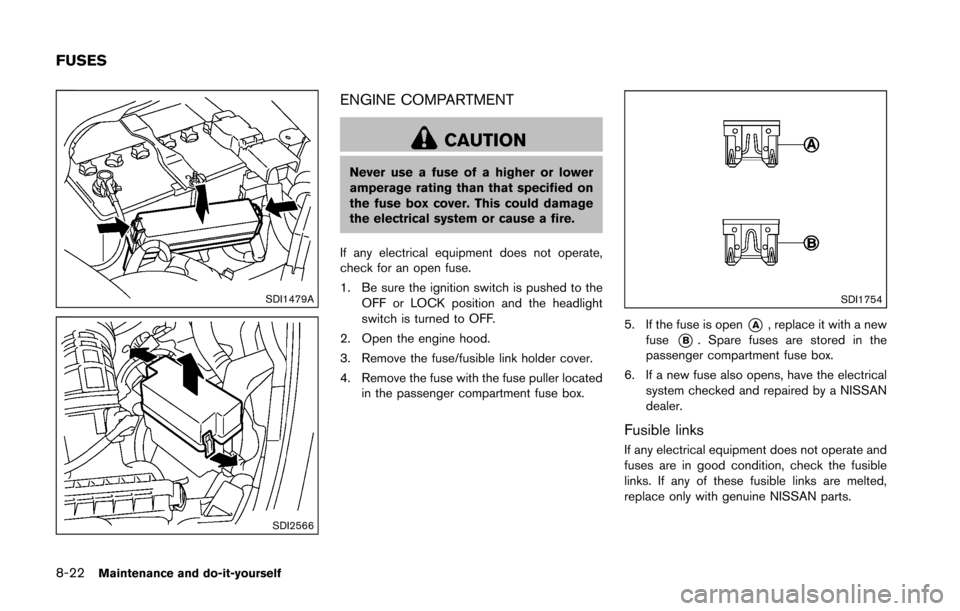

Page 371 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 8-22Maintenance and do-it-yourself
SDI1479A
SDI2566
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the el

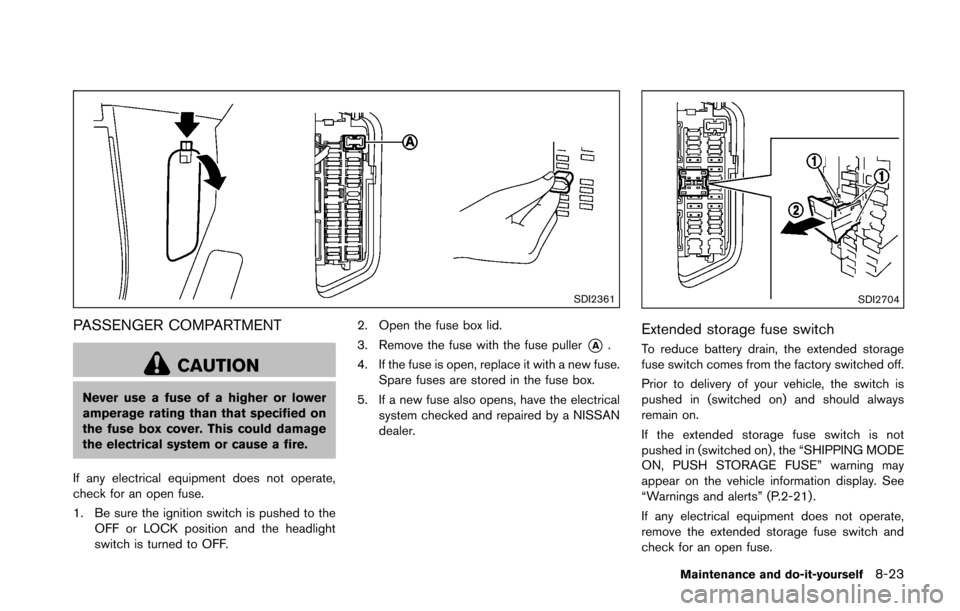

Page 372 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SDI2361
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any e

Page 373 of 428

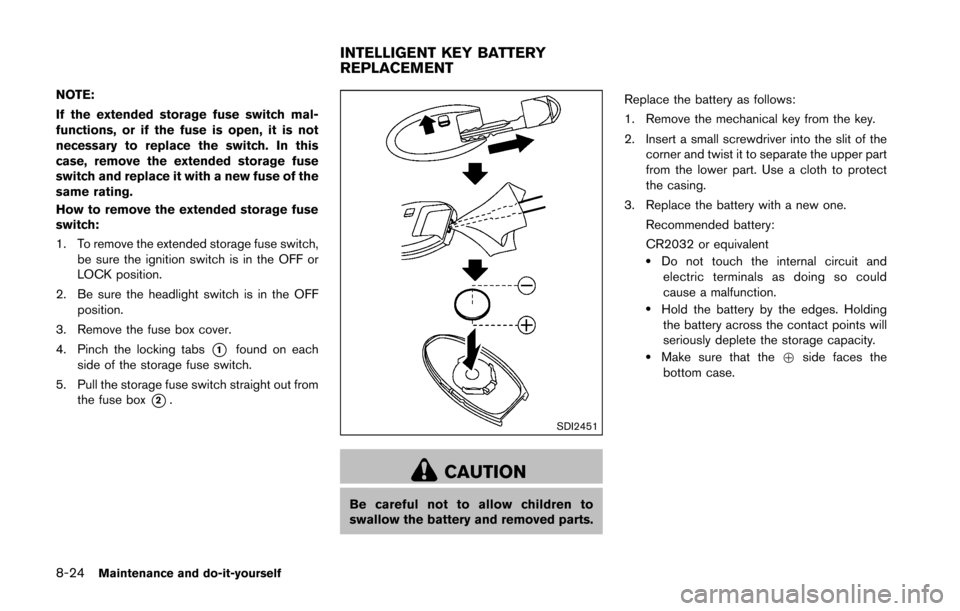

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 8-24Maintenance and do-it-yourself
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storag

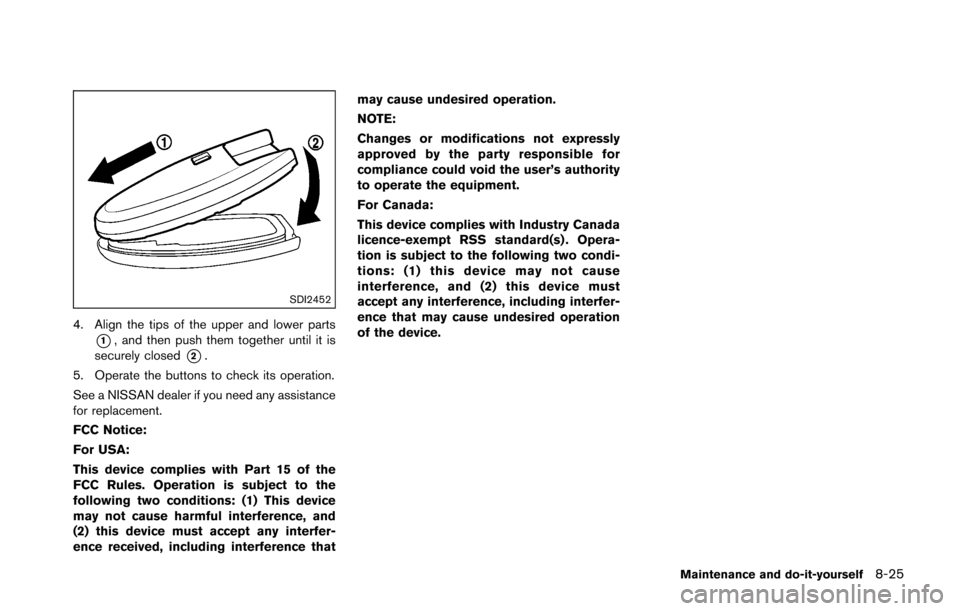

Page 374 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together until it is
securely closed
*2.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need an

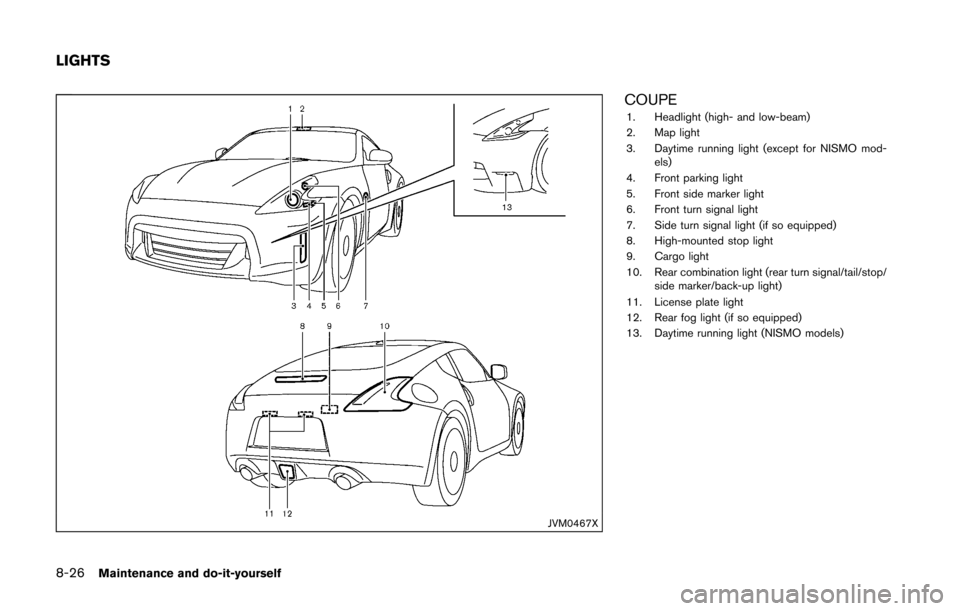

Page 375 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 8-26Maintenance and do-it-yourself
JVM0467X
COUPE1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light (except for NISMO mod-els)
4. Front parking light
5. Front side marker light
6.

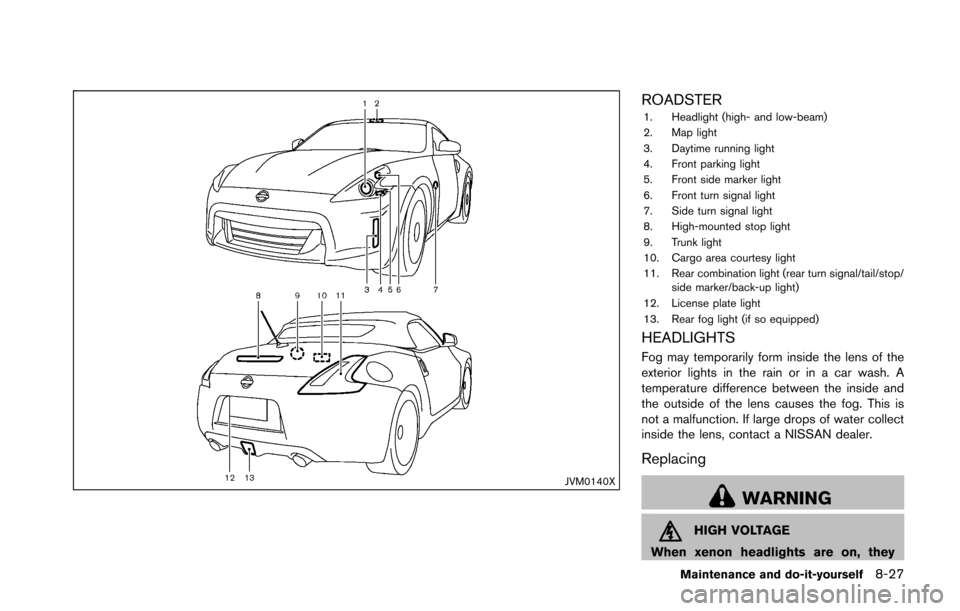

Page 376 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual JVM0140X
ROADSTER1. Headlight (high- and low-beam)
2. Map light
3. Daytime running light
4. Front parking light
5. Front side marker light
6. Front turn signal light
7. Side turn signal light
8. High-

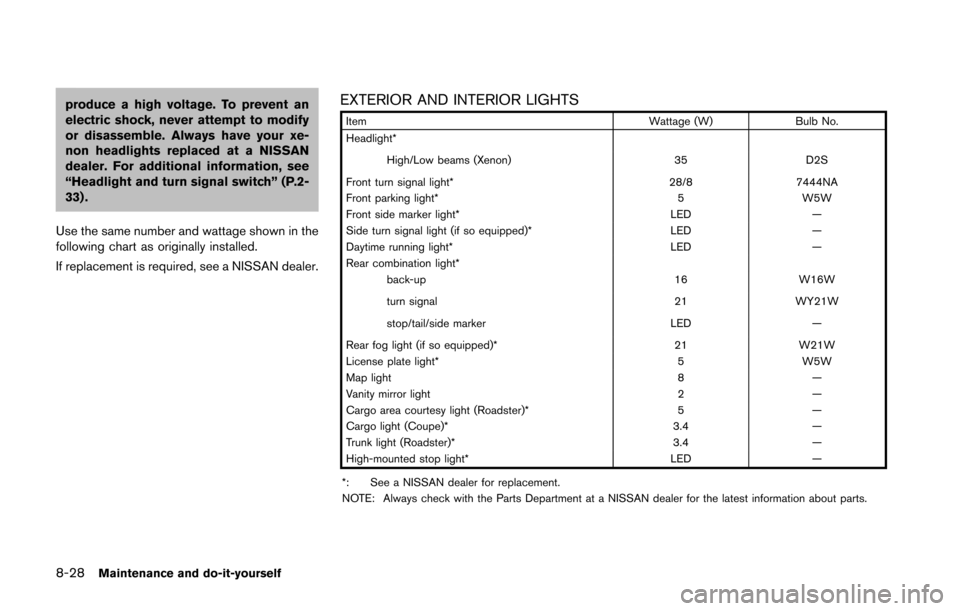

Page 377 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 8-28Maintenance and do-it-yourself
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For ad

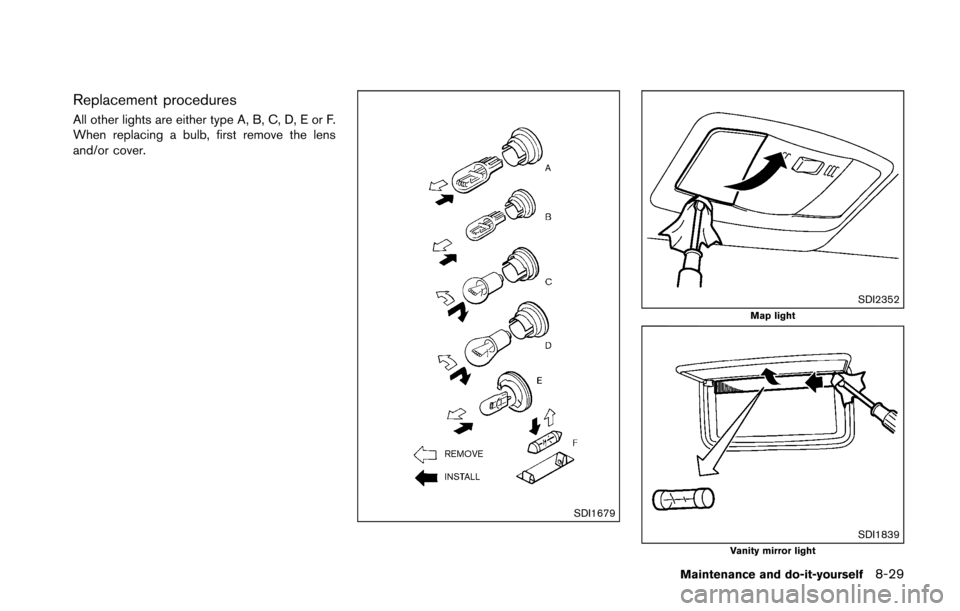

Page 378 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual Replacement procedures
All other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
SDI1679
SDI2352Map light
SDI1839Vanity mirror light
Maintenance a

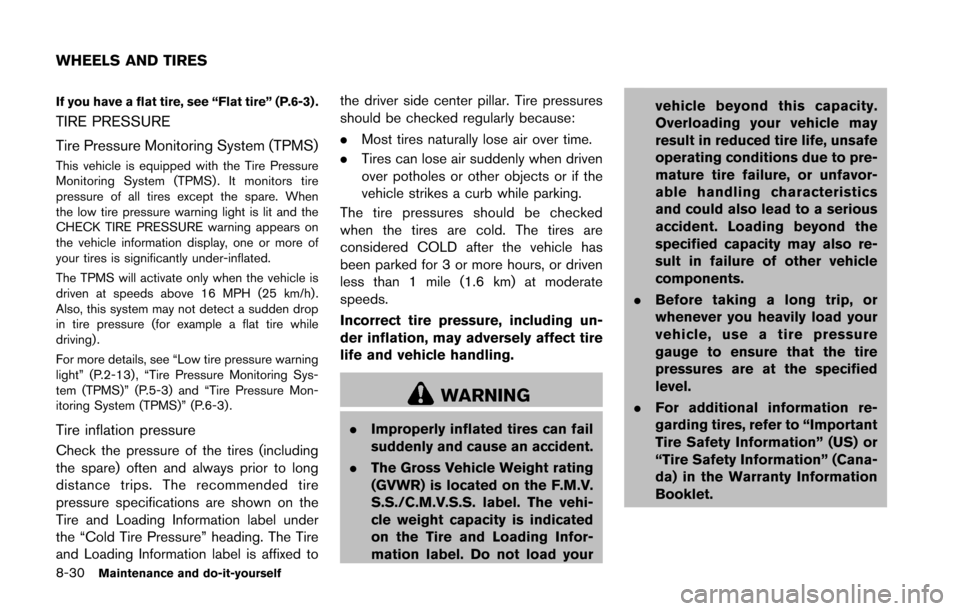

Page 379 of 428

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 8-30Maintenance and do-it-yourself
If you have a flat tire, see “Flat tire” (P.6-3) .
TIRE PRESSURE
Tire Pressure Monitoring System (TPMS)
This vehicle is equipped with the Tire Pressure
Monitorin

Page 380 of 428

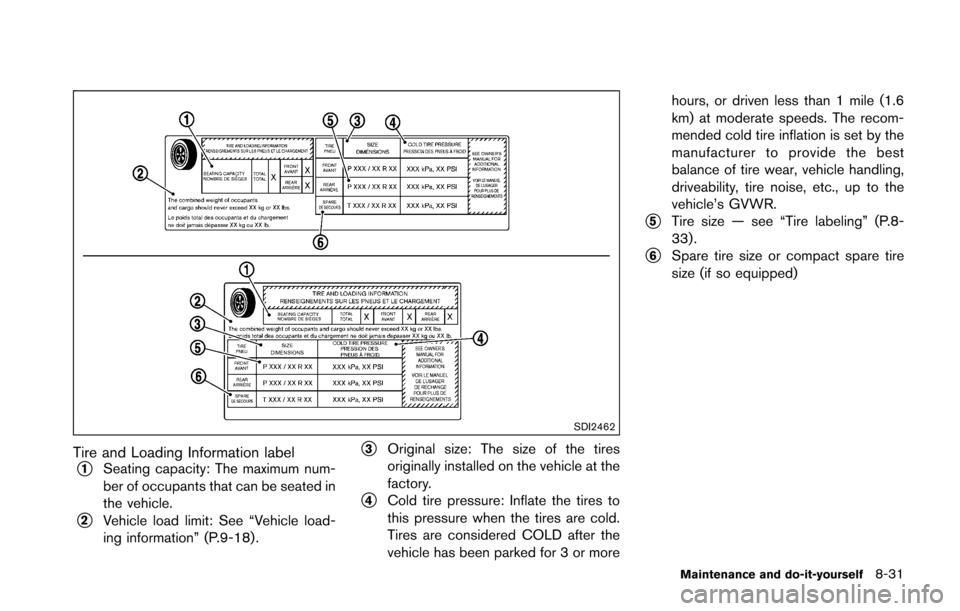

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SDI2462
Tire and Loading Information label*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” (P.9-18
