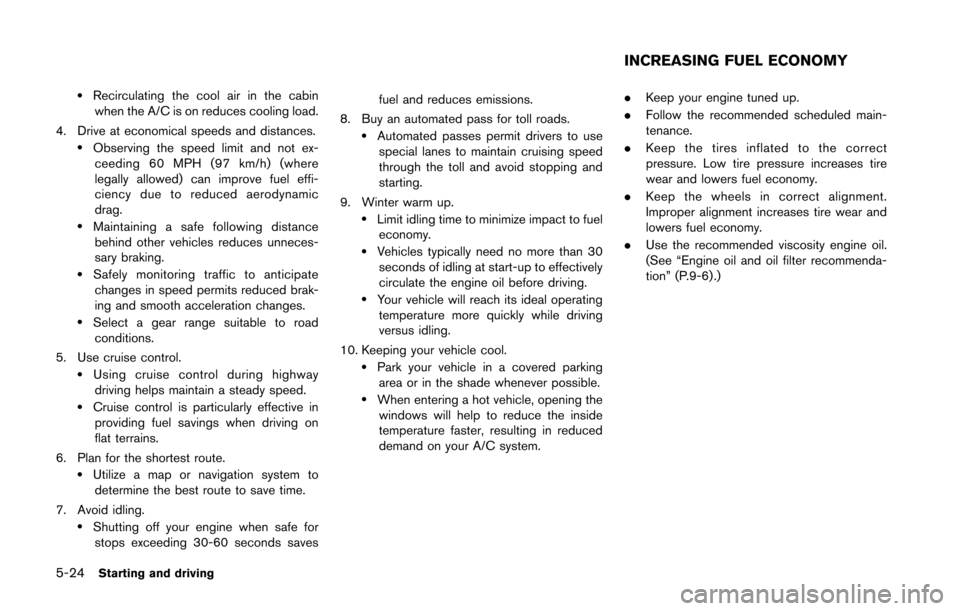

5-24Starting and driving
.Recirculating the cool air in the cabinwhen the A/C is on reduces cooling load.
4. Drive at economical speeds and distances.
.Observing the speed limit and not ex- ceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
.Maintaining a safe following distancebehind other vehicles reduces unneces-
sary braking.
.Safely monitoring traffic to anticipatechanges in speed permits reduced brak-
ing and smooth acceleration changes.
.Select a gear range suitable to road conditions.
5. Use cruise control.
.Using cruise control during highway driving helps maintain a steady speed.
.Cruise control is particularly effective in providing fuel savings when driving on
flat terrains.
6. Plan for the shortest route.
.Utilize a map or navigation system to determine the best route to save time.
7. Avoid idling.
.Shutting off your engine when safe for stops exceeding 30-60 seconds saves fuel and reduces emissions.
8. Buy an automated pass for toll roads.
.Automated passes permit drivers to use special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter warm up.
.Limit idling time to minimize impact to fuel economy.
.Vehicles typically need no more than 30seconds of idling at start-up to effectively
circulate the engine oil before driving.
.Your vehicle will reach its ideal operatingtemperature more quickly while driving
versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered parking area or in the shade whenever possible.
.When entering a hot vehicle, opening thewindows will help to reduce the inside
temperature faster, resulting in reduced
demand on your A/C system. .
Keep your engine tuned up.
. Follow the recommended scheduled main-
tenance.
. Keep the tires inflated to the correct
pressure. Low tire pressure increases tire
wear and lowers fuel economy.
. Keep the wheels in correct alignment.
Improper alignment increases tire wear and
lowers fuel economy.
. Use the recommended viscosity engine oil.
(See “Engine oil and oil filter recommenda-
tion” (P.9-6) .)
INCREASING FUEL ECONOMY

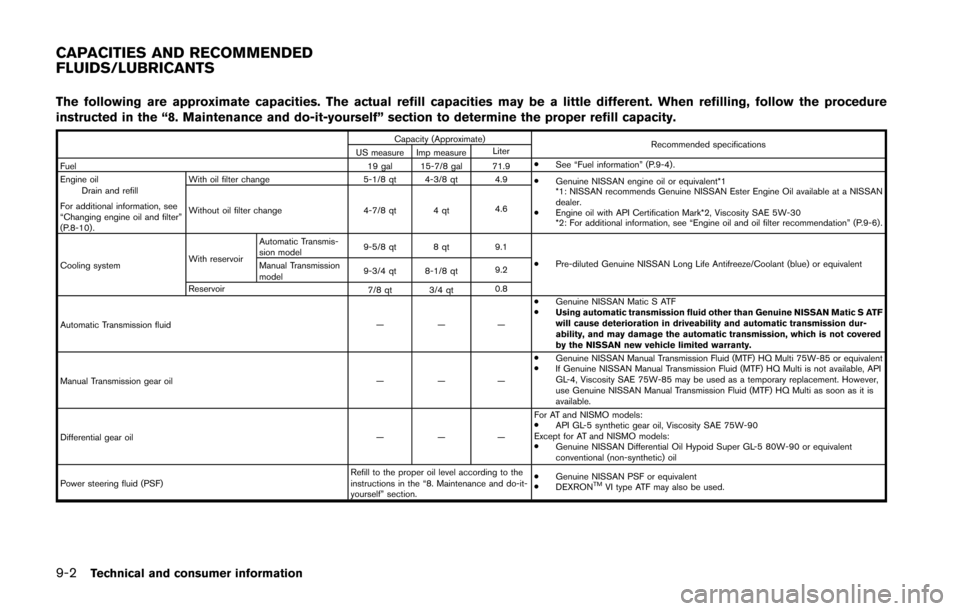

9-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19 gal 15-7/8 gal 71.9.
See “Fuel information” (P.9-4) .
Engine oil Drain and refill
For additional information, see
“Changing engine oil and filter”
(P.8-10). With oil filter change
5-1/8 qt 4-3/8 qt 4.9
.
Genuine NISSAN engine oil or equivalent*1
*1: NISSAN recommends Genuine NISSAN Ester Engine Oil available at a NISSAN
dealer.
. Engine oil with API Certification Mark*2, Viscosity SAE 5W-30
*2: For additional information, see “Engine oil and oil filter recommendation” (P.9-6) .
Without oil filter change
4-7/8 qt 4 qt4.6
Cooling system With reservoirAutomatic Transmis-
sion model
9-5/8 qt 8 qt
9.1
.Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Manual Transmission
model 9-3/4 qt 8-1/8 qt
9.2
Reservoir 7/8 qt 3/4 qt0.8
Automatic Transmission fluid ———.
Genuine NISSAN Matic S ATF
. Using automatic transmission fluid other than Genuine NISSAN Matic S ATF
will cause deterioration in driveability and automatic transmission dur-
ability, and may damage the automatic transmission, which is not covered
by the NISSAN new vehicle limited warranty.
Manual Transmission gear oil ———.
Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or equivalent
. If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi is not available, API
GL-4, Viscosity SAE 75W-85 may be used as a temporary replacement. However,
use Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi as soon as it is
available.
Differential gear oil ———For AT and NISMO models:
.
API GL-5 synthetic gear oil, Viscosity SAE 75W-90
Except for AT and NISMO models:
. Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent
conventional (non-synthetic) oil
Power steering fluid (PSF) Refill to the proper oil level according to the
instructions in the “8. Maintenance and do-it-
yourself” section..
Genuine NISSAN PSF or equivalent
. DEXRON
TMVI type ATF may also be used.
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

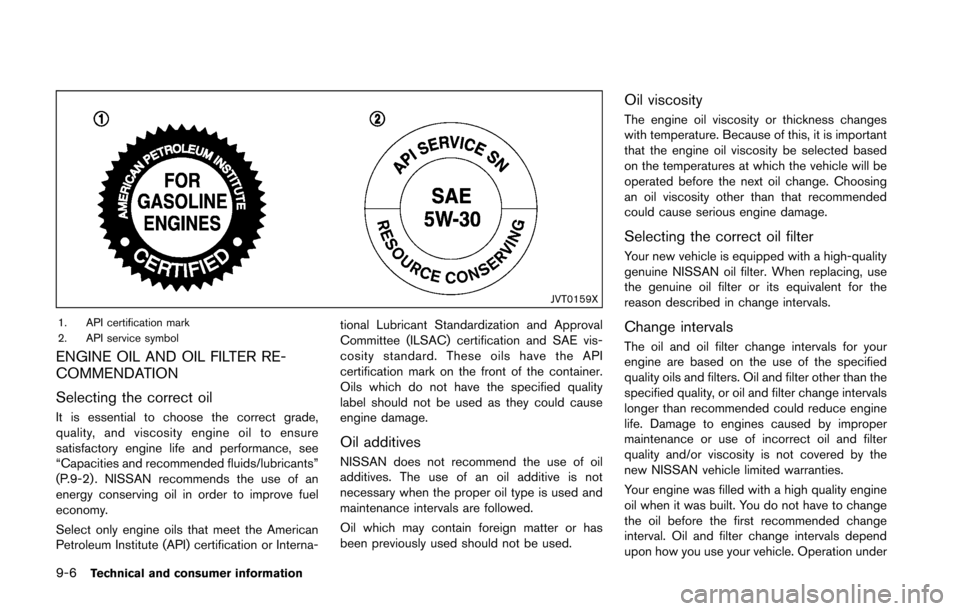

9-6Technical and consumer information
JVT0159X
1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
“Capacities and recommended fluids/lubricants”
(P.9-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filter
Your new vehicle is equipped with a high-quality
genuine NISSAN oil filter. When replacing, use
the genuine oil filter or its equivalent for the
reason described in change intervals.
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle limited warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under

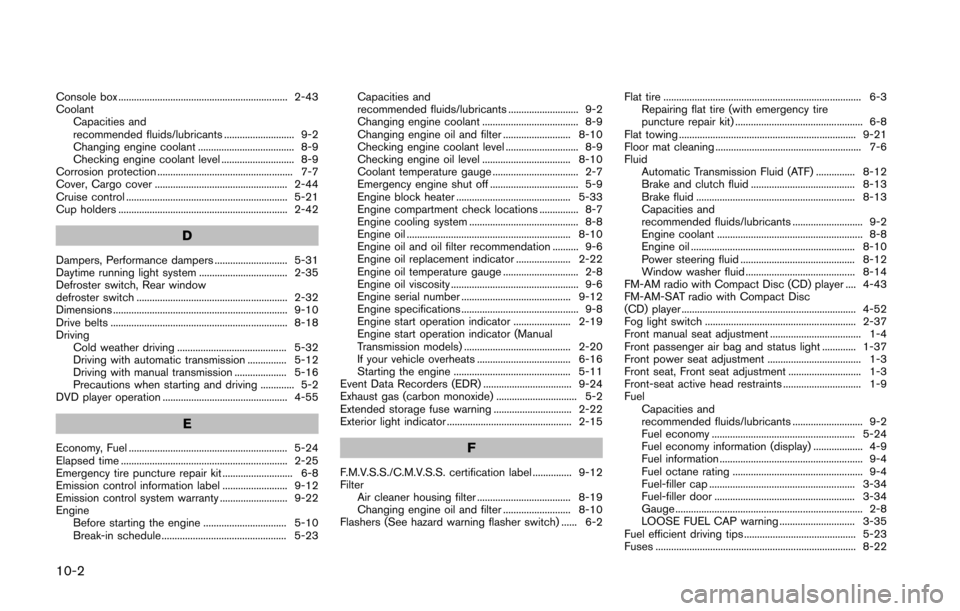

10-2
Console box ................................................................. 2-43
CoolantCapacities and
recommended fluids/lubricants ........................... 9-2
Changing engine coolant ..................................... 8-9
Checking engine coolant level ............................ 8-9
Corrosion protection .................................................... 7-7
Cover, Cargo cover ................................................... 2-44
Cruise control .............................................................. 5-21
Cup holders ................................................................. 2-42
D
Dampers, Performance dampers ............................ 5-31
Daytime running light system .................................. 2-35
Defroster switch, Rear window
defroster switch .......................................................... 2-32
Dimensions ................................................................... 9-10
Drive belts .................................................................... 8-18
Driving Cold weather driving .......................................... 5-32
Driving with automatic transmission ............... 5-12
Driving with manual transmission .................... 5-16
Precautions when starting and driving ............. 5-2
DVD player operation ................................................ 4-55
E
Economy, Fuel ............................................................. 5-24
Elapsed time ................................................................ 2-25
Emergency tire puncture repair kit ........................... 6-8
Emission control information label ......................... 9-12
Emission control system warranty .......................... 9-22
Engine Before starting the engine ................................ 5-10
Break-in schedule ................................................ 5-23 Capacities and
recommended fluids/lubricants ........................... 9-2
Changing engine coolant ..................................... 8-9
Changing engine oil and filter .......................... 8-10
Checking engine coolant level ............................ 8-9
Checking engine oil level .................................. 8-10
Coolant temperature gauge ................................. 2-7
Emergency engine shut off .................................. 5-9
Engine block heater ............................................ 5-33
Engine compartment check locations ............... 8-7
Engine cooling system .......................................... 8-8
Engine oil ............................................................... 8-10
Engine oil and oil filter recommendation .......... 9-6
Engine oil replacement indicator ..................... 2-22
Engine oil temperature gauge ............................. 2-8
Engine oil viscosity ................................................. 9-6
Engine serial number .......................................... 9-12
Engine specifications ............................................. 9-8
Engine start operation indicator ...................... 2-19
Engine start operation indicator (Manual
Transmission models) ......................................... 2-20
If your vehicle overheats .................................... 6-16
Starting the engine ............................................. 5-11
Event Data Recorders (EDR) .................................. 9-24
Exhaust gas (carbon monoxide) ............................... 5-2
Extended storage fuse warning .............................. 2-22
Exterior light indicator ................................................ 2-15F
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-12
Filter Air cleaner housing filter .................................... 8-19
Changing engine oil and filter .......................... 8-10
Flashers (See hazard warning flasher switch) ...... 6-2 Flat tire ............................................................................ 6-3
Repairing flat tire (with emergency tire
puncture repair kit) ................................................. 6-8
Flat towing .................................................................... 9-21
Floor mat cleaning ........................................................ 7-6
Fluid Automatic Transmission Fluid (ATF) ............... 8-12
Brake and clutch fluid ........................................ 8-13
Brake fluid ............................................................. 8-13
Capacities and
recommended fluids/lubricants ........................... 9-2
Engine coolant ........................................................ 8-8
Engine oil ............................................................... 8-10
Power steering fluid ............................................ 8-12
Window washer fluid .......................................... 8-14
FM-AM radio with Compact Disc (CD) player .... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ................................................................... 4-52
Fog light switch .......................................................... 2-37
Front manual seat adjustment ................................... 1-4
Front passenger air bag and status light ............. 1-37
Front power seat adjustment .................................... 1-3
Front seat, Front seat adjustment ............................ 1-3
Front-seat active head restraints .............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ........................... 9-2
Fuel economy ....................................................... 5-24
Fuel economy information (display) ................... 4-9
Fuel information ....................................................... 9-4
Fuel octane rating .................................................. 9-4
Fuel-filler cap ........................................................ 3-34
Fuel-filler door ...................................................... 3-34
Gauge ........................................................................ 2-8
LOOSE FUEL CAP warning ............................. 3-35
Fuel efficient driving tips ........................................... 5-23
Fuses ............................................................................. 8-22

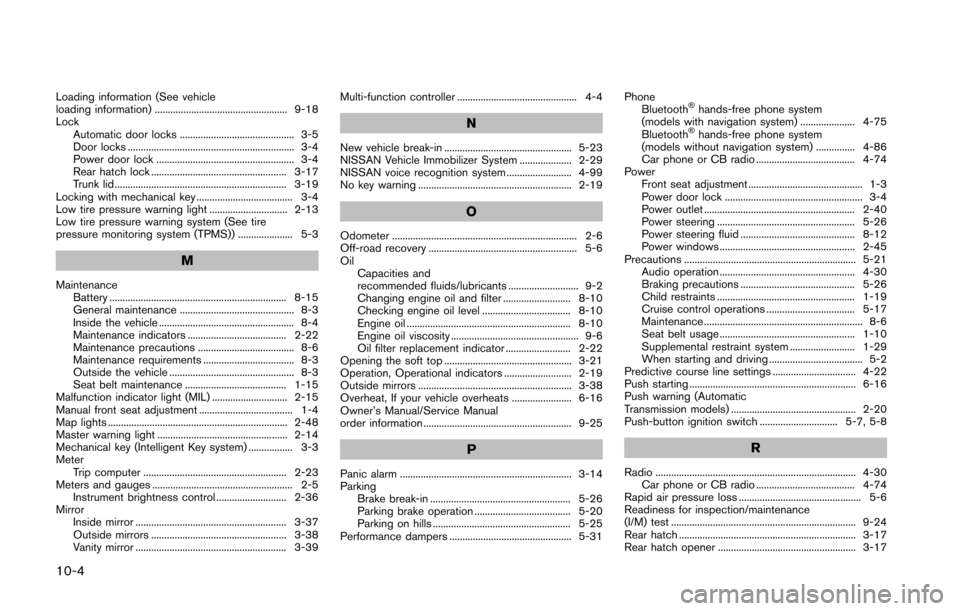

10-4
Loading information (See vehicle
loading information) ................................................... 9-18
LockAutomatic door locks ............................................ 3-5
Door locks ................................................................ 3-4
Power door lock ..................................................... 3-4
Rear hatch lock .................................................... 3-17
Trunk lid .................................................................. 3-19
Locking with mechanical key ..................................... 3-4
Low tire pressure warning light .............................. 2-13
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ..................... 5-3
M
Maintenance Battery .................................................................... 8-15
General maintenance ............................................ 8-3
Inside the vehicle .................................................... 8-4
Maintenance indicators ...................................... 2-22
Maintenance precautions ..................................... 8-6
Maintenance requirements ................................... 8-3
Outside the vehicle ................................................ 8-3
Seat belt maintenance ....................................... 1-15
Malfunction indicator light (MIL) ............................. 2-15
Manual front seat adjustment .................................... 1-4
Map lights ..................................................................... 2-48
Master warning light .................................................. 2-14
Mechanical key (Intelligent Key system) ................. 3-3
Meter Trip computer ....................................................... 2-23
Meters and gauges ...................................................... 2-5 Instrument brightness control ........................... 2-36
Mirror Inside mirror .......................................................... 3-37
Outside mirrors .................................................... 3-38
Vanity mirror .......................................................... 3-39 Multi-function controller .............................................. 4-4
N
New vehicle break-in ................................................. 5-23
NISSAN Vehicle Immobilizer System .................... 2-29
NISSAN voice recognition system ......................... 4-99
No key warning ........................................................... 2-19
O
Odometer ....................................................................... 2-6
Off-road recovery ......................................................... 5-6
Oil
Capacities and
recommended fluids/lubricants ........................... 9-2
Changing engine oil and filter .......................... 8-10
Checking engine oil level .................................. 8-10
Engine oil ............................................................... 8-10
Engine oil viscosity ................................................. 9-6
Oil filter replacement indicator ......................... 2-22
Opening the soft top ................................................. 3-21
Operation, Operational indicators .......................... 2-19
Outside mirrors ........................................................... 3-38
Overheat, If your vehicle overheats ....................... 6-16
Owner’s Manual/Service Manual
order information ......................................................... 9-25
P
Panic alarm .................................................................. 3-14
Parking Brake break-in ...................................................... 5-26
Parking brake operation ..................................... 5-20
Parking on hills ..................................................... 5-25
Performance dampers ............................................... 5-31 Phone
Bluetooth
Šhands-free phone system
(models with navigation system) ..................... 4-75
Bluetooth
Šhands-free phone system
(models without navigation system) ............... 4-86
Car phone or CB radio ...................................... 4-74
Power Front seat adjustment ............................................ 1-3
Power door lock ..................................................... 3-4
Power outlet .......................................................... 2-40
Power steering ..................................................... 5-26
Power steering fluid ............................................ 8-12
Power windows .................................................... 2-45
Precautions .................................................................. 5-21 Audio operation .................................................... 4-30
Braking precautions ............................................ 5-26
Child restraints ..................................................... 1-19
Cruise control operations .................................. 5-17
Maintenance ............................................................. 8-6
Seat belt usage .................................................... 1-10
Supplemental restraint system ......................... 1-29
When starting and driving .................................... 5-2
Predictive course line settings ................................ 4-22
Push starting ................................................................ 6-16
Push warning (Automatic
Transmission models) ................................................ 2-20
Push-button ignition switch .............................. 5-7, 5-8
R
Radio ............................................................................. 4-30 Car phone or CB radio ...................................... 4-74
Rapid air pressure loss ............................................... 5-6
Readiness for inspection/maintenance
(I/M) test ....................................................................... 9-24
Rear hatch .................................................................... 3-17
Rear hatch opener ..................................................... 3-17

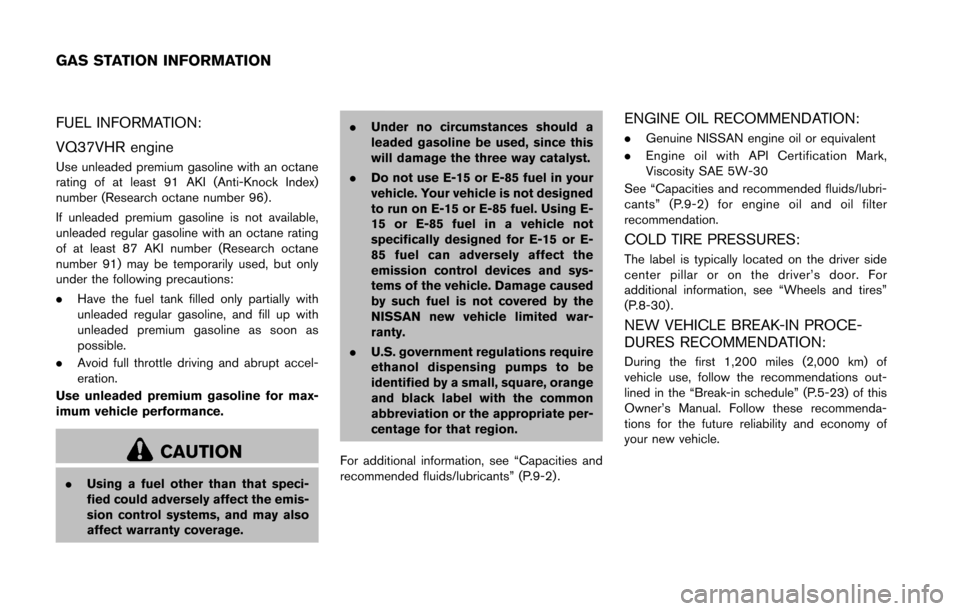

FUEL INFORMATION:
VQ37VHR engine
Use unleaded premium gasoline with an octane
rating of at least 91 AKI (Anti-Knock Index)
number (Research octane number 96) .
If unleaded premium gasoline is not available,
unleaded regular gasoline with an octane rating
of at least 87 AKI number (Research octane
number 91) may be temporarily used, but only
under the following precautions:
.Have the fuel tank filled only partially with
unleaded regular gasoline, and fill up with
unleaded premium gasoline as soon as
possible.
. Avoid full throttle driving and abrupt accel-
eration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that speci-
fied could adversely affect the emis-
sion control systems, and may also
affect warranty coverage. .
Under no circumstances should a
leaded gasoline be used, since this
will damage the three way catalyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
For additional information, see “Capacities and
recommended fluids/lubricants” (P.9-2) .
ENGINE OIL RECOMMENDATION:
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark,
Viscosity SAE 5W-30
See “Capacities and recommended fluids/lubri-
cants” (P.9-2) for engine oil and oil filter
recommendation.
COLD TIRE PRESSURES:
The label is typically located on the driver side
center pillar or on the driver’s door. For
additional information, see “Wheels and tires”
(P.8-30) .
NEW VEHICLE BREAK-IN PROCE-
DURES RECOMMENDATION:
During the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations out-
lined in the “Break-in schedule” (P.5-23) of this
Owner’s Manual. Follow these recommenda-
tions for the future reliability and economy of
your new vehicle.
GAS STATION INFORMATION
