Page 71 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

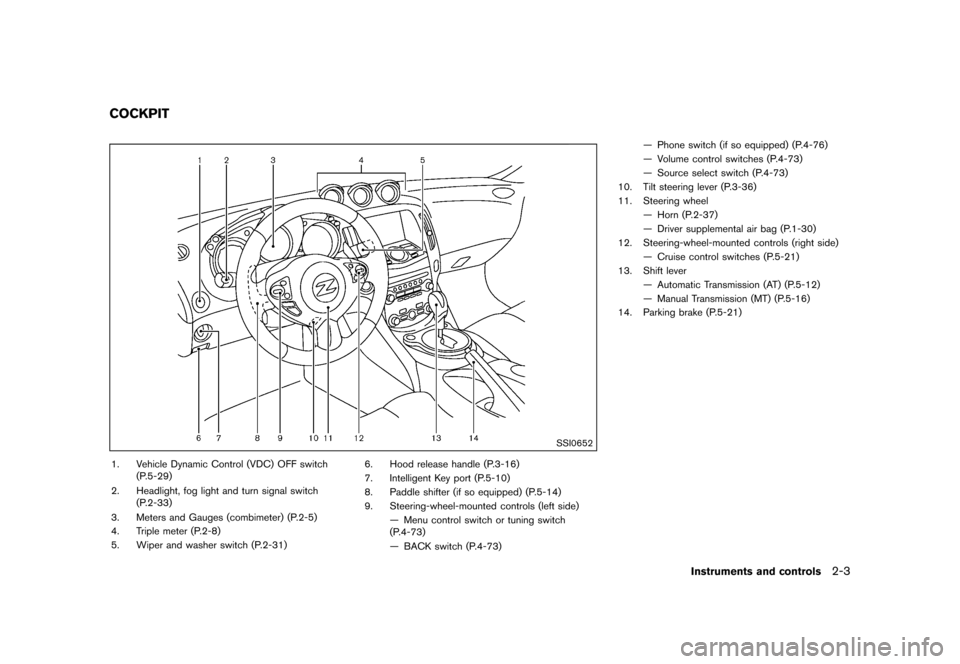

GUID-DACA7269-B34B-4621-8C57-828D42730C1C
SSI0652
1. Vehicle Dynamic Control (VDC) OFF switch(P.5-29)
2. Headlight, fog light and turn signal switch (P.2-33)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8)
5. Wiper and washer switch (P.2-31) 6. Hood release handle (P.3-16)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)
9. Steering-wheel-mounted controls (left side)
Ð Menu control switch or tuning switch
(P.4-73)
Ð BACK switch (P.4-73) Ð Phone switch (if so equipped) (P.4-76)
Ð Volume control switches (P.4-73)
Ð Source select switch (P.4-73)
10. Tilt steering lever (P.3-36)
11. Steering wheel Ð Horn (P.2-37)
Ð Driver supplemental air bag (P.1-30)
12. Steering-wheel-mounted controls (right side)
Ð Cruise control switches (P.5-21)
13. Shift lever Ð Automatic Transmission (AT) (P.5-12)
Ð Manual Transmission (MT) (P.5-16)
14. Parking brake (P.5-21)
Instruments and controls2-3
COCKPIT
& R Q G L W L R Q
Page 72 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-4Instruments and controls

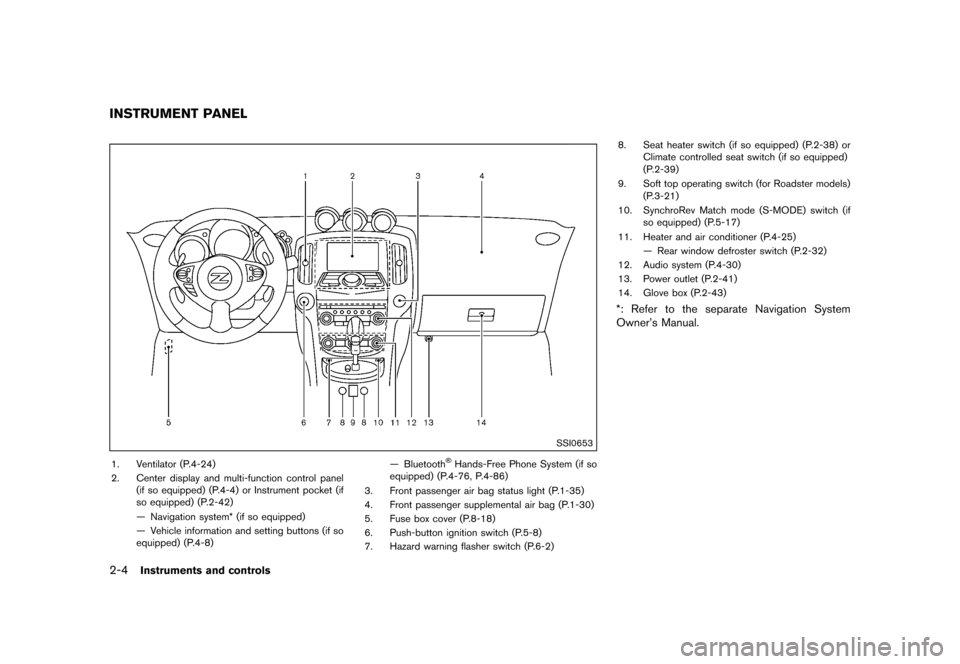

GUID-354CD56D-BD15-4FBC-90E5-D8EA13355C2F
SSI0653
1. Ventilator (P.4-24)
2. Center display and multi-function control panel(if so equipped) (P.4-4) or Instrument pocket (if
so equipped) (P.2-42)
Ð Navigation system* (if so equipped)
Ð Vehicle information and setting buttons (if so
equipped) (P.4-8) Ð Bluetooth
Page 73 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

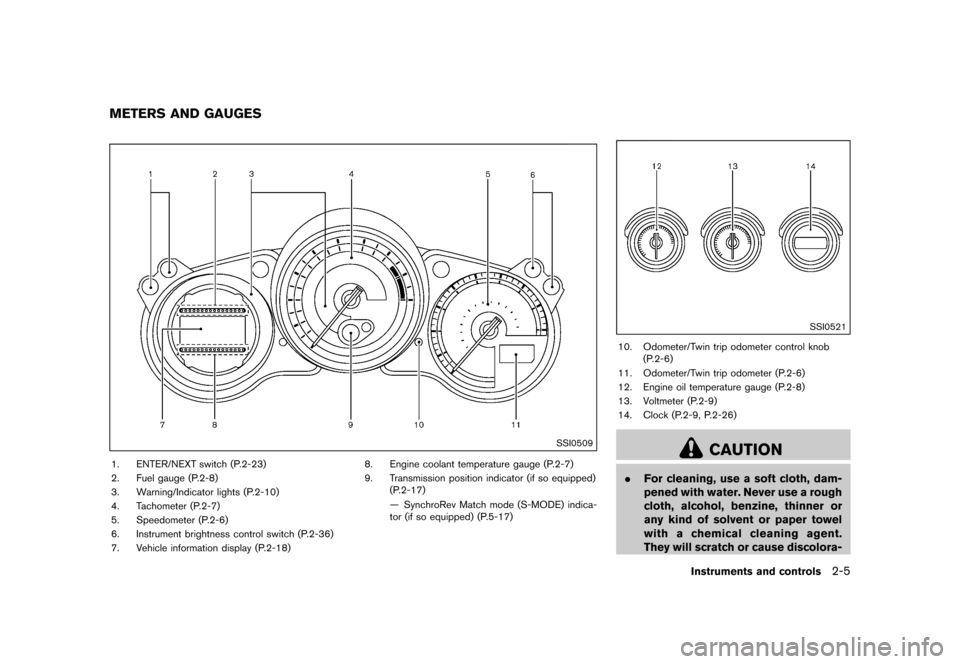

GUID-278D386A-E7FF-4693-9355-A651D337A72C
SSI0509
1. ENTER/NEXT switch (P.2-23)
2. Fuel gauge (P.2-8)
3. Warning/Indicator lights (P.2-10)
4. Tachometer (P.2-7)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-36)
7. Vehicle information display (P.2-18)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-17)
Ð SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-9)
14. Clock (P.2-9, P.2-26)
CAUTION
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
Instruments and controls2-5
METERS AND GAUGES
& R Q G L W L R Q
Page 74 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-6Instruments and controls

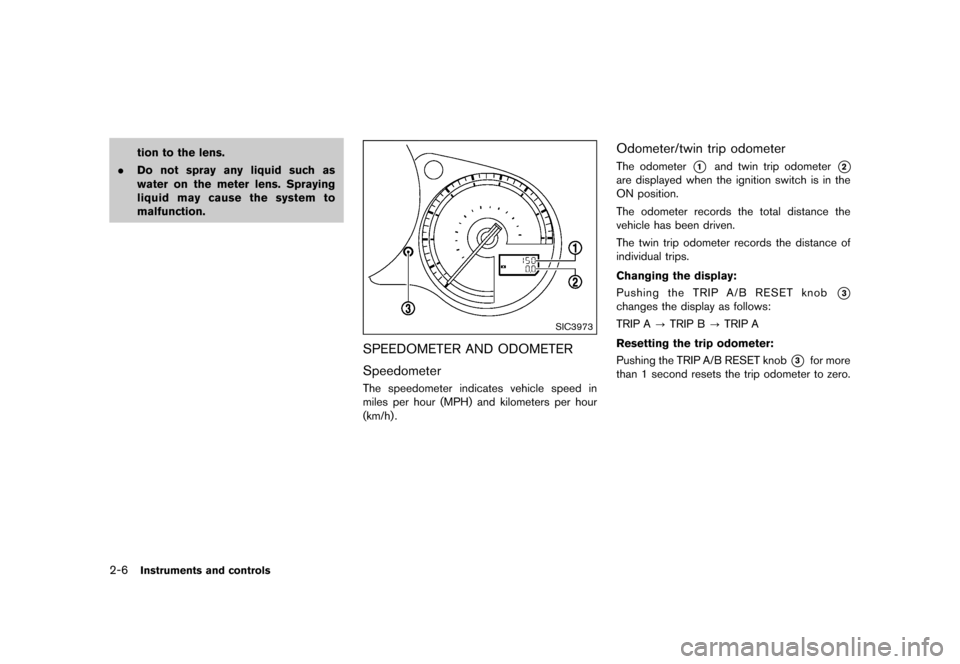

tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
SIC3973
SPEEDOMETER AND ODOMETERGUID-93CE6073-278E-4C4D-BC4E-35570E774ACE
SpeedometerGUID-08F72CE7-EB0D-4E47-9EB4-124017502CD5The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
Odometer/twin trip odometerGUID-69490912-23C9-4D2E-A755-B281FE0D418EThe odometer*1and twin trip odometer*2
are displayed when the ignition switch is in the
ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-063D1D35-FFC8-48BC-A501-0D84EA9A4A79Pushing the TRIP A/B RESET knob*3
changes the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-B76BF8D1-E282-4662-B38E-9D61C82CBB3DPushing the TRIP A/B RESET knob*3for more
than 1 second resets the trip odometer to zero.
& R Q G L W L R Q

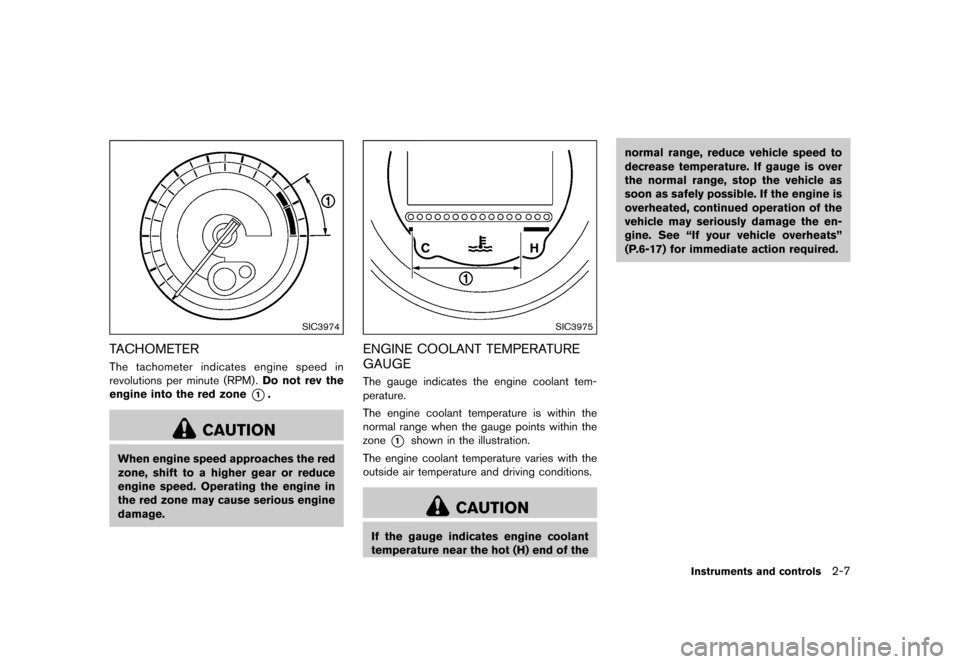

Page 75 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SIC3974
TACHOMETERGUID-F3C55EE6-1677-452A-BD8F-55CD280C88A3The tachometer indicates engine speed in
revolutions per minute (RPM) .Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC3975
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-D5E661BA-ABB6-4187-81AB-36A1F6EA0A18The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge points within the
zone
*1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See ªIf your vehicle overheatsº
(P.6-17) for immediate action required.
Instruments and controls2-7
& R Q G L W L R Q

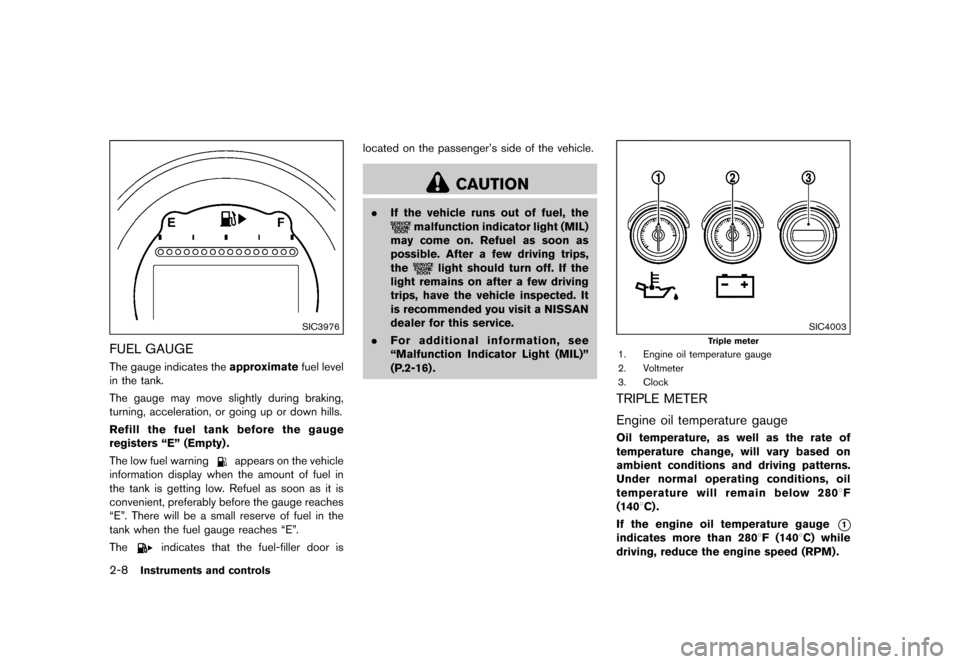

Page 76 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-8Instruments and controls
SIC3976
FUEL GAUGEGUID-913F58A4-7C94-40BF-A84A-AA3C1EDD0145The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers ªEº (Empty) .
The low fuel warning
appears on the vehicle
information display when the amount of fuel in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the gauge reaches
ªEº. There will be a small reserve of fuel in the
tank when the fuel gauge reaches ªEº.
The
indicates that the fuel-filler door is located on the passenger's side of the vehicle.
CAUTION
.
If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected. It
is recommended you visit a NISSAN
dealer for this service.
. For additional information, see
ªMalfunction Indicator Light (MIL)º
(P.2-16) .
SIC4003
Triple meter
1. Engine oil temperature gauge
2. Voltmeter
3. Clock
TRIPLE METERGUID-BEB58E55-F6B7-41B0-833B-0CAAD5B4F8B8
Engine oil temperature gaugeGUID-44274047-D060-47F5-A00B-20A799AA2757Oil temperature, as well as the rate of
temperature change, will vary based on
ambient conditions and driving patterns.
Under normal operating conditions, oil
temperature will remain below 2808F
(1408C) .
If the engine oil temperature gauge
*1
indicates more than 2808F (1408C) while
driving, reduce the engine speed (RPM) .
& R Q G L W L R Q
Page 77 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

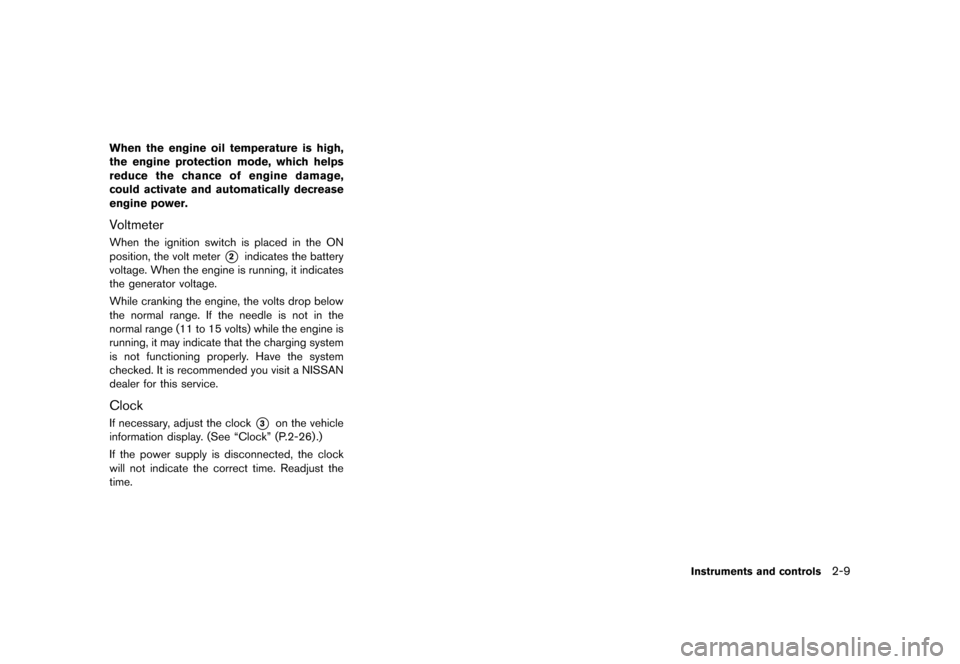

When the engine oil temperature is high,
the engine protection mode, which helps
reduce the chance of engine damage,
could activate and automatically decrease
engine power.
VoltmeterGUID-609889CD-E5DF-4590-8E80-A6657A493AA2When the ignition switch is placed in the ON
position, the volt meter
*2indicates the battery
voltage. When the engine is running, it indicates
the generator voltage.
While cranking the engine, the volts drop below
the normal range. If the needle is not in the
normal range (11 to 15 volts) while the engine is
running, it may indicate that the charging system
is not functioning properly. Have the system
checked. It is recommended you visit a NISSAN
dealer for this service.
ClockGUID-879883DE-B11E-430D-B0A2-0F8D8EBE2D2CIf necessary, adjust the clock*3on the vehicle
information display. (See ªClockº (P.2-26) .)
If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
Instruments and controls2-9
& R Q G L W L R Q
Page 78 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-10Instruments and controls

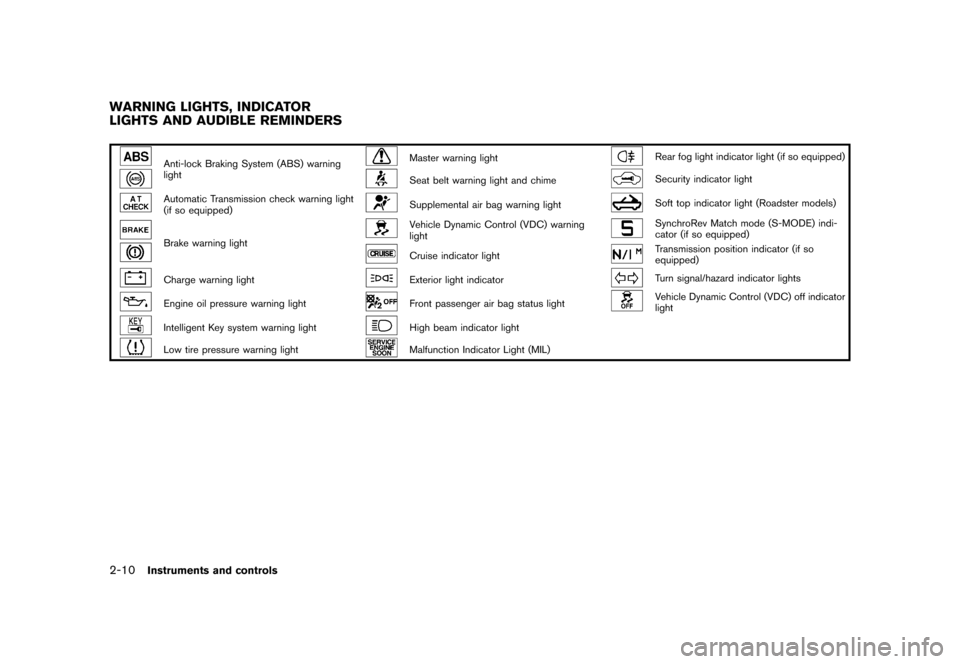

GUID-52146703-2911-4E30-8A08-F0D74C3F9294
Anti-lock Braking System (ABS) warning
lightMaster warning lightRear fog light indicator light (if so equipped)
Seat belt warning light and chimeSecurity indicator light
Automatic Transmission check warning light
(if so equipped)Supplemental air bag warning lightSoft top indicator light (Roadster models)
Brake warning light
Vehicle Dynamic Control (VDC) warning
lightSynchroRev Match mode (S-MODE) indi-
cator (if so equipped)
Cruise indicator lightTransmission position indicator (if so
equipped)
Charge warning lightExterior light indicatorTurn signal/hazard indicator lights
Engine oil pressure warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) off indicator
light
Intelligent Key system warning lightHigh beam indicator light
Low tire pressure warning lightMalfunction Indicator Light (MIL)
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
& R Q G L W L R Q
Page 79 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

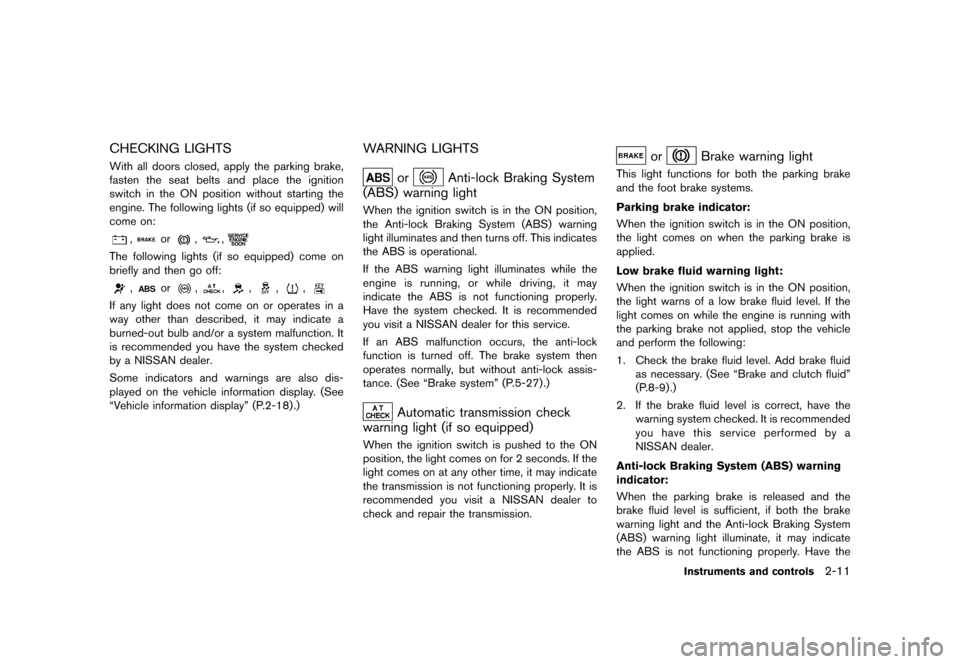

CHECKING LIGHTSGUID-C04DB64B-AC44-4819-B58A-A7A9F54E634FWith all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:
,or,,
The following lights (if so equipped) come on
briefly and then go off:
,or,,,,,
If any light does not come on or operates in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display. (See
ªVehicle information displayº (P.2-18) .)
WARNING LIGHTSGUID-4CBE8FA1-A3C1-4160-BDD8-430307A19C51
orAnti-lock Braking System
(ABS) warning light
GUID-8A62F588-9043-44FD-BA02-00E8EAA88718When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked. It is recommended
you visit a NISSAN dealer for this service.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See ªBrake systemº (P.5-27).)
Automatic transmission check
warning light (if so equipped)
GUID-6828EAE9-482F-4B37-8FF0-56507FE3882EWhen the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If the
light comes on at any other time, it may indicate
the transmission is not functioning properly. It is
recommended you visit a NISSAN dealer to
check and repair the transmission.
orBrake warning lightGUID-33FDE1A6-1ABD-4F4A-A7EA-AFDD0FFF6734This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-C443B119-BE22-4038-8A10-6A439D1F2870When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-6AE7A575-5AB2-4868-97B0-17B86641CDDCWhen the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (See ªBrake and clutch fluidº
(P.8-9) .)
2. If the brake fluid level is correct, have the warning system checked. It is recommended
you have this service performed by a
NISSAN dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-91FBEE0C-B758-462C-98B3-E3C02B809929When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
Instruments and controls2-11
& R Q G L W L R Q
Page 80 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

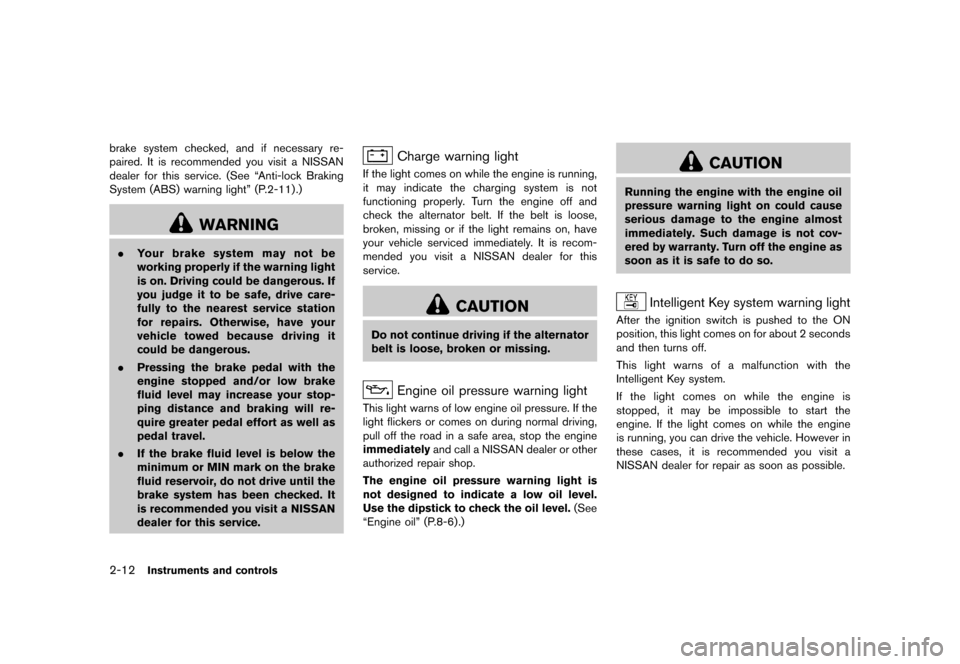

2-12Instruments and controls
brake system checked, and if necessary re-
paired. It is recommended you visit a NISSAN
dealer for this service. (See ªAnti-lock Braking
System (ABS) warning lightº (P.2-11) .)
WARNING
.Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It
is recommended you visit a NISSAN
dealer for this service.
Charge warning lightGUID-61CDA76E-B03B-43C3-B2F2-DACCD86DA730If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, have
your vehicle serviced immediately. It is recom-
mended you visit a NISSAN dealer for this
service.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning lightGUID-F709B958-74AD-4877-A8AB-75DDC2976B52This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
ªEngine oilº (P.8-6).)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key system warning lightGUID-C57A3CE7-7650-43F7-9A41-369EF95E8D13After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, it is recommended you visit a
NISSAN dealer for repair as soon as possible.
& R Q G L W L R Q
