NISSAN ALMERA N16 2001 Electronic Repair Manual

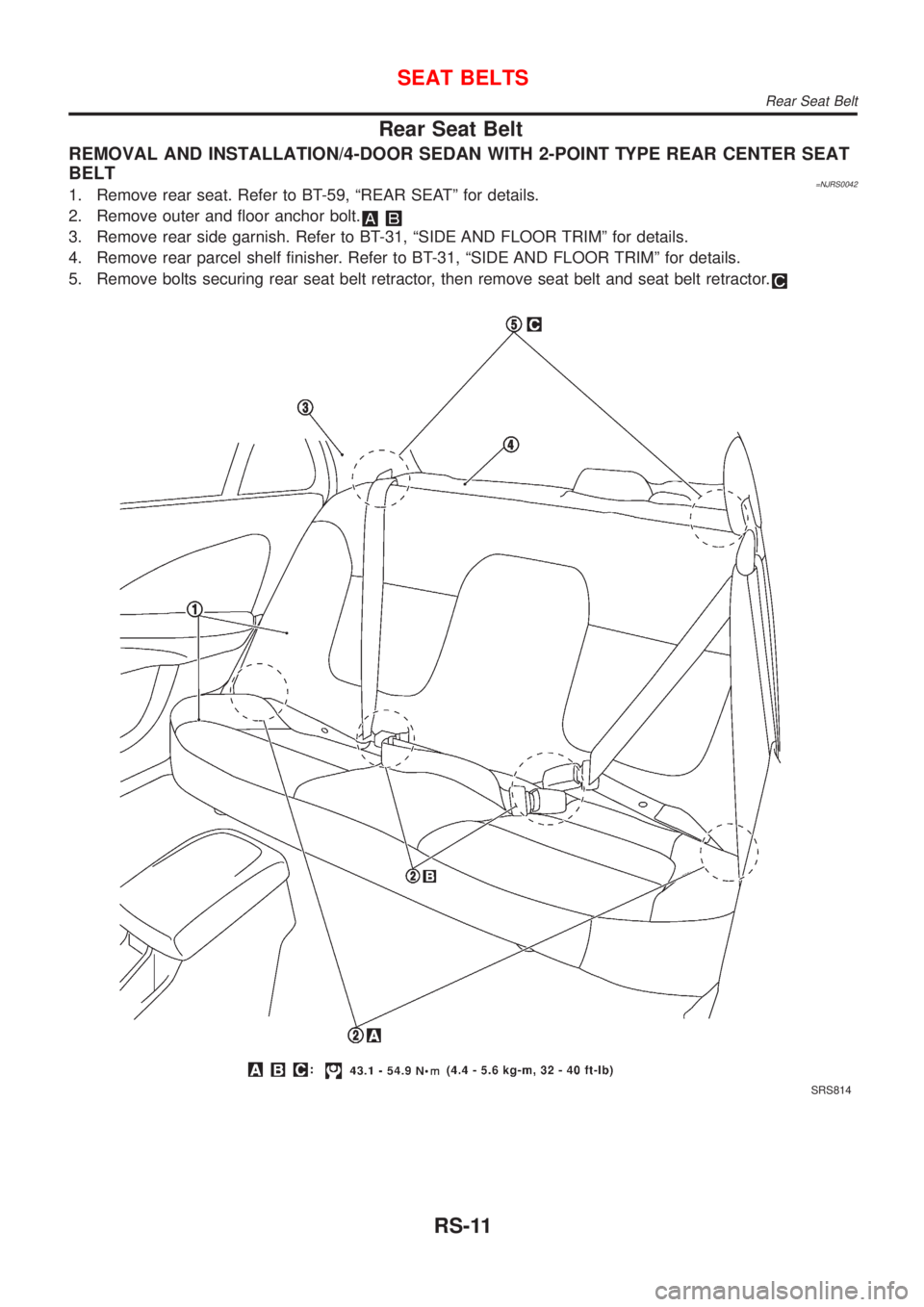

Rear Seat Belt
REMOVAL AND INSTALLATION/4-DOOR SEDAN WITH 2-POINT TYPE REAR CENTER SEAT
BELT
=NJRS00421. Remove rear seat. Refer to BT-59, ªREAR SEATº for details.
2. Remove outer and floor anchor bolt.
3. Remove rear side garnish. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
4. Remove rear parcel shelf finisher. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
SRS814
SEAT BELTS
Rear Seat Belt
RS-11

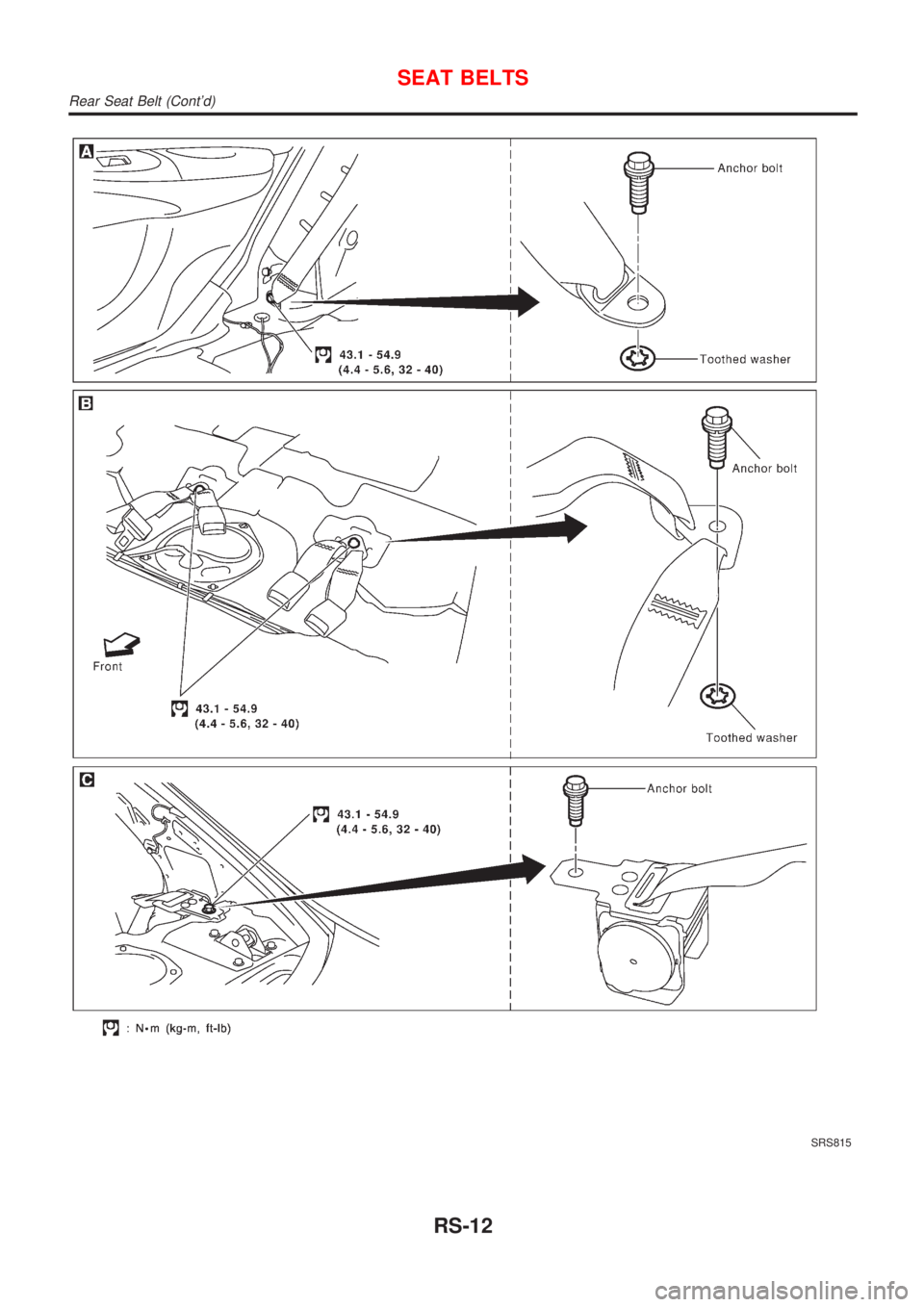

SRS815
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-12

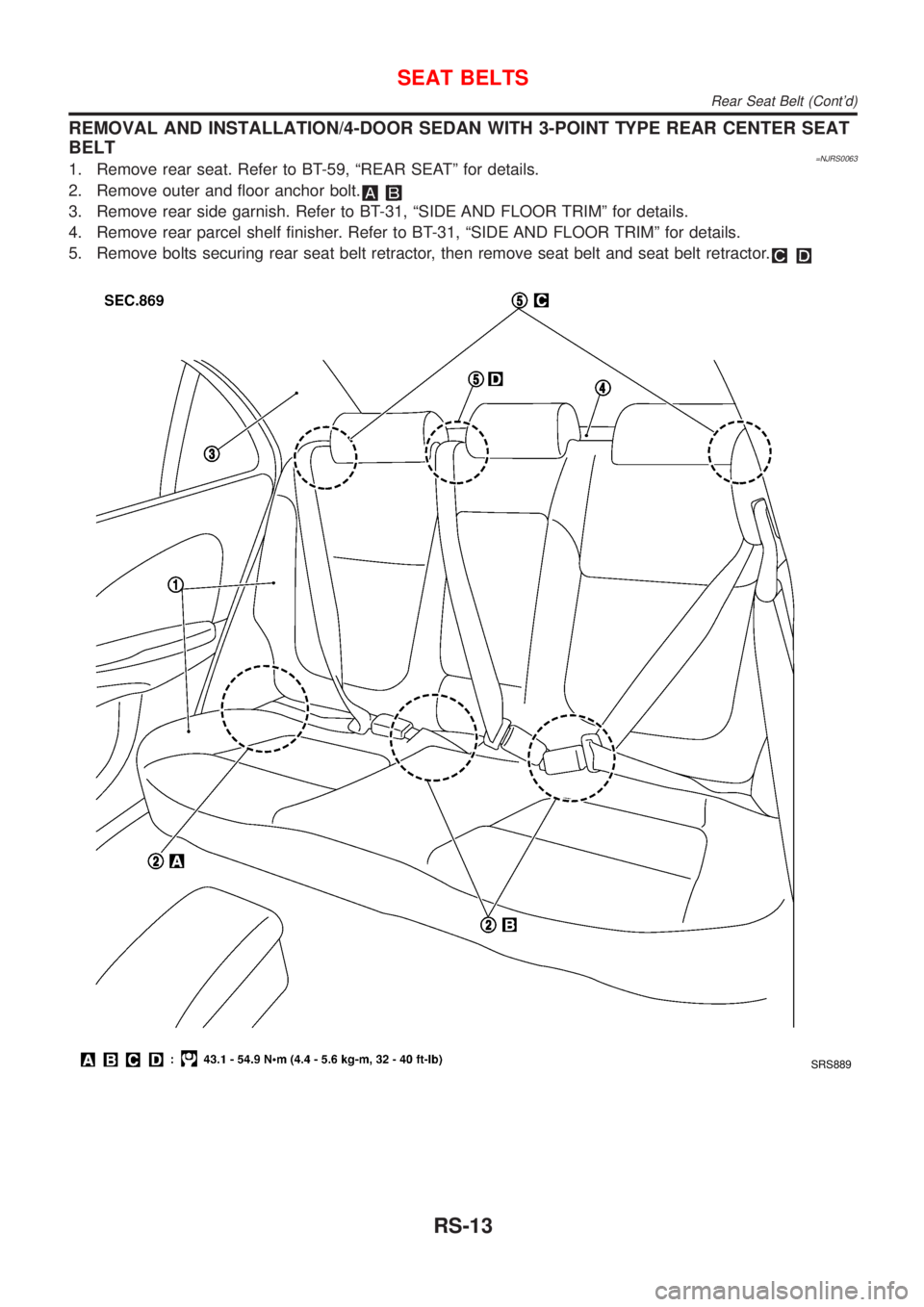

REMOVAL AND INSTALLATION/4-DOOR SEDAN WITH 3-POINT TYPE REAR CENTER SEAT
BELT
=NJRS00631. Remove rear seat. Refer to BT-59, ªREAR SEATº for details.
2. Remove outer and floor anchor bolt.
3. Remove rear side garnish. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
4. Remove rear parcel shelf finisher. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
SRS889
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-13

SRS890
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-14

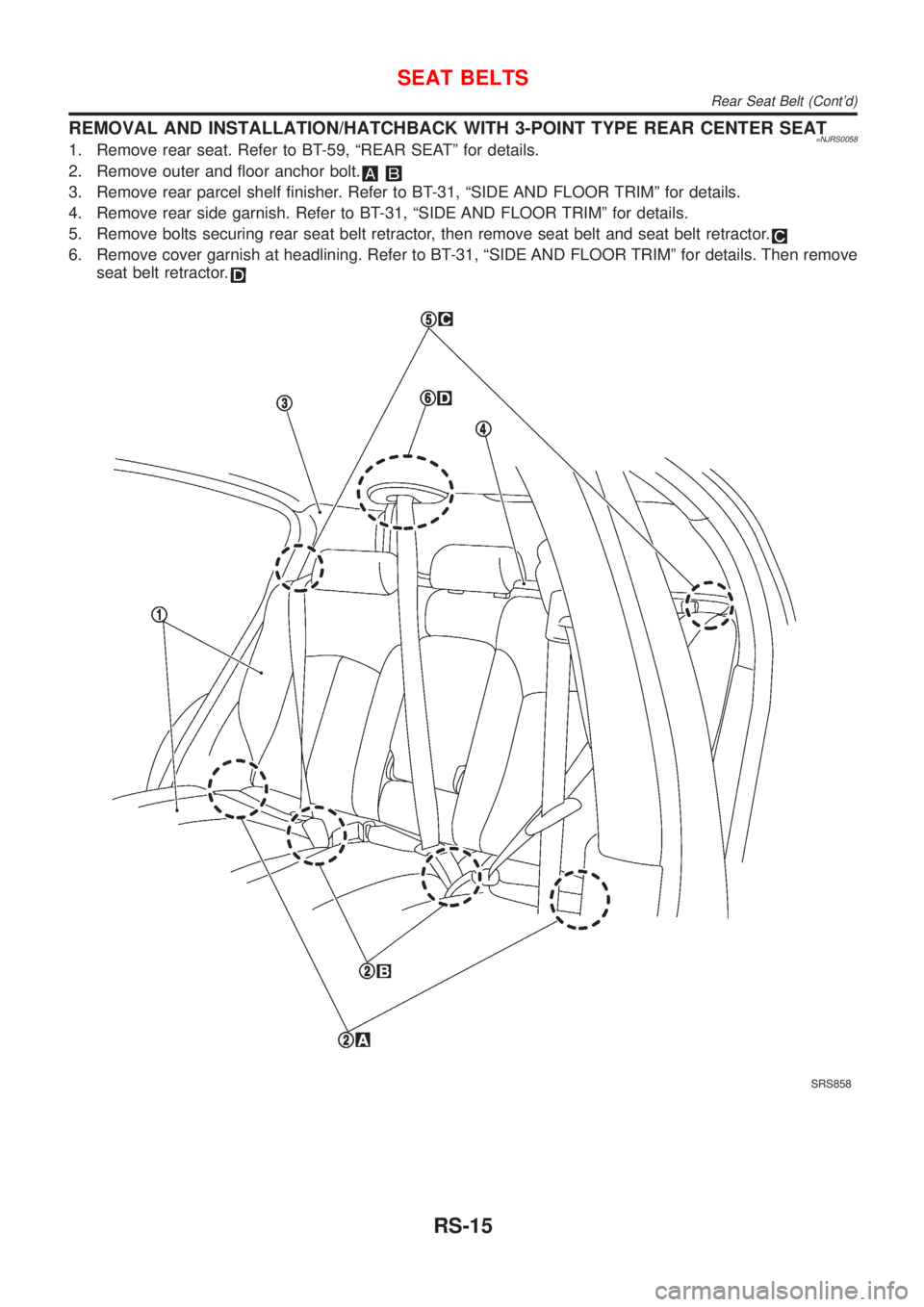

REMOVAL AND INSTALLATION/HATCHBACK WITH 3-POINT TYPE REAR CENTER SEAT=NJRS00581. Remove rear seat. Refer to BT-59, ªREAR SEATº for details.
2. Remove outer and floor anchor bolt.
3. Remove rear parcel shelf finisher. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
4. Remove rear side garnish. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor.
6. Remove cover garnish at headlining. Refer to BT-31, ªSIDE AND FLOOR TRIMº for details. Then remove
seat belt retractor.
SRS858
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-15

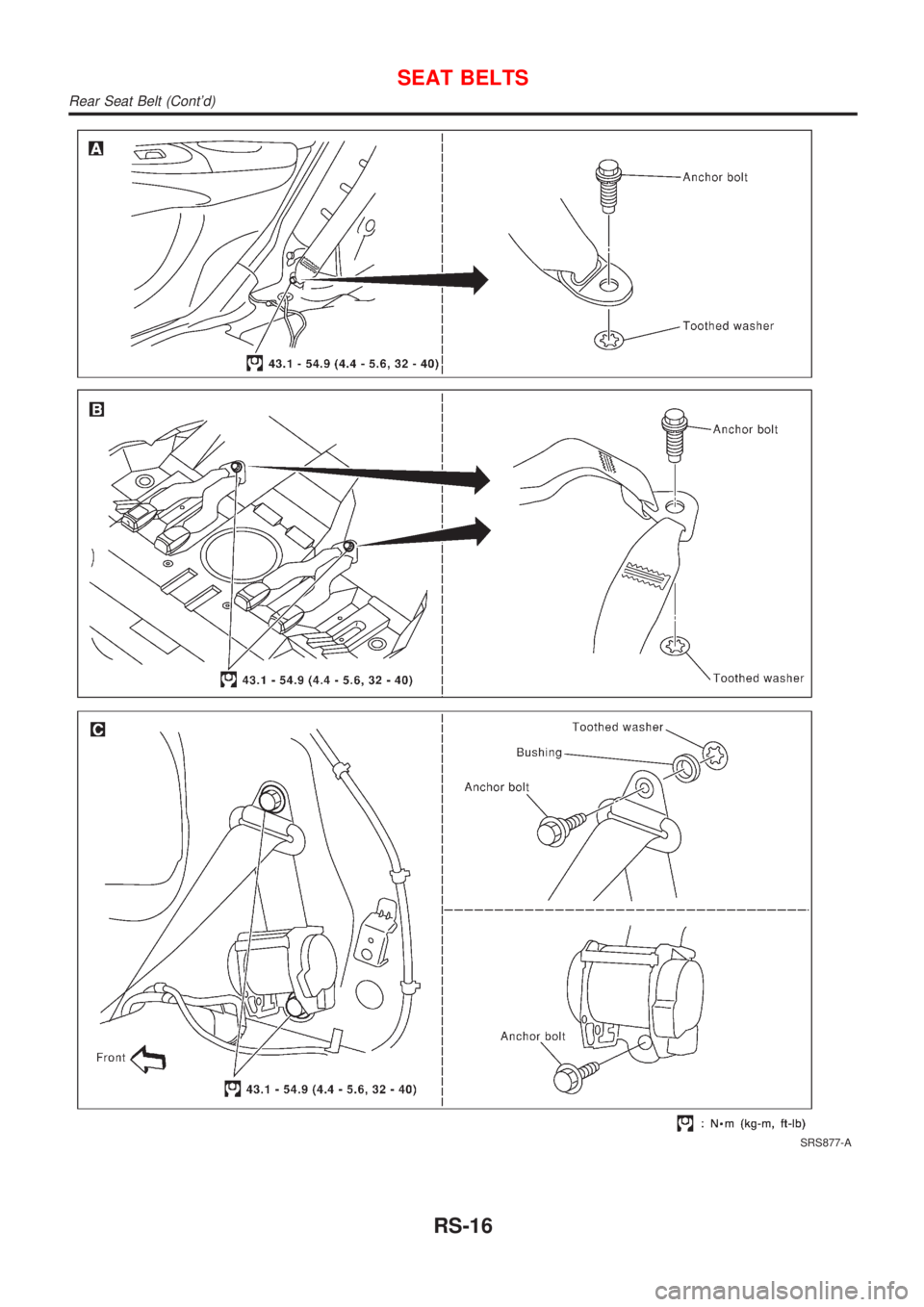

SRS877-A
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-16

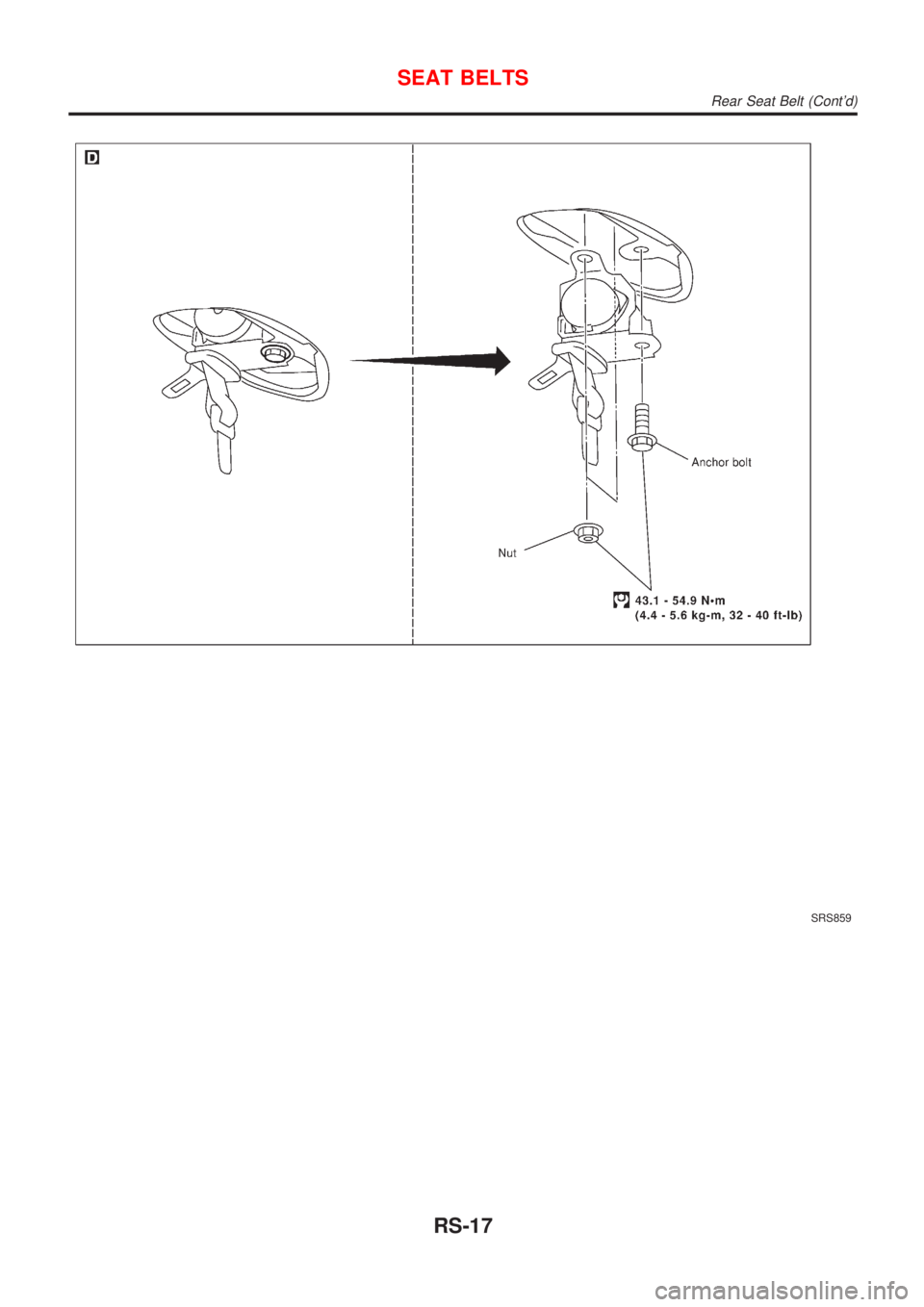

SRS859
SEAT BELTS
Rear Seat Belt (Cont'd)
RS-17

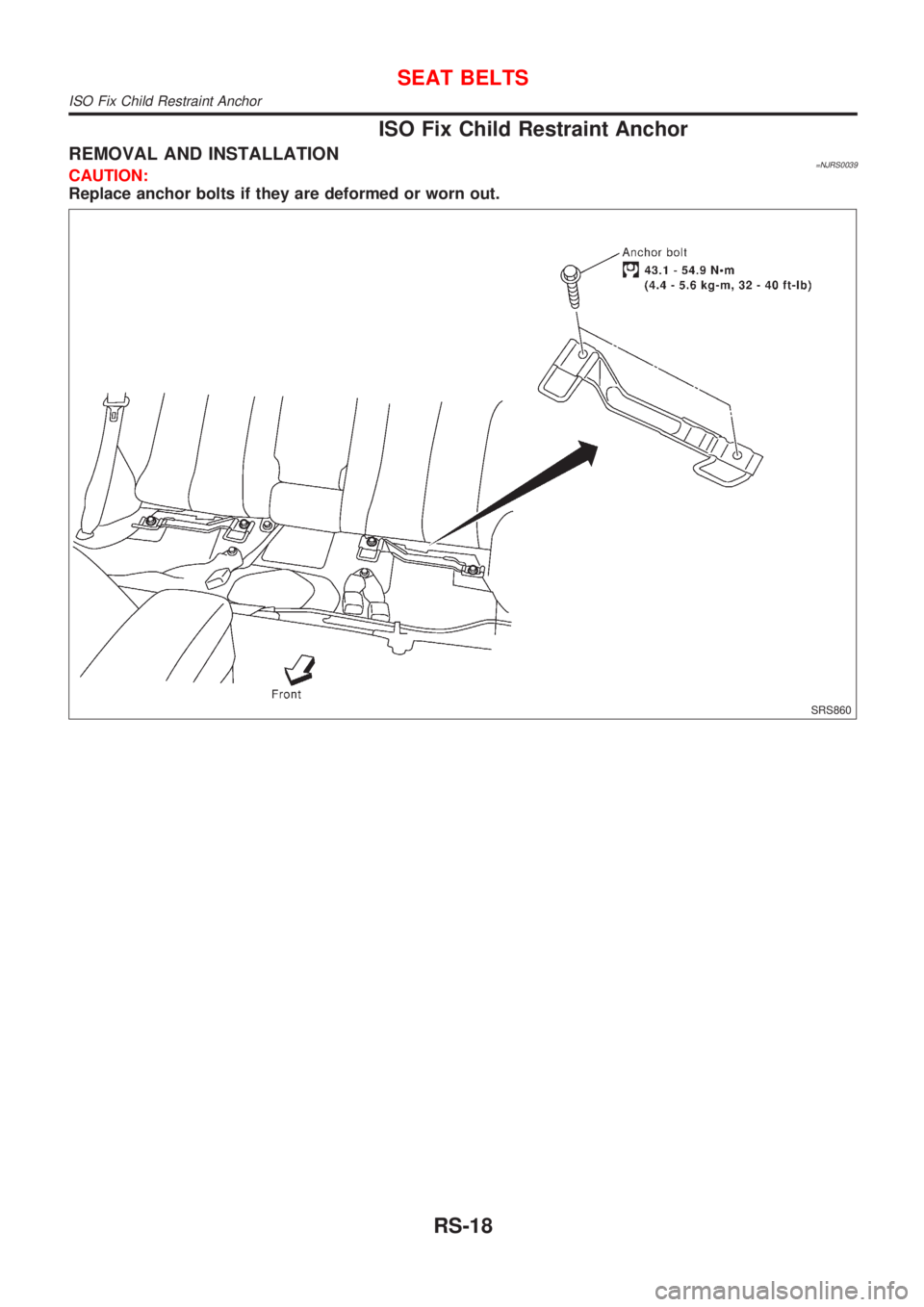

ISO Fix Child Restraint Anchor
REMOVAL AND INSTALLATION=NJRS0039CAUTION:
Replace anchor bolts if they are deformed or worn out.
SRS860
SEAT BELTS
ISO Fix Child Restraint Anchor
RS-18

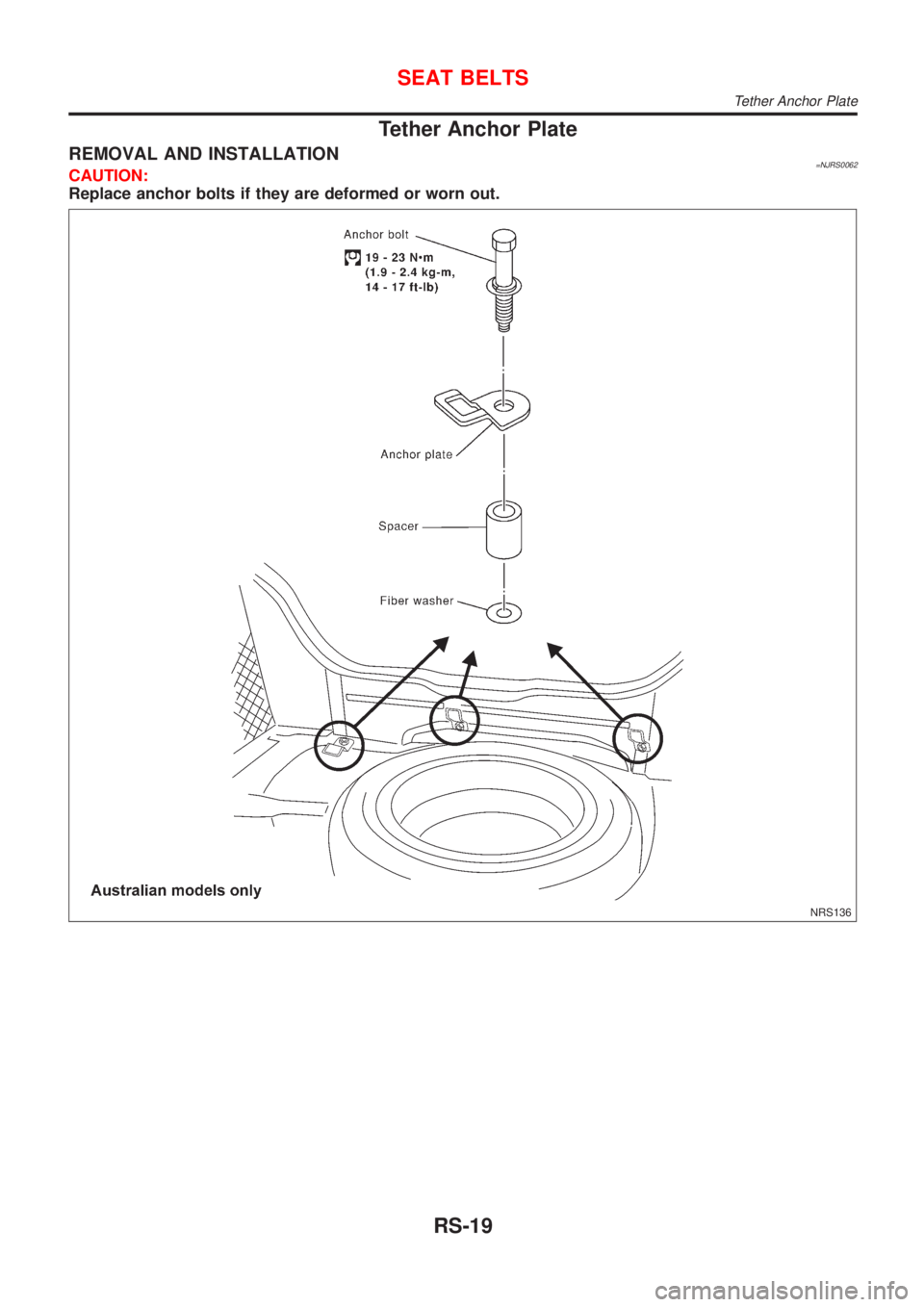

Tether Anchor Plate
REMOVAL AND INSTALLATION=NJRS0062CAUTION:
Replace anchor bolts if they are deformed or worn out.
NRS136
SEAT BELTS
Tether Anchor Plate
RS-19

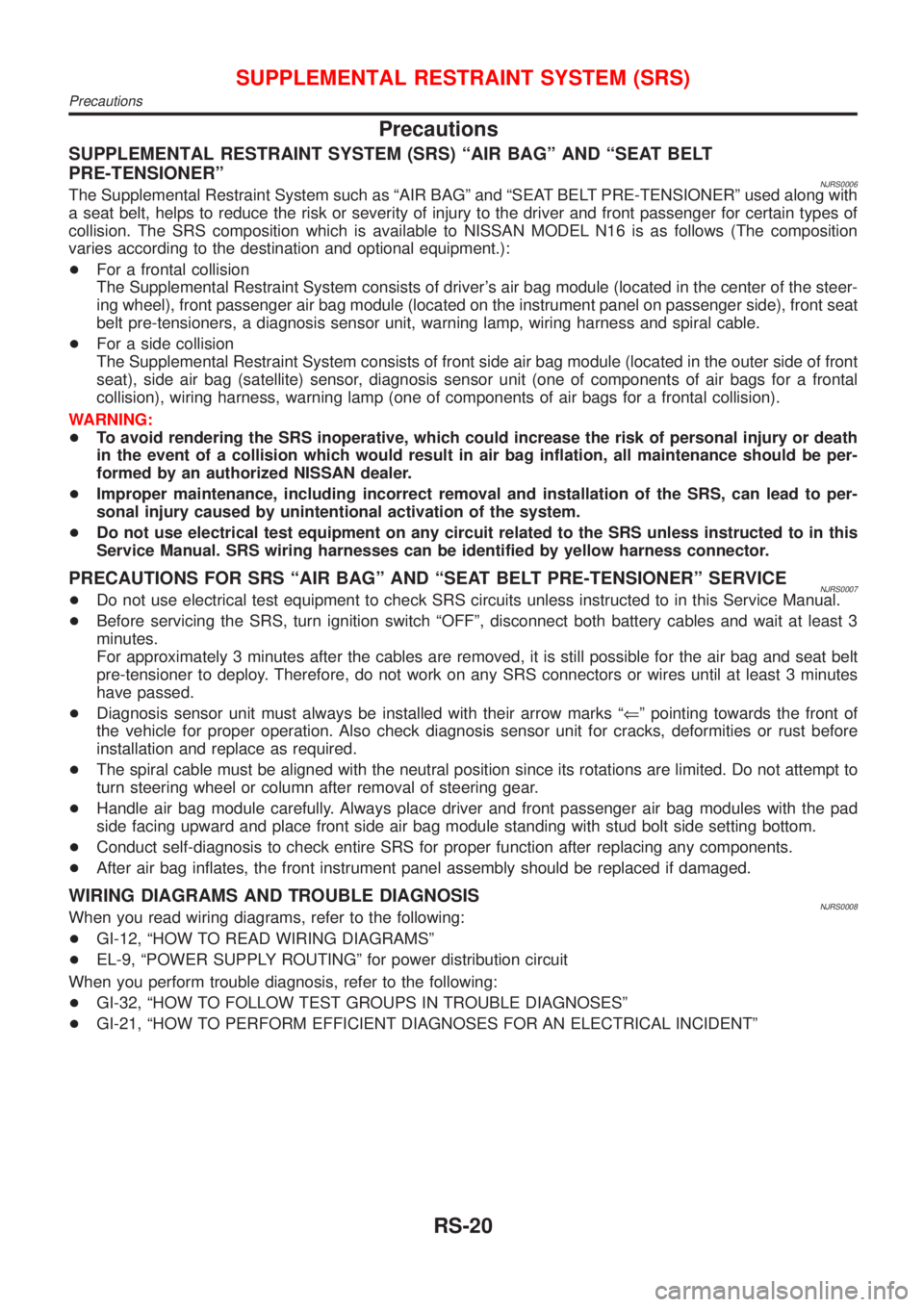

Precautions
Precautions
