Page 401 of 441

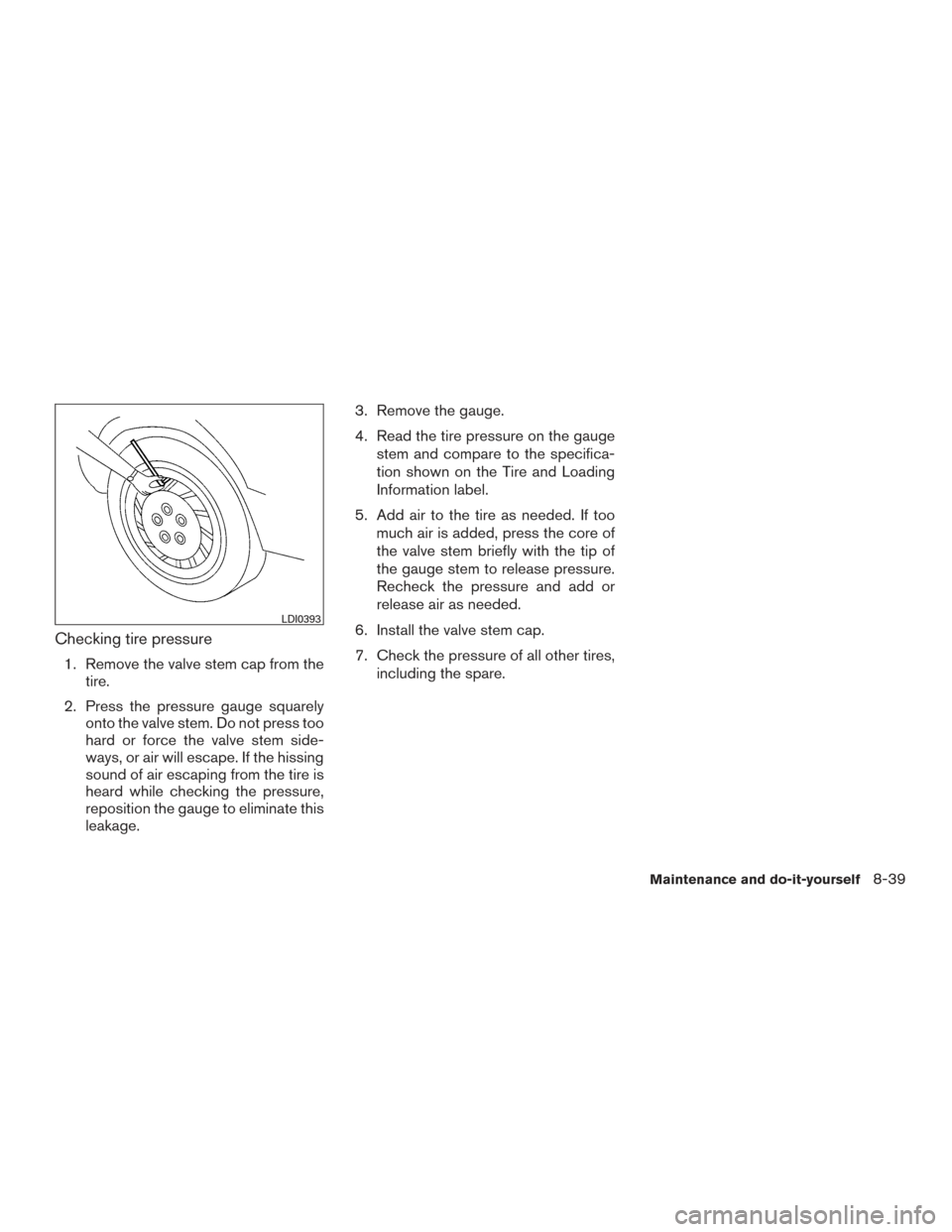

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual Checking tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape

Page 402 of 441

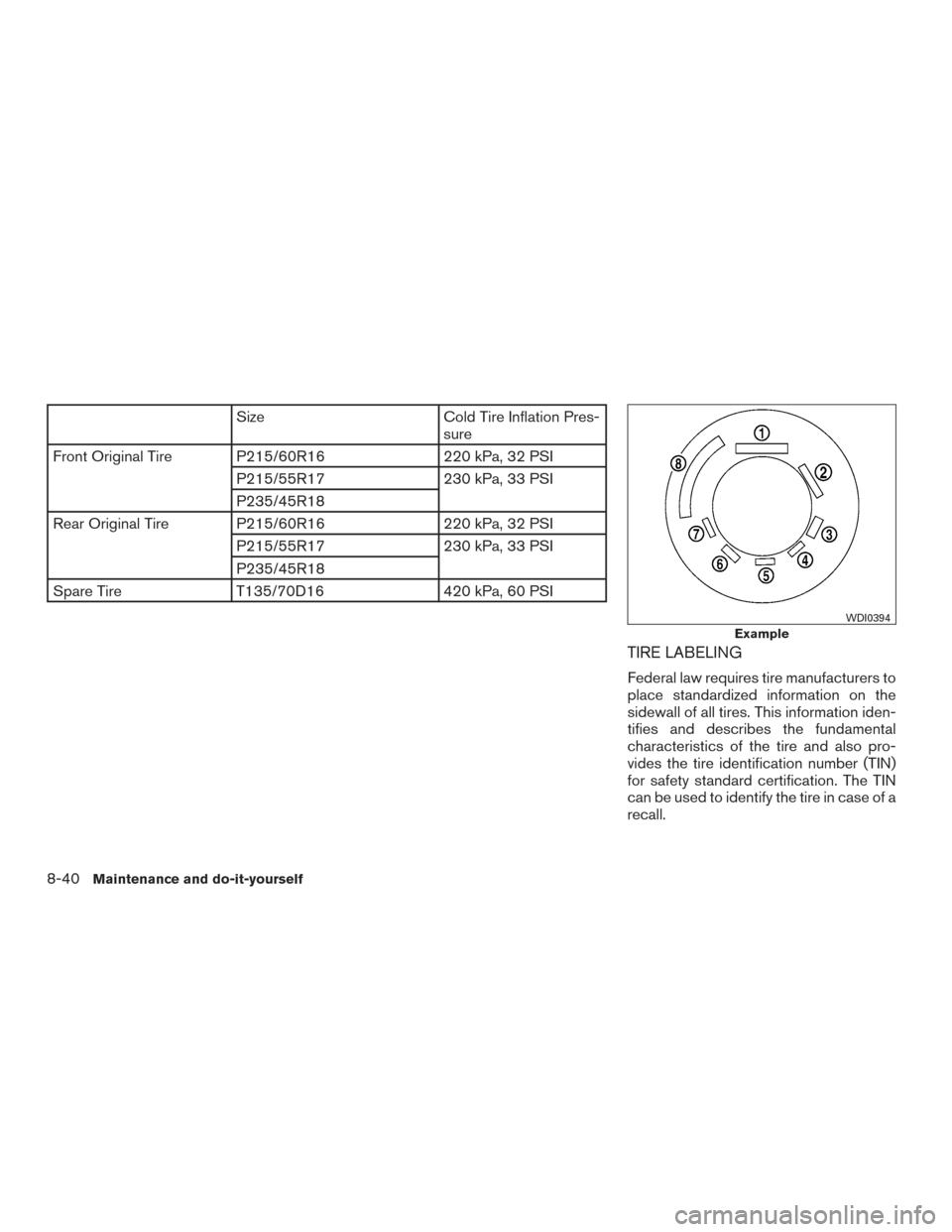

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual SizeCold Tire Inflation Pres-
sure
Front Original Tire P215/60R16 220 kPa, 32 PSI
P215/55R17 230 kPa, 33 PSI
P235/45R18
Rear Original Tire P215/60R16 220 kPa, 32 PSI
P215/55R17 230 kPa, 33 PSI
P235/45

Page 403 of 441

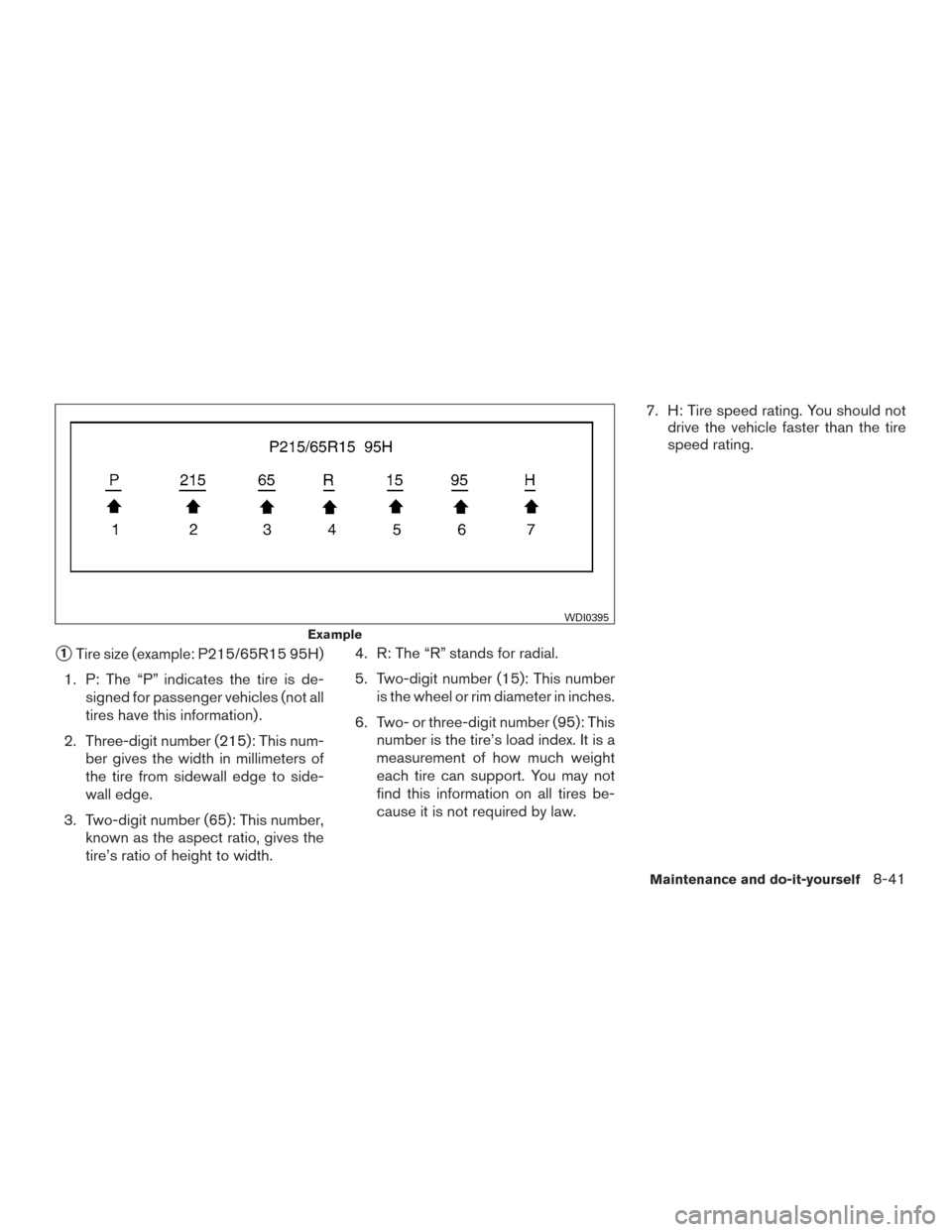

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual 1Tire size (example: P215/65R15 95H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles (not all
tires have this information) .
2. Three-digit number (215): This num- ber gives

Page 404 of 441

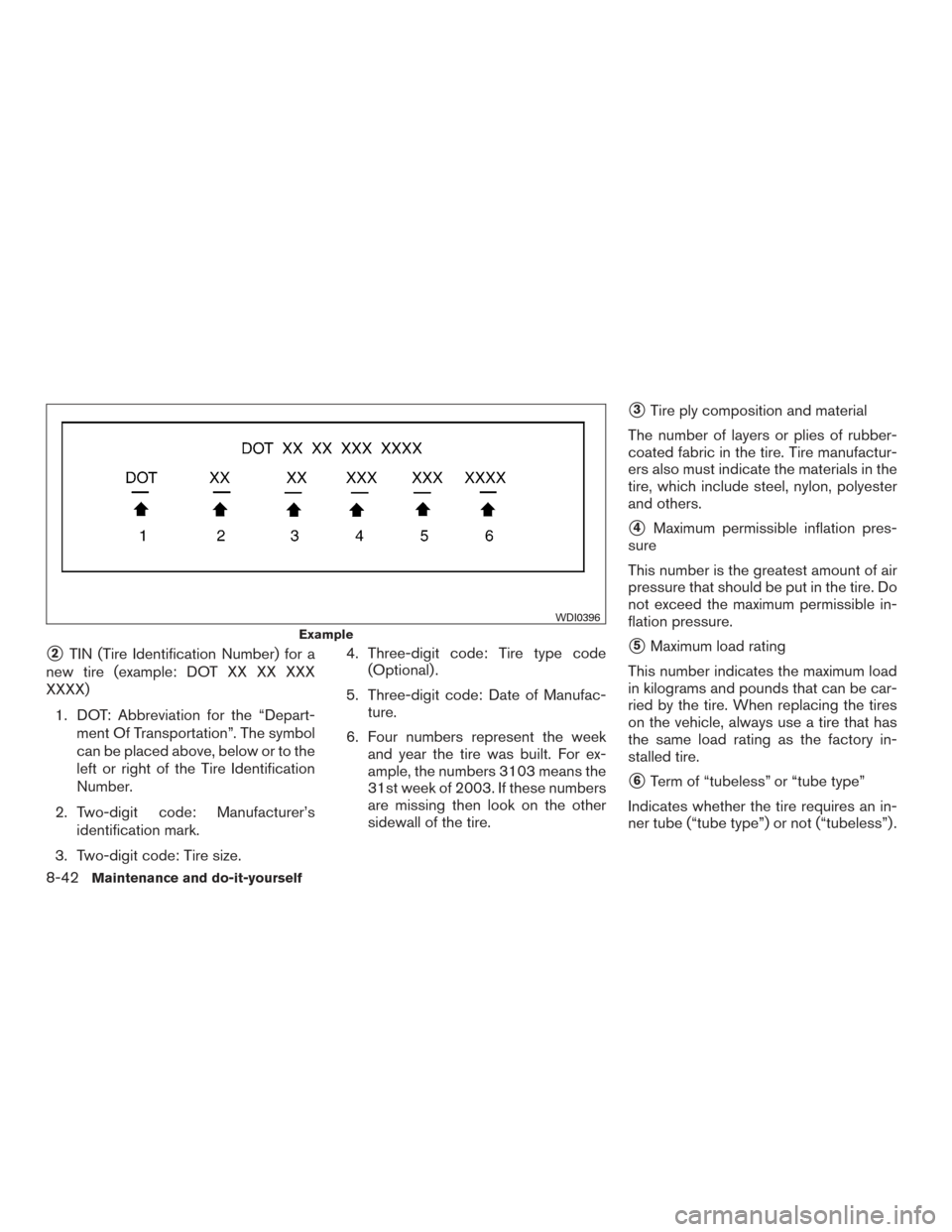

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual 2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1. DOT: Abbreviation for the “Depart- ment Of Transportation”. The symbol
can be placed above, below or to the
left

Page 405 of 441

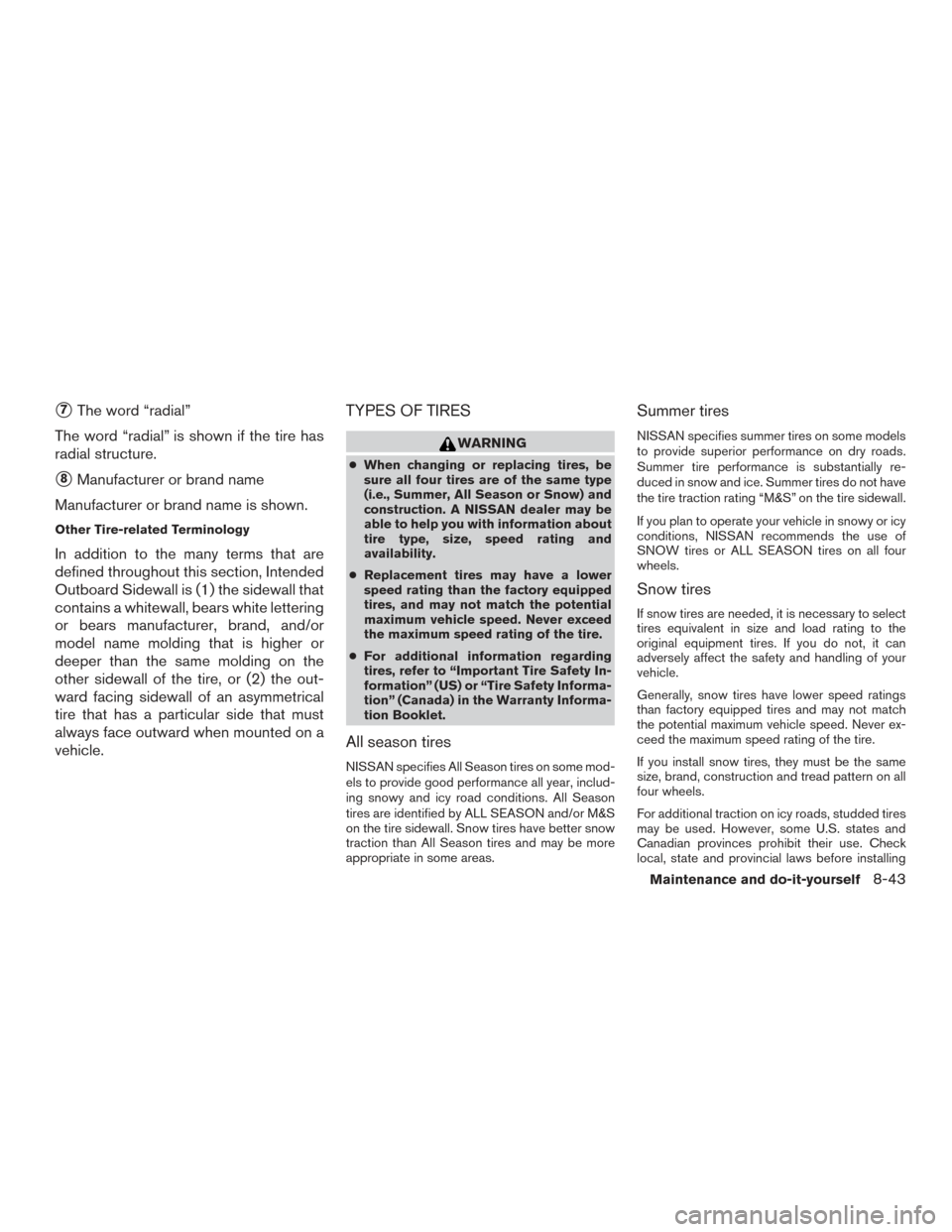

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual 7The word “radial”
The word “radial” is shown if the tire has
radial structure.
8Manufacturer or brand name
Manufacturer or brand name is shown.
Other Tire-related Terminology
In addition to

Page 406 of 441

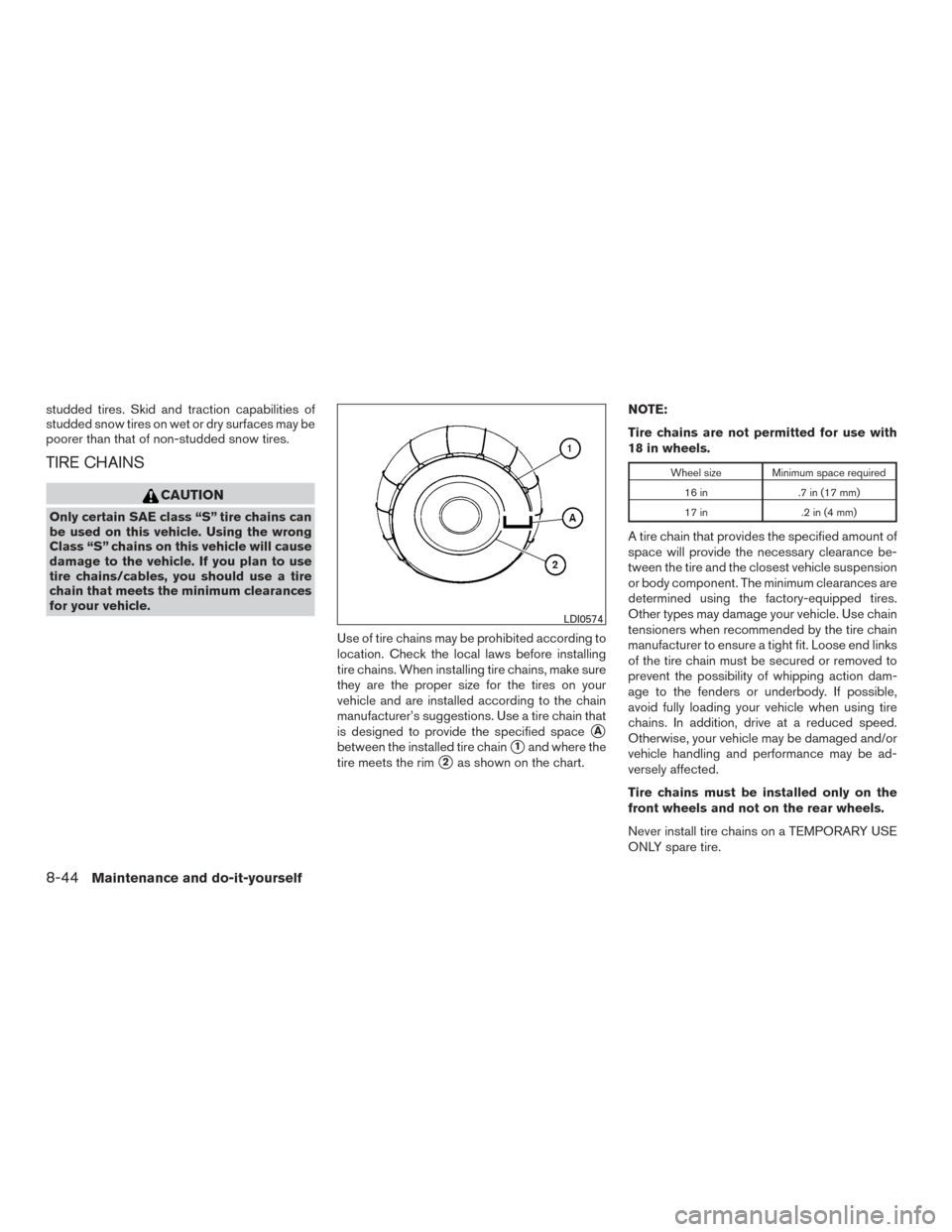

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual studded tires. Skid and traction capabilities of
studded snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.
TIRE CHAINS
CAUTION
Only certain SAE class “S” tire ch

Page 407 of 441

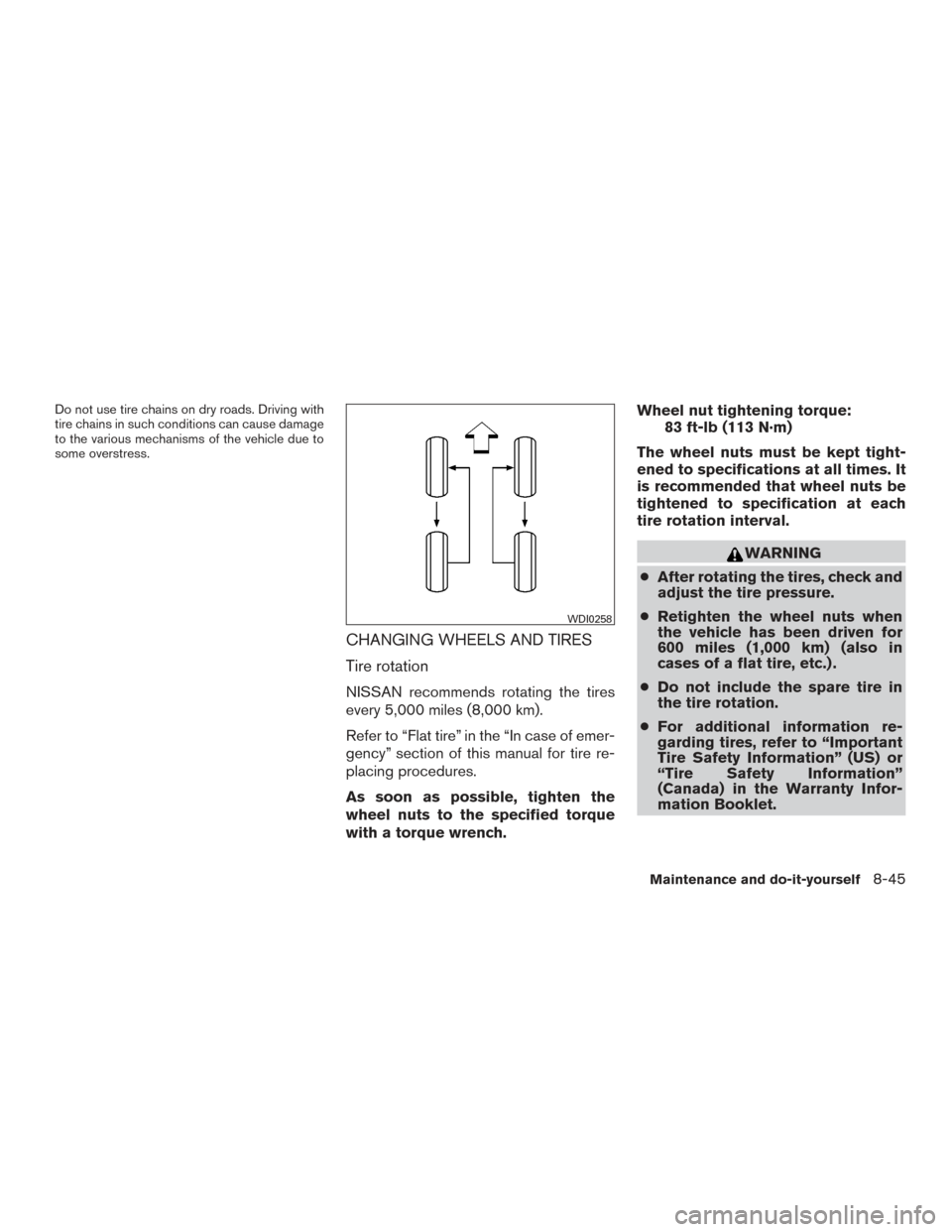

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.
CHANGING WHEELS AND TIRES
Tire rotati

Page 408 of 441

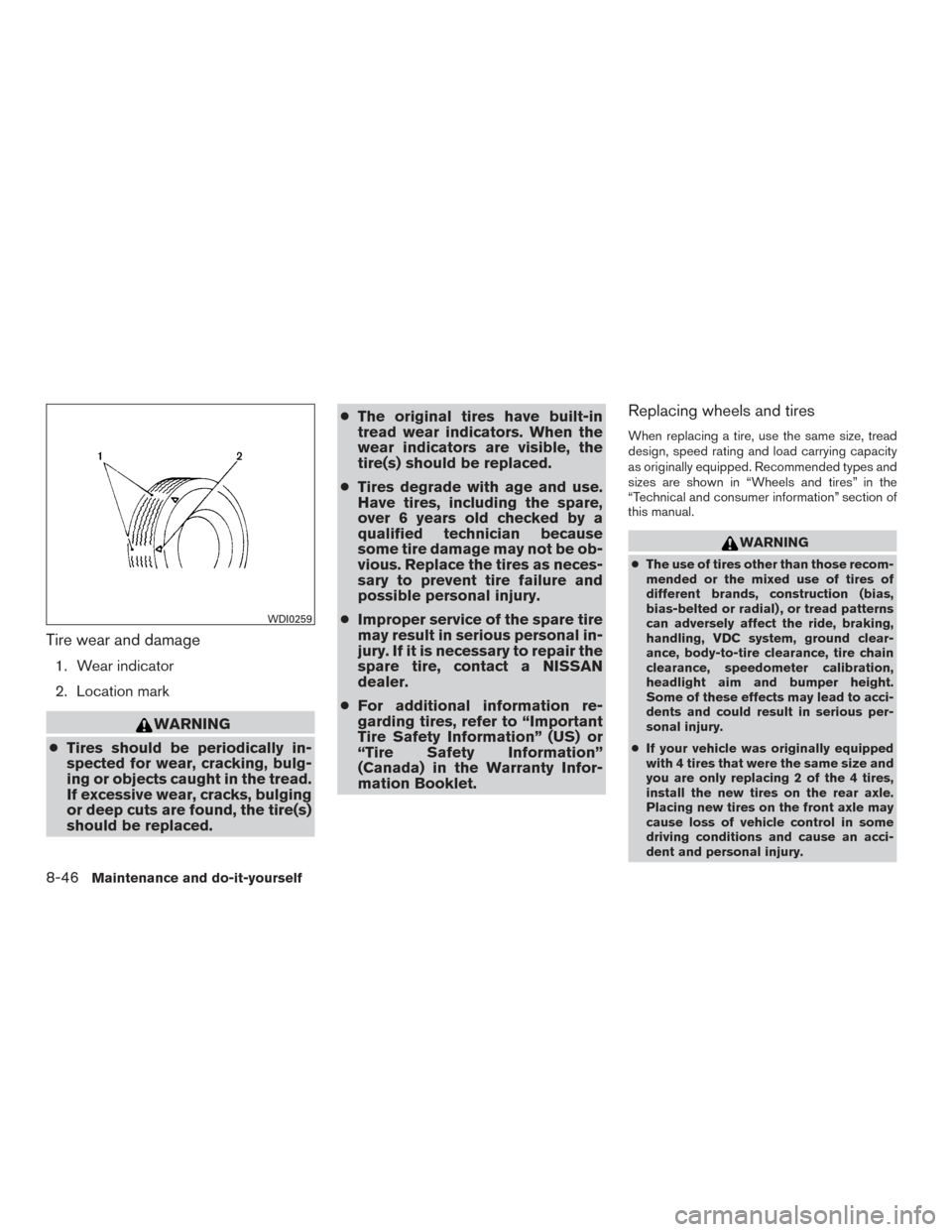

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual Tire wear and damage
1. Wear indicator
2. Location mark
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bu

Page 409 of 441

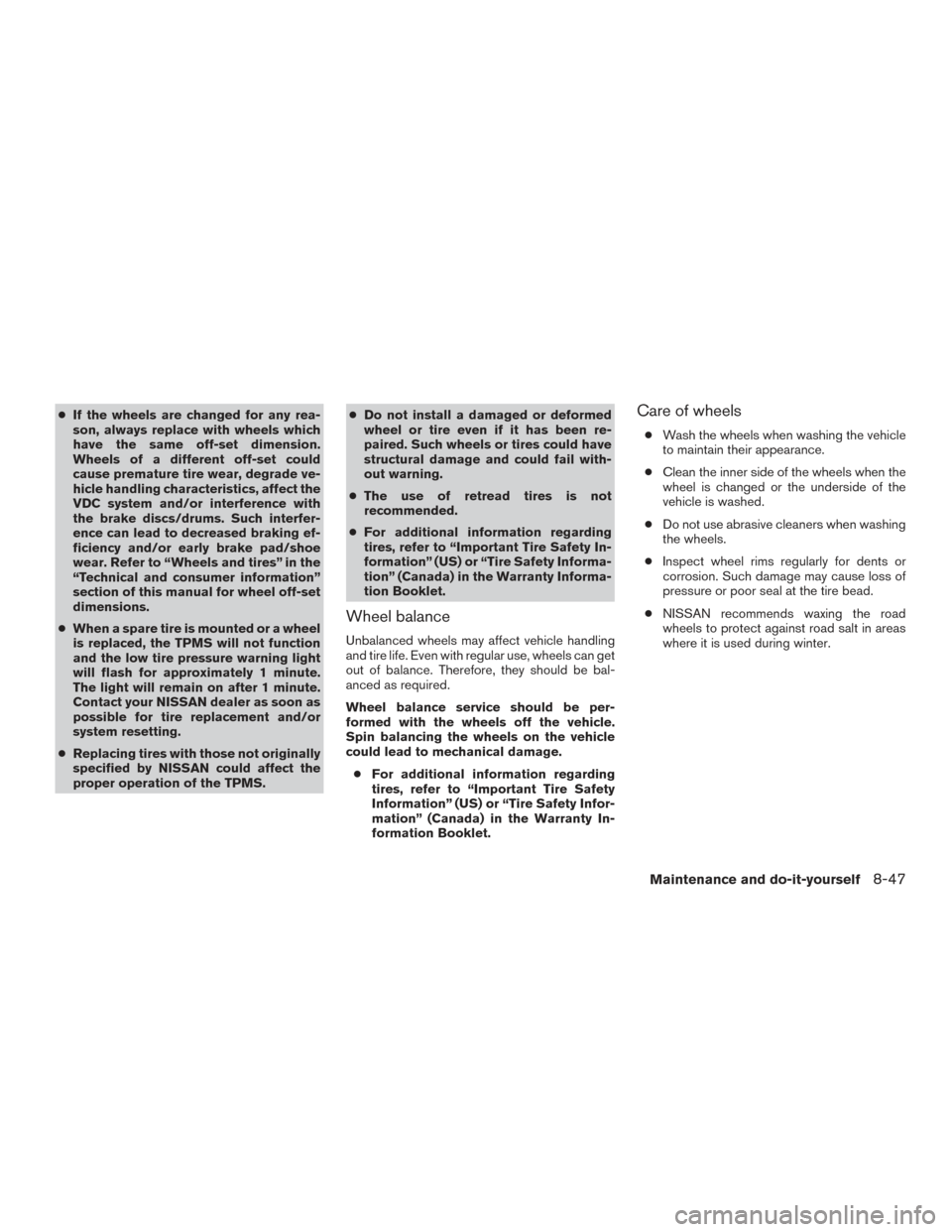

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual ●If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade ve-
hicle handli

Page 410 of 441

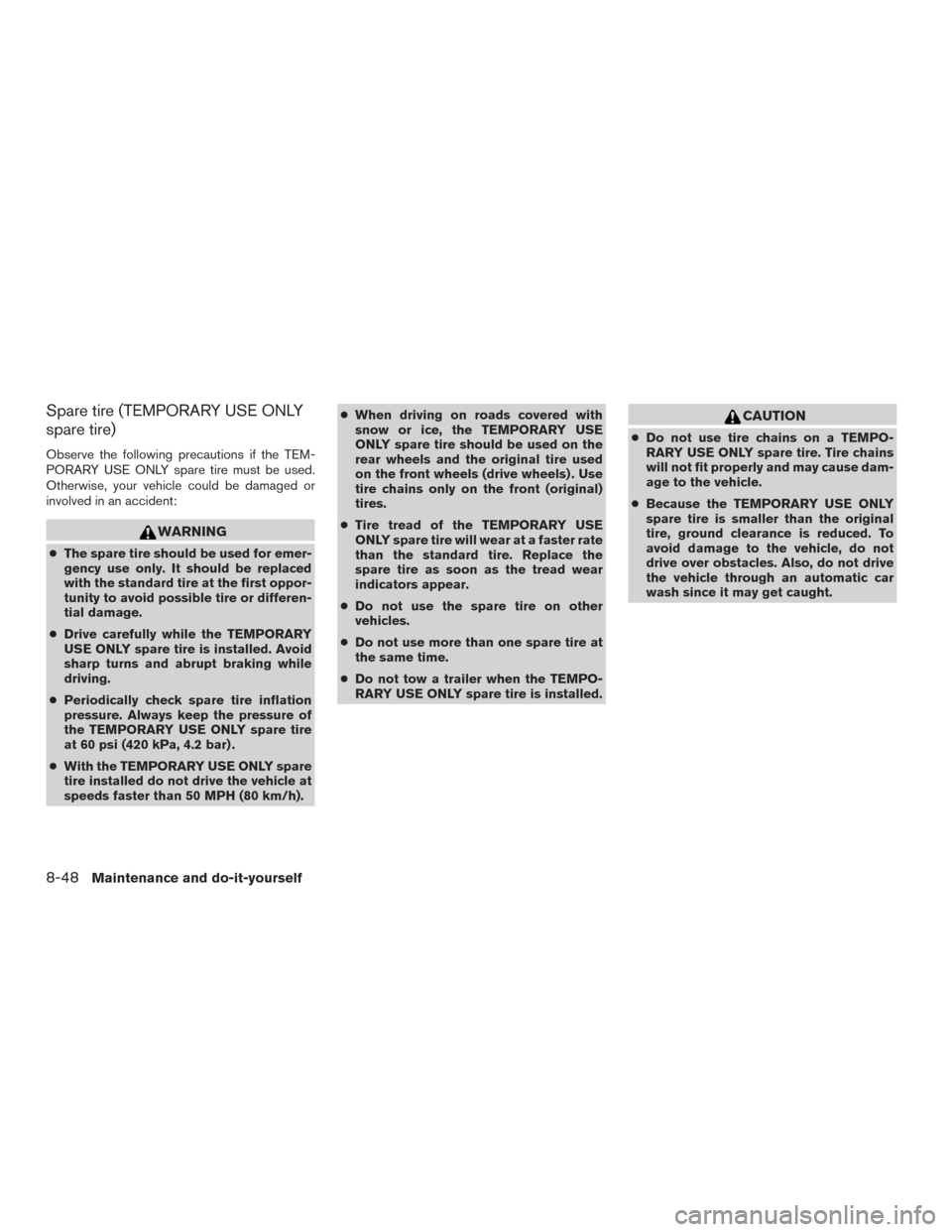

NISSAN ALTIMA 2015 L33 / 5.G Owners Manual Spare tire (TEMPORARY USE ONLY
spare tire)
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used.
Otherwise, your vehicle could be damaged or
involved in an accident:
W
