Page 411 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual VQ35DE engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Engine oil filler cap
4. Brake fluid reservoir
5. Air cleaner
6. Fuse/Fusible link box
7. Battery
8. Engine oil dipstick

Page 412 of 497

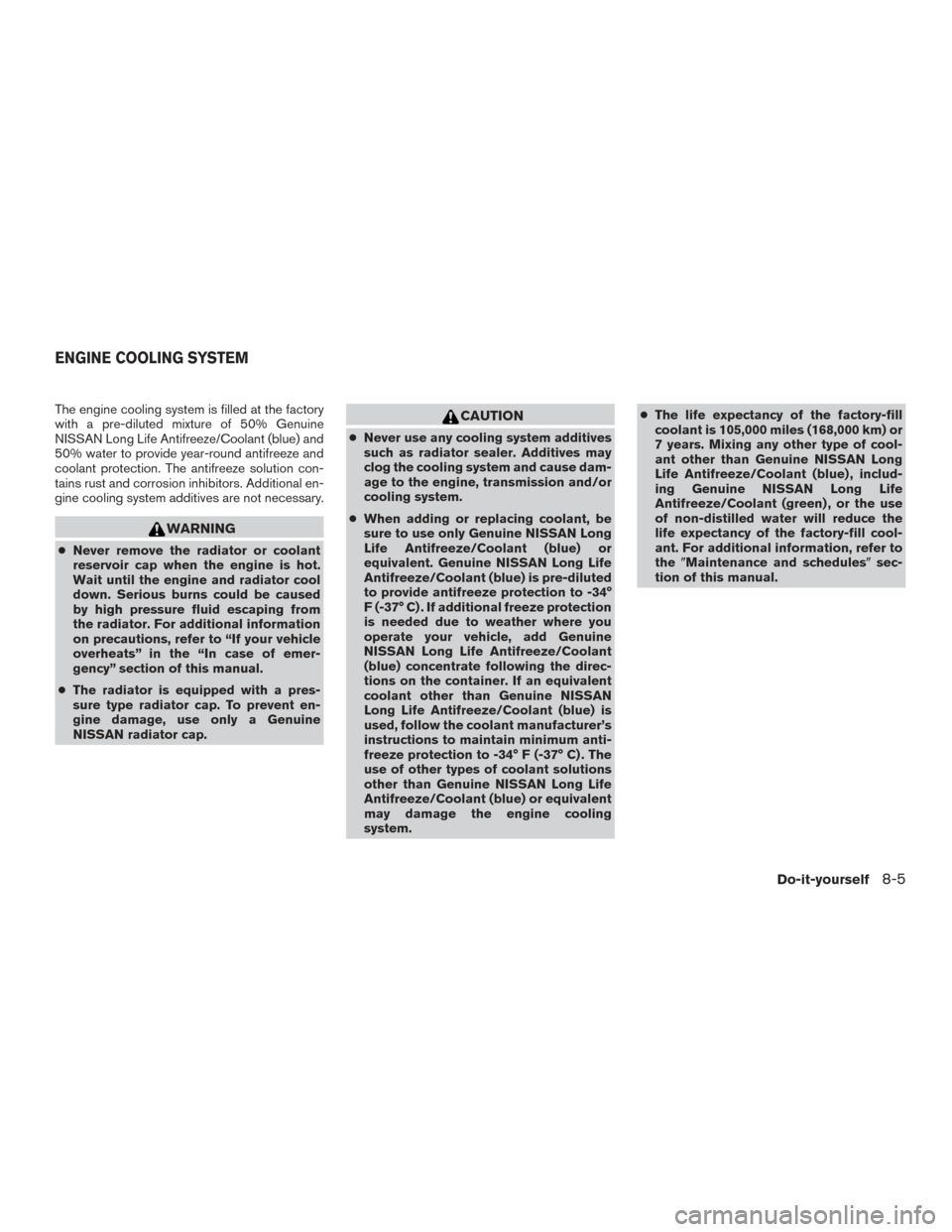

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round antifreeze and
coolant prote

Page 413 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
B, add coolant to the MAX level
A. If the reservoir is empt

Page 414 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait mo

Page 415 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual CAUTION
●Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not covered
by warranty.
● It is normal to add s

Page 416 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual WARNING
●Prolonged and repeated contact with
used engine oil may cause skin cancer.
● Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cle

Page 417 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
B. 4. Remove pins
Afrom the righ

Page 418 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual CAUTION
●NISSAN recommends using Genuine
NISSAN CVT Fluid NS-3 (or equivalent)
ONLY in NISSAN CVTs. Do not mix with
other fluids.
● Do not use Automatic Transmission
Fluid (ATF) or Manual transmis

Page 419 of 497

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual For additional information on brake fluid specifi-
cation, refer to “Recommended fluids/lubricants
and capacities” in the “Technical and consumer
information” section of this manual.
WARNING

Page 420 of 497

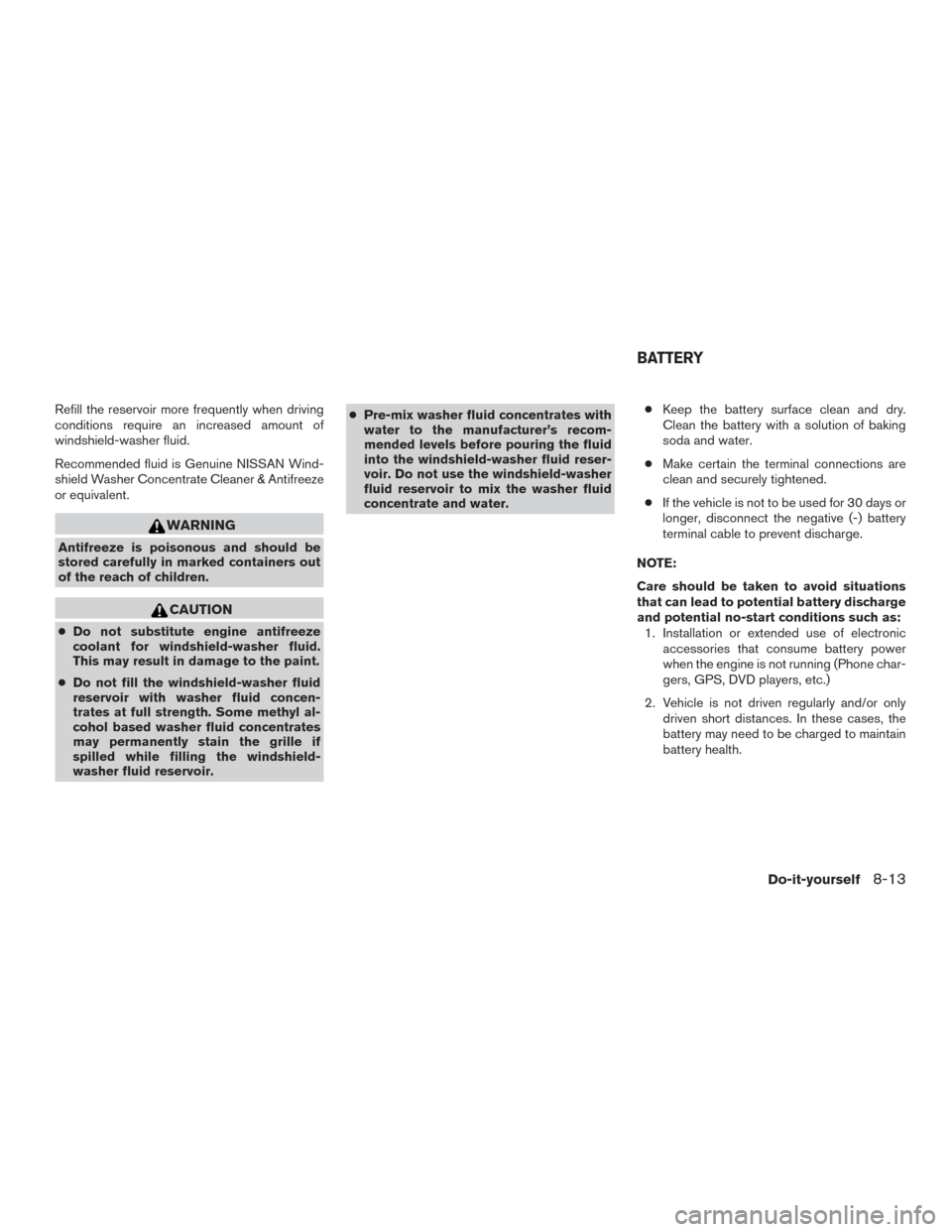

NISSAN ALTIMA 2017 L33 / 5.G Owners Manual Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antif
