NISSAN ALTIMA 2020 Owner´s Manual

∙ If theindicator blinks, turn the
cruise control switch off and have the
system checked. It is recommended
that you visit a NISSAN dealer for this
service.
∙ The
indicator may blink when the
cruise control switch is turned on while
pushing the RES+, SET–, or CANCEL
switch. To properly set the cruise con-
trol system, use the following proce-
dures.
WARNING
Do not use the cruise control when driv-
ing under the following conditions:
∙ When it is not possible to keep the vehicle at a set speed.
∙ In heavy traffic or in traffic that varies in speed.
∙ On winding or hilly roads.
∙ On slippery roads (rain, snow, ice, etc.).
∙ In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CRUISE CONTROL OPERATIONS
Cruise Control Indicator ColorDescription
None System off
White Standby
Green Set
Green(Blinking)System fault
The cruise control allows driving at a speed between 25 - 89 mph (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
5-64Starting and driving

To turn on the cruise control,push the
cruise control switch on. The
indica-
tor in the instrument panel will illuminate.
To set cruising speed, accelerate the
vehicle to the desired speed, push the
SET– switch and release it. Take your foot
off the accelerator pedal. Your vehicle
maintains the set speed.
∙ To pass another vehicle, depress the
accelerator pedal. When you release the
pedal, the vehicle returns to the previ-
ously set speed.
∙ The vehicle may not maintain the set speed when going up or down steep
hills. If this happens, drive without the
cruise control.
To cancel the preset speed, use one of the
following three methods:
∙ Push the CANCEL switch.
∙ Tap the brake pedal.
∙ Push the cruise control switch off. The
indicator in the instrument
panel goes out. The cruise control is automatically can-
celed if:
∙ You depress the brake pedal while pushing the RES+ or SET– switch. The
preset speed is deleted from memory.
∙ The vehicle slows down more than 8 mph (13 km/h) below the set speed.
∙ You move the shif t lever to N (Neutral).
To reset at a faster cruising speed, use
one of the following three methods:
∙ Depress the accelerator pedal. When the vehicle attains the desired speed,
push and release the SET– switch.
∙ Push and hold the RES+ switch. When the vehicle attains the speed you desire,
release the switch.
∙ Push and release the RES+ switch. Each time you do this, the set speed in-
creases by about 1 mph (1.6 km/h). To reset at a slower cruising speed,
use
one of the following three methods:
∙ Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the SET– switch and release it.
∙ Push and hold the SET– switch. Release the switch when the vehicle slows to
the desired speed.
∙ Push and release the SET– switch. Each time you do this, the set speed de-
creases by about 1 mph (1.6 km/h).
To resume the preset speed, push and
release the RES+ switch. The vehicle re-
turns to the last set cruising speed when
the vehicle speed is over 25 mph (40 km/h).
To turn off the cruise control, use one of
the following three methods:
∙ Push the CANCEL switch.
∙ Tap the brake pedal.
∙ Push the cruise control switch off. Theindicator in the instrument
panel goes out.
Starting and driving5-65

AICC switch
WARNING
Failure to follow the warnings and in-
structions for proper use of the ICC sys-
tem could result in serious injury or
death.
∙ The ICC system is only an aid to assistthe driver and is not a collision warn-
ing or avoidance device. It is the driv-
er’s responsibility to stay alert, drive
safely, and be in control of the vehicle
at all times.
∙ Always observe posted speed limits and do not set the speed over them.
∙ Always drive carefully and attentively when using the ICC system. Read and
understand the Owner’s Manual thor-
oughly before using the ICC system.
To avoid serious injury or death, do
not rely on the system to prevent ac-
cidents or to control the vehicle’s
speed in emergency situations. Do
not use the ICC system except in ap-
propriate road and traffic conditions.
LSD3294
INTELLIGENT CRUISE CONTROL (ICC)
(for vehicles without ProPILOT
Assist) (if so equipped)
5-66Starting and driving

∙ In the conventional (fixed speed)cruise control mode, a warning chime
will not sound to warn you if you are
too close to the vehicle ahead. Pay
special attention to the distance be-
tween your vehicle and the vehicle
ahead of you or a collision could occur.
NOTE:
For vehicles equipped with ProPILOT As-
sist, refer to “ProPILOT Assist” in this sec-
tion.
The ICC system maintains a selected dis-
tance from the vehicle in front of you within
the speed range of 0 to 90 mph (0 to
144 km/h) up to the set speed. The set
speed can be selected by the driver be-
tween 20 to 90 mph (32 to 144 km/h).
The vehicle travels at a set speed when the
road ahead is clear.
The ICC system can be set to one of two
cruise control modes: ∙ Vehicle-to-vehicle distance control
mode: For maintaining a selected dis-
tance between your vehicle and the ve-
hicle in front of you up to the preset
speed ∙
Conventional (fixed speed) cruise
control mode: For cruising at a preset
speed
Push the ICC switch
Ato choose the
cruise control mode between the vehicle-
to-vehicle distance control mode and the
conventional (fixed speed) cruise control
mode.
Once a control mode is activated, it cannot
be changed to the other cruise control
mode. To change the mode, push the ICC
switch
Aonce to turn the system off. Then
push the ICC switch
Aagain to turn the
system back on and select the desired
cruise control mode.
Always confirm the setting in the ICC sys-
tem display.
For the vehicle-to-vehicle distance control
mode, refer to “Vehicle-to-vehicle distance
control mode” in this section.
For the conventional (fixed speed) cruise
control mode, refer to “Conventional (fixed
speed) cruise control mode” in this section.
Starting and driving5-67

HOW TO SELECT THE CRUISE
CONTROL MODE
Selecting the vehicle-to-vehicle dis-
tance control mode:To choose the
vehicle-to-vehicle distance control mode
1, quickly push and release the ICC switch
A. Selecting the conventional (fixed speed)
cruise control mode:
To choose the con-
ventional (fixed speed) cruise control mode
2, push and hold the ICC switchAfor
longer than approximately 1.5 seconds. For
additional information, refer to “Conven-
tional (fixed speed) cruise control mode” in
this section.
VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE
In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at
the set speed when the road ahead is clear.
The ICC system is intended to enhance the
operation of the vehicle when following a
vehicle traveling in the same lane and di-
rection.
If the radar sensor
1detects a slower
moving vehicle ahead, the system will re-
LSD3295LSD3293
5-68Starting and driving

duce the vehicle speed so that your vehicle
follows the vehicle in front at the selected
distance.
The system automatically controls the
throttle and applies the brakes (up to ap-
proximately 40% of vehicle braking power)
if necessary.
The detection range of the sensor is ap-
proximately 650 f t (200 m) ahead.
LSD3296
Starting and driving5-69

VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
The vehicle-to-vehicle distance control
mode is designed to maintain a selected
distance from the vehicle in front of you
and can reduce the speed to match a
slower vehicle ahead. The system will de-
celerate the vehicle as necessary and if the
vehicle ahead comes to a stop, the vehicle
decelerates to a standstill. However, the ICC
system can only apply up to 40% of the
vehicle’s total braking power.
This system should only be used when
traffic conditions allow vehicle speeds to
remain fairly constant or when vehicle
speeds change gradually. If a vehicle
moves into the traveling lane ahead or if a
vehicle traveling ahead rapidly decelerates,
the distance between vehicles may be-
come closer because the ICC system can-
not decelerate the vehicle quickly enough.
If this occurs, the ICC system will sound a
warning chime and blink the system dis-
play to notif y the driver to take necessary
action.The system will cancel and a warning
chime will sound if the speed is below ap-
proximately 15 mph (24 km/h) and a vehicle
is not detected ahead. The system will also
disengage when the vehicle goes above
the maximum set speed.
For additional information, refer to “Ap-
proach warning” in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
∙ When there are no vehicles traveling ahead, the vehicle-to-vehicle distance
control mode maintains the speed set
by the driver. The set speed range is
between approximately 20 and 90 mph
(32 and 144 km/h).
∙ When there is a vehicle traveling ahead, the vehicle-to-vehicle distance control
mode adjusts the speed to maintain
the distance, selected by the driver,
from the vehicle ahead. If the vehicle
ahead comes to a stop, the vehicle de-
celerates to a standstill within the limi-
tations of the system. The system will
cancel once it judges a standstill with a
warning chime. ∙ When the vehicle traveling ahead has
moved out from its lane of travel, the
vehicle-to-vehicle distance control
mode accelerates and maintains ve-
hicle speed up to the set speed.
The ICC system does not control vehicle
speed or warn you when you approach
stationary and slow moving vehicles. You
must pay attention to vehicle operation to
maintain proper distance from vehicles
ahead when approaching toll gates or traf-
fic congestion.
5-70Starting and driving

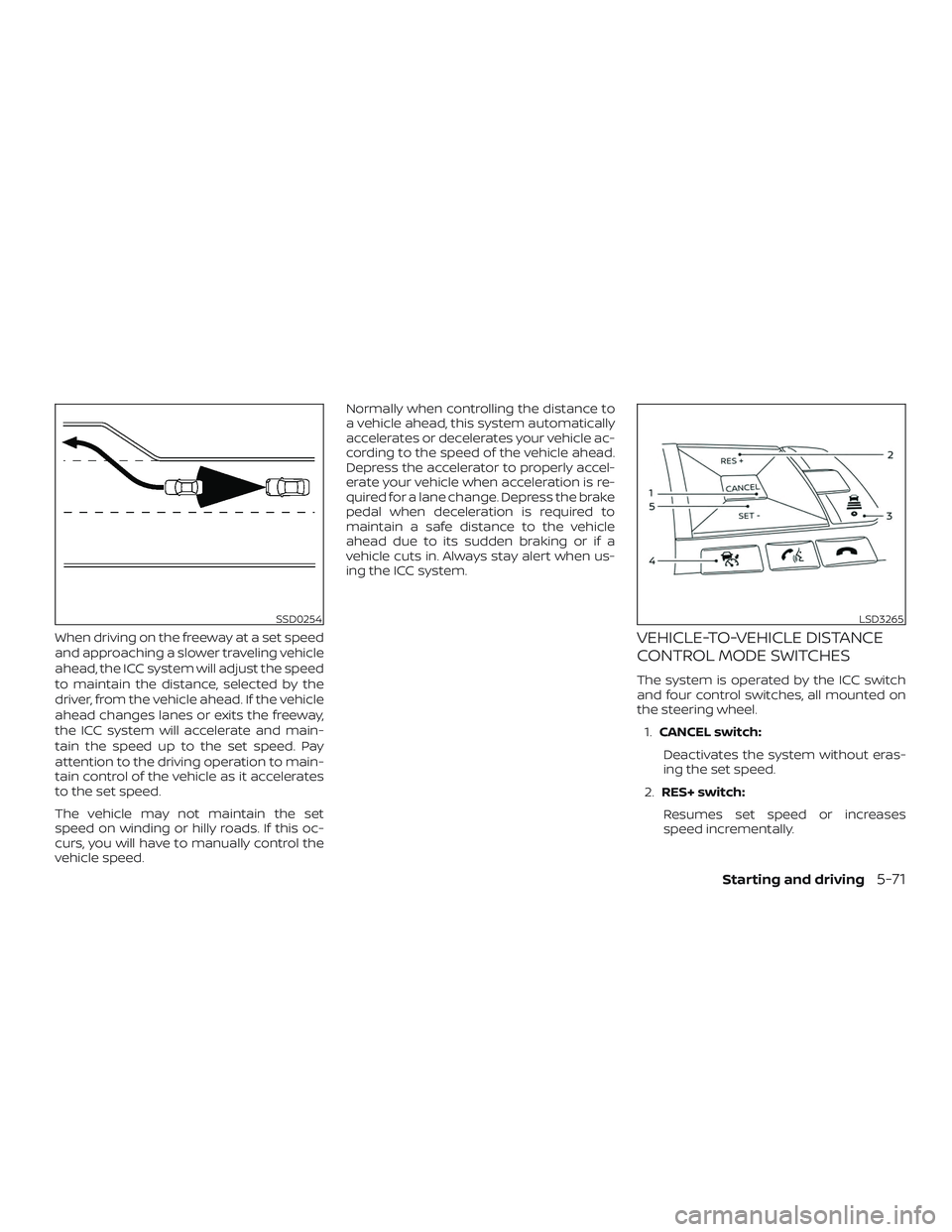

When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway,
the ICC system will accelerate and main-
tain the speed up to the set speed. Pay
attention to the driving operation to main-
tain control of the vehicle as it accelerates
to the set speed.
The vehicle may not maintain the set
speed on winding or hilly roads. If this oc-
curs, you will have to manually control the
vehicle speed.Normally when controlling the distance to
a vehicle ahead, this system automatically
accelerates or decelerates your vehicle ac-
cording to the speed of the vehicle ahead.
Depress the accelerator to properly accel-
erate your vehicle when acceleration is re-
quired for a lane change. Depress the brake
pedal when deceleration is required to
maintain a safe distance to the vehicle
ahead due to its sudden braking or if a
vehicle cuts in. Always stay alert when us-
ing the ICC system.VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE SWITCHES
The system is operated by the ICC switch
and four control switches, all mounted on
the steering wheel.
1. CANCEL switch:
Deactivates the system without eras-
ing the set speed.
2. RES+ switch:
Resumes set speed or increases
speed incrementally.
SSD0254LSD3265
Starting and driving5-71

3.DISTANCEswitch:
Changes the vehicle’s following dis-
tance:
∙ Long
∙ Middle
∙ Short
4. ICC switch:
Master switch to activate the system.
5. SET- switch:
Sets desired cruise speed or reduces
speed incrementally.
Vehicle-to-vehicle distance
control mode display and
indicators
The display is located between the speed-
ometer and tachometer.
1. This indicator indicates the ICC system status depending on a color:
∙ ICC system ON indicator (gray): Indi-
cates that the ICC switch is on.
∙ ICC system SET indicator (green):
Indicates that the cruising speed is
set. ∙
ICC system warning (yellow): Indi-
cates that there is a malfunction in
the ICC system.
2. Set vehicle speed indicator: Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
3. Vehicle ahead detection indicator: Indicates whether it detects a vehicle
in front of you.
4. Set distance indicator: Displays the selected distance be-
tween vehicles set with the distance
switch.
LSD3493
5-72Starting and driving

Operating vehicle-to-vehicle
distance control mode
To turn on the cruise control,quickly push
and release the ICC switch
A. The ICC sys-
tem ON indicator (gray), set distance indi-
cator and set vehicle speed indicator
B
come on in a standby state for setting. To set cruising speed,
accelerate your ve-
hicle to the desired speed, push the SET–
switch
Cand release it. The ICC system set
indicator (green), vehicle ahead detection
indicator, set distance indicator and set ve-
hicle speed indicator
Bwill come on. Take
your foot off the accelerator pedal. Your
vehicle will maintain the set speed. When the SET– switch is pushed under the
following conditions, the system cannot be
set and the ICC indicators will blink for ap-
proximately 2 seconds:
∙ When traveling below 20 mph (32 km/h) and a vehicle ahead is not detected
∙ When the shif t lever is not in the D (Drive) or Manual mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
LSD3494LSD3495LSD3102
Starting and driving5-73
