display NISSAN ALTIMA COUPE 2010 D32 / 4.G Navigation Manual

6. Select a stored item. The “ON” indicator
illuminates.7. Select “Download”.
INFO:
●Do not remove the USB memory until
the system completely imports or ex-
ports the data.INFO:
If the USB memory already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original data
cannot be recovered.
NST0083NST0084NST0085
Storing a location/route6-37

7 Viewing technical information
Information screen.................................7-2
Basic operation................................7-2
Viewing information about current vehicle location.....7-3
Basic operation................................7-3
Viewing available traffic information..................7-4
Basic operation................................7-5
Info on route...................................7-5
Nearby traffic info...............................7-6
Display urgent traffic information.................7-7
Traffic information on map.......................7-8
Traffic information settings......................7-10Viewing available weather information...............7-11
Displaying weather information screen...........7-12
Destination weather on suggested route
screen.......................................7-22
Automatically display warning/watches...........7-22
Map update......................................7-24
Viewing navigation system version information.......7-25
Basic operation...............................7-25
Viewing GPS current location information...........7-25
Basic operation...............................7-26

This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
An XM NavTrafficsubscription is necessary to
view Traffic Info.
An XM NavWeather™ subscription is necessary
to view Weather Info.
BASIC OPERATION
1. Press INFO.
2. Select the preferred item.
Available items
●“Fuel Economy:
Refer to the vehicle Owner’s Manual.
●“Tire Pressure” (if so equipped):
Refer to the vehicle Owner’s Manual.
●“Trip Computer” (if so equipped):
Refer to the vehicle Owner’s Manual.
●“Maintenance”:
Refer to the vehicle Owner’s Manual.●“Where am I?”:
Displays information regarding the current
vehicle location.
“VIEWING INFORMATION
ABOUT CURRENT VEHICLE
LOCATION” (page 7-3)
●“Traffic Info”:
Allows Traffic Info setup.
“VIEWING AVAILABLE TRAFFIC
INFORMATION” (page 7-4)
●“Weather Info”:
Displays weather information.
“VIEWING AVAILABLE
WEATHER INFORMATION”
(page 7-11)
●“Others”:
– “Map Update”:
Display the map version and enable updat-
ing of the map data.
“MAP UPDATE” (page 7-24)
LNV0589
INFORMATION SCREEN
7-2Viewing technical information

– “Navigation Version”:
Displays the current navigation system
version.
“VIEWING NAVIGATION SYS-
TEM VERSION INFORMATION”
(page 7-25)
– “GPS Position”:
Displays GPS information regarding the
current vehicle location.
“VIEWING GPS CURRENT LO-
CATION INFORMATION”
(page 7-25)
– “Voice Recognition”:
Displays the voice recognition list.
“Voice recognition”
INFO:
The displayed items vary depending on the op-

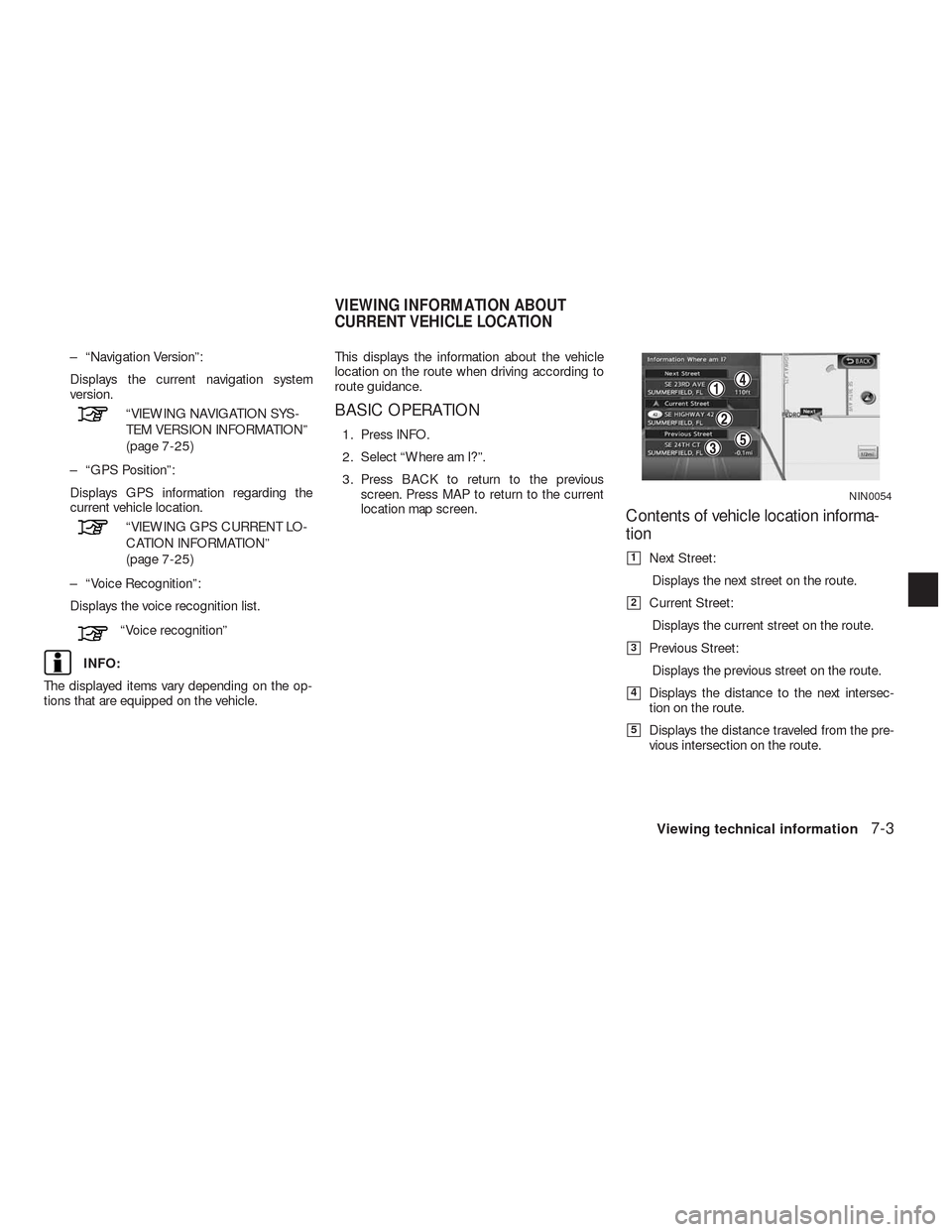

tions that are equipped on the vehicle.This displays the information about the vehicle
location on the route when driving according to
route guidance.
BASIC OPERATION
1. Press INFO.
2. Select “Where am I?”.
3. Press BACK to return to the previous
screen. Press MAP to return to the current
location map screen.
Contents of vehicle location informa-
tion
1Next Street:
Displays the next street on the route.
2Current Street:
Displays the current street on the route.
3Previous Street:
Displays the previous street on the route.
4Displays the distance to the next intersec-
tion on the route.
5Displays the distance traveled from the pre-
vious intersection on the route.
NIN0054
VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION
Viewing technical information7-3

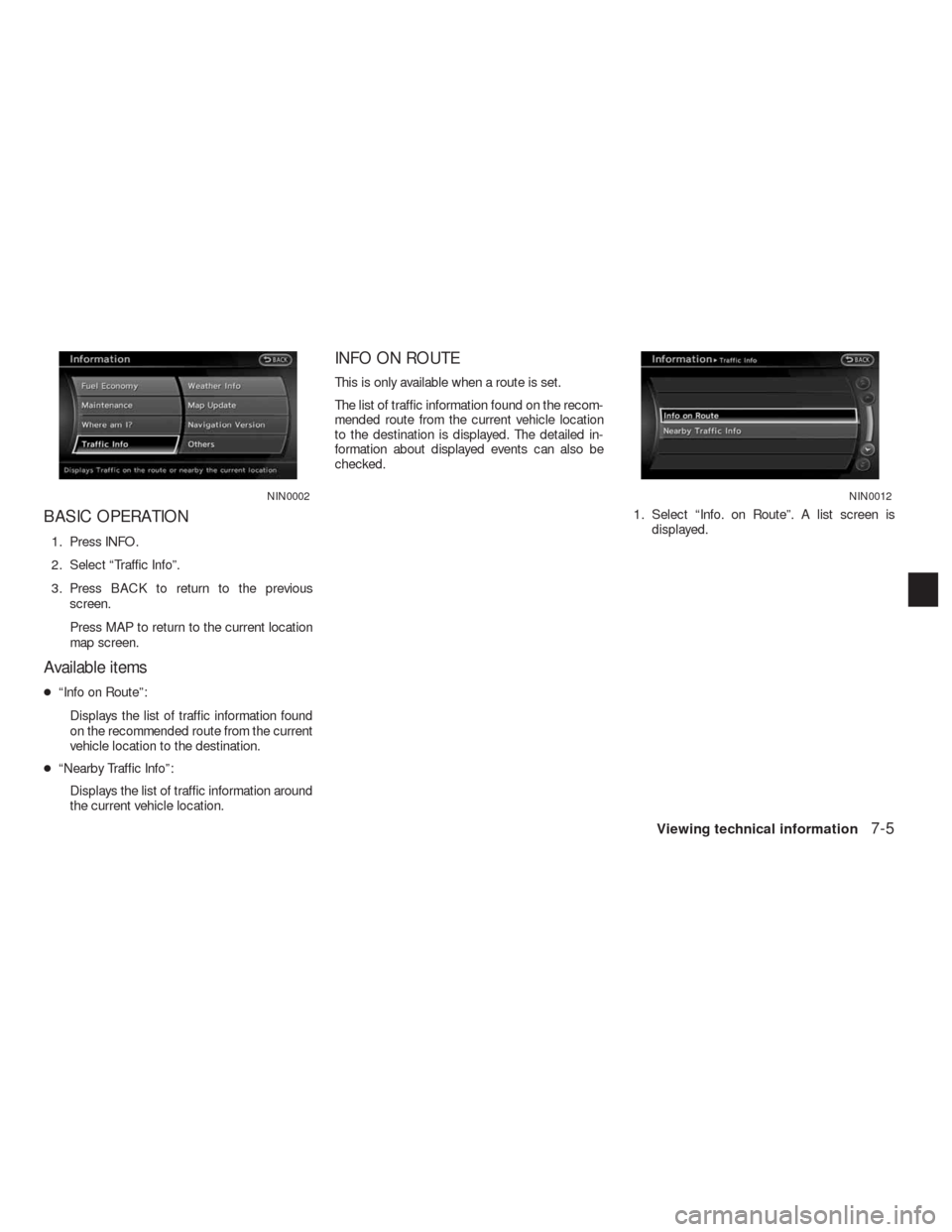

BASIC OPERATION
1. Press INFO.
2. Select “Traffic Info”.
3. Press BACK to return to the previous
screen.
Press MAP to return to the current location
map screen.
Available items
●“Info on Route”:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
●“Nearby Traffic Info”:
Displays the list of traffic information around
the current vehicle location.
INFO ON ROUTE
This is only available when a route is set.
The list of traffic information found on the recom-
mended route from the current vehicle location
to the destination is displayed. The detailed in-
formation about displayed events can also be
checked.
1. Select “Info. on Route”. A list screen is
displayed.
NIN0002NIN0012
Viewing technical information7-5

2. Select the event to check the detailed
information.3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed.
The message can be scrolled using the up/
down button of the steering wheel switch.
4. Press BACK to return to the previous
screen.
NEARBY TRAFFIC INFO.
The list of available traffic information around the
current vehicle location is displayed.1. Select “Nearby Traffic Info”. A list screen is
displayed.
NIN0013NIN0014NIN0003
7-6Viewing technical information

2. Select the event to check the detailed
information.3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed. The message can be
scrolled using the up/down button of the
steering wheel switch.
4. Press BACK to return to the previous
screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
When an urgent event is found around the cur-
rent vehicle location, a message pops up auto-
matically with a voice announcement.The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
INFO:
●Urgent traffic information is displayed regard-
less of whether the traffic information system
is on or off.
●When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed.
●If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when
the vehicle approaches the detour point.
NIN0004NIN0005NIN0036
Viewing technical information7-7

TRAFFIC INFORMATION ON MAP
With subscription to XM NavTrafficservice,
traffic information is displayed on both Plan View
and Birdview™ map screen.
See “Notes on Traffic Information” for further
information.
“NOTES ON XM NavTrafficINFOR-
MATION” (page 10-14)
Screen information
1Road conditions
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event:
Purple dashed arrow
2Estimated travel time to destination calcu-
lated with consideration of traffic information
on route.
3Traffic information icon:
If the route is not already set, all of the traffic
information icons on the map screen are
displayed in color. When the route is al-
ready set, the icons on the route are dis-
played in color, and the icons outside the
route are displayed in gray.
: Accident
: Closed road
NIN0006
7-8Viewing technical information

: Information
: Road work
: Slippery road
: Weather
: Incident
4Traffic indicator:
Displays the reception condition of traffic
information transmitted from the provider.
Green: Reception condition is good. Gray:
Reception condition is not good. No mark:
Subscription to XM NavTrafficservice is
not detected.
Traffic information display and scale
levels
2D map and Birdview™ Map
320 miles (640 km)
80 miles (160 km)
32 miles (64 km)
8 miles (16 km)
INFO:
The traffic information icons are not displayed on
the map screen when the map scale is set to the
building footprint graphics (2D map) or the 3D
building graphics (Birdview™ map) .
Checking detailed information for the
traffic information icons on the map
1. Place the cross pointer over the traffic infor-
mation icon. The general description of the
icon is displayed.
2. Touch “Detail”. The screen for showing the
detailed information for the traffic informa-
tion icon is displayed.
NIN0007
Viewing technical information7-9

3. The map screen centered around the se-
lected event is displayed. On the left
screen, the detailed information about the
event is displayed. You can scroll the mes-
sage by using the up/down button of the
steering wheel switch.
4. Press MAP to return to the current location
map screen.
TRAFFIC INFORMATION SETTINGS
This displays or changes the settings for the traf-
fic information related functions.1. Press SETTING.
2. Select “Navigation”.
3. Select “Traffic Info Settings”.4. Select the preferred setting. The indicator
for the selected setting illuminates.
Available setting items
●Use Traffic Info.:
Enables all traffic information related
functions.
●Show Incidents on Map:
Displays the traffic incidents (e.g., accident)
on the map screen.
●Show Traffic Flow on Map:
Displays the traffic flow with an arrow on the
map screen.
●Blink Red Traffic Flow:
Blinks the red traffic flow lines that repre-
sent congestions.
NIN0009NIN0037NIN0038
7-10Viewing technical information
