warning NISSAN ALTIMA COUPE 2010 D32 / 4.G Navigation Manual

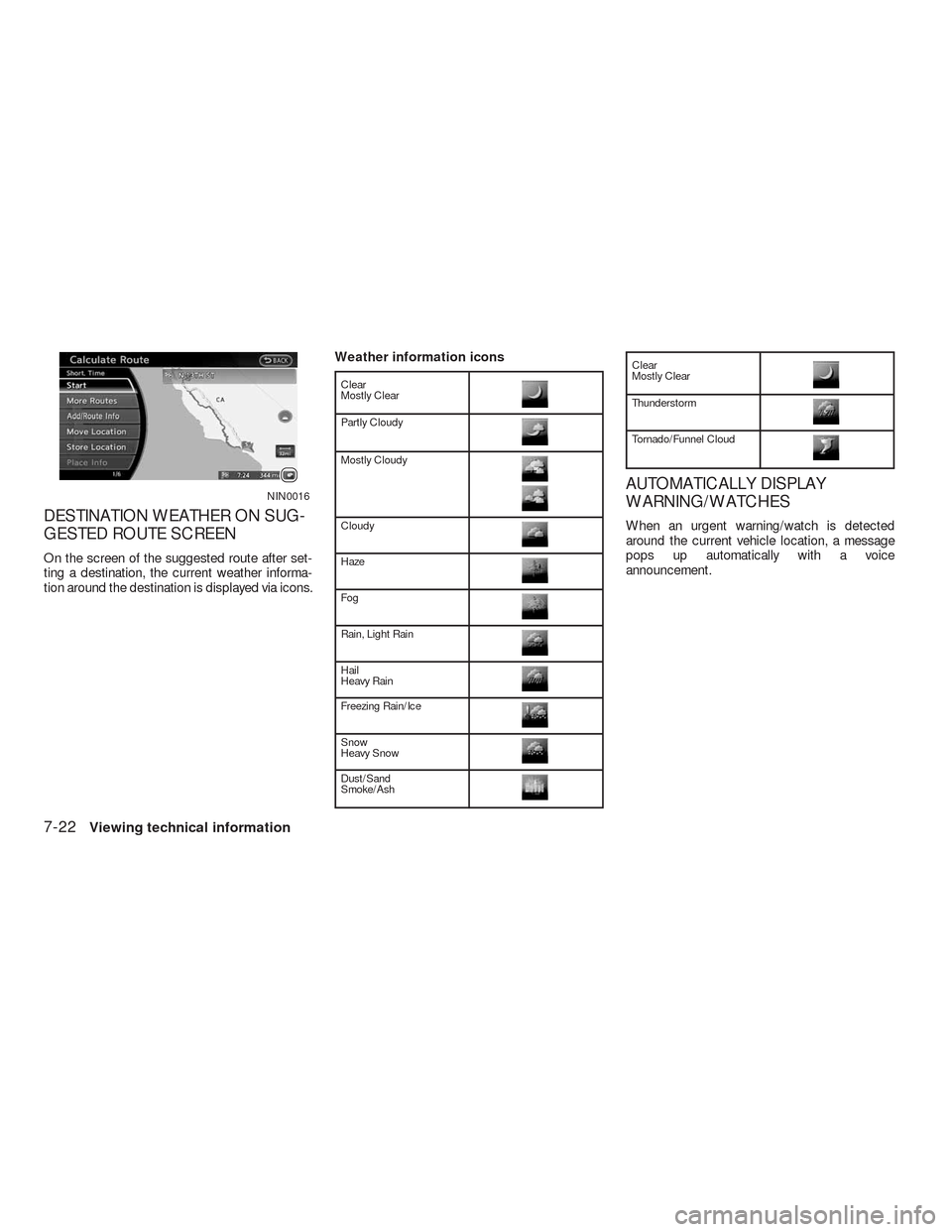

DESTINATION WEATHER ON SUG-
GESTED ROUTE SCREEN
On the screen of the suggested route after set-
ting a destination, the current weather informa-
tion around the destination is displayed via icons.Weather information icons
Clear
Mostly Clear
Partly Cloudy
Mostly Cloudy
Cloudy
Haze
Fog
Rain, Light Rain
Hail
Heavy Rain
Freezing Rain/Ice
Snow
Heavy Snow
Dust/Sand
Smoke/Ash
Clear
Mostly Clear
Thunderstorm
Tornado/Funnel Cloud
AUTOMATICALLY DISPLAY
WARNING/WATCHES
When an urgent warning/watch is detected
around the current vehicle location, a message
pops up automatically with a voice
announcement.
NIN0016
7-22Viewing technical information

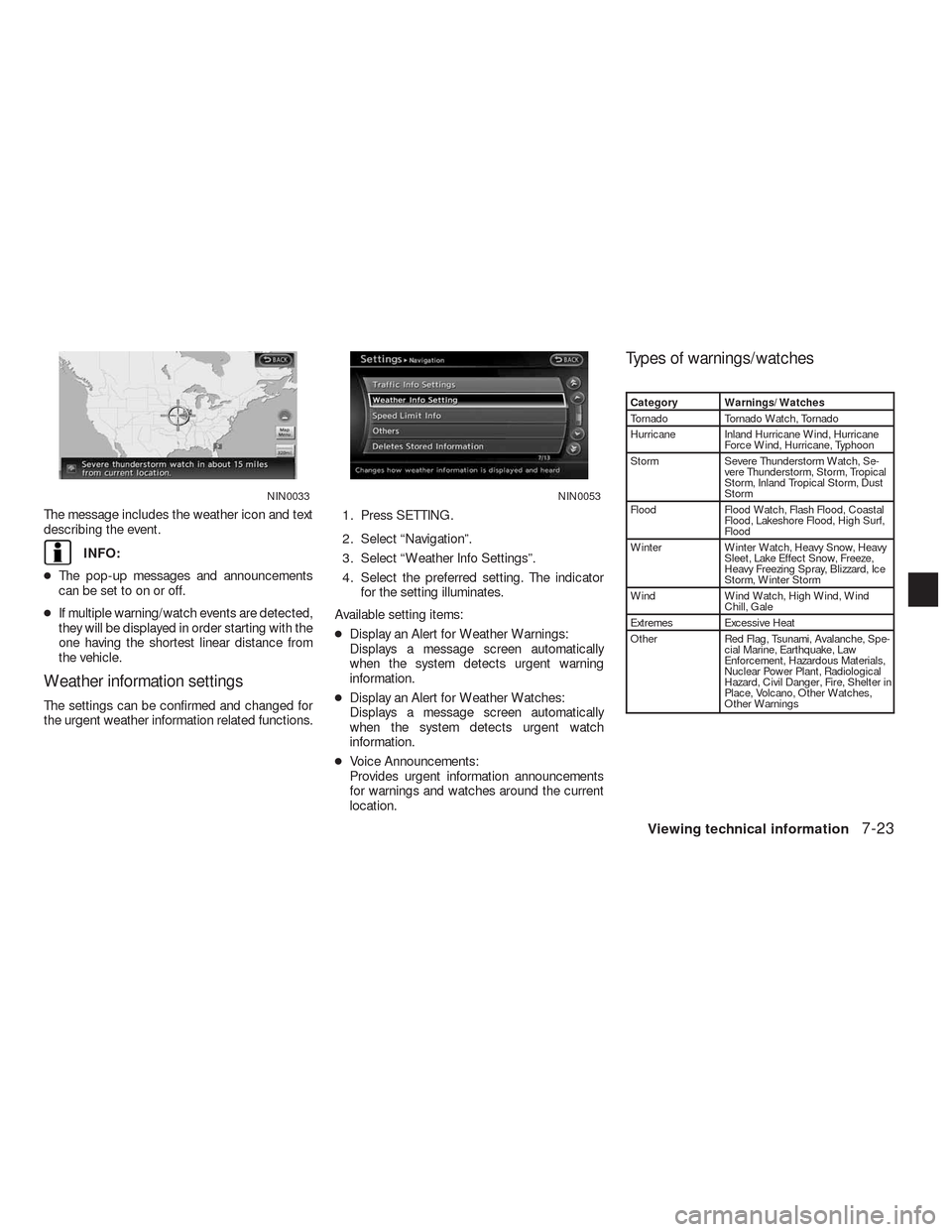

The message includes the weather icon and text
describing the event.
INFO:
●The pop-up messages and announcements
can be set to on or off.
●If multiple warning/watch events are detected,
they will be displayed in order starting with the
one having the shortest linear distance from
the vehicle.
Weather information settings
The settings can be confirmed and changed for
the urgent weather information related functions.1. Press SETTING.
2. Select “Navigation”.
3. Select “Weather Info Settings”.
4. Select the preferred setting. The indicator
for the setting illuminates.
Available setting items:
●Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
●Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
●Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current
location.
Types of warnings/watches
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurricane
Force Wind, Hurricane, Typhoon
Storm Severe Thunderstorm Watch, Se-
vere Thunderstorm, Storm, Tropical
Storm, Inland Tropical Storm, Dust
Storm
Flood Flood Watch, Flash Flood, Coastal
Flood, Lakeshore Flood, High Surf,
Flood
Winter Winter Watch, Heavy Snow, Heavy
Sleet, Lake Effect Snow, Freeze,
Heavy Freezing Spray, Blizzard, Ice
Storm, Winter Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche, Spe-
cial Marine, Earthquake, Law
Enforcement, Hazardous Materials,
Nuclear Power Plant, Radiological
Hazard, Civil Danger, Fire, Shelter in
Place, Volcano, Other Watches,
Other Warnings
NIN0033NIN0053
Viewing technical information7-23

INFO:
●The “Other Watches” category in the “Other”
category includes Inland Hurricane Watch,
Hurricane Watch, Typhoon Watch, Tropical
Storm Watch, Inland Tropical Storm Watch
and Fire Weather Watch.
●The “Other Warnings” category in the “Other”
category includes Dense Fog Warning, Freez-
ing Fog Warning, Extreme Cold Warning,
Frost Warning, Hydrologic Warning, Ashfall
Warning, Air Stagnation Warning, Low Water
Warning, Ice Accretion Warning, Dense
Smoke Warning, Dense Smoke Advisory,
Freezing Fog Advisory, Dense Fog Advisory,
Ashfall Advisory and Air Stagnation Advisory.1. Press INFO.
2. Select “Map Update”.
3. Insert the DVD containing the new map
data.4. Select “DVD Update”.
INFO:
●Refer to the vehicle Owner’s Manual for the
location of the DVD slot.
●Do not eject the DVD while updating the map
data. Doing so will result in an incomplete
update.
●To order updated DVD-ROMs or additional
DVD-ROMs, visit www.navigation.com.
NOTE:
In handling the DVD-ROM, be careful on
the following points.
●Do not try to bend the DVD-ROM. Do not use
any disk that is bent or cracked.
●Do not use any benzine, thinner, or antistatic
spray on them.
LNV0596NIN0011
MAP UPDATE
7-24Viewing technical information

Published by Nissan North America, Inc
© 2006 Navigation Technologies. All rights
reserved.
© 1993-2008 NAVTEQ. All Rights Reserved.
Certain business data provided by infoUSA, Inc.,
Omaha, NE, Copyright
© 2008, All Rights Reserved.
© ZENRIN CO., LTD. 2009. All rights reserved.
© ZENRIN USA, INC. 2008. All rights reserved.
© 2008 Zagat Survey, LLC.
WARNING
●This navigation system should not be
used to replace your own judgement.
No itinerary suggested by this navi-
gation system should ever override
any highway regulations, your own
judgement, or a knowledge of safe
driving practices. Do not follow the
navigation system’s suggested itin-
erary if it would cause you to perform
a dangerous or illegal act, place you
in a dangerous situation, or take you
into an area you consider unsafe.●The advice provided by the naviga-
tion system is to be regarded as a
suggestion only. There may be times
when the navigation system displays
the vehicle’s location incorrectly,
fails to suggest the shortest route, or
fails to direct you to the your desired
destination. In such instances, rely
on your own driving judgement, tak-
ing into account the driving condi-
tions at the time.
●Do not use the navigation system to
locate emergency services. The data-
base does not contain a complete
listing of emergency services such as
police stations, fire halls, hospitals
and walk-in clinics. Please show dis-
cretion and ask for directions in such
instances.
●As the driver, you alone are respon-
sible for your driving safety.
– In order to avoid a traffic accident,
do not operate the system while
driving.– In order to avoid a traffic accident,
operate the system only when the
vehicle is stopped at a safe place
and the parking brake is on.
– In order to avoid a traffic accident
or traffic offence, remember that
actual road conditions and traffic
regulations take precedence over
the information contained on the
navigation system.
– The Software may contain inaccu-
rate or incomplete information
due to the passage of time,
changing circumstances, and the
sources of information used.
Please respect current traffic con-
ditions and regulations at all
times while driving.
– Where actual road conditions and
highway regulations differ from
the information contained on the
navigation system, abide by the
highway regulations.
– Keep the amount of time spent
viewing the screen while driving
to a strict minimum.
10-16General system information

The navigation system does not provide,
nor represent in any way information on:
traffic and highway regulations; technical
aspects of the vehicle including weight,
height, width, load and speed limits; road
conditions including grade, percentage of
incline and surface conditions; obstacles
such as the height and width of bridges
and tunnels; and other current driving or
road conditions. Always rely on your own
judgement when driving a car, taking into
account current driving conditions.
The marks of companies displayed by this prod-
uct to indicate business locations are the marks
of their respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement by such
companies of this product.
END-USER TERMS
The Map Data Disc (Data) is provided for your
personal, internal use only and not for resale. It is
protected by copyright, and is subject to the fol-
lowing terms (thisEnd- User License Agree-
ment) and conditions which are agreed to by
you, on the one hand, and NAVTEQ North
America, LLC (NT) and its licensors (including
their licensors and suppliers) on the other hand.
The Data for areas of Canada includes information
taken with permission from Canadian authorities,including: © Her Majesty the Queen in Right of
Canada, © Queen’s Printer for Ontario, ©Canada
Post Corporation, GeoBase
NT holds a non-exclusive license from the United
States Postal Serviceto publish and sell
ZIP+4information.
© United States Postal Service2009. Prices are
not established, controlled or approved by the
United States Postal Service.The following trade-
marks and registrations are owned by the USPS:
United States Postal Service, USPS, and ZIP+4.
Terms and conditions
Personal Use Only You agree to use this Data forthe solely personal, non-commercial purposes
for which you were licensed, and not for service
bureau, time-sharing or other similar purposes.
Accordingly, but subject to the restrictions set
forth in the following paragraphs of this End-
User License Agreement, you may copy this
Data only as necessary for your personal use to
(i) view it, and (ii) save it, provided that you do
not remove any copyright notices that appear
and do not modify the Data in any way. Except as
otherwise set forth herein, you agree not to oth-
erwise reproduce, copy, modify, decompile, dis-
assemble or reverse engineer any portion of this
Data, and may not transfer or distribute it in any
form, for any purpose, except to the extent per-
mitted by mandatory laws. You may transfer theData and all accompanying materials on a per-
manent basis if you retain no copies and the re-
cipient agrees to the terms of this End-User Li-
cense Agreement. Multidisc sets may only be
transferred or sold as a complete set as provided
to you and not as a subset thereof.
Restrictions Except where you have been spe-
cifically licensed to do so by NT and without lim-
iting the preceding paragraph, you may not (a)
use this Data with any products, systems, or ap-
plications installed or otherwise connected to or
in communication with vehicles capable of ve-
hicle navigation, positioning, dispatch, real time
route guidance, fleet management or similar ap-
plications; or (b) with, or in communication with,
including without limitation, cellular phones,
palmtop and handheld computers, pagers, and
personal digital-assistants or PDAs.
Warning This Data may contain inaccurate or in-
complete information due to the passage of time,
changing circumstances, sources used and the
nature of collecting comprehensive geographic
data, any of which may lead to incorrect results.
No Warranty This Data is provided to youas is,
and you agree to use it at your own risk. NT and
its licensors (and their licensors and suppliers)
make no guarantees, representations or warran-
ties of any kind, express or implied, arising by law
or otherwise, including but not limited to,
General system information10-17

The display is a liquid crystal display and should
be handled with care.
WARNING
Never disassemble the display. Some
parts utilize extremely high voltage.
Touching them may result in serious
personal injury.
CHARACTERISTICS OF A LIQUID
CRYSTAL DISPLAY
●If the temperature inside the vehicle is espe-
cially low, the display will stay relatively dim or
the movement of the images may be slow.
These conditions are normal. The display will
function normally when the interior of the ve-
hicle has warmed up.
●Some pixels in the display are darker or
brighter than others. This condition is an in-
herent characteristic of liquid crystal displays,
and it is not a malfunction.
●A remnant of the previous display image may
remain on the screen. This screen burn is in-
herent in displays, and it is not a malfunction.
INFO:
The screen may become distorted by strong
magnetic fields.
MAINTENANCE OF THE DISPLAY
CAUTION
●To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner and any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
●Do not splash any liquid such as wa-
ter or car fragrance on the display.
Contact with liquid will cause the
system to malfunction.
To clean the display screen, use a dry, soft cloth.
If additional cleaning is necessary, use a small
amount of neutral detergent with a soft cloth.
Never spray the screen with water or detergent.
Dampen the cloth first, then wipe the screen.
HOW TO HANDLE THE DISPLAY
General system information10-19
