navigation NISSAN ALTIMA COUPE 2011 D32 / 4.G Navigation Manual

COMMAND LIST
Category Command:
COMMANDACTION
Phone Operates Phone function.
Navigation Operates Navigation function.
Information Displays Vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.
Navigation Command:
COMMANDACTION
Home Sets a route to the home location that is stored in the Address book.
Address (if so equipped) Searches for a location by the street address specified, and sets a route (for continental US only) .
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for information stored in the Address Book.
Previous Destinations Sets a route to a previous destination.
2-28Getting started

Voice command examples
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that are performed by voice com-
mands are described here.
Example 1: Setting a destination by a
street address:1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Navigation”. 4. Speak “Address”.
NGT0070NGT0071
Getting started2-31

13. To confirm the destination location on themap, speak “Show map”. To calculate a
route, speak “Calculate route”.
Example 2: Placing a call to the phone
number 800-662-6200: 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “Dial Number”.
NGT0077NGT0070NGT0079
2-34Getting started

2. The system announces, “Would you like toaccess Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “International Call”. 5. Speak “011811112223333”.
NGT0070NGT0079NGT0087
Getting started2-37

OTHER SETTINGS
The map view can also be set using the following
procedure.1. Press SETTING.
2. Select “Navigation”.
3. Select “Map View”.
4. Select “Change View”.
5. Select the preferred item.
Voice command
1. Press
button located on the steering
wheel switch.
2. After the tone sounds, speak a command. ●To display the 2D map:
“Plan View map” (Alternate command
mode)
● To display the Birdview™ map:
“Birdview™ map” (Alternate command
mode) Other settings are also available for the map
screen, such as changing the map direction,
map color, Birdview™ angle, etc.
Split: Birdview™NMA0026NMA0027
SETTING THE MAP VIEW
Map settings3-13

4. Select the preferred item.
Available setting items
● “Map Orientation”:
Set the map direction to North up or Heading
Up.
“SETTING THE MAP ORIENTA-
TION” (page 3-15)
● “Long Range”:
Set the long range map view display ON/
OFF.
“SETTING THE LONG RANGE
MAP VIEW” (page 3-17)
● “Map Color”:
Change the map color.
“SETTING THE MAP COLOR”
(page 3-18) ●
“Birdview™ Angle”:
Change the Birdview™ angle.
“CHANGING THE Birdview™
ANGLE” (page 3-19)
● “Left Split Map Settings”:
Set the map settings for the left screen of the
split map.
“SETTING THE LEFT SCREEN
DISPLAY” (page 3-20)
● “Show all Freeway Exits on Route”/“Show all
Freeway Exits without Route”:
Set the display of the freeway exit information
ON/OFF.
“Show exit information on free-
ways” (page 5-12)
Other settings
The orientation of the map can also be set using
the following procedure. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Map Settings”.SETTING THE MAP ORIENTATION
The map direction (orientation) can also be
changed in the 2D map. These settings are avail-
able only in the 2D Map or 2D/2D split map.
NMA0029NMA0027
Map settings3-15

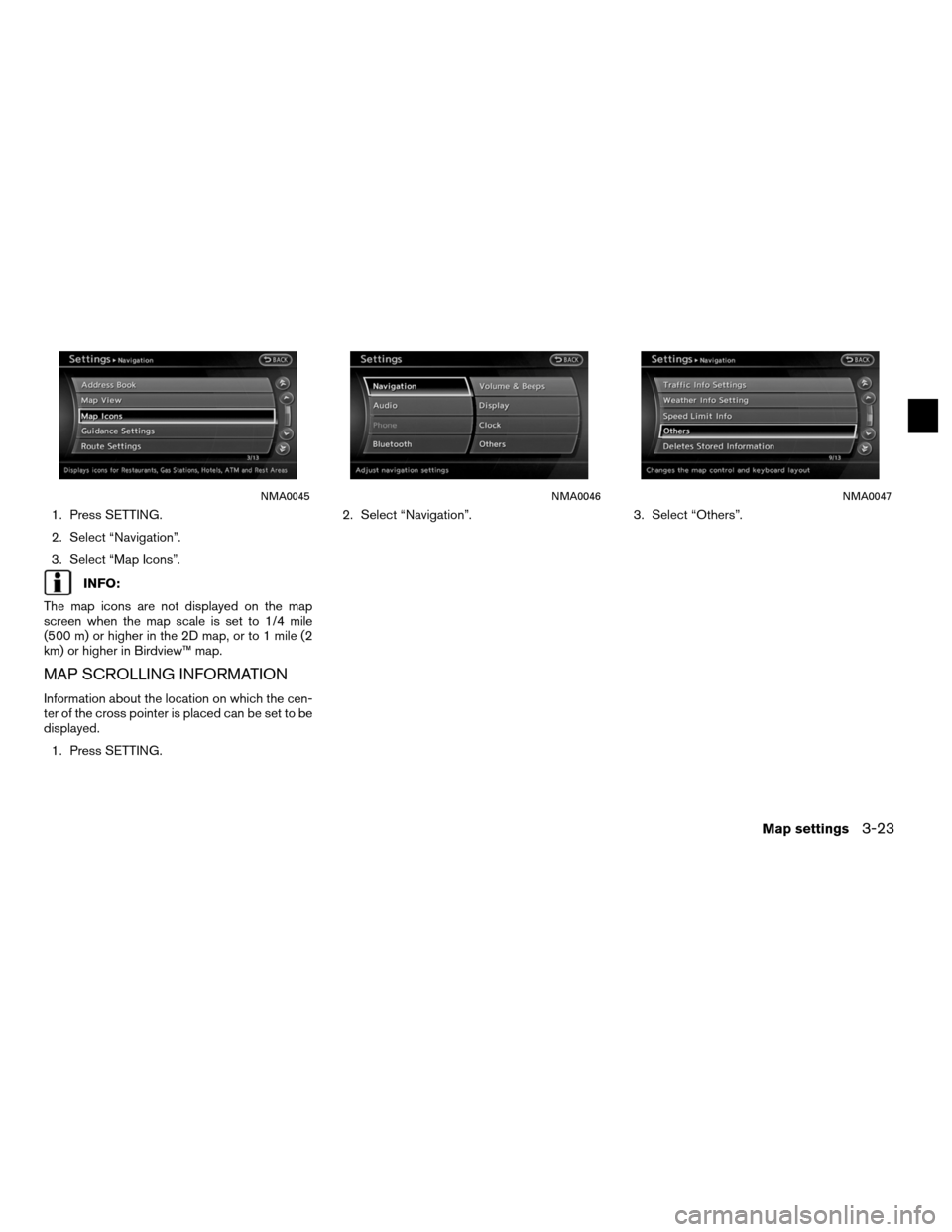

1. Press SETTING.
2. Select “Navigation”.
3. Select “Map Icons”.
INFO:
The map icons are not displayed on the map
screen when the map scale is set to 1/4 mile
(500 m) or higher in the 2D map, or to 1 mile (2
km) or higher in Birdview™ map.
MAP SCROLLING INFORMATION
Information about the location on which the cen-
ter of the cross pointer is placed can be set to be
displayed. 1. Press SETTING. 2. Select “Navigation”.
3. Select “Others”.
NMA0045NMA0046NMA0047
Map settings3-23

4. Select “Map Scrolling Information”.5. Select the preferred information item. The
indicator of the selected information item
illuminates.
Available information items:
● “Address Book Icons”
● “Destination/Waypoint Icons”
● “Latitude/Longitude Info.” 6. Press MAP to return to the current location
map screen. Move the cross pointer to the
set location to display the information.
MAP SYMBOLS
This navigation system uses symbols to display
facilities.
LNV0581NMA0049NMA0050
3-24Map settings

2. After the tone sounds, speak a command.To set the destination from a street address:
“Navigation” “Address” (Standard mode)
“Address” (Alternate command mode)
INFO:
When using a voice command to set a street
name, the complete street name is recom-
mended to be stated.
Examples:
Correct input — North Elm Street East Jefferson Boulevard
Incorrect input — Elm Street East Jefferson
FINDING A PLACE
There are 3 methods to set the destination to
places: typing the name, choosing a category or
selecting a Zagatreviewed location. To help
improve searching, different start points can be
chosen to search from such as Near Current
Location, Near the Destination, or a particular
city.
Finding a nearby place
1. Press DEST.
2. Select “Places”. 3. Select the preferred nearby category from
the list.
A list screen is displayed.
INFO:
Select “Customize Nearby Places” to customize
the nearby places list to show categories that
are frequently used.
NDE0012NDE0013
Setting a destination4-7

4. Select the preferred destination from thelist. The position of the selected location is
displayed in the preview on the right side of
the screen.
INFO:
● A maximum of 100 facilities can be displayed
on the list screen.
● If the suggested route is already set, the sys-
tem displays only the facilities located along
the route. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination. The system sets
the destination to the selected location and
starts calculating a route.INFO:
If there is a route already set, the new selected
location becomes a waypoint. Other settings:
The destination can be set by touching the cur-
rent or scrolled location map screen and select-
ing “Nearby Places”.INFO:
Voice command
1. Press
located on the steering wheel
switch.
2. After the tone sounds, speak a command. To display the nearby category list and se-
lect the destination from it:
“Navigation” “Places” (Standard mode)
“Places” (Alternate command mode)
NDE0014NDE0015NDE0019
4-8Setting a destination
