NISSAN ALTIMA COUPE 2011 D32 / 4.G Navigation Manual

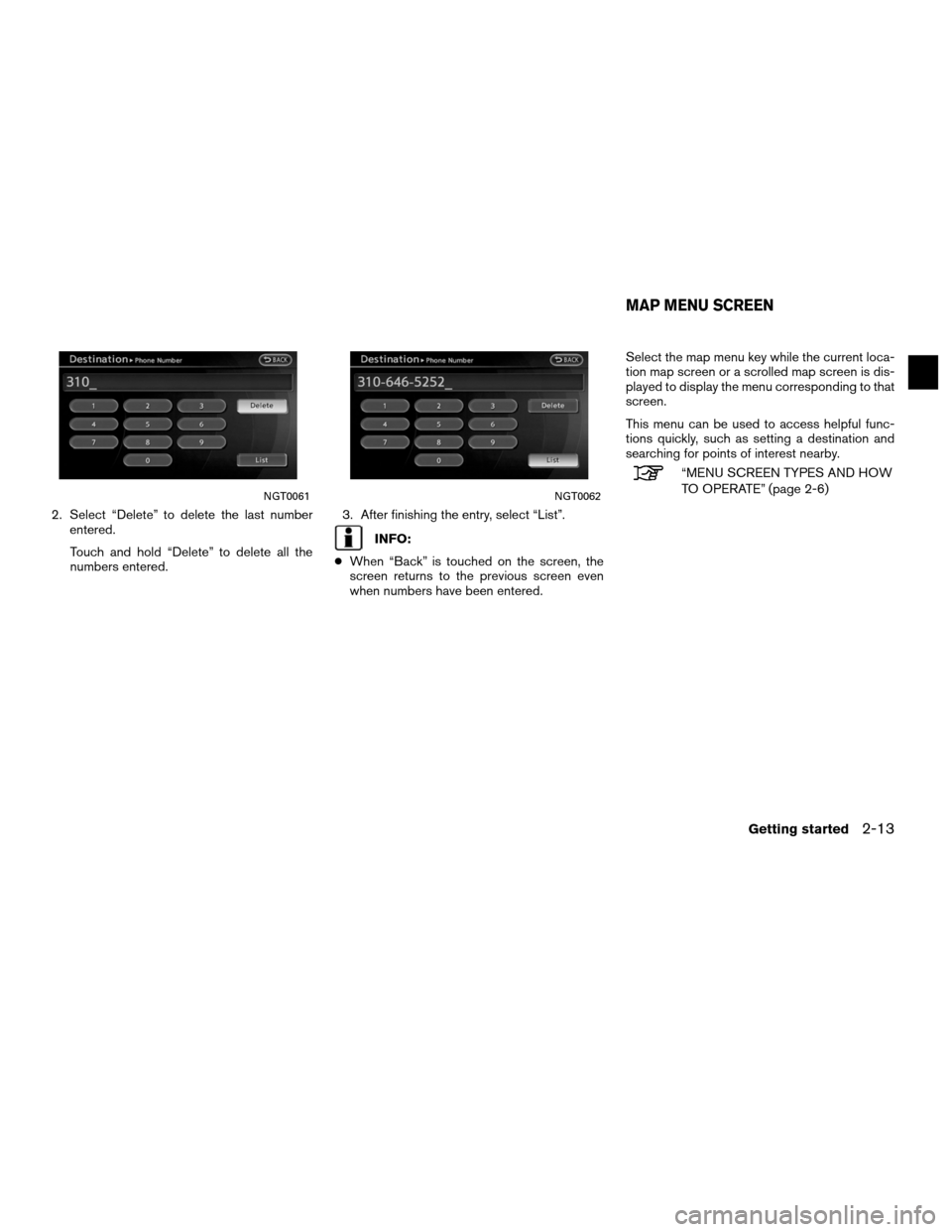

2. Select “Delete” to delete the last numberentered.
Touch and hold “Delete” to delete all the
numbers entered. 3. After finishing the entry, select “List”.
INFO:
● When “Back” is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered. Select the map menu key while the current loca-
tion map screen or a scrolled map screen is dis-
played to display the menu corresponding to that
screen.
This menu can be used to access helpful func-
tions quickly, such as setting a destination and
searching for points of interest nearby.
“MENU SCREEN TYPES AND HOW
TO OPERATE” (page 2-6)
NGT0061NGT0062
MAP MENU SCREEN
Getting started2-13

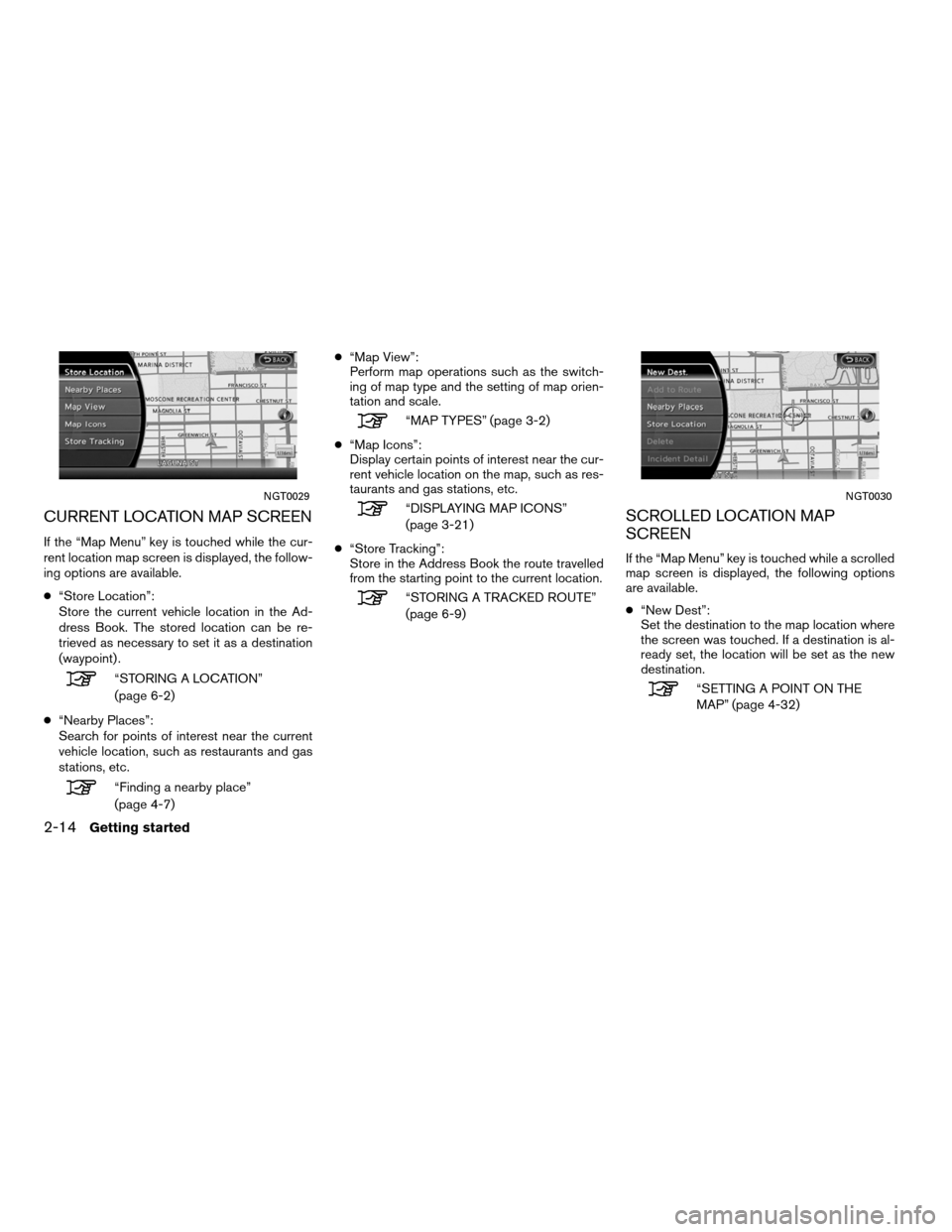

CURRENT LOCATION MAP SCREEN
If the “Map Menu” key is touched while the cur-
rent location map screen is displayed, the follow-
ing options are available.
●“Store Location”:
Store the current vehicle location in the Ad-
dress Book. The stored location can be re-
trieved as necessary to set it as a destination
(waypoint) .
“STORING A LOCATION”
(page 6-2)
● “Nearby Places”:
Search for points of interest near the current
vehicle location, such as restaurants and gas
stations, etc.
“Finding a nearby place”
(page 4-7) ●
“Map View”:
Perform map operations such as the switch-
ing of map type and the setting of map orien-
tation and scale.
“MAP TYPES” (page 3-2)
● “Map Icons”:
Display certain points of interest near the cur-
rent vehicle location on the map, such as res-
taurants and gas stations, etc.
“DISPLAYING MAP ICONS”
(page 3-21)
● “Store Tracking”:
Store in the Address Book the route travelled
from the starting point to the current location.
“STORING A TRACKED ROUTE”
(page 6-9)
SCROLLED LOCATION MAP
SCREEN
If the “Map Menu” key is touched while a scrolled
map screen is displayed, the following options
are available.
● “New Dest”:
Set the destination to the map location where
the screen was touched. If a destination is al-
ready set, the location will be set as the new
destination.
“SETTING A POINT ON THE
MAP” (page 4-32)
NGT0029NGT0030
2-14Getting started

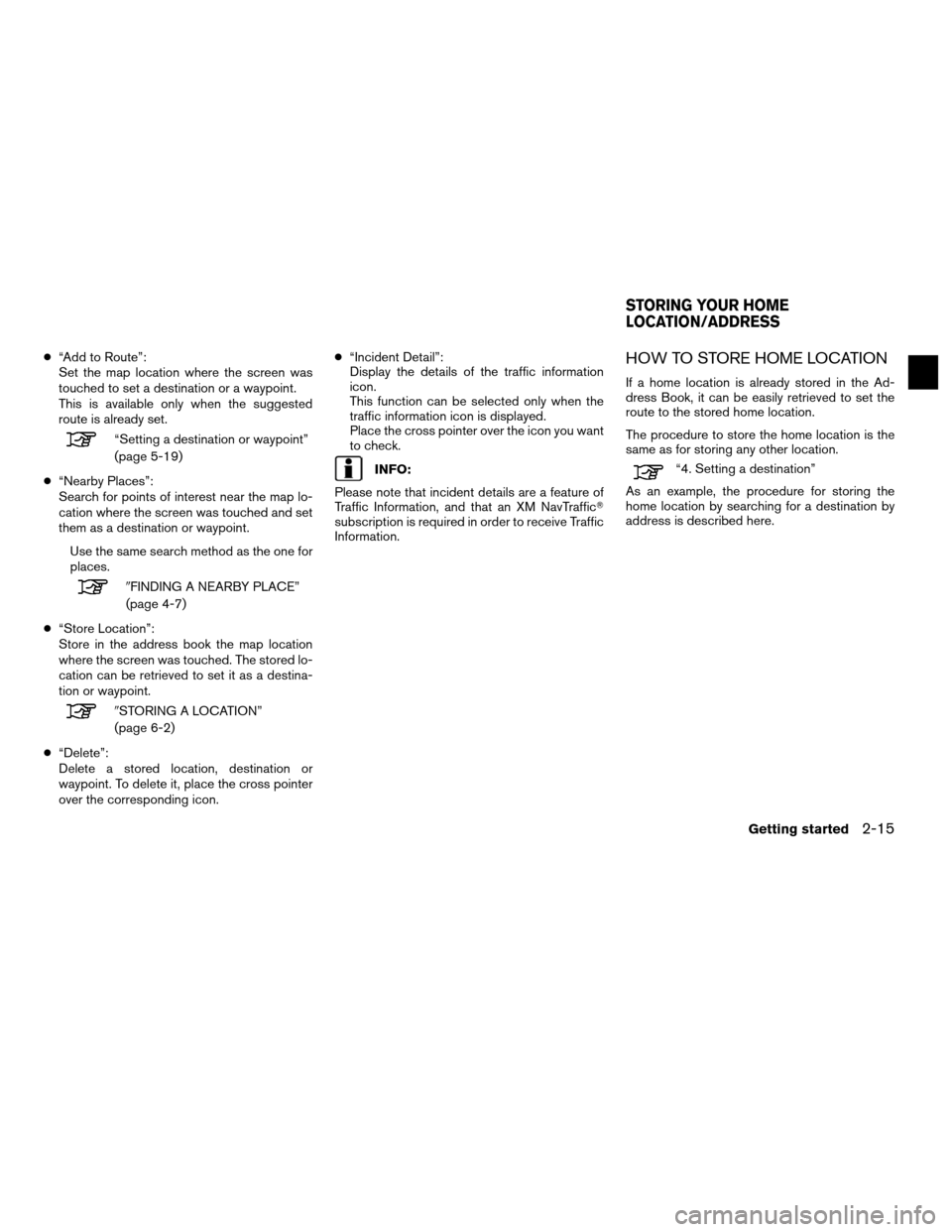

●“Add to Route”:
Set the map location where the screen was
touched to set a destination or a waypoint.
This is available only when the suggested
route is already set.
“Setting a destination or waypoint”
(page 5-19)
● “Nearby Places”:
Search for points of interest near the map lo-
cation where the screen was touched and set
them as a destination or waypoint.
Use the same search method as the one for
places.
FINDING A NEARBY PLACE”
(page 4-7)
● “Store Location”:
Store in the address book the map location
where the screen was touched. The stored lo-
cation can be retrieved to set it as a destina-
tion or waypoint.
STORING A LOCATION”
(page 6-2)
● “Delete”:
Delete a stored location, destination or
waypoint. To delete it, place the cross pointer
over the corresponding icon. ●
“Incident Detail”:
Display the details of the traffic information
icon.
This function can be selected only when the
traffic information icon is displayed.
Place the cross pointer over the icon you want
to check.
INFO:
Please note that incident details are a feature of
Traffic Information, and that an XM NavTraffic
subscription is required in order to receive Traffic
Information.
HOW TO STORE HOME LOCATION
If a home location is already stored in the Ad-
dress Book, it can be easily retrieved to set the
route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting a destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
STORING YOUR HOME
LOCATION/ADDRESS
Getting started2-15

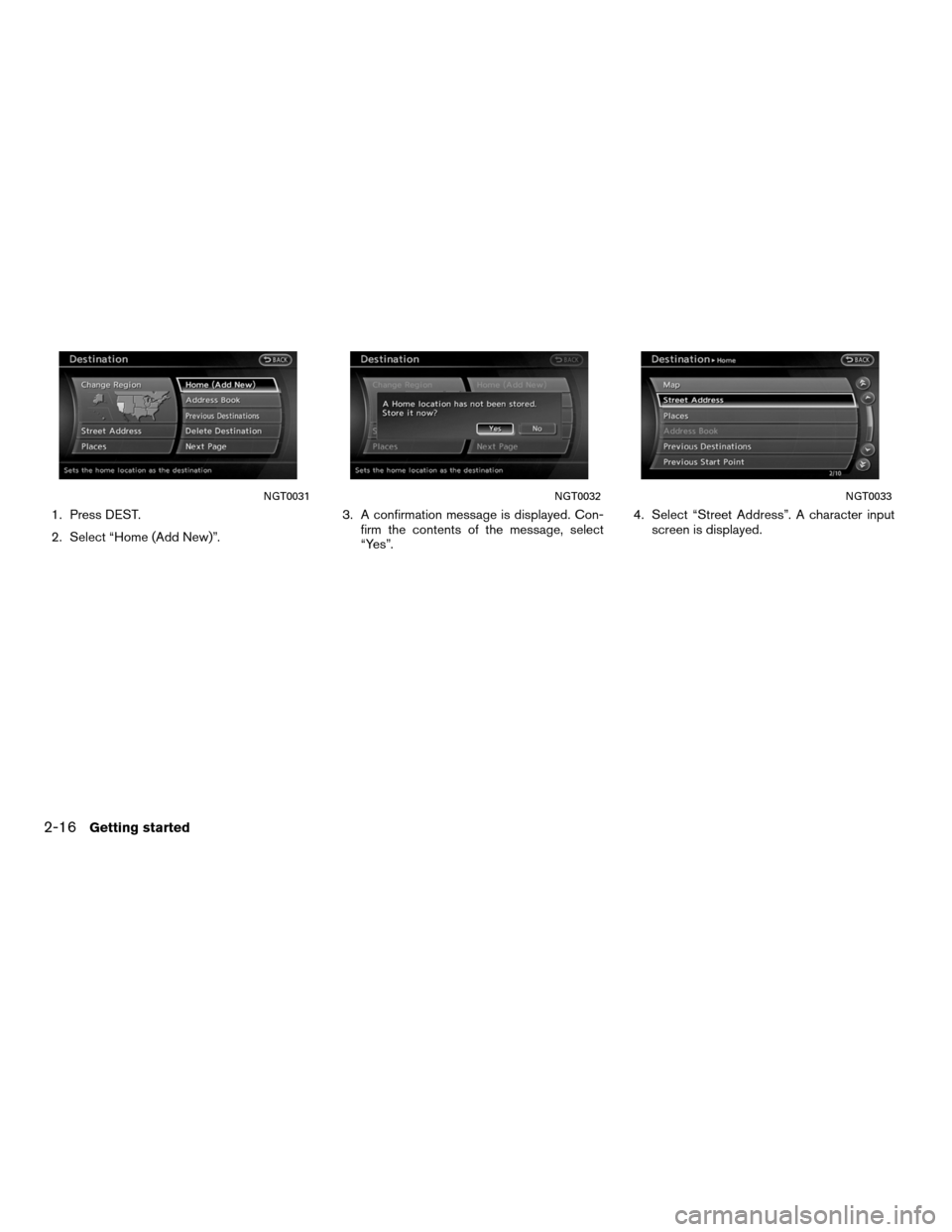

1. Press DEST.
2. Select “Home (Add New)”.3. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”. 4. Select “Street Address”. A character input
screen is displayed.
NGT0031NGT0032NGT0033
2-16Getting started

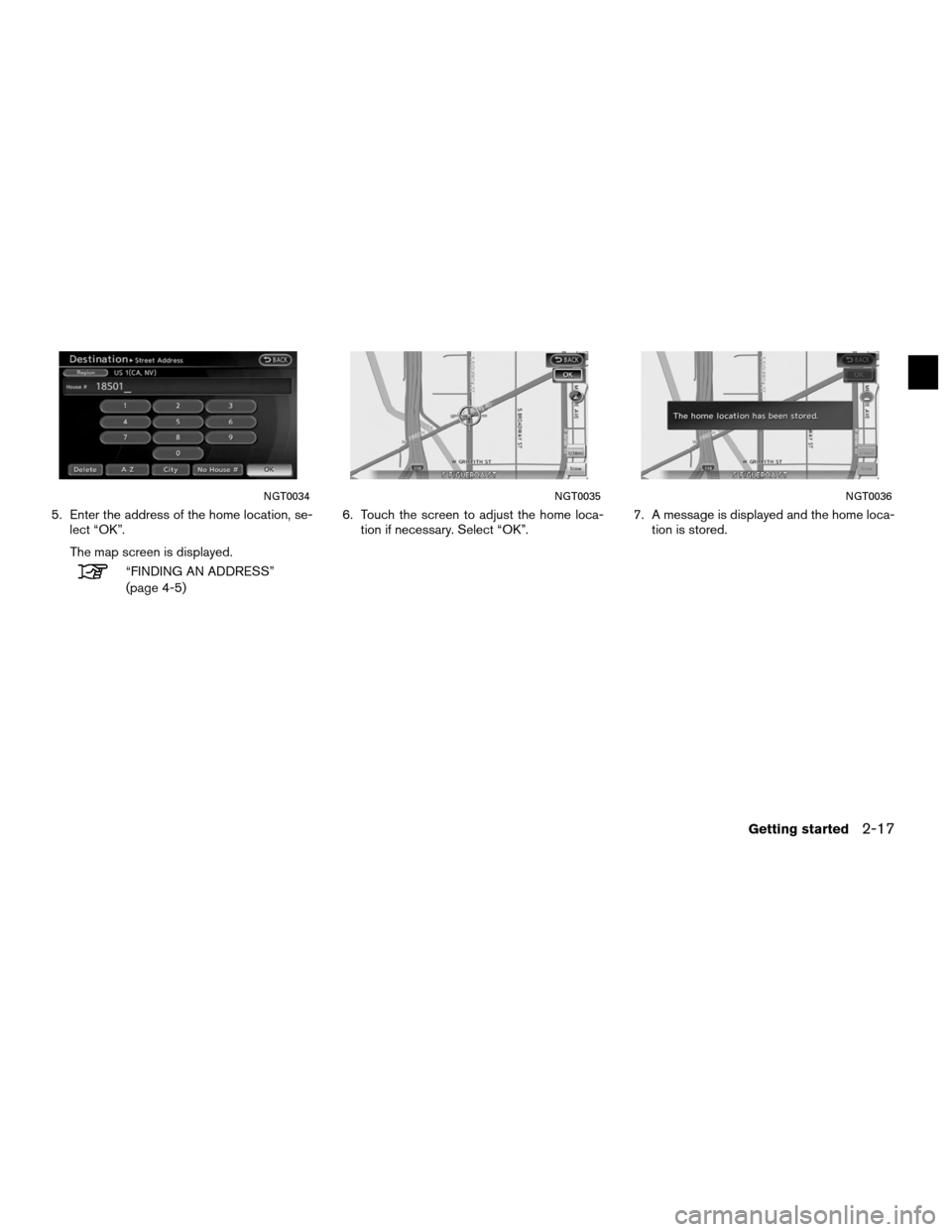

5. Enter the address of the home location, se-lect “OK”.
The map screen is displayed.
“FINDING AN ADDRESS”
(page 4-5) 6. Touch the screen to adjust the home loca-
tion if necessary. Select “OK”. 7. A message is displayed and the home loca-
tion is stored.
NGT0034NGT0035NGT0036
Getting started2-17

8. Select “OK”.
9. Press “Map” to return to the current locationmap screen. The home icon is displayed on
the map.
INFO:
The same setting can also be performed by
pressing SETTING and selecting “Navigation”.
“STORING A LOCATION BY
SEARCHING” (page 6-2)
SEARCHING FOR A DESTINATION
As an example, the method for setting a restau-
rant as the destination using “Places” is de-
scribed here.
1. Press DEST.
2. Select “Places”.
NGT0066NGT0037
SETTING A DESTINATION
2-18Getting started

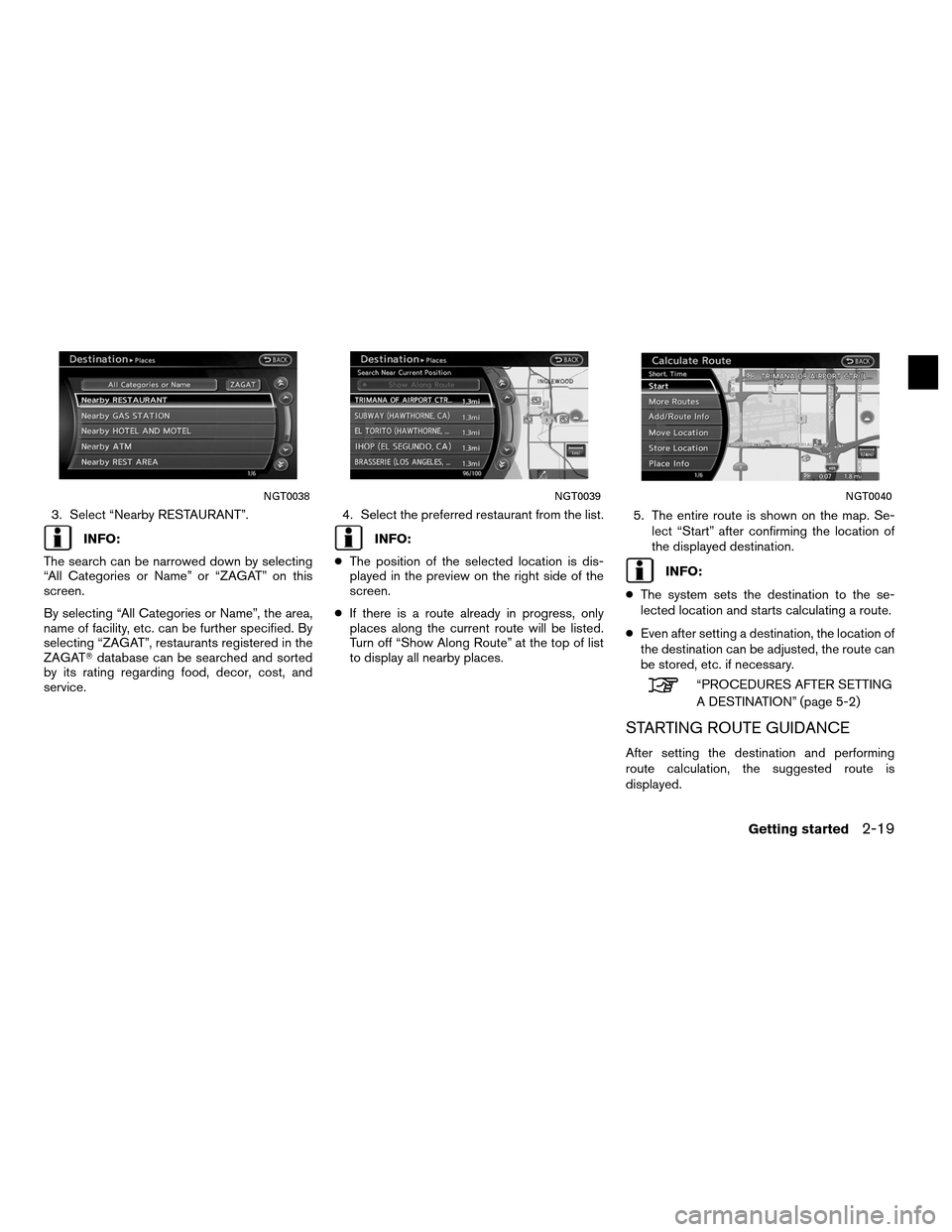

3. Select “Nearby RESTAURANT”.
INFO:
The search can be narrowed down by selecting
“All Categories or Name” or “ZAGAT” on this
screen.
By selecting “All Categories or Name”, the area,
name of facility, etc. can be further specified. By
selecting “ZAGAT”, restaurants registered in the
ZAGAT database can be searched and sorted
by its rating regarding food, decor, cost, and
service. 4. Select the preferred restaurant from the list.INFO:
● The position of the selected location is dis-
played in the preview on the right side of the
screen.
● If there is a route already in progress, only
places along the current route will be listed.
Turn off “Show Along Route” at the top of list
to display all nearby places. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination.
INFO:
● The system sets the destination to the se-
lected location and starts calculating a route.
● Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc. if necessary.
“PROCEDURES AFTER SETTING
A DESTINATION” (page 5-2)
STARTING ROUTE GUIDANCE
After setting the destination and performing
route calculation, the suggested route is
displayed.
NGT0038NGT0039NGT0040
Getting started2-19

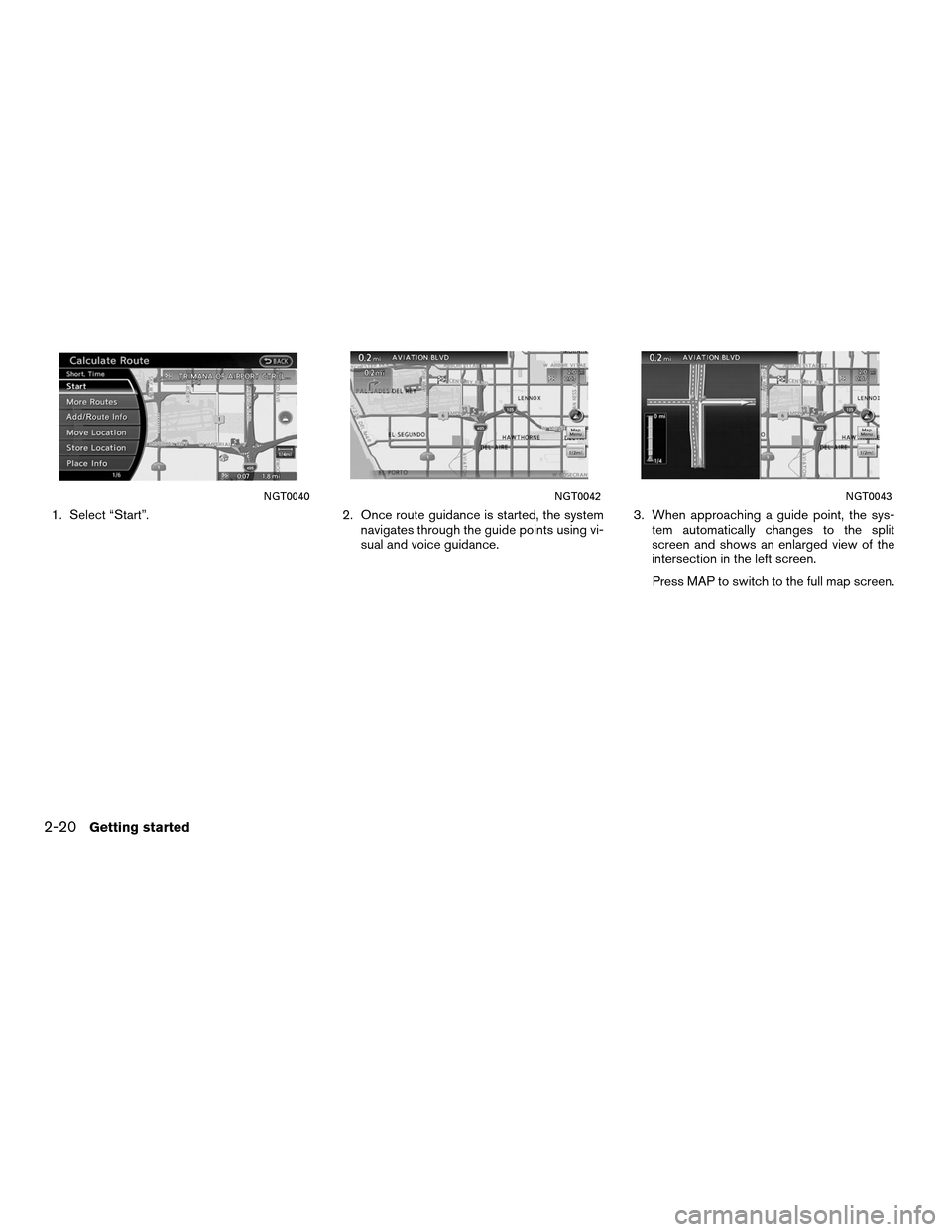

1. Select “Start”.2. Once route guidance is started, the system
navigates through the guide points using vi-
sual and voice guidance. 3. When approaching a guide point, the sys-
tem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Press MAP to switch to the full map screen.
NGT0040NGT0042NGT0043
2-20Getting started

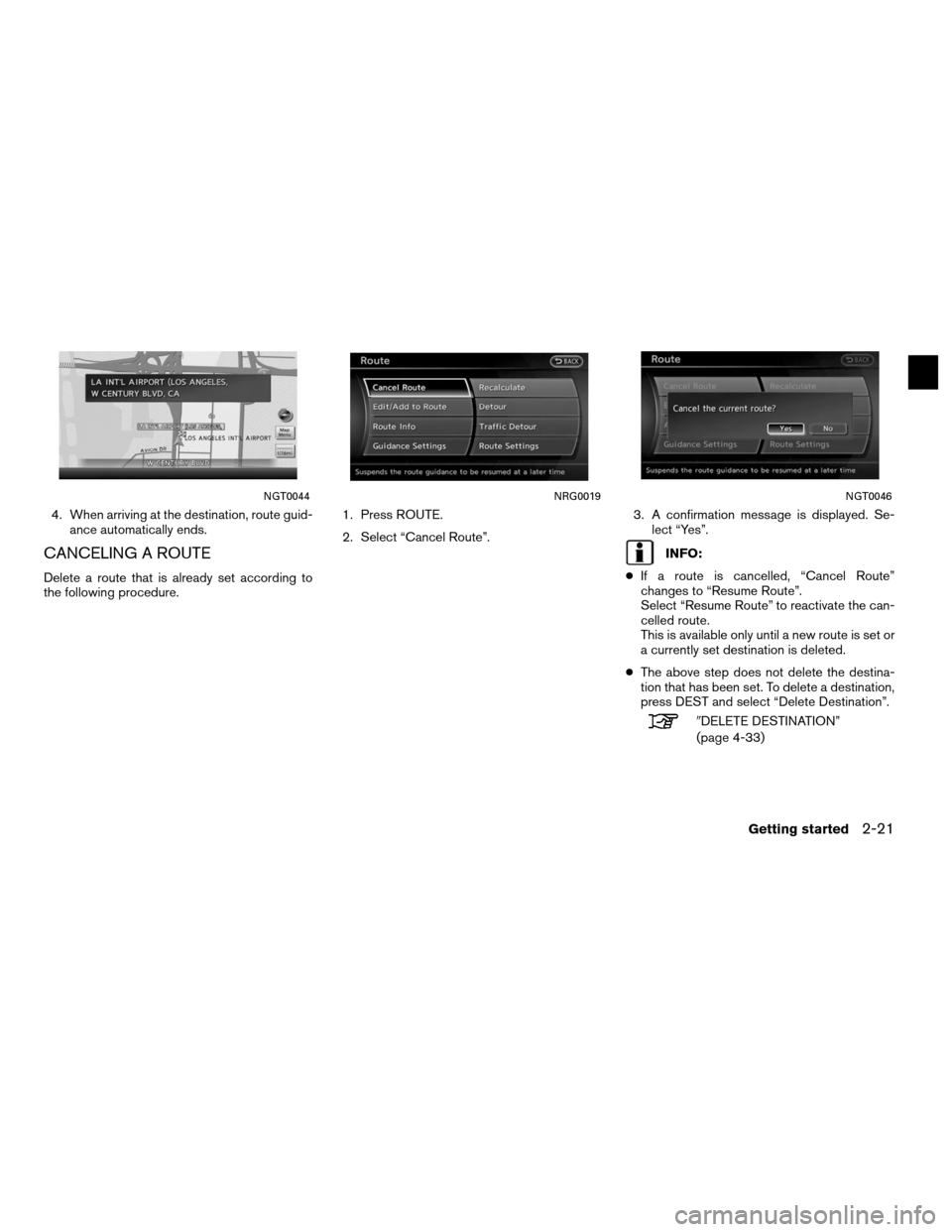

4. When arriving at the destination, route guid-ance automatically ends.
CANCELING A ROUTE
Delete a route that is already set according to
the following procedure. 1. Press ROUTE.
2. Select “Cancel Route”.
3. A confirmation message is displayed. Se-
lect “Yes”.
INFO:
● If a route is cancelled, “Cancel Route”
changes to “Resume Route”.
Select “Resume Route” to reactivate the can-
celled route.
This is available only until a new route is set or
a currently set destination is deleted.
● The above step does not delete the destina-
tion that has been set. To delete a destination,
press DEST and select “Delete Destination”.
DELETE DESTINATION”
(page 4-33)
NGT0044NRG0019NGT0046
Getting started2-21

HOW TO VIEW MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Screen information
1Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
2Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
3Guide point:
Indicates a guide point on the route.
4Waypoint:
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
5Destination:
Indicates the destination location of the
route guidance. When you reach your destination, the ad-
dress will be displayed on the map screen.
6Suggested route:
Appears in bold yellow during route guidance.
7Map menu icon:
Touch the icon to display the Map Menu
screen.
“MAP MENU SCREEN”
(page 2-13)
8/Direction indicator:
Indicates the setting of the map: north al-
ways pointing up or the vehicle’s direction
always pointing up on the display. Touch the
icon to change this setting.
9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“OPERATING WITH THE
TOUCH OPERATION”
(page 3-5)
10Street name: Displays the name of the street that the ve-
hicle is currently driving on.
LNV0569
OPERATING MAPS
2-22Getting started
