NISSAN ALTIMA COUPE 2011 D32 / 4.G Navigation Manual
Page 11 of 315
STEERING WHEEL SWITCH
1SOURCE:Use to switch the audio mode (source) . For
additional information, see the Owner’s
2ENTER:Move up or down to highlight an item on the
screen or adjust a setting. Press to select
the highlighted item. If this button is pressed while a map is
displayed, the map menu screen is
“MAP MENU SCREEN”
Press and hold to display the start menu.
“START MENU” (page 2-6)
If this button is moved up while the audio
function is activated and the map or status
screen is displayed, the audio system can
Press this button during a setting operation to
return to the previous screen. In certain screens,
this button can also be used to apply the setting.
This button will only work when the “Back” key is
shown on the screen.
Use to adjust the volume. These buttons have
the same function as that of the volume knob. For
additional information, see the Owner’s Manual.
Press to start the voice recognition mode. If the
voice recognition mode is already activated,
pressing this button interrupts the voice guid-
ance and you can speak a voice command
Use to enable Bluetooth Hands-Free Phone
system. For additional information, see the Own-
Page 12 of 315
The navigation system starts when the ignition
switch is turned to the ACC or ON position.
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the en-
When the driver wants to operate the
navigation system, first park the ve-
hicle in a safe location and set the
parking brake. Operating the system
while driving can distract the driver and
may result in a serious accident.
STARTING THE SYSTEM FUNCTIONS DISABLED WHILE DRIV-
Page 13 of 315
To ensure safe driving, some functions cannot be
operated or have limited operation while driving.The on-screen functions that are not available
while driving will be “grayed-out” or muted.Park the vehicle in a safe location and then oper-
ate the navigation system.NGT0019
Page 14 of 315

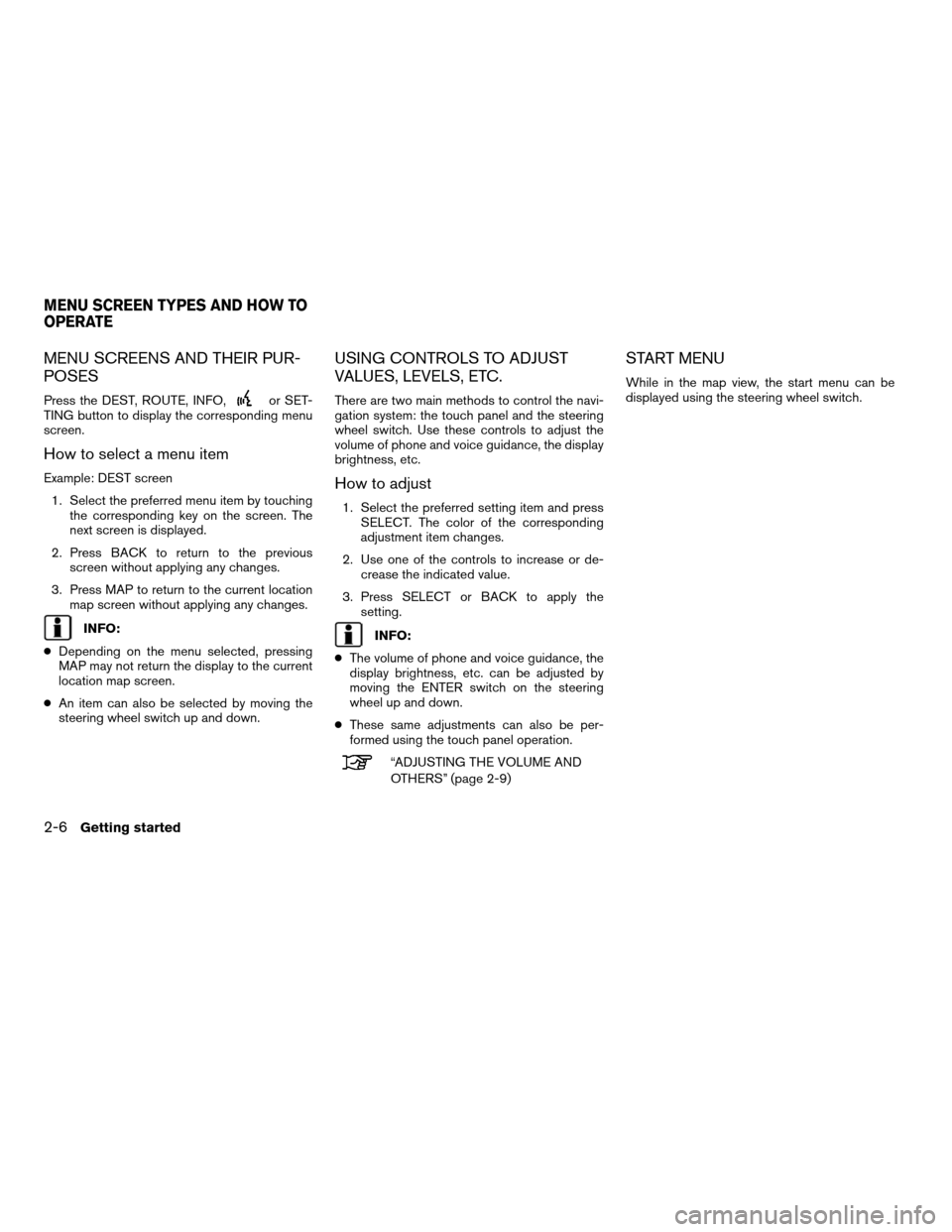

MENU SCREENS AND THEIR PUR-
Press the DEST, ROUTE, INFO,or SET-
TING button to display the corresponding menu
How to select a menu item
Example: DEST screen
1. Select the preferred menu item by touching the corresponding key on the screen. The
next screen is displayed.
2. Press BACK to return to the previous screen without applying any changes.
3. Press MAP to return to the current location map screen without applying any changes.
● Depending on the menu selected, pressing
MAP may not return the display to the current
location map screen.
● An item can also be selected by moving the
steering wheel switch up and down.
USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
There are two main methods to control the navi-
gation system: the touch panel and the steering
wheel switch. Use these controls to adjust the
volume of phone and voice guidance, the display
How to adjust
1. Select the preferred setting item and press SELECT. The color of the corresponding
adjustment item changes.
2. Use one of the controls to increase or de- crease the indicated value.
3. Press SELECT or BACK to apply the setting.
● The volume of phone and voice guidance, the
display brightness, etc. can be adjusted by
moving the ENTER switch on the steering
wheel up and down.
● These same adjustments can also be per-
formed using the touch panel operation.
“ADJUSTING THE VOLUME AND
OTHERS” (page 2-9)
While in the map view, the start menu can be
displayed using the steering wheel switch.
MENU SCREEN TYPES AND HOW TO
Page 15 of 315

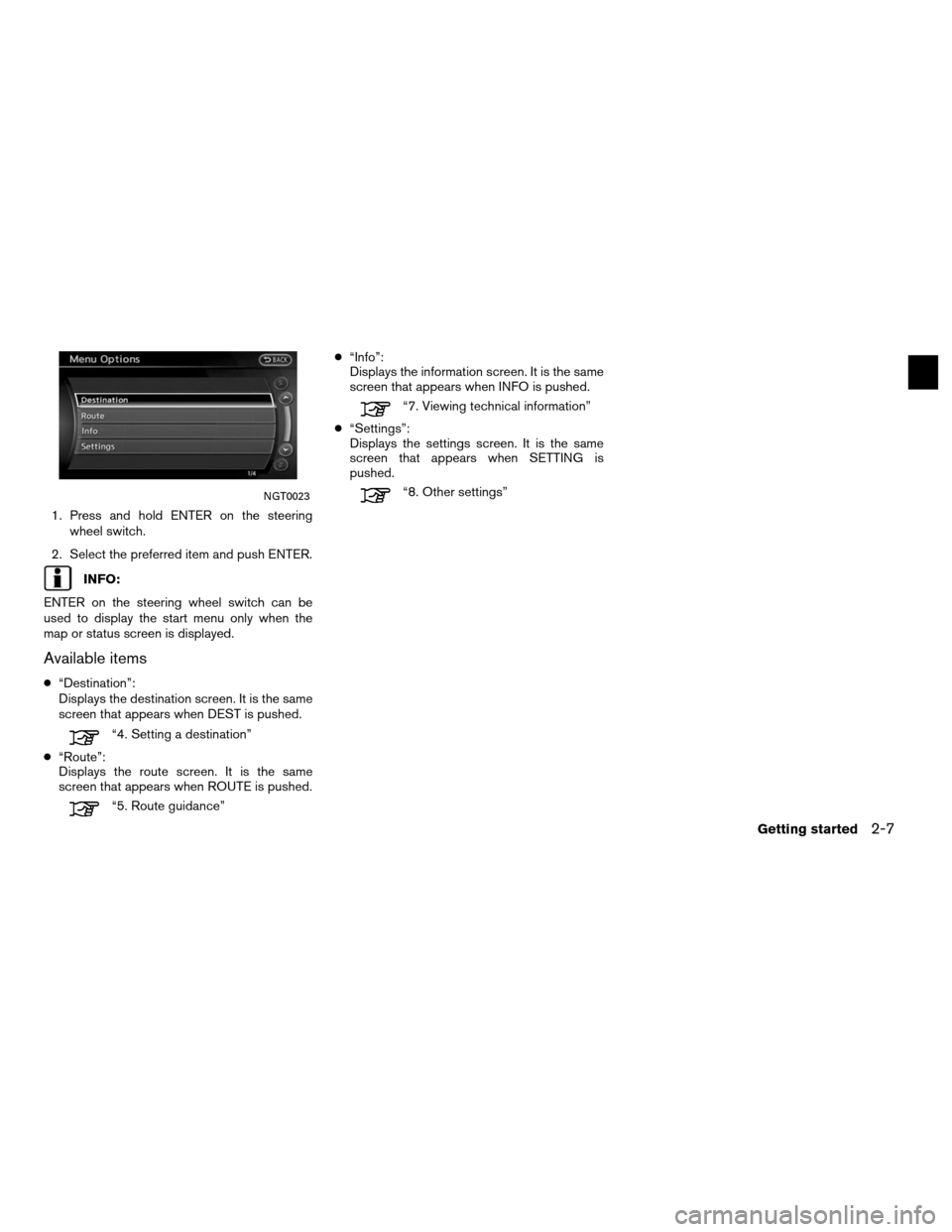

1. Press and hold ENTER on the steeringwheel switch.
2. Select the preferred item and push ENTER.
ENTER on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.
Displays the destination screen. It is the same
screen that appears when DEST is pushed.
“4. Setting a destination”
Displays the route screen. It is the same
screen that appears when ROUTE is pushed.
“5. Route guidance” ●
Displays the information screen. It is the same
screen that appears when INFO is pushed.
“7. Viewing technical information”
Displays the settings screen. It is the same
screen that appears when SETTING is
“8. Other settings”NGT0023
Page 16 of 315

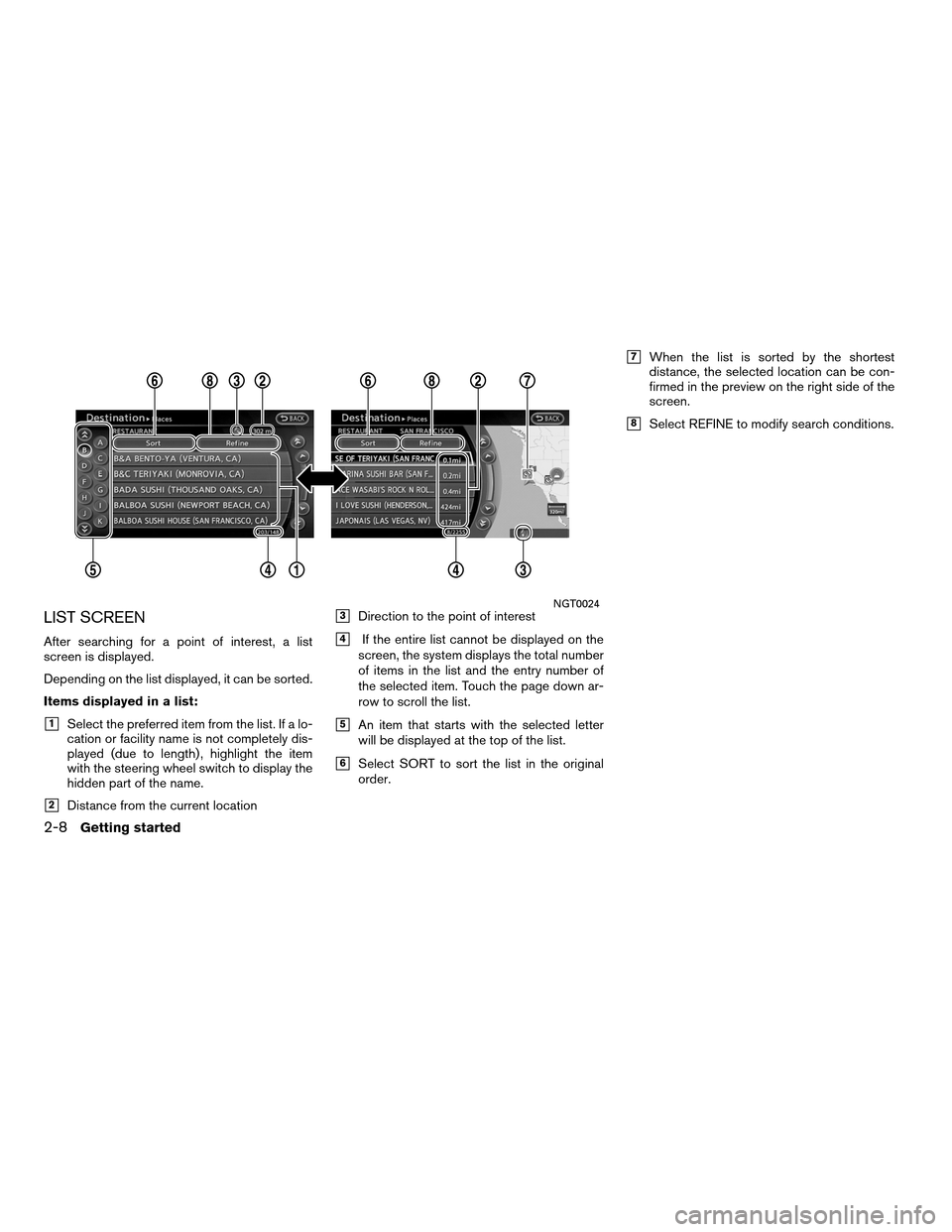

After searching for a point of interest, a list
screen is displayed.
Depending on the list displayed, it can be sorted.
Items displayed in a list:
1Select the preferred item from the list. If a lo-
cation or facility name is not completely dis-
played (due to length) , highlight the item
with the steering wheel switch to display the
hidden part of the name.
2Distance from the current location
3Direction to the point of interest
4If the entire list cannot be displayed on the
screen, the system displays the total number
of items in the list and the entry number of
the selected item. Touch the page down ar-
row to scroll the list.
5An item that starts with the selected letter
will be displayed at the top of the list.
6Select SORT to sort the list in the original
7When the list is sorted by the shortest
distance, the selected location can be con-
firmed in the preview on the right side of the
8Select REFINE to modify search conditions.
Page 17 of 315

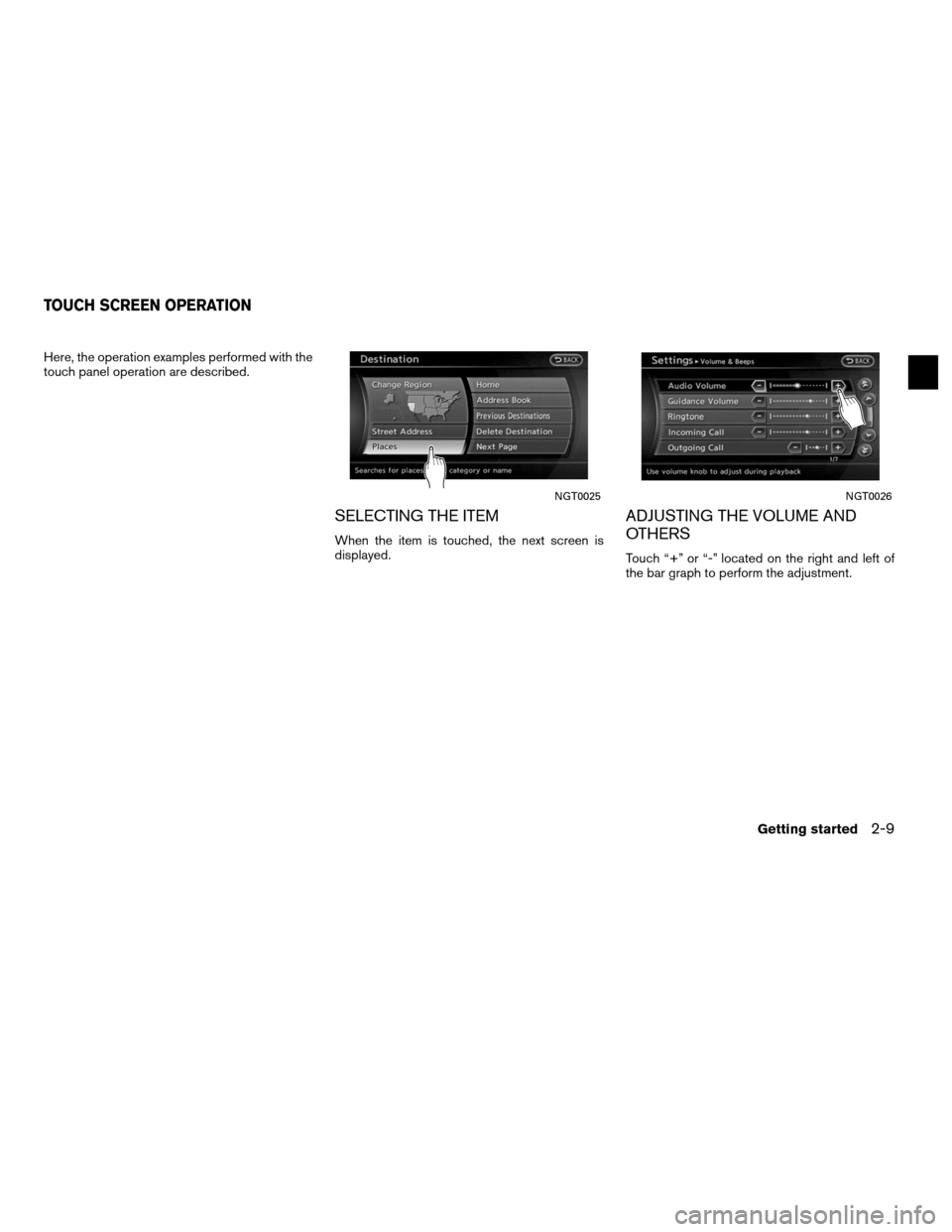

Here, the operation examples performed with the
touch panel operation are described.
SELECTING THE ITEM
When the item is touched, the next screen is
ADJUSTING THE VOLUME AND
Touch “+” or “-” located on the right and left of
the bar graph to perform the adjustment.
TOUCH SCREEN OPERATION
Page 18 of 315

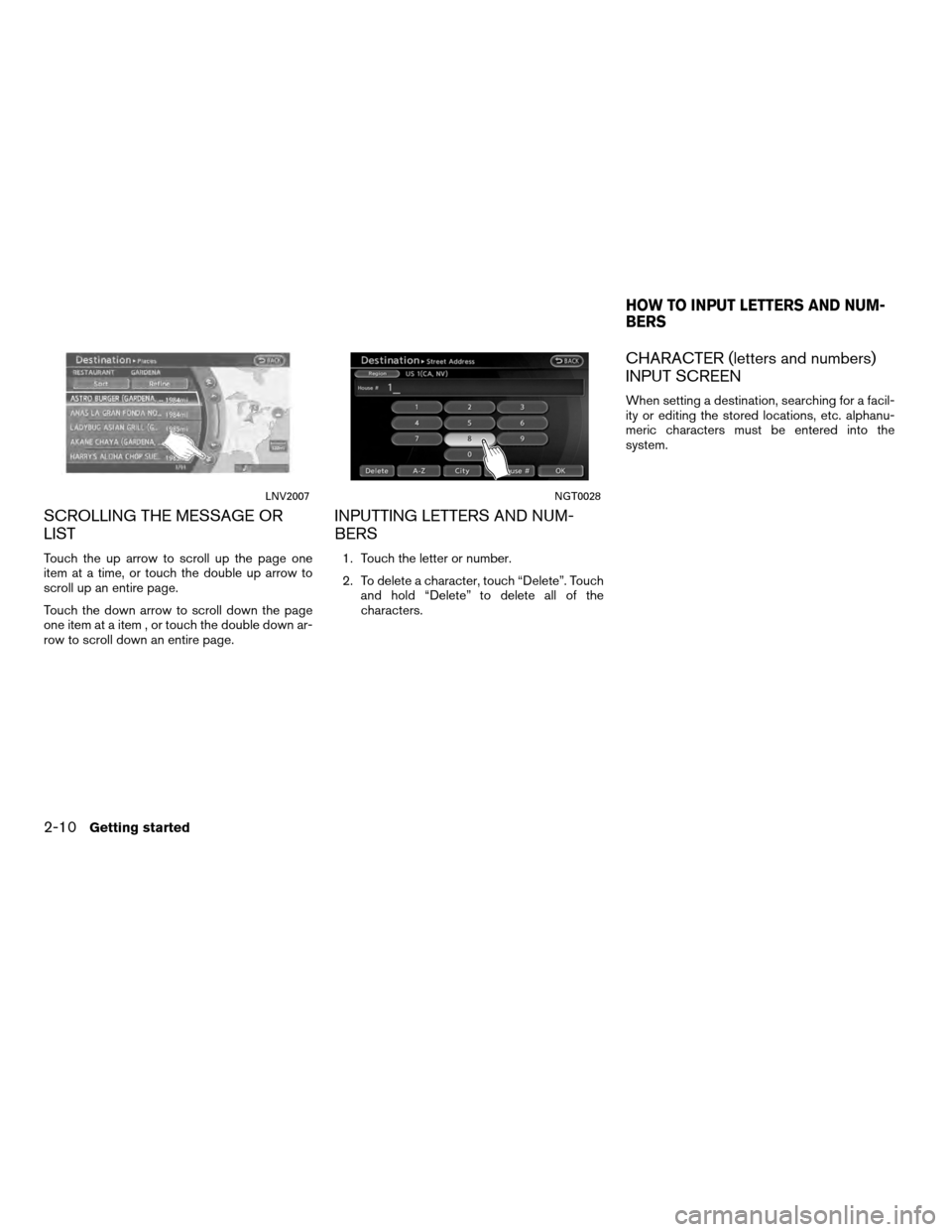

SCROLLING THE MESSAGE OR
Touch the up arrow to scroll up the page one
item at a time, or touch the double up arrow to
scroll up an entire page.
Touch the down arrow to scroll down the page
one item at a item , or touch the double down ar-
row to scroll down an entire page.
INPUTTING LETTERS AND NUM-
1. Touch the letter or number.
2. To delete a character, touch “Delete”. Touchand hold “Delete” to delete all of the
CHARACTER (letters and numbers)
When setting a destination, searching for a facil-
ity or editing the stored locations, etc. alphanu-
meric characters must be entered into the
HOW TO INPUT LETTERS AND NUM-
Page 19 of 315

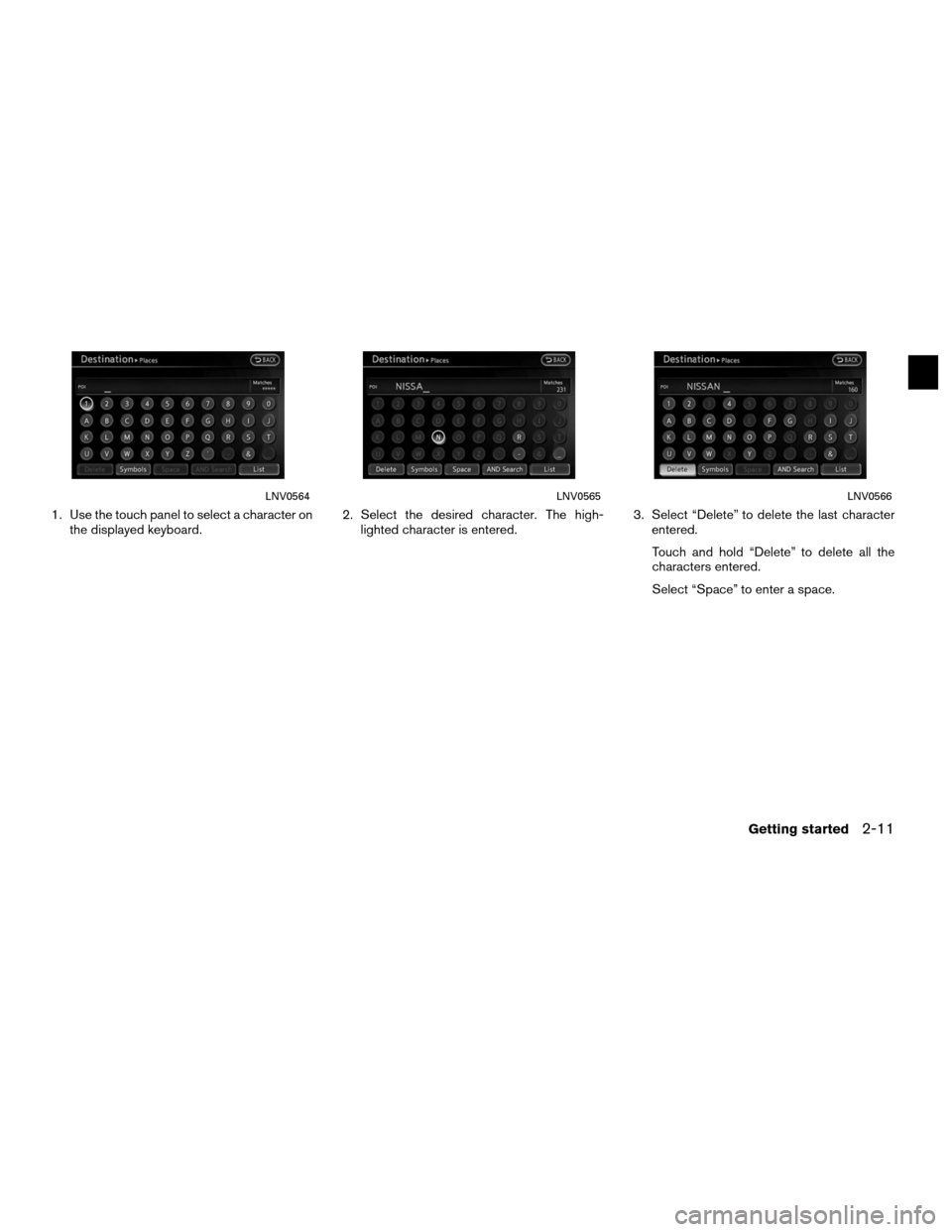

1. Use the touch panel to select a character onthe displayed keyboard. 2. Select the desired character. The high-
lighted character is entered. 3. Select “Delete” to delete the last character
Touch and hold “Delete” to delete all the
Select “Space” to enter a space.
Page 20 of 315

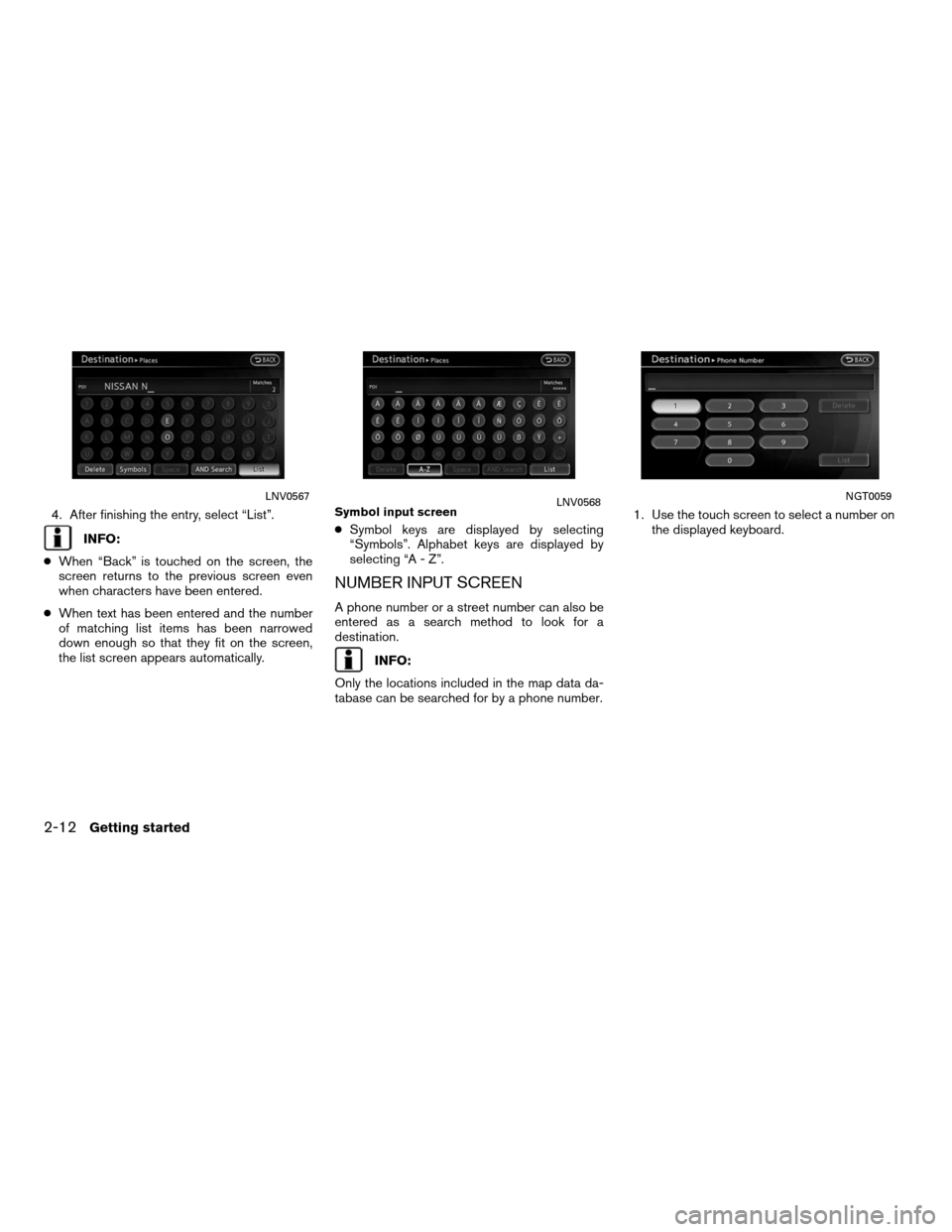

4. After finishing the entry, select “List”.
● When “Back” is touched on the screen, the
screen returns to the previous screen even
when characters have been entered.
● When text has been entered and the number
of matching list items has been narrowed
down enough so that they fit on the screen,
the list screen appears automatically. ●
Symbol keys are displayed by selecting
“Symbols”. Alphabet keys are displayed by
selecting “A - Z”.
NUMBER INPUT SCREEN
A phone number or a street number can also be
entered as a search method to look for a
Only the locations included in the map data da-
tabase can be searched for by a phone number. 1. Use the touch screen to select a number on
the displayed keyboard.
Symbol input screenLNV0568NGT0059
