NISSAN ALTIMA COUPE 2012 D32 / 4.G Navigation Manual
Manufacturer: NISSAN, Model Year: 2012, Model line: ALTIMA COUPE, Model: NISSAN ALTIMA COUPE 2012 D32 / 4.GPages: 313, PDF Size: 13.92 MB
Page 261 of 313

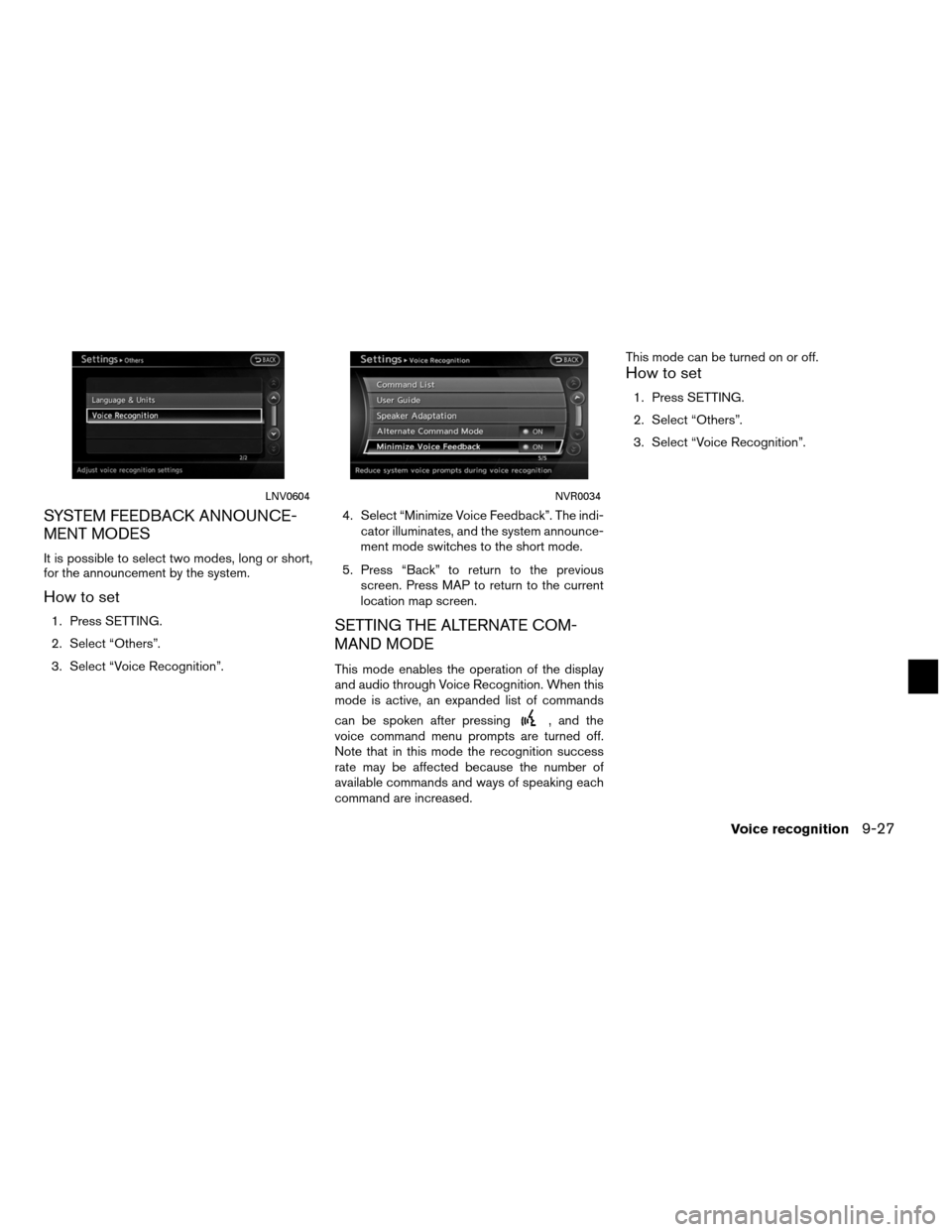

SYSTEM FEEDBACK ANNOUNCE-
MENT MODES
It is possible to select two modes, long or short,
for the announcement by the system.
How to set
1. Press SETTING.
2. Select “Others”.
3. Select “Voice Recognition”.4. Select “Minimize Voice Feedback”. The indi-
cator illuminates, and the system announce-
ment mode switches to the short mode.
5. Press “Back” to return to the previous screen. Press MAP to return to the current
location map screen.SETTING THE ALTERNATE COM-
MAND MODE
This mode enables the operation of the display
and audio through Voice Recognition. When this
mode is active, an expanded list of commands
can be spoken after pressing
, and the
voice command menu prompts are turned off.
Note that in this mode the recognition success
rate may be affected because the number of
available commands and ways of speaking each
command are increased. This mode can be turned on or off.
How to set
1. Press SETTING.
2. Select “Others”.
3. Select “Voice Recognition”.
LNV0604NVR0034
Voice recognition9-27
Page 262 of 313

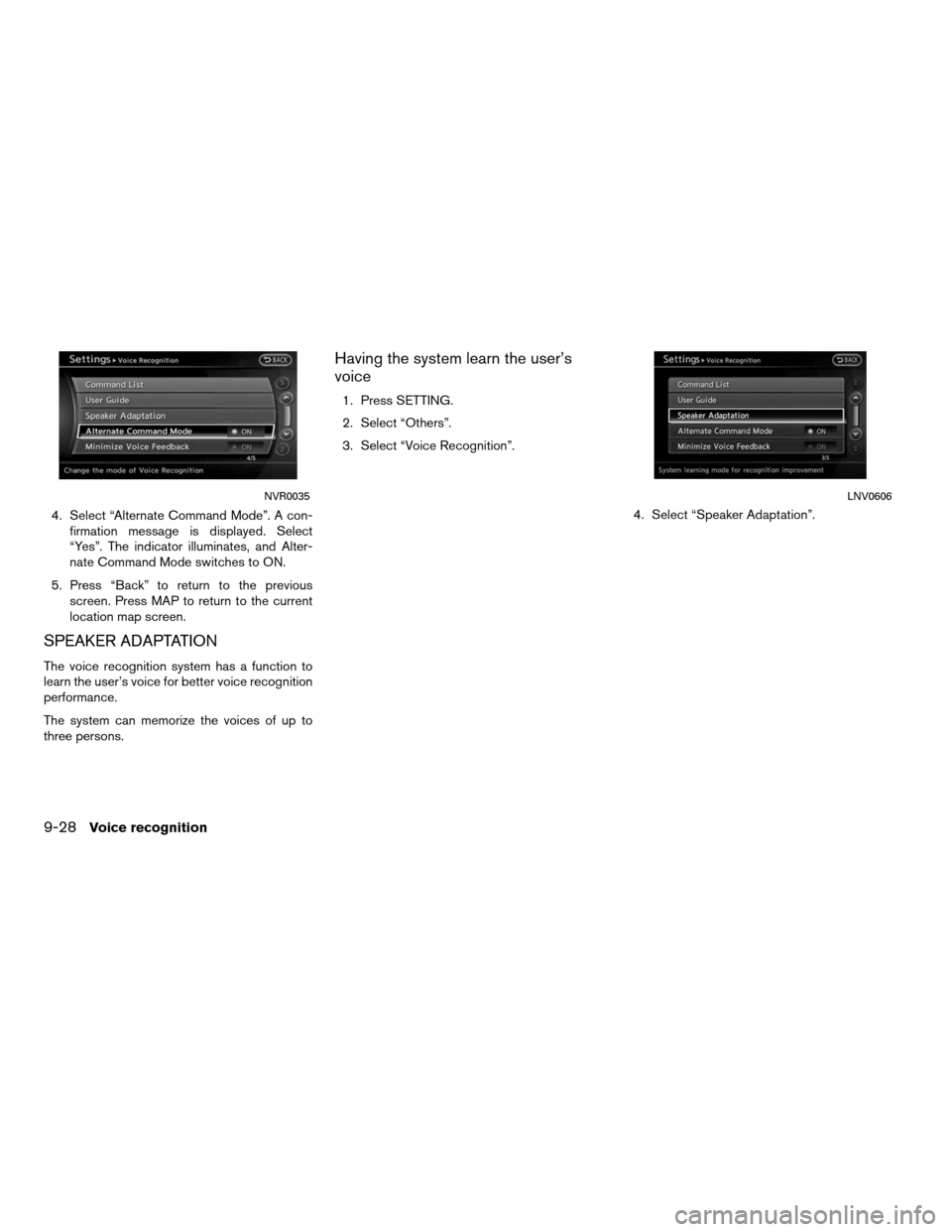

4. Select “Alternate Command Mode”. A con-firmation message is displayed. Select
“Yes”. The indicator illuminates, and Alter-
nate Command Mode switches to ON.
5. Press “Back” to return to the previous screen. Press MAP to return to the current
location map screen.
SPEAKER ADAPTATION
The voice recognition system has a function to
learn the user’s voice for better voice recognition
performance.
The system can memorize the voices of up to
three persons.
Having the system learn the user’s
voice
1. Press SETTING.
2. Select “Others”.
3. Select “Voice Recognition”.
4. Select “Speaker Adaptation”.
NVR0035LNV0606
9-28Voice recognition
Page 263 of 313

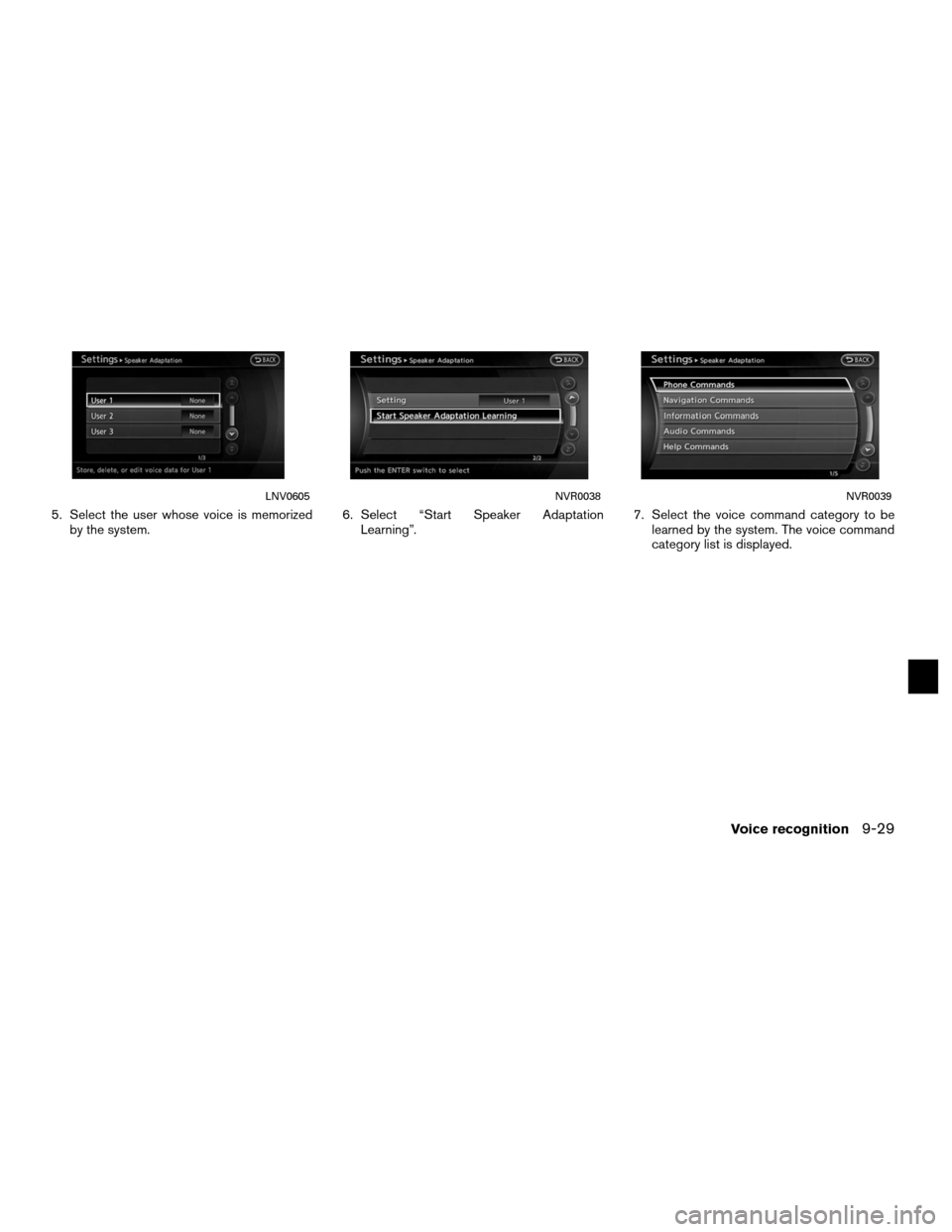

5. Select the user whose voice is memorizedby the system. 6. Select “Start Speaker Adaptation
Learning”. 7. Select the voice command category to be
learned by the system. The voice command
category list is displayed.
LNV0605NVR0038NVR0039
Voice recognition9-29

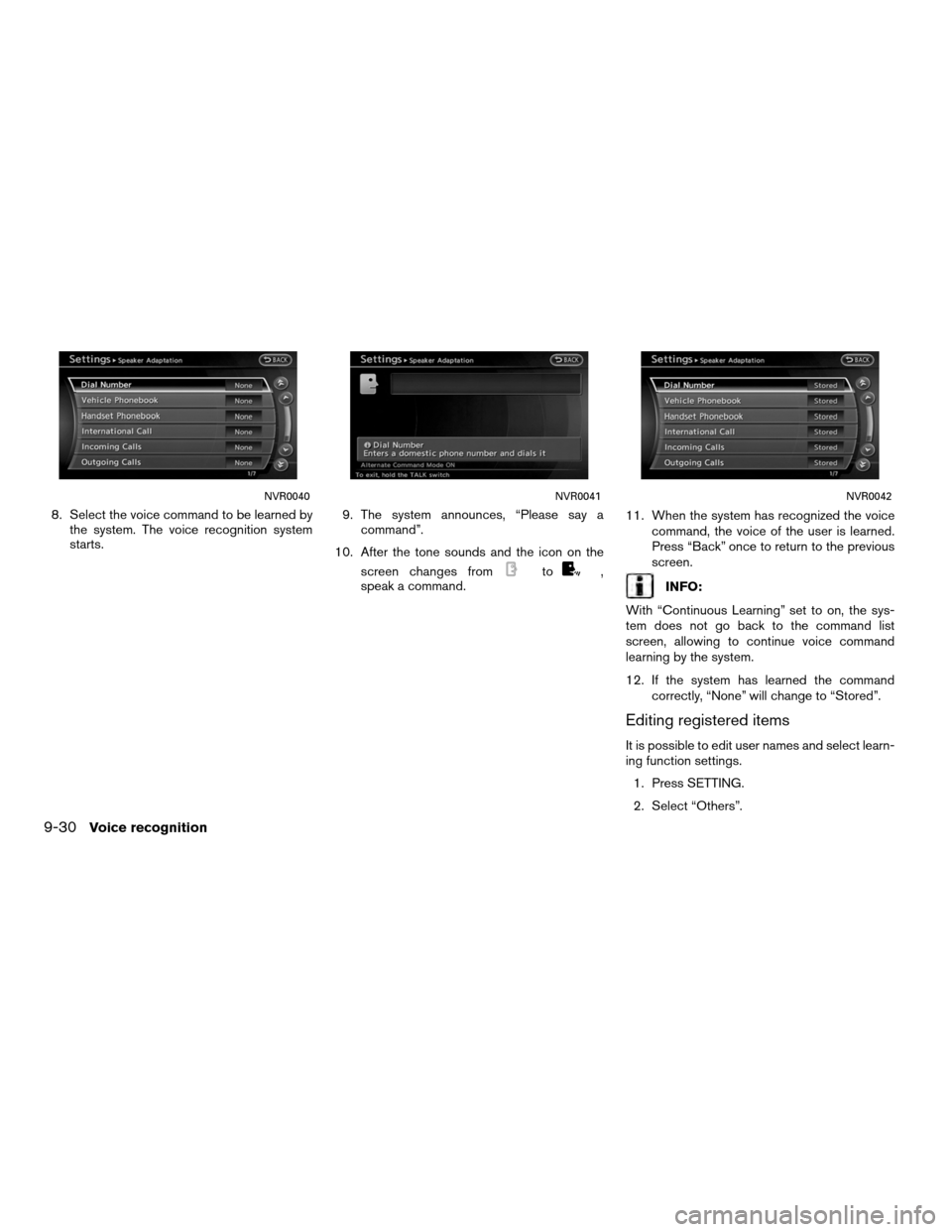

Page 264 of 313
8. Select the voice command to be learned bythe system. The voice recognition system
starts. 9. The system announces, “Please say a
command”.
10. After the tone sounds and the icon on the screen changes from
to,
speak a command. 11. When the system has recognized the voice
command, the voice of the user is learned.
Press “Back” once to return to the previous
screen.INFO:
With “Continuous Learning” set to on, the sys-
tem does not go back to the command list
screen, allowing to continue voice command
learning by the system.
12. If the system has learned the command correctly, “None” will change to “Stored”.
Editing registered items
It is possible to edit user names and select learn-
ing function settings.
1. Press SETTING.
2. Select “Others”.
NVR0040NVR0041NVR0042
9-30Voice recognition
Page 265 of 313

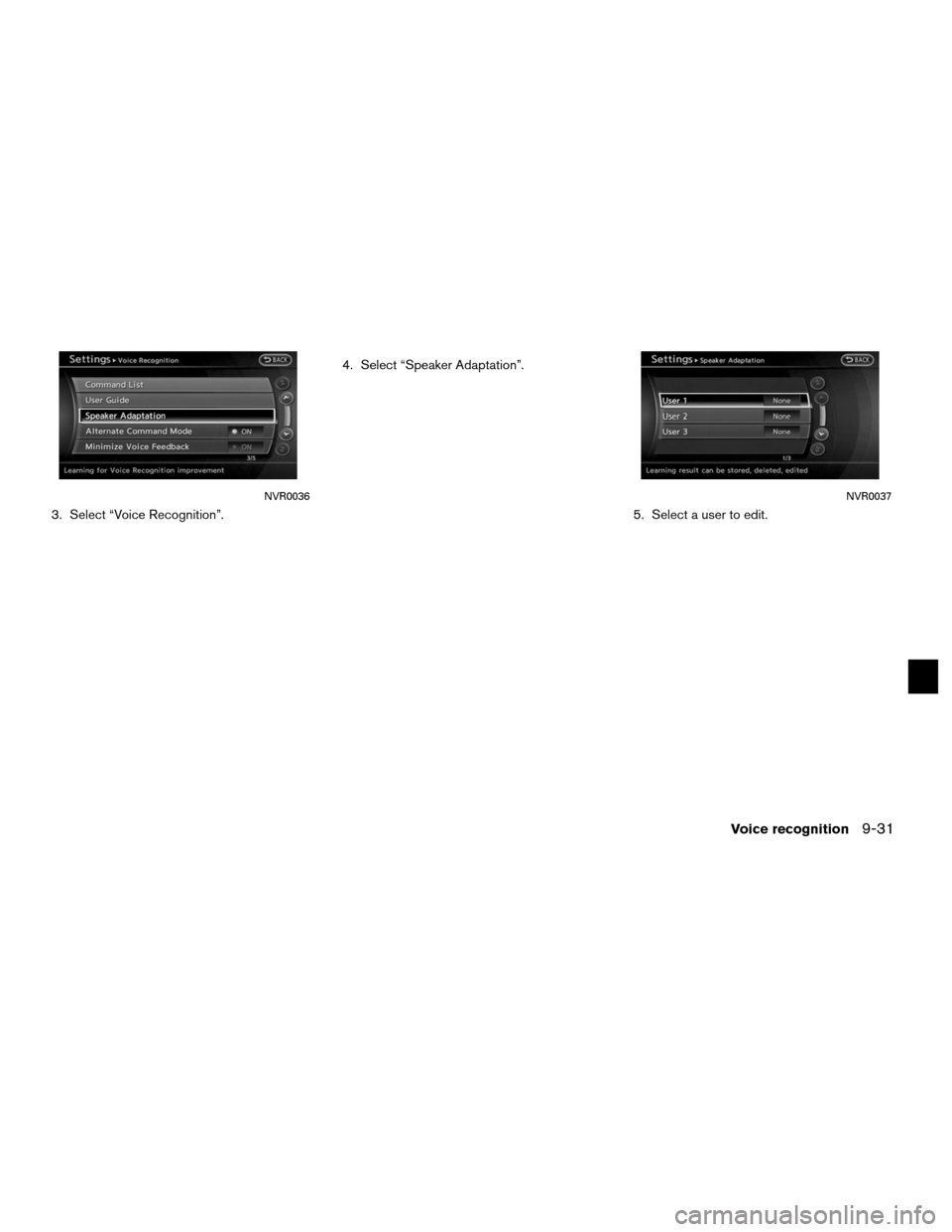

3. Select “Voice Recognition”.4. Select “Speaker Adaptation”.
5. Select a user to edit.
NVR0036NVR0037
Voice recognition9-31
Page 266 of 313

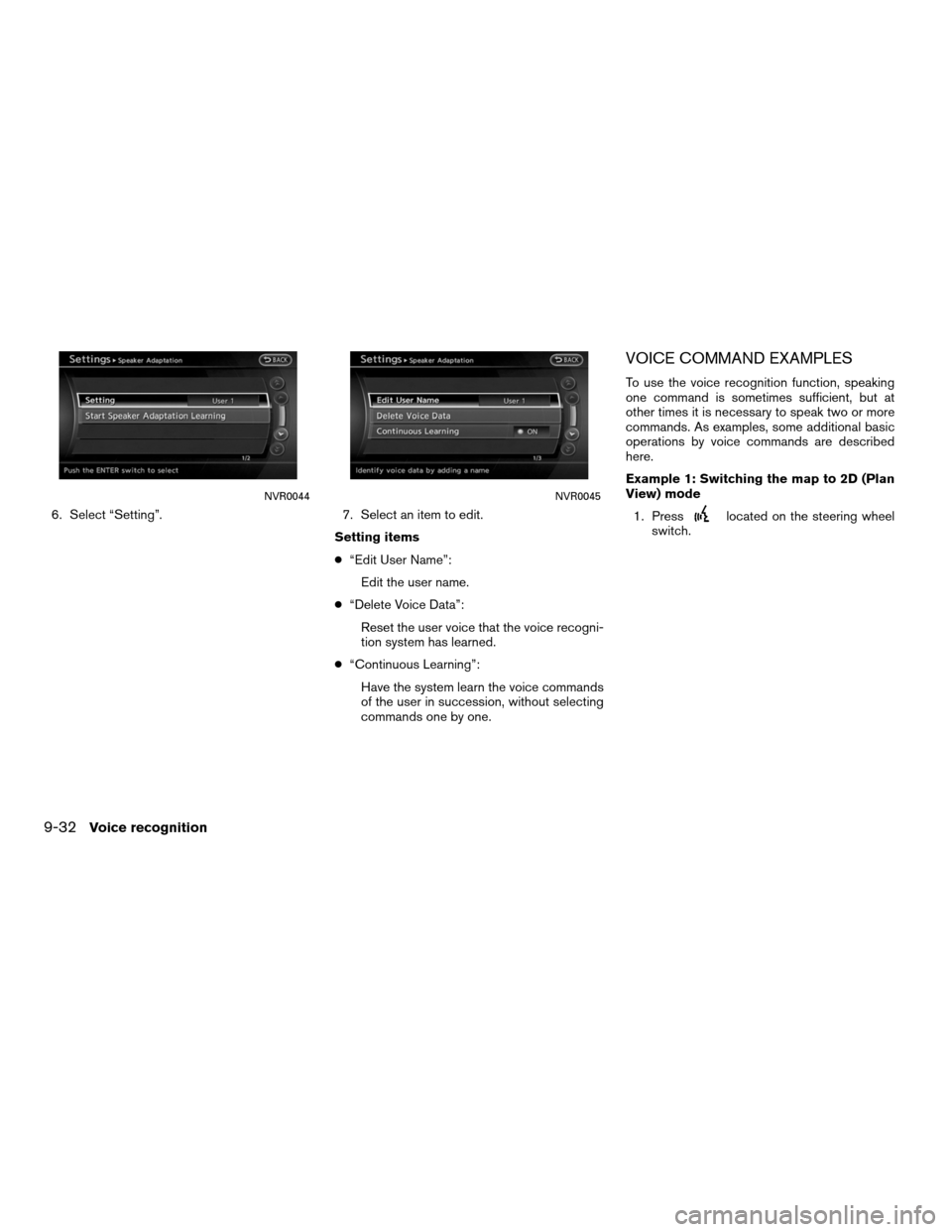

6. Select “Setting”.7. Select an item to edit.
Setting items
● “Edit User Name”:
Edit the user name.
● “Delete Voice Data”:
Reset the user voice that the voice recogni-
tion system has learned.
● “Continuous Learning”:
Have the system learn the voice commands
of the user in succession, without selecting
commands one by one.
VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching the map to 2D (Plan
View) mode1. Press
located on the steering wheel
switch.
NVR0044NVR0045
9-32Voice recognition

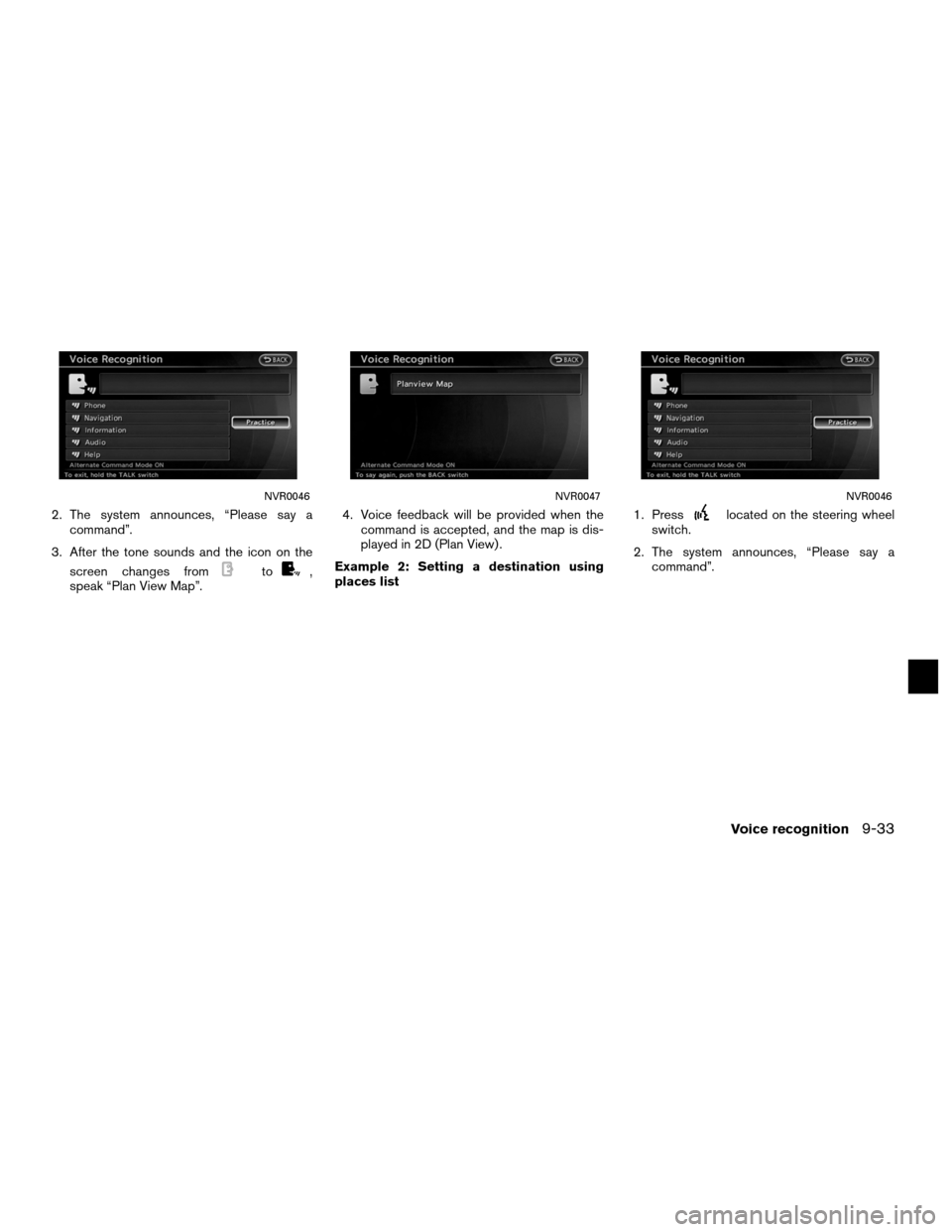

Page 267 of 313
2. The system announces, “Please say acommand”.
3. After the tone sounds and the icon on the screen changes from
to,
speak “Plan View Map”. 4. Voice feedback will be provided when the
command is accepted, and the map is dis-
played in 2D (Plan View) .
Example 2: Setting a destination using
places list 1. Press
located on the steering wheel
switch.
2. The system announces, “Please say a command”.
NVR0046NVR0047NVR0046
Voice recognition9-33
Page 268 of 313

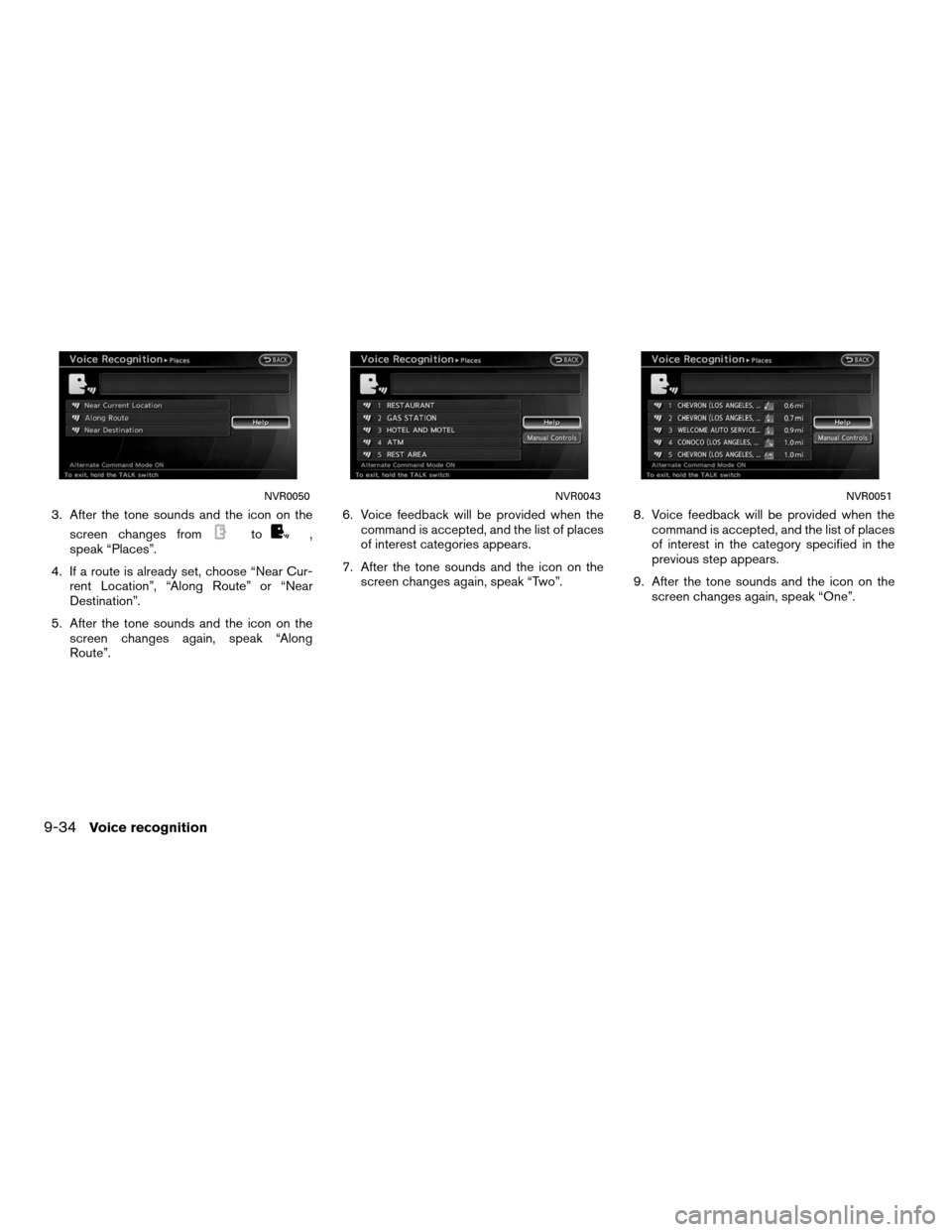

3. After the tone sounds and the icon on thescreen changes from
to,
speak “Places”.
4. If a route is already set, choose “Near Cur- rent Location”, “Along Route” or “Near
Destination”.
5. After the tone sounds and the icon on the screen changes again, speak “Along
Route”. 6. Voice feedback will be provided when the
command is accepted, and the list of places
of interest categories appears.
7. After the tone sounds and the icon on the screen changes again, speak “Two”. 8. Voice feedback will be provided when the
command is accepted, and the list of places
of interest in the category specified in the
previous step appears.
9. After the tone sounds and the icon on the screen changes again, speak “One”.
NVR0050NVR0043NVR0051
9-34Voice recognition
Page 269 of 313

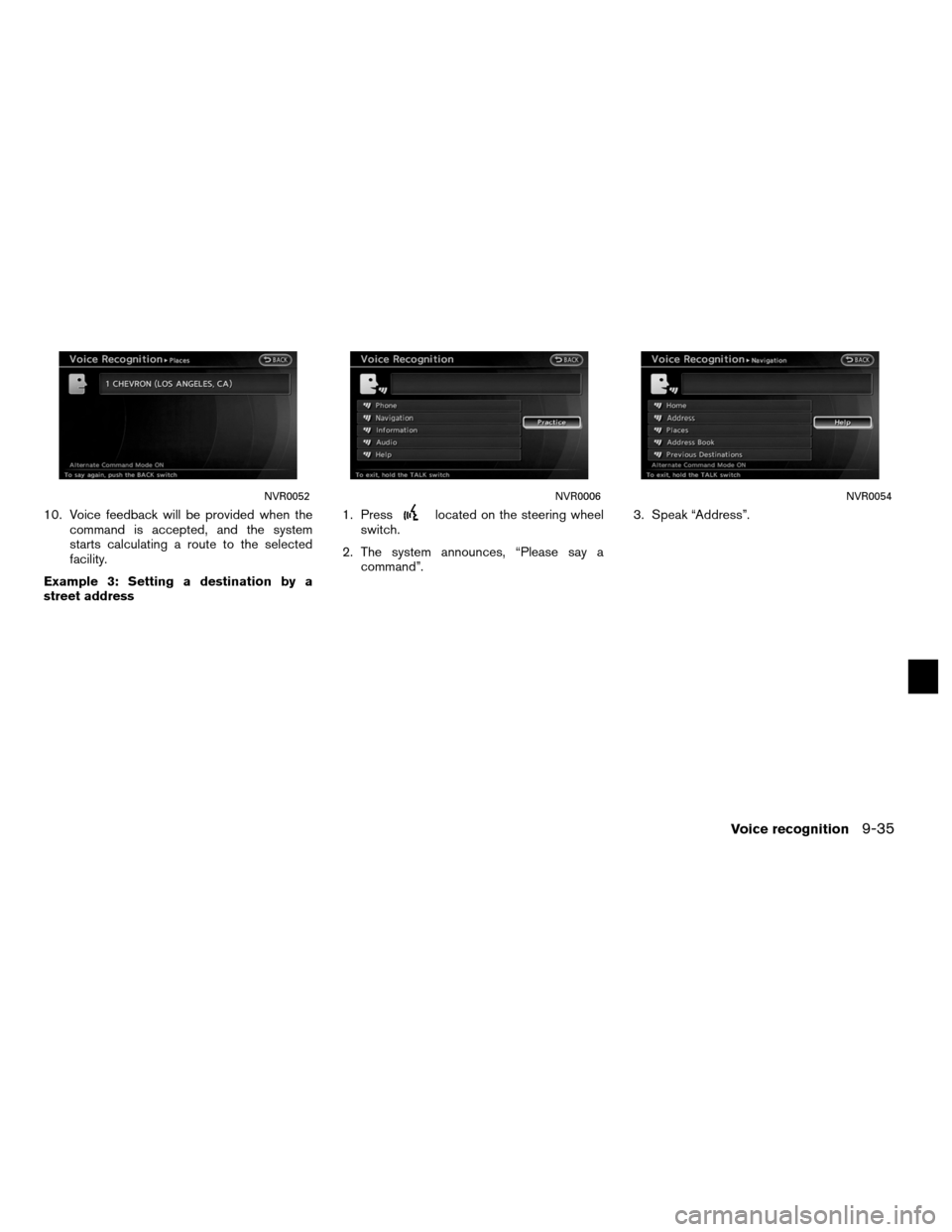

10. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
facility.
Example 3: Setting a destination by a
street address 1. Presslocated on the steering wheel
switch.
2. The system announces, “Please say a command”. 3. Speak “Address”.
NVR0052NVR0006NVR0054
Voice recognition9-35
Page 270 of 313

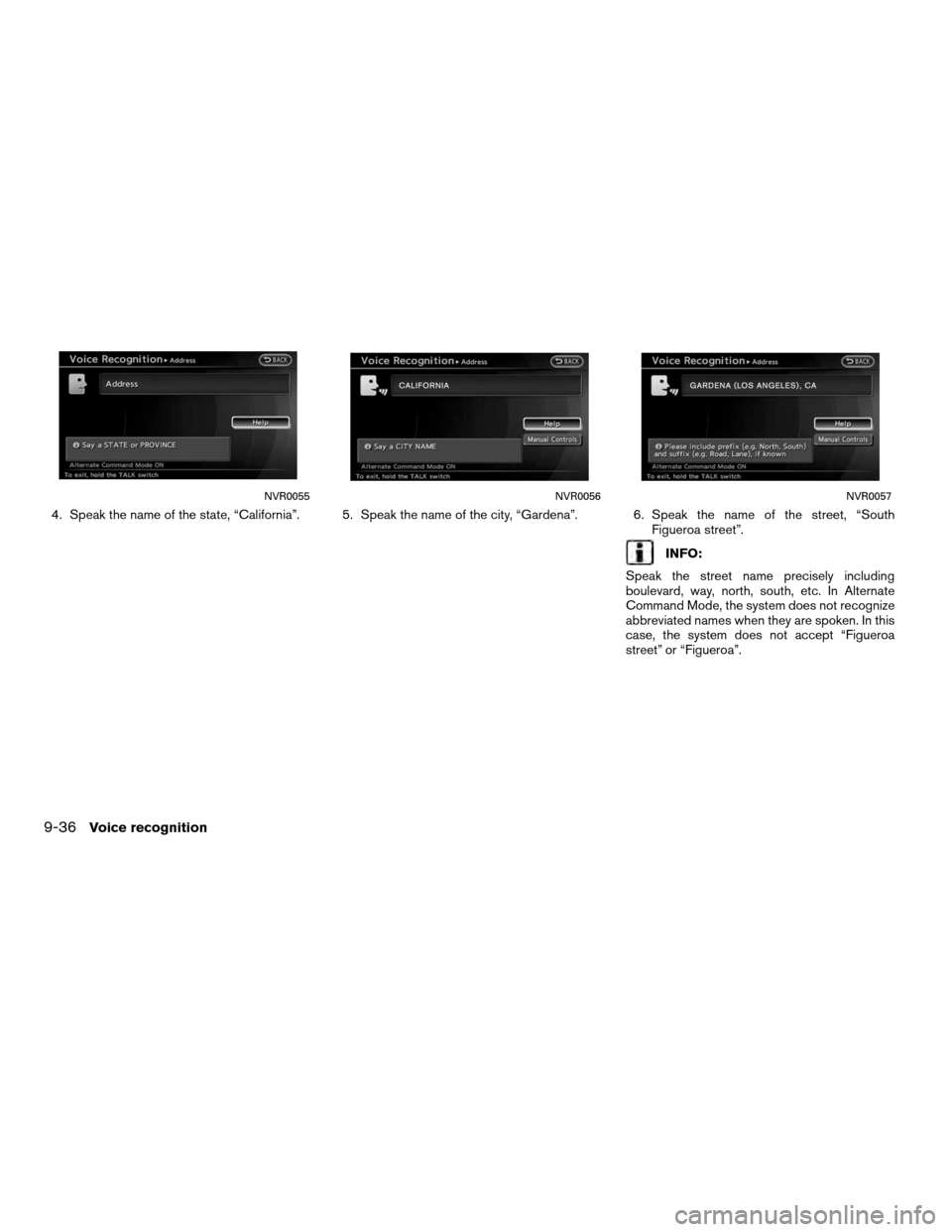

4. Speak the name of the state, “California”. 5. Speak the name of the city, “Gardena”. 6. Speak the name of the street, “SouthFigueroa street”.
INFO:
Speak the street name precisely including
boulevard, way, north, south, etc. In Alternate
Command Mode, the system does not recognize
abbreviated names when they are spoken. In this
case, the system does not accept “Figueroa
street” or “Figueroa”.
NVR0055NVR0056NVR0057
9-36Voice recognition
