●There may be cases that carpool lanes are in-
cluded on a suggested route when the auto-
matic rerouting function is activated, even if
the “Use Time Restricted Roads” is turned off.
“SETTING CONDITIONS FOR
THE ROUTE CALCULATION”
(page 5-33)
● The navigation system does not provide route
guidance for roads displayed in dark green.
● If the destination is set on a dark green road,
the enlarged map display will switch to the or-
dinary map screen at some point and suggest
a route that is near the destination. The dis-
tance and direction to the endpoint of the
suggested route will be displayed in the lower
right corner of the screen. Also, at this time,
voice guidance will announce, “The route to
your destination includes roads through in-
complete map areas. Voice guidance will not
be provided in these areas”.
When approaching the endpoint of the sug-
gested route, voice guidance will announce,
“Entering the road with incomplete map
data. Please use the direction arrow and
distance information to proceed to your
destination.” To reach your destination, refer to the map
screen. Always follow actual roads and
regulations and drive safely.
● The suggested route may not be the shortest,
nor are other circumstances, such as traffic
jams, considered.
● Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the in-
formation was produced for the map data,
there may be discrepancies in roads and
regulations. In such cases, follow the actual
information available.
● During route calculation, the map will not
scroll, however the vehicle icon will move with
the actual vehicle’s movement.
● During route calculation, buttons such as
MAP, DEST, ZOOM OUT, and ZOOM IN will
be disabled.
● In some cases, after the calculation is
complete, the calculated route may not be im-
mediately displayed.
● Waypoints that have been passed will be dis-
regarded by rerouting calculation.
● If you scroll the map while the suggested
route is being drawn, it may take more time to
finish drawing. ●
If waypoints are set, the system calculates
multiple routes between waypoints
simultaneously, and the following may result:
– If one section between waypoints cannot be calculated, none of the route will be
displayed.
– The route may not connect completely at some waypoints.
– The route may require a U-turn close to some waypoints.
● Route calculation may not be completed in
the following cases:
– If there is no main road within a range of 1.5 miles (2.5 km) from the vehicle, a
message saying so will appear on the
screen. Try recalculating when the ve-
hicle is closer to a main road.
– If there is no main road within a range of 1.5 miles (2.5 km) from the destination or
waypoint, a message saying so will ap-
pear on the screen. Try setting the loca-
tion closer to a main road.
– If the vehicle is too close to the destina- tion or if there are no roads to the
destination, a message saying so will ap-
pear on the screen.
ROUTE CALCULATION
General system information10-9
Page 282 of 313
– If it is impossible to reach the destinationor waypoints because of traffic
regulations, etc.
– If the only route to reach the destination or waypoints is extremely complicated.
– If the destination, current vehicle position or waypoint is within the “Avoid Area”.
– If a part of the route is included in the “Avoid Area”.
● The following may occur when the route is
displayed:
– If you calculate a route on a main road, the starting point of the route may not ex-
actly match the current vehicle location.
– The endpoint of the route may not exactly match the destination.
– If you calculate a route on a main road, the system may display a route from an-
other main road. This may be because
the position of the vehicle icon is not
accurate. In this case, park the vehicle in
a safe location and reset the vehicle icon,
or continue driving to see if the position
of the vehicle icon is automatically ad-
justed before recalculating the route. – There are cases in which the system
shows an indirect route to reach the des-
tination or waypoints, if you set them
from stored or facility information. In or-
der to correct this, you must be careful
about the traffic direction, especially
when lanes with different travel direc-
tions are shown separately, such as in-
terchanges and service areas.
– This system makes no distinction be- tween limited traffic control and total
control (blockage) . It may show an indi-
rect route even if the road is usable.
– Even if the freeway preference is set to OFF, a route that uses the freeway may
be suggested.
– Even if the preference is set to OFF, a route that uses a ferry line may be
suggested.
– Ferry lines, excluding those that are only for pedestrians, bicycles and
motorcycles, are stored in this system.
Take into consideration the travel time re-
quired and operational condition before
deciding whether to use them or not.INFO:
The system will only announce street names
when the system language is set to English.
Street names are not announced when the sys-
tem is set to Français (French) or Español
(Spanish) .
BASICS OF VOICE GUIDANCE
Voice guidance announces which direction to
turn when approaching an intersection in which
a turn is necessary.
NOTE:
● There may be some cases in which voice
guidance and actual road conditions do
not correspond. This may occur because
of discrepancies between the actual
road and the information on the map
data, or it is due to the vehicle’s speed.
● In case voice guidance does not corre-
spond to the actual road conditions, fol-
low the information obtained from traf-
fic signs or notices on the road.
● Route guidance provided by the naviga-
tion system does not take carpool lane
driving into consideration, especially
when carpool lanes are separated from
other road lanes.
ROUTE GUIDANCE
10-10General system information
Page 283 of 313

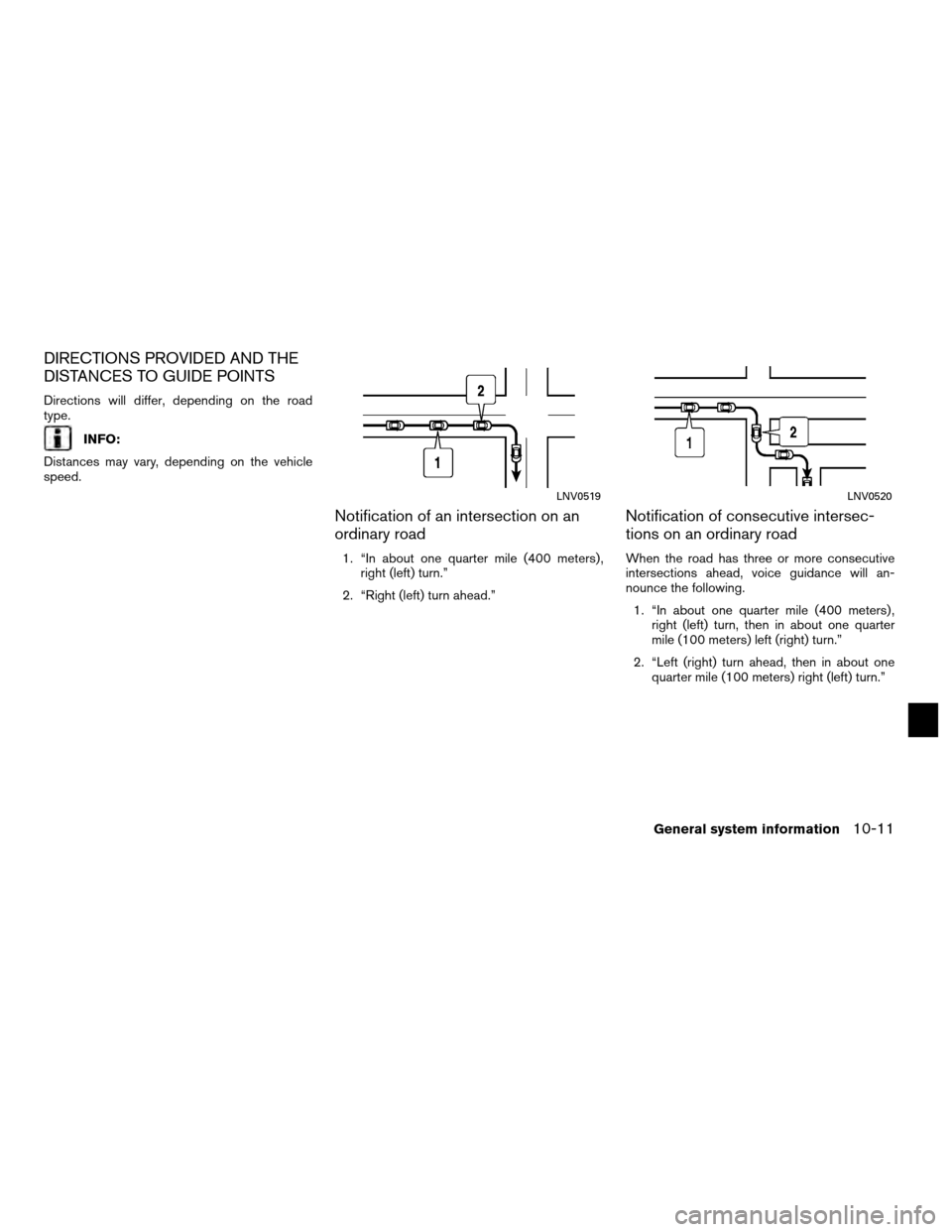

DIRECTIONS PROVIDED AND THE
DISTANCES TO GUIDE POINTS
Directions will differ, depending on the road
type.
INFO:
Distances may vary, depending on the vehicle
speed.
Notification of an intersection on an
ordinary road
1. “In about one quarter mile (400 meters) , right (left) turn.”
2. “Right (left) turn ahead.”
Notification of consecutive intersec-
tions on an ordinary road
When the road has three or more consecutive
intersections ahead, voice guidance will an-
nounce the following. 1. “In about one quarter mile (400 meters) , right (left) turn, then in about one quarter
mile (100 meters) left (right) turn.”
2. “Left (right) turn ahead, then in about one quarter mile (100 meters) right (left) turn.”
LNV0519LNV0520
General system information10-11
Page 284 of 313

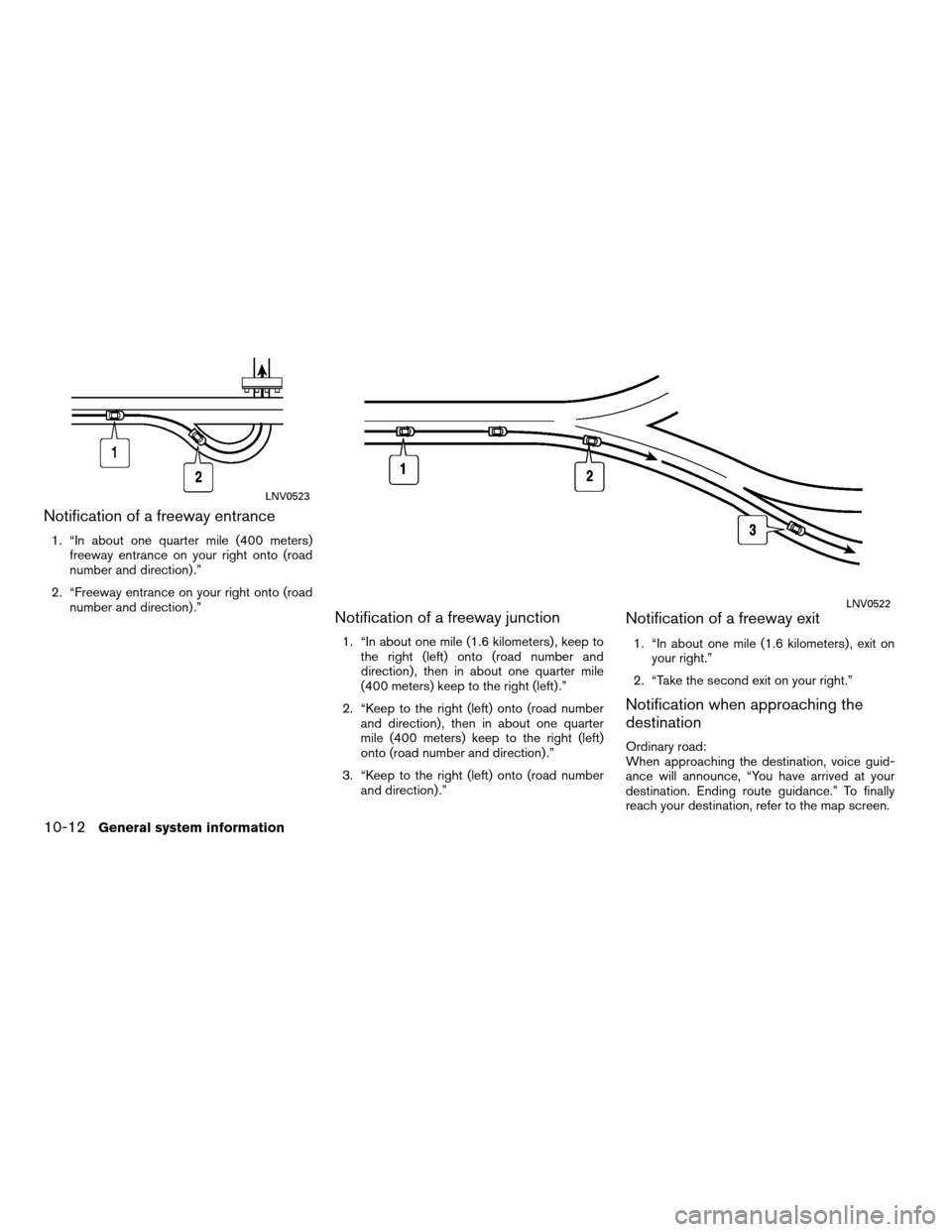

Notification of a freeway entrance
1. “In about one quarter mile (400 meters)freeway entrance on your right onto (road
number and direction) .”
2. “Freeway entrance on your right onto (road number and direction) .”
Notification of a freeway junction
1. “In about one mile (1.6 kilometers) , keep tothe right (left) onto (road number and
direction) , then in about one quarter mile
(400 meters) keep to the right (left) .”
2. “Keep to the right (left) onto (road number and direction) , then in about one quarter
mile (400 meters) keep to the right (left)
onto (road number and direction) .”
3. “Keep to the right (left) onto (road number and direction) .”
Notification of a freeway exit
1. “In about one mile (1.6 kilometers) , exit onyour right.”
2. “Take the second exit on your right.”
Notification when approaching the
destination
Ordinary road:
When approaching the destination, voice guid-
ance will announce, “You have arrived at your
destination. Ending route guidance.” To finally
reach your destination, refer to the map screen.
LNV0523
LNV0522
10-12General system information
Page 285 of 313

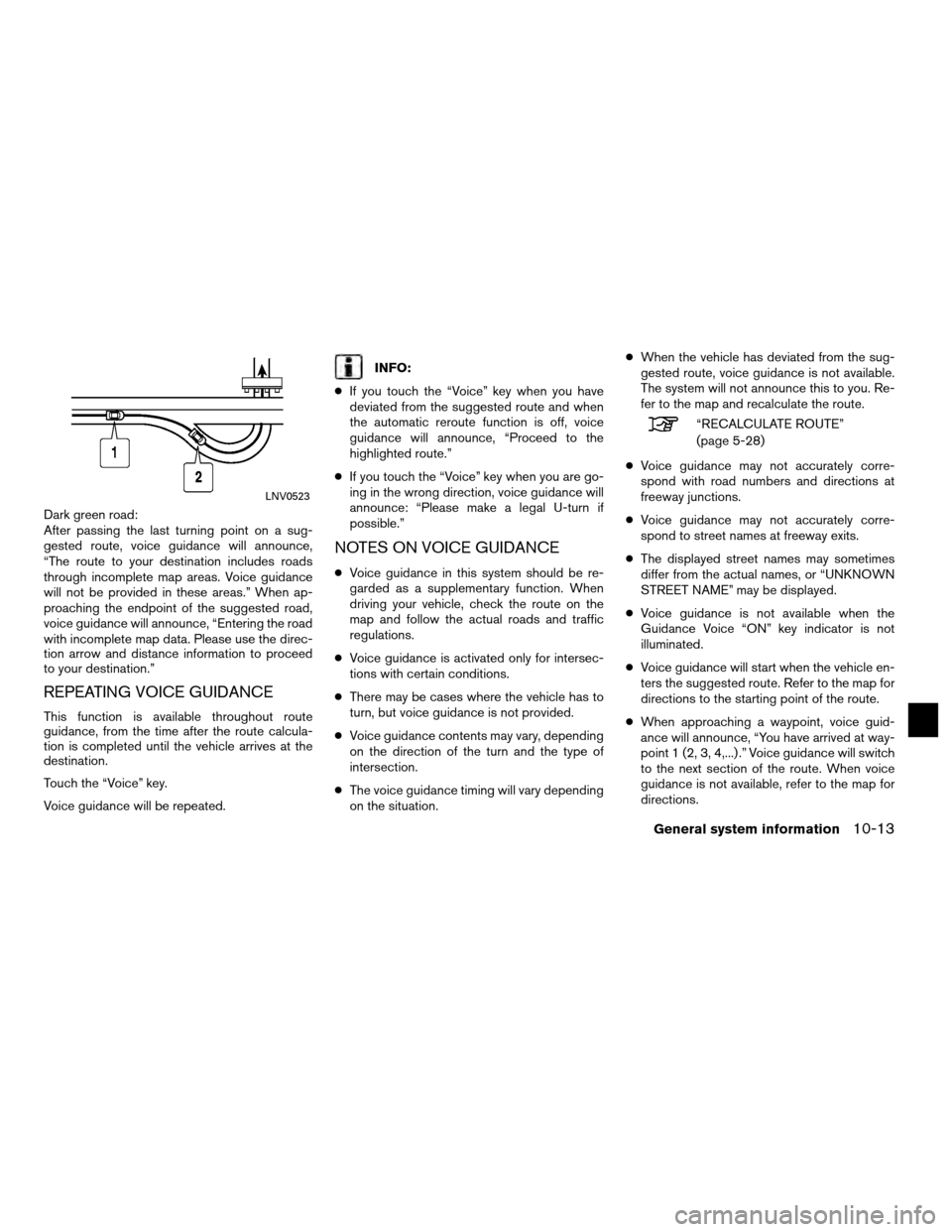

Dark green road:
After passing the last turning point on a sug-
gested route, voice guidance will announce,
“The route to your destination includes roads
through incomplete map areas. Voice guidance
will not be provided in these areas.” When ap-
proaching the endpoint of the suggested road,
voice guidance will announce, “Entering the road
with incomplete map data. Please use the direc-
tion arrow and distance information to proceed
to your destination.”
REPEATING VOICE GUIDANCE
This function is available throughout route
guidance, from the time after the route calcula-
tion is completed until the vehicle arrives at the
destination.
Touch the “Voice” key.
Voice guidance will be repeated.
INFO:
● If you touch the “Voice” key when you have
deviated from the suggested route and when
the automatic reroute function is off, voice
guidance will announce, “Proceed to the
highlighted route.”
● If you touch the “Voice” key when you are go-
ing in the wrong direction, voice guidance will
announce: “Please make a legal U-turn if
possible.”
NOTES ON VOICE GUIDANCE
● Voice guidance in this system should be re-
garded as a supplementary function. When
driving your vehicle, check the route on the
map and follow the actual roads and traffic
regulations.
● Voice guidance is activated only for intersec-
tions with certain conditions.
● There may be cases where the vehicle has to
turn, but voice guidance is not provided.
● Voice guidance contents may vary, depending
on the direction of the turn and the type of
intersection.
● The voice guidance timing will vary depending
on the situation. ●
When the vehicle has deviated from the sug-
gested route, voice guidance is not available.
The system will not announce this to you. Re-
fer to the map and recalculate the route.
“RECALCULATE ROUTE”
(page 5-28)
● Voice guidance may not accurately corre-
spond with road numbers and directions at
freeway junctions.
● Voice guidance may not accurately corre-
spond to street names at freeway exits.
● The displayed street names may sometimes
differ from the actual names, or “UNKNOWN
STREET NAME” may be displayed.
● Voice guidance is not available when the
Guidance Voice “ON” key indicator is not
illuminated.
● Voice guidance will start when the vehicle en-
ters the suggested route. Refer to the map for
directions to the starting point of the route.
● When approaching a waypoint, voice guid-
ance will announce, “You have arrived at way-
point 1 (2, 3, 4,...) .” Voice guidance will switch
to the next section of the route. When voice
guidance is not available, refer to the map for
directions.
LNV0523
General system information10-13
Page 286 of 313

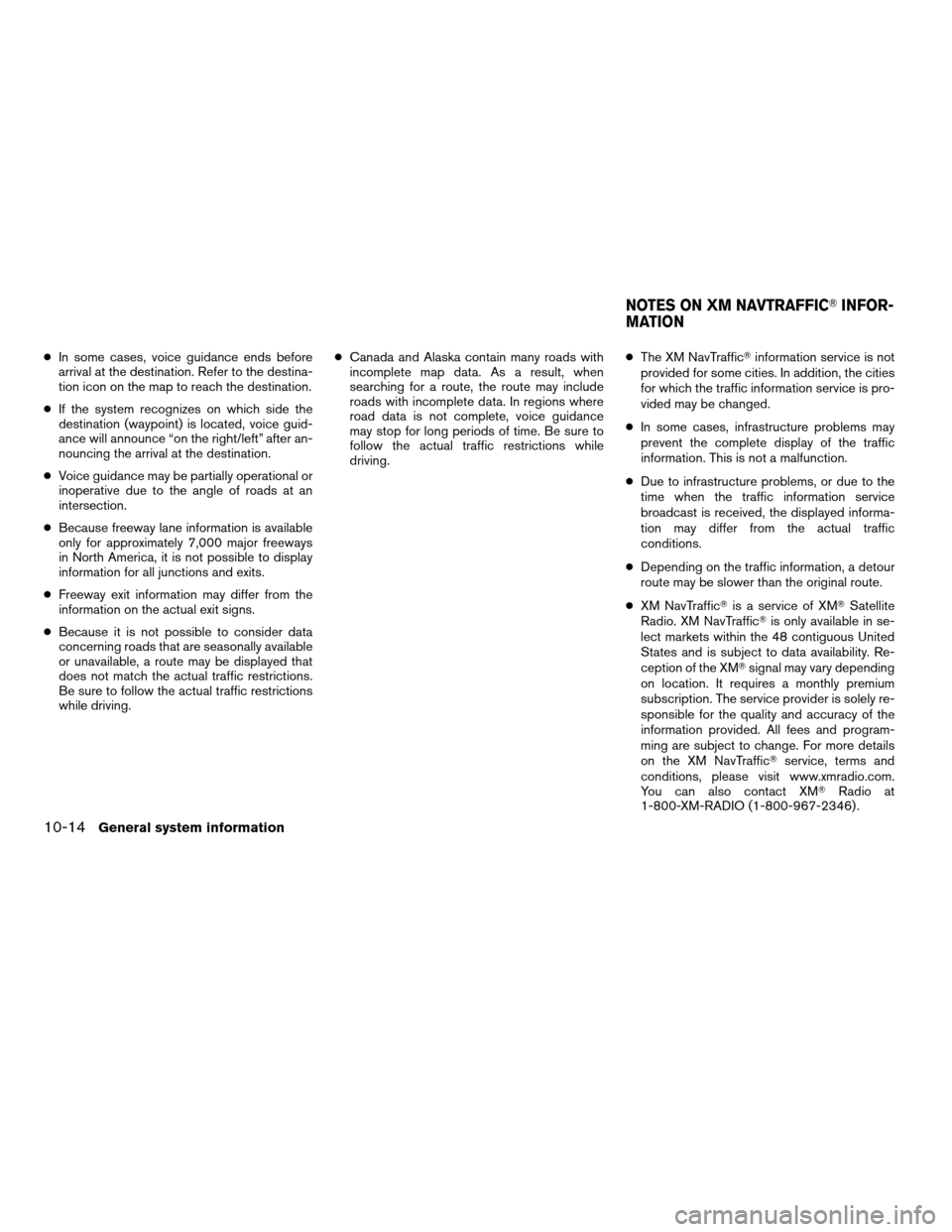

●In some cases, voice guidance ends before
arrival at the destination. Refer to the destina-
tion icon on the map to reach the destination.
● If the system recognizes on which side the
destination (waypoint) is located, voice guid-
ance will announce “on the right/left” after an-
nouncing the arrival at the destination.
● Voice guidance may be partially operational or
inoperative due to the angle of roads at an
intersection.
● Because freeway lane information is available
only for approximately 7,000 major freeways
in North America, it is not possible to display
information for all junctions and exits.
● Freeway exit information may differ from the
information on the actual exit signs.
● Because it is not possible to consider data
concerning roads that are seasonally available
or unavailable, a route may be displayed that
does not match the actual traffic restrictions.
Be sure to follow the actual traffic restrictions
while driving. ●
Canada and Alaska contain many roads with
incomplete map data. As a result, when
searching for a route, the route may include
roads with incomplete data. In regions where
road data is not complete, voice guidance
may stop for long periods of time. Be sure to
follow the actual traffic restrictions while
driving. ●
The XM NavTraffic information service is not
provided for some cities. In addition, the cities
for which the traffic information service is pro-
vided may be changed.
● In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
● Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed informa-
tion may differ from the actual traffic
conditions.
● Depending on the traffic information, a detour
route may be slower than the original route.
● XM NavTraffic is a service of XM Satellite
Radio. XM NavTraffic is only available in se-
lect markets within the 48 contiguous United
States and is subject to data availability. Re-
ception of the XM signal may vary depending
on location. It requires a monthly premium
subscription. The service provider is solely re-
sponsible for the quality and accuracy of the
information provided. All fees and program-
ming are subject to change. For more details
on the XM NavTraffic service, terms and
conditions, please visit www.xmradio.com.
You can also contact XM Radio at
1-800-XM-RADIO (1-800-967-2346) .
NOTES ON XM NAVTRAFFIC INFOR-
MATION
10-14General system information
Page 287 of 313
●As of January 31, 2009, the XM NavTraffic
service covers 80 major metropolitan markets.
For the most current list of markets covered,
please refer to www.xmradio.com/navtraffic,
or call XM Radio customer support at
1-800-XMRADIO (1-800-967-2346) .
● Due to road maintenance, infrastructure prob-
lems (e.g. malfunction of road sensors, outage
of central computer of infrastructure) or natu-
ral disasters, there are times when some or all
traffic information may not be available.
● Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
● Due to infrastructure problems, or transmis-
sion delay, there are times when the informa-
tion may differ from the actual condition. Al-
ways observe safe driving practices and
follow all traffic regulations.
● Due to the coverage and quality of traffic in-
formation and road conditions, it is not always
possible for the system to provide the short-
est time route even when traffic information is
considered.
● Traffic information that is displayed may differ
from information from other media (e.g.,
radio) , as other media may use different infor-
mation sources. ●
The XM NavWeather™ information service is
not provided for some cities. In addition, the
cities for which the weather information ser-
vice is provided may be changed.
● In some cases, infrastructure problems may
prevent the complete display of the weather
information. This is not a malfunction.
● Due to infrastructure problems, or due to the
time when the weather information service
broadcast is received, the displayed informa-
tion may differ from the actual weather
conditions.
●
XM NavWeather™ is a service of XM Satellite
Radio. XM NavWeather™ is only available in
select markets within the 48 contiguous United
States and is subject to data availability. Re-
ception of the XM signal may vary depending
on location. It requires a monthly premium
subscription. The service provider is solely re-
sponsible for the quality and accuracy of the in-
formation provided. All fees and programming
are subject to change. For more details on the
XM NavWeather™ service, terms and
conditions, please visit www.xmradio.com. You
can also contact XM Radio at
1-800-XMRADIO (1-800-967-2346) .
● XM NavWeather™ is designed to provide real-
time weather and forecasting information in
your general vicinity. Discrepancies may be
encountered between the system and your
actual location. Road system and weather
changes may affect the accuracy of the infor-
mation provided. Rely on your common sense
to decide whether to follow a specified route.
Detailed coverage is not available in every city
or roadway.
NOTES ON XM NAVWEATHER™ IN-
FORMATION
General system information10-15
Page 288 of 313
HOW TO ORDER MAP DATA UP-
DATES
To order updated map data, contact the NISSAN
NAVIGATION SYSTEM HELPDESK. See the
contact information on the inside front cover of
this manual.
ABOUT THE MAP DATA
1. This map data has been prepared byHITACHI, LTD. under licence from ZENRIN
CO., LTD. and NAVTEQ. ZENRIN CO., LTD.
has added, processed and digitized data
based on the digital road map data of Navi-
gation Technologies Corporation. Due to
the production timing of the map data, some
new roads may not be included in this map
data or some of the names or roads may be
different from those at the time you use this
map data.
2. Traffic control and regulation data used in this map data may be different from those at
the time you use this map data due to the
data production timing. When driving your
vehicle, follow the actual traffic control signs
and notices on the roads.
3. Reproducing or copying this map software is strictly prohibited by law. Published by Nissan North America, Inc
© 2006 Navigation Technologies. All rights
reserved.
© 1993-2011 NAVTEQ. All Rights Reserved.
Certain business data provided by infoUSA, Inc.,
Omaha, NE, Copyright
© 2008, All Rights Reserved.
© ZENRIN CO., LTD. 2009. All rights reserved.
© ZENRIN USA, INC. 2008. All rights reserved.
© 2008 Zagat
Survey, LLC.
mWARNING
●This navigation system should not be
used to replace your own judgement.
No itinerary suggested by this navi-
gation system should ever override
any highway regulations, your own
judgement, or a knowledge of safe
driving practices. Do not follow the
navigation system’s suggested itin-
erary if it would cause you to perform
a dangerous or illegal act, place you
in a dangerous situation, or take you
into an area you consider unsafe. ●
The advice provided by the naviga-
tion system is to be regarded as a
suggestion only. There may be times
when the navigation system displays
the vehicle’s location incorrectly,
fails to suggest the shortest route, or
fails to direct you to the your desired
destination. In such instances, rely
on your own driving judgement, tak-
ing into account the driving condi-
tions at the time.
● Do not use the navigation system to
locate emergency services. The data-
base does not contain a complete
listing of emergency services such as
police stations, fire halls, hospitals
and walk-in clinics. Please show dis-
cretion and ask for directions in such
instances.
● As the driver, you alone are respon-
sible for your driving safety.
– In order to avoid a traffic accident, do not operate the system while
driving.
MAP DATA
10-16General system information
Page 289 of 313
– In order to avoid a traffic accident,operate the system only when the
vehicle is stopped at a safe place
and the parking brake is on.
– In order to avoid a traffic accident or traffic offence, remember that
actual road conditions and traffic
regulations take precedence over
the information contained on the
navigation system.
– The Software may contain inaccu- rate or incomplete information
due to the passage of time,
changing circumstances, and the
sources of information used.
Please respect current traffic con-
ditions and regulations at all
times while driving.
– Where actual road conditions and highway regulations differ from
the information contained on the
navigation system, abide by the
highway regulations.
– Keep the amount of time spent viewing the screen while driving
to a strict minimum.The navigation system does not provide,
nor represent in any way information on:
traffic and highway regulations; technical
aspects of the vehicle including weight,
height, width, load and speed limits; road
conditions including grade, percentage of
incline and surface conditions; obstacles
such as the height and width of bridges
and tunnels; and other current driving or
road conditions. Always rely on your own
judgement when driving a car, taking into
account current driving conditions.
The marks of companies displayed by this prod-
uct to indicate business locations are the marks
of their respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement by such
companies of this product.
END-USER TERMS
The Map Data Disc (Data) is provided for your
personal, internal use only and not for resale. It is
protected by copyright, and is subject to the fol-
lowing terms (this End- User License Agree-
ment) and conditions which are agreed to by
you, on the one hand, and NAVTEQ North
America, LLC (NT) and its licensors (including
their licensors and suppliers) on the other hand. The Data for areas of Canada includes informa-
tion taken with permission from Canadian
authorities, including: ©Her Majesty the Queen
in Right of Canada, ©Queen’s Printer for
Ontario, ©Canada Post Corporation, GeoBase
NT holds a non-exclusive license from the United
States Postal Service
to publish and sell
ZIP+4 information.
©United States Postal Service 2009. Prices
are not established, controlled or approved by
the United States Postal Service. The following
trademarks and registrations are owned by the
USPS: United States Postal Service, USPS, and
ZIP+4.
The Data may include or reflect data of licensors,
including Her Majesty the Queen in the Right of
Canada (“Her Majesty”) , Canada Post
Corporation (“Canada Post”) and the Depart-
ment of Natural Resources Canada (“NRCan”) .
Such data is licensed on an “as is” basis. The
licensors, including Her Majesty, Canada Post
and NRCan, make no guarantees, representa-
tions or warranties respecting such data, either
express or implied, arising by law or otherwise,
including but not limited to, effectiveness,
completeness, accuracy or fitness for a particu-
lar purpose.
General system information10-17
Page 290 of 313
The licensors, including Her Majesty, Canada
Post and NRCan, shall not be liable in respect of
any claim, demand or action, irrespective of the
nature of the cause of the claim, demand or ac-
tion alleging any loss, injury or damages, direct
or indirect, which may result from the use or pos-
session of the data or the Data. The licensors, in-
cluding Her Majesty, Canada Post and NRCan,
shall not be liable in any way for loss of revenues
or contracts, or any other consequential loss of
any kind resulting from any defect in the data or
the Data.
End User shall indemnify and save harmless the
licensors, including Her Majesty, Canada Post
and NRCan, and their officers, employees and
agents from and against any claim, demand or
action, irrespective of the nature of the cause of
the claim, demand or action, alleging loss, costs,
expenses, damages or injuries (including injuries
resulting in death) arising out of the use or pos-
session of the data or the Data.
Terms and conditions
Personal Use Only You agree to use this Data forthe solely personal, non-commercial purposes
for which you were licensed, and not for service
bureau, time-sharing or other similar purposes.
Accordingly, but subject to the restrictions set
forth in the following paragraphs of this End-
User License Agreement, you may copy thisData only as necessary for your personal use to
(i) view it, and (ii) save it, provided that you do
not remove any copyright notices that appear
and do not modify the Data in any way. Except as
otherwise set forth herein, you agree not to oth-
erwise reproduce, copy, modify, decompile, dis-
assemble or reverse engineer any portion of this
Data, and may not transfer or distribute it in any
form, for any purpose, except to the extent per-
mitted by mandatory laws. You may transfer the
Data and all accompanying materials on a per-
manent basis if you retain no copies and the re-
cipient agrees to the terms of this End-User Li-
cense Agreement. Multidisc sets may only be
transferred or sold as a complete set as provided
to you and not as a subset thereof.
Restrictions Except where you have been spe-
cifically licensed to do so by NT and without lim-
iting the preceding paragraph, you may not (a)
use this Data with any products, systems, or ap-
plications installed or otherwise connected to or
in communication with vehicles capable of ve-
hicle navigation, positioning, dispatch, real time
route guidance, fleet management or similar ap-
plications; or (b) with, or in communication with,
including without limitation, cellular phones,
palmtop and handheld computers, pagers, and
personal digital-assistants or PDAs.
Warning This Data may contain inaccurate or in-
complete information due to the passage of time,changing circumstances, sources used and the
nature of collecting comprehensive geographic
data, any of which may lead to incorrect results.
No Warranty This Data is provided to you
as is,
and you agree to use it at your own risk. NT and
its licensors (and their licensors and suppliers)
make no guarantees, representations or warran-
ties of any kind, express or implied, arising by law
or otherwise, including but not limited to,
content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a particular
purpose, usefulness, use or results to be ob-
tained from this Data, or that the Data or server
will be uninterrupted or error-free.
Disclaimer of Warranty: NT AND ITS LICEN-
SORS (INCLUDING THEIR LICENSORS AND
SUPPLIERS) DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABILITY, FIT-
NESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT. Some States, Territories
and Countries do not allow certain warranty
exclusions, so to that extent the above exclusion
may not apply to you.
Disclaimer of Liability: NT AND ITS LICENSORS
(INCLUDING THEIR LICENSORS AND SUP-
PLIERS) SHALL NOT BE LIABLE TO YOU IN
RESPECT OF ANY CLAIM, DEMAND OR
ACTION, IRRESPECTIVE OF THE NATURE OF
10-18General system information
