NISSAN ALTIMA COUPE 2012 D32 / 4.G Navigation Manual

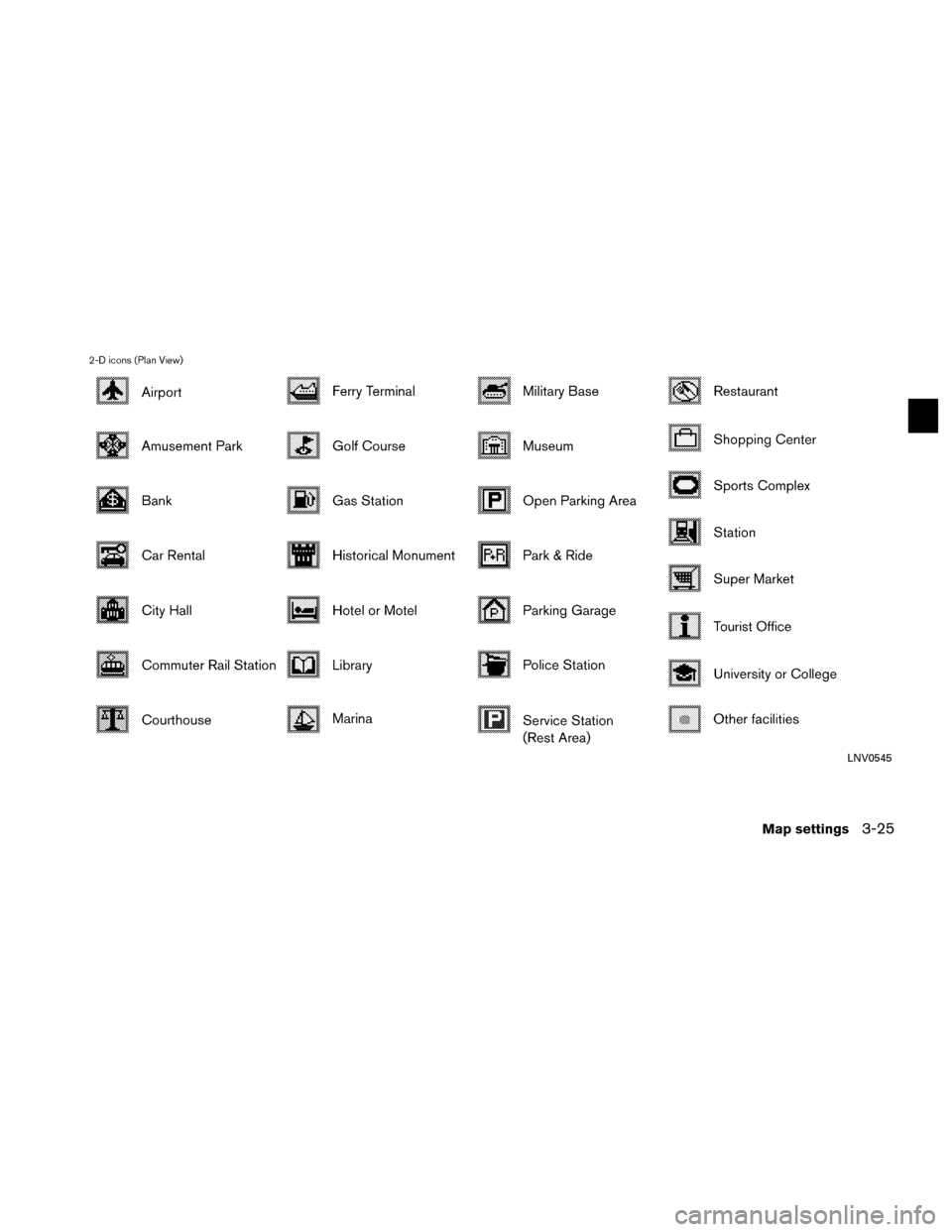

LNV0545
Map settings3-25

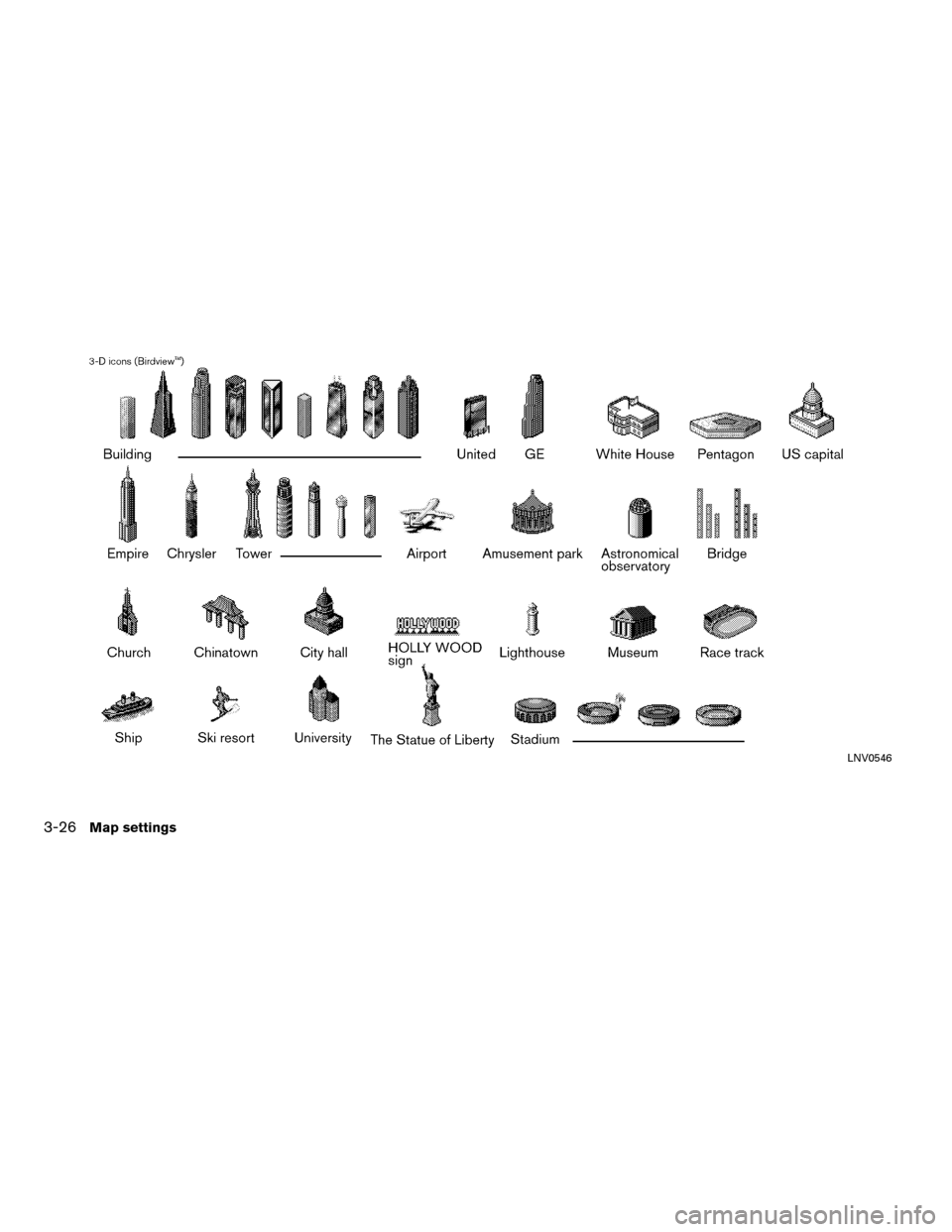

LNV0546
3-26Map settings

ROAD COLOR
The road types are differentiated by colors.
Freeway: Red or Light Red (zoomed in)
Main road: Brown or Dark Yellow
Narrow street: Gray
Road with incomplete map data: Dark green
TRAFFIC INFORMATION ON MAP
With a subscription to XM NavTrafficservice,
traffic information is displayed.
“VIEWING AVAILABLE TRAFFIC IN-
FORMATION” (page 7-4)
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event: Purple
dashed arrow Traffic information icons:
: Accident
: Closed Road
: Information
: Road Work
: Slippery Road
: Weather
: Incident
Map settings3-27

3-28Map settings

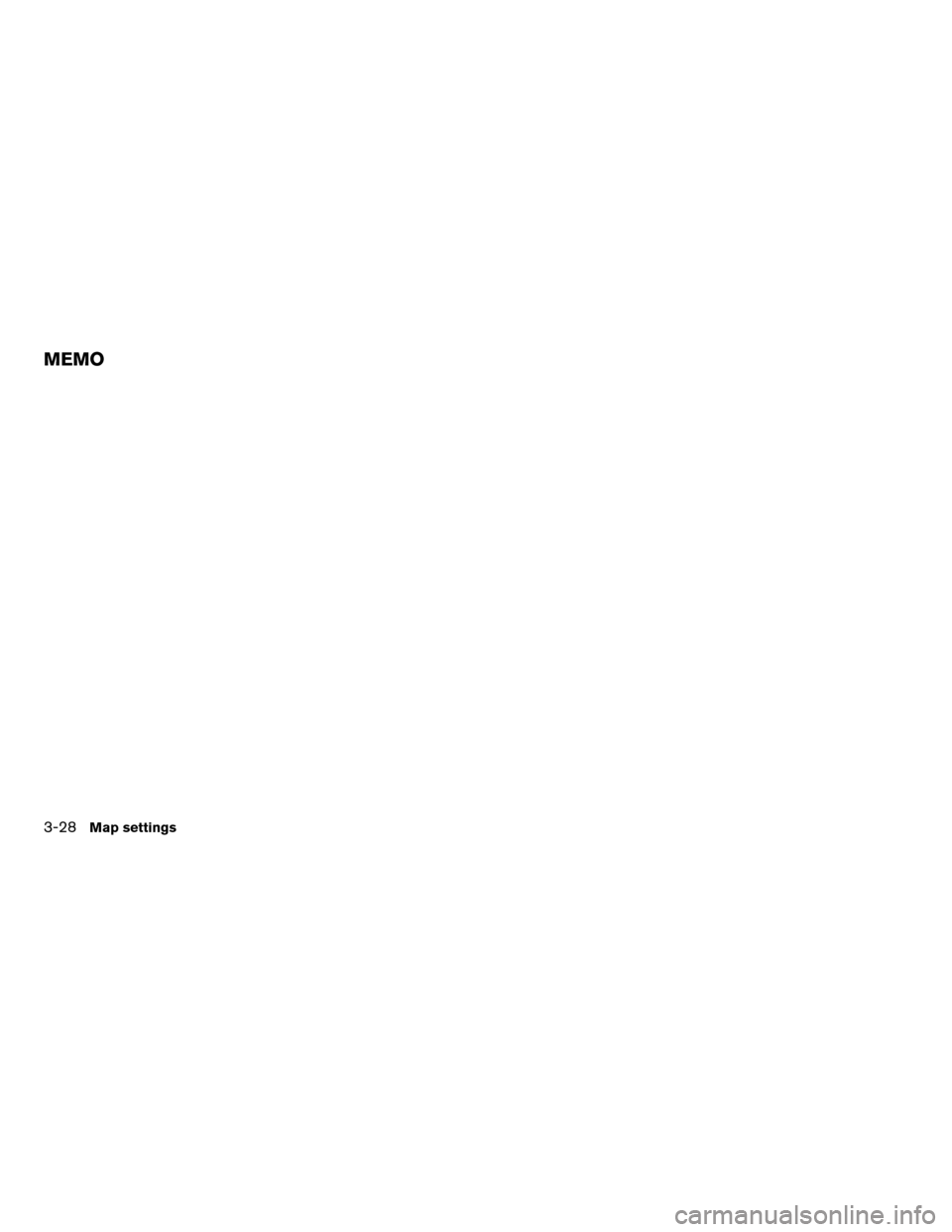

MEMO

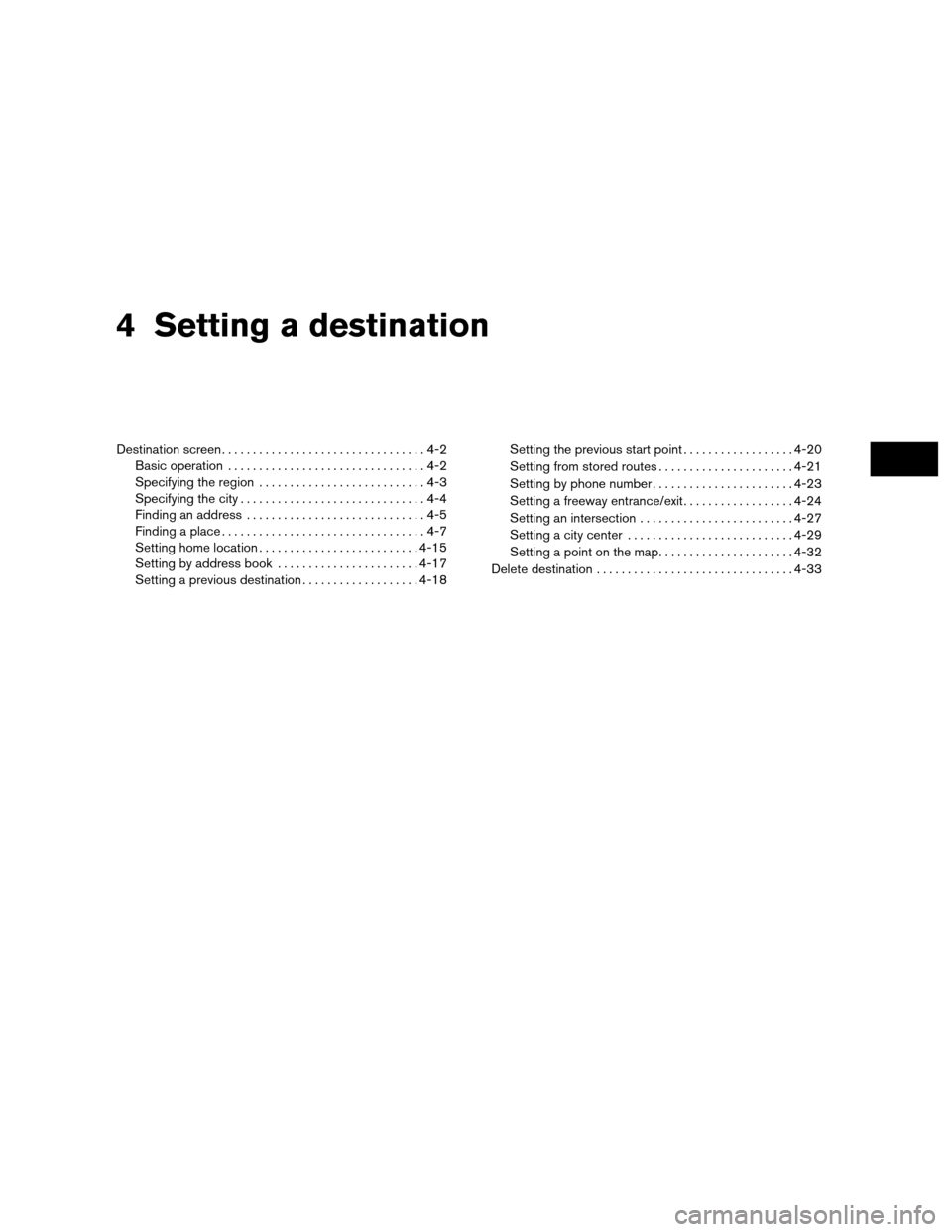

4 Setting a destination
Destination screen.................................4-2
Basic operation ................................4-2
Specifying the region . . . ........................4-3
Specifying the city ..............................4-4
Finding an address .............................4-5
Finding a place .................................4-7
Setting home location .......................... 4-15
Setting by address book .......................4-17
Setting a previous destination ...................4-18Setting the previous start point
..................4-20
Setting from stored routes ......................4-21
Setting by phone number .......................4-23
Setting a freeway entrance/exit ..................4-24
Setting an intersection ......................... 4-27
Setting a city center ........................... 4-29
Setting a point on the map ......................4-32
Delete destination ................................ 4-33

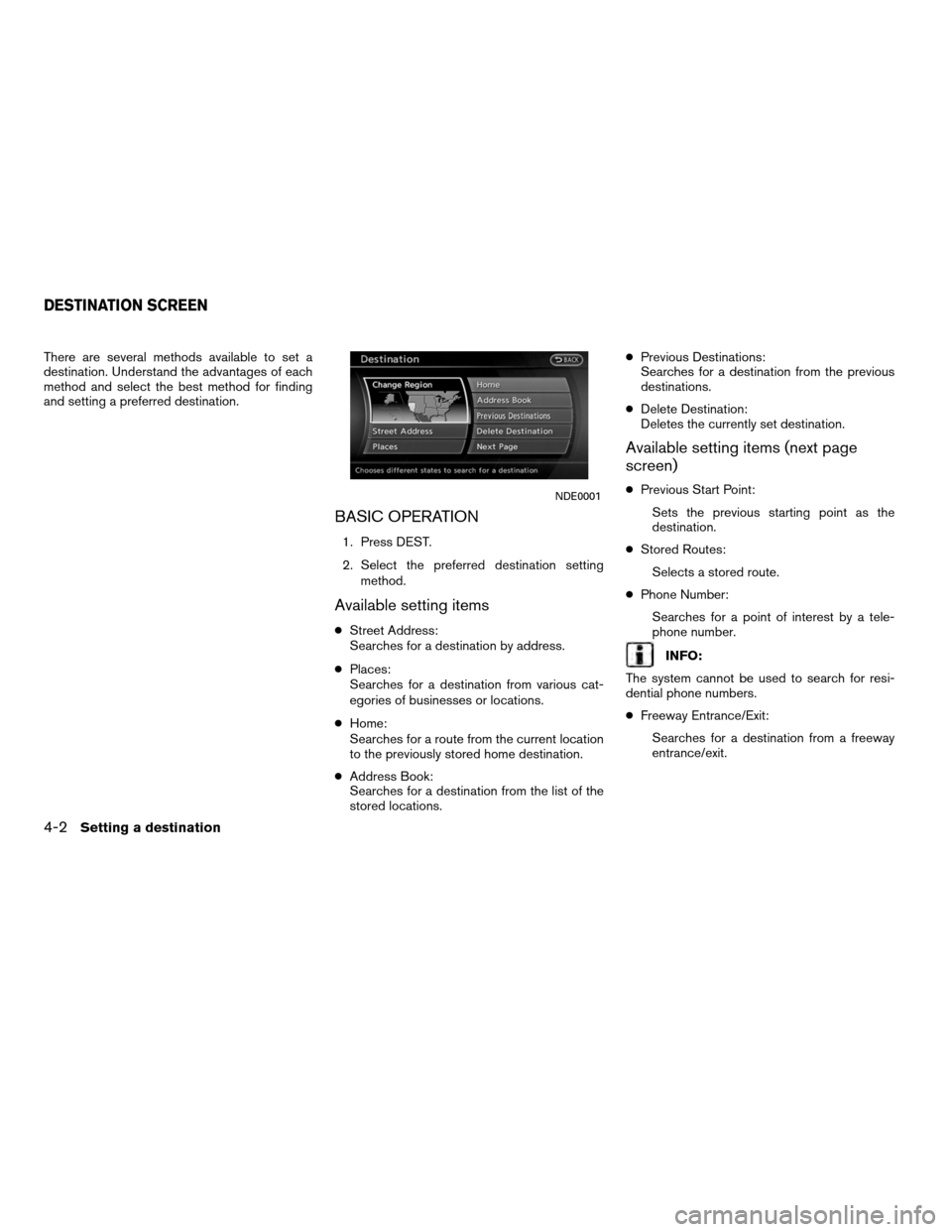

There are several methods available to set a
destination. Understand the advantages of each
method and select the best method for finding
and setting a preferred destination.
BASIC OPERATION
1. Press DEST.
2. Select the preferred destination settingmethod.
Available setting items
●Street Address:
Searches for a destination by address.
● Places:
Searches for a destination from various cat-
egories of businesses or locations.
● Home:
Searches for a route from the current location
to the previously stored home destination.
● Address Book:
Searches for a destination from the list of the
stored locations. ●
Previous Destinations:
Searches for a destination from the previous
destinations.
● Delete Destination:
Deletes the currently set destination.
Available setting items (next page
screen)
● Previous Start Point:
Sets the previous starting point as the
destination.
● Stored Routes:
Selects a stored route.
● Phone Number:
Searches for a point of interest by a tele-
phone number.
INFO:
The system cannot be used to search for resi-
dential phone numbers.
● Freeway Entrance/Exit:
Searches for a destination from a freeway
entrance/exit.
NDE0001
DESTINATION SCREEN
4-2Setting a destination

●Intersection:
Searches for a destination from
intersections.
● City Center:
Sets the center of a city as the destination.

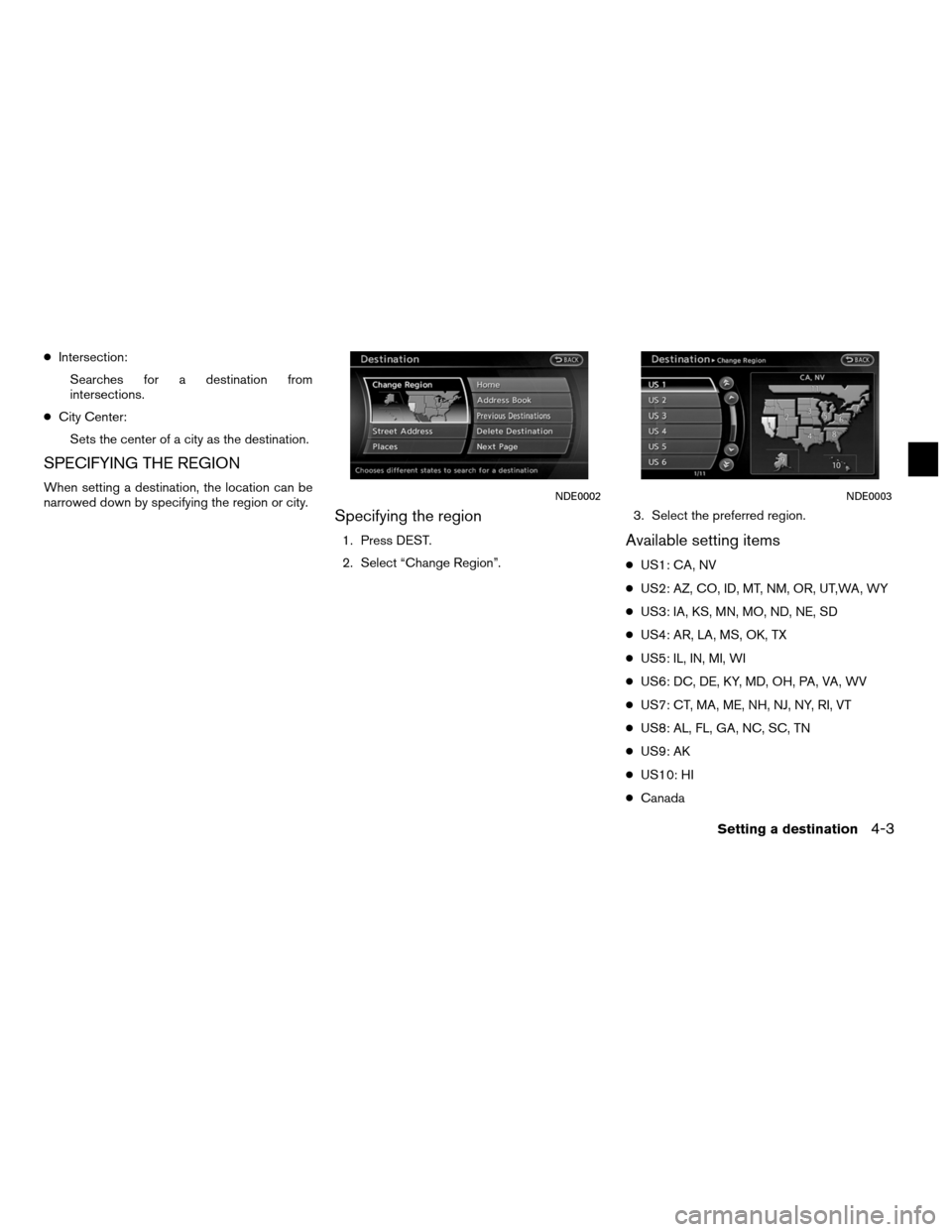

SPECIFYING THE REGION
When setting a destination, the location can be
narrowed down by specifying the region or city.
Specifying the region
1. Press DEST.
2. Select “Change Region”. 3. Select the preferred region.Available setting items
●
US1: CA, NV
● US2: AZ, CO, ID, MT, NM, OR, UT,WA, WY
● US3: IA, KS, MN, MO, ND, NE, SD
● US4: AR, LA, MS, OK, TX
● US5: IL, IN, MI, WI
● US6: DC, DE, KY, MD, OH, PA, VA, WV
● US7: CT, MA, ME, NH, NJ, NY, RI, VT
● US8: AL, FL, GA, NC, SC, TN
● US9: AK
● US10: HI
● Canada
NDE0002NDE0003
Setting a destination4-3

INFO:
● It is also possible to select a region by touch-
ing the map on the right side of the screen.
● It is not possible to search for a route from the
continental United States to Hawaii.

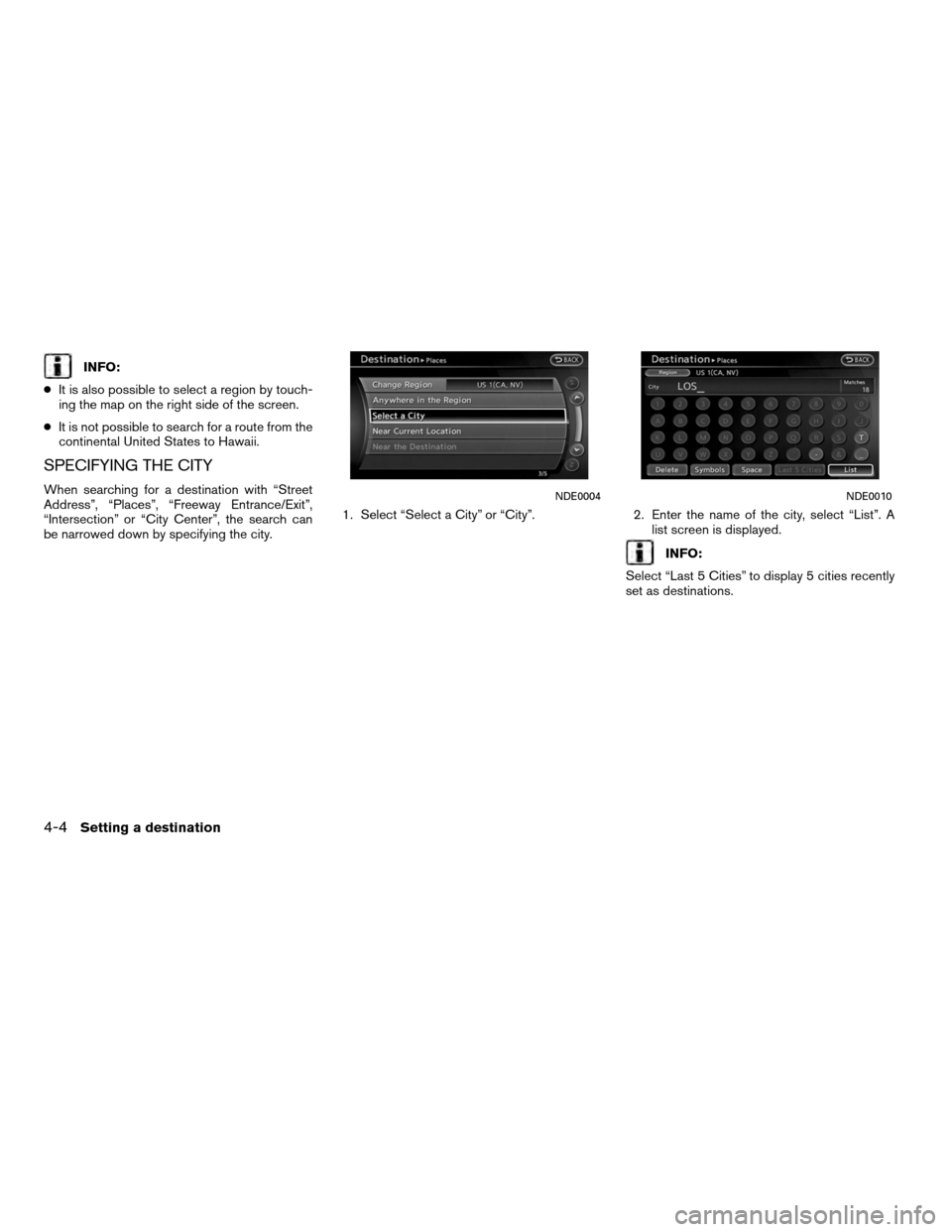

SPECIFYING THE CITY
When searching for a destination with “Street
Address”, “Places”, “Freeway Entrance/Exit”,
“Intersection” or “City Center”, the search can
be narrowed down by specifying the city. 1. Select “Select a City” or “City”.
2. Enter the name of the city, select “List”. A
list screen is displayed.
INFO:
Select “Last 5 Cities” to display 5 cities recently
set as destinations.
NDE0004NDE0010
4-4Setting a destination

3. Select the city of the destination from thelist.
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING AN ADDRESS
When the address of the destination is available,
use this method to enter the address and then
have the system calculate a route. A location
near the preferred destination can also be
searched for by entering the house number if the
map data contains the relevant data. 1. Press DEST and select “Street Address”. A
character input screen is displayed. 2. Enter the house number and select “OK”. If
the house number is not available, select
No House #. A street name input screen is
displayed.
NDE0005NDE0006NDE0007
Setting a destination4-5

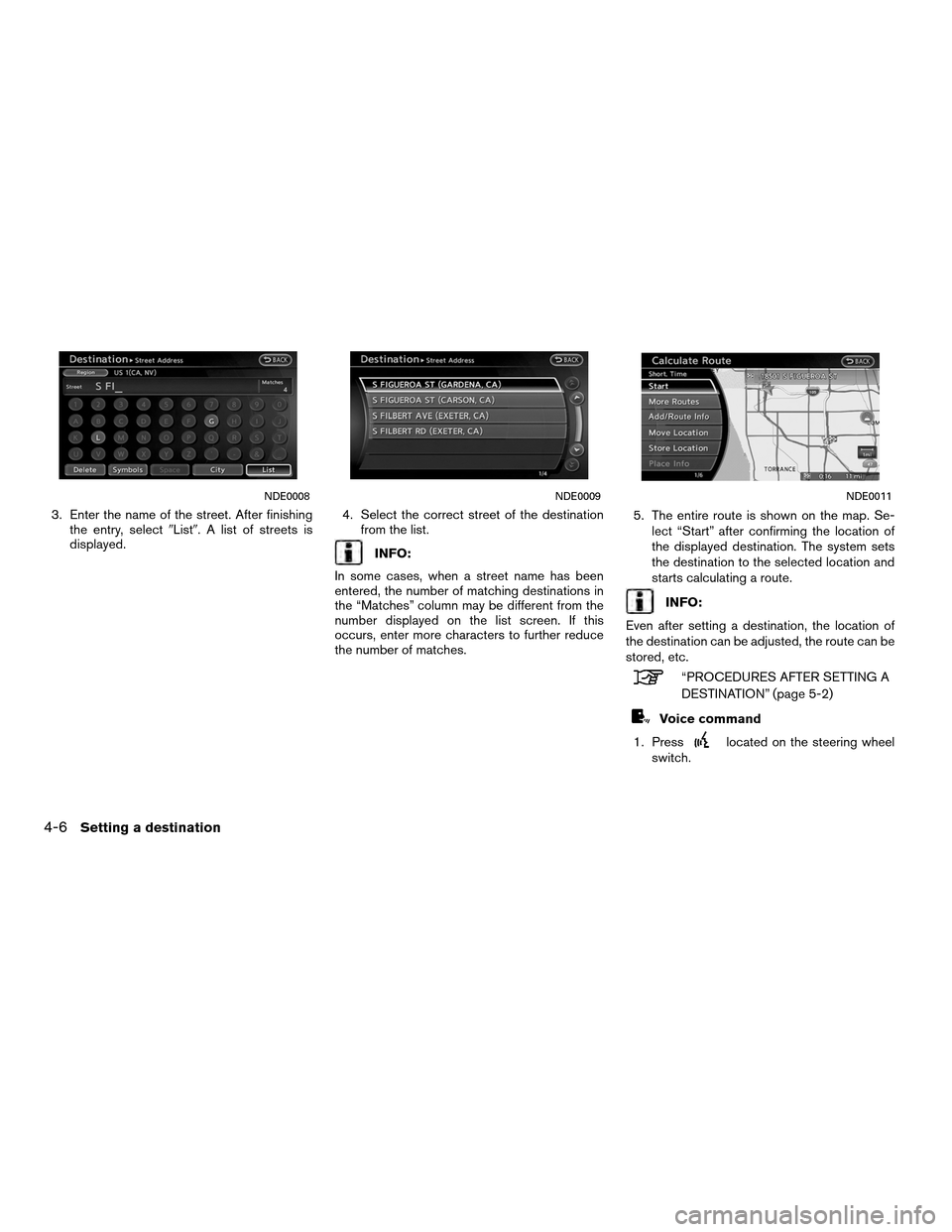

3. Enter the name of the street. After finishingthe entry, select List. A list of streets is
displayed. 4. Select the correct street of the destination
from the list.
INFO:
In some cases, when a street name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination. The system sets
the destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can be
stored, etc.
“PROCEDURES AFTER SETTING A
DESTINATION” (page 5-2)
Voice command
1. Press
located on the steering wheel
switch.
NDE0008NDE0009NDE0011
4-6Setting a destination
