NISSAN ALTIMA COUPE 2013 D32 / 4.G Navigation Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: ALTIMA COUPE, Model: NISSAN ALTIMA COUPE 2013 D32 / 4.GPages: 310, PDF Size: 13.84 MB
Page 241 of 310
5. Speak the name of the state, “California”. 6. Speak the name of the city, “Gardena”. 7. Voice feedback will be provided when thecommand is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
NGT0072NGT0073NGT0093
9-10Voice recognition
Page 242 of 310
9. Speak the name of the street, “SouthFigueroa street”.
INFO:
● Only the official street names stored in the
map database can be recognized by the
system. To improve accuracy, speak the street
name precisely and include Boulevard, Way,
North, South, etc., if known. If unsure of the
full name, speaking only part of the street
name such as “Figueroa” is acceptable, but
recognition accuracy may be reduced.
● To correct the entered city, street or house
number, speak “Change City”, “Change
Street” or “Change House Number”. 10. Voice feedback will be provided when the
command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”. 12. Speak the house number.
“How to speak numbers”
(page 9-26)
INFO:
If the house number is unknown, speak “No
house number”.
NGT0074NGT0075NGT0076
Voice recognition9-11
Page 243 of 310
13. To confirm the destination location on themap, speak “Show map”. To calculate a
route, speak “Calculate route”.
Example 2: Placing a call to the phone
number 800–662–6200 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “Dial Number”.
NGT0077NGT0070NGT0079
9-12Voice recognition
Page 244 of 310

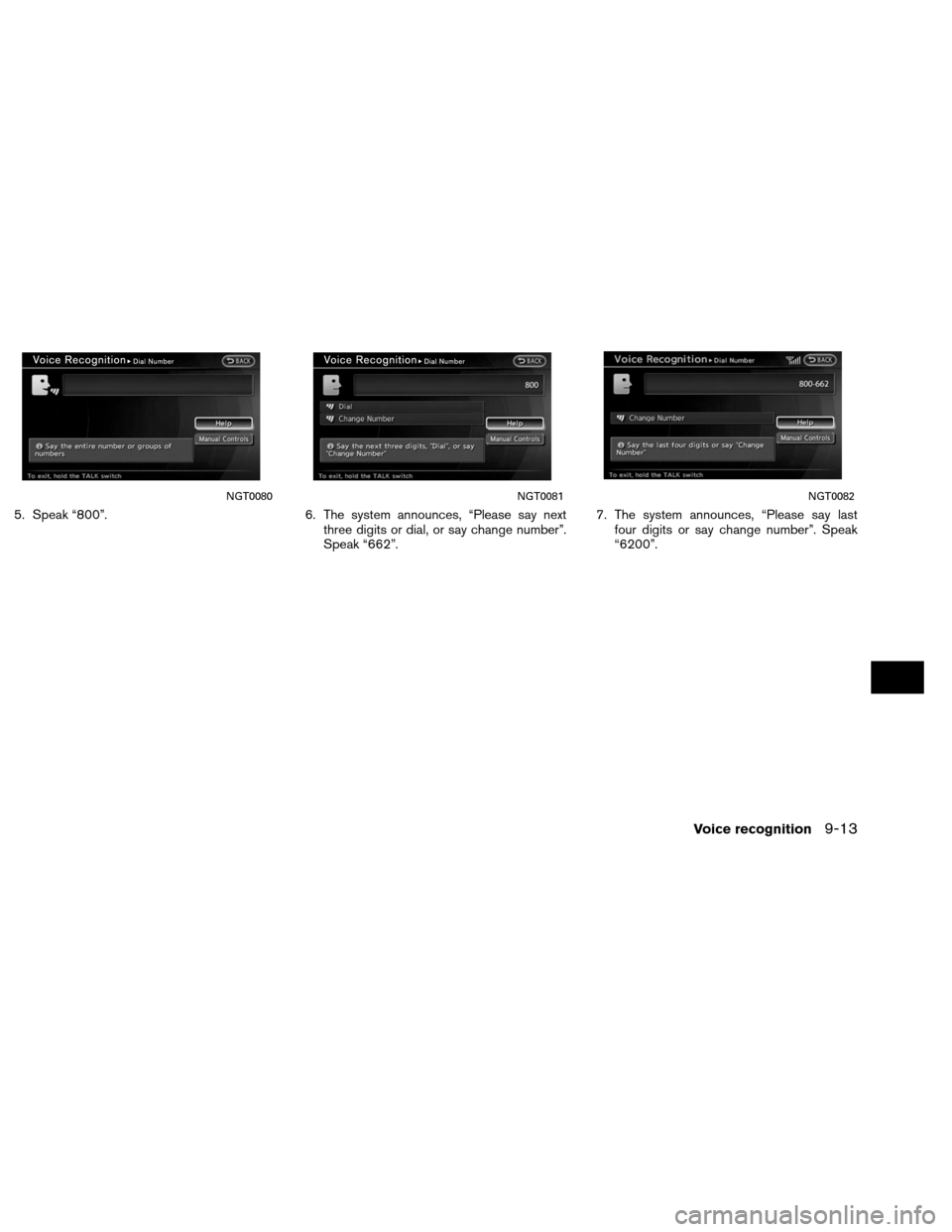

5. Speak “800”.6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”. 7. The system announces, “Please say last
four digits or say change number”. Speak
“6200”.
NGT0080NGT0081NGT0082
Voice recognition9-13
Page 245 of 310
8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.
9. The system makes a call to 800-662-6200.
INFO:
● Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits) is
acceptable, if the area code is not necessary.
However the 3-3-4 digit grouping is recom-
mended for improved recognition.
”How to speak numbers”
(page 9-26)
● The NISSAN voice recognition system is not
limited to recognizing phone numbers of only
7 or 10 digits. To dial a number in a format
other than the 3-3-4 digit grouping, use the
“International Call” command. ●
If “Change Number” is spoken during phone
number entry, the system will automatically re-
quest that the number be repeated using the
3-3-4 format. In this case please say the area
code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize a voice
command, please try repeating the command
using a natural voice. Speaking too slowly or
too loudly may further decrease recognition
performance.
Example 3: Placing an international call to
the phone number 011-81-111-222-3333 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”.
NGT0083NGT0070
9-14Voice recognition
Page 246 of 310

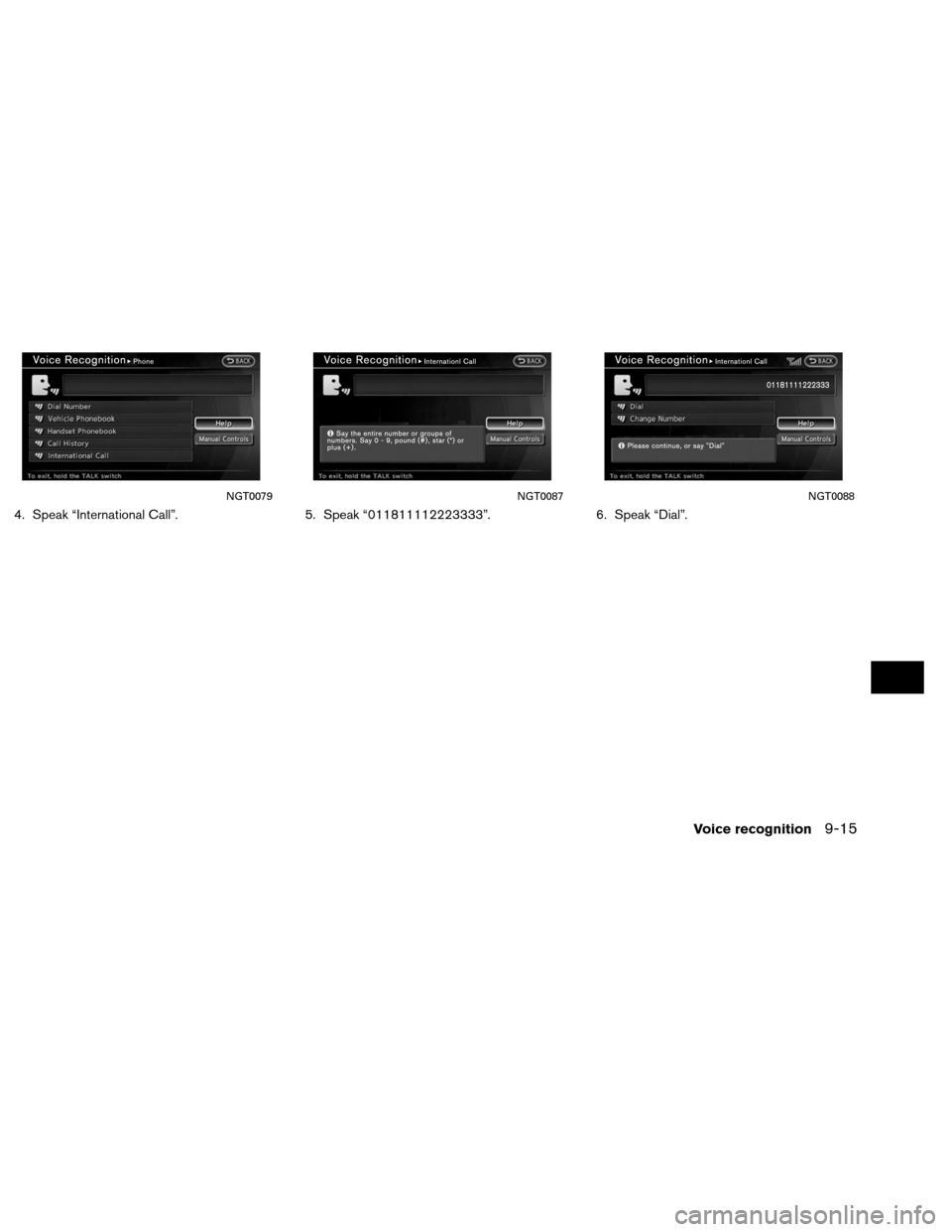

4. Speak “International Call”.5. Speak “011811112223333”.6. Speak “Dial”.
NGT0079NGT0087NGT0088
Voice recognition9-15
Page 247 of 310

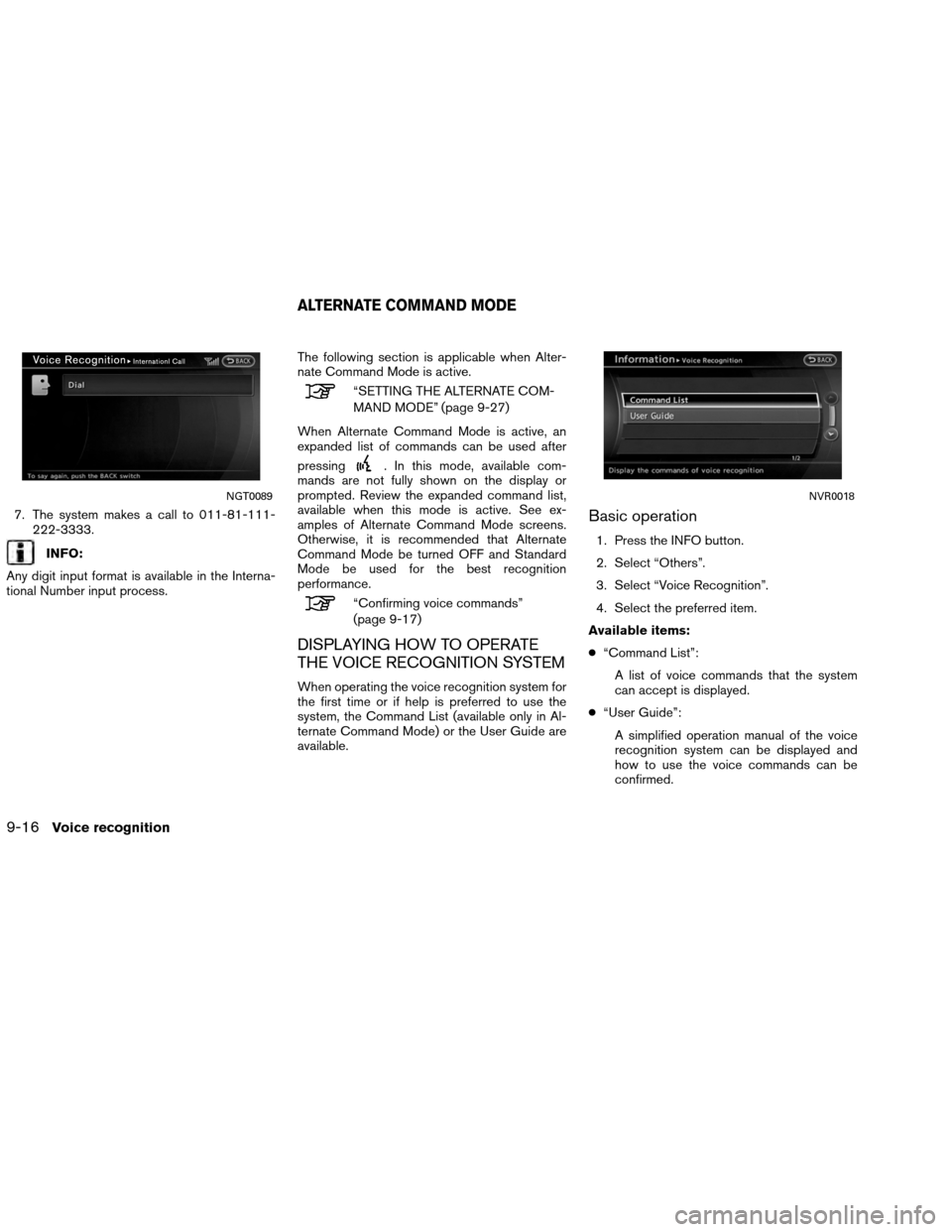

7. The system makes a call to 011-81-111-222-3333.
INFO:
Any digit input format is available in the Interna-
tional Number input process. The following section is applicable when Alter-
nate Command Mode is active.
“SETTING THE ALTERNATE COM-
MAND MODE” (page 9-27)
When Alternate Command Mode is active, an
expanded list of commands can be used after
pressing
. In this mode, available com-
mands are not fully shown on the display or
prompted. Review the expanded command list,
available when this mode is active. See ex-
amples of Alternate Command Mode screens.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition
performance.
“Confirming voice commands”
(page 9-17)
DISPLAYING HOW TO OPERATE
THE VOICE RECOGNITION SYSTEM
When operating the voice recognition system for
the first time or if help is preferred to use the
system, the Command List (available only in Al-
ternate Command Mode) or the User Guide are
available.
Basic operation
1. Press the INFO button.
2. Select “Others”.
3. Select “Voice Recognition”.
4. Select the preferred item.
Available items:
● “Command List”:
A list of voice commands that the system
can accept is displayed.
● “User Guide”:
A simplified operation manual of the voice
recognition system can be displayed and
how to use the voice commands can be
confirmed.
NGT0089NVR0018
ALTERNATE COMMAND MODE
9-16Voice recognition
Page 248 of 310
INFO:
The Command List feature is only available when
Alternate Command Mode is active.
Confirming voice commands
When controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm using the voice
command lists.
The following information describes how to dis-
play the navigation command list and the help
list. For information about the operations of other
functions, refer to the vehicle Owner’s Manual.
Example: Displaying the navigation com-
mand list: 1. Press INFO.
2. Select “Others”.
3. Select “Voice Recognition”. 4. Select “Command List”. 5. Select the preferred item.
Available items:
●Phone Commands
● Navigation Commands
● Information Commands
● Audio Commands
● Help Commands
NVR0018NVR0019
Voice recognition9-17
Page 249 of 310

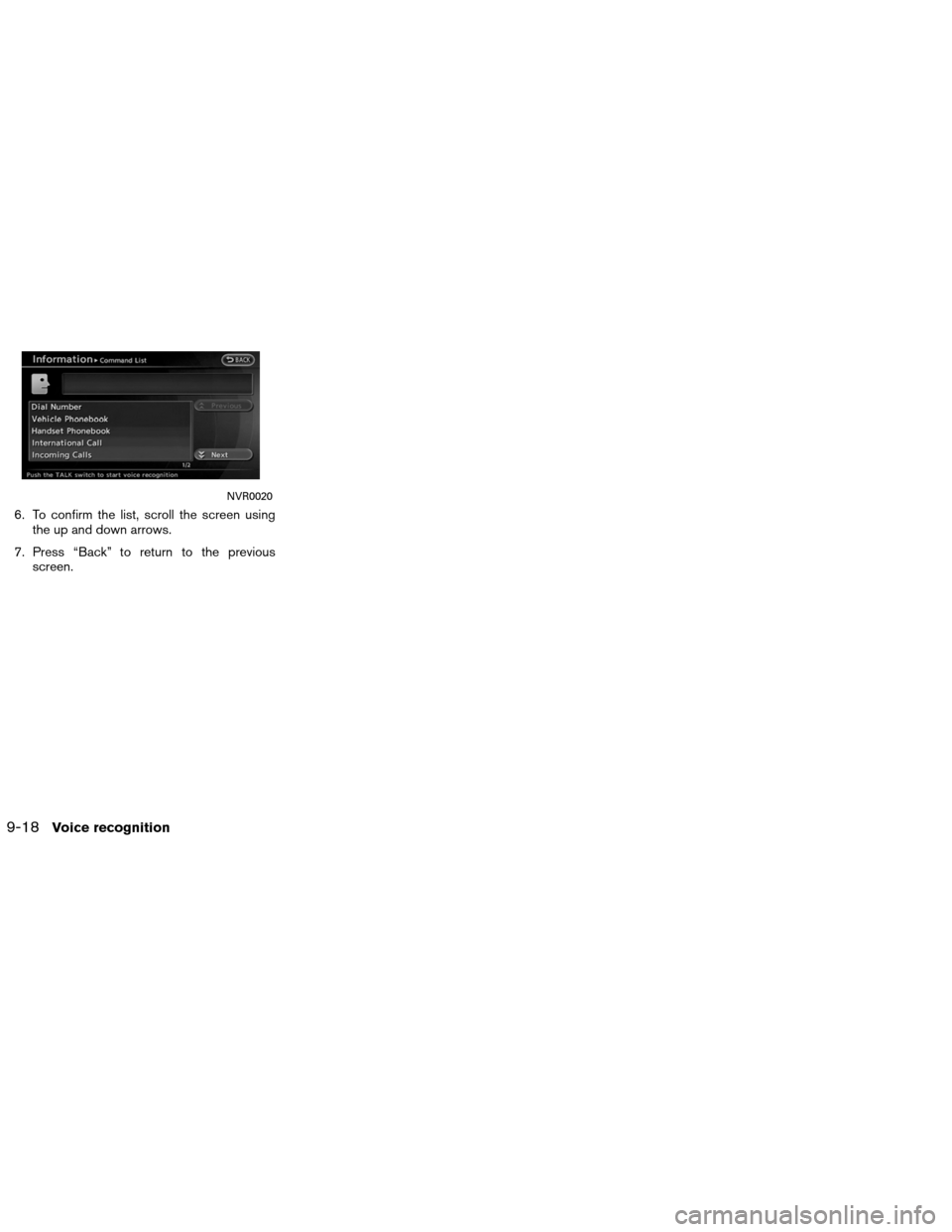

6. To confirm the list, scroll the screen usingthe up and down arrows.
7. Press “Back” to return to the previous screen.
NVR0020
9-18Voice recognition
Page 250 of 310
Command list
NAVIGATIONCOMMAND ACTION
Destination Home Sets a route to your home location.
Address (if so equipped) Sets a route to the street address that you specify.
Places Sets a route to a facility near the current vehicle location
Address Book Sets a route to a location stored in the Address Book.
Previous Destinations Sets a route to a previously entered destination.
Previous Start Point Sets a route to the previous starting point.
Minimize Freeway Route Sets the route search condition to minimize the usage of freeways.
Fastest Route Sets the route search condition to find the fastest time.
Shortest Route Sets the route search condition to find the shortest distance.
Cancel Route Stops the current route but can be resumed by using “Route”.
Delete Destination Deletes the entire route (destination and waypoints) .
Birdview ™ Map Displays the map in Birdview™(3D) .
Planview Map Displays the map in Plan View (2D) .
North Up Locks the map to make North always point up.
Heading Up Locks the vehicle indicator to make it always point up.
Zoom In <1 to 13> Increases the magnification of the map by the number of steps specified.
Zoom Out <1 to 13> Decreases the magnification of the map by the number of steps specified.
Voice Guidance On/Off Turns the navigation guidance on and off.
Guidance Voice Repeat Speaks the current navigation guidance.
INFO:
The words in italics are variable.
Voice recognition9-19
