NISSAN ALTIMA COUPE 2013 D32 / 4.G Navigation Manual

®
2013 ALTIMA COUPE
NAVIGATION SYSTEM OWNER’S MANUAL
For your safety, read carefully and keep in this vehicle.
Printing: June 2012 (09)
Publication No.: NA0E-0L32U0 Printed in U.S.A.
L32-N
2013 NISSAN ALTIMA COUPE NAVIGATION
SYSTE M
L32-N
NA3E 0L32U0

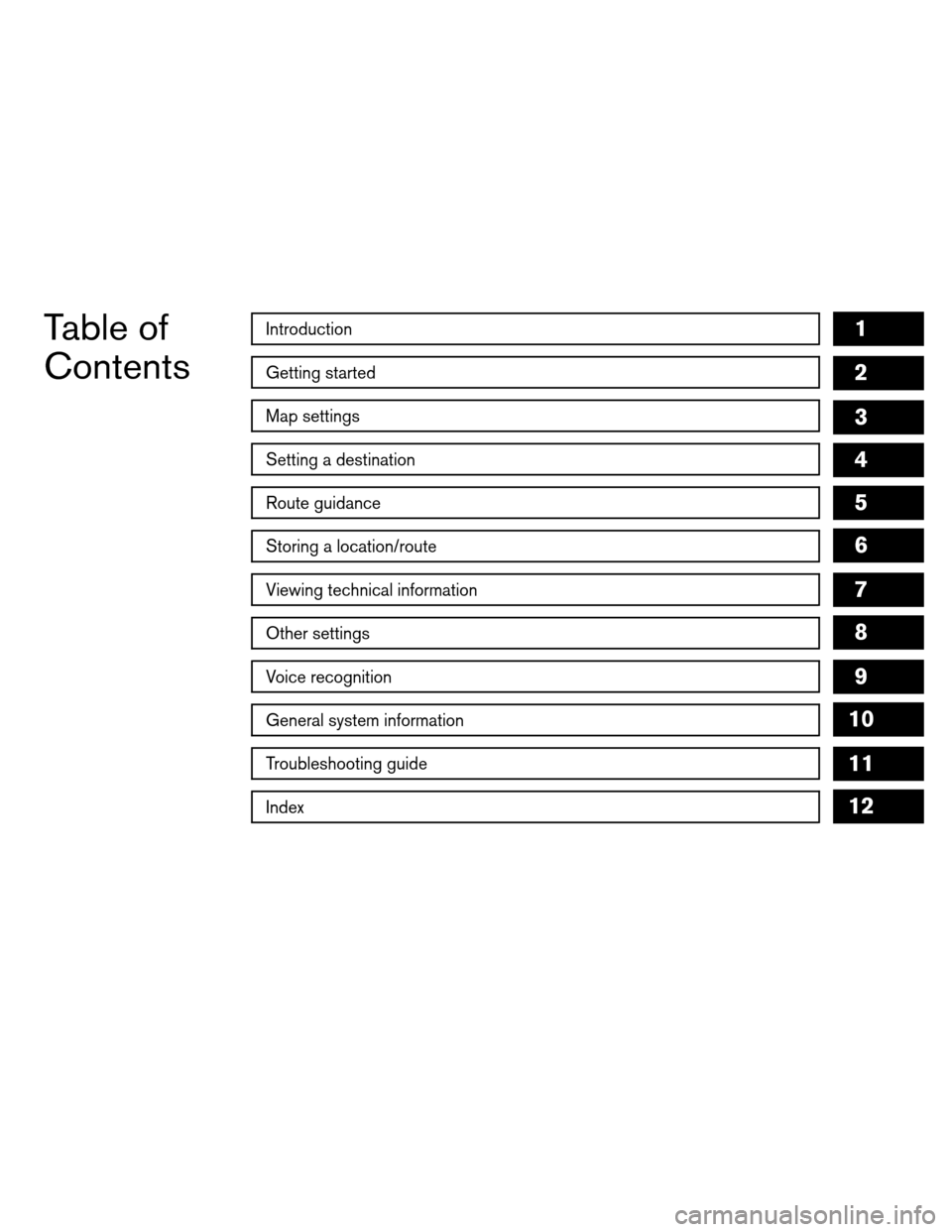

Table of
ContentsIntroduction
Getting started
Map settings
Setting a destination
Route guidance
Storing a location/route
Viewing technical information
Other settings
Voice recognition
General system information
Troubleshooting guide
Index
1
2
3
4
5
6
7
8
9
10
11
12

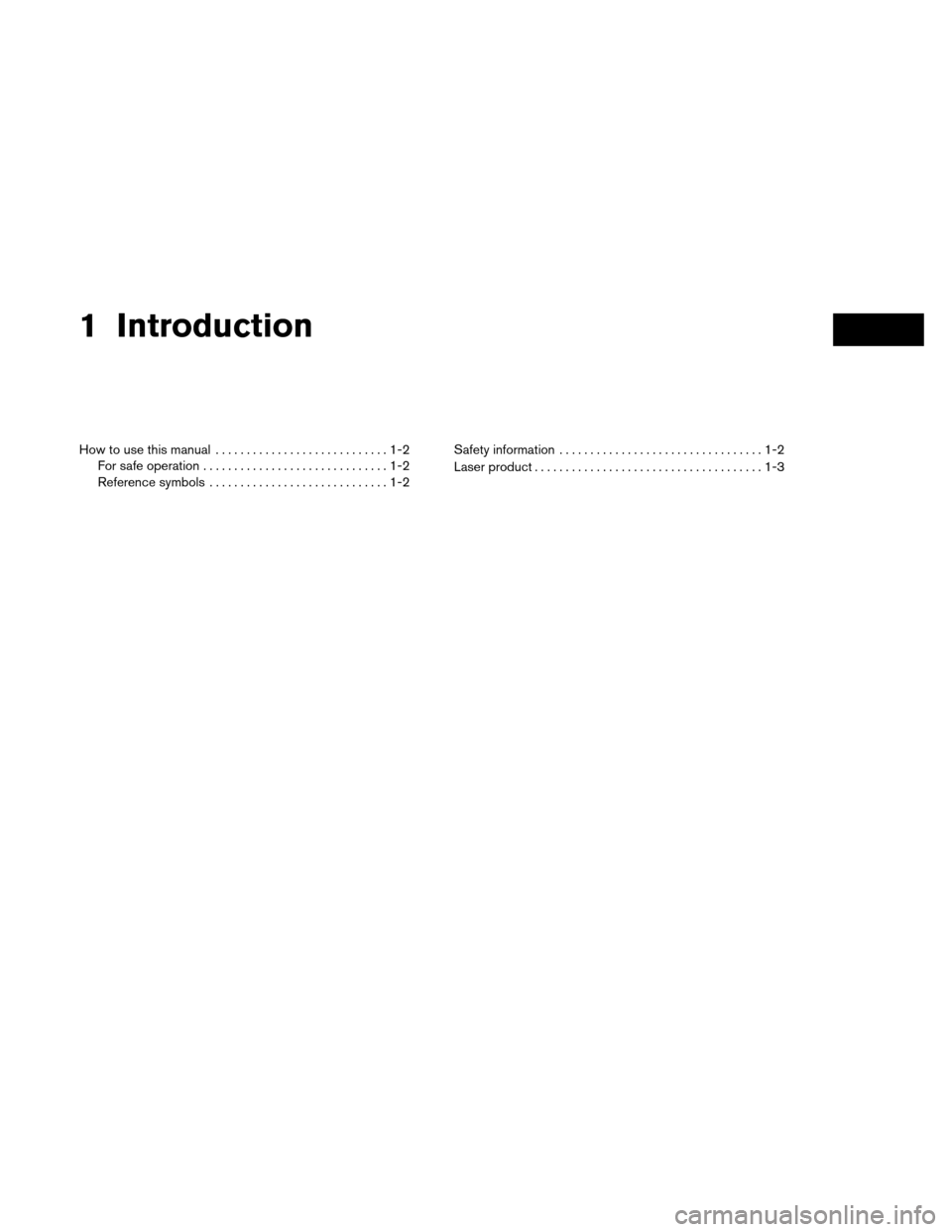

1 Introduction
How to use this manual............................1-2
For safe operation ..............................1-2
Reference symbols .............................1-2 Safety information
.................................1-2
Laser product .....................................1-3

This manual uses special words, symbols and
icons that are organized by function.
Please refer to the following items to understand
how to use this manual properly.
FOR SAFE OPERATION
mWARNING
Indicates the presence of a hazard that
could cause death or serious personal
injury. To avoid or reduce the risk, the
procedures must be followed precisely.
CAUTION
Indicates the presence of a hazard that
could cause minor or moderate per-
sonal injury or damage to your vehicle.
To avoid or reduce the risk, the proce-
dures must be followed carefully.
NOTE:
Indicates items that help you understand
and maximize the performance of your
vehicle. If ignored, they may lead to a mal-
function or poor performance.
REFERENCE SYMBOLS
INFO:
Indicates information that is necessary for effi-
cient use of your vehicle or accessories.
Reference page:
Indicates the title and page that you should refer
to.
NAV:
This is an example of how a button on the control
panel will be shown.
“Route”:
This is an example of a key/item displayed on the
screen.
Voice Command:
This indicates an operation by voice command. This system is primarily designed to help you
reach your destination, and it also performs other
functions as outlined in this manual. However,
you, the driver, must use the system safely and
properly. Information concerning road
conditions, traffic signs and the availability of
services may not always be up-to-date. The sys-
tem is not a substitute for safe, proper and legal
driving.
Before using the navigation system, please read
the following safety information. Always use the
system as outlined in this manual.
mWARNING
●
To operate the navigation system,
first park the vehicle in a safe loca-
tion and set the parking brake. Oper-
ating the system while driving can
distract the driver and may result in a
serious accident.
● Do not rely on route guidance alone.
Always be sure that all driving ma-
neuvers are legal and safe in order to
avoid accidents.
● Do not disassemble or modify this
system. If you do, it may result in
accidents, fire or electrical shock.
HOW TO USE THIS MANUAL SAFETY INFORMATION
1-2Introduction

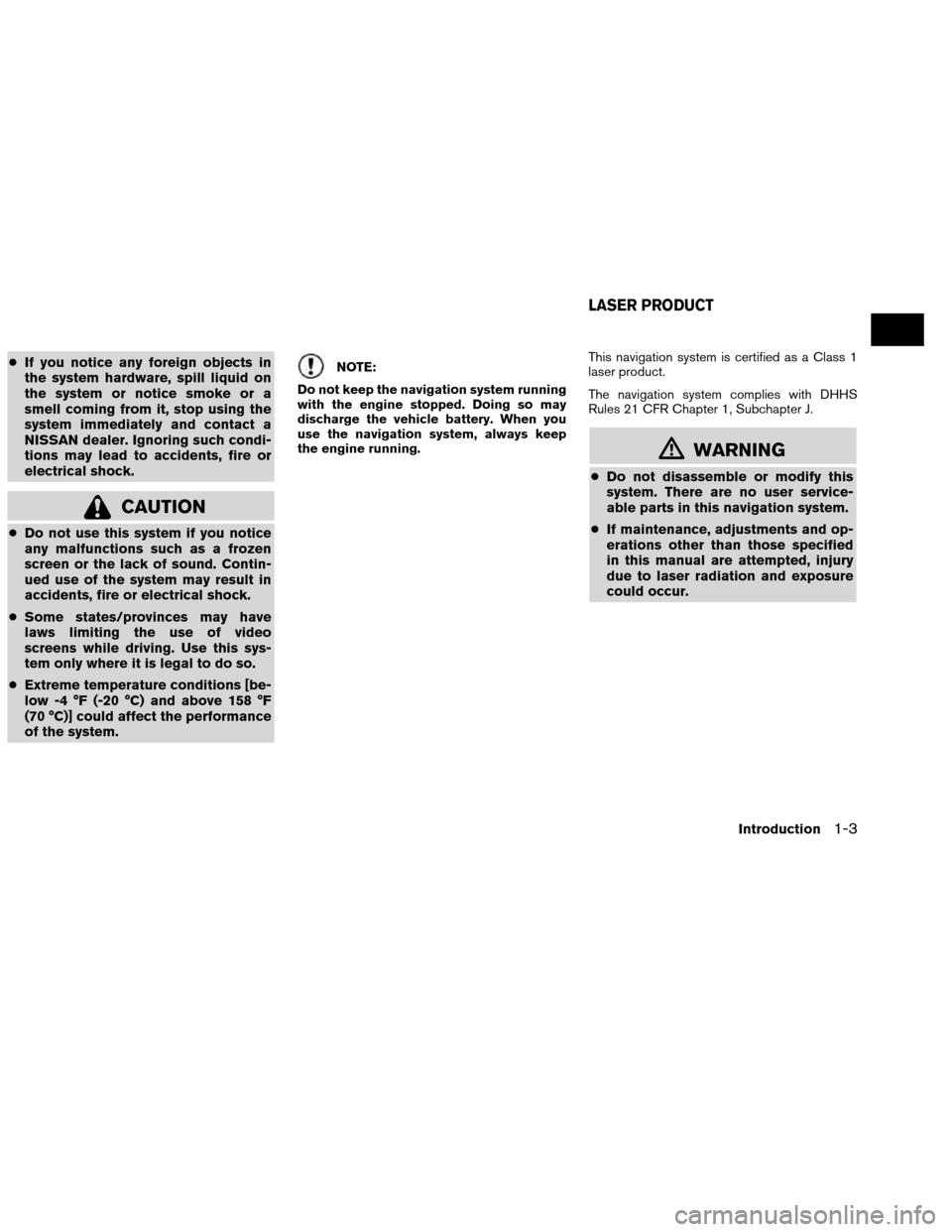

●If you notice any foreign objects in
the system hardware, spill liquid on
the system or notice smoke or a
smell coming from it, stop using the
system immediately and contact a
NISSAN dealer. Ignoring such condi-
tions may lead to accidents, fire or
electrical shock.
CAUTION
●Do not use this system if you notice
any malfunctions such as a frozen
screen or the lack of sound. Contin-
ued use of the system may result in
accidents, fire or electrical shock.
● Some states/provinces may have
laws limiting the use of video
screens while driving. Use this sys-
tem only where it is legal to do so.
● Extreme temperature conditions [be-
low -4 °F (-20 °C) and above 158 °F
(70 °C)] could affect the performance
of the system.
NOTE:
Do not keep the navigation system running
with the engine stopped. Doing so may
discharge the vehicle battery. When you
use the navigation system, always keep
the engine running. This navigation system is certified as a Class 1
laser product.
The navigation system complies with DHHS
Rules 21 CFR Chapter 1, Subchapter J.
mWARNING
●
Do not disassemble or modify this
system. There are no user service-
able parts in this navigation system.
● If maintenance, adjustments and op-
erations other than those specified
in this manual are attempted, injury
due to laser radiation and exposure
could occur.
LASER PRODUCT
Introduction1-3

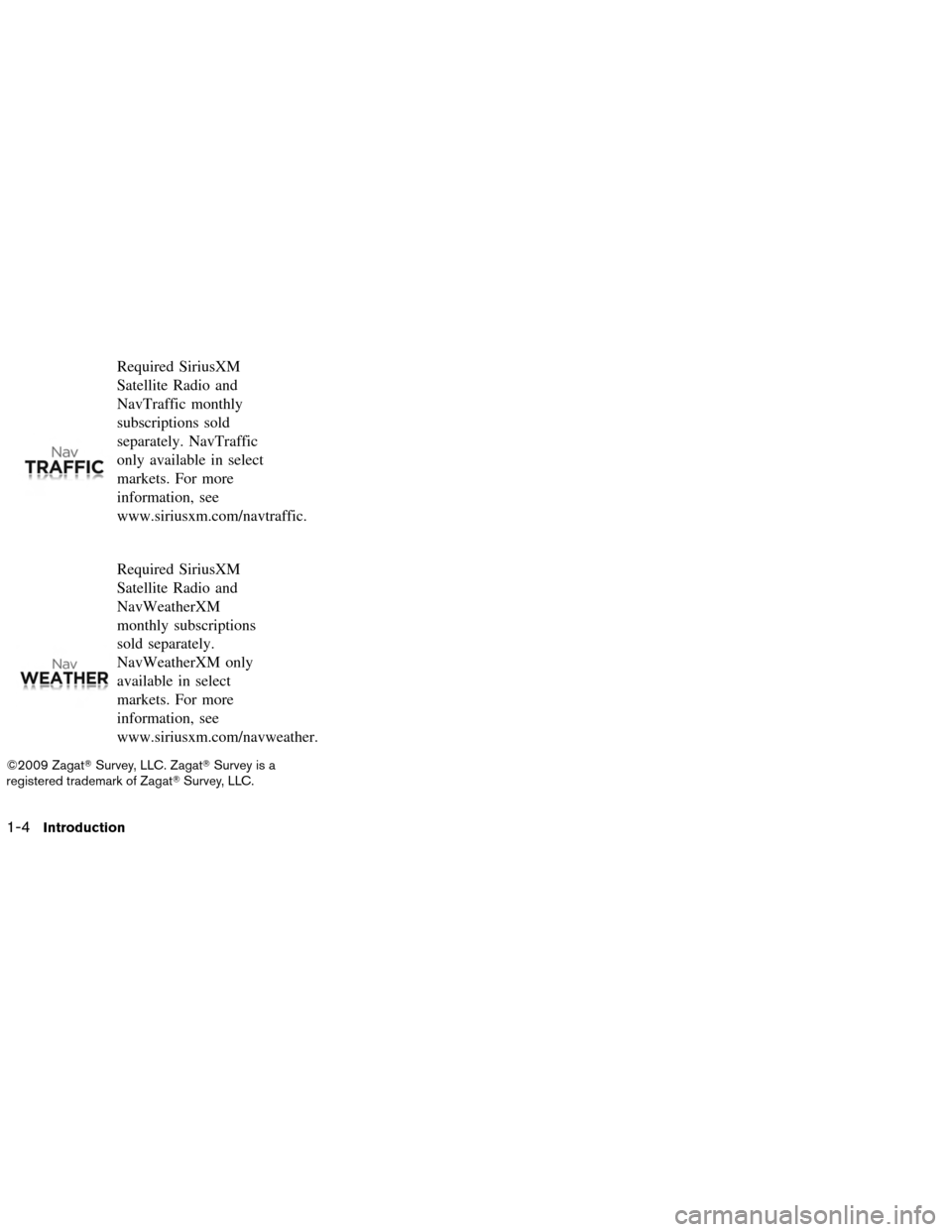

Required SiriusXM
Satellite Radio and
NavTraffic monthly
subscriptions sold
separately. NavTraffic
only available in select
markets. For more
information, see
www.siriusxm.com/navtraffic.
Required SiriusXM
Satellite Radio and
NavWeatherXM
monthly subscriptions
sold separately.
NavWeatherXM only
available in select
markets. For more
information, see
www.siriusxm.com/navweather.
©2009 ZagatSurvey, LLC. Zagat Survey is a
registered trademark of Zagat Survey, LLC.
1-4Introduction

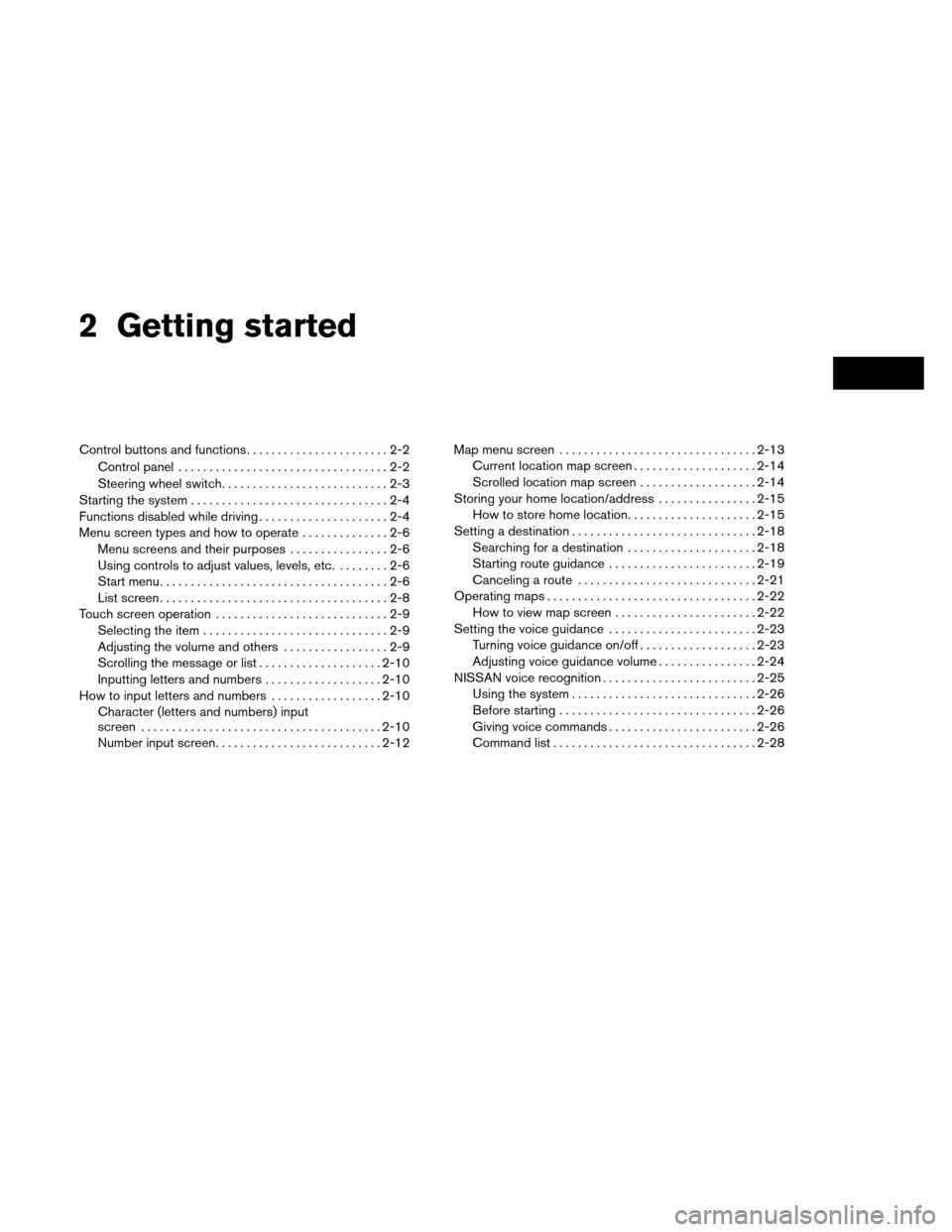

2 Getting started
Control buttons and functions.......................2-2
Control panel ..................................2-2
Steering wheel switch ...........................2-3
Starting the system ................................2-4
Functions disabled while driving . . . ..................2-4
Menu screen types and how to operate ..............2-6
Menu screens and their purposes ................2-6
Using controls to adjust values, levels, etc. ........2-6
Start menu .....................................2-6
List screen .....................................2-8
Touch screen operation ............................2-9
Selecting the item . . ............................2-9
Adjusting the volume and others .................2-9
Scrolling the message or list ....................2-10
Inputting letters and numbers ...................2-10
How to input letters and numbers ..................2-10
Character (letters and numbers) input
screen ....................................... 2-10
Number input screen ........................... 2-12Map menu screen
................................ 2-13
Current location map screen ....................2-14
Scrolled location map screen . . .................2-14
Storing your home location/address ................2-15
How to store home location .....................2-15
Setting a destination .............................. 2-18
Searching for a destination .....................2-18
Starting route guidance ........................ 2-19
Canceling a route ............................. 2-21
Operating maps .................................. 2-22
How to view map screen .......................2-22
Setting the voice guidance ........................2-23
Turning voice guidance on/off . . .................2-23
Adjusting voice guidance volume ................2-24
NISSAN voice recognition ......................... 2-25
Using the system .............................. 2-26
Before starting ................................ 2-26
Giving voice commands ........................ 2-26
Command list ................................. 2-28

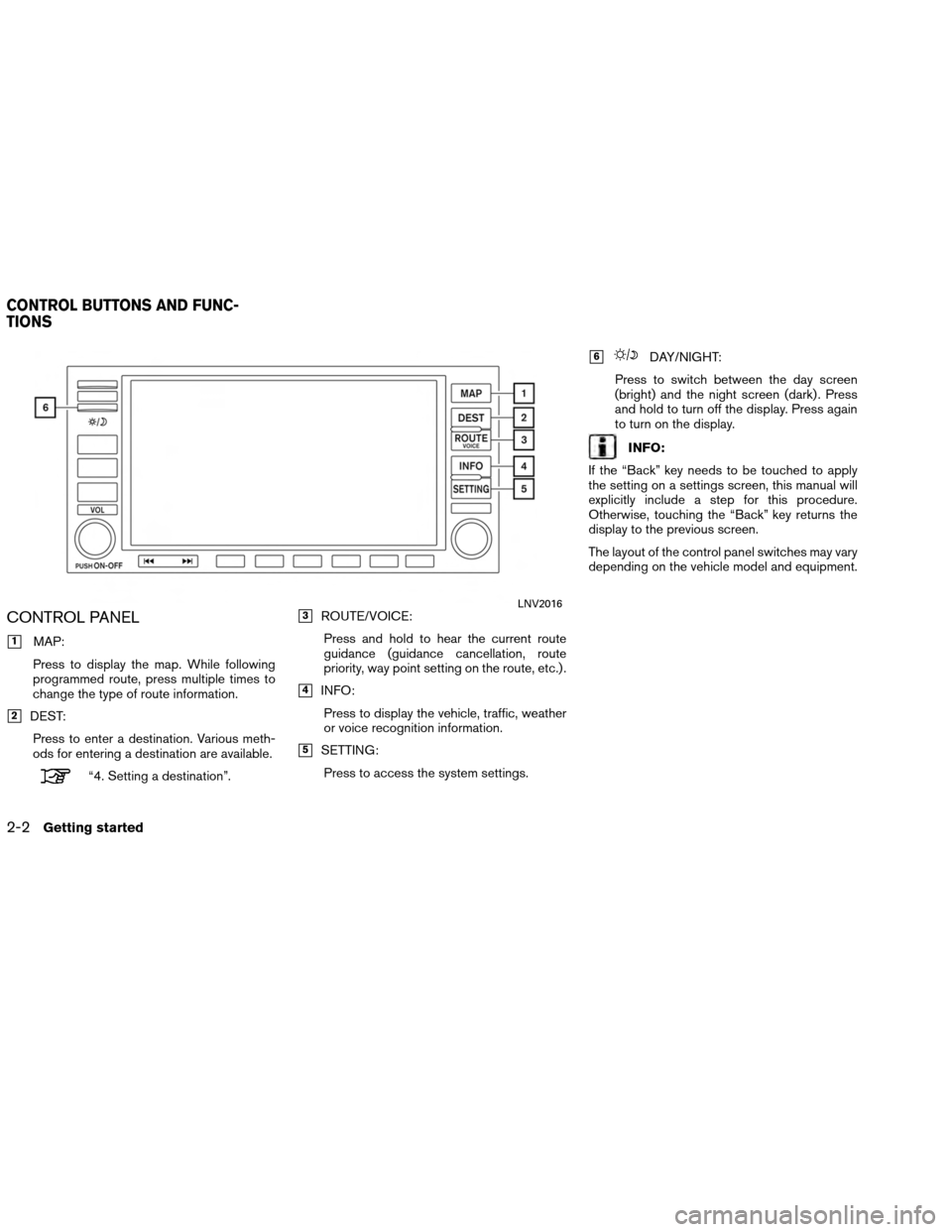

CONTROL PANEL
1MAP:
Press to display the map. While following
programmed route, press multiple times to
change the type of route information.
2DEST: Press to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting a destination”.
3ROUTE/VOICE:Press and hold to hear the current route
guidance (guidance cancellation, route
priority, way point setting on the route, etc.) .
4INFO:Press to display the vehicle, traffic, weather
or voice recognition information.
5SETTING:Press to access the system settings.
6DAY/NIGHT:
Press to switch between the day screen
(bright) and the night screen (dark) . Press
and hold to turn off the display. Press again
to turn on the display.
INFO:
If the “Back” key needs to be touched to apply
the setting on a settings screen, this manual will
explicitly include a step for this procedure.
Otherwise, touching the “Back” key returns the
display to the previous screen.
The layout of the control panel switches may vary
depending on the vehicle model and equipment.
LNV2016
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

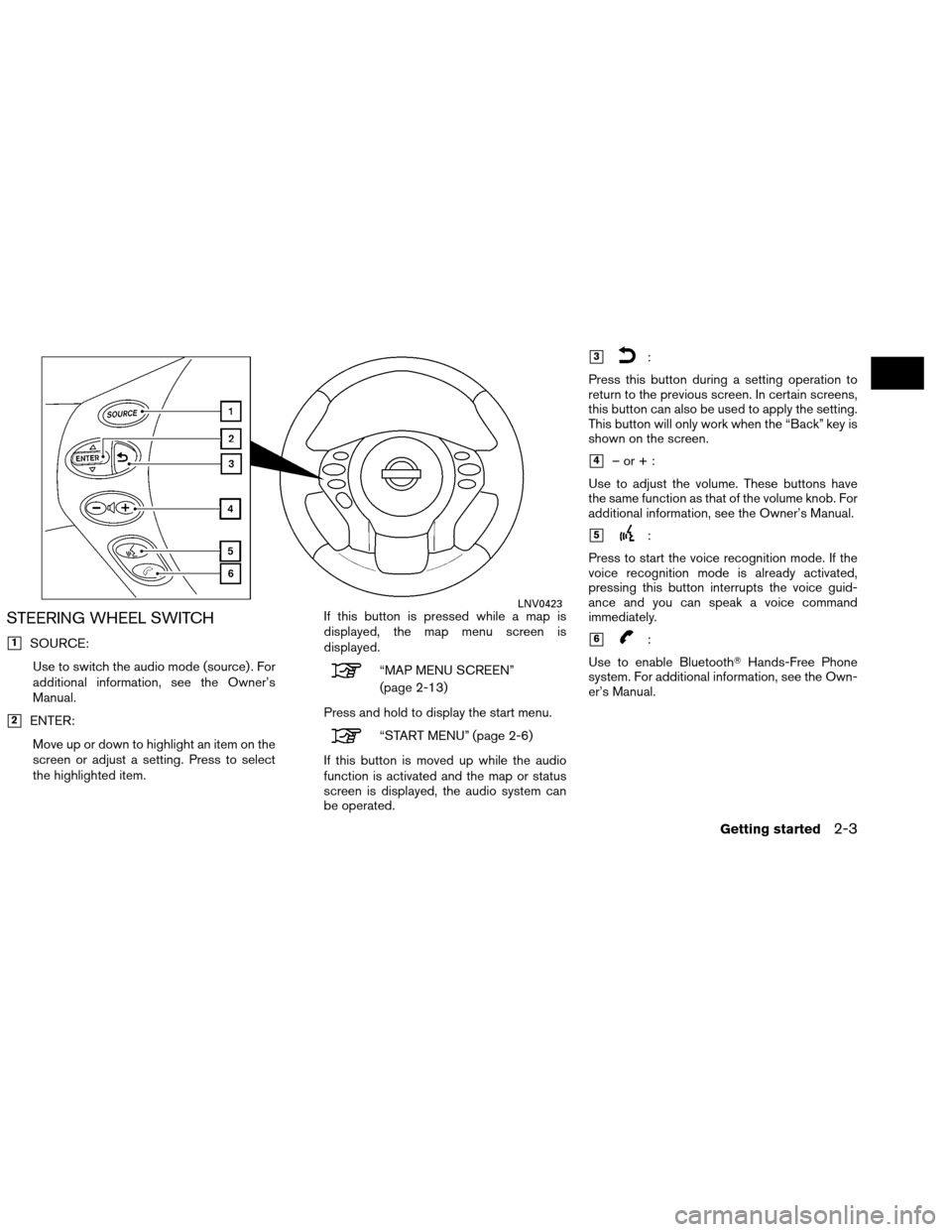

STEERING WHEEL SWITCH
1SOURCE:Use to switch the audio mode (source) . For
additional information, see the Owner’s
Manual.
2ENTER:Move up or down to highlight an item on the
screen or adjust a setting. Press to select
the highlighted item. If this button is pressed while a map is
displayed, the map menu screen is
displayed.
“MAP MENU SCREEN”
(page 2-13)
Press and hold to display the start menu.
“START MENU” (page 2-6)
If this button is moved up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
3:
Press this button during a setting operation to
return to the previous screen. In certain screens,
this button can also be used to apply the setting.
This button will only work when the “Back” key is
shown on the screen.
4–or+:
Use to adjust the volume. These buttons have
the same function as that of the volume knob. For
additional information, see the Owner’s Manual.
5:
Press to start the voice recognition mode. If the
voice recognition mode is already activated,
pressing this button interrupts the voice guid-
ance and you can speak a voice command
immediately.
6:
Use to enable Bluetooth Hands-Free Phone
system. For additional information, see the Own-
er’s Manual.
LNV0423
Getting started2-3
