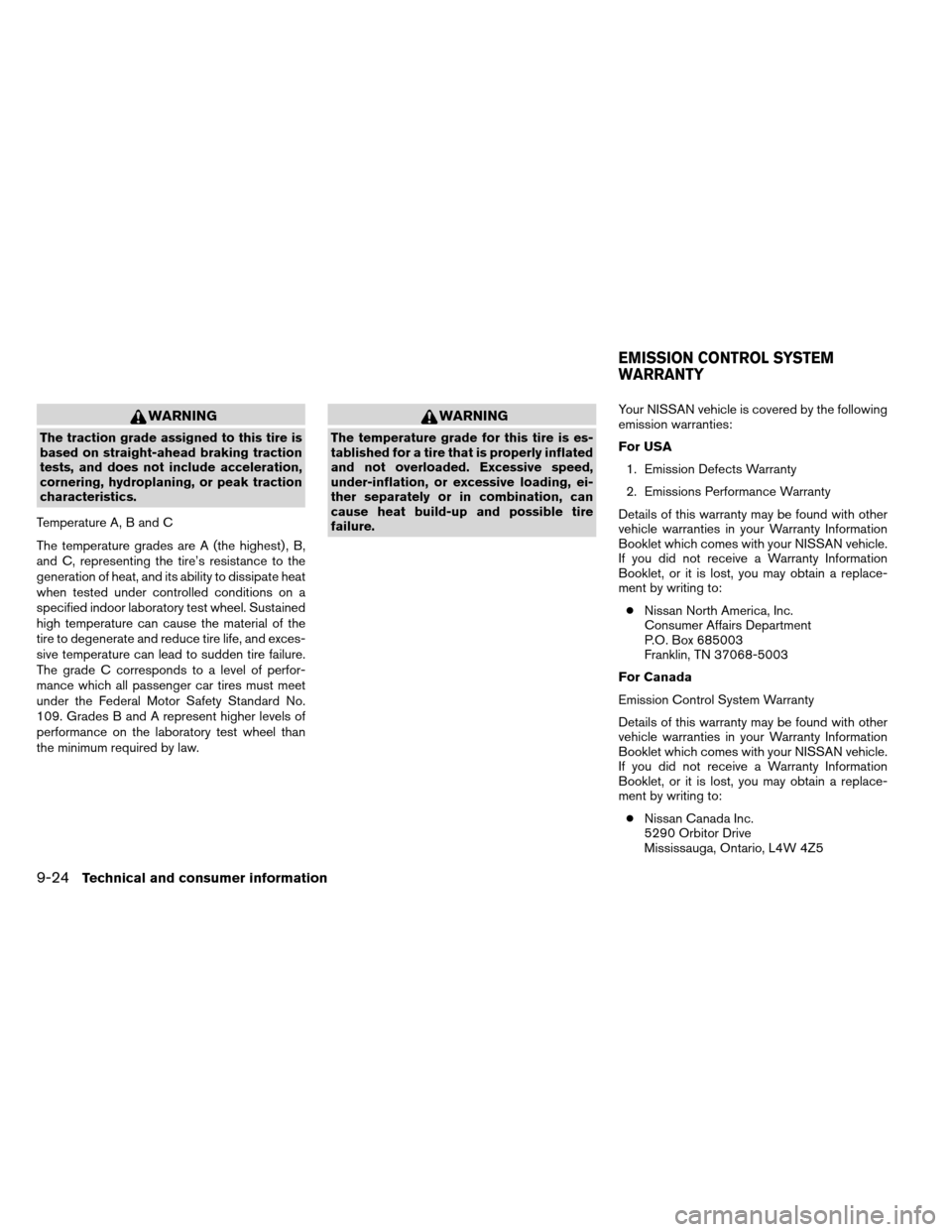

WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest) , B,
and C, representing the tire’s resistance to the
generation of heat, and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Safety Standard No.
109. Grades B and A represent higher levels of
performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure. Your NISSAN vehicle is covered by the following
emission warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to: ● Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
9-24Technical and consumer information
Page 402 of 414

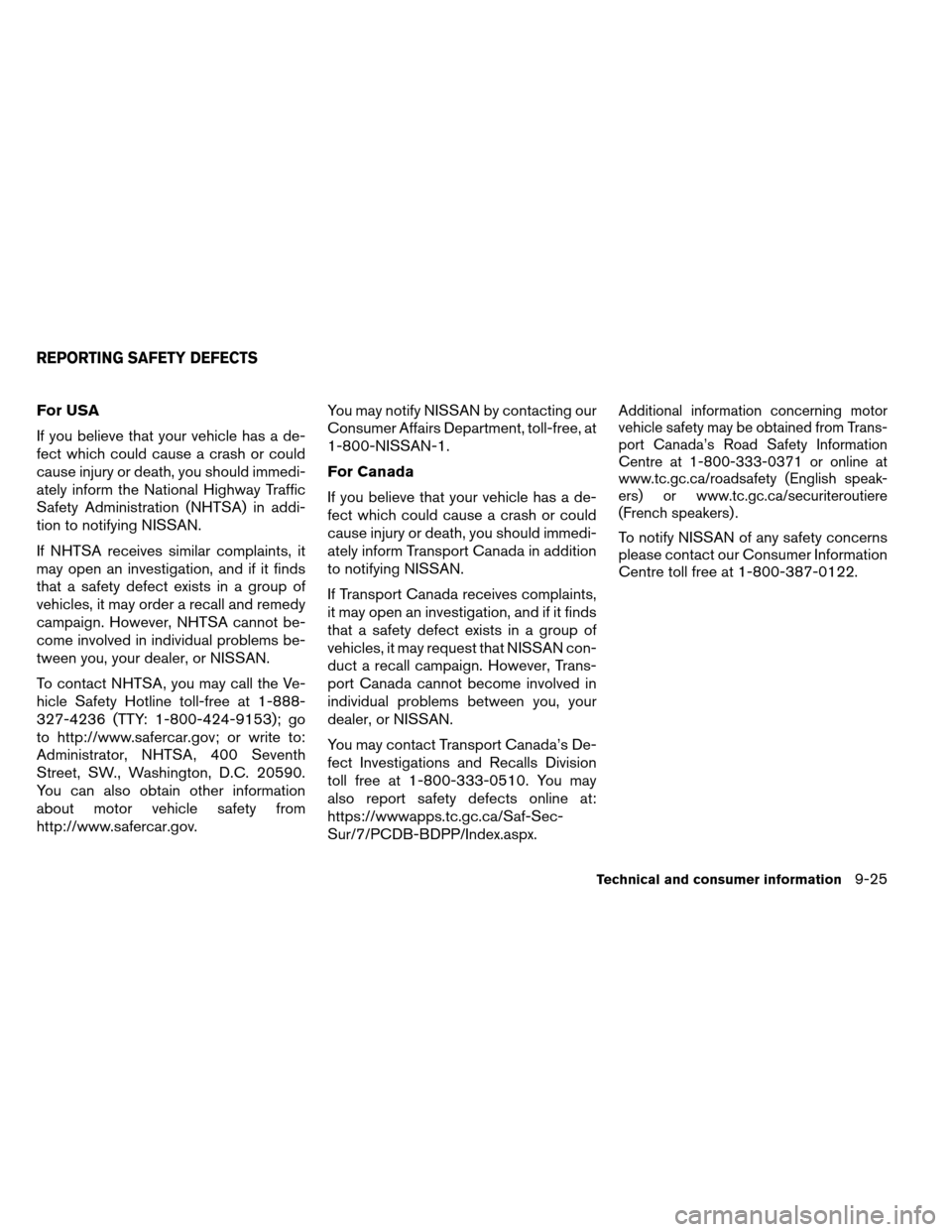

For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying NISSAN.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN con-
duct a recall campaign. However, Trans-
port Canada cannot become involved in
individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/Index.aspx.Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
REPORTING SAFETY DEFECTS
Technical and consumer information9-25
Page 403 of 414

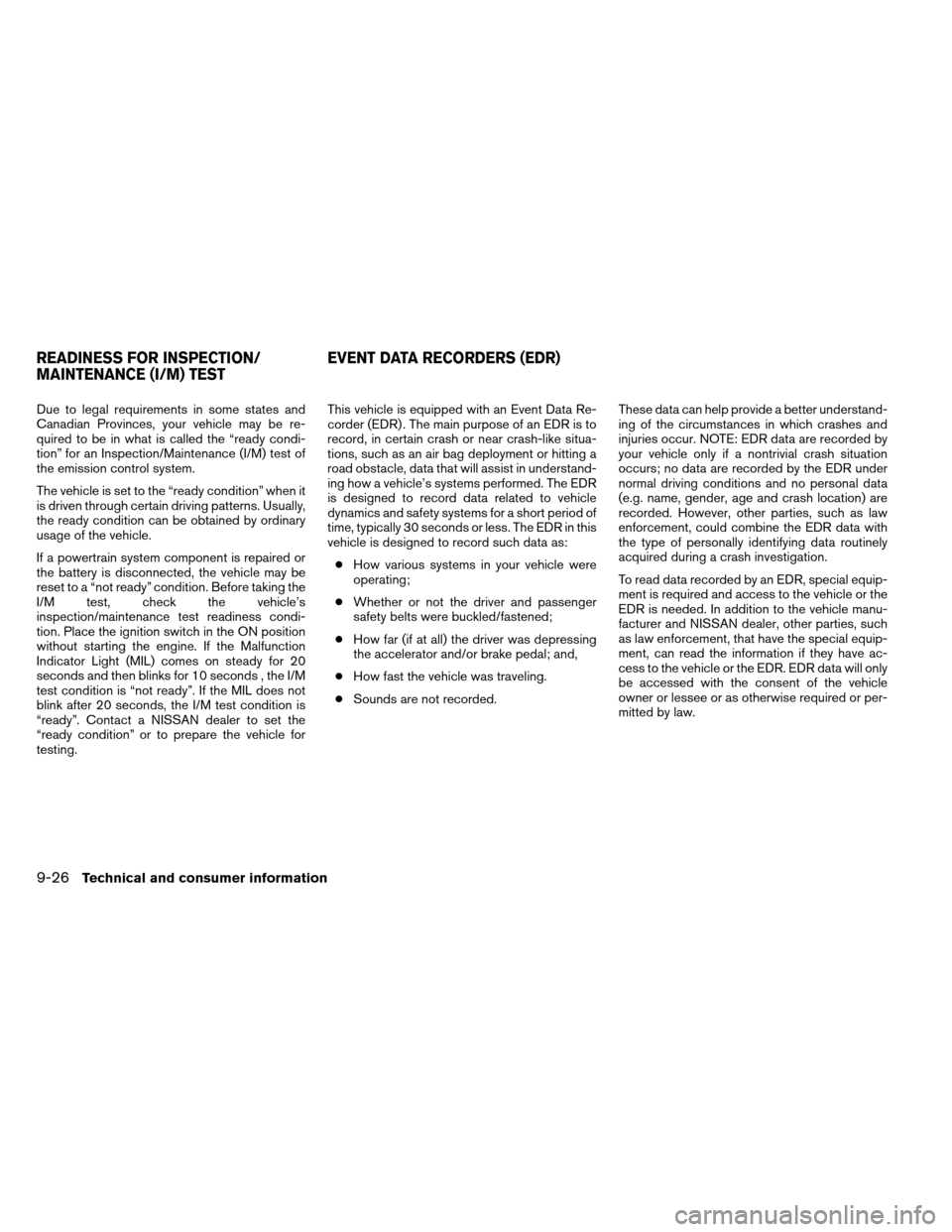

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds , the I/M
test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the
“ready condition” or to prepare the vehicle for
testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
9-26Technical and consumer information
Page 404 of 414

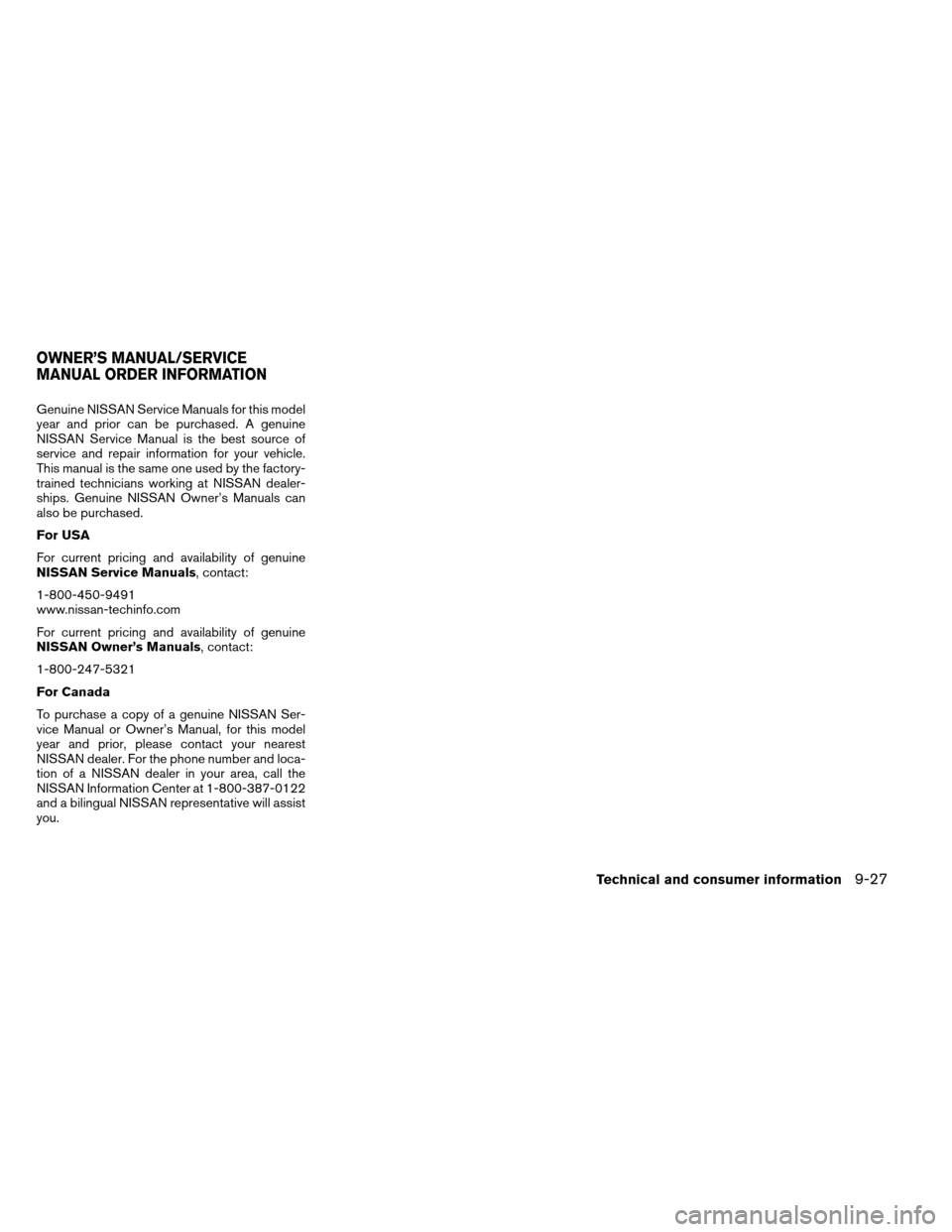

Genuine NISSAN Service Manuals for this model
year and prior can be purchased. A genuine
NISSAN Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at NISSAN dealer-
ships. Genuine NISSAN Owner’s Manuals can
also be purchased.
For USA
For current pricing and availability of genuine
NISSAN Service Manuals, contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a genuine NISSAN Ser-
vice Manual or Owner’s Manual, for this model
year and prior, please contact your nearest
NISSAN dealer. For the phone number and loca-
tion of a NISSAN dealer in your area, call the
NISSAN Information Center at 1-800-387-0122
and a bilingual NISSAN representative will assist
you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information9-27
Page 405 of 414

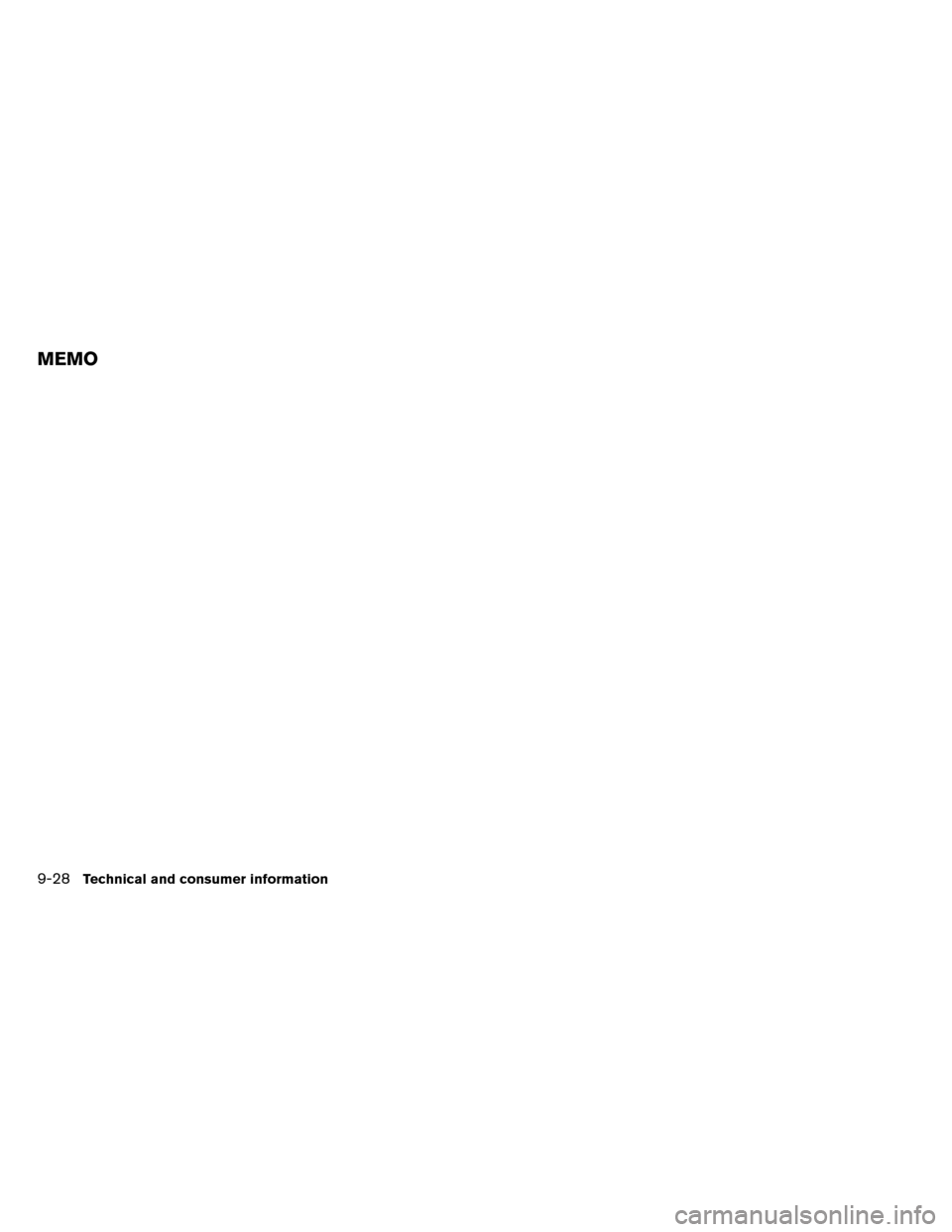

MEMO
9-28Technical and consumer information
Page 406 of 414
10 Index
A
ABS (Anti-lock Braking System) ........5-23
Air bag (See supplemental restraint
system) .....................1-38
Air bag system Front (See supplemental front impact
air bag system) ...............1-46
Air bag warning light ...........1-52, 2-14
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ..........4-21
Air conditioner service ...........4-28
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner
controls ................4-18, 4-26
Servicing air conditioner ..........4-28
Air flow charts ..................4-22
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-24
Antenna .....................4-83
Anti-lock brake warning light ..........2-11
Anti-lock Braking System (ABS) ........5-23
Audible reminders ...............2-16
Audio system ..................4-29
Bluetooth audio..............4-76
Compact disc
(CD) player .......4-46, 4-52, 4-58, 4-64 FM-AM radio with compact disc
(CD) player
.................4-44
FM/AM/SAT radio with CD/DVD player . .4-54
FM/AM/SAT radio with compact disc
(CD) player .................4-48
Audio System iPod Player .............4-71, 4-73
Audio system Radio ....................4-29
Audio System Settings ...................4-55
Audio system USB interface ............4-66, 4-68
Autolight switch .................2-31
Automatic Automatic power window switch .....2-43
Automatic transmission position
indicator light ................2-14
T ransmission
shift selector lock release . .5-16
Automatic anti-glare inside mirror .......3-23
Automatic door locks ..............3-5
AUX jack .................4-47, 4-53
B
Battery ......................8-14
Charge warning light ............2-11
Before starting the engine ...........5-10
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-27
Bluetooth audio................4-76 Bluetooth
hands-free phone
system ..................4-84, 4-98
Booster seats ..................1-35
Brake Anti-lock Braking System (ABS) ......5-23
Brake fluid ..................8-12
Brake light (See stop light) .........8-27
Brake system ................5-22
Brake warning light .............2-11
Brake wear indicators ........2-16, 8-20
Parking brake operation ..........5-17
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-in schedule ...............5-19
Brightness/contrast button ...........4-12
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-10
Bulb replacement ................8-27
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo (See vehicle loading information) . . .9-12
Car phone or CB radio .............4-83
CD care and cleaning .............4-79
CD player
(See audio system) . . . .4-46, 4-52, 4-58, 4-64
Check tire pressure ...............2-25
Child restraints ......
.1-18, 1-19, 1-20, 1-22
Page 407 of 414
Precautions on child
restraints.........1-20, 1-26, 1-31, 1-35
Top tether strap anchor point locations . .1-24
Chimes, audible reminders ...........2-16
Cleaning exterior and interior ...........7-2
Clock ...................4-45, 4-50
(models with navigation system) .......4-8
(models without navigation system) . . . .4-45
Clock set ..................4-8, 4-45
C.M.V.S.S. certification label ..........9-10
Cold weather driving ..............5-26
Compact disc (CD) player .4-46, 4-52, 4-58, 4-64
Compass display .................2-6
Console box ...................2-40
Console light ...................2-47
Continuously Variable Transmission (CVT). . .5-12 Continuously Variable Transmission
(CVT) fluid ..................8-11
Driving with Continuously Variable
Transmission (CVT) .............5-12
Transmission shift selector lock release . .5-16
Control panel buttons ...............4-2
Brightness/contrast button .........4-12
Enter button ..................4-2
Setting button .................4-6
Controls Heater and air conditioner
controls ................4-18, 4-26
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-5
Corrosion protection ...............7-6
Cruise control ..................5-18 Cup holders
................2-38, 2-39
D
Daytime running light system (Canada only) . .2-32
Defroster switch Rear window and outside mirror defroster
switch .....................2-28
Digital Versatile Disc (DVD) player .......4-63
Dimensions and weights .............9-8
Dimmer switch for instrument panel ......2-33
Display controls (see control panel buttons) . .4-2
Door locks .....................3-4
Drive belt .....................8-17
Driving Cold weather
driving............5-26
Driving with Continuously Variable
Transmission (CVT) .............5-12
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-20
Emission control information label .......9-10
Emission control system warranty .......9-24
Engine Before starting the engine ..........5-10
Block heater .................5-27
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil ..............8-9
Changing engine oil filter ..........8-10
Checking engine coolant level ........8-8Checking engine oil level
...........8-9
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-5
Engine cooling system ............8-7
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-12
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine .............5-11
Enter button ....................4-2
Event data recorders ..............9-26
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-24
Eyeglass case ..................2-38
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Continuously V
ariable Transmission
(CVT) fluid ..................8-11
Engine coolant .................8-7
Engine oil ...................8-9
Power steering fluid .............8-12
F.M.V.S.S. certification label ...........9-10
Fog light switch .................2-34
Front air bag system
(See supplemental restraint system) ......1-46
10-2
Page 408 of 414
Front seats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel-filler door and cap ...........3-19
Fuel-filler door lock opener lever ......3-19
Fuel gauge ...................2-6
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Loose fuel cap warning ........2-25, 3-19
Fuses .......................8-21
Fusible links ...................8-23
G
Garage door opener, HomeLink Universal
Transceiver ....................2-48
Gascap .....................3-19
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-39
Glove box lock ..................2-39
Grocery hooks ..................2-41 H
Hands-free phone system,
Bluetooth .................4-84, 4-98
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-29
Headlight control switch ............2-30
Headlights ....................8-26
Heated seats ...................2-34
Heater Heater and air conditioner
controls ................4-18, 4-26
Heater operation ...........4-20, 4-27
HomeLink Universal
T
ransceiver ........2-48
Hood release ...................3-17
Horn .......................2-34
I
Ignition Switch Push-Button Ignition Switch .........5-7
Immobilizer system .........2-26, 3-3, 5-10
Important vehicle information label .......9-10
In-cabin microfilter ................8-19
Increasing fuel economy .............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-10
Inside automatic anti-glare mirror ........3-23
Inside mirror ...................3-23
Instrument brightness control ..........2-33
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range
..............3-8
Key operation .................3-9
Mechanical key ................3-3
Remote keyless entry operation .......3-12
Troubleshooting guide ............3-16
Warning signals ...............3-16
Interior light ....................2-46
Interior trunk lid release .............3-18
iPod Player................4-71, 4-73
ISOFIX child restraints .............1-22
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-12
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control
information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
10-3
Page 409 of 414
Warning labels (for SRS)..........1-52
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-22
License plate Installing the license plate ..........9-11
Light Air bag warning light .........1-52, 2-14
Brake light (See stop light) .........8-27
Bulb check/instrument panel ........2-10
Bulb replacement ..............8-27
Charge warning light ............2-11
Console light .................2-47
Fog light switch ...............2-34
Headlight and turn signal switch ......2-29
Headlight control switch ..........2-30
Headlights ..................8-26
Interior light ..................2-46
Light bulbs ..................8-26
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-47
Security indicator light ............2-16
Spotlights (See map light) .........2-48
Trunk light ..................2-48
Warning/indicator lights and audible
reminders ...................2-10
Lights Map lights ..................2-48
Lock Door locks ...................3-4
Fuel-filler door lock opener lever ......3-19
Glove box lock ................2-39
Power door locks ...............3-5
Trunk lid lock opener lever ..........3-17
Loose fuel cap warning ..........2-25, 3-19 Low fuel warning light
..........2-13, 2-24
Low tire pressure warning light .........2-12
Low windshield-washer fluid warning light . . .2-24
Luggage (See vehicle loading information) . .9-12
M
Maintenance General maintenance .............8-2
Inside the
vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-18
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-15
Manual front seat adjustment ...........1-2
Map lights ....................2-48
Map pocket ....................2-37
Meters and gauges ................2-3
Instrument brightness control ........2-33
Mirror Automatic anti-glare inside mirror ......3-23
Inside mirror .................3-23
Outside mirrors ...............3-24
Vanity mirror .................3-23
Moonroof .....................2-44
N
NISSAN Intelligent Key ...........3-2, 3-6
NISSAN vehicle immobilizer
system ................2-26, 3-3, 5-10
NISSAN voice recognition system ......4-109 O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil ..............8-9
Changing engine oil filter ..........8-10
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-24
Overheat If your vehicle overheats ...........6-9
Owner’s manual order form ...........9-27
Owner’s manual/service manual order
information ....................9-27
P
Parking Parking brake
operation ...........5-17
Parking/parking on hills ...........5-21
Phone, Bluetooth hands-free
system ...................4-84, 4-98
Power Power door locks ...............3-5
Power outlet .................2-36
Power steering fluid .............8-12
Power steering system ...........5-22
Power windows ...............2-42
10-4
Page 410 of 414

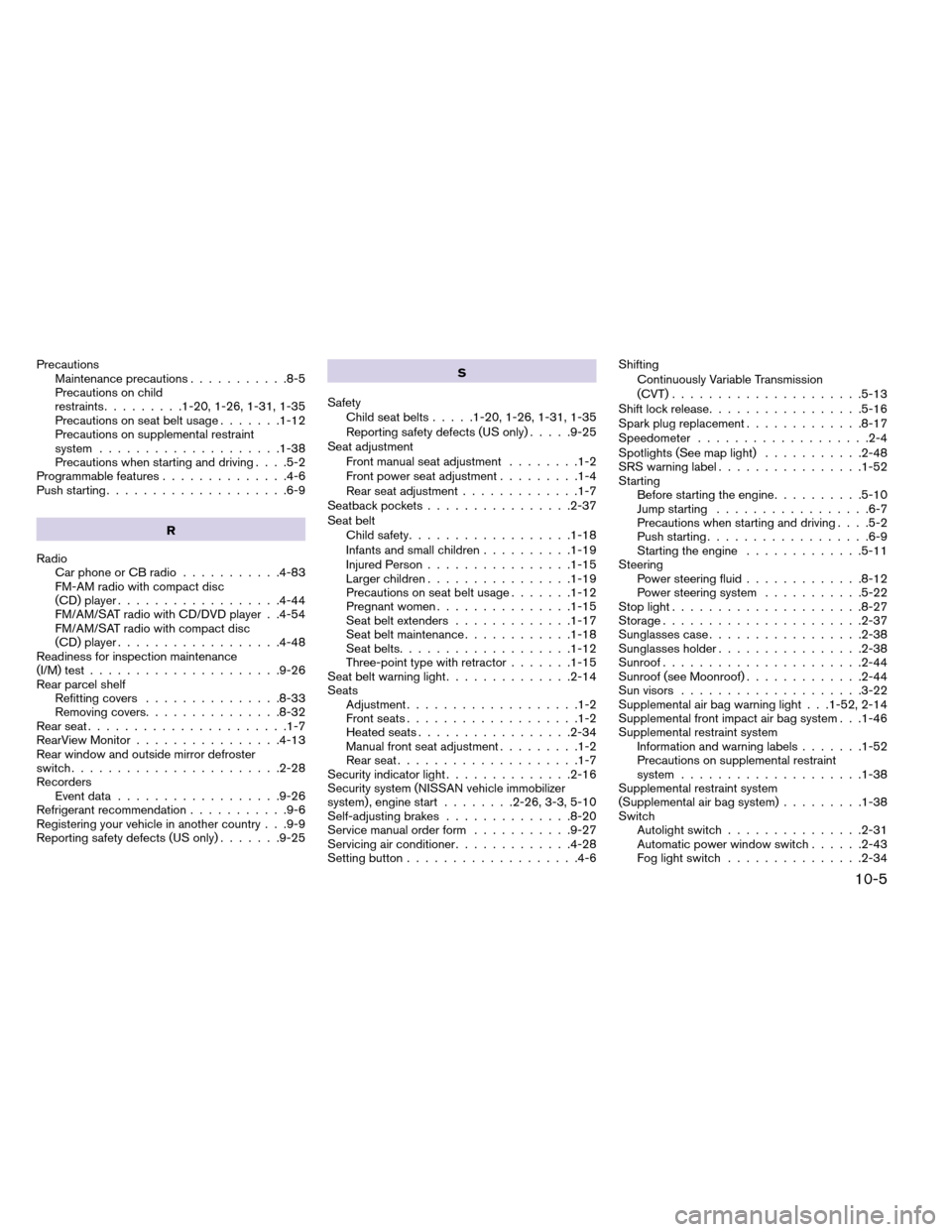

PrecautionsMaintenance precautions ...........8-5
Precautions on child
restraints .........1-20, 1-26, 1-31, 1-35
Precautions on seat belt usage .......1-12
Precautions on supplemental restraint
system ....................1-38
Precautions when starting and driving . . . .5-2
Programmable features ..............4-6
Push starting ....................6-9
R
Radio Car phone or CB radio ...........4-83
FM-AM radio with compact disc
(CD) player ..................4-44
FM/AM/SAT radio with CD/DVD player . .4-54
FM/AM/SAT radio with compact disc
(CD) player ..................4-48
Readiness for inspection maintenance
(I/M) test .....................9-26
Rear parcel shelf Refitting covers ...............8-33
Removing covers ...............8-32
Rear seat ......................1-7
RearView Monitor ................4-13
Rear window and outside mirror defroster
switch .......................2-28
Recorders Event data ..................9-26
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-25 S
Safety Child seat belts .....1-20, 1-26, 1-31, 1-35
Reporting safety defects (US only) .....9-25
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Rear seat adjustment .............1-7
Seatback pockets ................2-37
Seat belt Child safety ..................1-18
Infants and small children ..........1-19
Injured Person ................1-15
Larger children ................1-19
Precautions on seat belt usage .......1-12
Pregnant women ...............1-15
Seat belt extenders .............1-17
Seat belt
maintenance ............1-18
Seat belts ...................1-12
Three-point type with retractor .......1-15
Seat belt warning light ..............2-14
Seats Adjustment ...................1-2
Front seats ...................1-2
Heated seats .................2-34
Manual front seat adjustment .........1-2
Rear seat ....................1-7
Security indicator light ..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-26, 3-3, 5-10
Self-adjusting brakes ..............8-20
Service manual order form ...........9-27
Servicing air conditioner .............4-28
Setting button ...................4-6 Shifting
Continuously Variable Transmission
(CVT) .....................5-13
Shift lock release .................5-16
Spark plug replacement .............8-17
Speedometer ...................2-4
Spotlights (See map light) ...........2-48
SRS warning label ................1-52
Starting Before starting the engine ..........5-10
Jump starting .................6-7
Precautions when starting and driving . . . .5-2
Push starting ..................6-9
Starting the engine .............5-11
Steering Power steering fluid .............8-12
Power steering system ...........5-22
Stop light .....................8-27
Storage ......................2-37
Sunglasses case .................2-38
Sunglasses holder ................2-38
Sunroof ......................2-44
Sunroof (see
Moonroof) .............2-44
Sun visors ....................3-22
Supplemental air bag warning light . . .1-52, 2-14
Supplemental front impact air bag system . . .1-46
Supplemental restraint system Information and warning labels .......1-52
Precautions on supplemental restraint
system ....................1-38
Supplemental restraint system
(Supplemental air bag system) .........1-38
Switch Autolight switch ...............2-31
Automatic power window switch ......2-43
Fog light switch ...............2-34
10-5
