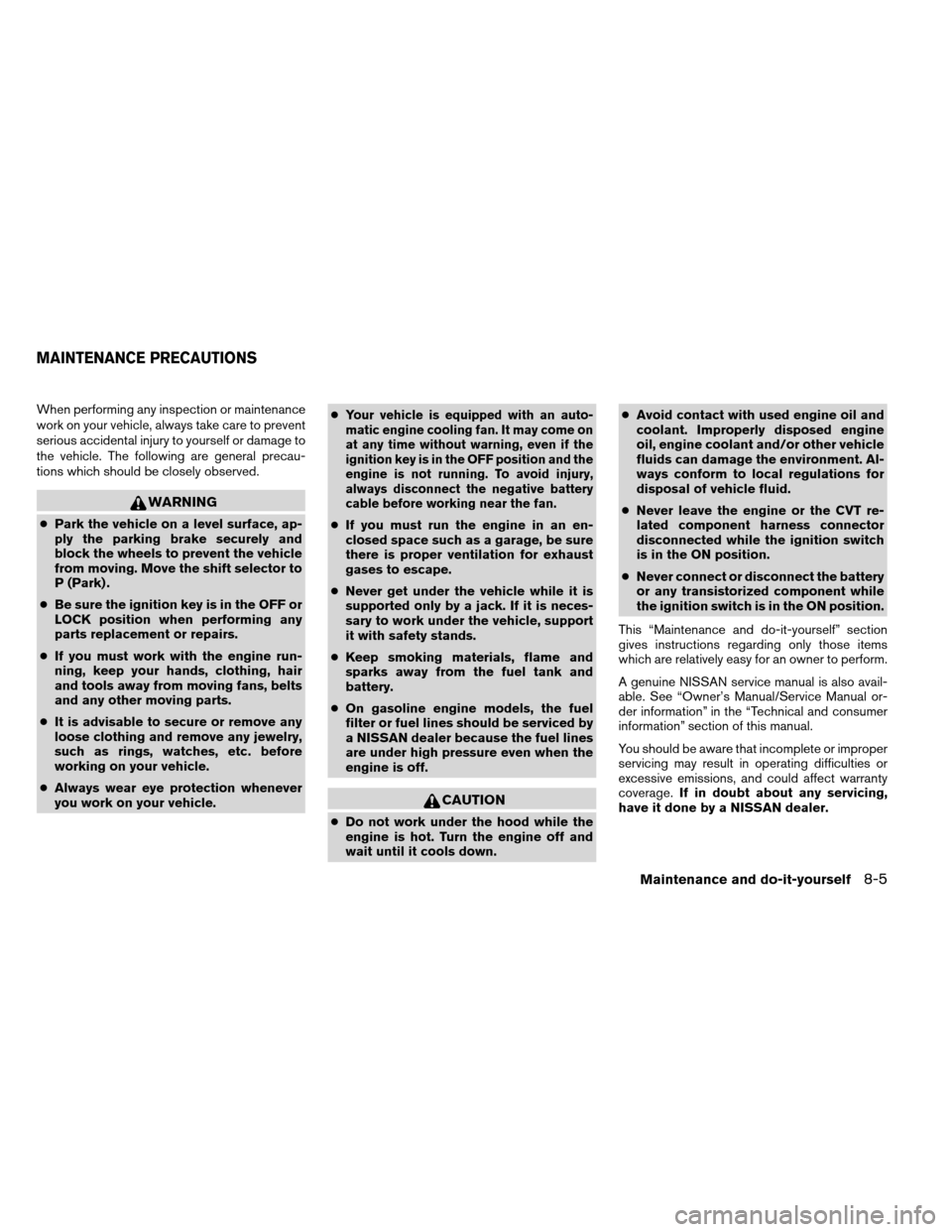

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING
●Park the vehicle on a level surface, ap-
ply the parking brake securely and
block the wheels to prevent the vehicle
from moving. Move the shift selector to
P (Park) .
● Be sure the ignition key is in the OFF or
LOCK position when performing any
parts replacement or repairs.
● If you must work with the engine run-
ning, keep your hands, clothing, hair
and tools away from moving fans, belts
and any other moving parts.
● It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
● Always wear eye protection whenever
you work on your vehicle. ●
Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition key is in the OFF position and the
engine is not running. To avoid injury,
always disconnect the negative battery
cable before working near the fan.
●
If you must run the engine in an en-
closed space such as a garage, be sure
there is proper ventilation for exhaust
gases to escape.
● Never get under the vehicle while it is
supported only by a jack. If it is neces-
sary to work under the vehicle, support
it with safety stands.
● Keep smoking materials, flame and
sparks away from the fuel tank and
battery.
● On gasoline engine models, the fuel
filter or fuel lines should be serviced by
a NISSAN dealer because the fuel lines
are under high pressure even when the
engine is off.
CAUTION
●Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down. ●
Avoid contact with used engine oil and
coolant. Improperly disposed engine
oil, engine coolant and/or other vehicle
fluids can damage the environment. Al-
ways conform to local regulations for
disposal of vehicle fluid.
● Never leave the engine or the CVT re-
lated component harness connector
disconnected while the ignition switch
is in the ON position.
● Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
This “Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN service manual is also avail-
able. See “Owner’s Manual/Service Manual or-
der information” in the “Technical and consumer
information” section of this manual.
You should be aware that incomplete or improper
servicing may result in operating difficulties or
excessive emissions, and could affect warranty
coverage. If in doubt about any servicing,
have it done by a NISSAN dealer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5
Page 341 of 414

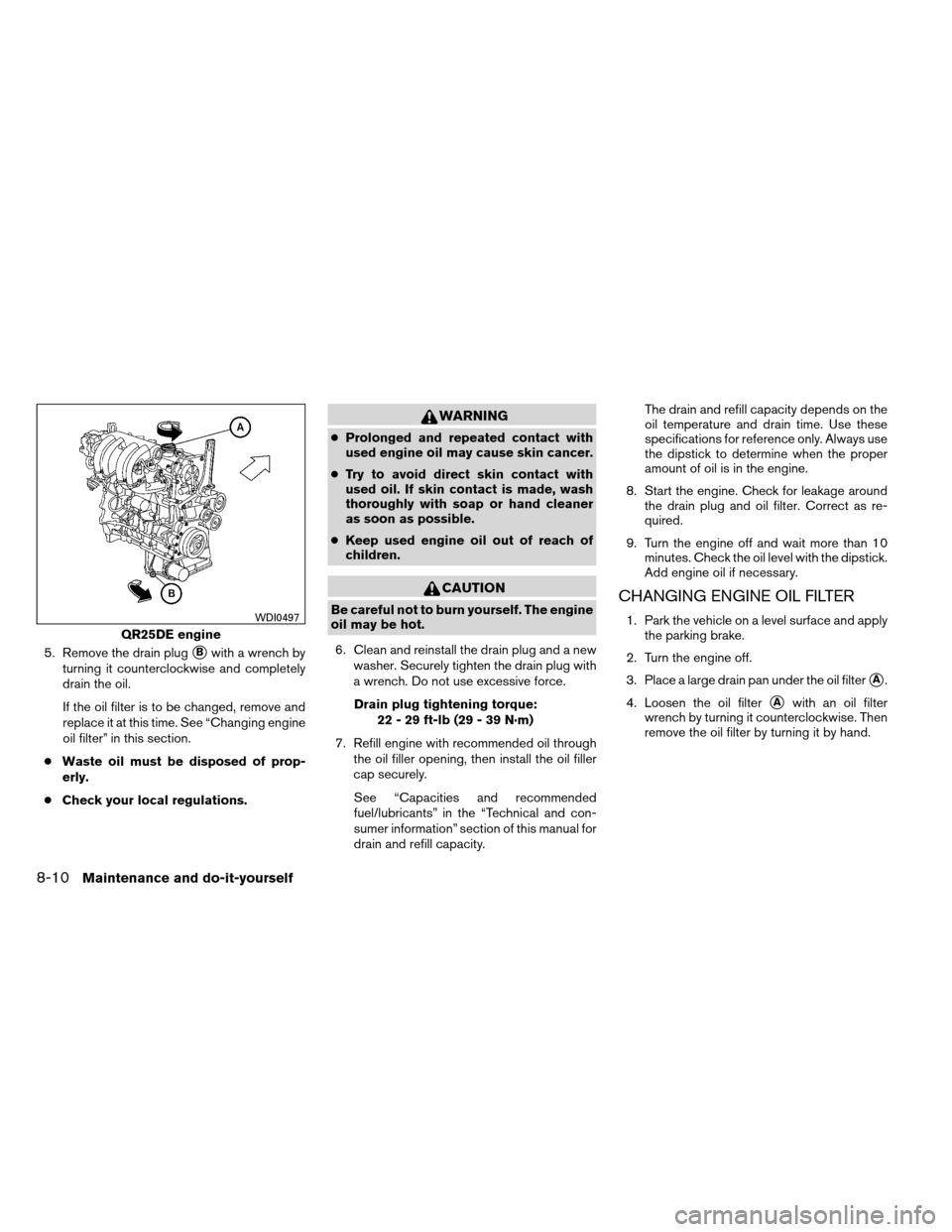

5. Remove the drain plugBwith a wrench by
turning it counterclockwise and completely
drain the oil.
If the oil filter is to be changed, remove and
replace it at this time. See “Changing engine
oil filter” in this section.
● Waste oil must be disposed of prop-
erly.
● Check your local regulations.
WARNING
●Prolonged and repeated contact with
used engine oil may cause skin cancer.
● Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
● Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque: 22 - 29 ft-lb (29 - 39 N·m)
7. Refill engine with recommended oil through the oil filler opening, then install the oil filler
cap securely.
See “Capacities and recommended
fuel/lubricants” in the “Technical and con-
sumer information” section of this manual for
drain and refill capacity. The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Correct as re-
quired.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
A.
4. Loosen the oil filter
Awith an oil filter
wrench by turning it counterclockwise. Then
remove the oil filter by turning it by hand.
QR25DE engine
WDI0497
8-10Maintenance and do-it-yourself
Page 349 of 414
WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect socket
can damage the spark plugs.NOTE:

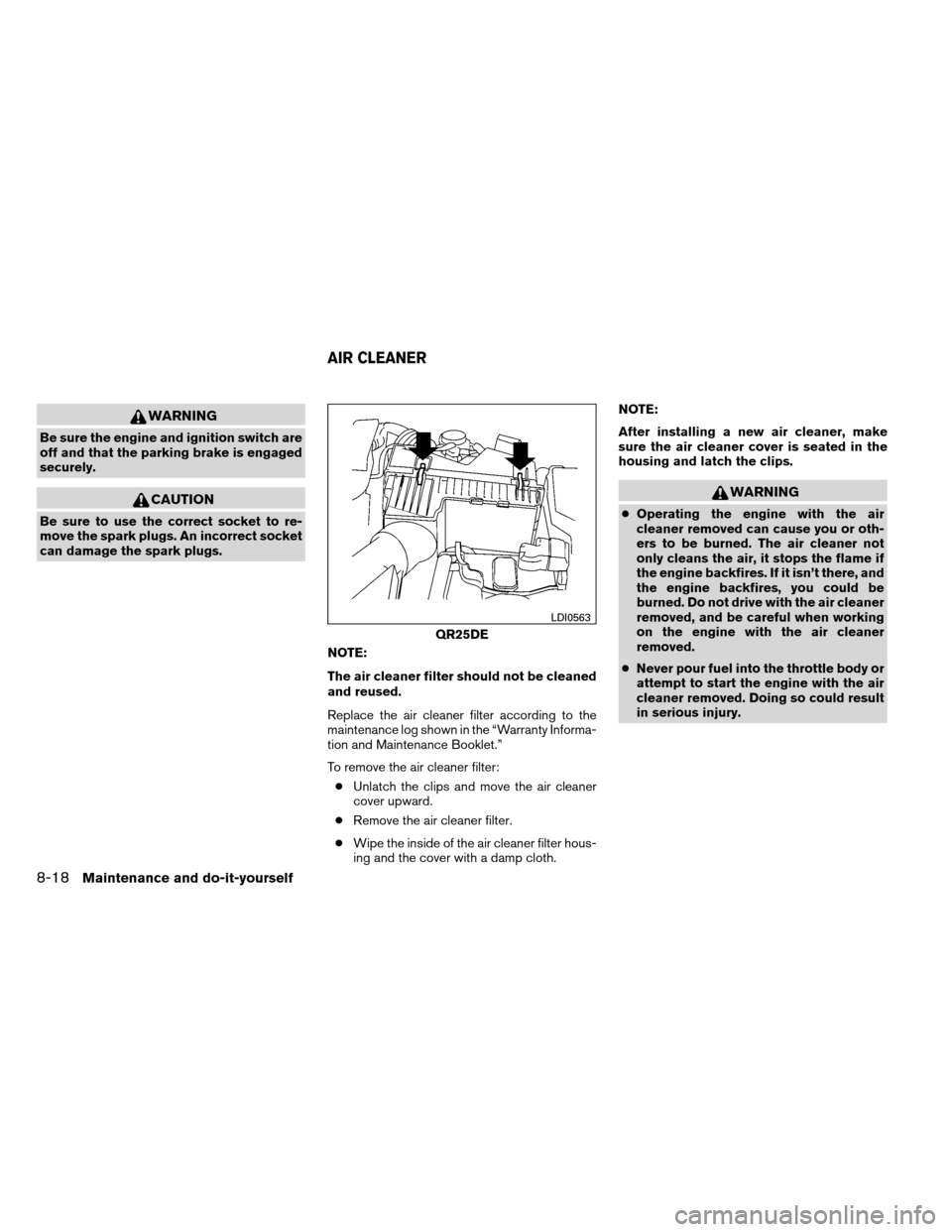

The air cleaner filter should not be cleaned
and reused.
Replace the air cleaner filter according to the
maintenance log shown in the “Warranty Informa-
tion and Maintenance Booklet.”
To remove the air cleaner filter:● Unlatch the clips and move the air cleaner
cover upward.
● Remove the air cleaner filter.
● Wipe the inside of the air cleaner filter hous-
ing and the cover with a damp cloth. NOTE:
After installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips.
WARNING
●
Operating the engine with the air
cleaner removed can cause you or oth-
ers to be burned. The air cleaner not
only cleans the air, it stops the flame if
the engine backfires. If it isn’t there, and
the engine backfires, you could be
burned. Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
QR25DE
LDI0563
AIR CLEANER
8-18Maintenance and do-it-yourself
Page 378 of 414
9 Technical and consumer information
Capacities and recommended fuel/lubricants.........9-2
Fuel recommendation ...........................9-3
Engine oil and oil filter recommendations ..........9-5
Air conditioner system refrigerant and oil
recommendations ..............................9-6
Specifications .....................................9-7
Engine ........................................9-7
Wheels and tires ...............................9-8
Dimensions and weights ........................9-8
When traveling or registering your vehicle in
another country ...................................9-9
Vehicle identification ...............................9-9
Vehicle identification number (VIN) plate ..........9-9
Vehicle identification number
(chassis number) ...............................9-9
Engine serial number ........................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ..........9-10
Emission control information label ...............9-10
Tire and loading information label ................9-11Air conditioner specification label
................9-11
Installing front license plate ........................9-11
Vehicle loading information ........................9-12
Terms ........................................ 9-12
Vehicle load capacity .......................... 9-13
Loading tips . . . ............................... 9-15
Measurement of weights .......................9-15
Towing a trailer ................................... 9-16
Maximum load limits ........................... 9-16
Towing load/specification .......................9-19
Towing safety ................................. 9-19
Flat towing .................................... 9-23
Uniform tire quality grading ........................9-23
Emission control system warranty ..................9-24
Reporting safety defects .......................... 9-25
Readiness for inspection/maintenance (I/M) test .....9-26
Event Data Recorders (EDR) .......................9-26
Owner’s Manual/Service Manual order information . . . 9-27
Page 379 of 414

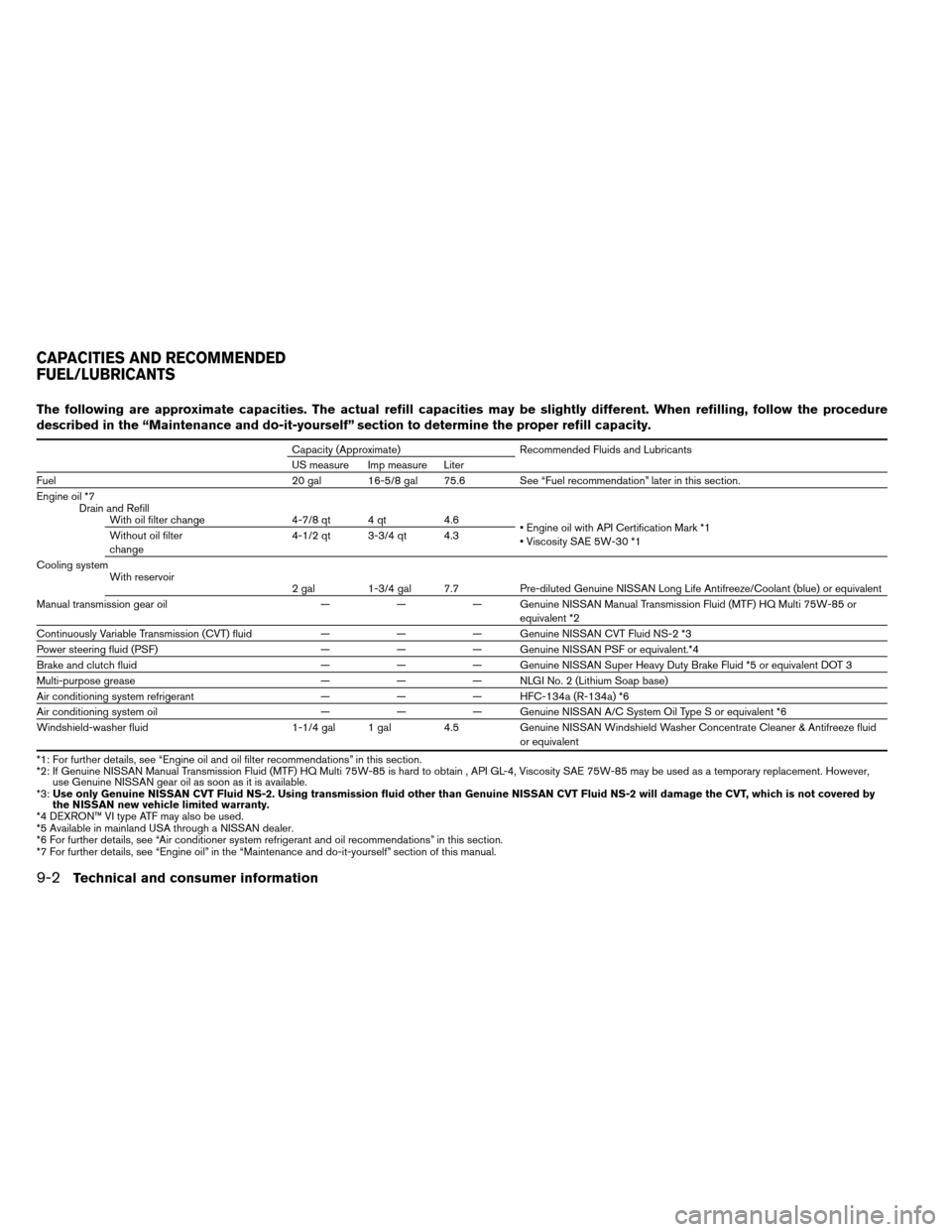

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 20 gal 16-5/8 gal 75.6See “Fuel recommendation” later in this section.
Engine oil *7 Drain and RefillWith oil filter change 4-7/8 qt 4 qt4.6
Engine oil with API Certification Mark *1
Viscosity SAE 5W-30 *1
Without oil filter
change 4-1/2 qt 3-3/4 qt 4.3
Cooling system With reservoir 2 gal 1-3/4 gal 7.7 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Manual transmission gear oil ——— Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or
equivalent *2
Continuously Variable Transmission (CVT) fluid ——— Genuine NISSAN CVT Fluid NS-2 *3
Power steering fluid (PSF) ——— Genuine NISSAN PSF or equivalent.*4
Brake and clutch fluid ——— Genuine NISSAN Super Heavy Duty Brake Fluid *5 or equivalent DOT 3
Multi-purpose grease ——— NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant ——— HFC-134a (R-134a) *6
Air conditioning system oil ——— Genuine NISSAN A/C System Oil Type S or equivalent *6
Windshield-washer fluid 1-1/4 gal 1 gal 4.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze fluid
or equivalent
*1: For further details, see “Engine oil and oil filter recommendations” in this section.
*2: If Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 is hard to obtain , API GL-4, Viscosity SAE 75W-85 may be used as a temporary replacement. However, use Genuine NISSAN gear oil as soon as it is available.
*3: Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT, which is not covered by
the NISSAN new vehicle limited warranty.
*4 DEXRON™ VI type ATF may also be used.
*5 Available in mainland USA through a NISSAN dealer.
*6 For further details, see “Air conditioner system refrigerant and oil recommendations” in this section.
*7 For further details, see “Engine oil” in the “Maintenance and do-it-yourself” section of this manual.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
Page 382 of 414

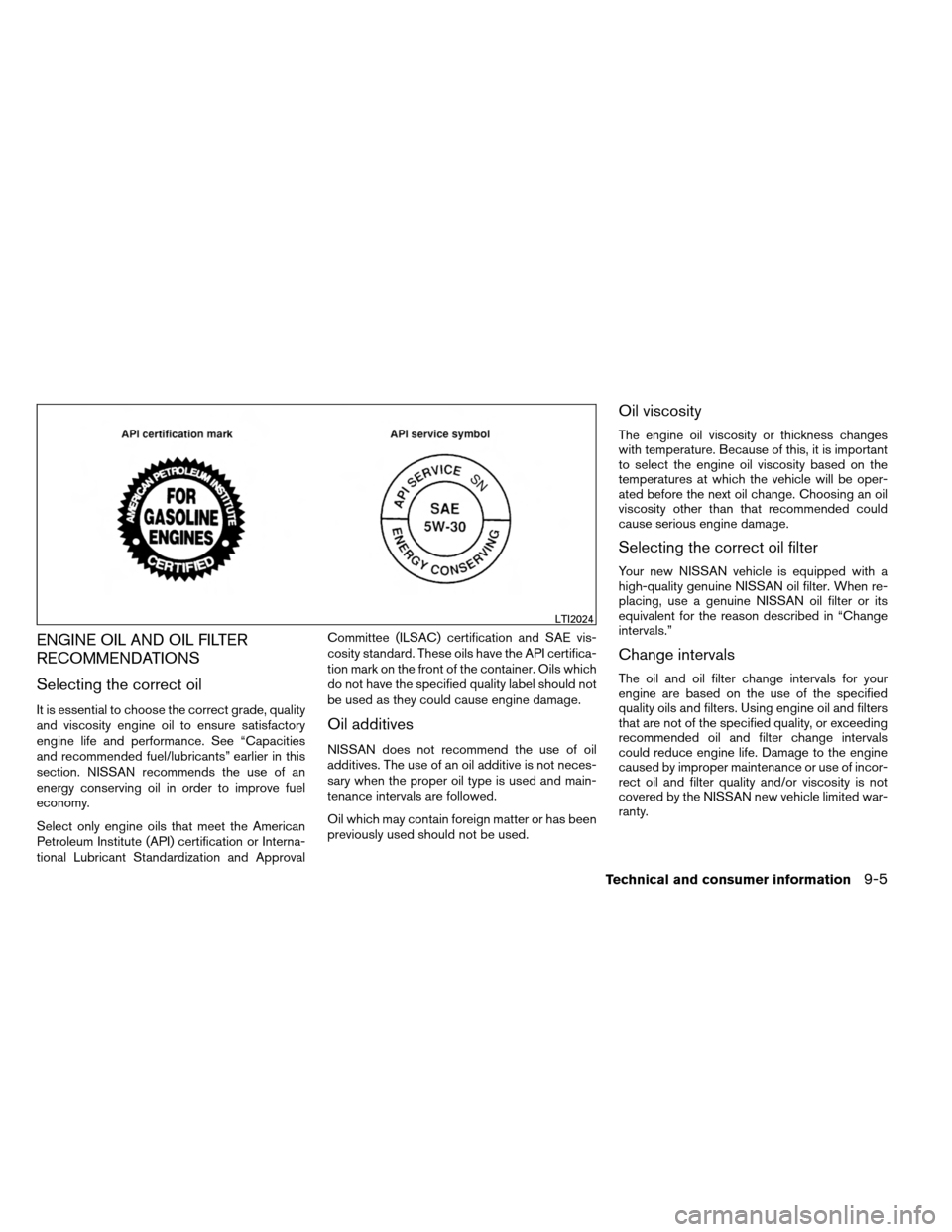

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. See “Capacities
and recommended fuel/lubricants” earlier in this
section. NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and ApprovalCommittee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN new vehicle limited war-
ranty.
LTI2024
Technical and consumer information9-5
Page 406 of 414
10 Index
A
ABS (Anti-lock Braking System) ........5-23
Air bag (See supplemental restraint
system) .....................1-38
Air bag system Front (See supplemental front impact
air bag system) ...............1-46
Air bag warning light ...........1-52, 2-14
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ..........4-21
Air conditioner service ...........4-28
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner
controls ................4-18, 4-26
Servicing air conditioner ..........4-28
Air flow charts ..................4-22
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-24
Antenna .....................4-83
Anti-lock brake warning light ..........2-11
Anti-lock Braking System (ABS) ........5-23
Audible reminders ...............2-16
Audio system ..................4-29
Bluetooth audio..............4-76
Compact disc
(CD) player .......4-46, 4-52, 4-58, 4-64 FM-AM radio with compact disc
(CD) player
.................4-44
FM/AM/SAT radio with CD/DVD player . .4-54
FM/AM/SAT radio with compact disc
(CD) player .................4-48
Audio System iPod Player .............4-71, 4-73
Audio system Radio ....................4-29
Audio System Settings ...................4-55
Audio system USB interface ............4-66, 4-68
Autolight switch .................2-31
Automatic Automatic power window switch .....2-43
Automatic transmission position
indicator light ................2-14
T ransmission
shift selector lock release . .5-16
Automatic anti-glare inside mirror .......3-23
Automatic door locks ..............3-5
AUX jack .................4-47, 4-53
B
Battery ......................8-14
Charge warning light ............2-11
Before starting the engine ...........5-10
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-27
Bluetooth audio................4-76 Bluetooth
hands-free phone
system ..................4-84, 4-98
Booster seats ..................1-35
Brake Anti-lock Braking System (ABS) ......5-23
Brake fluid ..................8-12
Brake light (See stop light) .........8-27
Brake system ................5-22
Brake warning light .............2-11
Brake wear indicators ........2-16, 8-20
Parking brake operation ..........5-17
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-in schedule ...............5-19
Brightness/contrast button ...........4-12
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-10
Bulb replacement ................8-27
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo (See vehicle loading information) . . .9-12
Car phone or CB radio .............4-83
CD care and cleaning .............4-79
CD player
(See audio system) . . . .4-46, 4-52, 4-58, 4-64
Check tire pressure ...............2-25
Child restraints ......
.1-18, 1-19, 1-20, 1-22
Page 407 of 414
Precautions on child
restraints.........1-20, 1-26, 1-31, 1-35
Top tether strap anchor point locations . .1-24
Chimes, audible reminders ...........2-16
Cleaning exterior and interior ...........7-2
Clock ...................4-45, 4-50
(models with navigation system) .......4-8
(models without navigation system) . . . .4-45
Clock set ..................4-8, 4-45
C.M.V.S.S. certification label ..........9-10
Cold weather driving ..............5-26
Compact disc (CD) player .4-46, 4-52, 4-58, 4-64
Compass display .................2-6
Console box ...................2-40
Console light ...................2-47
Continuously Variable Transmission (CVT). . .5-12 Continuously Variable Transmission
(CVT) fluid ..................8-11
Driving with Continuously Variable
Transmission (CVT) .............5-12
Transmission shift selector lock release . .5-16
Control panel buttons ...............4-2
Brightness/contrast button .........4-12
Enter button ..................4-2
Setting button .................4-6
Controls Heater and air conditioner
controls ................4-18, 4-26
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-5
Corrosion protection ...............7-6
Cruise control ..................5-18 Cup holders
................2-38, 2-39
D
Daytime running light system (Canada only) . .2-32
Defroster switch Rear window and outside mirror defroster
switch .....................2-28
Digital Versatile Disc (DVD) player .......4-63
Dimensions and weights .............9-8
Dimmer switch for instrument panel ......2-33
Display controls (see control panel buttons) . .4-2
Door locks .....................3-4
Drive belt .....................8-17
Driving Cold weather
driving............5-26
Driving with Continuously Variable
Transmission (CVT) .............5-12
Precautions when starting and driving . . . .5-2
E
Economy - fuel ..................5-20
Emission control information label .......9-10
Emission control system warranty .......9-24
Engine Before starting the engine ..........5-10
Block heater .................5-27
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil ..............8-9
Changing engine oil filter ..........8-10
Checking engine coolant level ........8-8Checking engine oil level
...........8-9
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-5
Engine cooling system ............8-7
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-12
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine .............5-11
Enter button ....................4-2
Event data recorders ..............9-26
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-24
Eyeglass case ..................2-38
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Continuously V
ariable Transmission
(CVT) fluid ..................8-11
Engine coolant .................8-7
Engine oil ...................8-9
Power steering fluid .............8-12
F.M.V.S.S. certification label ...........9-10
Fog light switch .................2-34
Front air bag system
(See supplemental restraint system) ......1-46
10-2
Page 408 of 414
Front seats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-20
Fuel-filler door and cap ...........3-19
Fuel-filler door lock opener lever ......3-19
Fuel gauge ...................2-6
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Loose fuel cap warning ........2-25, 3-19
Fuses .......................8-21
Fusible links ...................8-23
G
Garage door opener, HomeLink Universal
Transceiver ....................2-48
Gascap .....................3-19
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-39
Glove box lock ..................2-39
Grocery hooks ..................2-41 H
Hands-free phone system,
Bluetooth .................4-84, 4-98
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-29
Headlight control switch ............2-30
Headlights ....................8-26
Heated seats ...................2-34
Heater Heater and air conditioner
controls ................4-18, 4-26
Heater operation ...........4-20, 4-27
HomeLink Universal
T
ransceiver ........2-48
Hood release ...................3-17
Horn .......................2-34
I
Ignition Switch Push-Button Ignition Switch .........5-7
Immobilizer system .........2-26, 3-3, 5-10
Important vehicle information label .......9-10
In-cabin microfilter ................8-19
Increasing fuel economy .............5-20
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-10
Inside automatic anti-glare mirror ........3-23
Inside mirror ...................3-23
Instrument brightness control ..........2-33
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range
..............3-8
Key operation .................3-9
Mechanical key ................3-3
Remote keyless entry operation .......3-12
Troubleshooting guide ............3-16
Warning signals ...............3-16
Interior light ....................2-46
Interior trunk lid release .............3-18
iPod Player................4-71, 4-73
ISOFIX child restraints .............1-22
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-12
Keys, For Intelligent Key system .........3-2
L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control
information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
10-3
Page 409 of 414
Warning labels (for SRS)..........1-52
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-22
License plate Installing the license plate ..........9-11
Light Air bag warning light .........1-52, 2-14
Brake light (See stop light) .........8-27
Bulb check/instrument panel ........2-10
Bulb replacement ..............8-27
Charge warning light ............2-11
Console light .................2-47
Fog light switch ...............2-34
Headlight and turn signal switch ......2-29
Headlight control switch ..........2-30
Headlights ..................8-26
Interior light ..................2-46
Light bulbs ..................8-26
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-47
Security indicator light ............2-16
Spotlights (See map light) .........2-48
Trunk light ..................2-48
Warning/indicator lights and audible
reminders ...................2-10
Lights Map lights ..................2-48
Lock Door locks ...................3-4
Fuel-filler door lock opener lever ......3-19
Glove box lock ................2-39
Power door locks ...............3-5
Trunk lid lock opener lever ..........3-17
Loose fuel cap warning ..........2-25, 3-19 Low fuel warning light
..........2-13, 2-24
Low tire pressure warning light .........2-12
Low windshield-washer fluid warning light . . .2-24
Luggage (See vehicle loading information) . .9-12
M
Maintenance General maintenance .............8-2
Inside the
vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-18
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-15
Manual front seat adjustment ...........1-2
Map lights ....................2-48
Map pocket ....................2-37
Meters and gauges ................2-3
Instrument brightness control ........2-33
Mirror Automatic anti-glare inside mirror ......3-23
Inside mirror .................3-23
Outside mirrors ...............3-24
Vanity mirror .................3-23
Moonroof .....................2-44
N
NISSAN Intelligent Key ...........3-2, 3-6
NISSAN vehicle immobilizer
system ................2-26, 3-3, 5-10
NISSAN voice recognition system ......4-109 O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil ..............8-9
Changing engine oil filter ..........8-10
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-24
Overheat If your vehicle overheats ...........6-9
Owner’s manual order form ...........9-27
Owner’s manual/service manual order
information ....................9-27
P
Parking Parking brake
operation ...........5-17
Parking/parking on hills ...........5-21
Phone, Bluetooth hands-free
system ...................4-84, 4-98
Power Power door locks ...............3-5
Power outlet .................2-36
Power steering fluid .............8-12
Power steering system ...........5-22
Power windows ...............2-42
10-4
