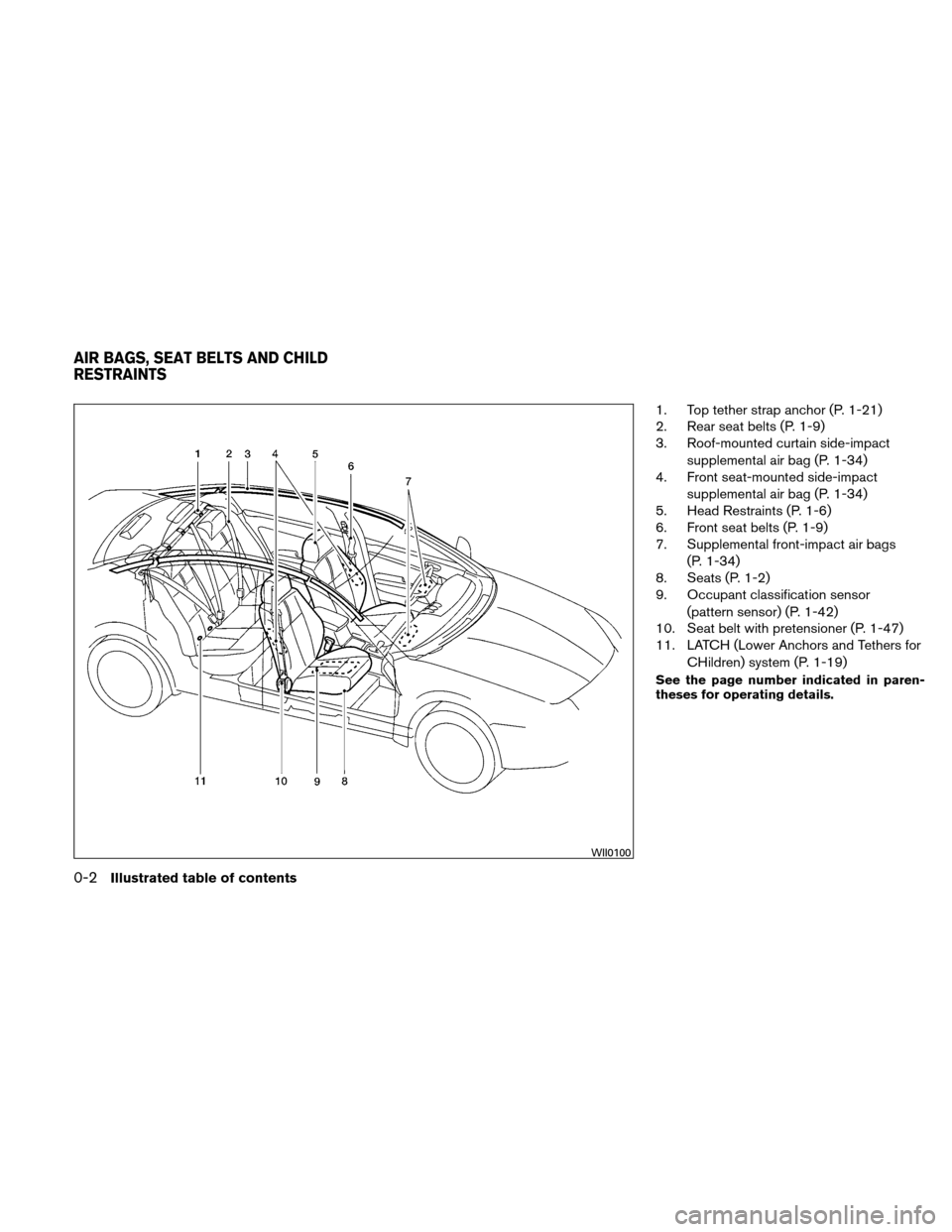

1. Top tether strap anchor (P. 1-21)
2. Rear seat belts (P. 1-9)
3. Roof-mounted curtain side-impactsupplemental air bag (P. 1-34)
4. Front seat-mounted side-impact
supplemental air bag (P. 1-34)
5. Head Restraints (P. 1-6)
6. Front seat belts (P. 1-9)
7. Supplemental front-impact air bags
(P. 1-34)
8. Seats (P. 1-2)
9. Occupant classification sensor
(pattern sensor) (P. 1-42)
10. Seat belt with pretensioner (P. 1-47)
11. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-19)
See the page number indicated in paren-
theses for operating details.
WII0100
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents
Page 22 of 422

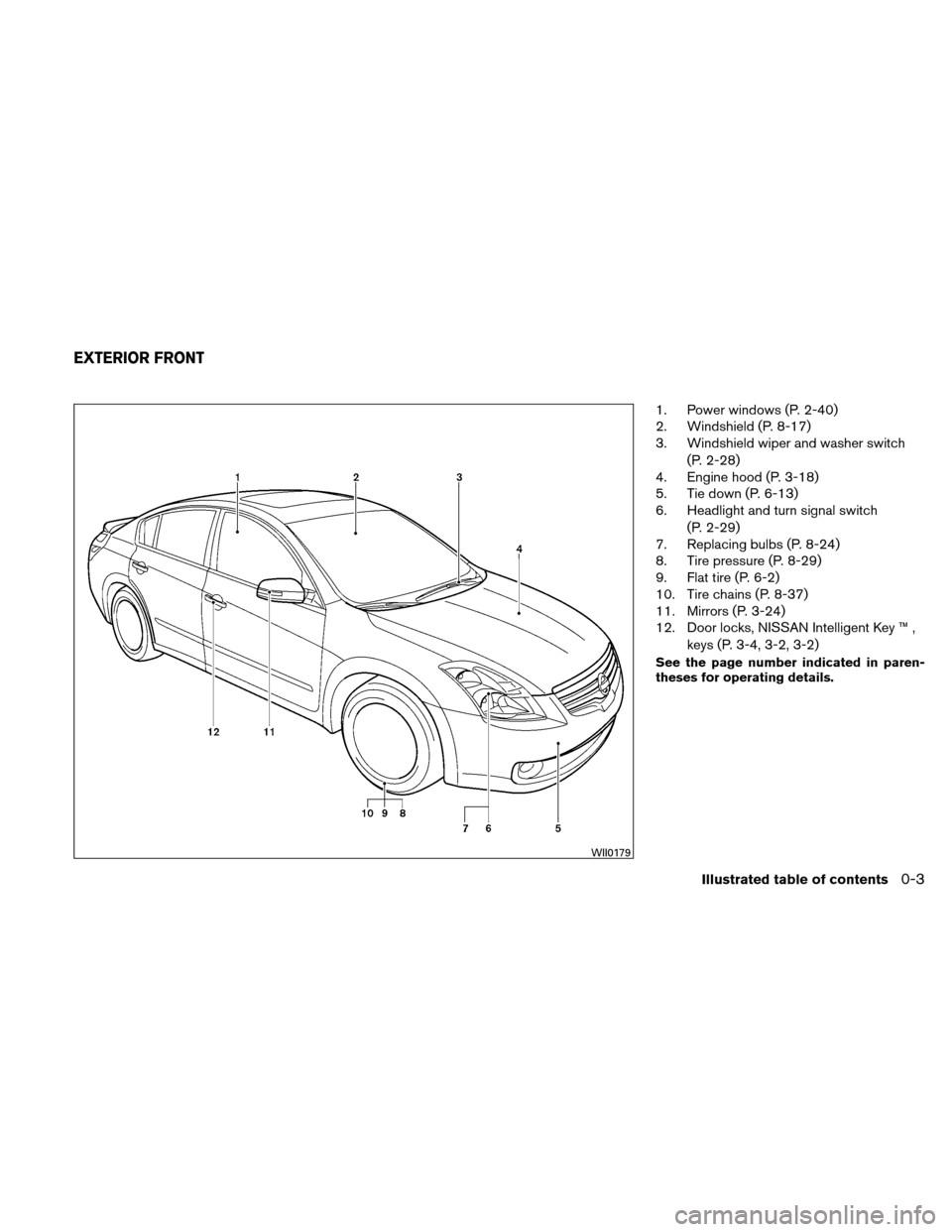

1. Power windows (P. 2-40)
2. Windshield (P. 8-17)
3. Windshield wiper and washer switch(P. 2-28)
4. Engine hood (P. 3-18)
5. Tie down (P. 6-13)
6. Headlight and turn signal switch
(P. 2-29)
7. Replacing bulbs (P. 8-24)
8. Tire pressure (P. 8-29)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-37)
11. Mirrors (P. 3-24)
12. Door locks, NISSAN Intelligent Key ™ ,
keys (P. 3-4, 3-2, 3-2)
See the page number indicated in paren-
theses for operating details.
WII0179
EXTERIOR FRONT
Illustrated table of contents0-3
Page 23 of 422

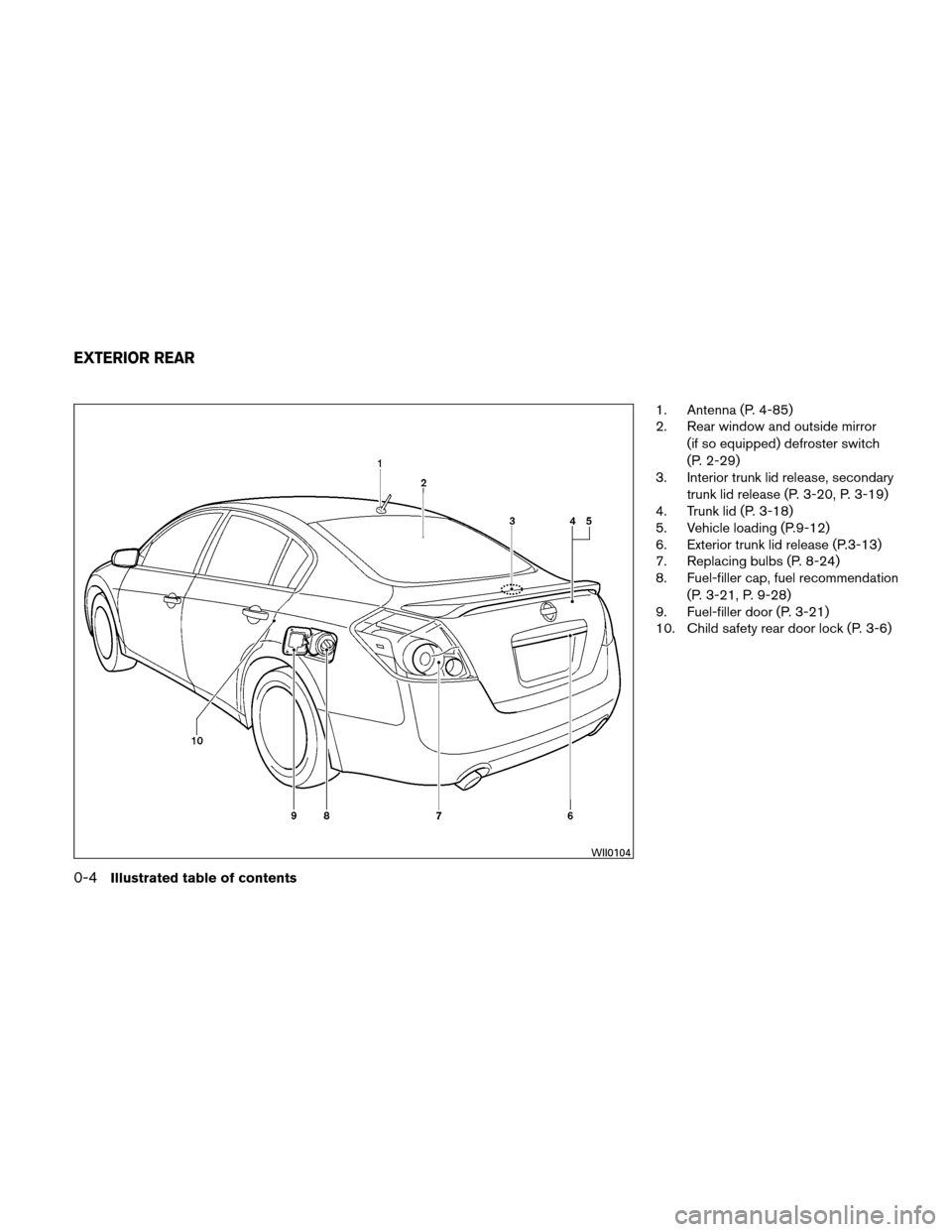

1. Antenna (P. 4-85)
2. Rear window and outside mirror(if so equipped) defroster switch
(P. 2-29)
3. Interior trunk lid release, secondary
trunk lid release (P. 3-20, P. 3-19)
4. Trunk lid (P. 3-18)
5. Vehicle loading (P.9-12)
6. Exterior trunk lid release (P.3-13)
7. Replacing bulbs (P. 8-24)
8. Fuel-filler cap, fuel recommendation
(P. 3-21, P. 9-28)
9. Fuel-filler door (P. 3-21)
10. Child safety rear door lock (P. 3-6)
WII0104
EXTERIOR REAR
0-4Illustrated table of contents
Page 24 of 422

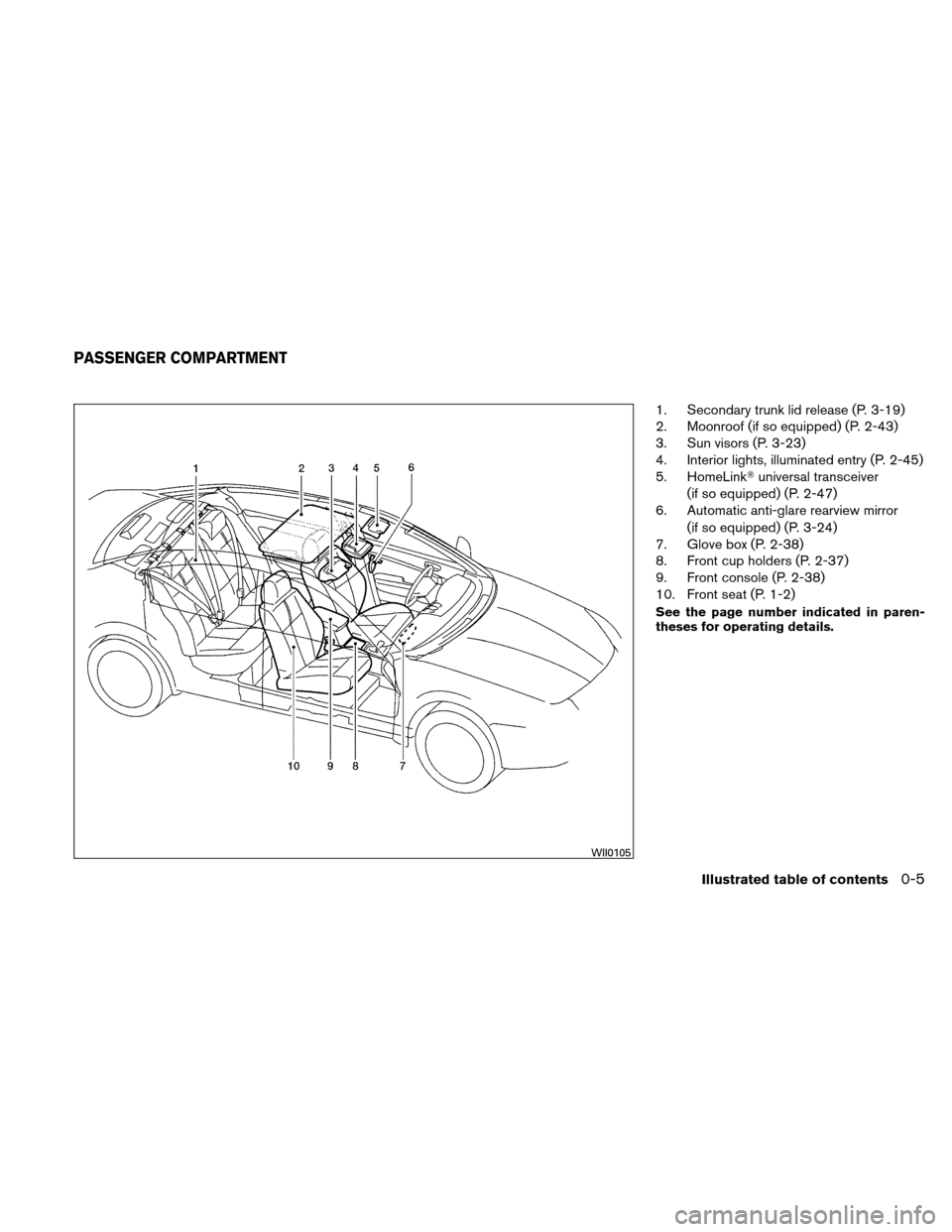

1. Secondary trunk lid release (P. 3-19)
2. Moonroof (if so equipped) (P. 2-43)
3. Sun visors (P. 3-23)
4. Interior lights, illuminated entry (P. 2-45)
5. HomeLinkuniversal transceiver
(if so equipped) (P. 2-47)
6. Automatic anti-glare rearview mirror
(if so equipped) (P. 3-24)
7. Glove box (P. 2-38)
8. Front cup holders (P. 2-37)
9. Front console (P. 2-38)
10. Front seat (P. 1-2)
See the page number indicated in paren-
theses for operating details.
WII0105
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 25 of 422

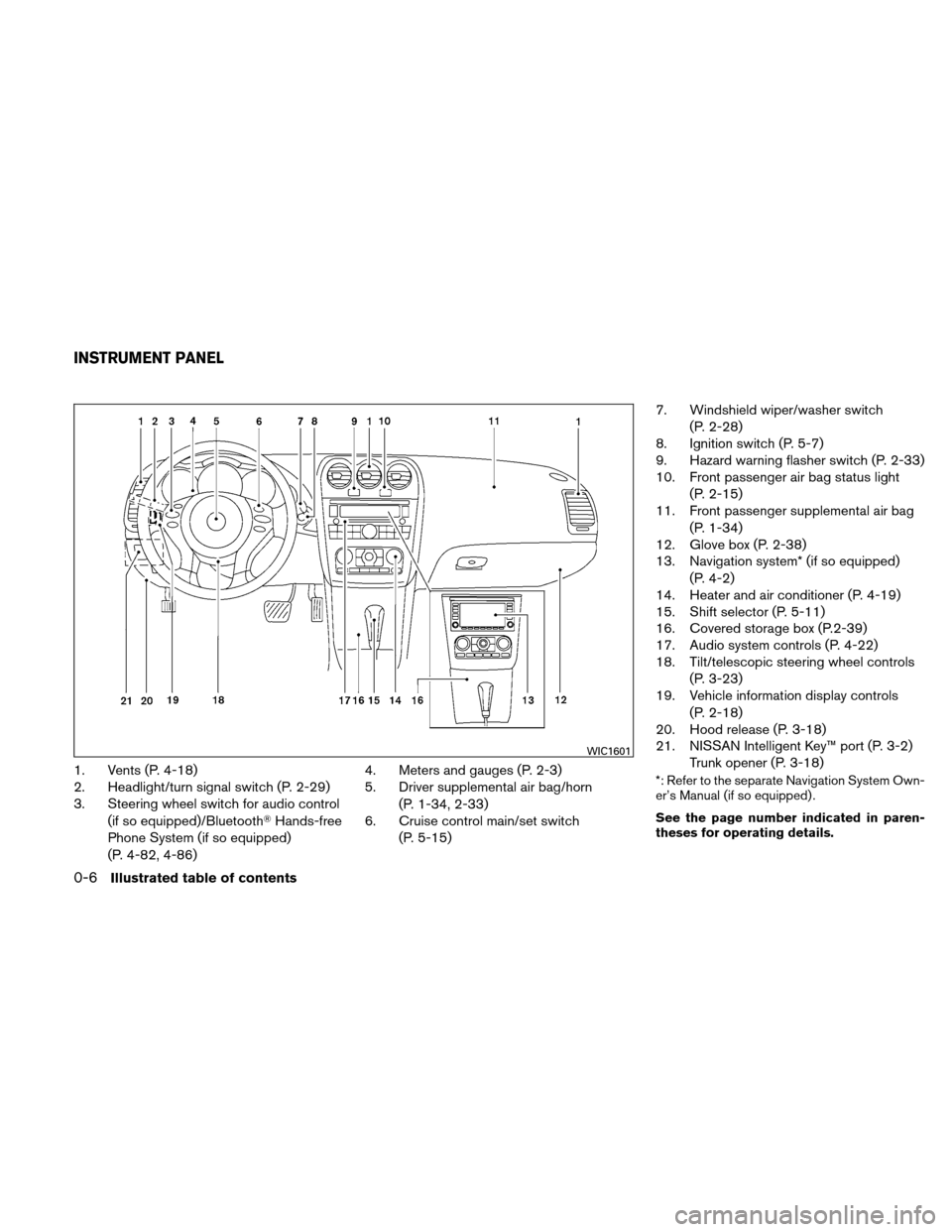

1. Vents (P. 4-18)
2. Headlight/turn signal switch (P. 2-29)
3. Steering wheel switch for audio control(if so equipped)/Bluetooth Hands-free
Phone System (if so equipped)
(P. 4-82, 4-86) 4. Meters and gauges (P. 2-3)
5. Driver supplemental air bag/horn
(P. 1-34, 2-33)
6. Cruise control main/set switch
(P. 5-15) 7. Windshield wiper/washer switch
(P. 2-28)
8. Ignition switch (P. 5-7)
9. Hazard warning flasher switch (P. 2-33)
10. Front passenger air bag status light
(P. 2-15)
11. Front passenger supplemental air bag
(P. 1-34)
12. Glove box (P. 2-38)
13. Navigation system* (if so equipped)
(P. 4-2)
14. Heater and air conditioner (P. 4-19)
15. Shift selector (P. 5-11)
16. Covered storage box (P.2-39)
17. Audio system controls (P. 4-22)
18. Tilt/telescopic steering wheel controls
(P. 3-23)
19. Vehicle information display controls
(P. 2-18)
20. Hood release (P. 3-18)
21. NISSAN Intelligent Key™ port (P. 3-2) Trunk opener (P. 3-18)*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
WIC1601
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 26 of 422

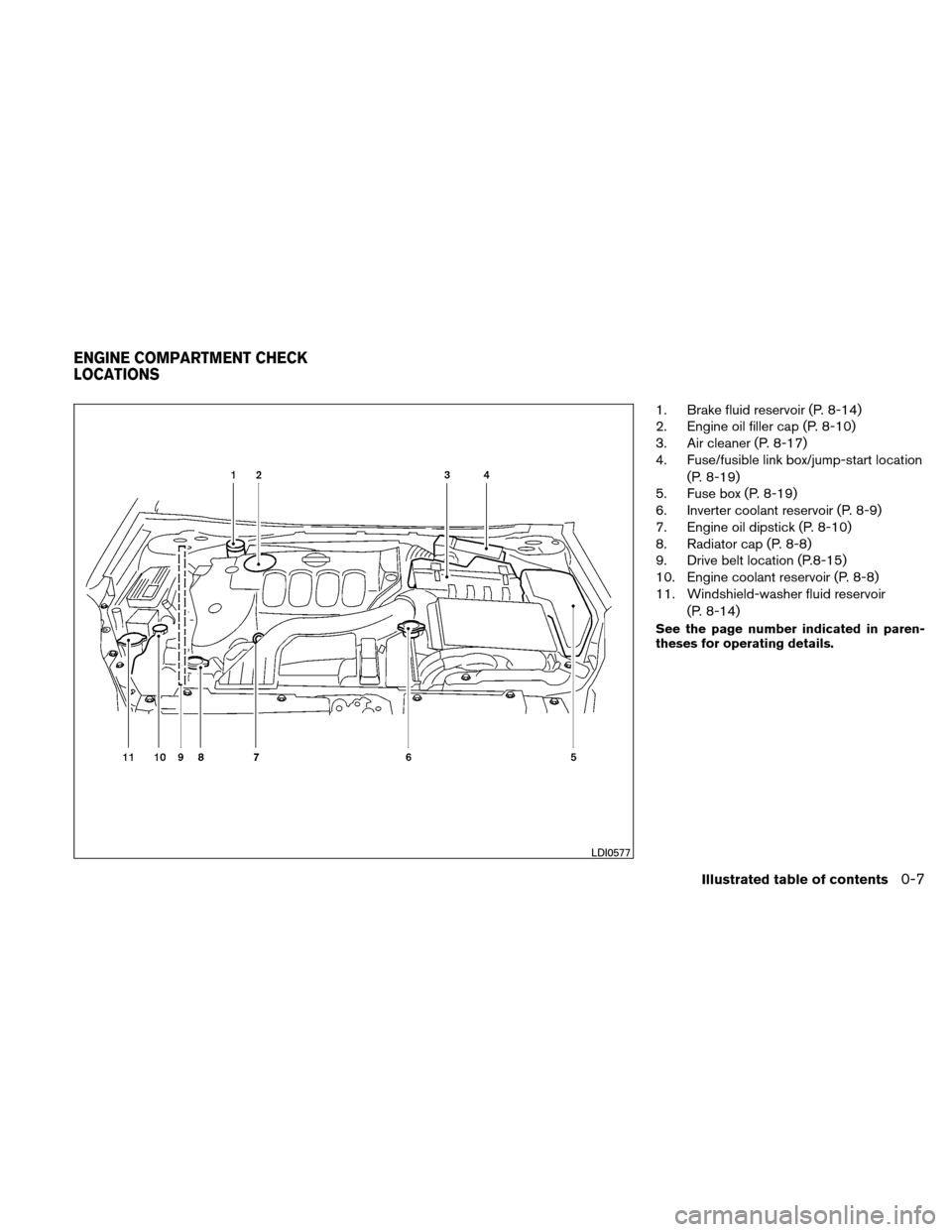

1. Brake fluid reservoir (P. 8-14)
2. Engine oil filler cap (P. 8-10)
3. Air cleaner (P. 8-17)
4. Fuse/fusible link box/jump-start location(P. 8-19)
5. Fuse box (P. 8-19)
6. Inverter coolant reservoir (P. 8-9)
7. Engine oil dipstick (P. 8-10)
8. Radiator cap (P. 8-8)
9. Drive belt location (P.8-15)
10. Engine coolant reservoir (P. 8-8)
11. Windshield-washer fluid reservoir
(P. 8-14)
See the page number indicated in paren-
theses for operating details.
LDI0577
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7
Page 27 of 422

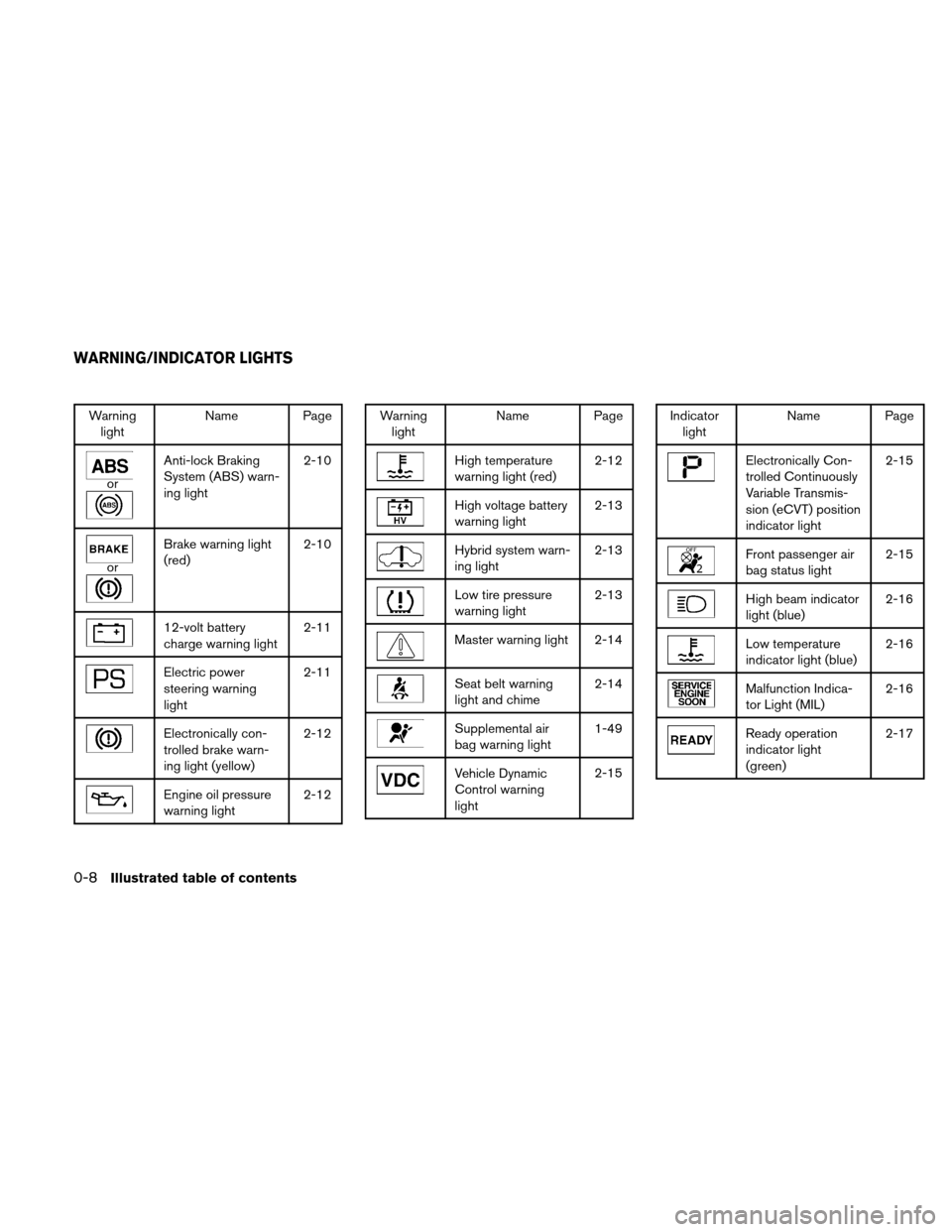

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-10
or
Brake warning light
(red)
2-10
12-volt battery
charge warning light2-11
Electric power
steering warning
light2-11
Electronically con-
trolled brake warn-
ing light (yellow)2-12
Engine oil pressure
warning light
2-12
Warning
light Name Page
High temperature
warning light (red) 2-12
High voltage battery
warning light2-13
Hybrid system warn-
ing light2-13
Low tire pressure
warning light2-13
Master warning light 2-14
Seat belt warning
light and chime2-14
Supplemental air
bag warning light1-49
Vehicle Dynamic
Control warning
light2-15
Indicator
light Name Page
Electronically Con-
trolled Continuously
Variable Transmis-
sion (eCVT) position
indicator light 2-15
Front passenger air
bag status light
2-15
High beam indicator
light (blue)2-16
Low temperature
indicator light (blue)2-16
Malfunction Indica-
tor Light (MIL)2-16
Ready operation
indicator light
(green)2-17
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents
Page 28 of 422

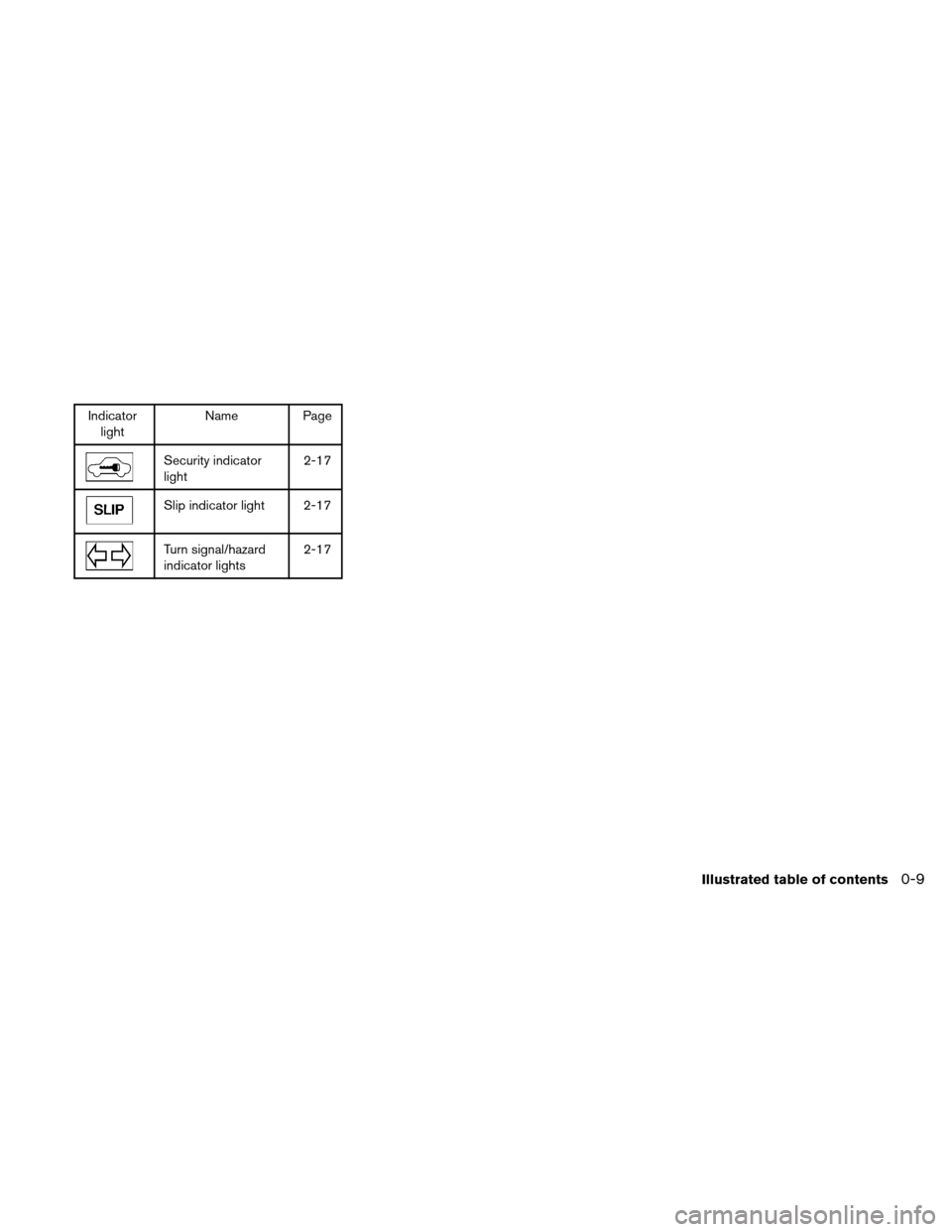

Indicatorlight Name Page
Security indicator
light 2-17
Slip indicator light 2-17
Turn signal/hazard
indicator lights2-17
Illustrated table of contents0-9
Page 29 of 422

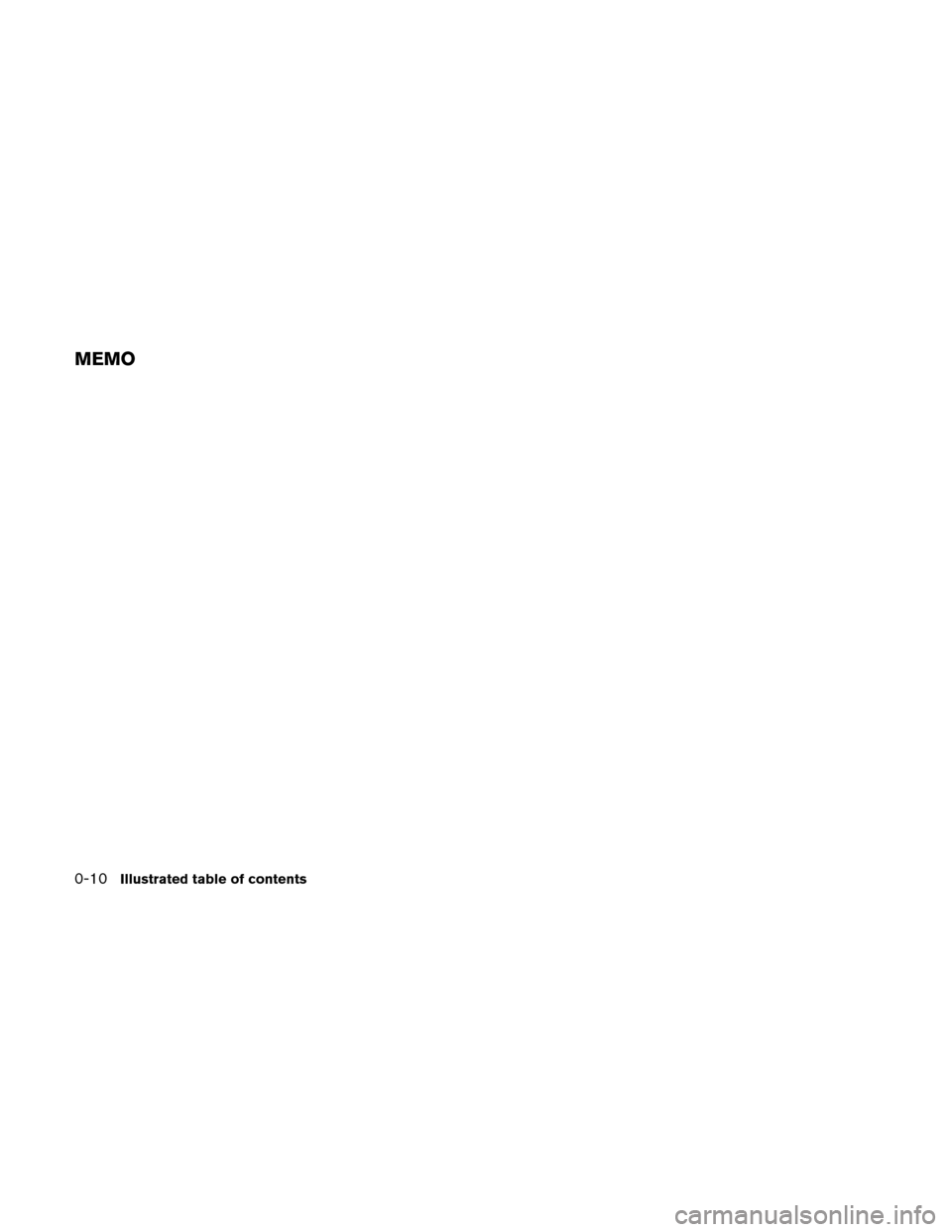

MEMO
0-10Illustrated table of contents
Page 30 of 422
1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment ....................1-2
Front power seat adjustment
(if so equipped for driver’s seat) ..................1-4
Center armrest .................................1-5
Head restraints .................................1-6
Seat belts ........................................1-9
Precautions on seat belt usage ...................1-9
Pregnant women .............................. 1-12
Injured persons ................................ 1-12
Three-point type seat belt with retractor ..........1-12
Seat belt extenders ............................ 1-15
Seat belt maintenance ......................... 1-15
Child safety ...................................... 1-16
Infants ........................................ 1-16
Small children ................................. 1-16
Larger children ................................ 1-17
Child restraints ................................... 1-17Precautions on child restraints
..................1-17
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-19
Rear-facing child restraint installation using
LATCH....................................... 1-21
Rear-facing child restraint installation using
the seat belts ................................. 1-23
Forward-facing child restraint installation
using LATCH .................................. 1-26
Forward-facing child restraint installation
using the seat belts ............................ 1-28
Installing top tether strap .......................1-31
Booster seats ................................. 1-31
Supplemental restraint system .....................1-34
Precautions on supplemental restraint
system ....................................... 1-34
Supplemental air bag warning labels .............1-48
Supplemental air bag warning light ..............1-49
