NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual
Page 1 of 422
2010 NISSAN ALTIMA HYBRID
2010 ALTIMA HYBRID
Printing : September 2009 (05)
Publication No.: OM0E-HL32U0 Printed in U.S.A.
For your safety, read carefully and keep in this vehicle.HL32-D
Page 2 of 422

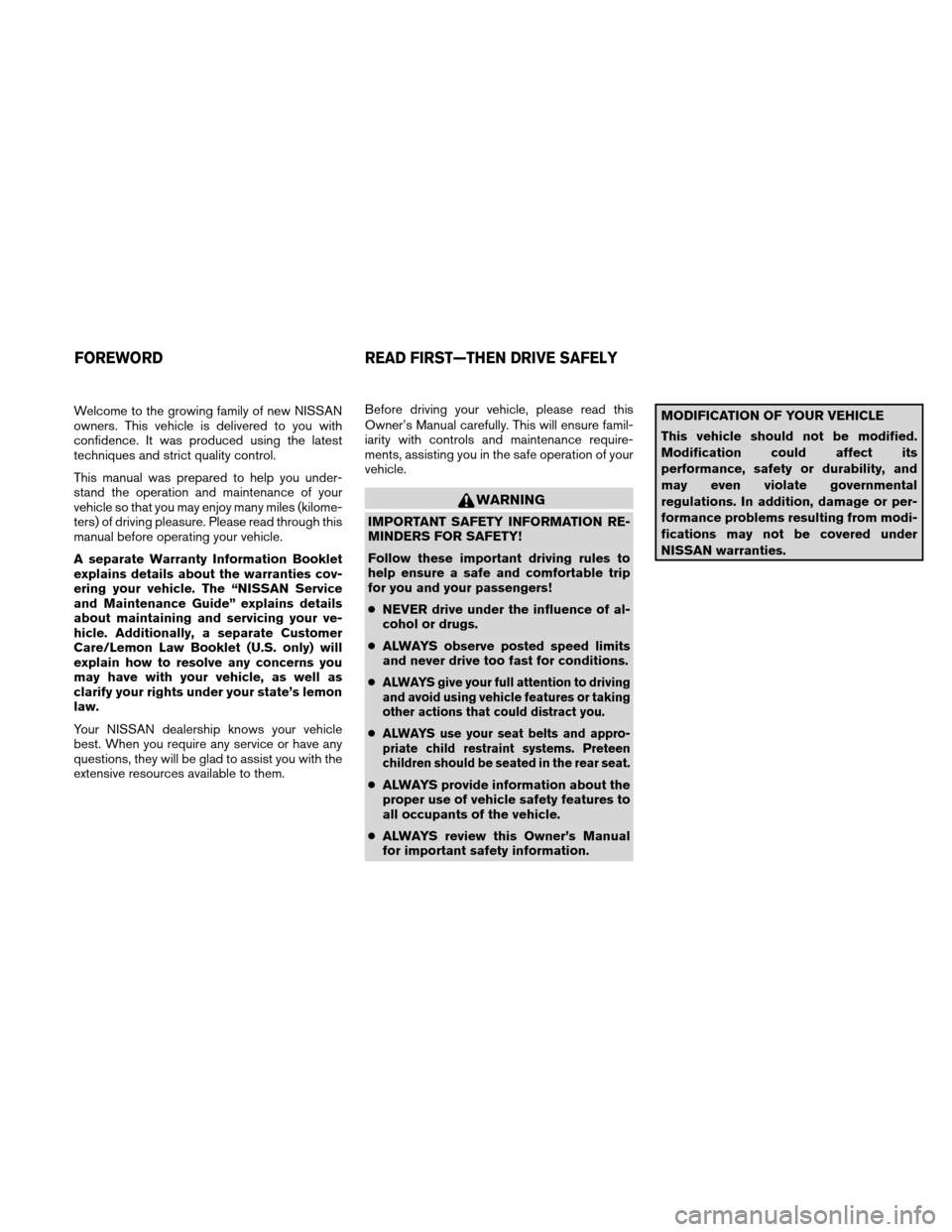

Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles (kilome-
ters) of driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The “NISSAN Service
and Maintenance Guide” explains details
about maintaining and servicing your ve-
hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
Your NISSAN dealership knows your vehicle
best. When you require any service or have any
questions, they will be glad to assist you with the
extensive resources available to them.Before driving your vehicle, please read this
Owner’s Manual carefully. This will ensure famil-
iarity with controls and maintenance require-
ments, assisting you in the safe operation of your
IMPORTANT SAFETY INFORMATION RE-
MINDERS FOR SAFETY!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
NEVER drive under the influence of al-
cohol or drugs.
● ALWAYS observe posted speed limits
and never drive too fast for conditions.
ALWAYS give your full attention to driving
and avoid using vehicle features or taking
other actions that could distract you.
●ALWAYS use your seat belts and appro-
priate child restraint systems. Preteen
children should be seated in the rear seat.
● ALWAYS provide information about the
proper use of vehicle safety features to
all occupants of the vehicle.
● ALWAYS review this Owner’s Manual
for important safety information.
MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified.
Modification could affect its
performance, safety or durability, and
may even violate governmental
regulations. In addition, damage or per-
formance problems resulting from modi-
fications may not be covered under
FOREWORD READ FIRST—THEN DRIVE SAFELY
Page 3 of 422
This manual includes information for all options
available on this model. Therefore, you may find
some information that does not apply to your
All information, specifications and illustrations in
this manual are those in effect at the time of
printing. NISSAN reserves the right to change
specifications or design without notice and with-
IMPORTANT INFORMATION ABOUT

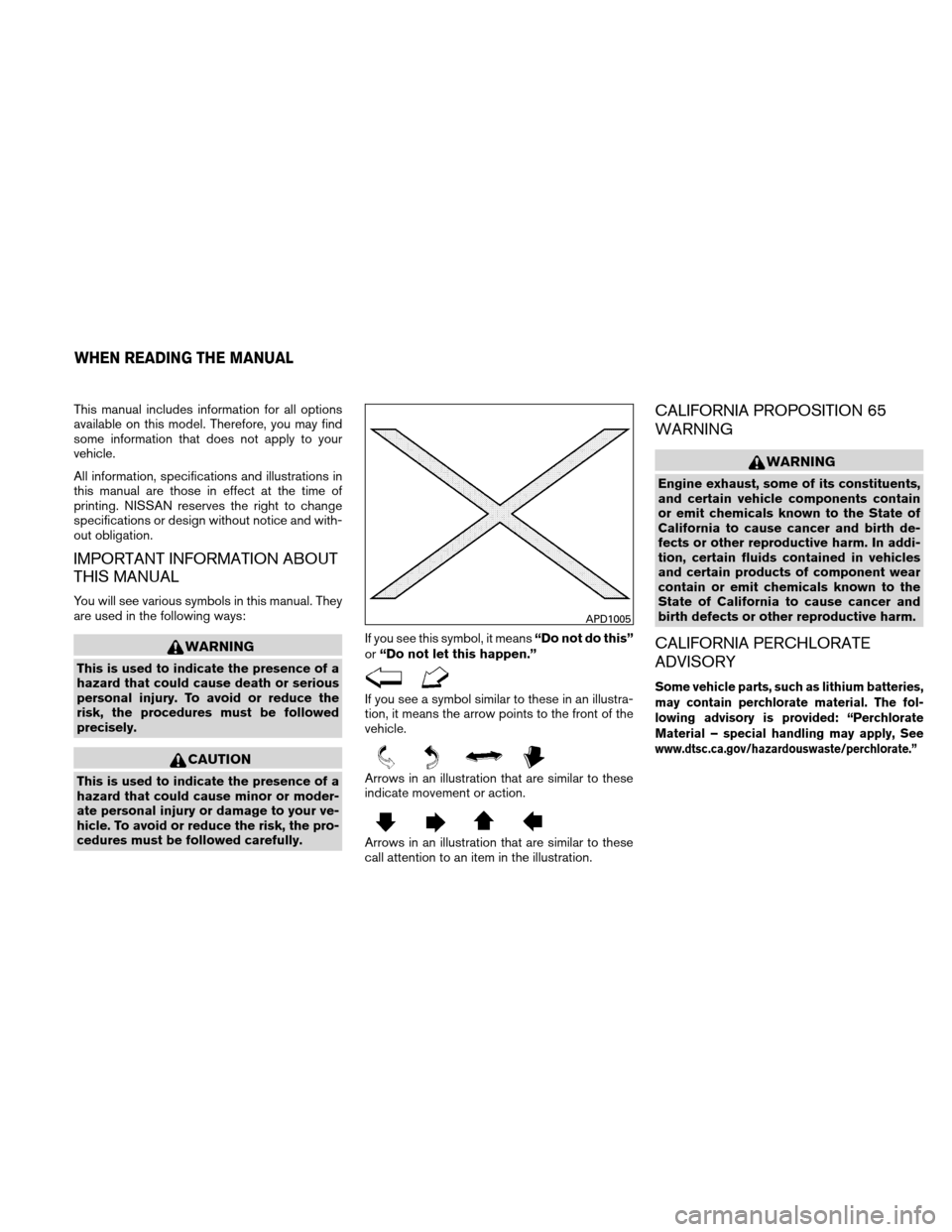

You will see various symbols in this manual. They
are used in the following ways:
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
This is used to indicate the presence of a
hazard that could cause minor or moder-
ate personal injury or damage to your ve-
hicle. To avoid or reduce the risk, the pro-
cedures must be followed carefully.If you see this symbol, it means
“Do not do this”
or “Do not let this happen.”
If you see a symbol similar to these in an illustra-
tion, it means the arrow points to the front of the
Arrows in an illustration that are similar to these
indicate movement or action.
Arrows in an illustration that are similar to these
call attention to an item in the illustration.
CALIFORNIA PROPOSITION 65
Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de-
fects or other reproductive harm. In addi-
tion, certain fluids contained in vehicles
and certain products of component wear
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The fol-
lowing advisory is provided: “Perchlorate
Material – special handling may apply, See
WHEN READING THE MANUAL
Page 4 of 422

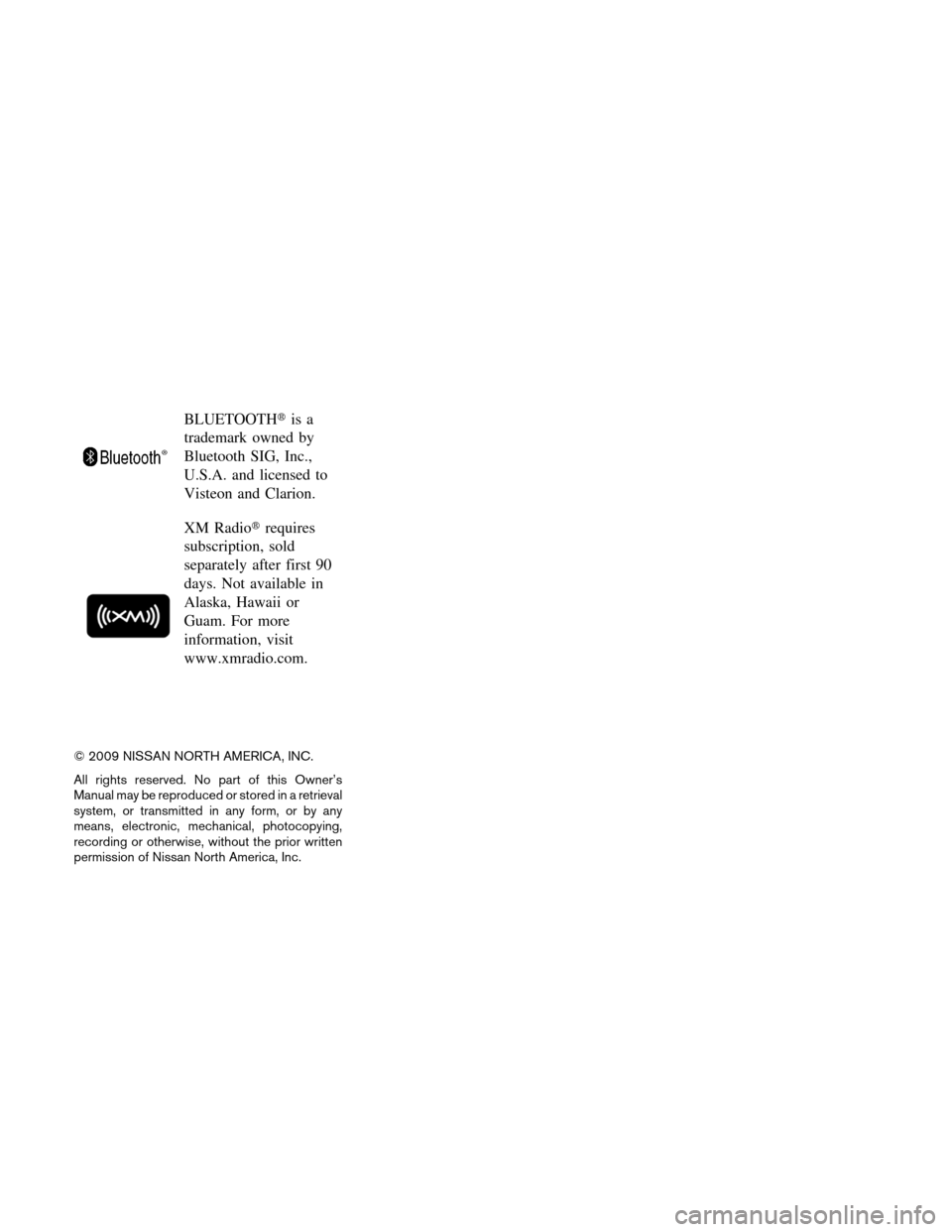

trademark owned by
Bluetooth SIG, Inc.,
U.S.A. and licensed to
Visteon and Clarion.
XM Radio requires
separately after first 90
days. Not available in
Alaska, Hawaii or
Guam. For more
© 2009 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a retrieval
system, or transmitted in any form, or by any
means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written
permission of Nissan North America, Inc.
Page 5 of 422

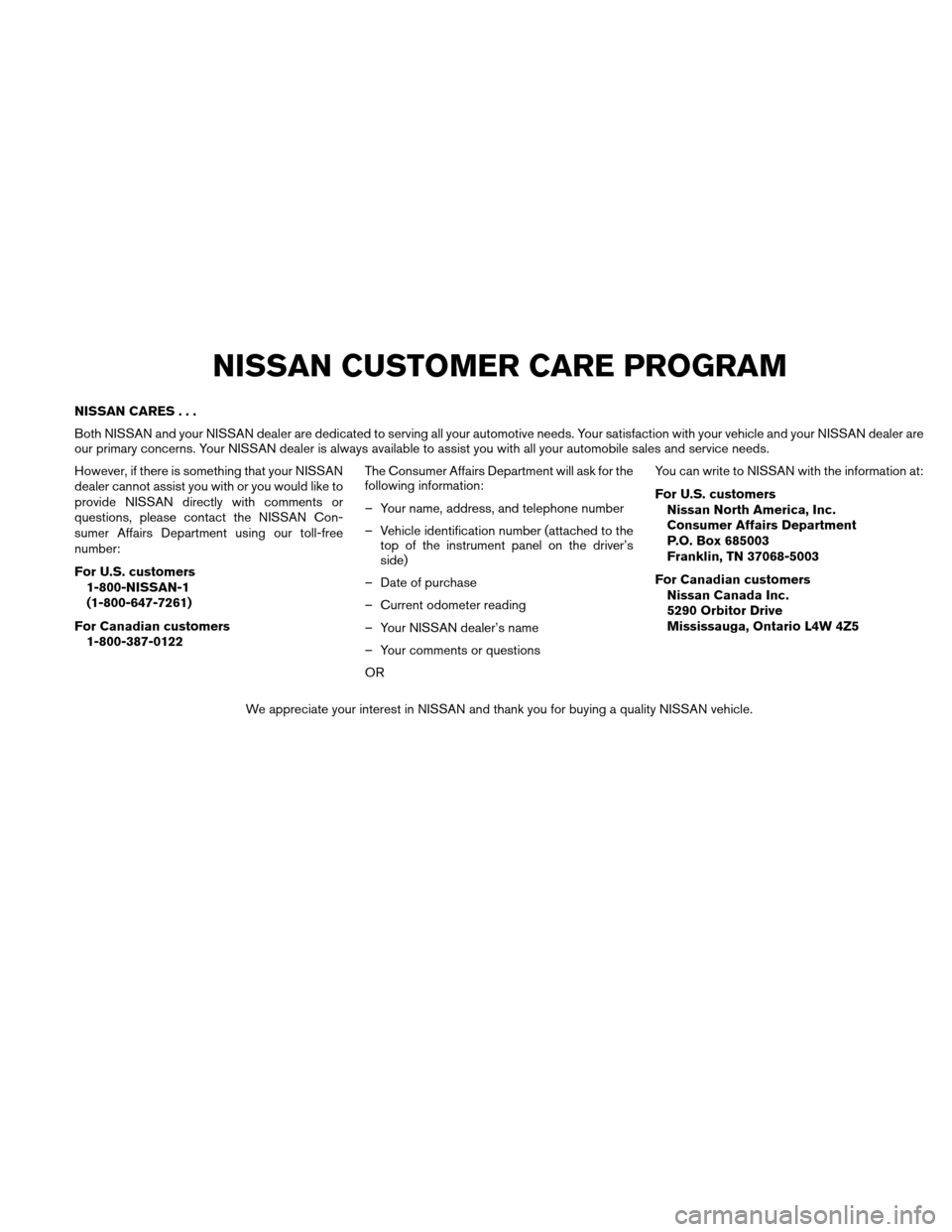

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
For U.S. customers1-800-NISSAN-1
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
– Your name, address, and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM
Page 6 of 422

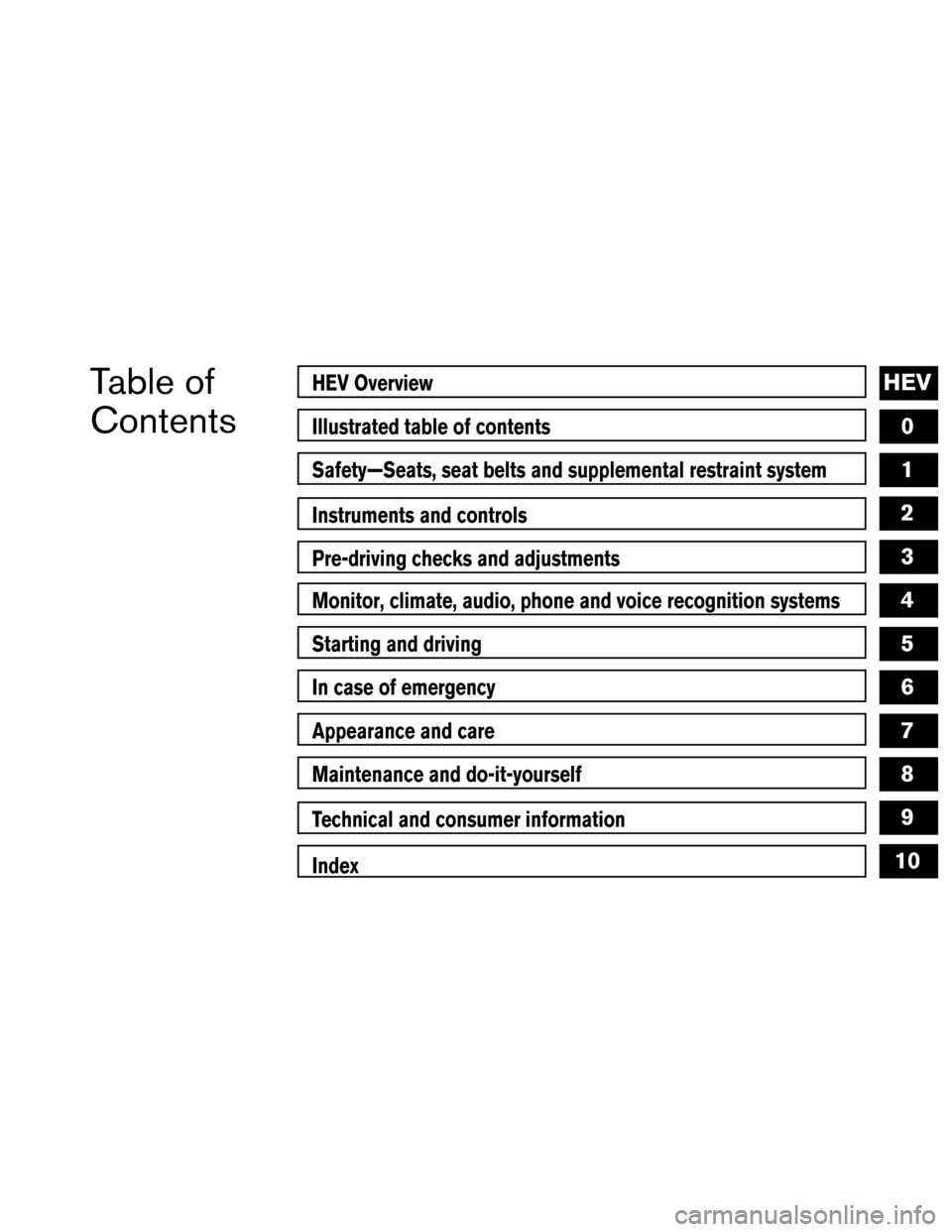

Illustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Page 7 of 422
Page 8 of 422

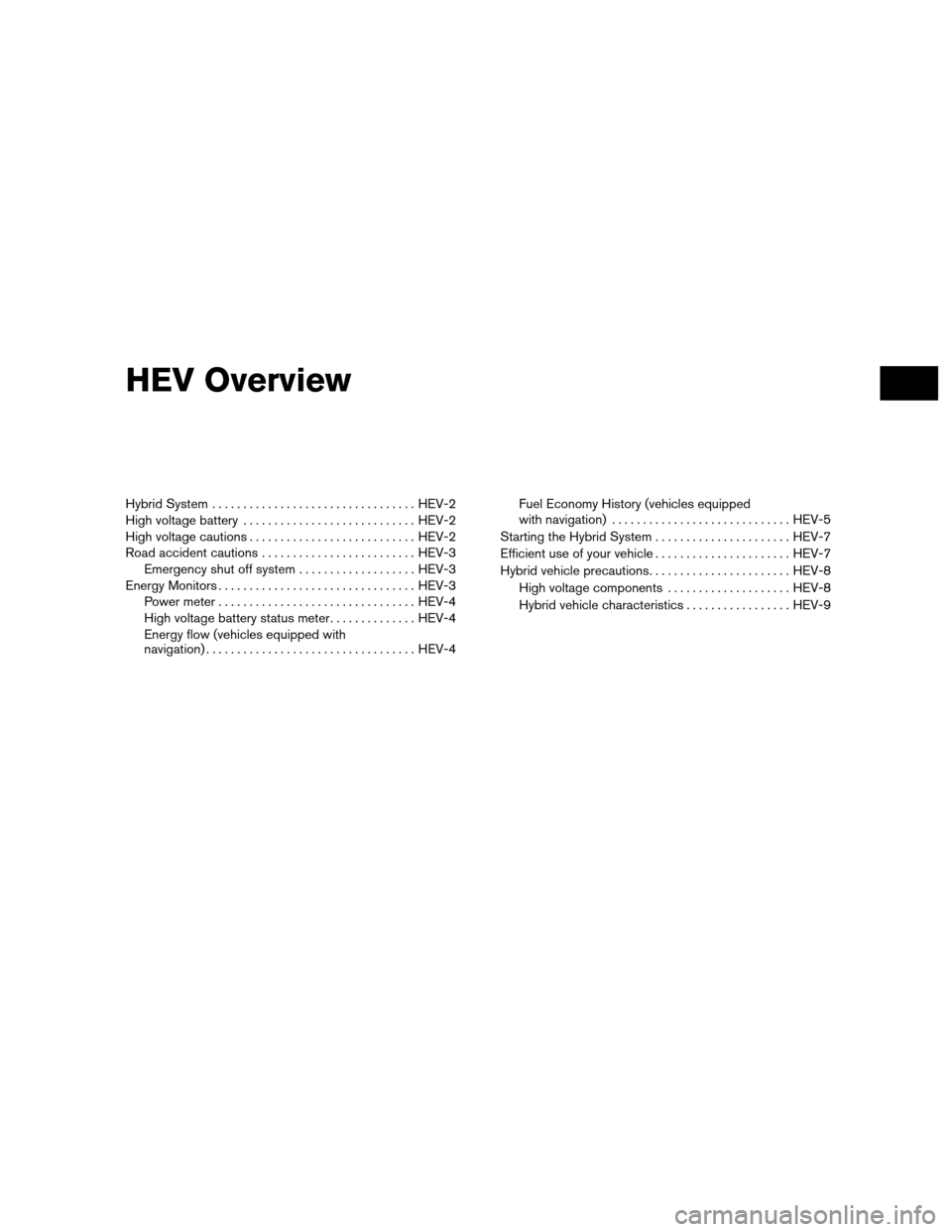

Hybrid System................................. HEV-2
High voltage battery ............................ HEV-2
High voltage cautions ........................... HEV-2
Road accident cautions ......................... HEV-3
Emergency shut off system ...................HEV-3
Energy Monitors ................................ HEV-3
Power meter ................................ HEV-4
High voltage battery status meter ..............HEV-4
Energy flow (vehicles equipped with
navigation) .................................. HEV-4Fuel Economy History (vehicles equipped
Starting the Hybrid System ......................HEV-7
Efficient use of your vehicle ......................HEV-7
Hybrid vehicle precautions .......................HEV-8
High voltage components ....................HEV-8
Hybrid vehicle characteristics .................HEV-9
Page 9 of 422

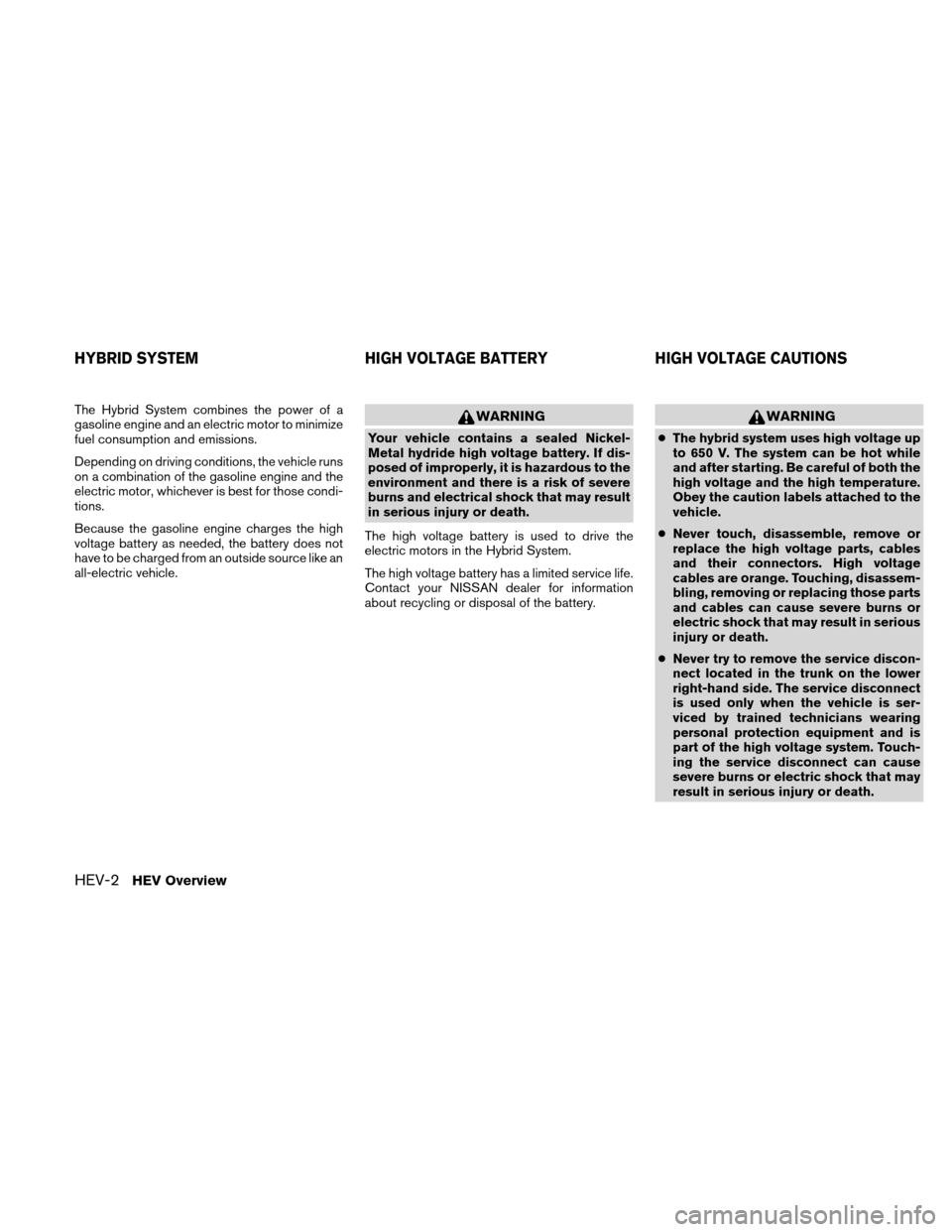

The Hybrid System combines the power of a
gasoline engine and an electric motor to minimize
fuel consumption and emissions.
Depending on driving conditions, the vehicle runs
on a combination of the gasoline engine and the
electric motor, whichever is best for those condi-
Because the gasoline engine charges the high
voltage battery as needed, the battery does not
have to be charged from an outside source like an
Your vehicle contains a sealed Nickel-
Metal hydride high voltage battery. If dis-
posed of improperly, it is hazardous to the
environment and there is a risk of severe
burns and electrical shock that may result
in serious injury or death.
The high voltage battery is used to drive the
electric motors in the Hybrid System.
The high voltage battery has a limited service life.
Contact your NISSAN dealer for information
about recycling or disposal of the battery.
● The hybrid system uses high voltage up
to 650 V. The system can be hot while
and after starting. Be careful of both the
high voltage and the high temperature.
Obey the caution labels attached to the
● Never touch, disassemble, remove or
replace the high voltage parts, cables
and their connectors. High voltage
cables are orange. Touching, disassem-
bling, removing or replacing those parts
and cables can cause severe burns or
electric shock that may result in serious
injury or death.
● Never try to remove the service discon-
nect located in the trunk on the lower
right-hand side. The service disconnect
is used only when the vehicle is ser-
viced by trained technicians wearing
personal protection equipment and is
part of the high voltage system. Touch-
ing the service disconnect can cause
severe burns or electric shock that may
result in serious injury or death.
HYBRID SYSTEM HIGH VOLTAGE BATTERYHIGH VOLTAGE CAUTIONS
Page 10 of 422

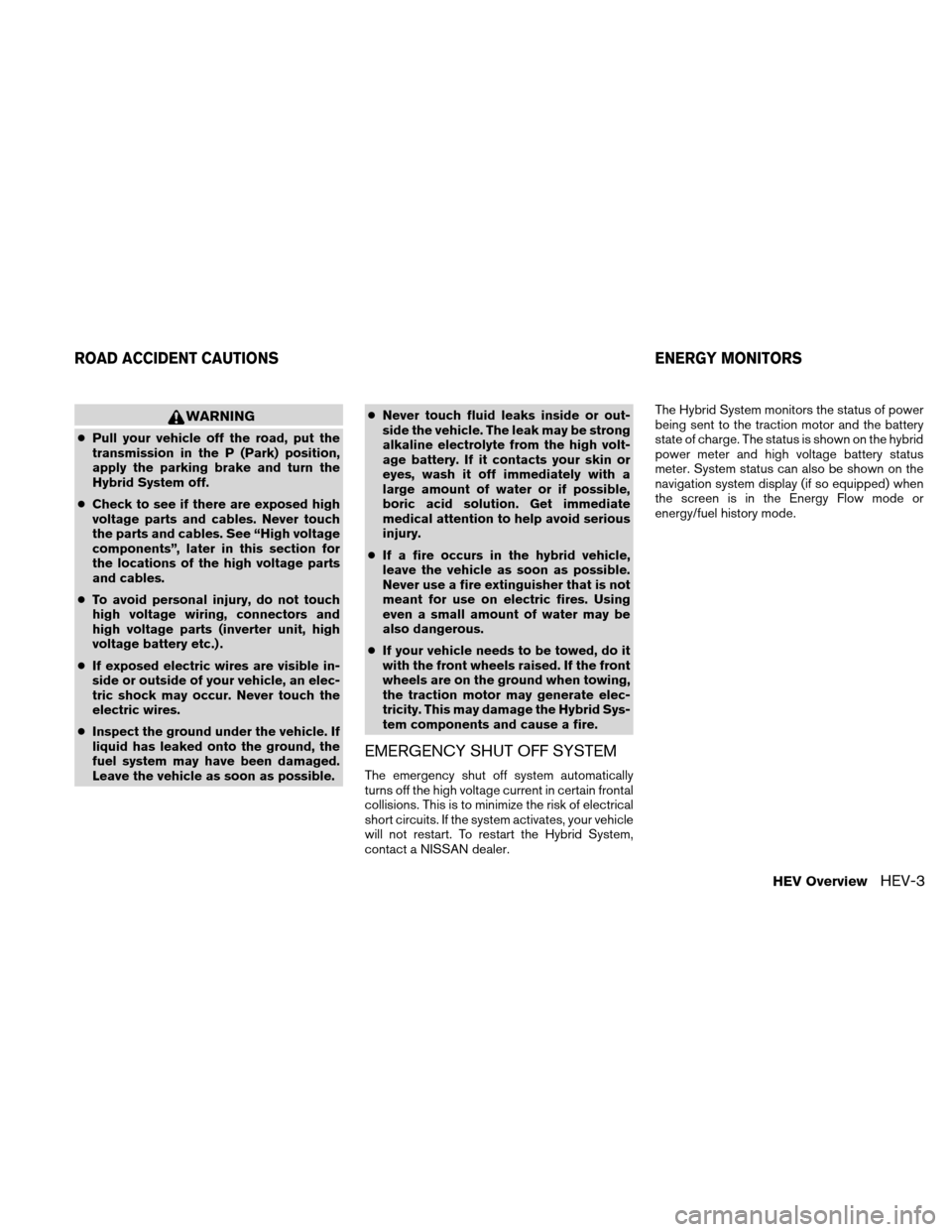

●Pull your vehicle off the road, put the
transmission in the P (Park) position,
apply the parking brake and turn the
Hybrid System off.
● Check to see if there are exposed high
voltage parts and cables. Never touch
the parts and cables. See “High voltage
components”, later in this section for
the locations of the high voltage parts
● To avoid personal injury, do not touch
high voltage wiring, connectors and
high voltage parts (inverter unit, high
voltage battery etc.) .
● If exposed electric wires are visible in-
side or outside of your vehicle, an elec-
tric shock may occur. Never touch the
● Inspect the ground under the vehicle. If
liquid has leaked onto the ground, the
fuel system may have been damaged.
Leave the vehicle as soon as possible. ●
Never touch fluid leaks inside or out-
side the vehicle. The leak may be strong
alkaline electrolyte from the high volt-
age battery. If it contacts your skin or
eyes, wash it off immediately with a
large amount of water or if possible,
boric acid solution. Get immediate
medical attention to help avoid serious
● If a fire occurs in the hybrid vehicle,
leave the vehicle as soon as possible.
Never use a fire extinguisher that is not
meant for use on electric fires. Using
even a small amount of water may be
● If your vehicle needs to be towed, do it
with the front wheels raised. If the front
wheels are on the ground when towing,
the traction motor may generate elec-
tricity. This may damage the Hybrid Sys-
tem components and cause a fire.
EMERGENCY SHUT OFF SYSTEM
The emergency shut off system automatically
turns off the high voltage current in certain frontal
collisions. This is to minimize the risk of electrical
short circuits. If the system activates, your vehicle
will not restart. To restart the Hybrid System,
contact a NISSAN dealer. The Hybrid System monitors the status of power
being sent to the traction motor and the battery
state of charge. The status is shown on the hybrid
power meter and high voltage battery status
meter. System status can also be shown on the
navigation system display (if so equipped) when
the screen is in the Energy Flow mode or
energy/fuel history mode.
ROAD ACCIDENT CAUTIONS
