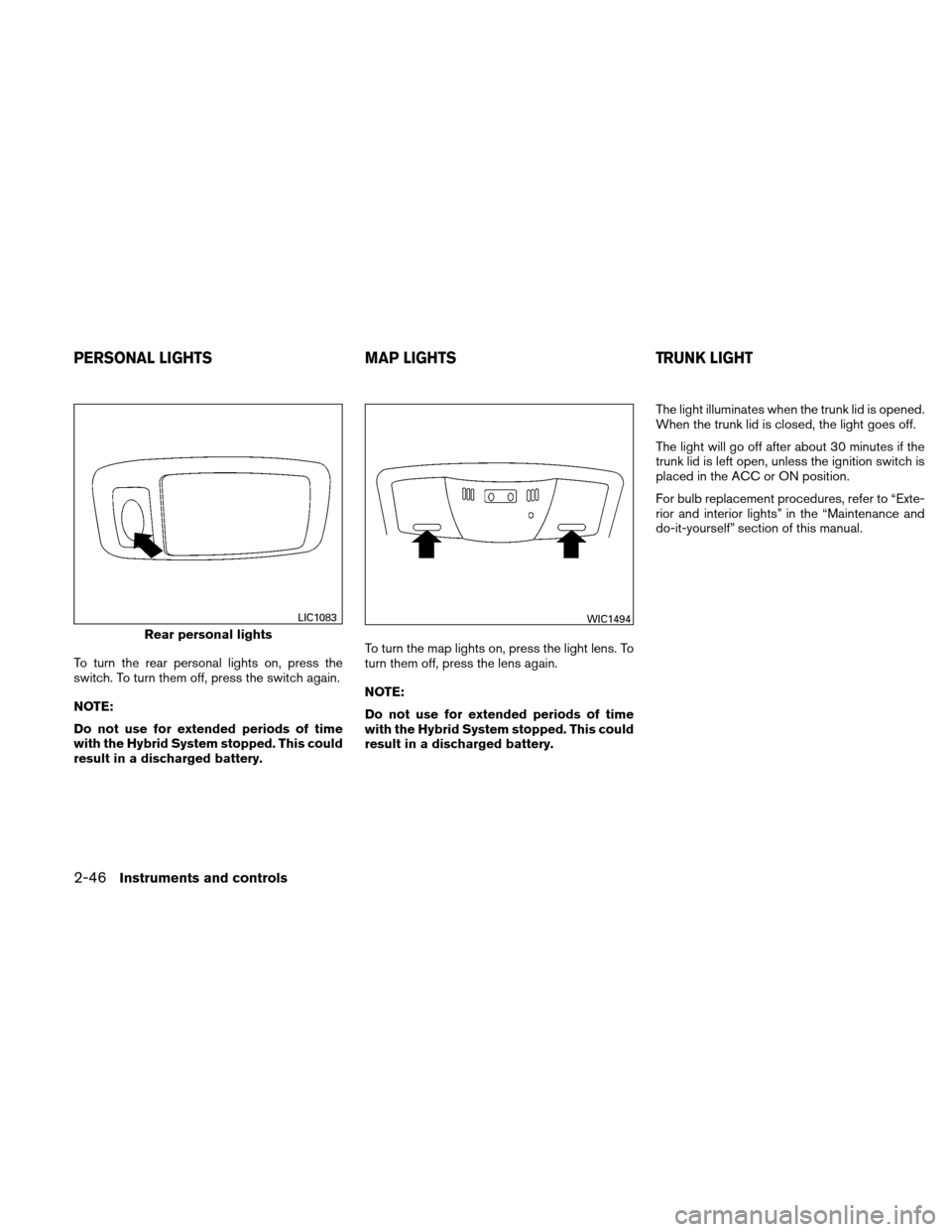

To turn the rear personal lights on, press the
switch. To turn them off, press the switch again.
NOTE:
Do not use for extended periods of time
with the Hybrid System stopped. This could
result in a discharged battery.To turn the map lights on, press the light lens. To
turn them off, press the lens again.
NOTE:
Do not use for extended periods of time
with the Hybrid System stopped. This could
result in a discharged battery.The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
The light will go off after about 30 minutes if the
trunk lid is left open, unless the ignition switch is
placed in the ACC or ON position.
For bulb replacement procedures, refer to “Exte-
rior and interior lights” in the “Maintenance and
do-it-yourself” section of this manual.
Rear personal lights
LIC1083WIC1494
PERSONAL LIGHTS
MAP LIGHTSTRUNK LIGHT
2-46Instruments and controls

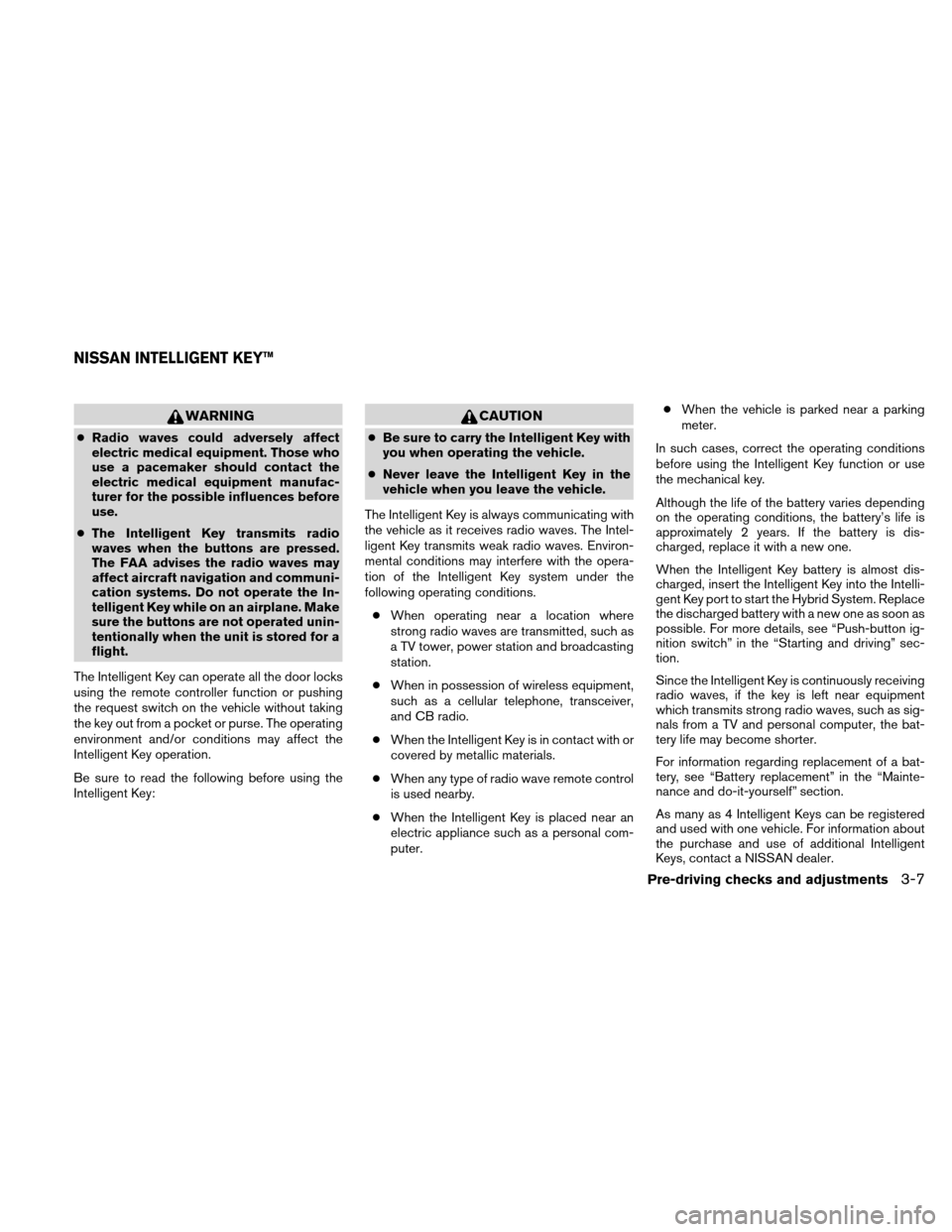

WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the In-
telligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key can operate all the door locks
using the remote controller function or pushing
the request switch on the vehicle without taking
the key out from a pocket or purse. The operating
environment and/or conditions may affect the
Intelligent Key operation.
Be sure to read the following before using the
Intelligent Key:
CAUTION
● Be sure to carry the Intelligent Key with
you when operating the vehicle.
● Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The Intel-
ligent Key transmits weak radio waves. Environ-
mental conditions may interfere with the opera-
tion of the Intelligent Key system under the
following operating conditions. ● When operating near a location where
strong radio waves are transmitted, such as
a TV tower, power station and broadcasting
station.
● When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
● When the Intelligent Key is in contact with or
covered by metallic materials.
● When any type of radio wave remote control
is used nearby.
● When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter. ●
When the vehicle is parked near a parking
meter.
In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, insert the Intelligent Key into the Intelli-
gent Key port to start the Hybrid System. Replace
the discharged battery with a new one as soon as
possible. For more details, see “Push-button ig-
nition switch” in the “Starting and driving” sec-
tion.
Since the Intelligent Key is continuously receiving
radio waves, if the key is left near equipment
which transmits strong radio waves, such as sig-
nals from a TV and personal computer, the bat-
tery life may become shorter.
For information regarding replacement of a bat-
tery, see “Battery replacement” in the “Mainte-
nance and do-it-yourself” section.
As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.
NISSAN INTELLIGENT KEY™
Pre-driving checks and adjustments3-7

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions . . .........................8-5
Engine compartment check locations ................8-7
Engine cooling system .............................8-8
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-9
Inverter cooling system .............................8-9
Checking inverter coolant level ..................8-10
Changing inverter coolant ......................8-10
Engine oil ........................................ 8-10
Checking engine oil level .......................8-10
Changing engine oil ........................... 8-11
Changing engine oil filter .......................8-12
Electronically controlled Continuously Variable
Transmission (eCVT) fluid ......................... 8-13
Brake fluid ....................................... 8-13
Brake fluid .................................... 8-14
Windshield-washer fluid ........................... 8-14
Windshield–washer fluid reservoir ...............8-14
12-volt battery ................................... 8-15
Jump starting ................................. 8-15Drive belt
........................................ 8-15
Spark plugs . ..................................... 8-16
Replacing spark plugs ......................... 8-16
Air cleaner ....................................... 8-17
In-cabin microfilter ............................. 8-17
Windshield wiper blades .......................... 8-17
Cleaning ..................................... 8-17
Replacing .................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear indicators ......................8-19
Fuses ........................................... 8-19
Engine compartment ........................... 8-20
Passenger compartment .......................8-22
Battery replacement .............................. 8-23
NISSAN

Intelligent Key™ ....................... 8-23
Lights ........................................... 8-24
Headlights .................................... 8-24
Front park/turn/sidemarker light .................8-25
Exterior and interior lights .......................8-25
Wheels and tires ................................. 8-29
Tire pressure .................................. 8-29
Tire labeling ................................... 8-33

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING
●This vehicle has high voltage DC and AC
systems as well as a 12-volt system. DC
and AC high voltage is very dangerous
and can cause severe burns and electric
shock that may result in serious injury
or death.
● Never touch, disassemble, remove or
replace the high voltage parts, cables
and their connectors. High voltage
cables are orange. Touching, disassem-
bling, removing or replacing those parts
and cables can cause severe burns or
electric shock that may result in serious
injury or death. ●
Never try to remove the service discon-
nect located in the trunk on the lower
right-hand side. The service disconnect
is used only when the vehicle is ser-
viced by trained technicians wearing
personal protection equipment and is
part of the high voltage system. Touch-
ing the service disconnect can cause
severe burns or electric shock that may
result in serious injury or death.
● The hybrid system uses high voltage up
to 650 V. The system can be hot while
and after starting. Be careful of both the
high voltage and the high temperature.
Obey the caution labels attached to the
vehicle.
● Park the vehicle on a level surface, ap-
ply the parking brake securely and
block the wheels to prevent the vehicle
from moving. Move the shift selector to
P (Park) .
● Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs. ●
The engine can start at any time without
warning when the Hybrid System is in
the READY mode. If you must work with
the Hybrid System in the READY mode,
keep your hands, clothing, hair and
tools away from fans, belts and any
other parts that can move.
● It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
● Always wear eye protection whenever
you work on your vehicle.
● Your vehicle is equipped with an auto-
matic engine cooling fan. It may come
on at any time without warning, even if
the ignition key is in the OFF position
and the engine is not running. To avoid
injury, always disconnect the negative
battery cable before working near the
fan.
● If you must run the engine in an en-
closed space such as a garage, be sure
there is proper ventilation for exhaust
gases to escape.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5

CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
NISSAN INTELLIGENT KEY™
Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small screwdriver
Ainto the slitB
of the corner and twist it to separate the
upper part from the lower part. Use a cloth to
protect the casing.
3. Replace the battery with a new one. Recommended battery: CR2032 or equiva-
lent.
●Do not touch the internal circuit and elec-
tric terminals as doing so could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the bot-
tom of the case.
WDI0567
BATTERY REPLACEMENT
Maintenance and do-it-yourself8-23

10 Index
12-volt battery.................8-15
A
Air bag
(See supplemental restraint system) .....1-34
Air bag system Front (See supplemental front impact
air bag system) ...............1-42
Air bag warning light ...........1-49, 2-15
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-22
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls . . . .4-20
Servicing air conditioner ..........4-22
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-21
Antenna .....................4-85
Anti-lock brake warning light ..........2-10
Anti-lock Braking System (ABS) ........5-21
Armrests .....................1-5
Audible reminders ...............2-17
Audio system ..................4-22
Bluetooth audio..............4-78
Compact disc (CD)
player ..........4-40, 4-46, 4-52, 4-58 FM-AM radio with compact disc (CD)
player
....................4-38
FM/AM/SAT radio with CD/DVD player . .4-48
FM/AM/SAT radio with compact disc
(CD) player .................4-42
Audio System iPod Player .............4-66, 4-68
Music Box hard-disk drive audio
system ....................4-71
Audio system Radio ....................4-22
Audio System Settings ...................4-49
Audio system USB interface ............4-60, 4-62
Autolight switch .................2-30
Automatic Automatic power window switch .....2-42
Transmission selector lever lock
release ....................5-13
Automatic
anti-glare inside mirror .......3-24
Automatic door locks ..............3-6
AUX jack .................4-41, 4-47
B
Battery Charge warning light ........2-11, 2-13
Before starting the vehicle ...........5-10
Belt (See drive belt) ..............8-15
Block heater Engine ....................5-25 Bluetooth
audio................4-78
Bluetooth hands-free phone
system .................4-86, 4-101
Booster seats ..................1-31
Brake Anti-lock Braking System (ABS) ......5-21
Brake fluid ..................8-13
Brake light (See stop light) .........8-25
Brake system ................5-19
Brake warning light .........2-10, 2-12
Brake wear indicators ........2-17, 8-19
Parking brake operation ..........5-14
Self-adjusting brakes ............8-19
Brakes ......................8-19
Break-in schedule ...............5-17
Brightness control Instrument panel ..............2-32
Brightness/contrast button ...........4-12
Bulb check/instrument panel ..........2-9
Bulb replacement ................8-25
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-85
Cargo (See vehicle loading information) . . .9-12
CD care and cleaning .............4-81
CD player
(See audio system) . . . .4-40, 4-46, 4-52, 4-58
Child restraint with top tether strap ......1-21
Child restraints .......1-16,
1-16, 1-17, 1-19

Engine oil...................8-10
Inverter coolant ................8-9
F.M.V.S.S. certification label ...........9-10
Front air bag system
(See supplemental restraint system) ......1-42
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-17
Fuel gauge ...................2-5
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Fuel-filler door and cap ...........3-21
Fuel-filler door lock opener lever ......3-21
Fuses .......................8-19
Fusible links ...................8-21
G
Garage door opener, HomeLink Universal
Transceiver ....................2-47
Gascap .....................3-21
Gauge Fuel gauge ...................2-5
High voltage battery status meter . .2-5, HEV-4
Odometer ...................2-4
Power meter .............2-4, HEV-4
Speedometer .................2-4
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-38
Glove box lock ..................2-38
Grocery hooks ..................2-39 H
Hands-free phone system,
Bluetooth ................4-86, 4-101
Hazard warning flasher switch .........2-33
Headlight and turn signal switch ........2-29
Headlight control switch ............2-29
Headlights ....................8-24
Heated seats ...................2-34
Heater Heater
and air conditioner controls .....4-20
Heater operation ...............4-20
High voltage battery status meter . . . .2-5, HEV-4
High voltage components ...........HEV-8
HomeLink Universal Transceiver ........2-47
Hood release ...................3-18
Horn .......................2-33
Hybrid System Energy flow .................HEV-4
Energy/fuel history .............HEV-5
Stops operating while driving .........6-6
Vehicle does not start .............6-7
Hybrid vehicle characteristics .........HEV-9
I
Ignition Switch Push-Button Ignition Switch .........5-7
Immobilizer system ..........2-26, 3-3, 5-9
Important vehicle information label .......9-10
In-cabin microfilter ................8-17
Increasing fuel economy .............5-17 Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.....................2-9
Inside automatic anti-glare mirror ........3-24
Inside mirror ...................3-24
Instrument brightness control ..........2-32
Instrument panel dimmer switch ........2-32
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-45
Interior trunk lid release .............3-20
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iP

od Player ................4-66, 4-68
ISOFIX child restraints .............1-19
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-2
10-3
