NISSAN ALTIMA HYBRID 2011 L32A / 4.G Navigation Manual

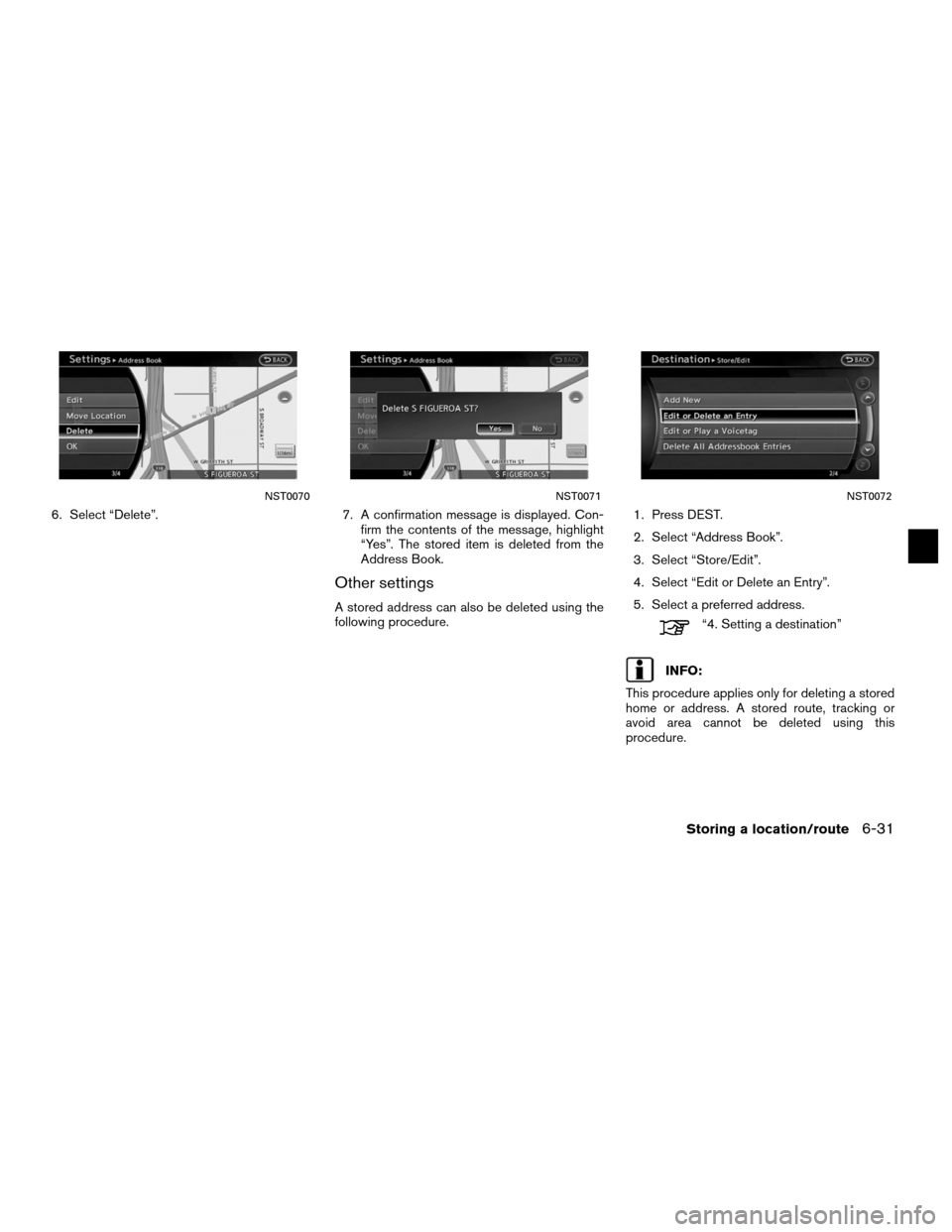

6. Select “Delete”.7. A confirmation message is displayed. Con-
firm the contents of the message, highlight
“Yes”. The stored item is deleted from the
Address Book.
Other settings
A stored address can also be deleted using the
following procedure. 1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
4. Select “Edit or Delete an Entry”.
5. Select a preferred address.
“4. Setting a destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this
procedure.
NST0070NST0071NST0072
Storing a location/route6-31

DELETING AN INDIVIDUAL ITEM ON
THE MAP
1. Align the cross pointer over the preferredstored location for deletion by moving on
the map.
2. Select “Map Menu”.
3. Select “Delete”.4. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”.
The stored item is deleted from the Address
Book.
NST0073NST0074
6-32Storing a location/route

DELETING ALL STORED ITEMS
1. Press SETTING.
2. Select “Navigation”.3. Select “Address Book”.
4. Select “Delete Stored Items”.
NST0075NST0076NST0077
Storing a location/route6-33

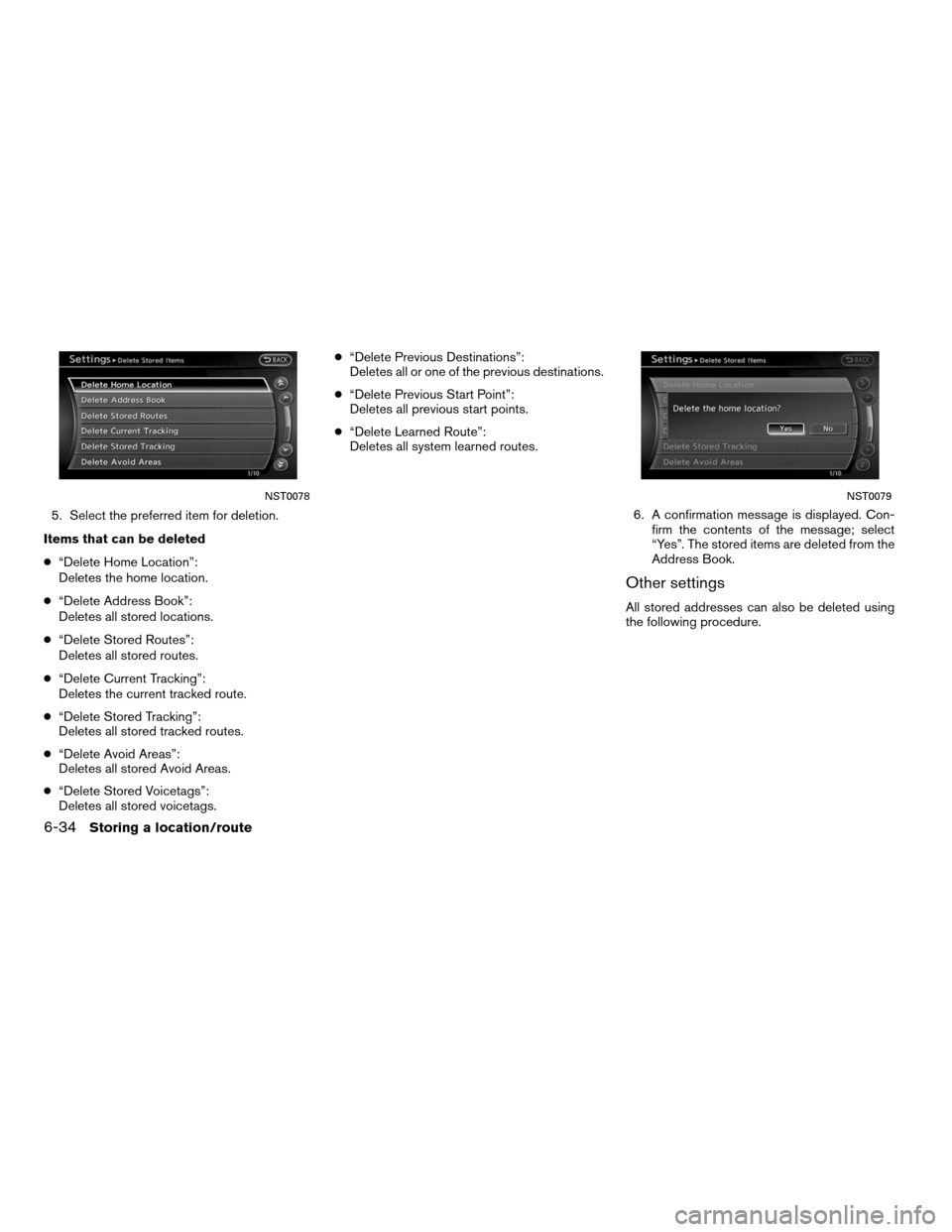

5. Select the preferred item for deletion.
Items that can be deleted
● “Delete Home Location”:
Deletes the home location.
● “Delete Address Book”:
Deletes all stored locations.
● “Delete Stored Routes”:
Deletes all stored routes.
● “Delete Current Tracking”:
Deletes the current tracked route.
● “Delete Stored Tracking”:
Deletes all stored tracked routes.
● “Delete Avoid Areas”:
Deletes all stored Avoid Areas.
● “Delete Stored Voicetags”:
Deletes all stored voicetags. ●
“Delete Previous Destinations”:
Deletes all or one of the previous destinations.
● “Delete Previous Start Point”:
Deletes all previous start points.
● “Delete Learned Route”:
Deletes all system learned routes.
6. A confirmation message is displayed. Con-firm the contents of the message; select
“Yes”. The stored items are deleted from the
Address Book.
Other settings
All stored addresses can also be deleted using
the following procedure.
NST0078NST0079
6-34Storing a location/route

1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
4. Select “Delete All Addressbook Entries”.
“4. Setting a destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this
procedure. The information of the stored home and ad-
dresses can be exported and imported using a
USB memory.
1. Insert a USB memory device into the vehi-cle’s USB port and press SETTING.
INFO:
Refer to the vehicle Owner’s Manual for the lo-
cation of the USB connector. 2. Select “Navigation”.
NST0080NST0075
TRANSFERRING INFORMATION
TO/FROM THE ADDRESS BOOK
Storing a location/route6-35

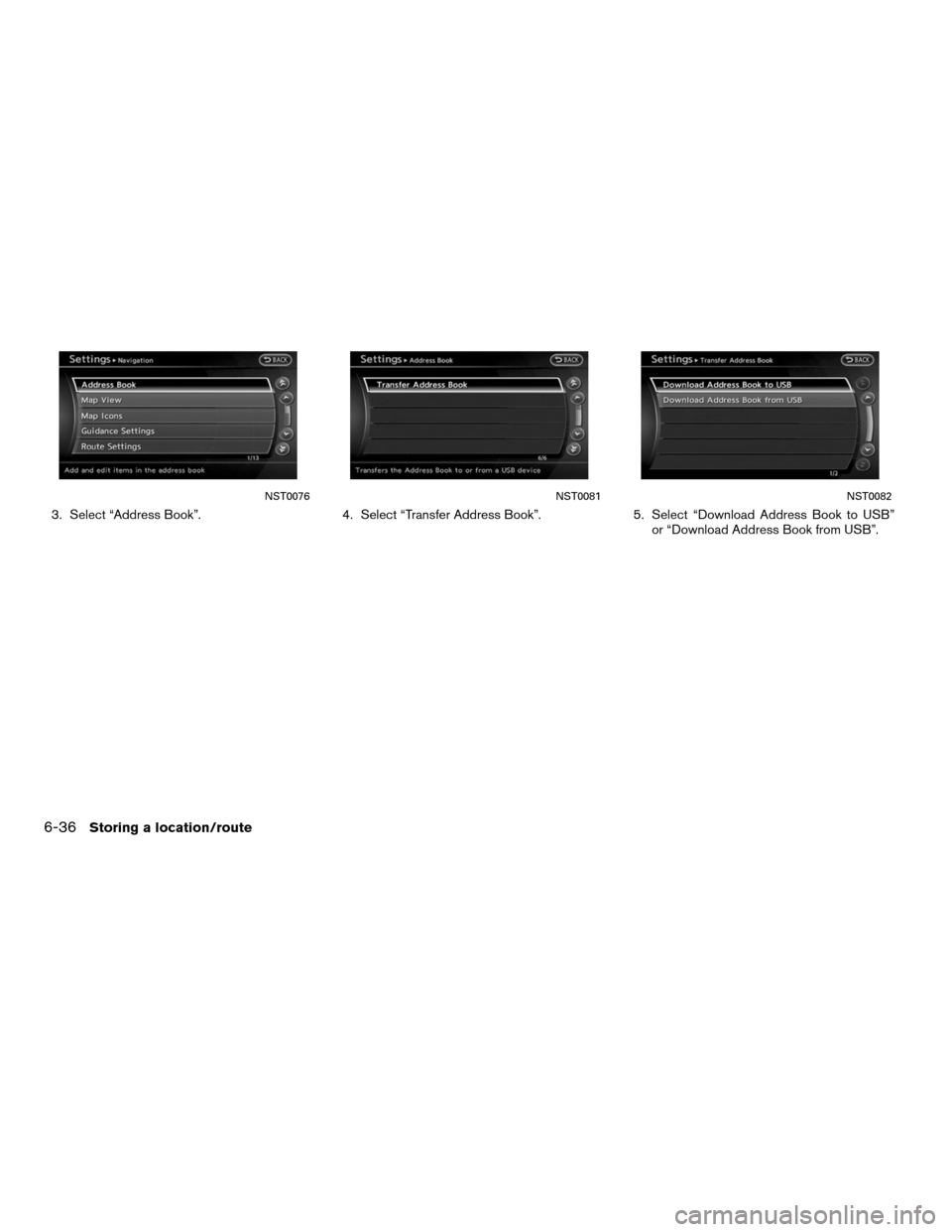

3. Select “Address Book”.4. Select “Transfer Address Book”.5. Select “Download Address Book to USB”
or “Download Address Book from USB”.
NST0076NST0081NST0082
6-36Storing a location/route

6. Select a stored item. The “ON” indicatorilluminates. 7. Select “Download”.
INFO:
● Do not remove the USB memory until
the system completely imports or ex-
ports the data.INFO:
If the USB memory already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original data
cannot be recovered.
NST0083NST0084NST0085
Storing a location/route6-37

6-38Storing a location/route

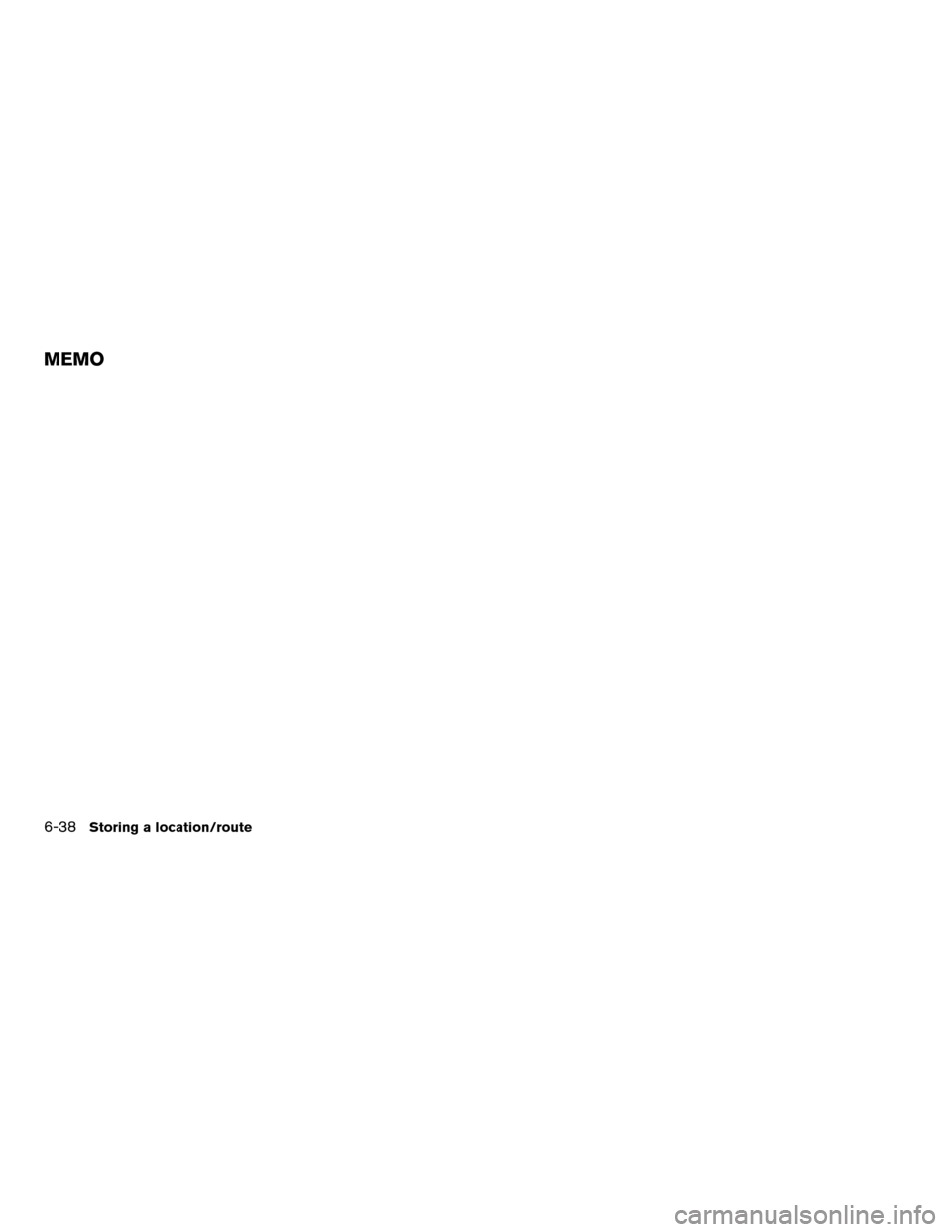

MEMO

7 Viewing technical information
Information screen.................................7-2
Basic operation ................................7-2
Viewing information about current vehicle location .....7-3
Basic operation ................................7-3
Viewing available traffic information ..................7-4
Basic operation ................................7-5
Info on route ...................................7-5
Nearby traffic info. ..............................7-6
Display urgent traffic information .................7-7
Traffic information on map .......................7-8
Traffic information settings ......................7-10Viewing available weather information
...............7-11
Displaying weather information screen ...........7-12
Destination weather on suggested route
screen ....................................... 7-22
Automatically display warning/watches ...........7-22
Map update ...................................... 7-24
Viewing navigation system version information .......7-25
Basic operation ............................... 7-25
Viewing GPS current location information ...........7-26
Basic operation ............................... 7-26

This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
An XM NavTraffic subscription is necessary to
view Traffic Info.
An XM NavWeather™ subscription is necessary
to view Weather Info.
BASIC OPERATION
1. Press INFO.
2. Select the preferred item.
Available items
● “Where am I?”:
Displays information regarding the current
vehicle location.
“VIEWING INFORMATION
ABOUT CURRENT VEHICLE
LOCATION” (page 7-3)
● “Traffic Info”:
Allows Traffic Info setup.
“VIEWING AVAILABLE TRAFFIC
INFORMATION” (page 7-4) ●
“Weather Info”:
Displays weather information.
“VIEWING AVAILABLE
WEATHER INFORMATION”
(page 7-11)
● “Map Update”:
Display the map version and enable updat-
ing of the map data.
“MAP UPDATE” (page 7-24)
● “Navigation Version”:
Displays the current navigation system version.
“VIEWING NAVIGATION SYSTEM
VERSION INFORMATION”
(page 7-25)
●“GPS Position”:
Displays GPS information regarding the
current vehicle location.
“VIEWING GPS CURRENT LO-
CATION INFORMATION”
(page 7-26)
● “Voice Recognition”:
Displays the voice recognition list.
“9. Voice recognition”
LNV2009
INFORMATION SCREEN
7-2Viewing technical information
