NISSAN ALTIMA HYBRID 2011 L32A / 4.G Navigation Manual

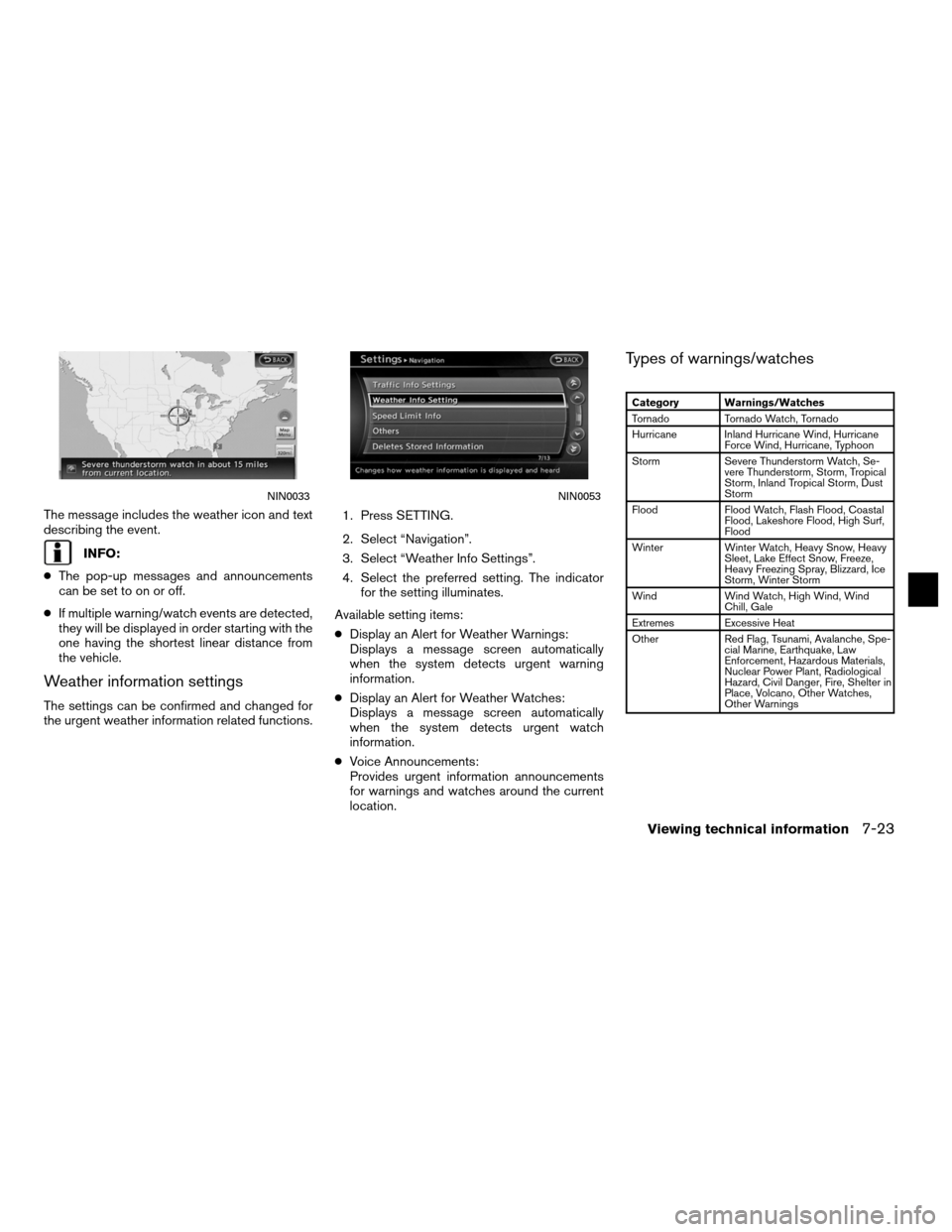

The message includes the weather icon and text
describing the event.
INFO:
● The pop-up messages and announcements
can be set to on or off.
● If multiple warning/watch events are detected,
they will be displayed in order starting with the
one having the shortest linear distance from
the vehicle.
Weather information settings
The settings can be confirmed and changed for
the urgent weather information related functions. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Weather Info Settings”.
4. Select the preferred setting. The indicator
for the setting illuminates.
Available setting items:
● Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
● Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
● Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current
location.
Types of warnings/watches
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurricane Force Wind, Hurricane, Typhoon
Storm Severe Thunderstorm Watch, Se-
vere Thunderstorm, Storm, Tropical
Storm, Inland Tropical Storm, Dust
Storm
Flood Flood Watch, Flash Flood, Coastal
Flood, Lakeshore Flood, High Surf,
Flood
Winter Winter Watch, Heavy Snow, Heavy
Sleet, Lake Effect Snow, Freeze,
Heavy Freezing Spray, Blizzard, Ice
Storm, Winter Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche, Spe-
cial Marine, Earthquake, Law
Enforcement, Hazardous Materials,
Nuclear Power Plant, Radiological
Hazard, Civil Danger, Fire, Shelter in
Place, Volcano, Other Watches,
Other Warnings
NIN0033NIN0053
Viewing technical information7-23

INFO:
● The “Other Watches” category in the “Other”
category includes Inland Hurricane Watch,
Hurricane Watch, Typhoon Watch, Tropical
Storm Watch, Inland Tropical Storm Watch
and Fire Weather Watch.
● The “Other Warnings” category in the “Other”
category includes Dense Fog Warning, Freez-
ing Fog Warning, Extreme Cold Warning,
Frost Warning, Hydrologic Warning, Ashfall
Warning, Air Stagnation Warning, Low Water
Warning, Ice Accretion Warning, Dense
Smoke Warning, Dense Smoke Advisory,
Freezing Fog Advisory, Dense Fog Advisory,
Ashfall Advisory and Air Stagnation Advisory. 1. Press INFO.
2. Select “Map Update”.
3. Insert the DVD containing the new map
data. 4. Select “DVD Update”.
INFO:
● Refer to the vehicle Owner’s Manual for the
location of the DVD slot.
● Do not eject the DVD while updating the map
data. Doing so will result in an incomplete
update.
● To order updated DVD-ROMs or additional
DVD-ROMs, visit www.navigation.com.
NOTE:
In handling the DVD-ROM, be careful on
the following points.
● Do not try to bend the DVD-ROM. Do not use
any disk that is bent or cracked.
● Do not use any benzine, thinner, or antistatic
spray on them.
LNV2012NIN0011
MAP UPDATE
7-24Viewing technical information

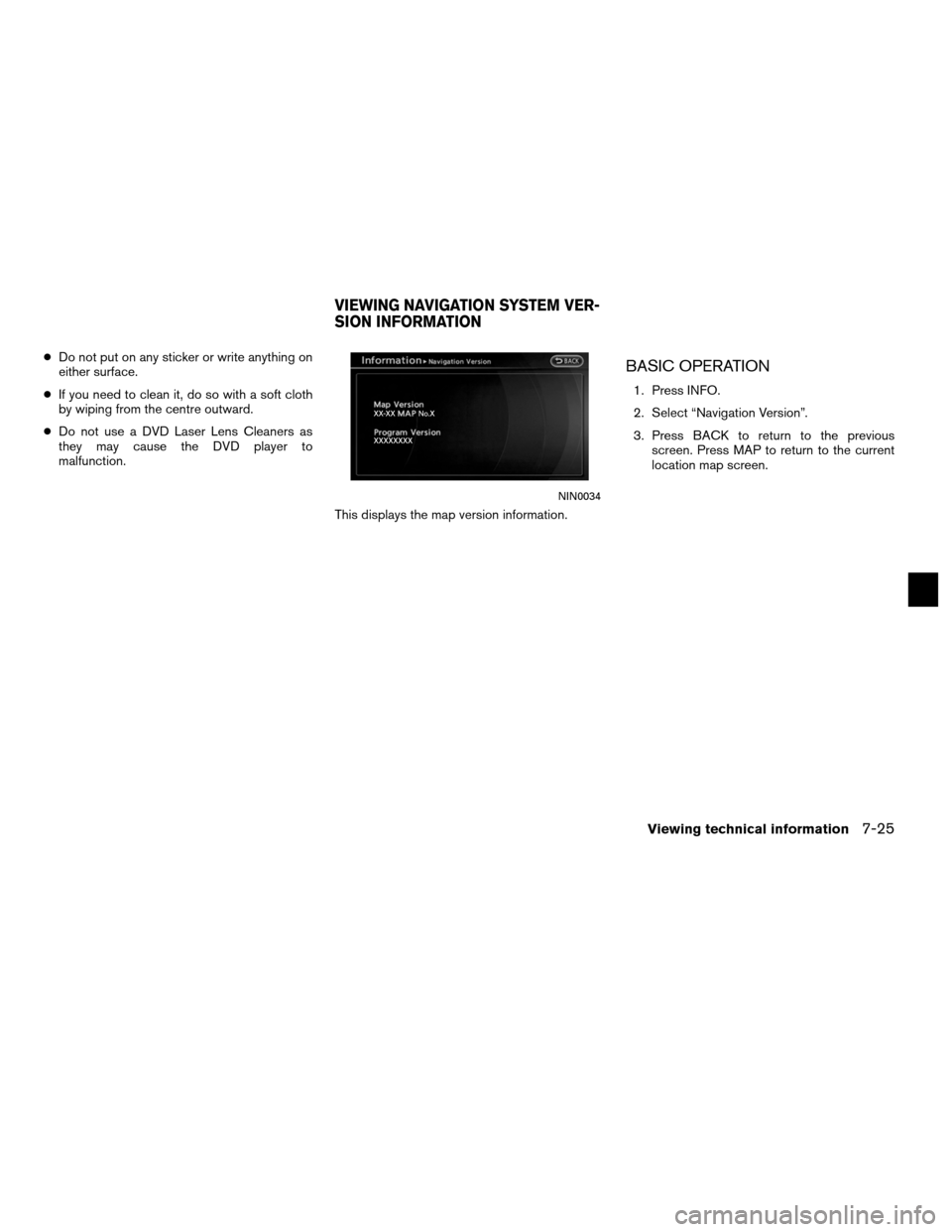

●Do not put on any sticker or write anything on
either surface.
● If you need to clean it, do so with a soft cloth
by wiping from the centre outward.
● Do not use a DVD Laser Lens Cleaners as
they may cause the DVD player to
malfunction.
This displays the map version information.BASIC OPERATION
1. Press INFO.
2. Select “Navigation Version”.
3. Press BACK to return to the previousscreen. Press MAP to return to the current
location map screen.
NIN0034
VIEWING NAVIGATION SYSTEM VER-
SION INFORMATION
Viewing technical information7-25

This displays GPS information, such as the posi-
tioning status, latitude/longitude, altitude and
satellite locations.
BASIC OPERATION
1. Press INFO.
2. Select “GPS Position”.
3. Press BACK to return to the previousscreen. Press MAP to return to the current
location map screen.
Contents of GPS information
1GPS Reception:
Displays the GPS positioning method.
3-dimension Calculating the latitude,
longitude and altitude by
four or more satellites.
2-dimension Calculating the latitude,
longitude and altitude by
three or more satellites.
Out of range Cannot calculate because
no GPS satellites can be
located.
2Latitude:
Displays the latitude.
3Longitude:Displays the longitude.
4Approx Altitude:Displays the approximate altitude.
5Positioning status:
(green) Satellites are available.
(gray)
Satellites are being
searched for.
NIN0035
VIEWING GPS CURRENT LOCATION
INFORMATION
7-26Viewing technical information

8 Other settings
Settings screen...................................8-2
Basic operation ................................8-2
Display settings ...................................8-3
Basic operation ................................8-3
Display adjustment .............................8-3
Basic operation ................................8-4
Setting color theme .............................8-7
Navigation setting .................................8-7
Basic operation ................................8-7
Speed limit indication on map . . ..................8-8 Other navigation settings
........................8-9
Delete stored items ............................ 8-15
Reset all navigation settings to default ...........8-16
Volume adjustment ............................... 8-17
Basic operation ............................... 8-17
Clock settings.................................... 8-18
Basic operation ............................... 8-18
Language and unit settings ........................8-19
Language settings ............................. 8-19
Unit settings .................................. 8-20

The navigation system can be customized to
make it easier for you to use.
BASIC OPERATION
1. Press SETTING.
2. Select the preferred setting item.
Available setting items
● “Navigation”:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-7)
● “Audio”:
Refer to the vehicle Owner’s Manual.
● “Phone”:
Refer to the vehicle Owner’s Manual.
● “Bluetooth”:
Set Bluetooth Audio and Phone. Refer to the
vehicle Owner’s Manual. ●
“Volume and Beeps”:
”Volume adjustment” (page 8-17)
● “Display”:
“Display settings” (page 8-3)
● “Clock”:
“Clock settings” (page 8-18)
● “Others”:
– “Comfort”:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
– “Language & Units”:
“LANGUAGE AND UNIT
SETTINGS” (page 8-19)
– “Voice Recognition”:
“System feedback announce-
ment modes” (page 9-27)
INFO:
The displayed items vary depending on the
equipped options.
NSE0001
SETTINGS SCREEN
8-2Other settings

This menu turns on and off the display, adjust the
image quality of the navigation screen and
change the color of the menu screen.
BASIC OPERATION
1. Press SETTING.
2. Select “Display”.
3. Select the preferred adjustment item.Available setting items
●
“Display Adjustment:
Turn on and off the display and adjust the
image quality of the navigation screen.
● “Color Theme”
Set the color of the menu screen.
DISPLAY ADJUSTMENT
This menu turns on and off the display and ad-
justs the image quality of the navigation screen.
NSE0002NSE0003
DISPLAY SETTINGS
Other settings8-3

BASIC OPERATION
1. Select “Display Adjustment”.
2. Select the preferred adjustment item.
3. Touch the “+” or “-” key.
4. After setting, touch “Back” to apply thesetting.
5. Select “Back” to return to the previous screen. Press MAP to return to the current
location map screen. Available setting items
●
“Display”:
Turn on or off the screen.
“Display” (page 8-4)
● “Brightness”:
Adjust the screen brightness.
“Brightness” (page 8-5)
● “Contrast”:
Adjust the screen contrast.
“Contrast” (page 8-5)
● “Background Color”:
Set the background color.
“Background color” (page 8-6)
Display
To turn off the display, touch the display key. The
display can also be turned off by pressing and
holding
for more than 2 seconds.
NSE0003NSE0004NSE0004
8-4Other settings

When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, press
.
Brightness
Adjust the display brightness by touching “+” or
“”.
Each time “+” or “” is pushed, the display
brightness changes.
Contrast
Adjust the display contrast by touching “+” or
“”.
Each time “+” or “” is touched, the display con-
trast changes.
NSE0005NSE0006NSE0007
Other settings8-5

Background color
Touch to toggle between the day screen and
night screen.INFO:
The background color setting can also be
changed using the
button.
NSE0008
Day screenNSE0039Night screenNSE0040
8-6Other settings
