Page 271 of 315

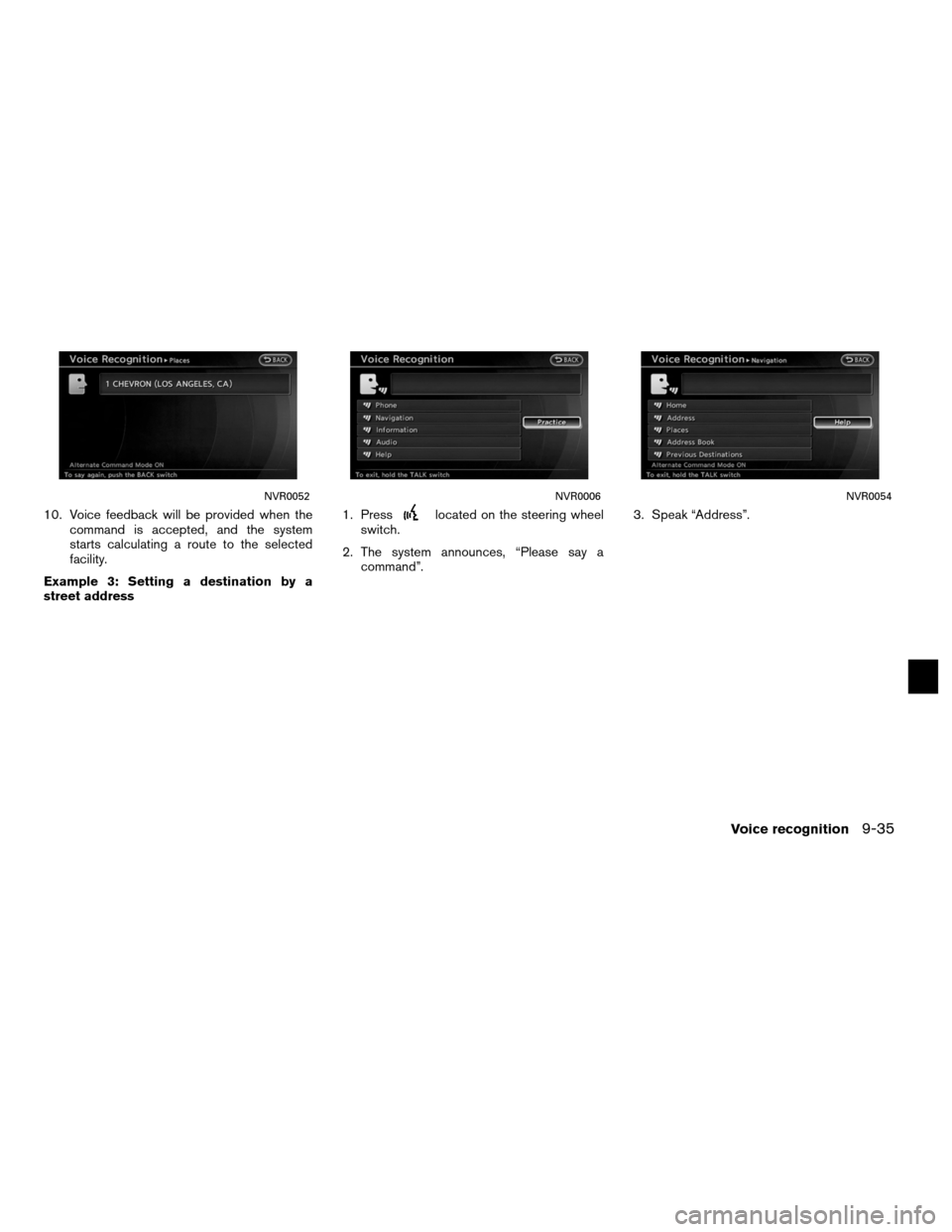

10. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
facility.
Example 3: Setting a destination by a
street address 1. Presslocated on the steering wheel
switch.
2. The system announces, “Please say a command”. 3. Speak “Address”.
NVR0052NVR0006NVR0054
Voice recognition9-35
Page 272 of 315

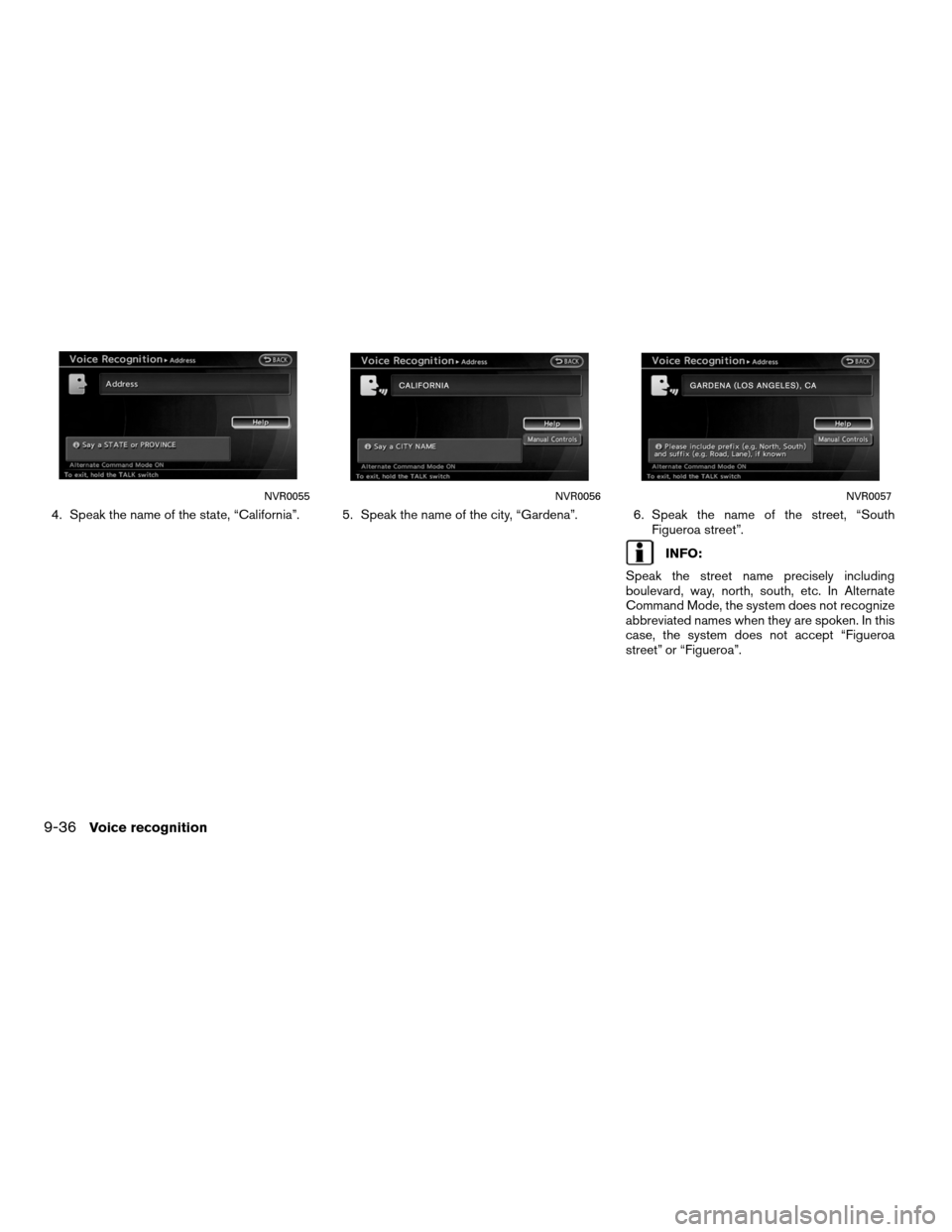

4. Speak the name of the state, “California”. 5. Speak the name of the city, “Gardena”. 6. Speak the name of the street, “SouthFigueroa street”.
INFO:
Speak the street name precisely including
boulevard, way, north, south, etc. In Alternate
Command Mode, the system does not recognize
abbreviated names when they are spoken. In this
case, the system does not accept “Figueroa
street” or “Figueroa”.
NVR0055NVR0056NVR0057
9-36Voice recognition
Page 273 of 315

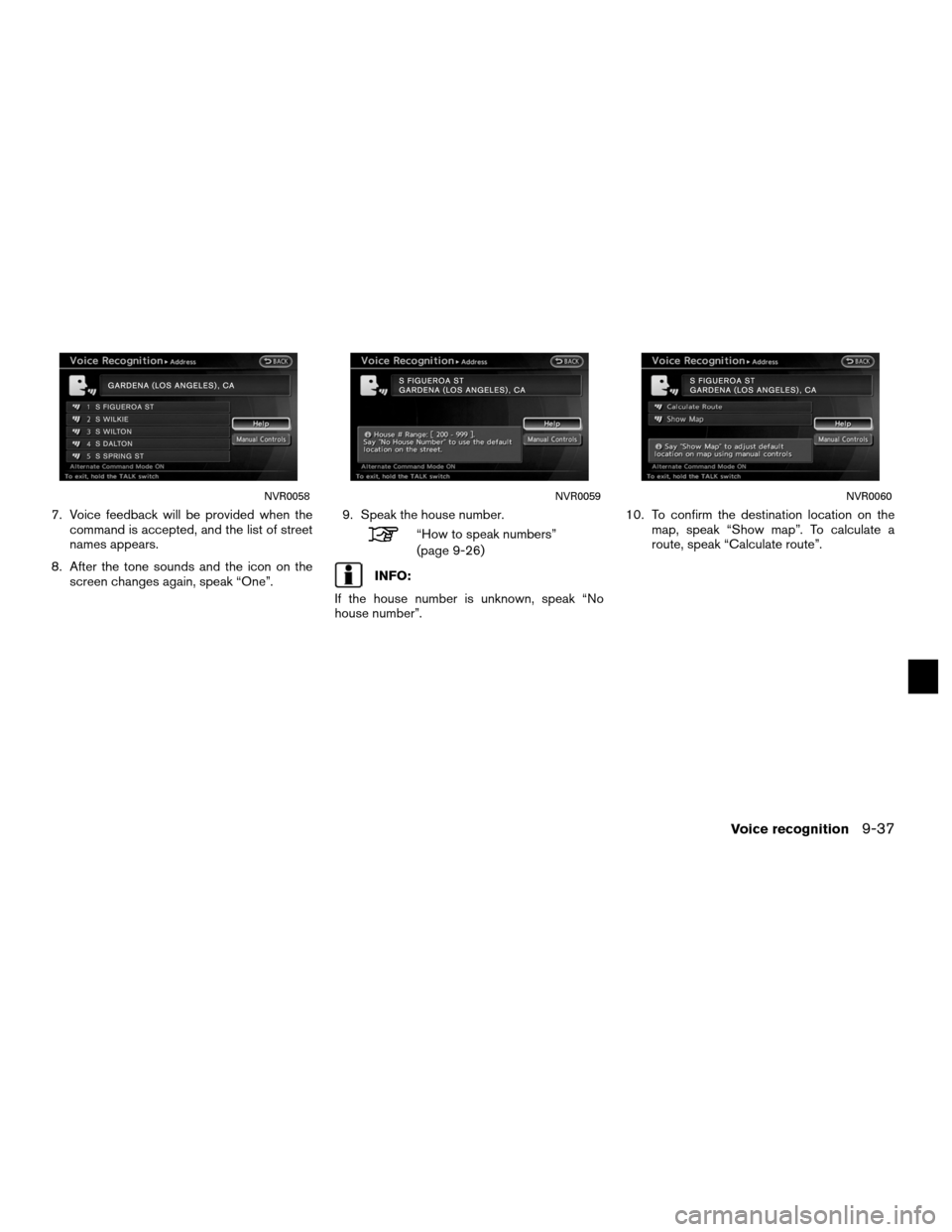

7. Voice feedback will be provided when thecommand is accepted, and the list of street
names appears.
8. After the tone sounds and the icon on the screen changes again, speak “One”. 9. Speak the house number.
“How to speak numbers”
(page 9-26)
INFO:
If the house number is unknown, speak “No
house number”. 10. To confirm the destination location on the
map, speak “Show map”. To calculate a
route, speak “Calculate route”.
NVR0058NVR0059NVR0060
Voice recognition9-37
Page 274 of 315

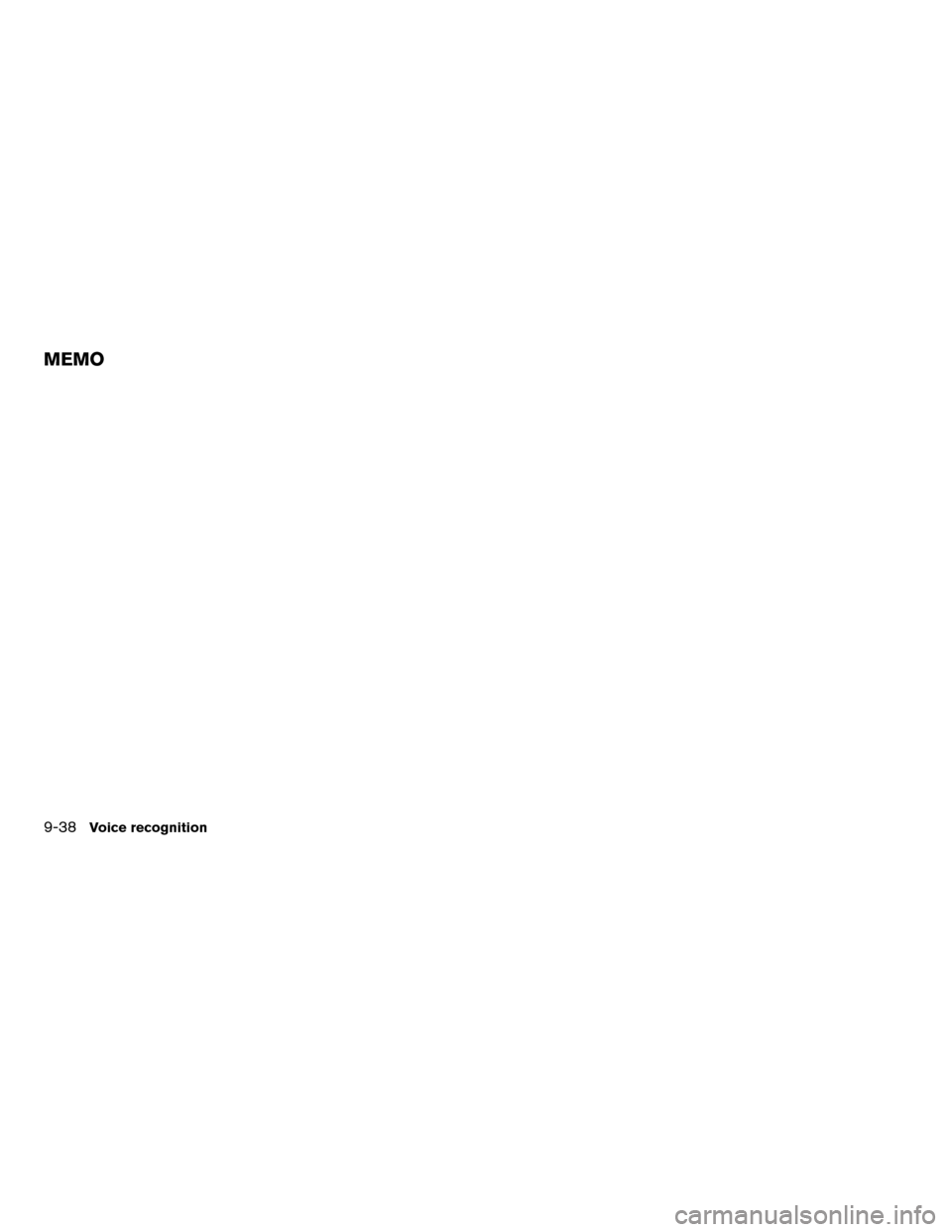

9-38Voice recognition
MEMO
Page 275 of 315
10 General system information
Features of this navigation system..................10-2
Route guidance ............................... 10-2
Places of interest (Places) directory .............10-2
Address book ................................. 10-2
Avoid area . . . ................................. 10-2
XM NavTraffic information..................... 10-2
Automatic reroute ............................. 10-3
Detour ....................................... 10-3
Birdview™ . . . ................................. 10-3
Voice guidance ................................ 10-3
Current vehicle location ........................... 10-4
Display of current vehicle location ...............10-4
What is GPS (Global Positioning System)? .......10-4
Incorrect display of vehicle position ..............10-6
Detailed map coverage areas (MCA) for the
navigation system ............................. 10-8
When a gray road is displayed on the map .......10-8 Route calculation
................................. 10-9
Route guidance ................................. 10-10
Basics of voice guidance ......................10-10
Directions provided and the distances to
guide points ................................. 10-11
Repeating voice guidance .....................10-13
Notes on voice guidance . . . ...................10-13
Notes on XM NavTraffic information.............. 10-14
Notes on XM NavWeather™ information ............10-15
Map data ....................................... 10-16
How to order map data updates ................10-16
About the map data ........................... 10-16
End-user terms ............................... 10-17
How to handle the display ........................10-20
Characteristics of a liquid crystal display ........10-20
Maintenance of the display ....................10-20
Page 276 of 315
ROUTE GUIDANCE
The main features of the NISSAN Navigation
System are visual guidance and voice guidance
in selected map coverage areas. Utilizing a net-
work of GPS (Global Positioning System)
satellites, the NISSAN Navigation System tracks
the location on the map and navigates to a pre-
ferred location.
Once you set the destination in a map coverage
area, the NISSAN Navigation System will calcu-
late a route from your current location to your
destination. The real-time map display and turn-
by-turn voice guidance leads the driver along the
route. These features can be especially helpful
when driving to unfamiliar locations.
The system may be unable to set a destination
and/or calculate a route when the destination is
outside the map coverage area. Additionally,
voice guidance may not be available if the desti-
nation is outside the map coverage area. For
more information on how to set a destination, re-
fer to Section 4.
PLACES OF INTEREST (Places) DI-
RECTORY
The NISSAN Navigation System offers an exten-
sive places of interest (Places) directory in map
coverage areas. This directory includes a wide
variety of destinations ranging from gas stations,ATMs, and restaurants to casinos, ski resorts,
shopping centers and businesses. A point of in-
terest can be searched by category, name or
phone number. After selecting a destination, the
NISSAN Navigation System will calculate a
route to that destination.
The Places directory has many uses. For
example, the directory can be sorted by the vari-
ous types of restaurants near the current
location. If an ATM or gas station is needed, the
NISSAN Navigation System can navigate to the
closest preferred location.
For more information on how to use the Places
directory, refer to section 4.
ADDRESS BOOK
The Address Book can store up to 300 locations
from map coverage areas into a personal
directory. This is especially useful for frequently
visited locations, such as clients, relatives and
friends. The Address Book function allows easy
access to frequently visited locations when set-
ting them as your destination.
For more information on how to use the Address
Book, refer to section 6.
AVOID AREA
The Avoid Area function sets areas or freeways
that the NISSAN Navigation System does not in-
clude in the suggested route when calculating
routes. For example, if a freeway or area that is
always congested with traffic.
For more information on the Avoid Area function,
refer to section 6.
XM NAVTRAFFIC
INFORMATION
When available, the XM NavTraffic Information
broadcast may help to avoid delays due to traffic
incidents. Traffic jams, roadwork, closed roads
around the current location, etc. are represented
graphically on the map by icons depicting the
nature of the event. Incidents on the route are
automatically brought to the attention when they
are approached.
The XM NavTraffic Information feature, via the
guidance mode, may help to detour around traf-
fic problems. For more information on the XM
NavTraffic Information feature, refer to section
5.
FEATURES OF THIS NAVIGATION
SYSTEM
10-2General system information
Page 277 of 315
AUTOMATIC REROUTE
When detecting a deviation from the suggested
route, the NISSAN Navigation System will auto-
matically recalculate a new route to the
destination.
For more information on the Automatic reroute
function, refer to section 5.
DETOUR
To make a detour due to traffic conditions, the
Detour function calculates an alternative route.
The NISSAN Navigation System can calculate a
route using secondary roads that will return to
primary roads after a specified number of miles.
For more information on the Detour function, re-
fer to section 5.Birdview™
Birdview™ (3D) map, are available in the
NISSAN Navigation System. Birdview™ map
displays the map from an elevated perspective.
In Birdview™ map, it is easy to recognize an im-
age of the route because it provides a panoramic
view over a long distance.
For more information on Birdview™ map, refer to
section 3.
VOICE GUIDANCE
Route guidance is provided through voice and
visual instructions. Voice guidance announces
the appropriate directions when approaching an
intersection to turn.
For more information on voice guidance, refer to
section 5.
NGE0001NGE0002
General system information10-3
Page 278 of 315
DISPLAY OF CURRENT VEHICLE
LOCATION
This navigation system combines the data ob-
tained from the vehicle (by gyro sensor) and from
GPS (Global Positioning System) satellites to
calculate the current location of the vehicle. This
position is then displayed throughout route guid-
ance to a destination.
WHAT IS GPS (Global Positioning
System)?
GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detects the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustment
When the system judges that the vehicle posi-
tion information is not accurate based on vehicle
speed and gyro sensor data calculations, the
system will automatically adjust the position of
the vehicle icon using GPS signals.
Receiving signals from GPS satellites
The reception of GPS signals can be weak, de-
pending on the environment. Vehicles in the fol-
lowing areas/environments may not receive GPS
signals.
CURRENT VEHICLE LOCATION
10-4General system information
Page 279 of 315
INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially mobile phones or
transceivers, on the instrument panel. Because
the strength of the GPS signal is approximately
one billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt the
signal.
Display of GPS information
GPS information can be displayed.
“VIEWING GPS CURRENT LOCA-
TION INFORMATION” (page 7-26)
LNV0515
LNV0528
General system information10-5
Page 280 of 315
NOTE:
Route guidance provided by the navigation
system does not take carpool lane driving
into consideration, especially when car-
pool lanes are separated from other road
lanes.
INCORRECT DISPLAY OF VEHICLE
POSITION
The following cases may affect the display accu-
racy of the vehicle’s position or traveling
direction. The accuracy will return to normal if
the driving conditions return to normal.
LNV0516
10-6General system information
