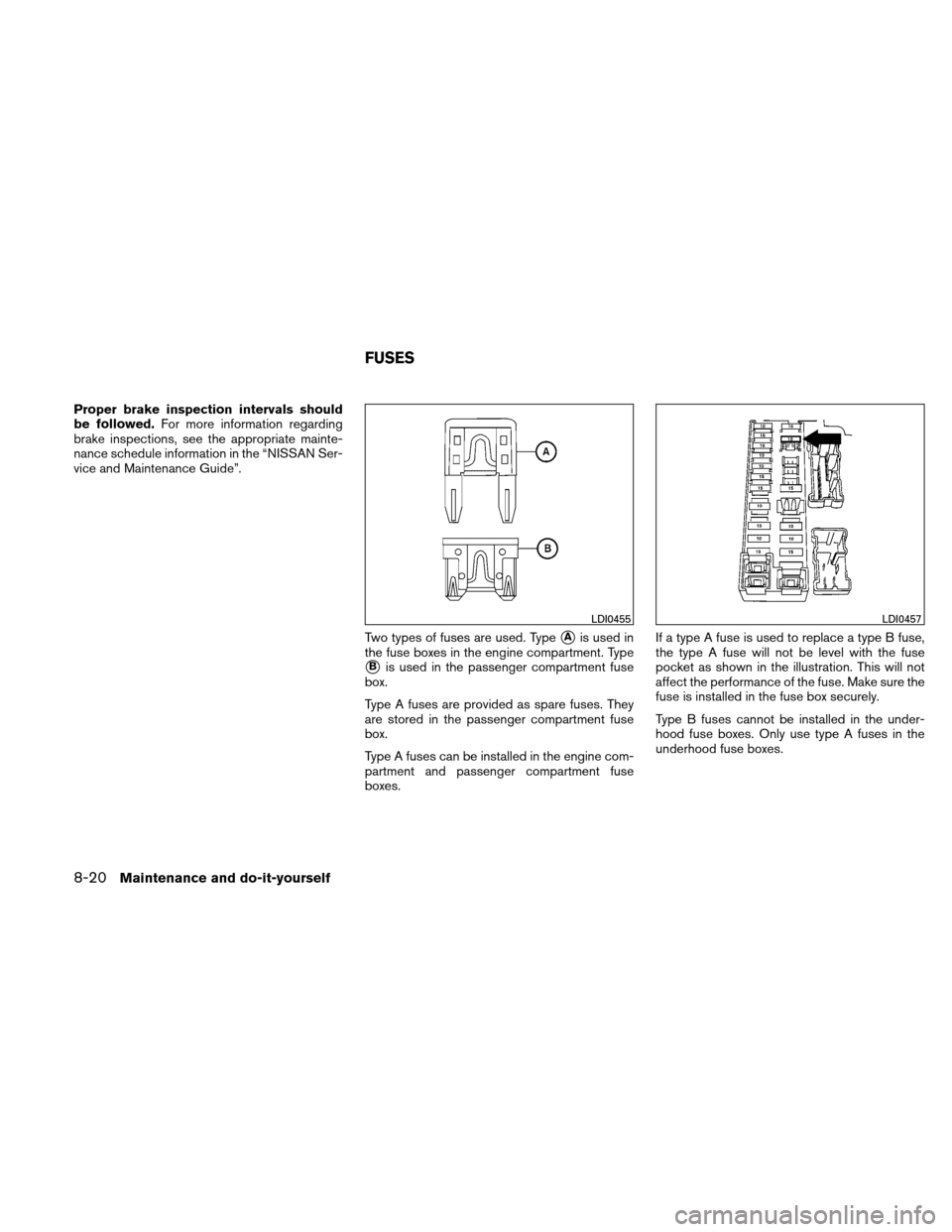

Page 361 of 422

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual Proper brake inspection intervals should
be followed.For more information regarding
brake inspections, see the appropriate mainte-
nance schedule information in the “NISSAN Ser-
vice and Maintenance

Page 362 of 422

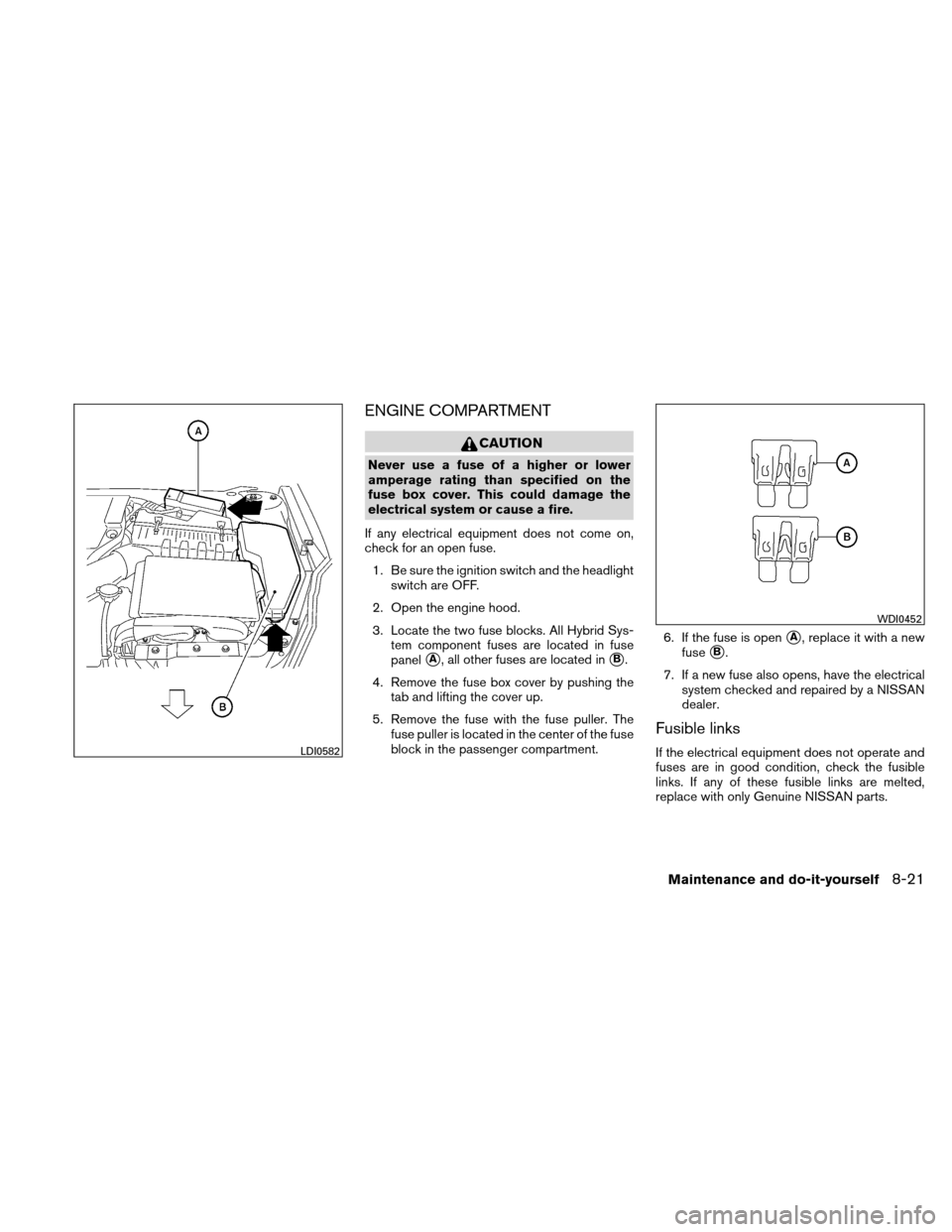

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipm

Page 363 of 422

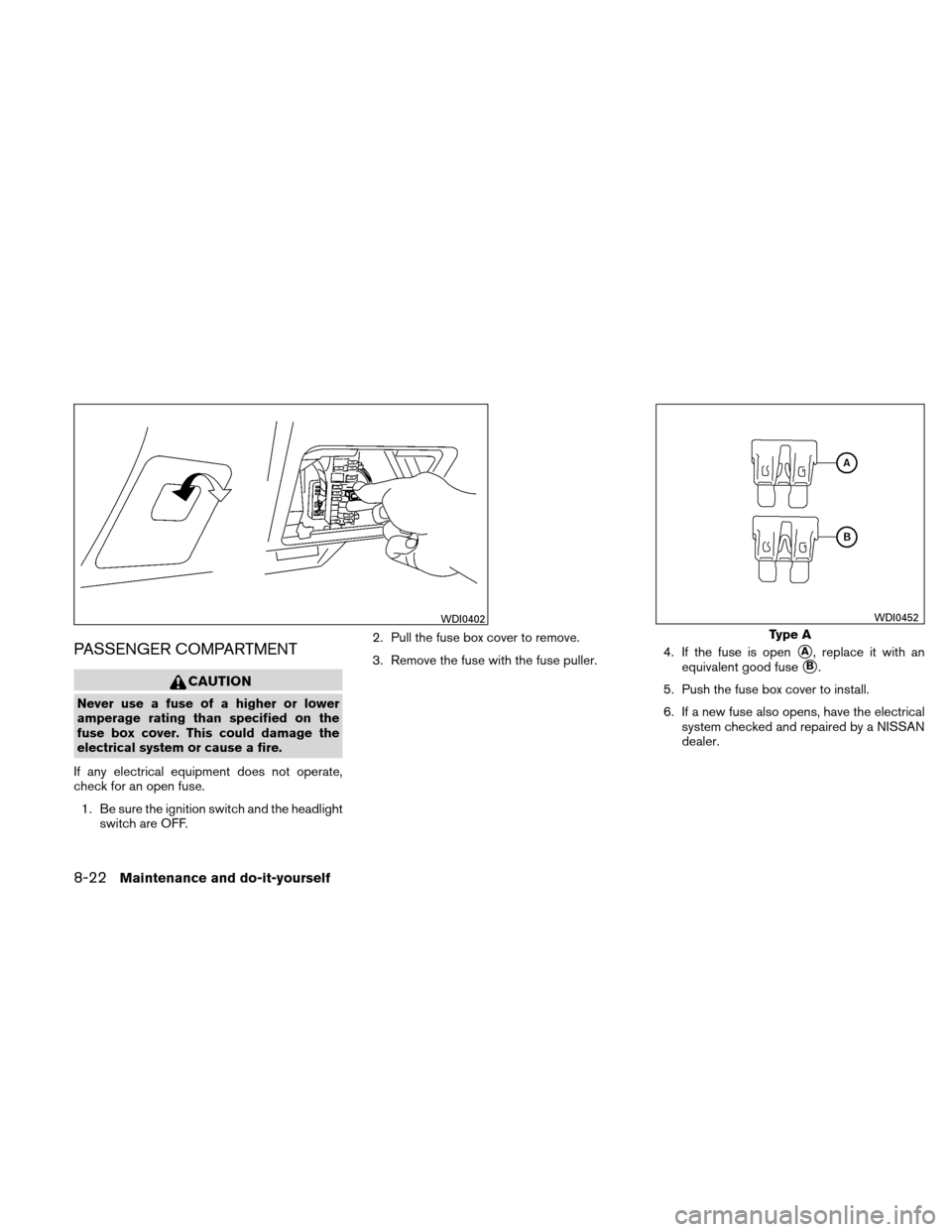

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equ

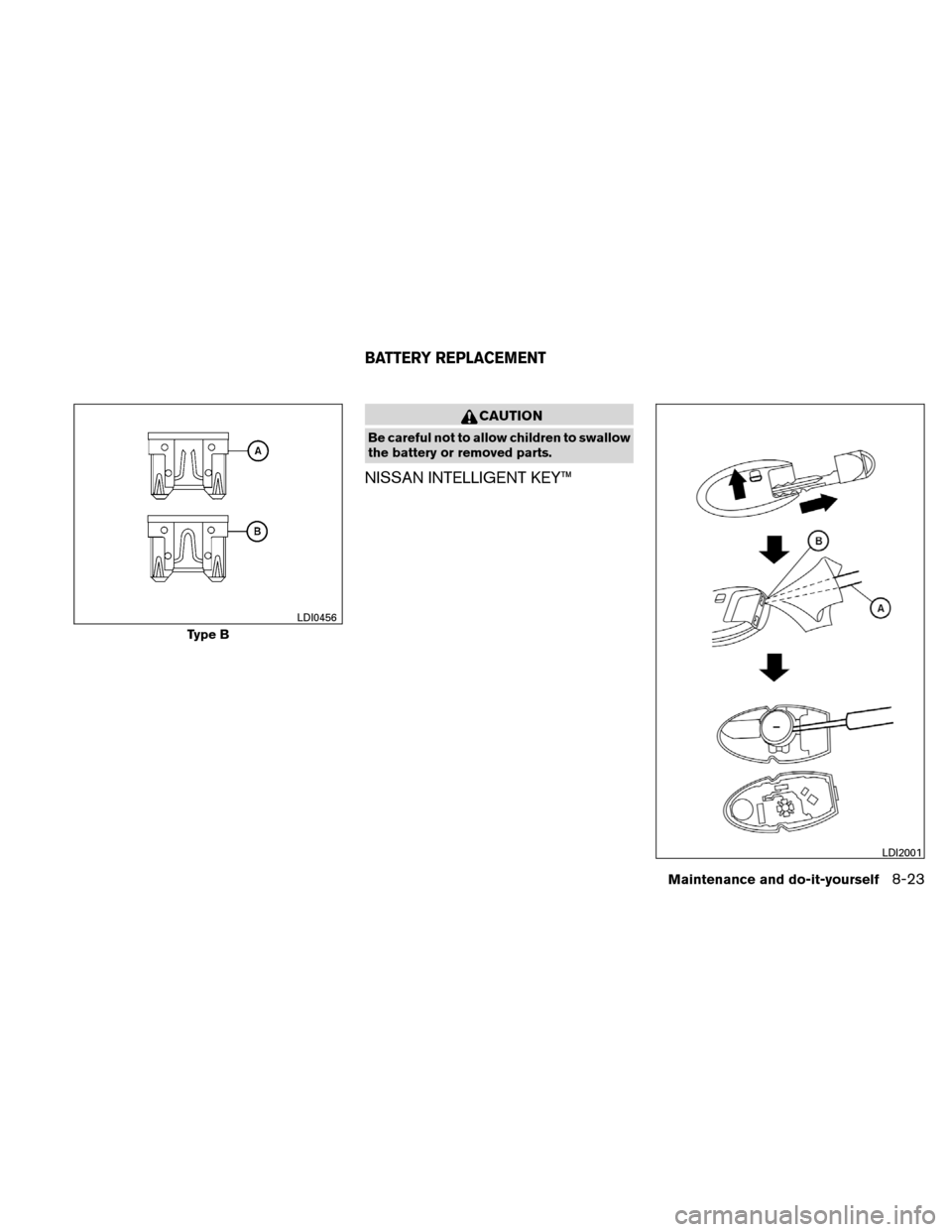

Page 364 of 422

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual CAUTION
Be careful not to allow children to swallow
the battery or removed parts.
NISSAN INTELLIGENT KEY™
Type B
LDI0456
LDI2001
BATTERY REPLACEMENT
Maintenance and do-it-yourself8-23

Page 365 of 422

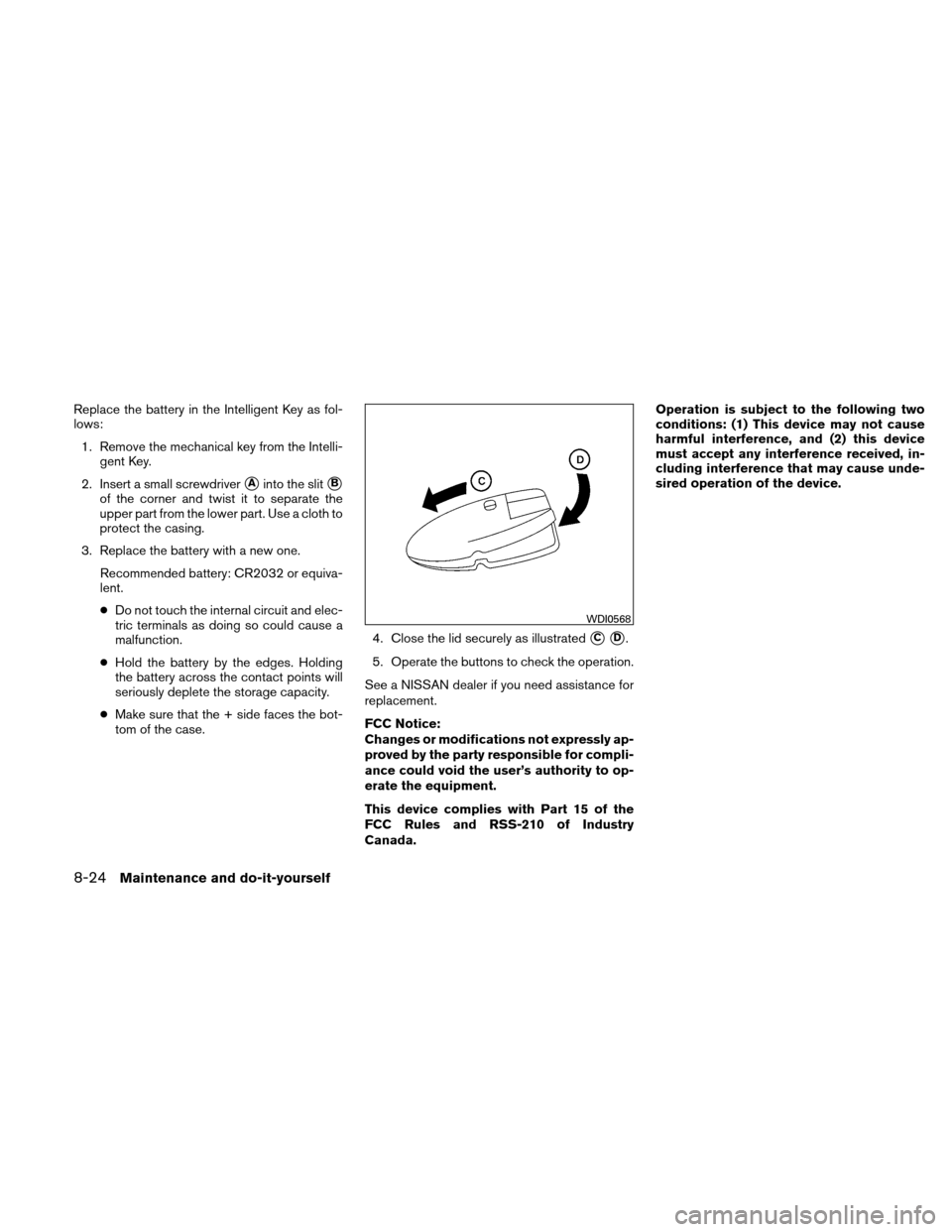

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small screwdriver
Ainto the slitB
of the corner and twist it to separate

Page 366 of 422

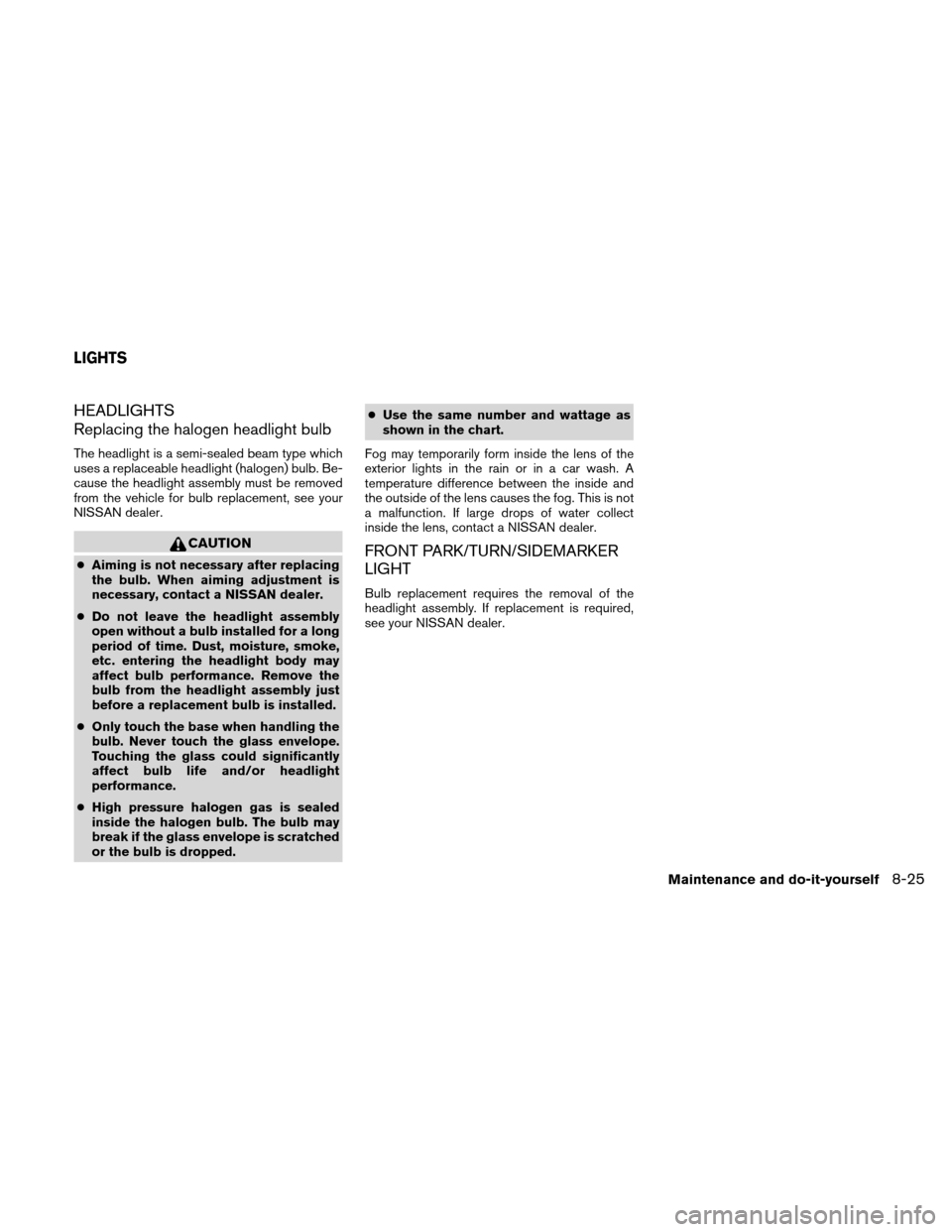

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual HEADLIGHTS
Replacing the halogen headlight bulb
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. Be-
cause the headlight assembly must be removed
from the ve

Page 367 of 422

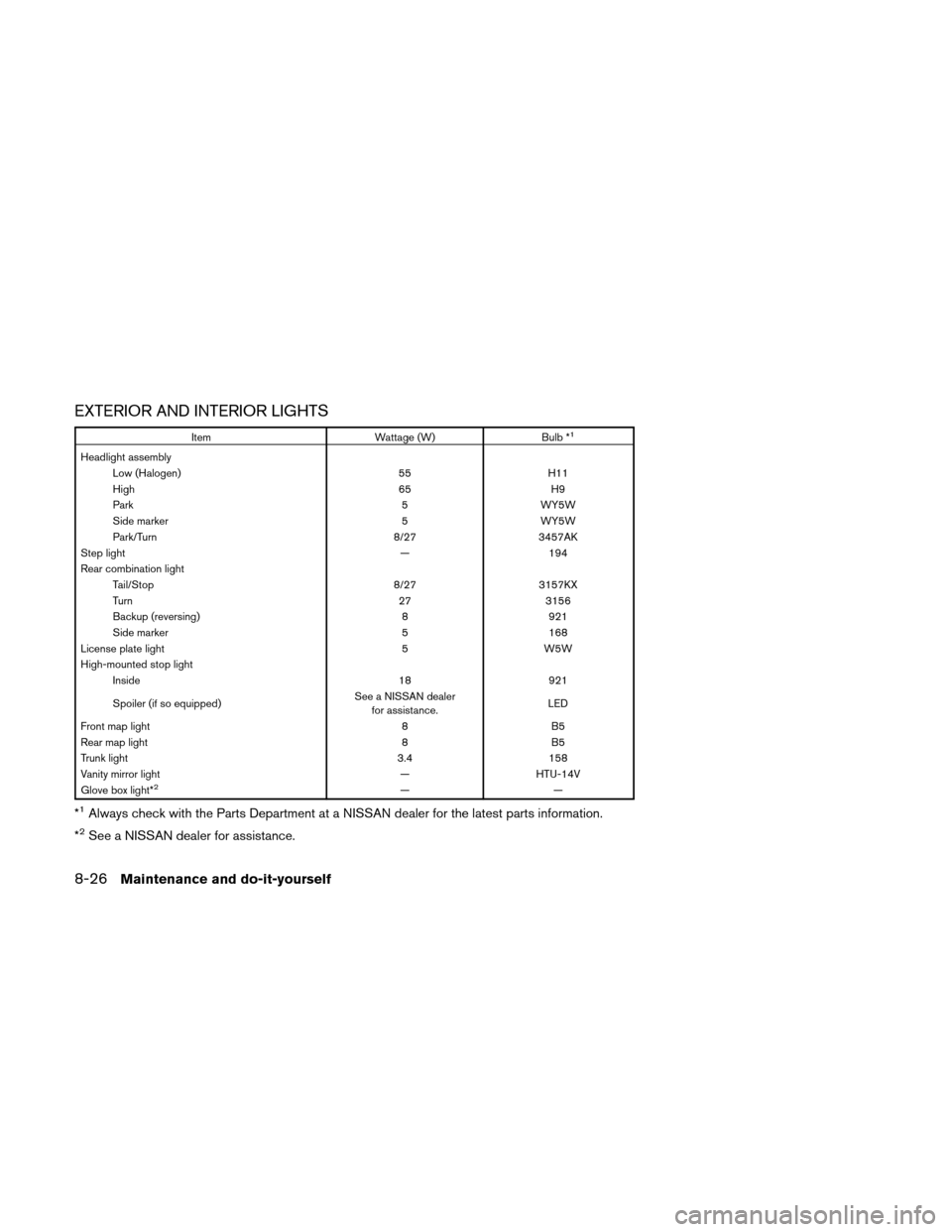

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb *1
Headlight assembly
Low (Halogen) 55H11
High 65H9
Park 5WY5W
Side marker 5WY5W
Park/Turn 8/273457AK
Step light —194
Rear combination light Tail/Sto

Page 368 of 422

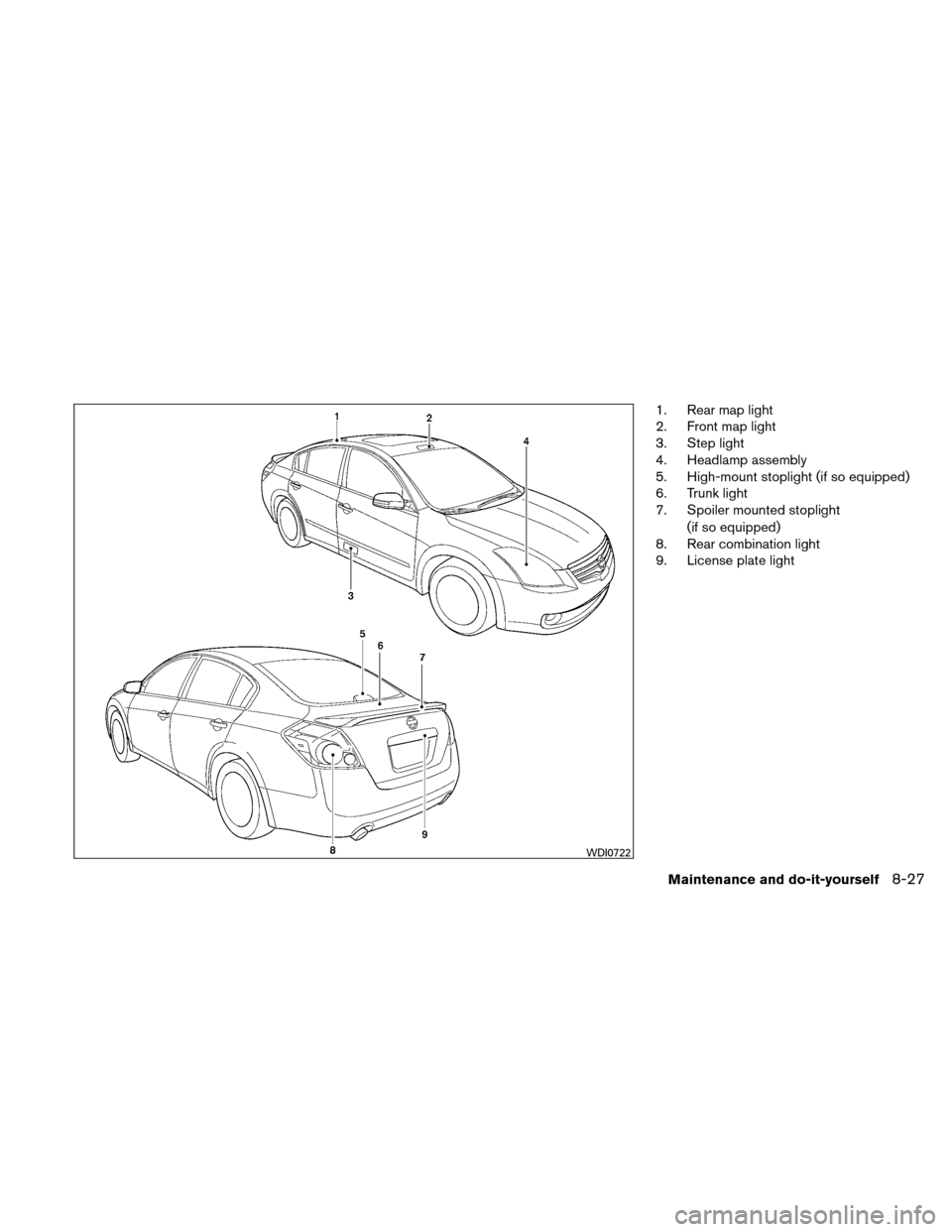

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual 1. Rear map light
2. Front map light
3. Step light
4. Headlamp assembly
5. High-mount stoplight (if so equipped)
6. Trunk light
7. Spoiler mounted stoplight(if so equipped)
8. Rear combination light
9

Page 369 of 422

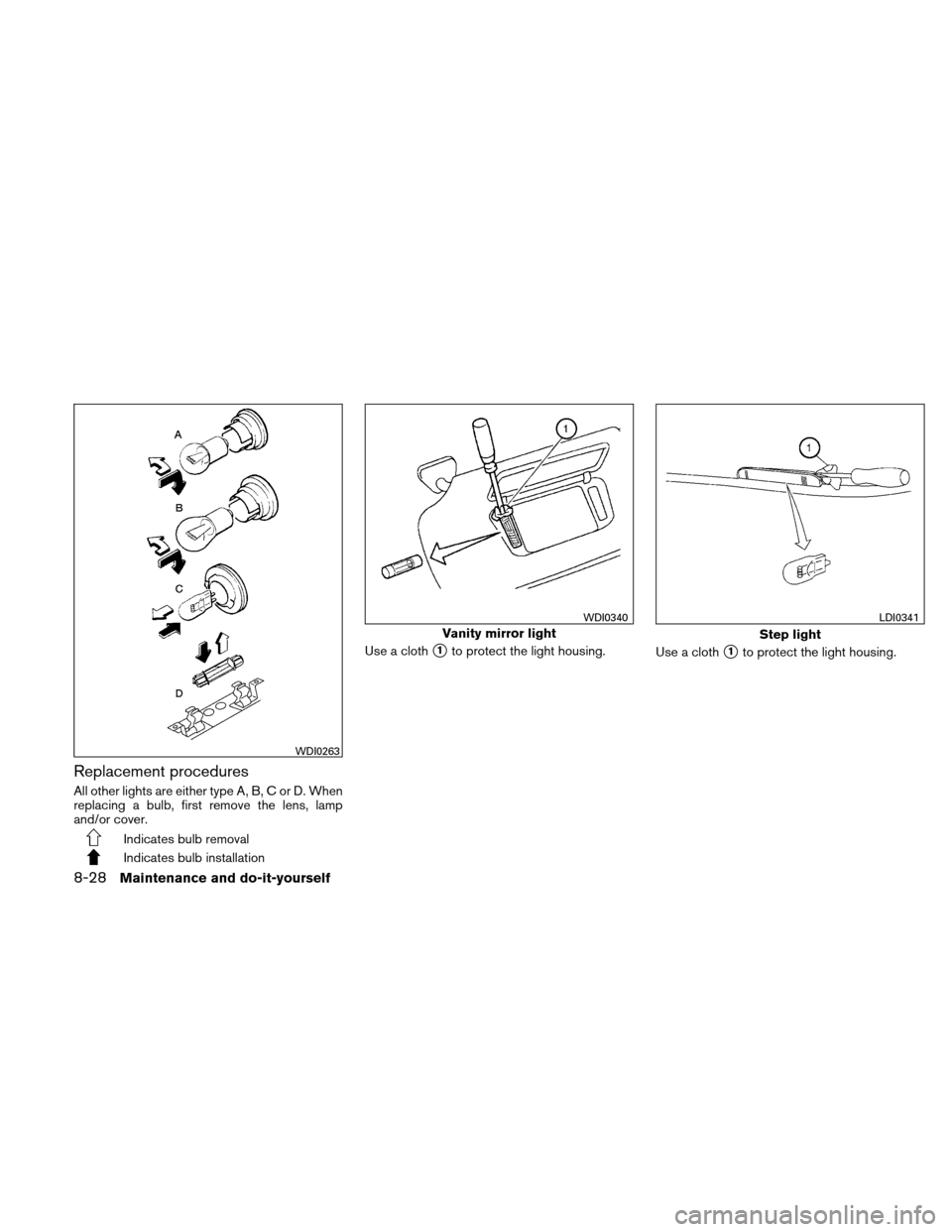

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1t

Page 370 of 422

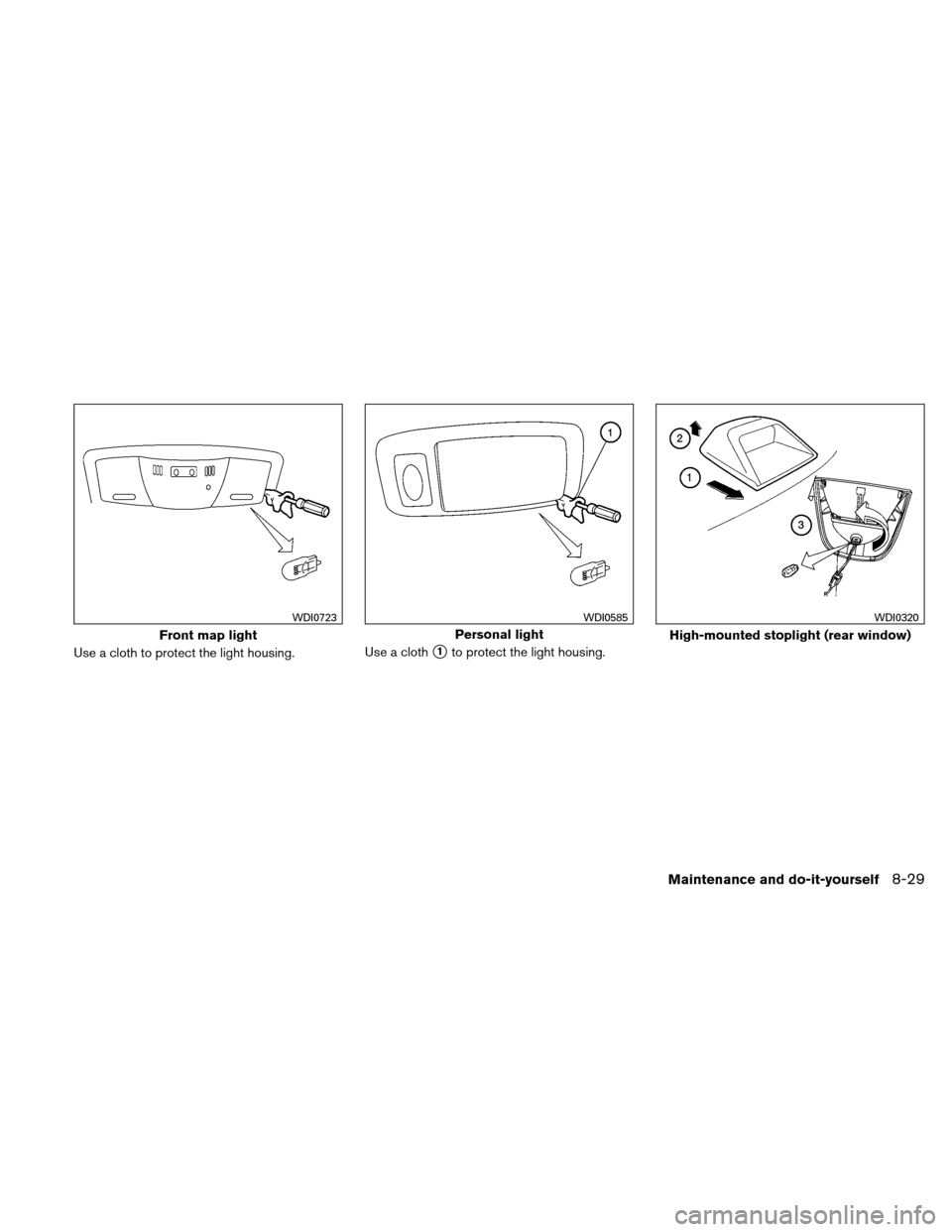

NISSAN ALTIMA HYBRID 2011 L32A / 4.G Owners Manual Use a cloth to protect the light housing.Use a cloth1to protect the light housing.
Front map light
WDI0723
Personal light
WDI0585
High-mounted stoplight (rear window)
WDI0320
Maintenance and do-it-yo
