NISSAN ALTIMA SEDAN 2013 Owners Manual

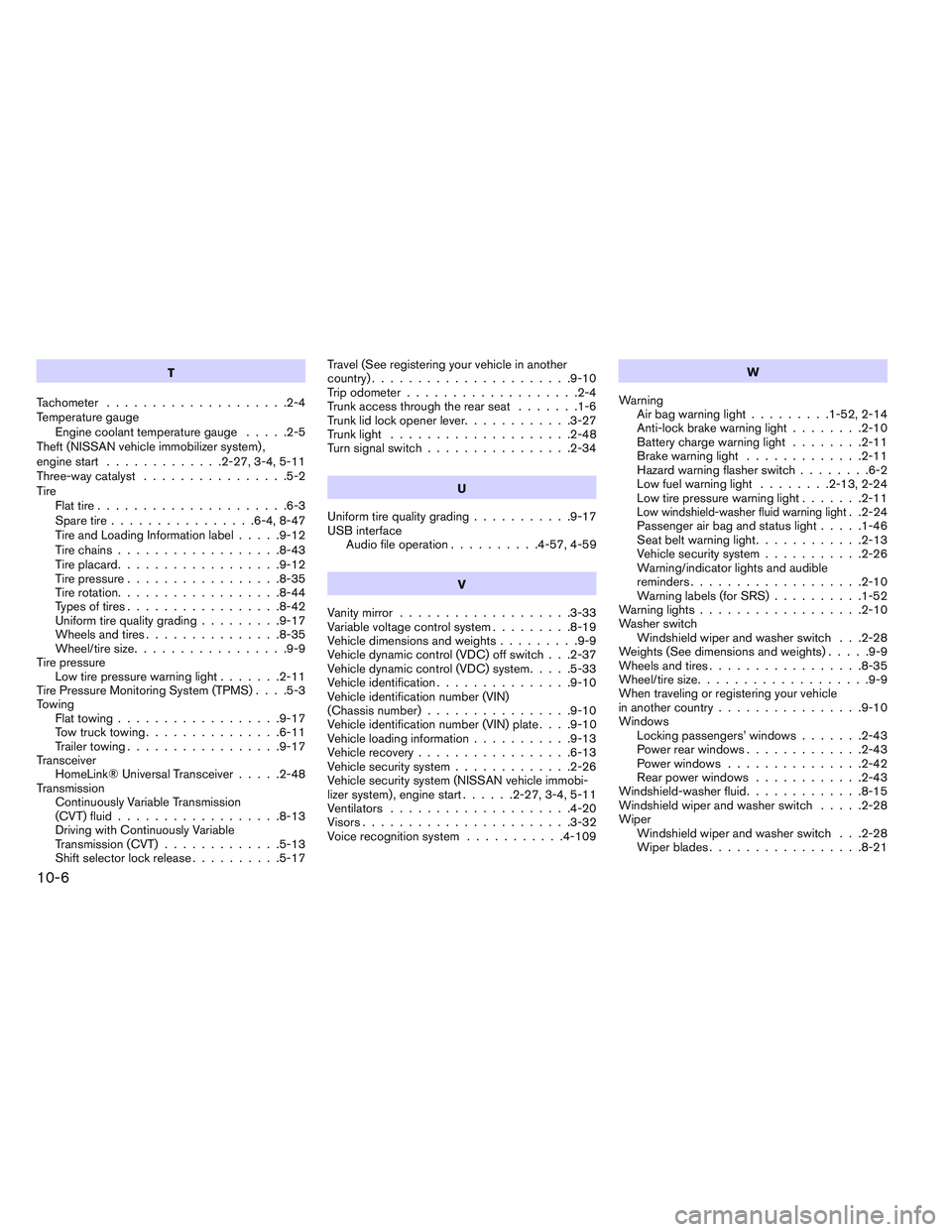

T
Tachometer ....................2-4
Temperature gauge Engine coolant temperature gauge .....2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-27,3-4,5-11
Three-way catalyst ................5-2
Tire Flat tire .....................6-3
Spare tire ................6-4,8-47
Tire and Loading Information label .....9-12
Tire chains ..................8-43
Tireplacard..................9-12
Tirepressure.................8-35
Tire rotation..................8-44
Types of tires .................8-42
Uniform tire quality grading .........9-17
Wheels and tires ...............8-35
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-11
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-17
Towtrucktowing...............6-11
Trailertowing.................9-17
Transceiver HomeLink® Universal Transceiver .....2-48
Transmission Continuously Variable Transmission
(CVT) fluid ..................8-13
Driving with Continuously Variable
Transmission (CVT) .............5-13
Shiftselectorlockrelease..........5-17 Travel (See registering your vehicle in another
country)
......................9-10
Trip odometer ...................2-4
Trunk access through the rear seat .......1-6
Trunk lid lock opener lever ............3-27
Trunklight ....................2-48
Turn signal switch ................2-34
U
Uniform tire quality grading ...........9-17
USB interface Audio file operation ..........4-57,4-59
V
Vanity mirror ...................3-33
Variable voltage control system .........8-19
Vehicle dimensions and weights .........9-9
Vehicle dynamic control (VDC) off switch . . .2-37
Vehicle dynamic control (VDC) system .....5-33
Vehicle identification ...............9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate ....9-10
Vehicle loading information ...........9-13
Vehicle recovery .................6-13
Vehicle security system .............2-26
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-27,3-4,5-11
Ventilators ....................4-20
Visors.......................3-32
Voice recognition system ...........4-109 W
Warning Airbagwarninglight.........1-52, 2-14
Anti-lock brake warning light ........2-10
Battery charge warning light ........2-11
Brake warning light .............2-11
Hazard warning flasher switch ........6-2
Low fuel

warning light ........2-13, 2-24
Low tire pressure warning light .......2-11
Low windshield-washer fluid warning light. .2-24
Passenger air bag and status light .....1-46
Seatbeltwarninglight............2-13
Vehicle security system ...........2-26
Warning/indicator lights and audible
reminders...................2-10
Warning labels (for SRS) ..........1-52
Warninglights..................2-10
Washer switch Windshield wiper and washer switch . . .2-28
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-35
Wheel/tire size ...................9-9
When traveling or registering your vehicle
in another country ................9-10
Windows Locking passengers’ windows .......2-43
Power rear windows .............2-43
Power windows ...............2-42
Rear power windows ............2-43
Windshield-washer fluid .............8-15
Windshield wiper and washer switch .....2-28
Wiper Windshield wiper and washer switch . . .2-28
Wiperblades.................8-21
10-6

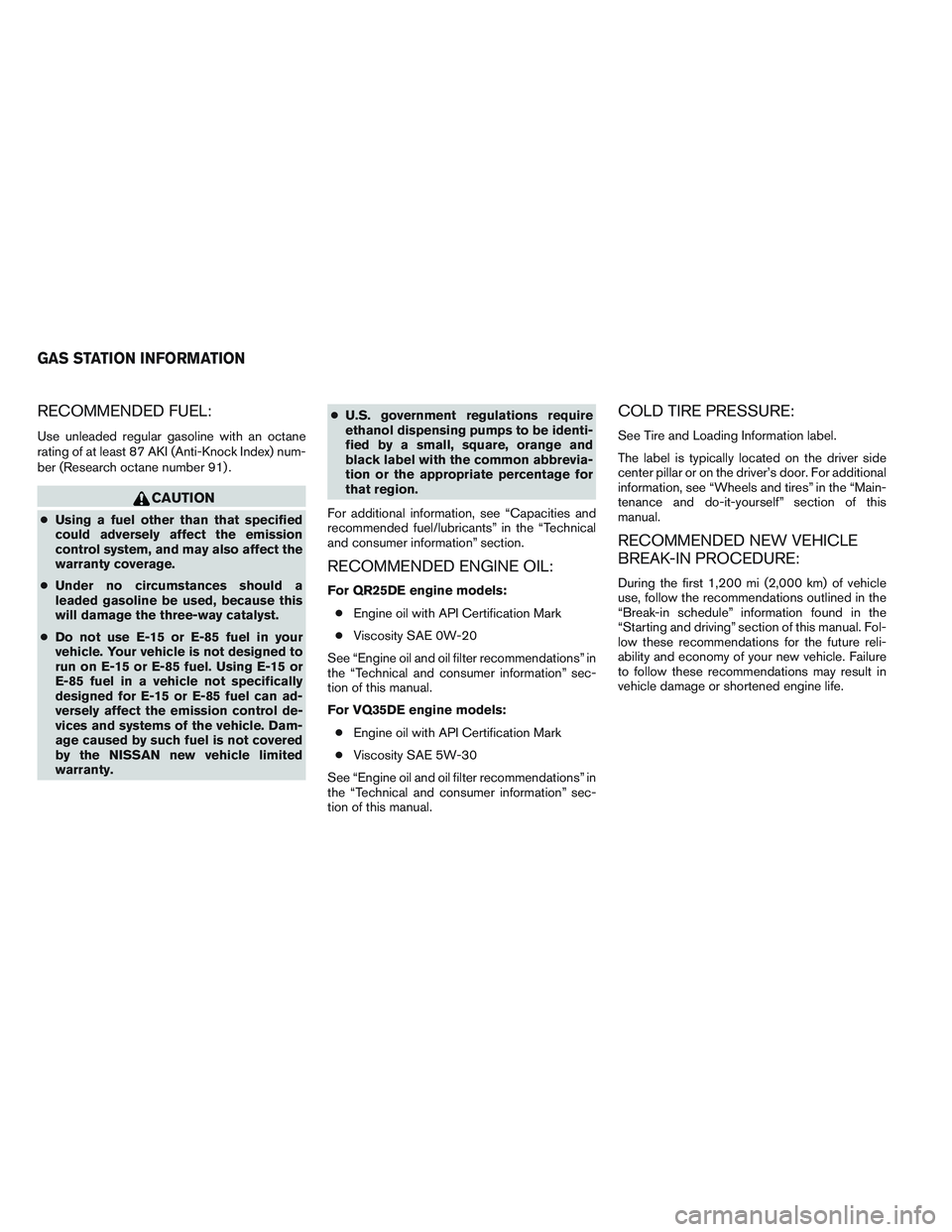

RECOMMENDED FUEL:
Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91) .
CAUTION
●Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
● Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or
E-85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can ad-
versely affect the emission control de-
vices and systems of the vehicle. Dam-
age caused by such fuel is not covered
by the NISSAN new vehicle limited
warranty. ●
U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and
black label with the common abbrevia-
tion or the appropriate percentage for
that region.
For additional information, see “Capacities and
recommended fuel/lubricants” in the “Technical
and consumer information” section.
RECOMMENDED ENGINE OIL:
For QR25DE engine models: ● Engine oil with API Certification Mark
● Viscosity SAE 0W-20
See “Engine oil and oil filter recommendations” in
the “Technical and consumer information” sec-
tion of this manual.
For VQ35DE engine models: ● Engine oil with API Certification Mark
● Viscosity SAE 5W-30
See “Engine oil and oil filter recommendations” in
the “Technical and consumer information” sec-
tion of this manual.
COLD TIRE PRESSURE:
See Tire and Loading Information label.
The label is typically located on the driver side
center pillar or on the driver’s door. For additional
information, see “Wheels and tires” in the “Main-
tenance and do-it-yourself” section of this
manual.
RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
During the first 1,200 mi (2,000 km) of vehicle
use, follow the recommendations outlined in the
“Break-in schedule” information found in the
“Starting and driving” section of this manual. Fol-
low these recommendations for the future reli-
ability and economy of your new vehicle. Failure
to follow these recommendations may result in
vehicle damage or shortened engine life.
GAS STATION INFORMATION

®
2013 ALTIMA SEDAN
OWNER’S MANUAL
For your safety, read carefully and keep in this vehicle.
2013 NISSAN ALTIMA SEDAN L33-D
L33-D
Printing : December 2012 (05)
Publication No.: OM0E 0L32U2
Printed in U.S.A. OM3E 0L33U4
