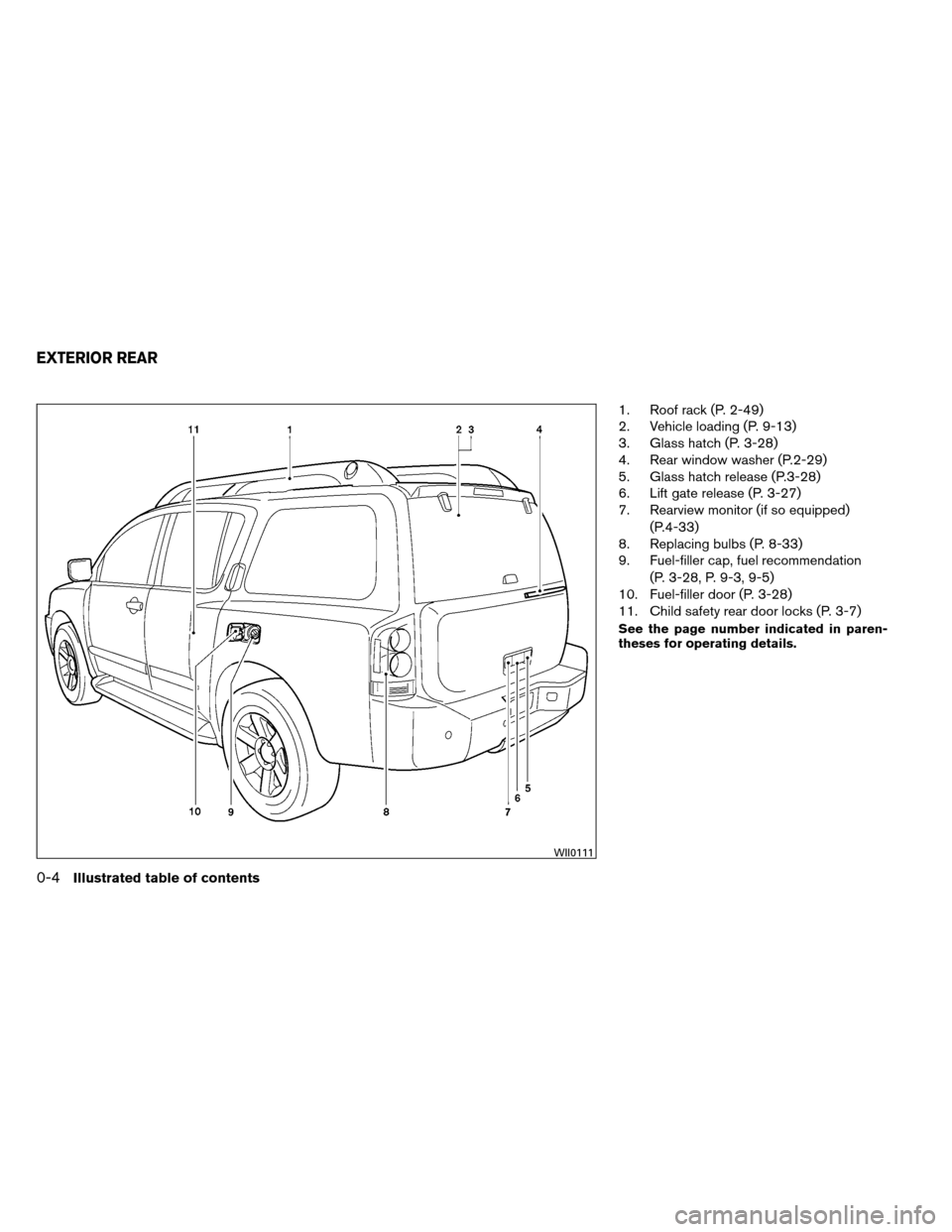

Page 11 of 489
1. Roof rack (P. 2-49)
2. Vehicle loading (P. 9-13)
3. Glass hatch (P. 3-28)
4. Rear window washer (P.2-29)
5. Glass hatch release (P.3-28)
6. Lift gate release (P. 3-27)
7. Rearview monitor (if so equipped)(P.4-33)
8. Replacing bulbs (P. 8-33)
9. Fuel-filler cap, fuel recommendation
(P. 3-28, P. 9-3, 9-5)
10. Fuel-filler door (P. 3-28)
11. Child safety rear door locks (P. 3-7)
See the page number indicated in paren-
theses for operating details.
WII0111
EXTERIOR REAR
0-4Illustrated table of contents

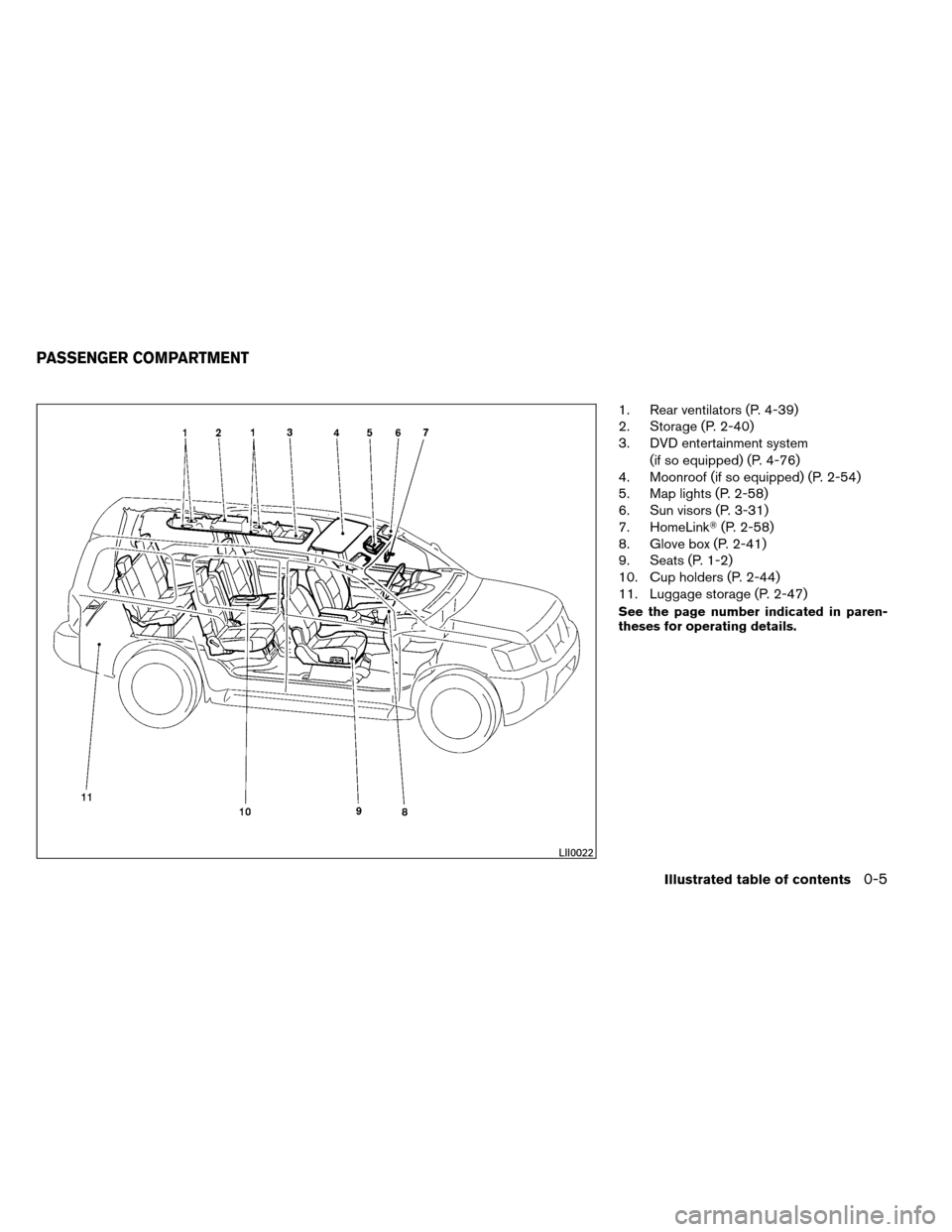

Page 12 of 489
1. Rear ventilators (P. 4-39)
2. Storage (P. 2-40)
3. DVD entertainment system(if so equipped) (P. 4-76)
4. Moonroof (if so equipped) (P. 2-54)
5. Map lights (P. 2-58)
6. Sun visors (P. 3-31)
7. HomeLink (P. 2-58)
8. Glove box (P. 2-41)
9. Seats (P. 1-2)
10. Cup holders (P. 2-44)
11. Luggage storage (P. 2-47)
See the page number indicated in paren-
theses for operating details.
LII0022
PASSENGER COMPARTMENT
Illustrated table of contents0-5

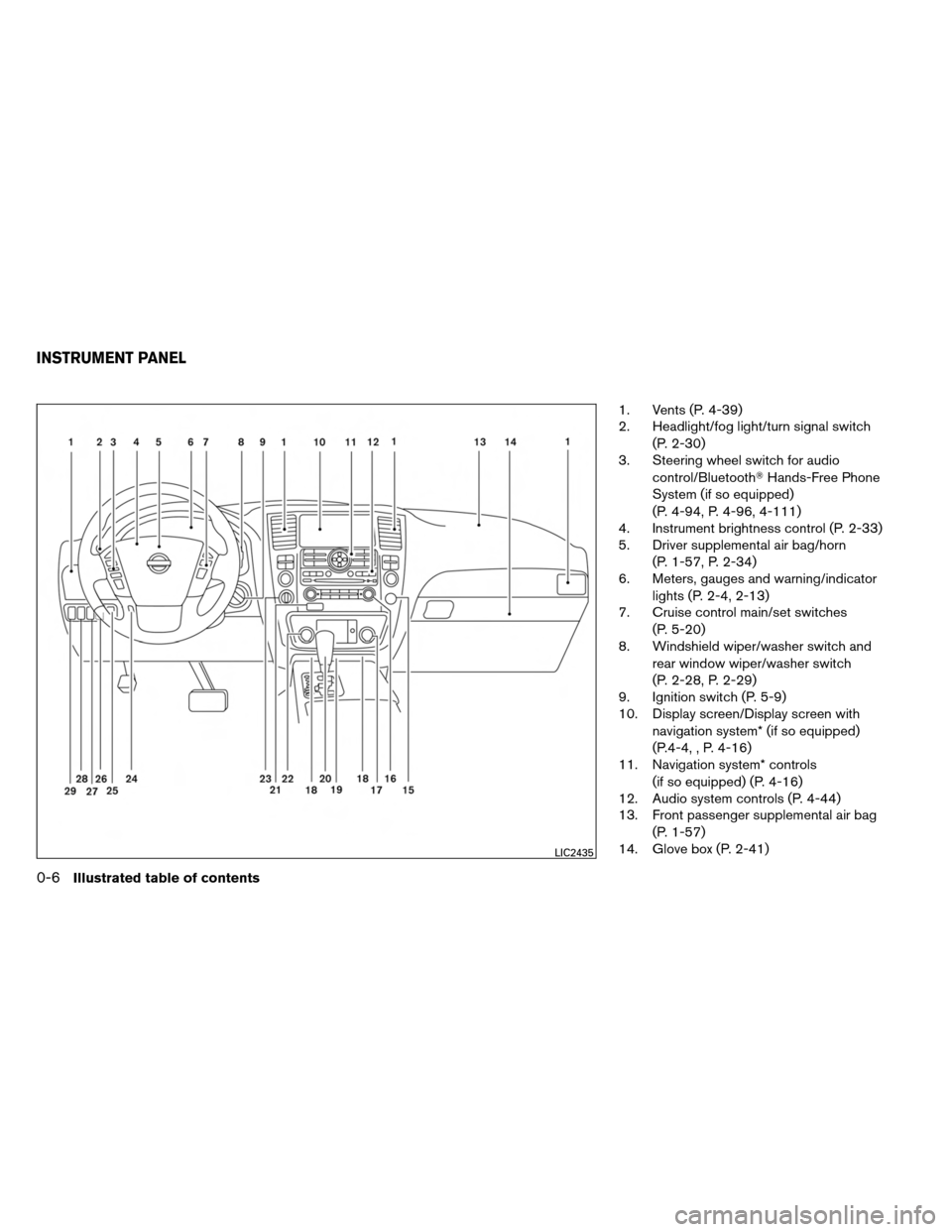

Page 13 of 489
1. Vents (P. 4-39)
2. Headlight/fog light/turn signal switch(P. 2-30)
3. Steering wheel switch for audio
control/Bluetooth Hands-Free Phone
System (if so equipped)
(P. 4-94, P. 4-96, 4-111)
4. Instrument brightness control (P. 2-33)
5. Driver supplemental air bag/horn
(P. 1-57, P. 2-34)
6. Meters, gauges and warning/indicator
lights (P. 2-4, 2-13)
7. Cruise control main/set switches
(P. 5-20)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-28, P. 2-29)
9. Ignition switch (P. 5-9)
10. Display screen/Display screen with
navigation system* (if so equipped)
(P.4-4, , P. 4-16)
11. Navigation system* controls
(if so equipped) (P. 4-16)
12. Audio system controls (P. 4-44)
13. Front passenger supplemental air bag
(P. 1-57)
14. Glove box (P. 2-41)
LIC2435
INSTRUMENT PANEL
0-6Illustrated table of contents

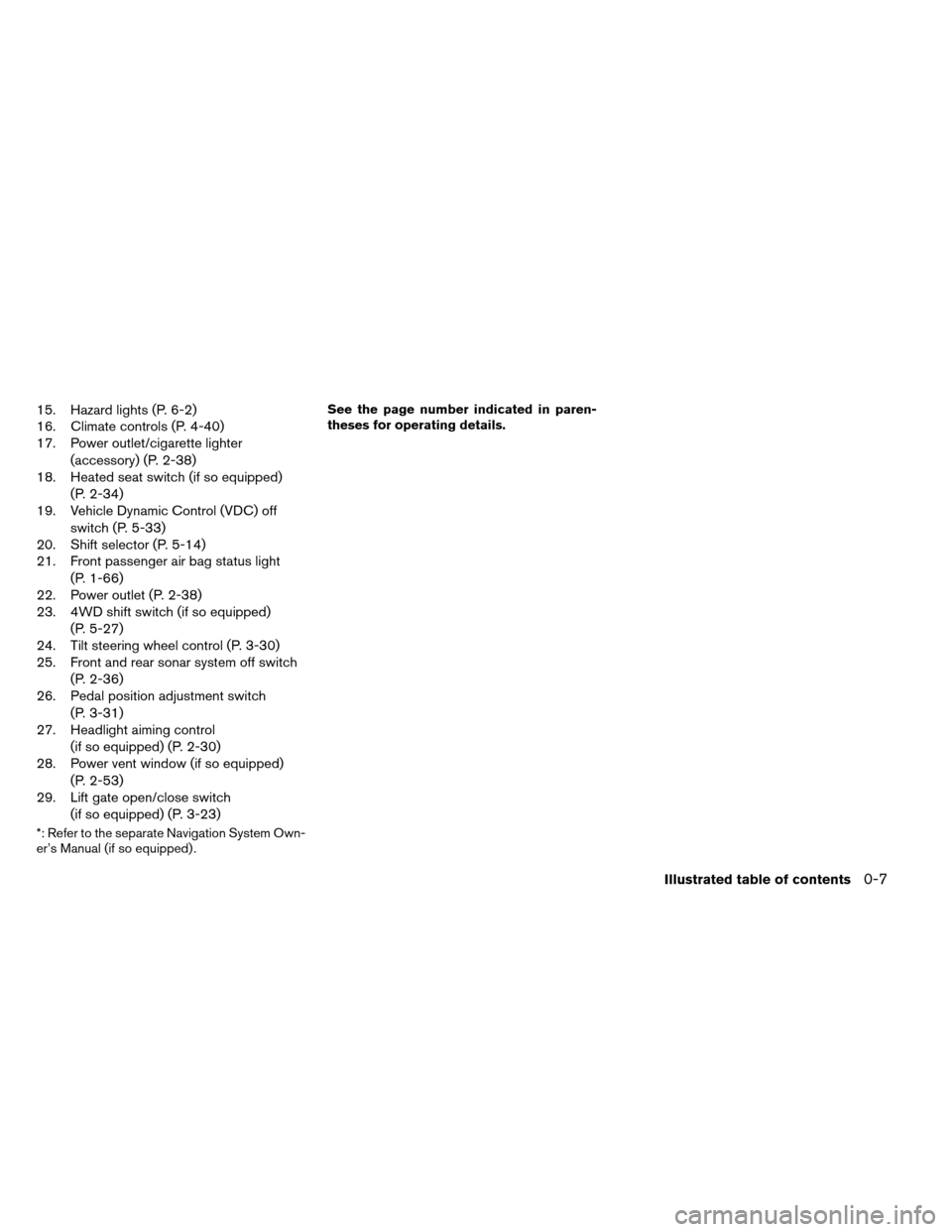

Page 14 of 489
15. Hazard lights (P. 6-2)
16. Climate controls (P. 4-40)
17. Power outlet/cigarette lighter(accessory) (P. 2-38)
18. Heated seat switch (if so equipped)
(P. 2-34)
19. Vehicle Dynamic Control (VDC) off
switch (P. 5-33)
20. Shift selector (P. 5-14)
21. Front passenger air bag status light
(P. 1-66)
22. Power outlet (P. 2-38)
23. 4WD shift switch (if so equipped)
(P. 5-27)
24. Tilt steering wheel control (P. 3-30)
25. Front and rear sonar system off switch
(P. 2-36)
26. Pedal position adjustment switch
(P. 3-31)
27. Headlight aiming control
(if so equipped) (P. 2-30)
28. Power vent window (if so equipped)
(P. 2-53)
29. Lift gate open/close switch
(if so equipped) (P. 3-23)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) . See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

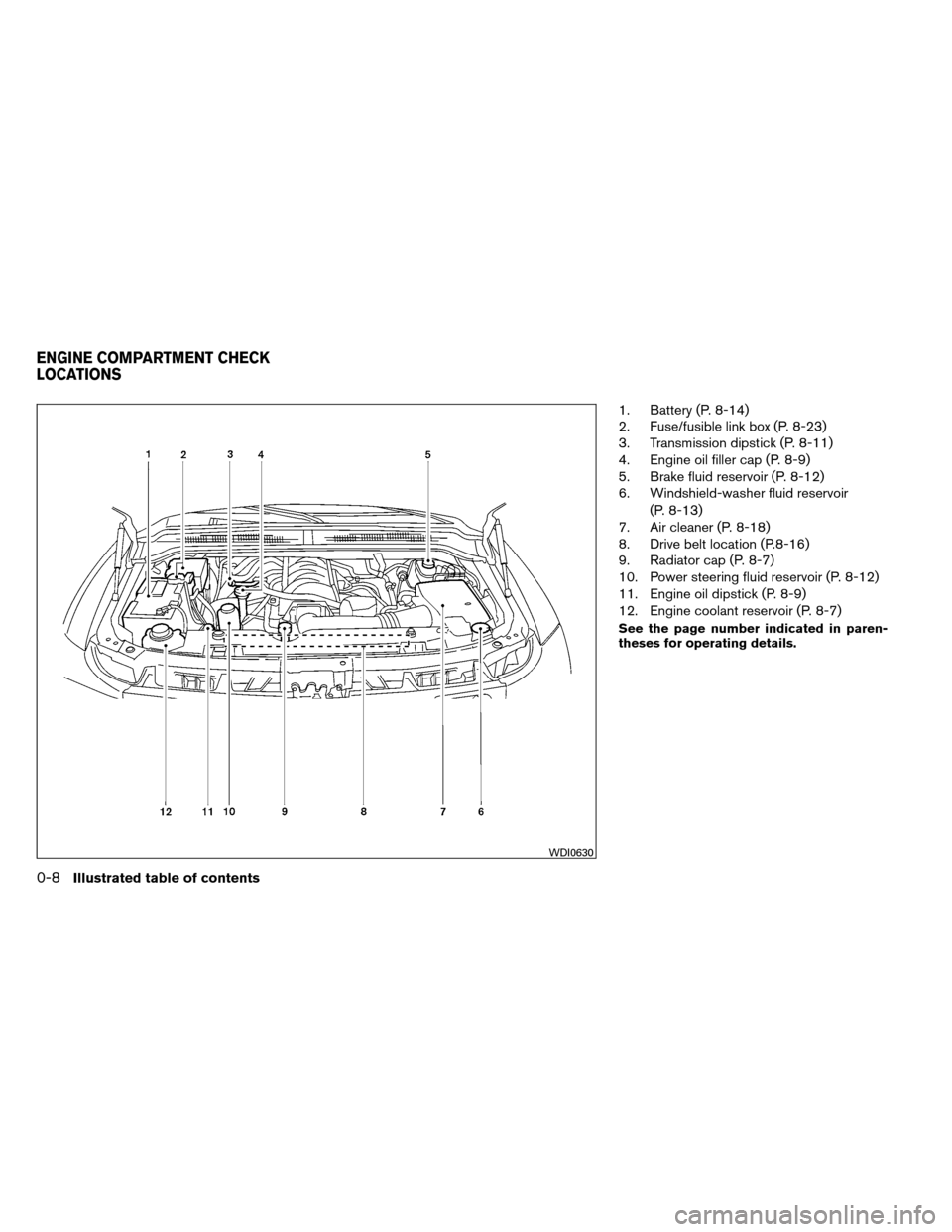

Page 15 of 489
1. Battery (P. 8-14)
2. Fuse/fusible link box (P. 8-23)
3. Transmission dipstick (P. 8-11)
4. Engine oil filler cap (P. 8-9)
5. Brake fluid reservoir (P. 8-12)
6. Windshield-washer fluid reservoir(P. 8-13)
7. Air cleaner (P. 8-18)
8. Drive belt location (P.8-16)
9. Radiator cap (P. 8-7)
10. Power steering fluid reservoir (P. 8-12)
11. Engine oil dipstick (P. 8-9)
12. Engine coolant reservoir (P. 8-7)
See the page number indicated in paren-
theses for operating details.
WDI0630
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

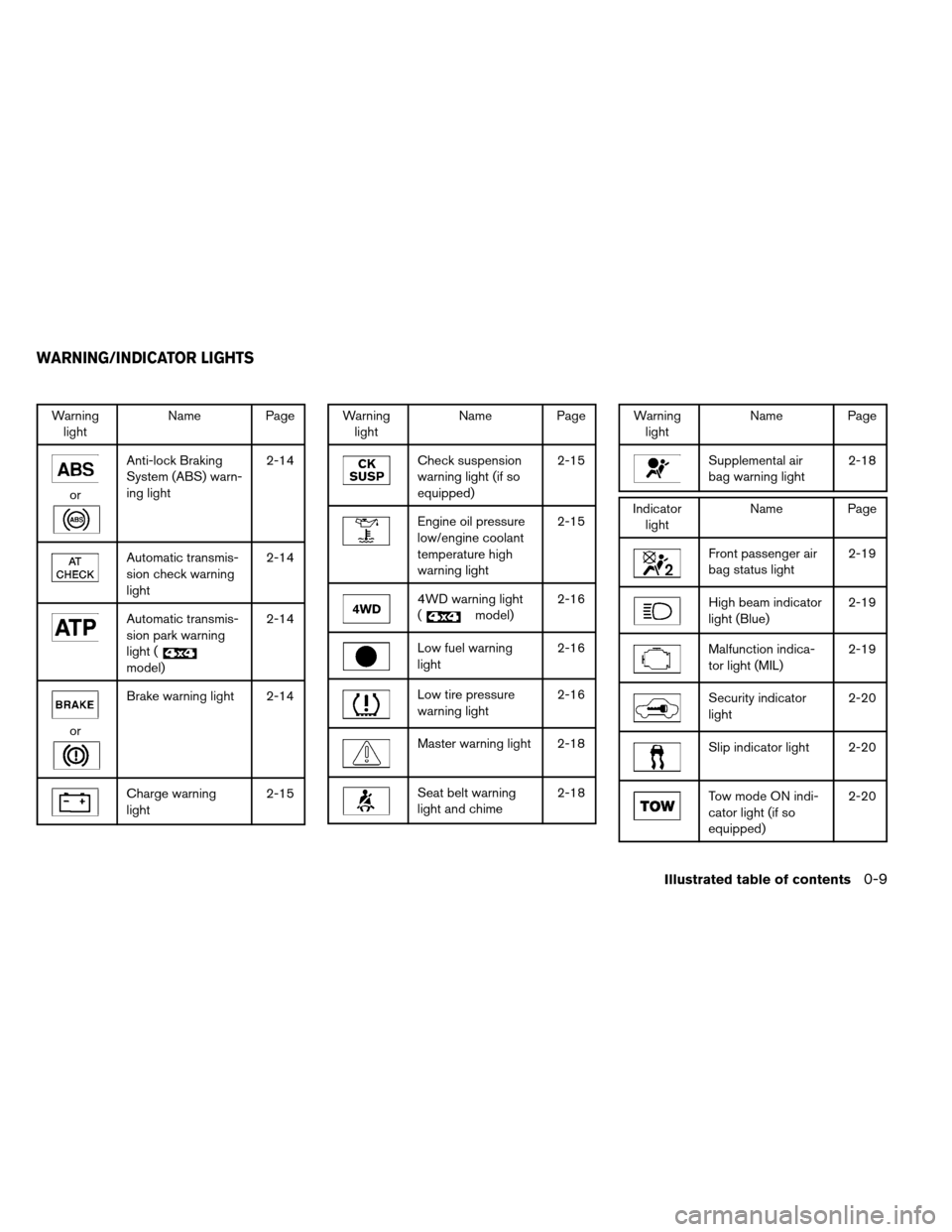

Page 16 of 489
Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-14
Automatic transmis-
sion check warning
light2-14
Automatic transmis-
sion park warning
light (
model)2-14
or
Brake warning light 2-14
Charge warning
light
2-15
Warning
light Name Page
Check suspension
warning light (if so
equipped) 2-15
Engine oil pressure
low/engine coolant
temperature high
warning light2-15
4WD warning light
(
model)
2-16
Low fuel warning
light 2-16
Low tire pressure
warning light2-16
Master warning light 2-18
Seat belt warning
light and chime2-18
Warning
light Name Page
Supplemental air
bag warning light 2-18
Indicator
light Name Page
Front passenger air
bag status light 2-19
High beam indicator
light (Blue)2-19
Malfunction indica-
tor light (MIL)2-19
Security indicator
light2-20
Slip indicator light 2-20
Tow mode ON indi-
cator light (if so
equipped)2-20
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

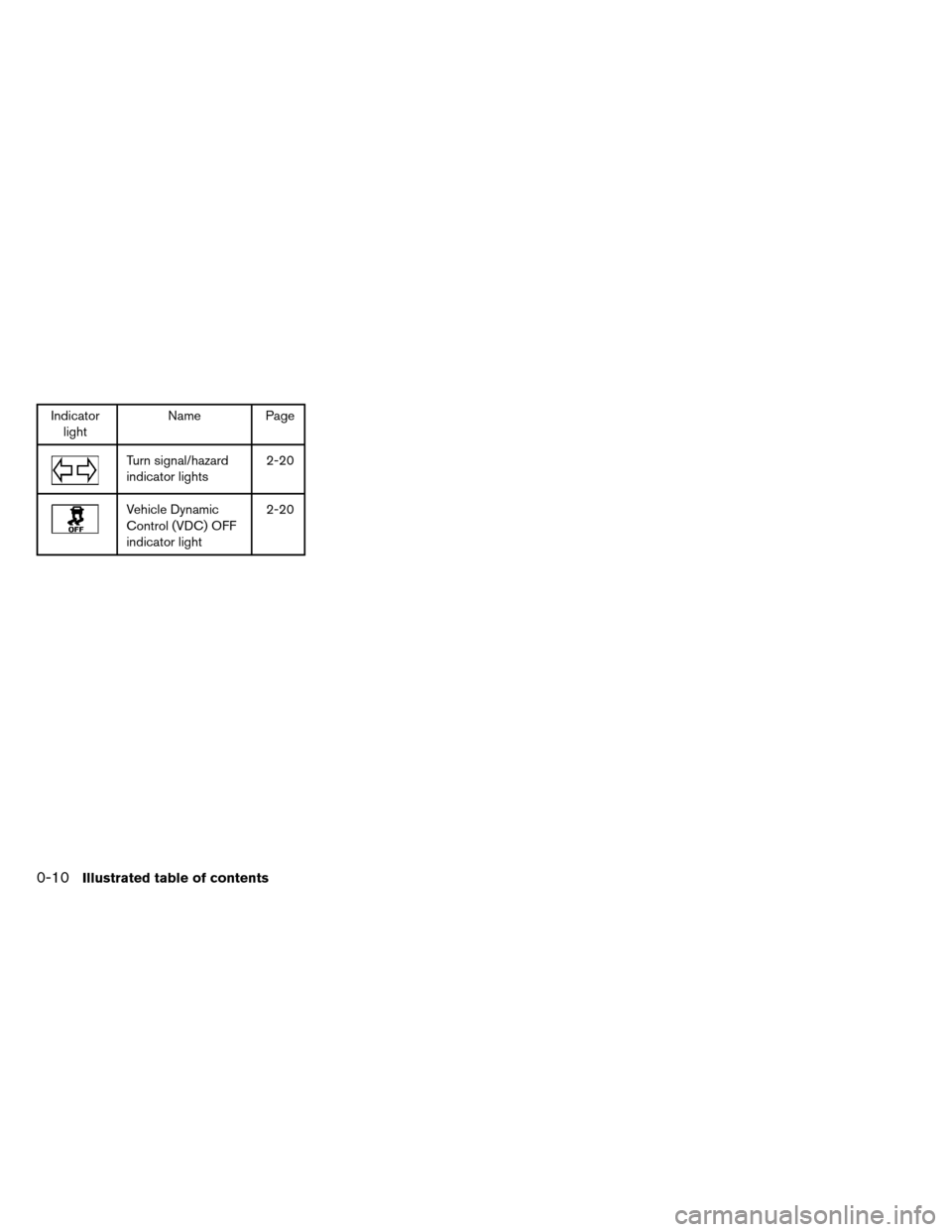

Page 17 of 489
Indicatorlight Name Page
Turn signal/hazard
indicator lights 2-20
Vehicle Dynamic
Control (VDC) OFF
indicator light2-20
0-10Illustrated table of contents

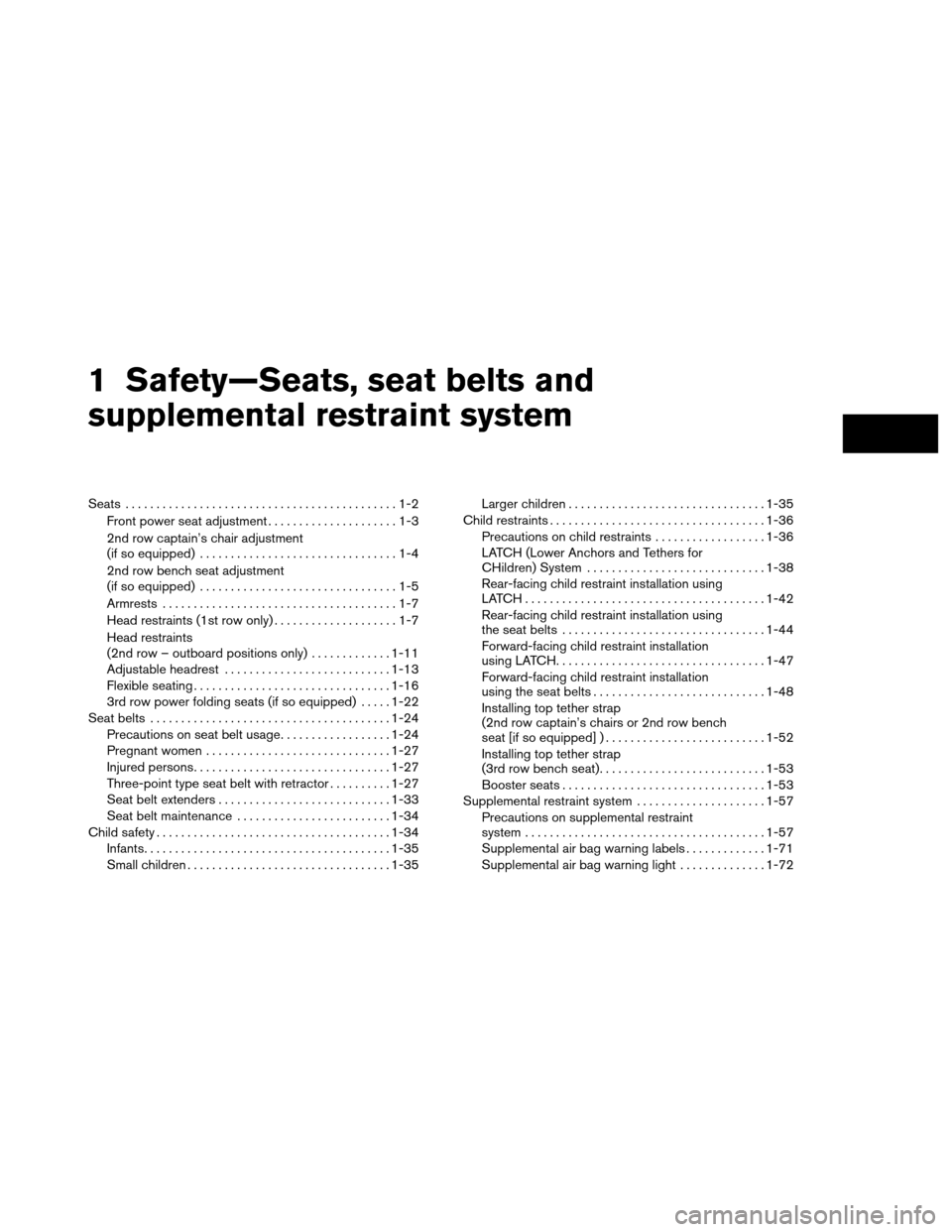

Page 18 of 489
1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front power seat adjustment . . ...................1-3
2nd row captain’s chair adjustment
(if so equipped) ................................1-4
2nd row bench seat adjustment
(if so equipped) ................................1-5
Armrests ......................................1-7
Head restraints (1st row only) ....................1-7
Head restraints
(2nd row – outboard positions only) . ............1-11
Adjustable headrest ........................... 1-13
Flexible seating ................................ 1-16
3rd row power folding seats (if so equipped) .....1-22
Seat belts ....................................... 1-24
Precautions on seat belt usage ..................1-24
Pregnant women .............................. 1-27
Injured persons ................................ 1-27
Three-point type seat belt with retractor ..........1-27
Seat belt extenders ............................ 1-33
Seat belt maintenance ......................... 1-34
Child safety ...................................... 1-34
Infants ........................................ 1-35
Small children ................................. 1-35Larger children
................................ 1-35
Child restraints ................................... 1-36
Precautions on child restraints ..................1-36
LATCH (Lower Anchors and Tethers for
CHildren) System ............................. 1-38
Rear-facing child restraint installation using
LATCH....................................... 1-42
Rear-facing child restraint installation using
the seat belts . . ............................... 1-44
Forward-facing child restraint installation
using LATCH. . . ............................... 1-47
Forward-facing child restraint installation
using the seat belts ............................ 1-48
Installing top tether strap
(2nd row captain’s chairs or 2nd row bench
seat [if so equipped] ) .......................... 1-52
Installing top tether strap
(3rd row bench seat) ........................... 1-53
Booster seats ................................. 1-53
Supplemental restraint system .....................1-57
Precautions on supplemental restraint
system ....................................... 1-57
Supplemental
air bag warning labels .............1-71
Supplemental air bag warning light ..............1-72
Page 19 of 489

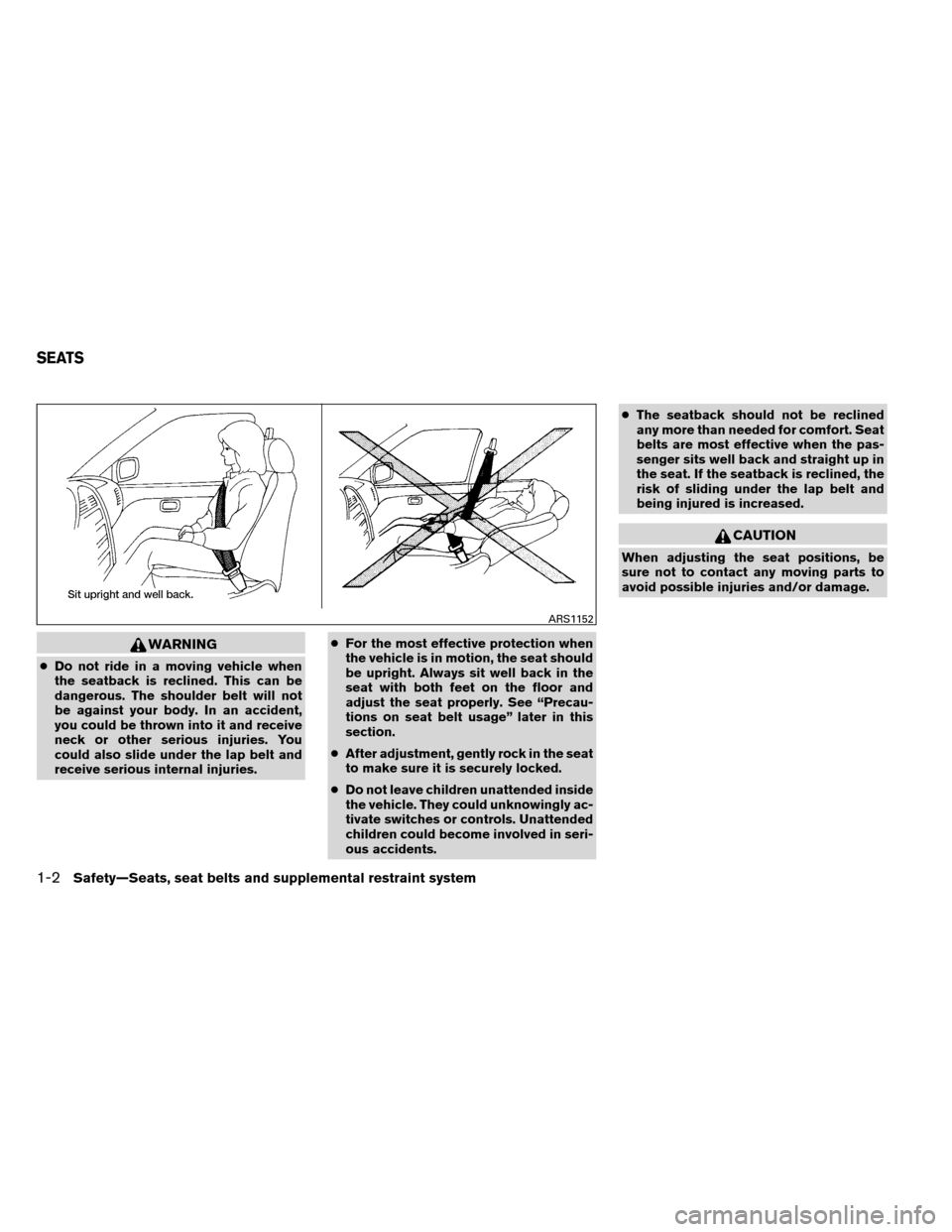

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
Page 20 of 489

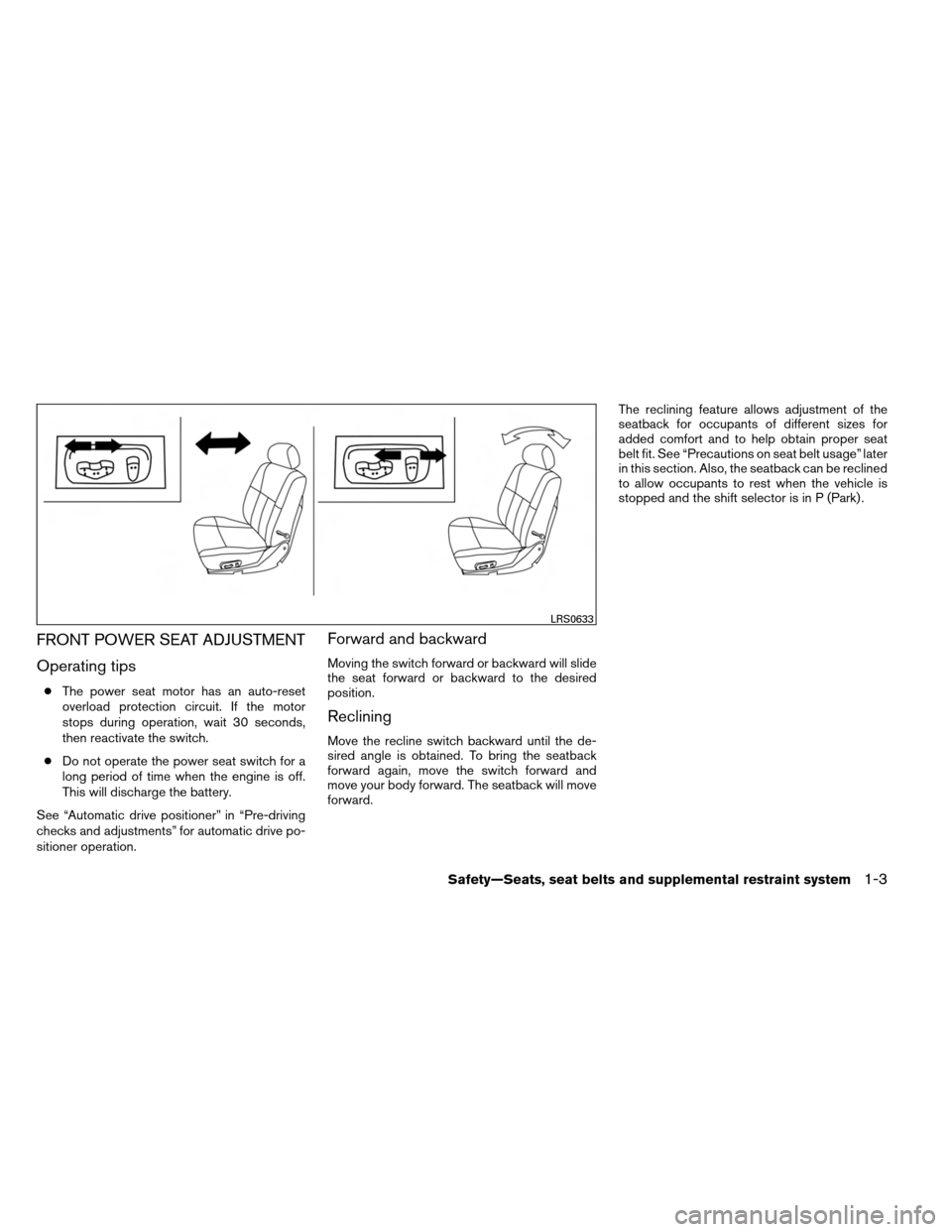

FRONT POWER SEAT ADJUSTMENT
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .
LRS0633
Safety—Seats, seat belts and supplemental restraint system1-3
