Page 31 of 489

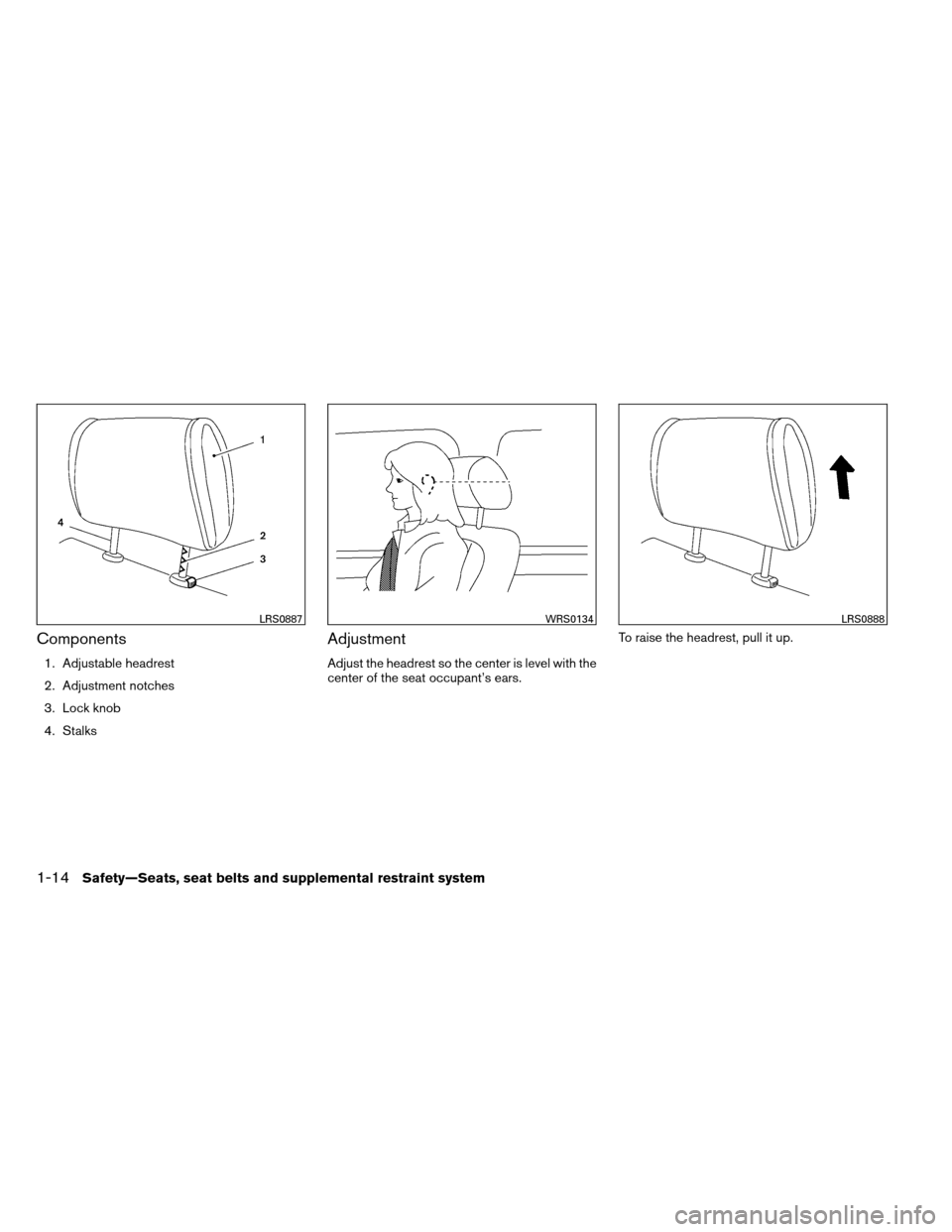

NISSAN ARMADA 2013 1.G Owners Guide Components
1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the headrest so the center is level with the
center of the seat occupant’s ears.To raise the headrest

Page 32 of 489

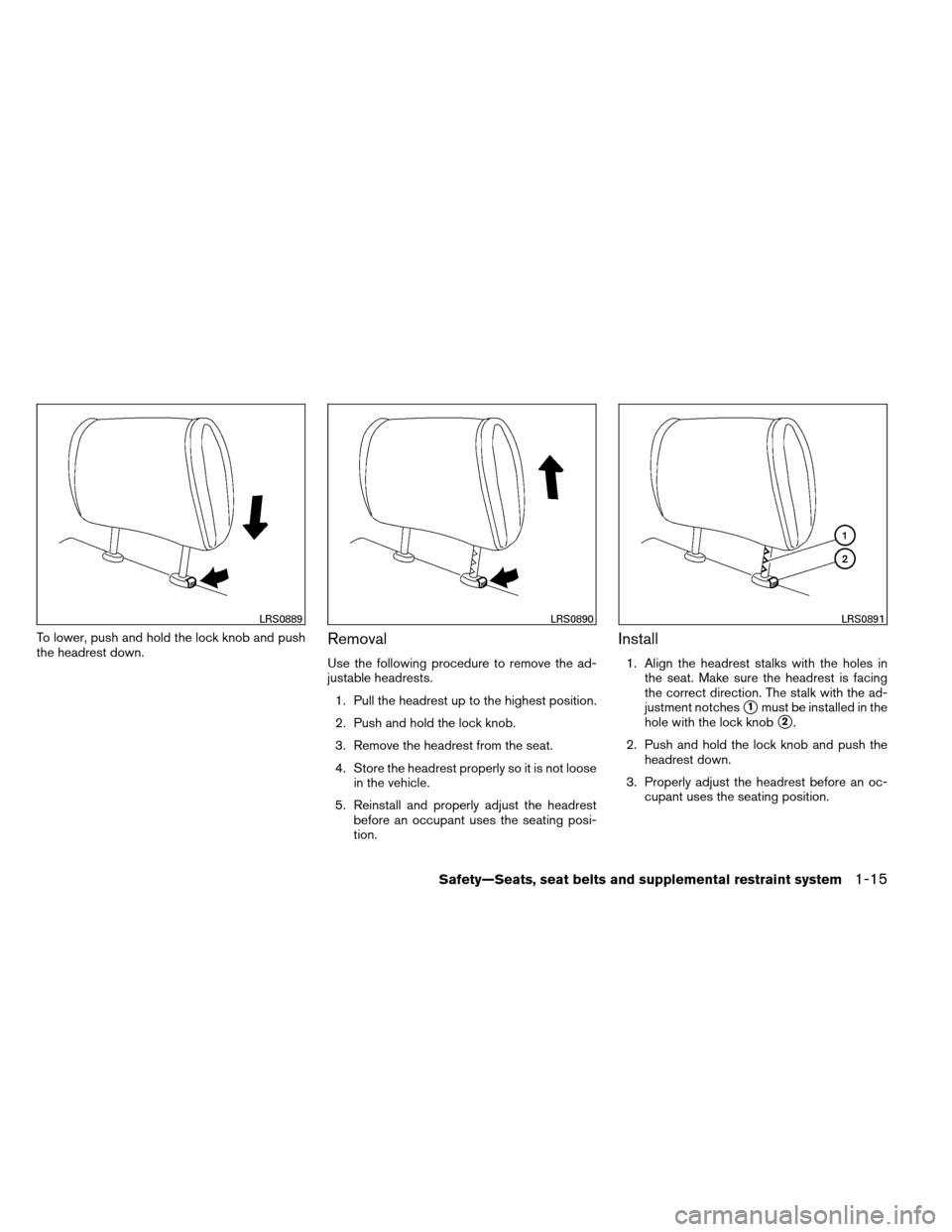

NISSAN ARMADA 2013 1.G Owners Guide To lower, push and hold the lock knob and push
the headrest down.Removal
Use the following procedure to remove the ad-
justable headrests.1. Pull the headrest up to the highest position.
2. Push and h

Page 33 of 489

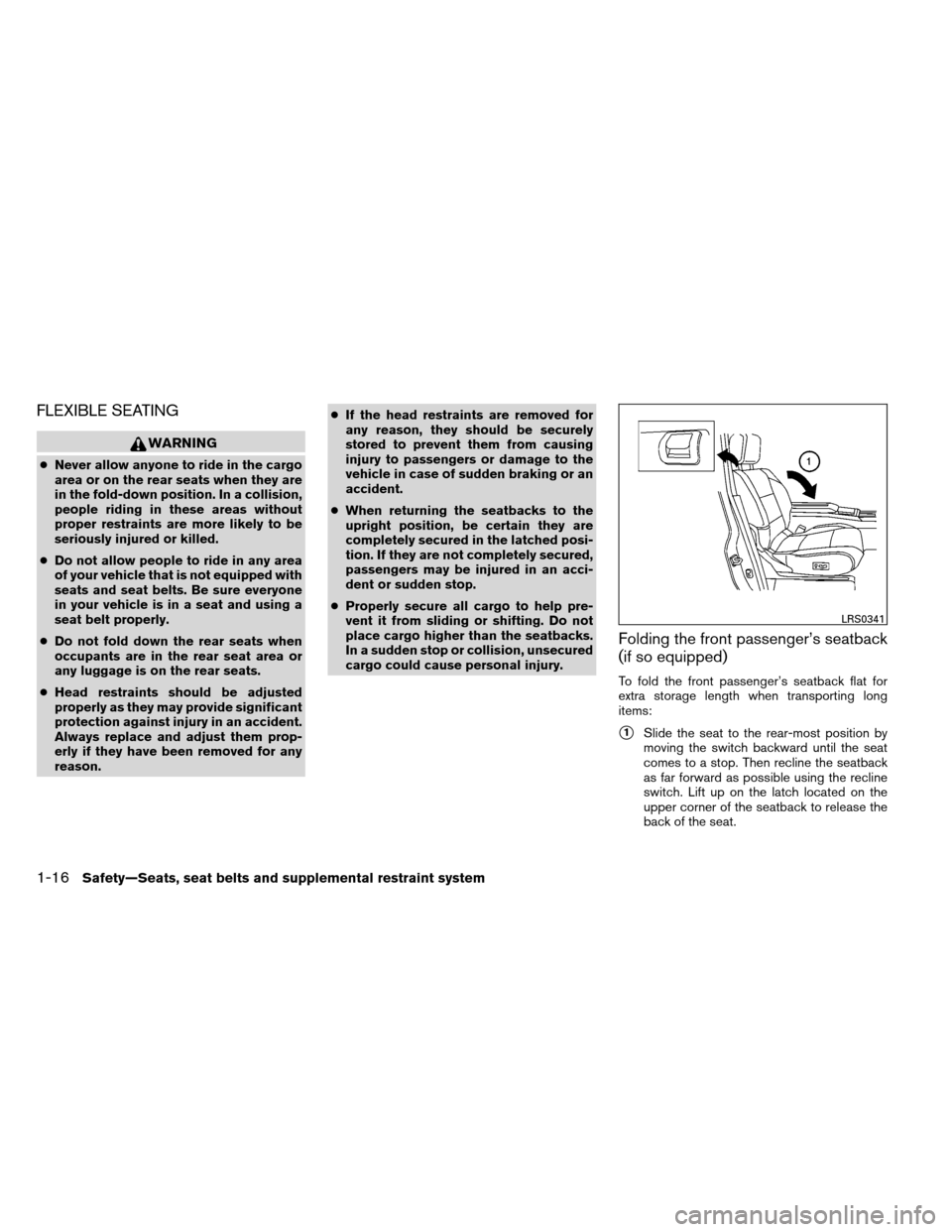

NISSAN ARMADA 2013 1.G Owners Guide FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restr

Page 34 of 489

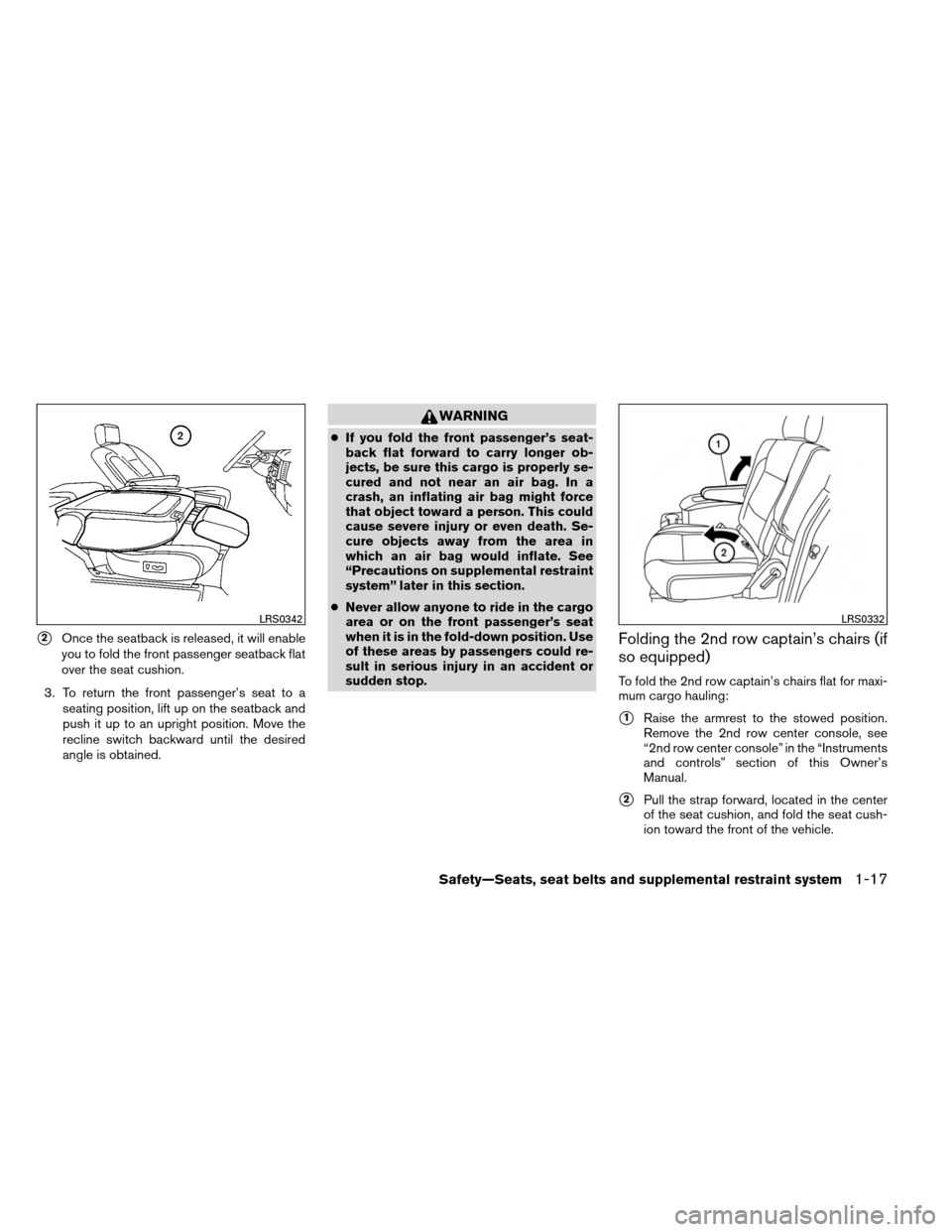

NISSAN ARMADA 2013 1.G Owners Guide 2Once the seatback is released, it will enable
you to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the sea

Page 35 of 489

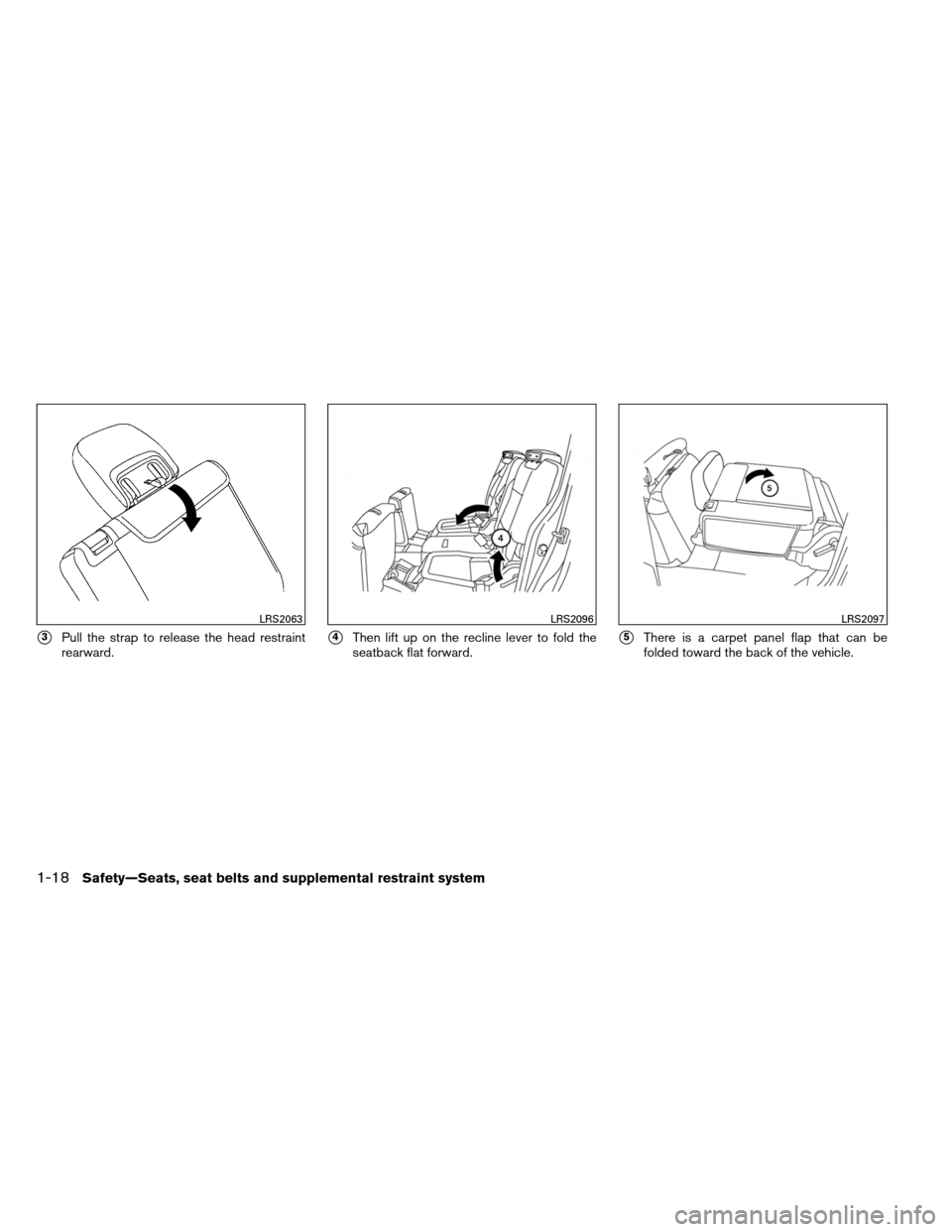

NISSAN ARMADA 2013 1.G Owners Guide 3Pull the strap to release the head restraint
rearward.4Then lift up on the recline lever to fold the
seatback flat forward.5There is a carpet panel flap that can be
folded toward the back of the v

Page 36 of 489

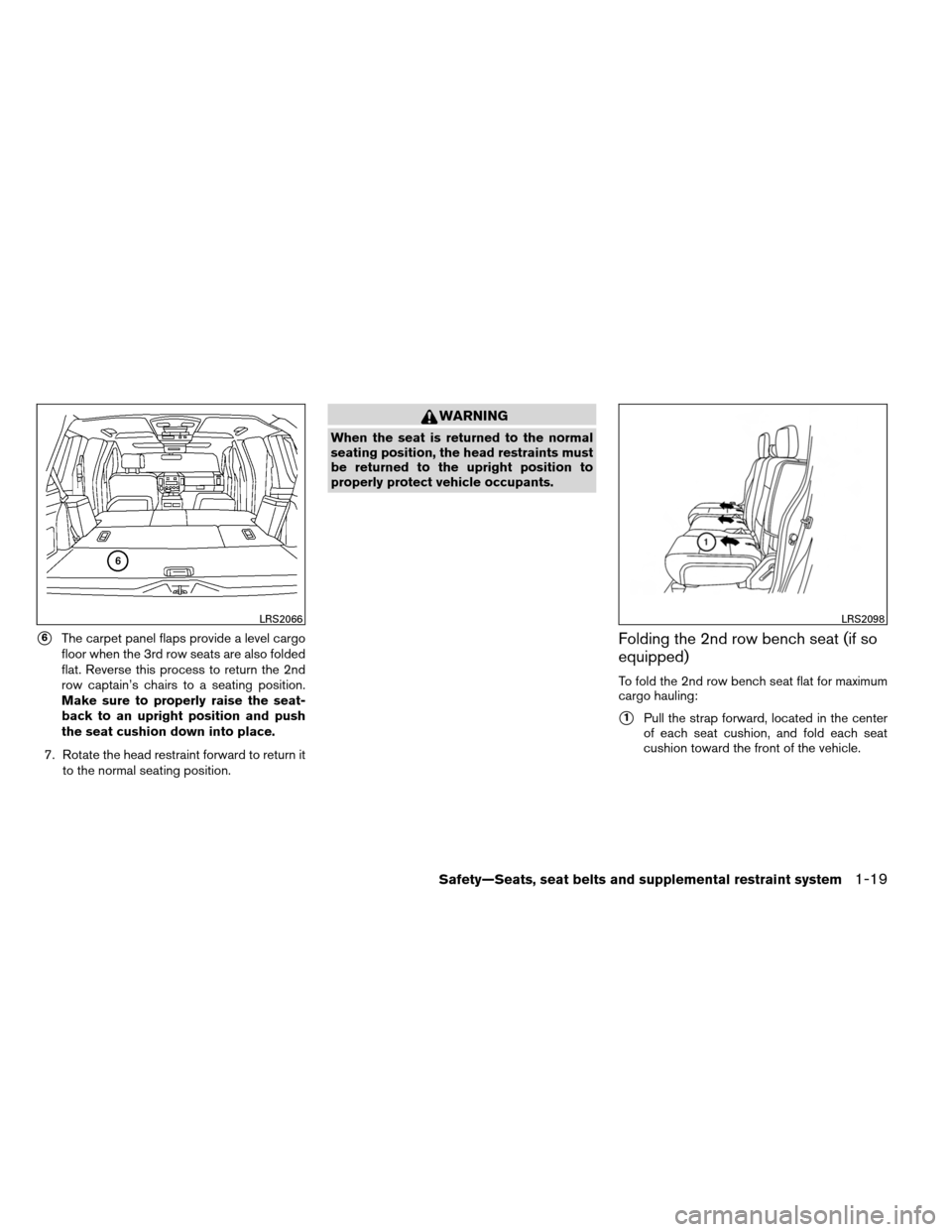

NISSAN ARMADA 2013 1.G Owners Guide 6The carpet panel flaps provide a level cargo
floor when the 3rd row seats are also folded
flat. Reverse this process to return the 2nd
row captain’s chairs to a seating position.
Make sure to prop

Page 37 of 489

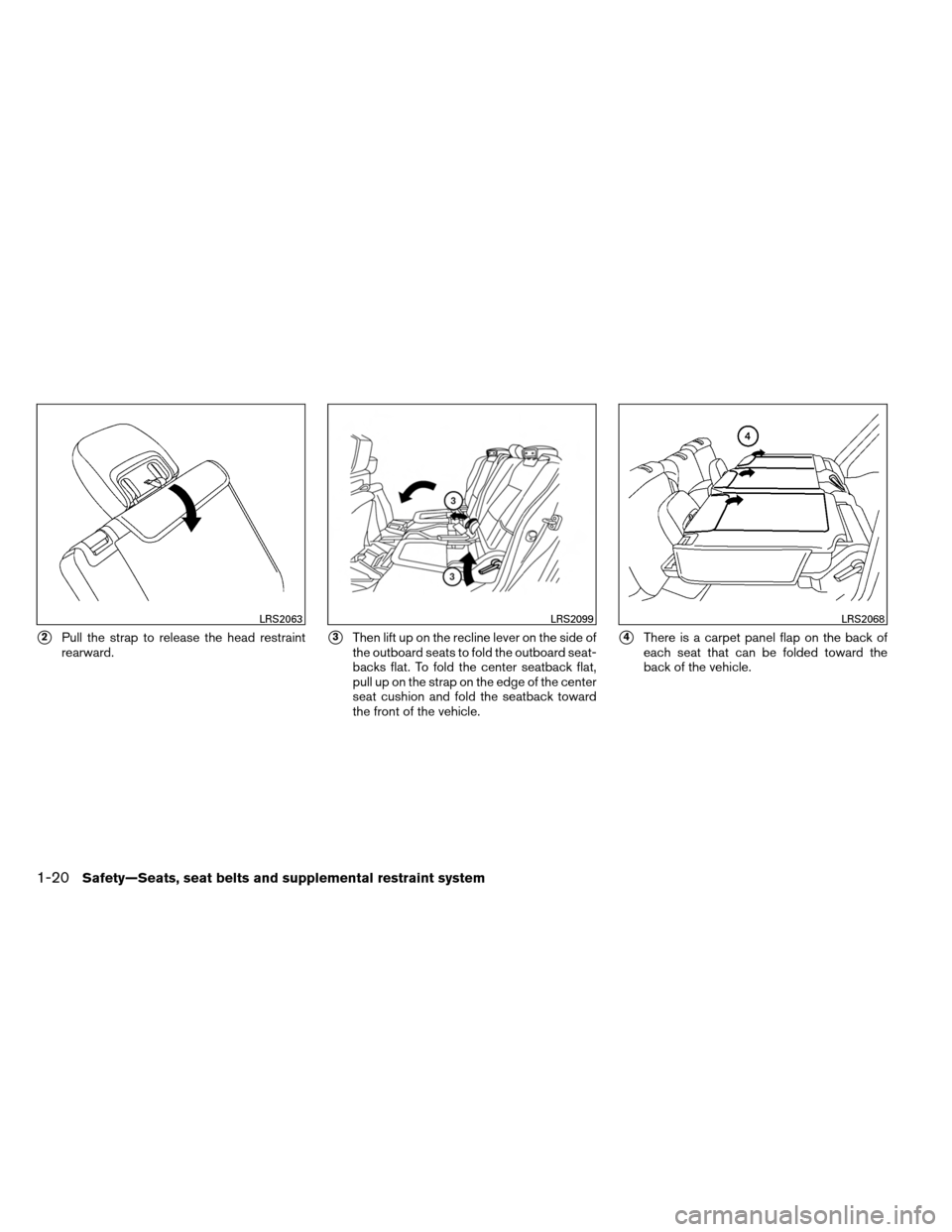

NISSAN ARMADA 2013 1.G Owners Guide 2Pull the strap to release the head restraint
rearward.3Then lift up on the recline lever on the side of
the outboard seats to fold the outboard seat-
backs flat. To fold the center seatback flat,
p

Page 38 of 489

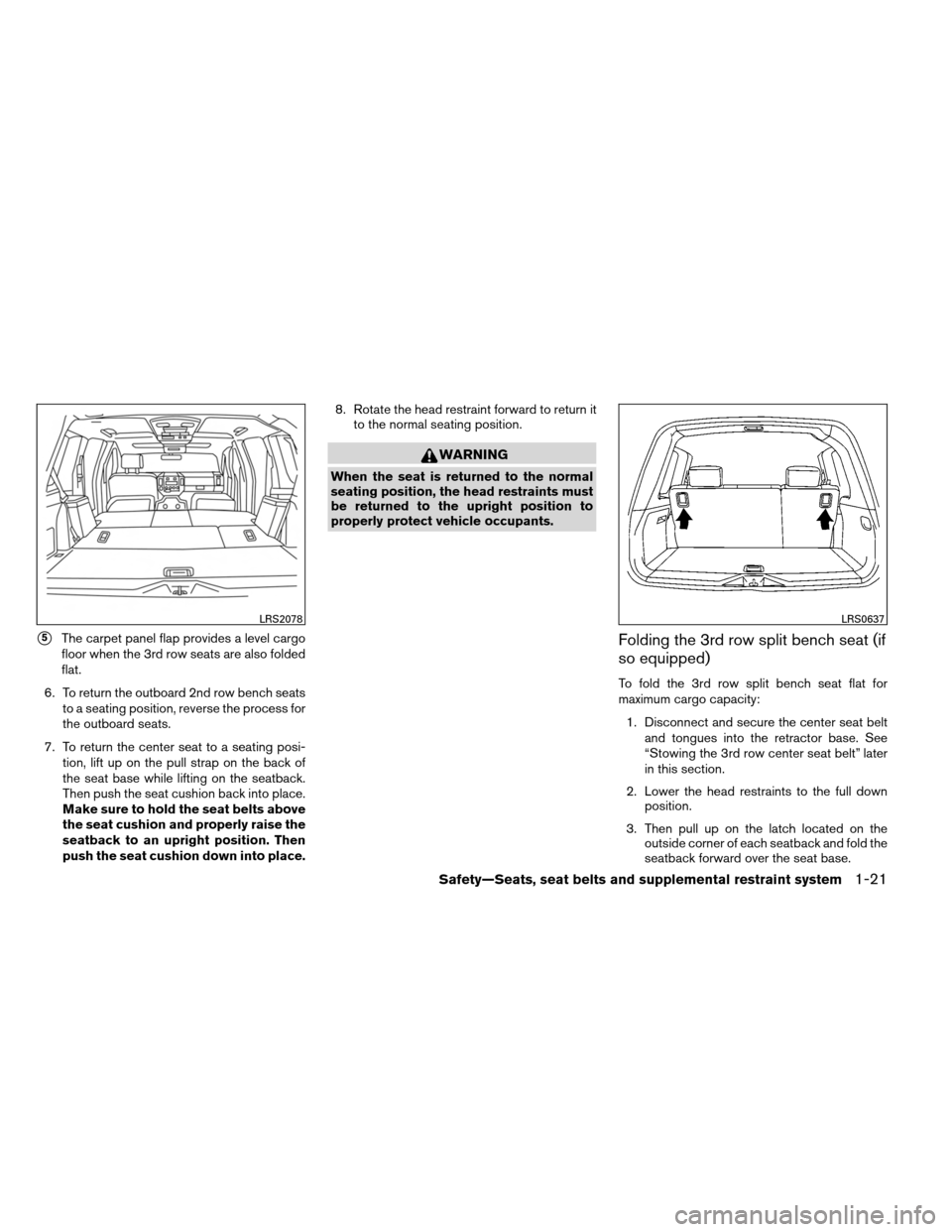

NISSAN ARMADA 2013 1.G Owners Guide 5The carpet panel flap provides a level cargo
floor when the 3rd row seats are also folded
flat.
6. To return the outboard 2nd row bench seats to a seating position, reverse the process for
the outbo

Page 39 of 489

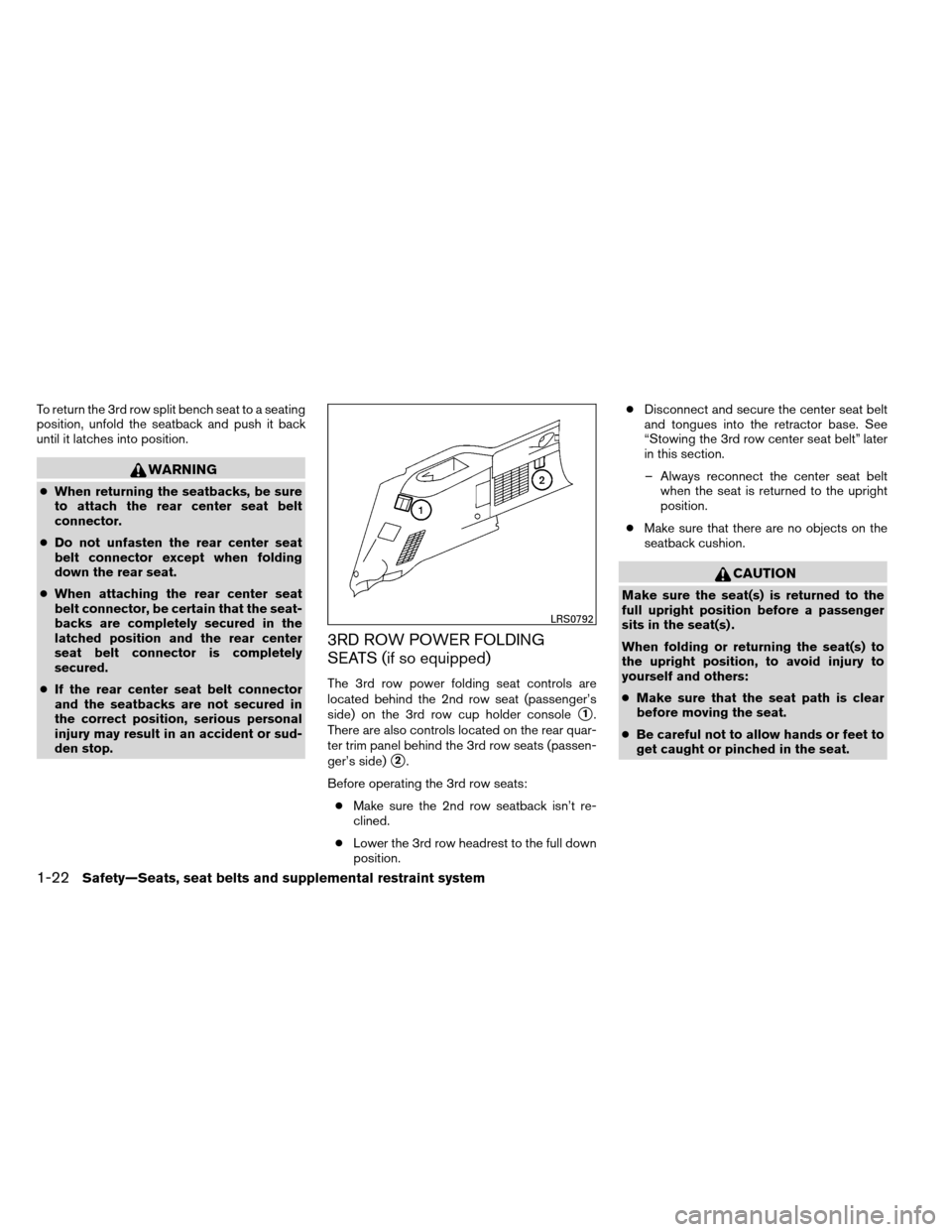

NISSAN ARMADA 2013 1.G Owners Guide To return the 3rd row split bench seat to a seating
position, unfold the seatback and push it back
until it latches into position.
WARNING
●When returning the seatbacks, be sure
to attach the rear c

Page 40 of 489

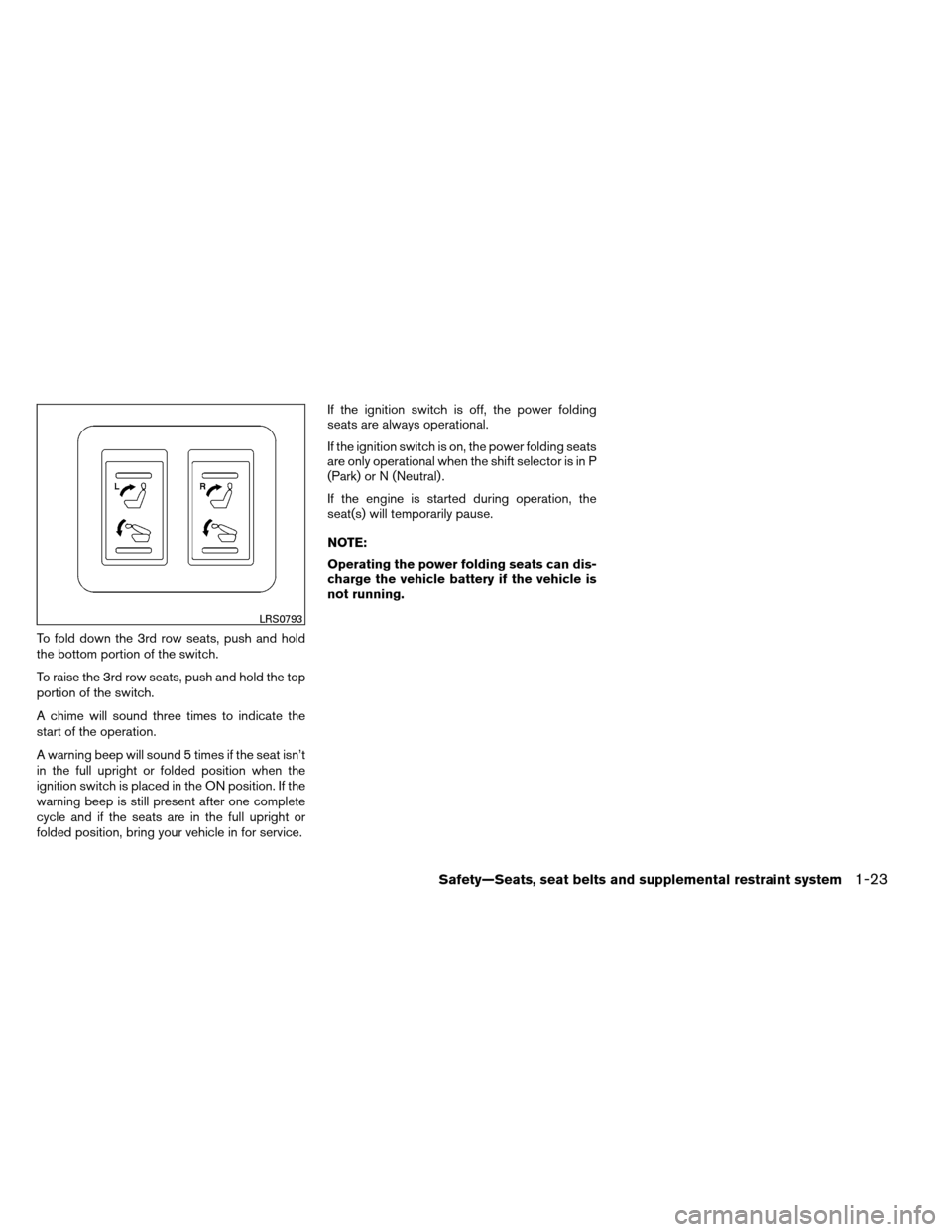

NISSAN ARMADA 2013 1.G Owners Guide To fold down the 3rd row seats, push and hold
the bottom portion of the switch.
To raise the 3rd row seats, push and hold the top
portion of the switch.
A chime will sound three times to indicate the
