Page 451 of 489

NISSAN ARMADA 2013 1.G Owners Manual Fuel consumption
Because E-85 fuel contains less energy per gal-
lon than gasoline, you will experience an increase
in fuel consumption. You can expect your fuel
mileage to decrease by about 30% compa

Page 452 of 489

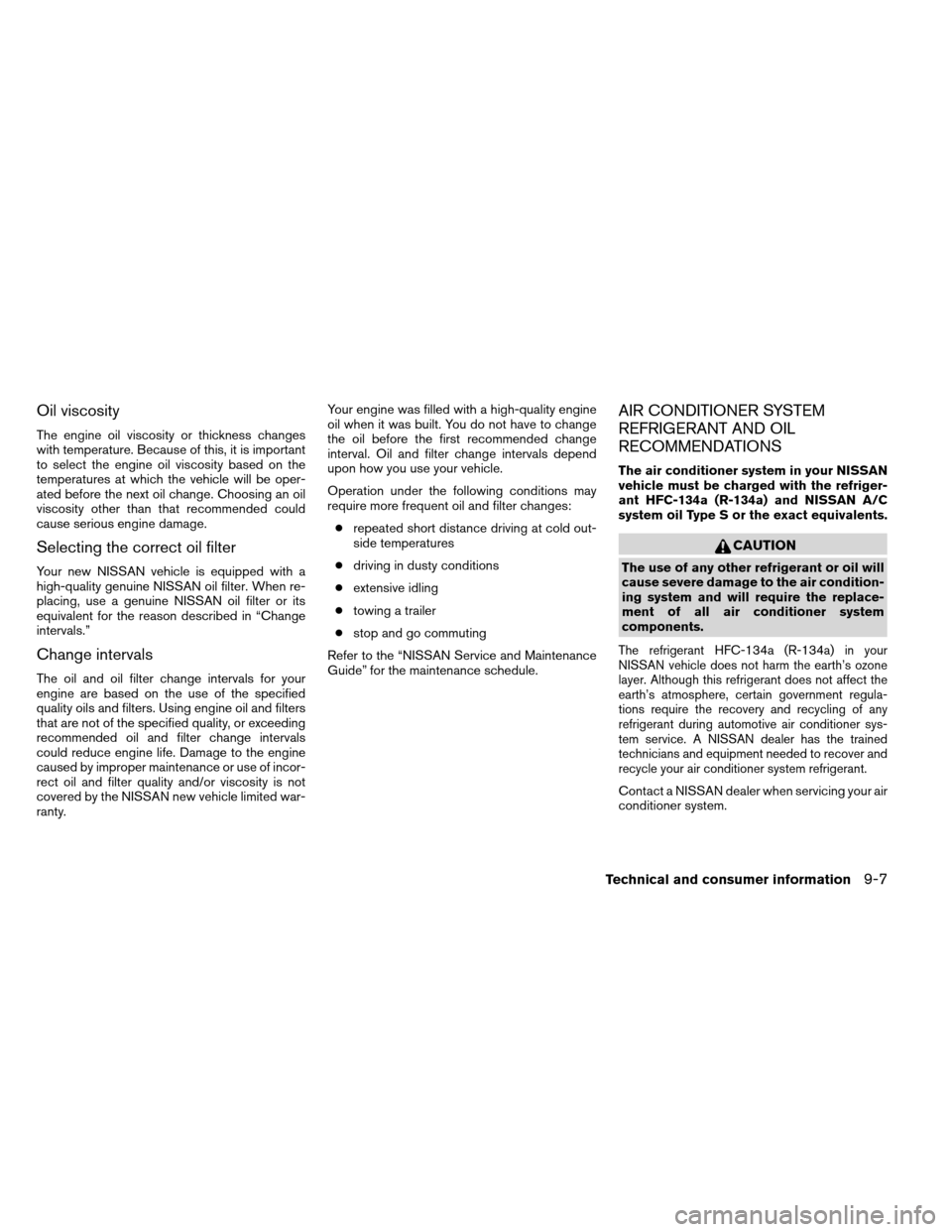

NISSAN ARMADA 2013 1.G Owners Manual Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be

Page 453 of 489

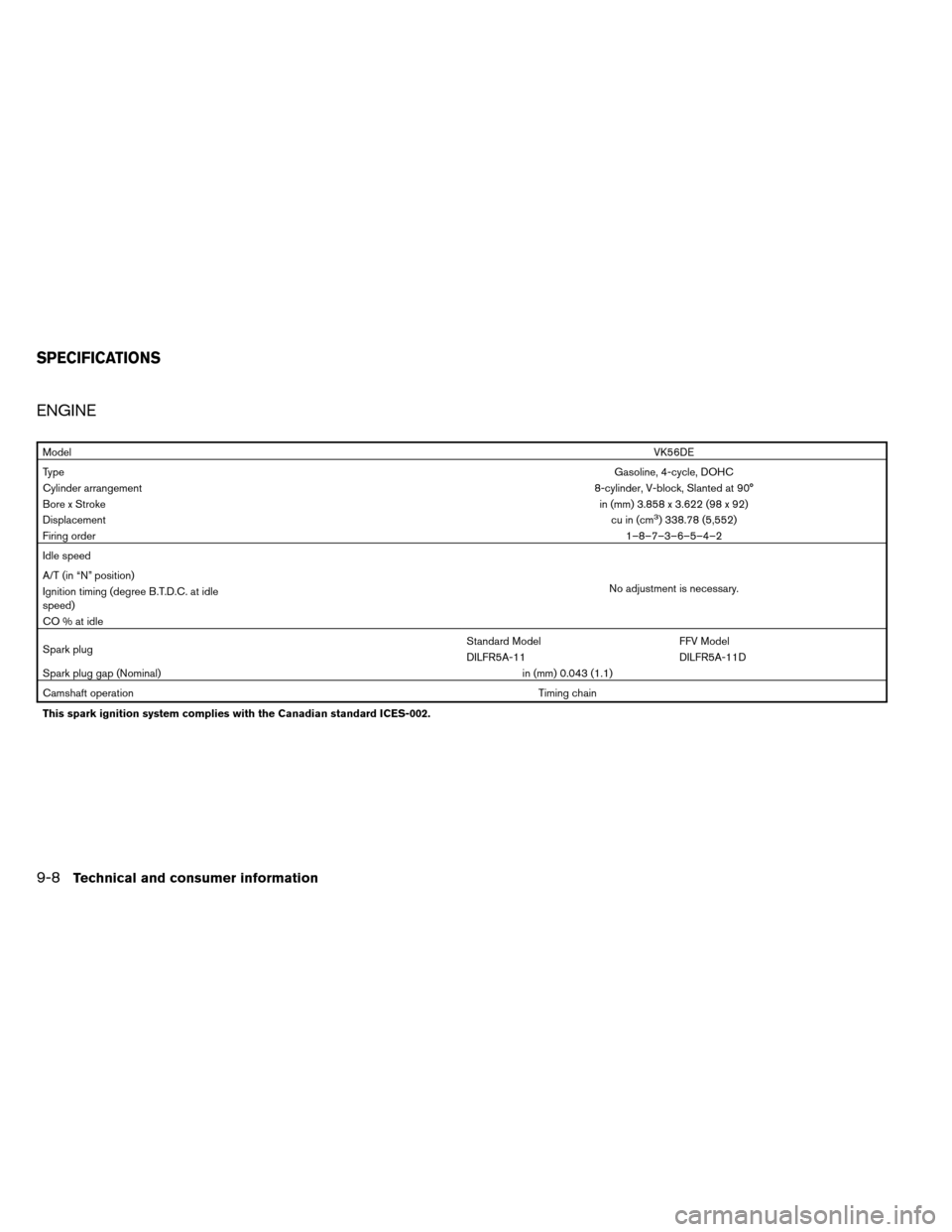

NISSAN ARMADA 2013 1.G Owners Manual ENGINE
ModelVK56DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.858 x 3.622 (98 x 92)
Displacement cu in (cm
3) 338.78 (5,552)
Firing

Page 454 of 489

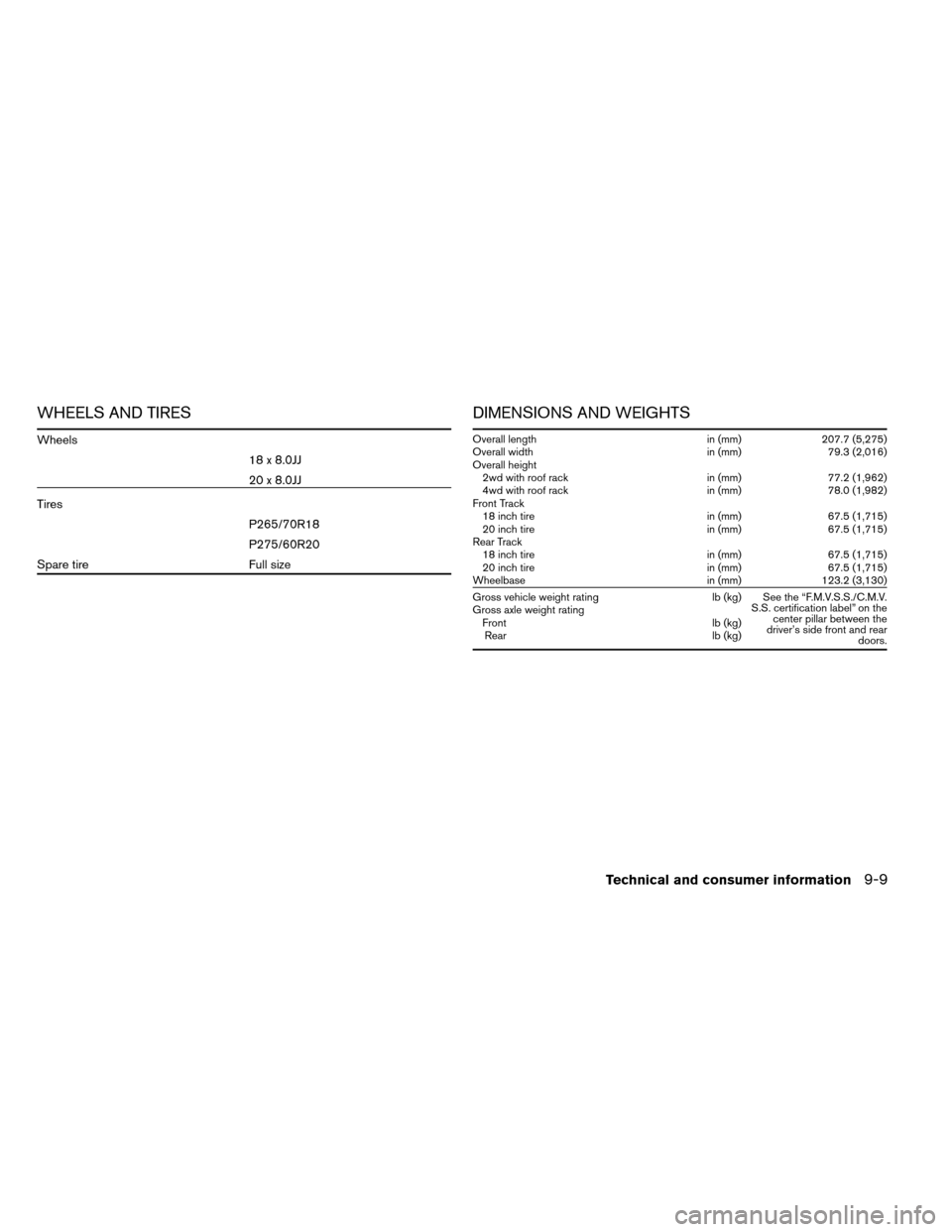

NISSAN ARMADA 2013 1.G Owners Manual WHEELS AND TIRES
Wheels18 x 8.0JJ
20 x 8.0JJ
Tires P265/70R18
P275/60R20
Spare tire Full size
DIMENSIONS AND WEIGHTS
Overall length in (mm)207.7 (5,275)
Overall width in (mm)79.3 (2,016)
Overall heigh

Page 455 of 489

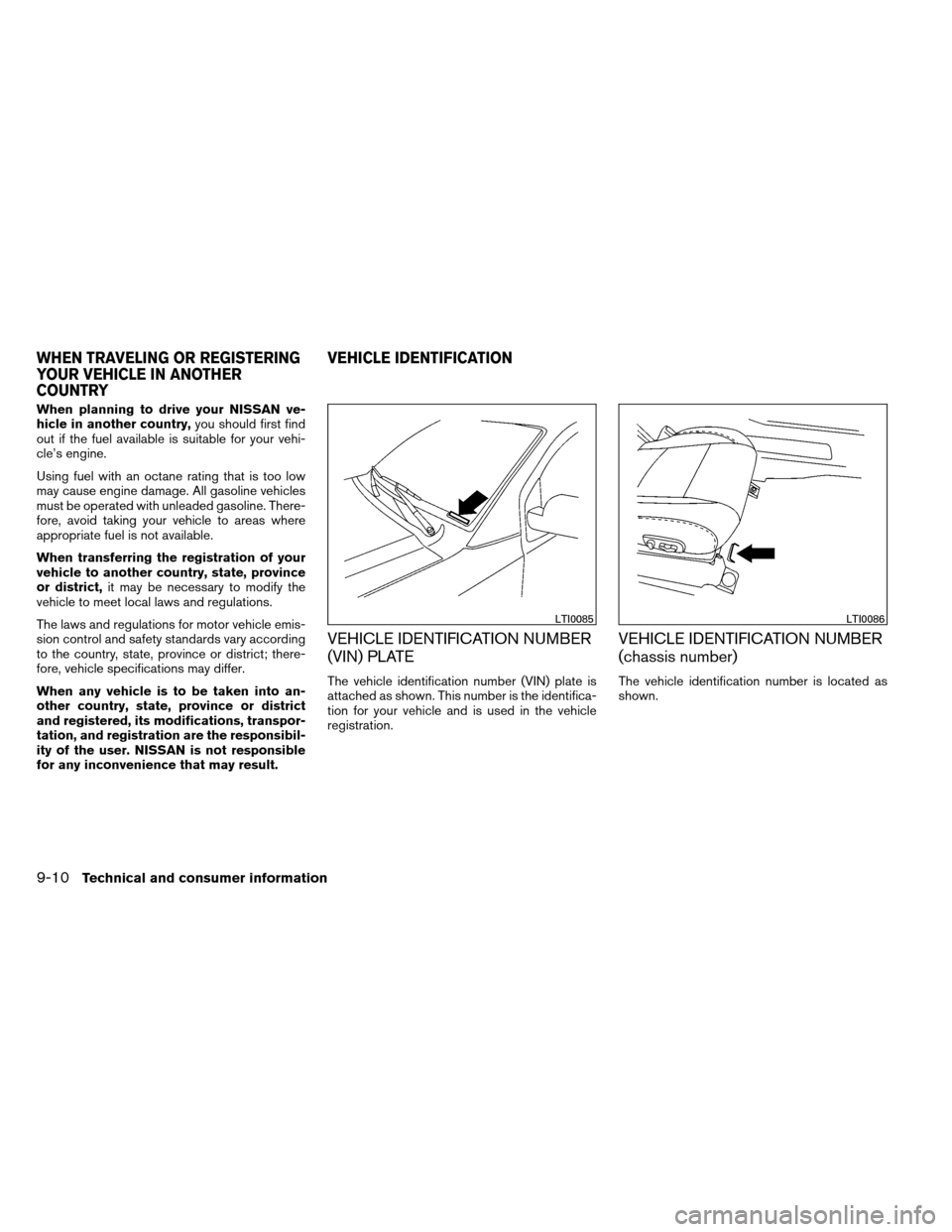

NISSAN ARMADA 2013 1.G Owners Manual When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too

Page 456 of 489

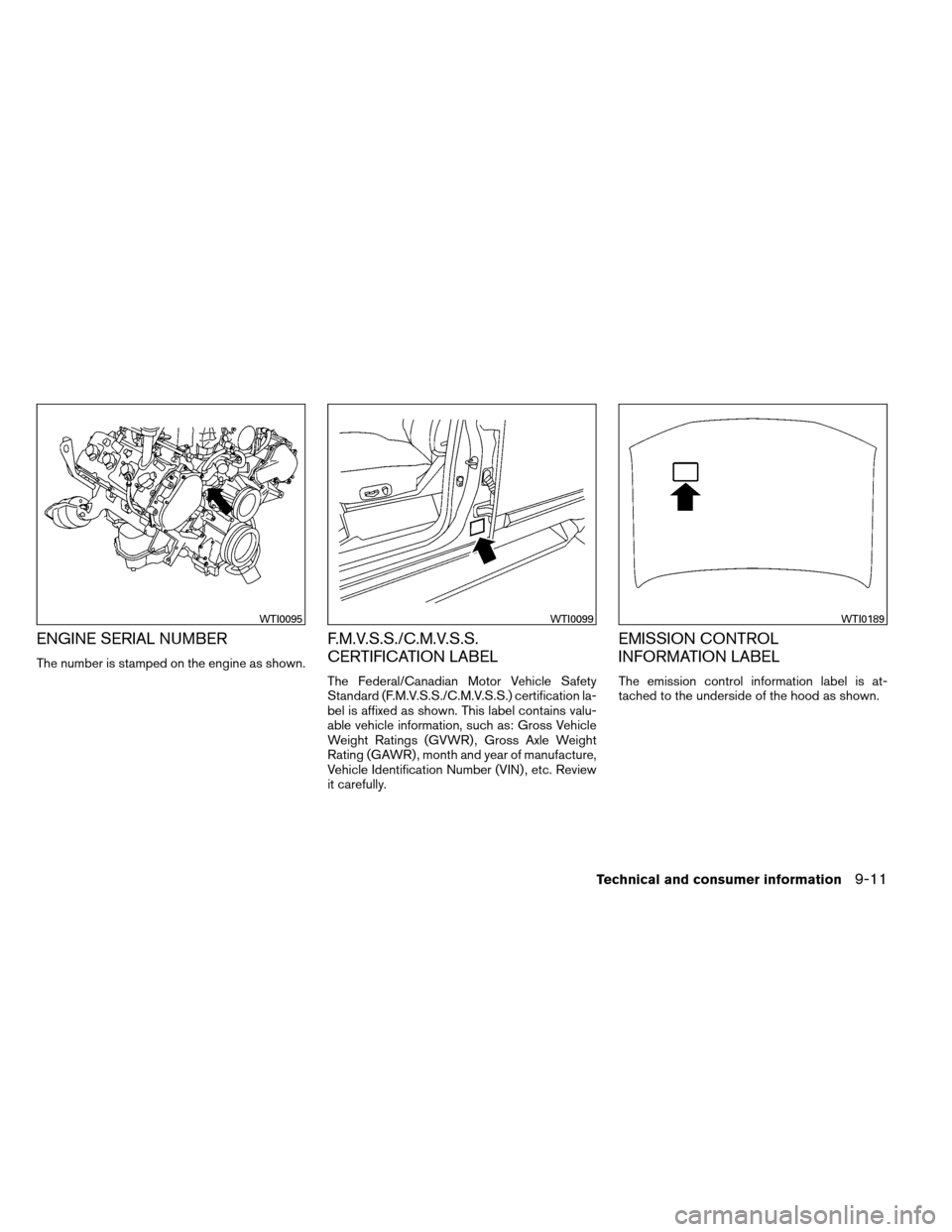

NISSAN ARMADA 2013 1.G Owners Manual ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la

Page 457 of 489

NISSAN ARMADA 2013 1.G Owners Manual TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner spe

Page 458 of 489

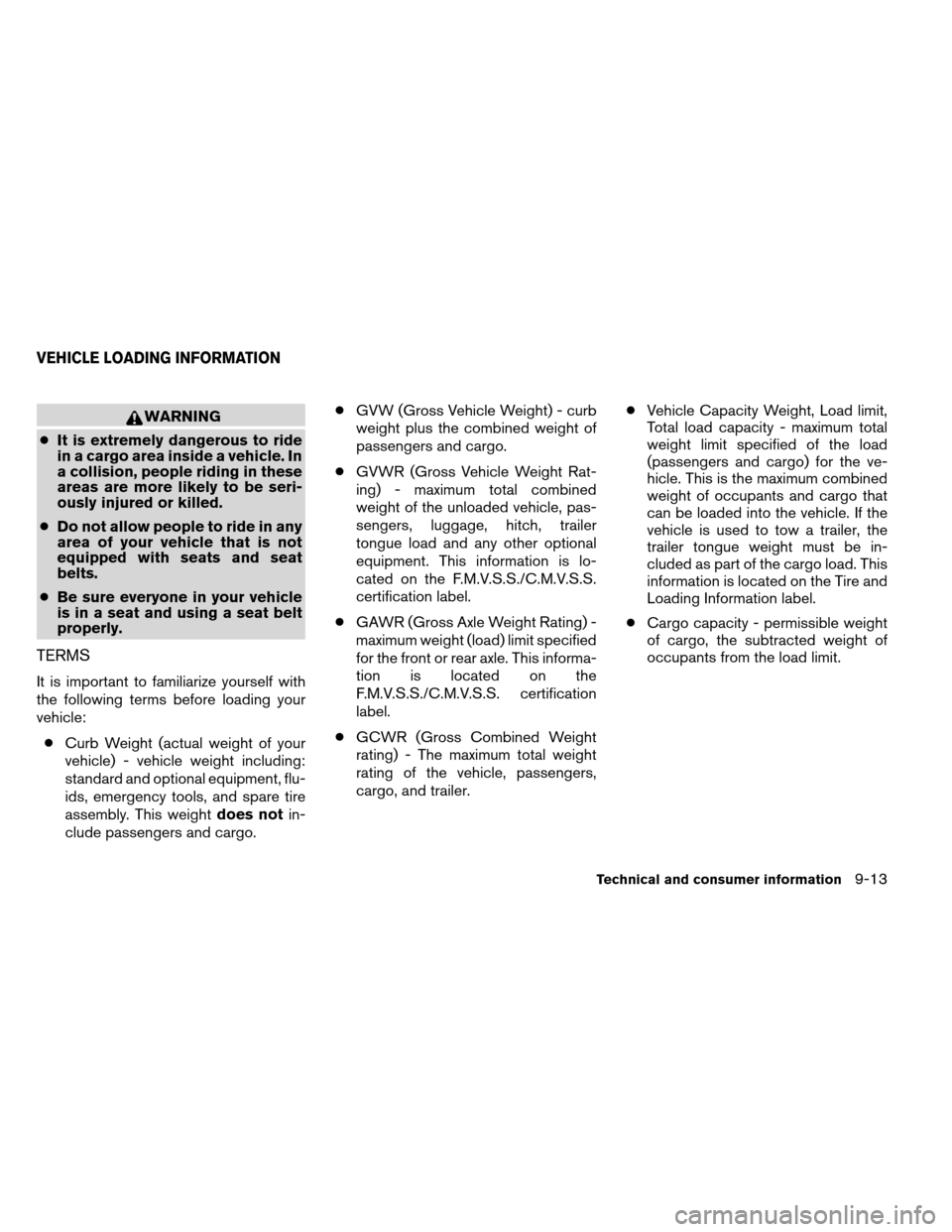

NISSAN ARMADA 2013 1.G Owners Manual WARNING
● It is extremely dangerous to ride
in a cargo area inside a vehicle. In
a collision, people riding in these
areas are more likely to be seri-
ously injured or killed.
● Do not allow peopl

Page 459 of 489

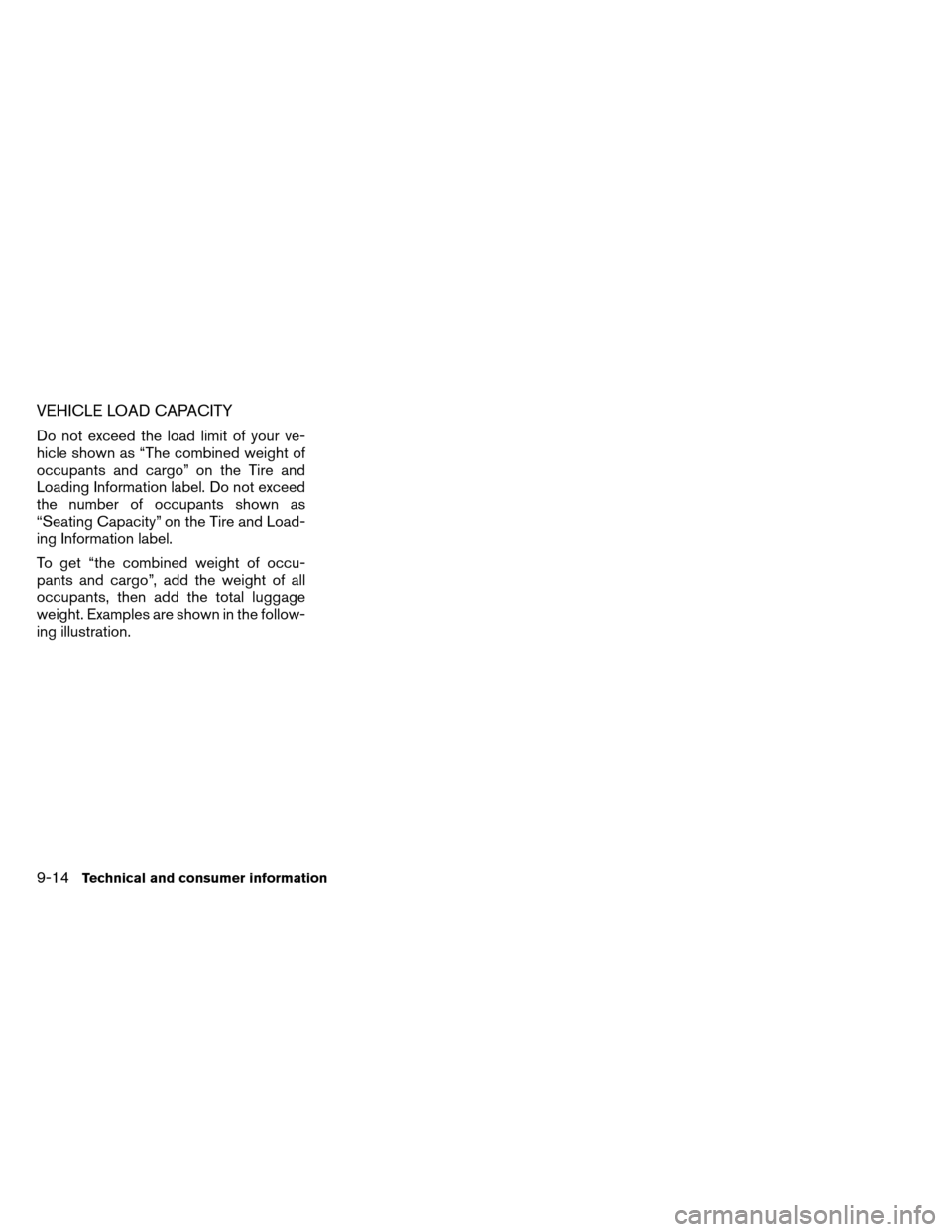

NISSAN ARMADA 2013 1.G Owners Manual VEHICLE LOAD CAPACITY
Do not exceed the load limit of your ve-
hicle shown as “The combined weight of
occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of oc

Page 460 of 489

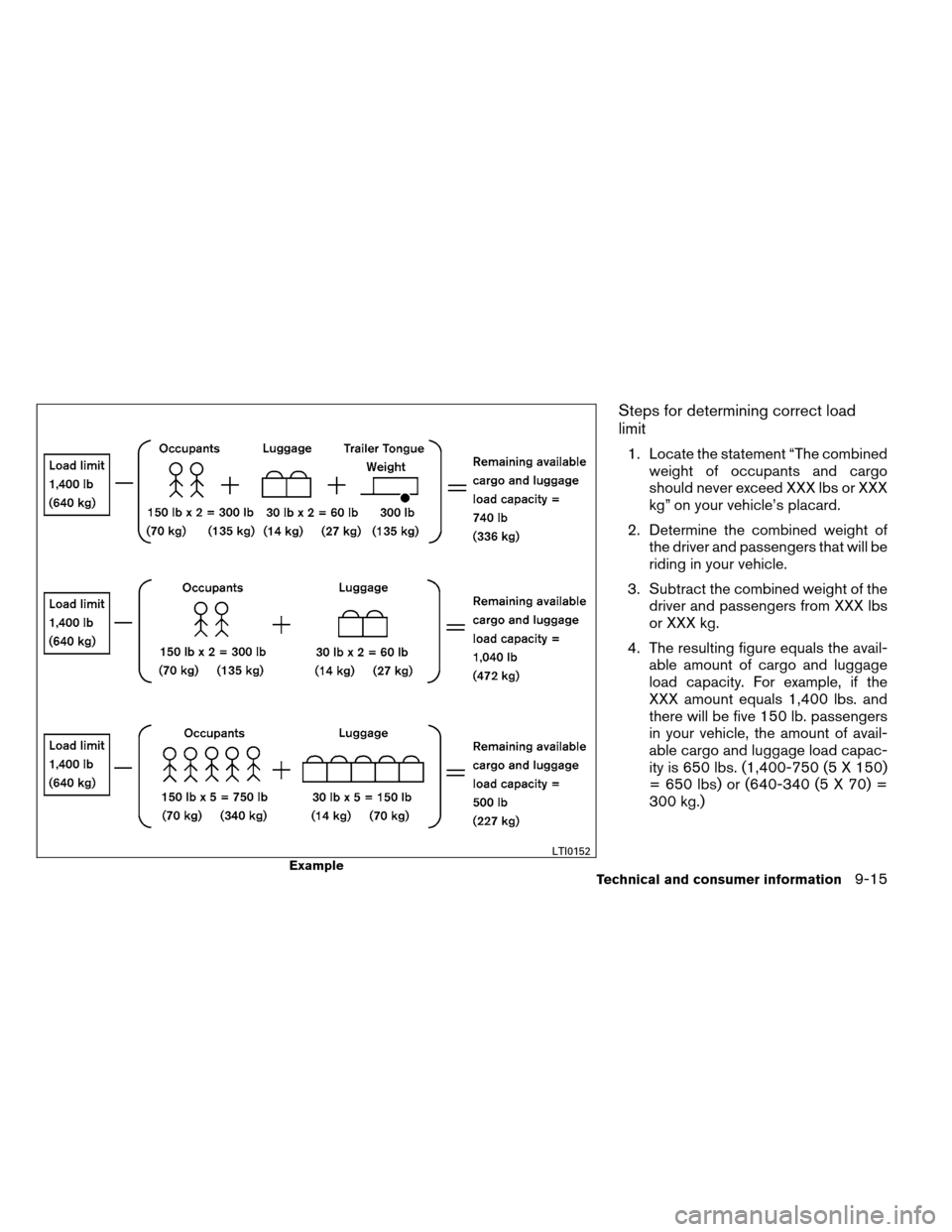

NISSAN ARMADA 2013 1.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.
2. Determine the com
