Page 461 of 489

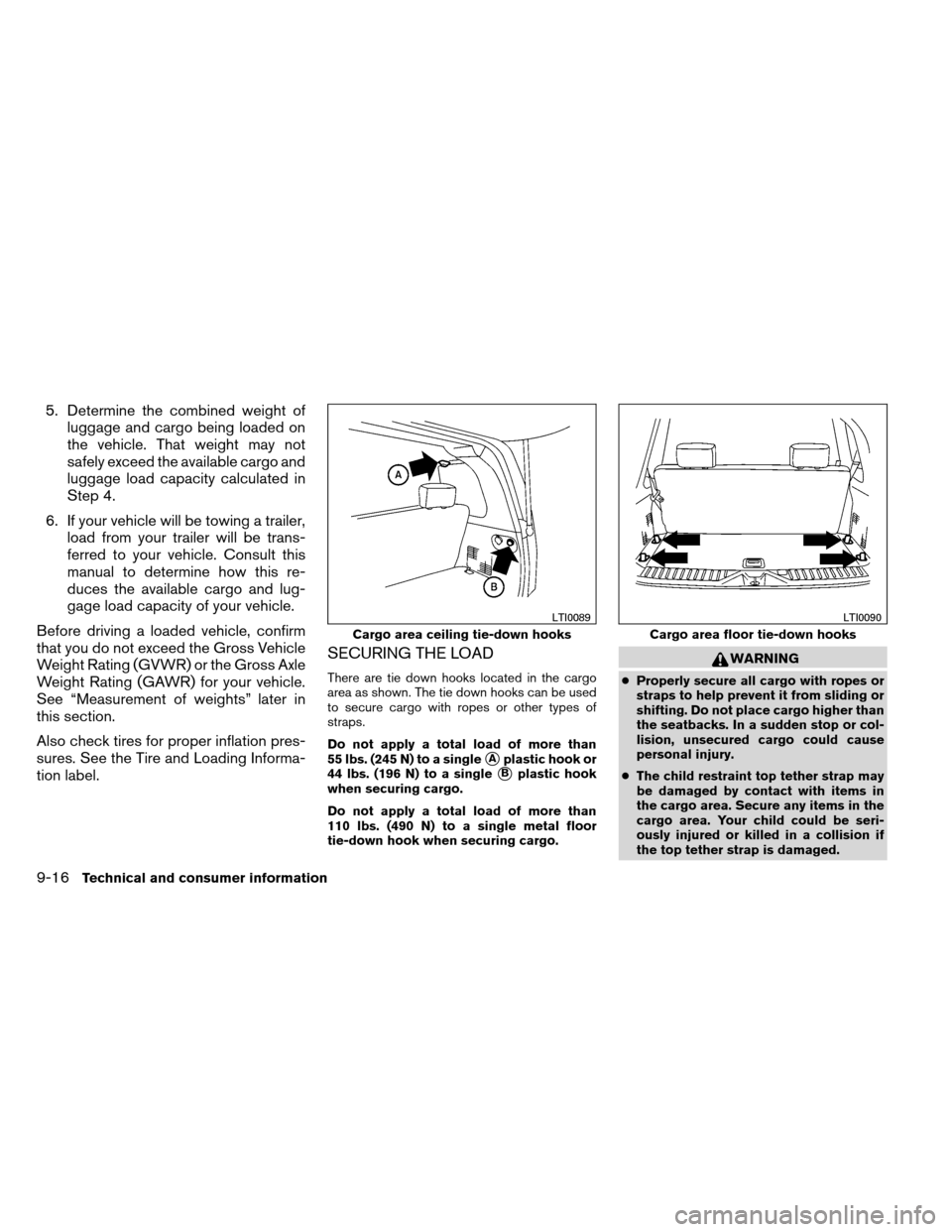

NISSAN ARMADA 2013 1.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehic

Page 462 of 489

NISSAN ARMADA 2013 1.G Owners Manual ●Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of your
vehicle can break, tire damage could
occur, or it can change the way your
vehicle ha

Page 463 of 489

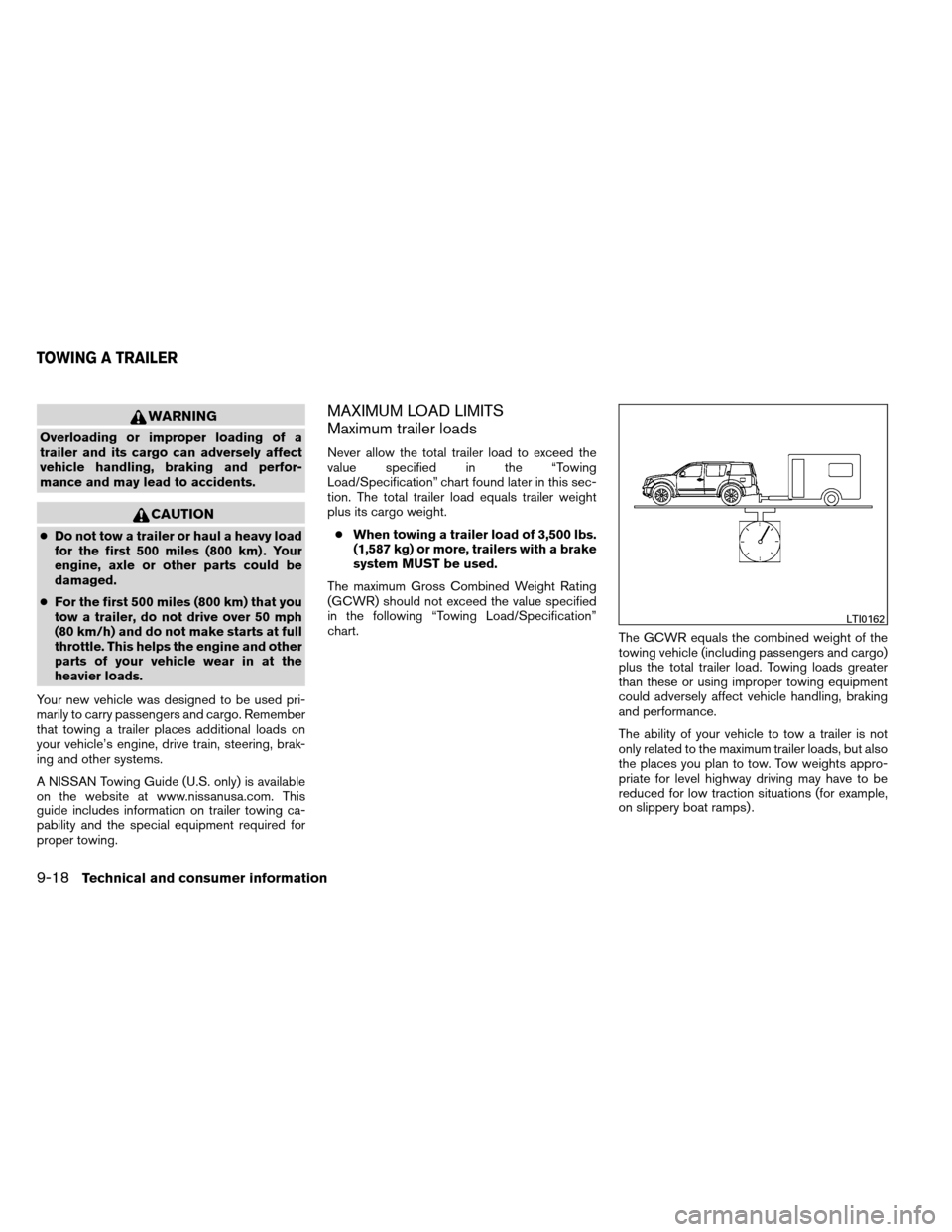

NISSAN ARMADA 2013 1.G Owners Manual WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
●Do not tow a trailer or haul a

Page 464 of 489

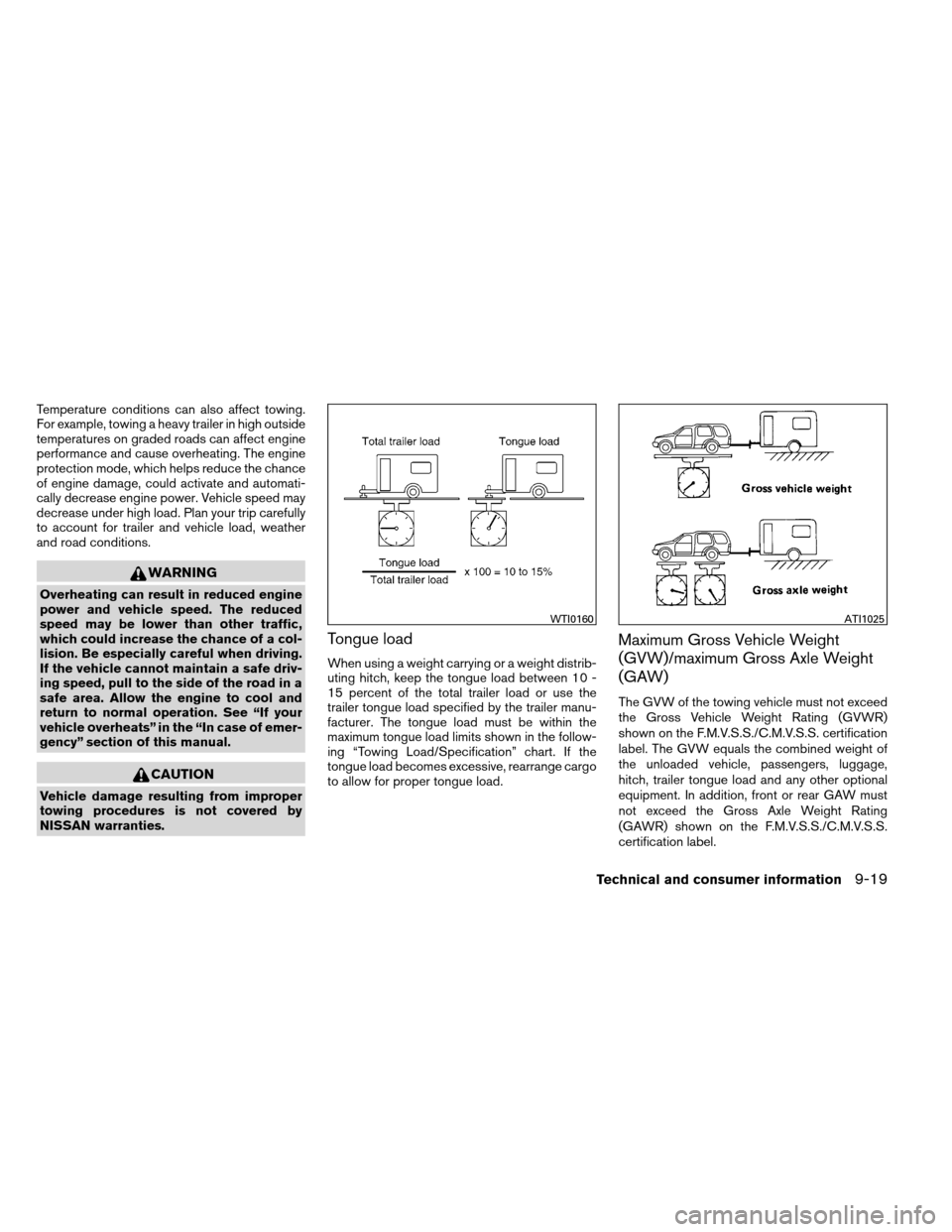

NISSAN ARMADA 2013 1.G Owners Manual Temperature conditions can also affect towing.
For example, towing a heavy trailer in high outside
temperatures on graded roads can affect engine
performance and cause overheating. The engine
protecti

Page 465 of 489

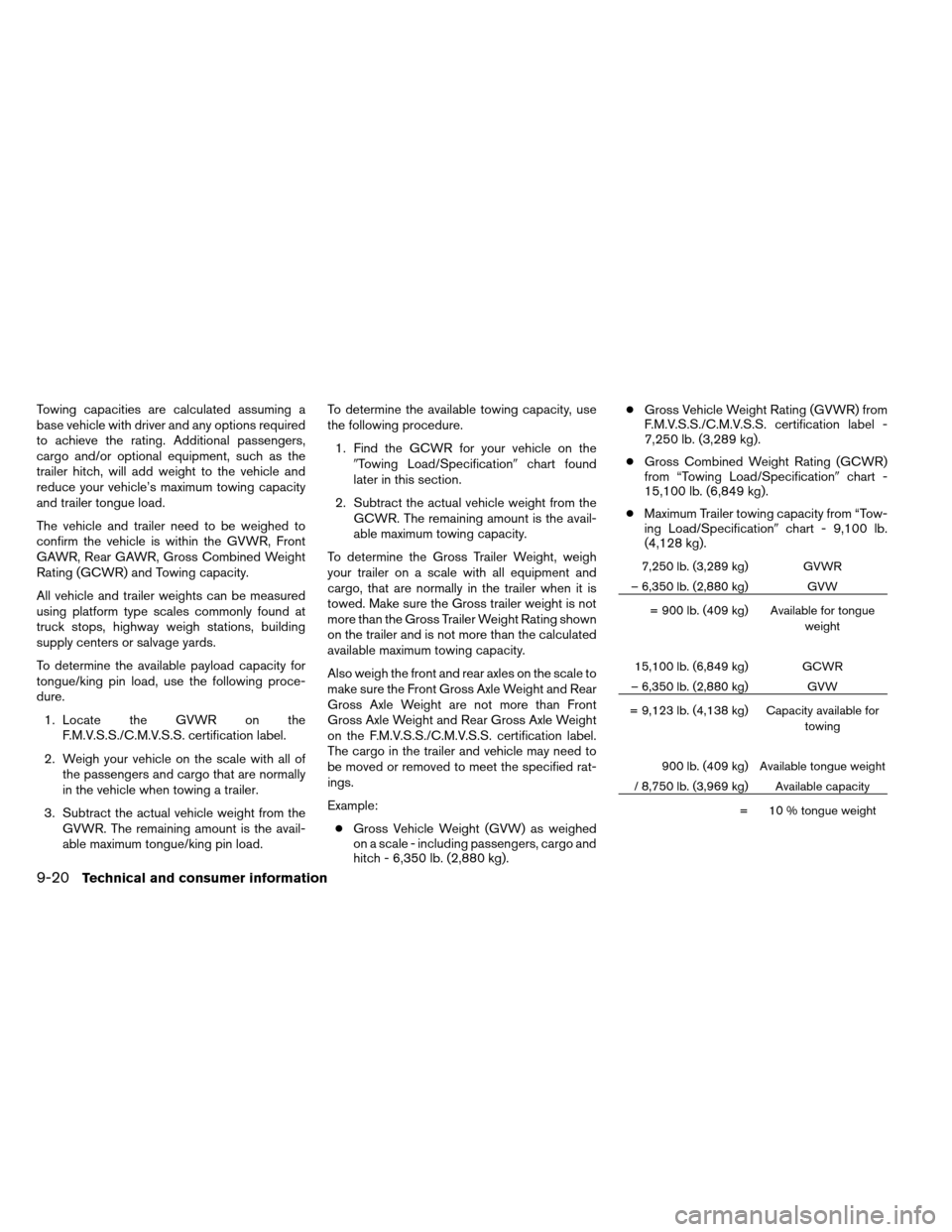

NISSAN ARMADA 2013 1.G Owners Manual Towing capacities are calculated assuming a
base vehicle with driver and any options required
to achieve the rating. Additional passengers,
cargo and/or optional equipment, such as the
trailer hitch,

Page 466 of 489

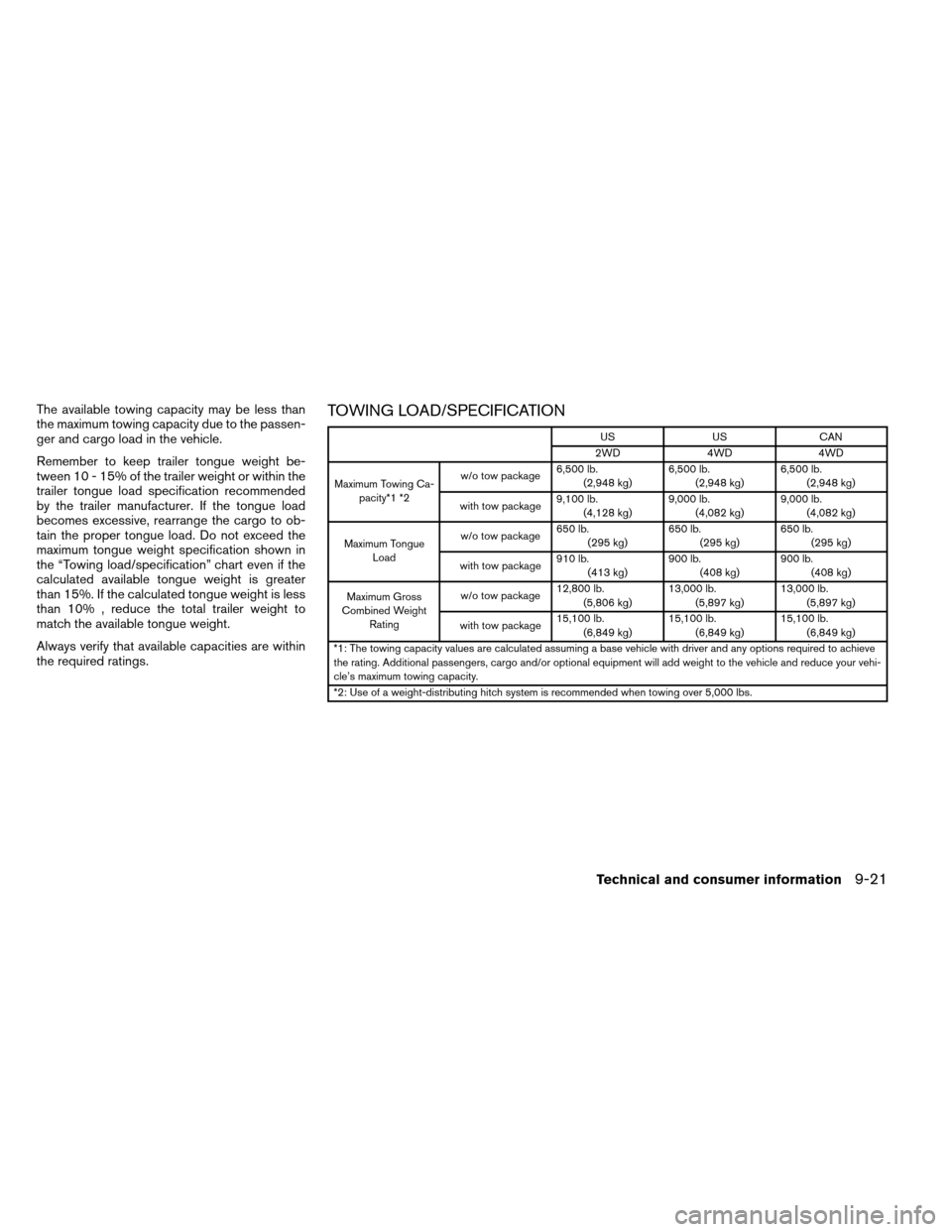

NISSAN ARMADA 2013 1.G Owners Manual The available towing capacity may be less than
the maximum towing capacity due to the passen-
ger and cargo load in the vehicle.
Remember to keep trailer tongue weight be-
tween 10 - 15% of the traile

Page 467 of 489

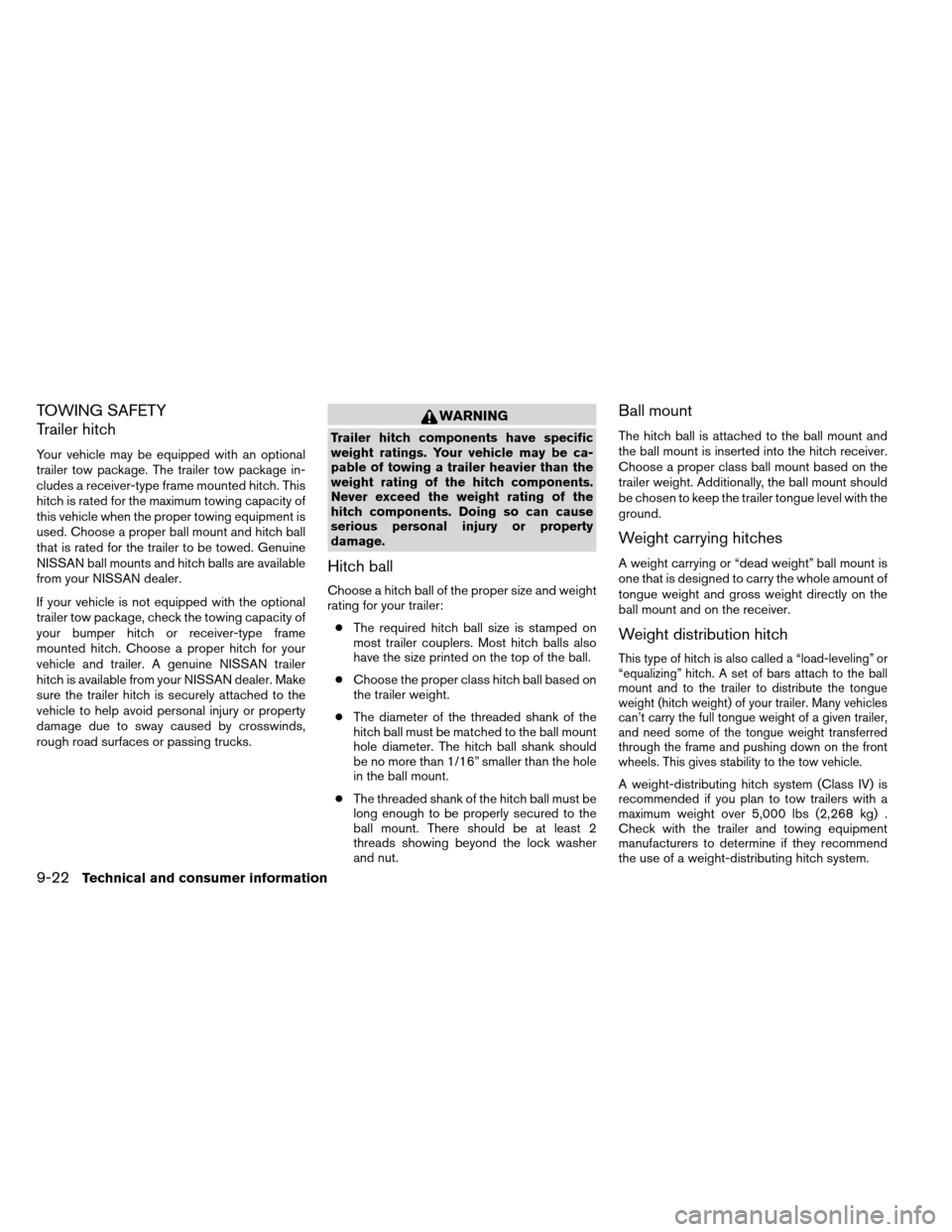

NISSAN ARMADA 2013 1.G Owners Manual TOWING SAFETY
Trailer hitch
Your vehicle may be equipped with an optional
trailer tow package. The trailer tow package in-
cludes a receiver-type frame mounted hitch. This
hitch is rated for the maxim

Page 468 of 489

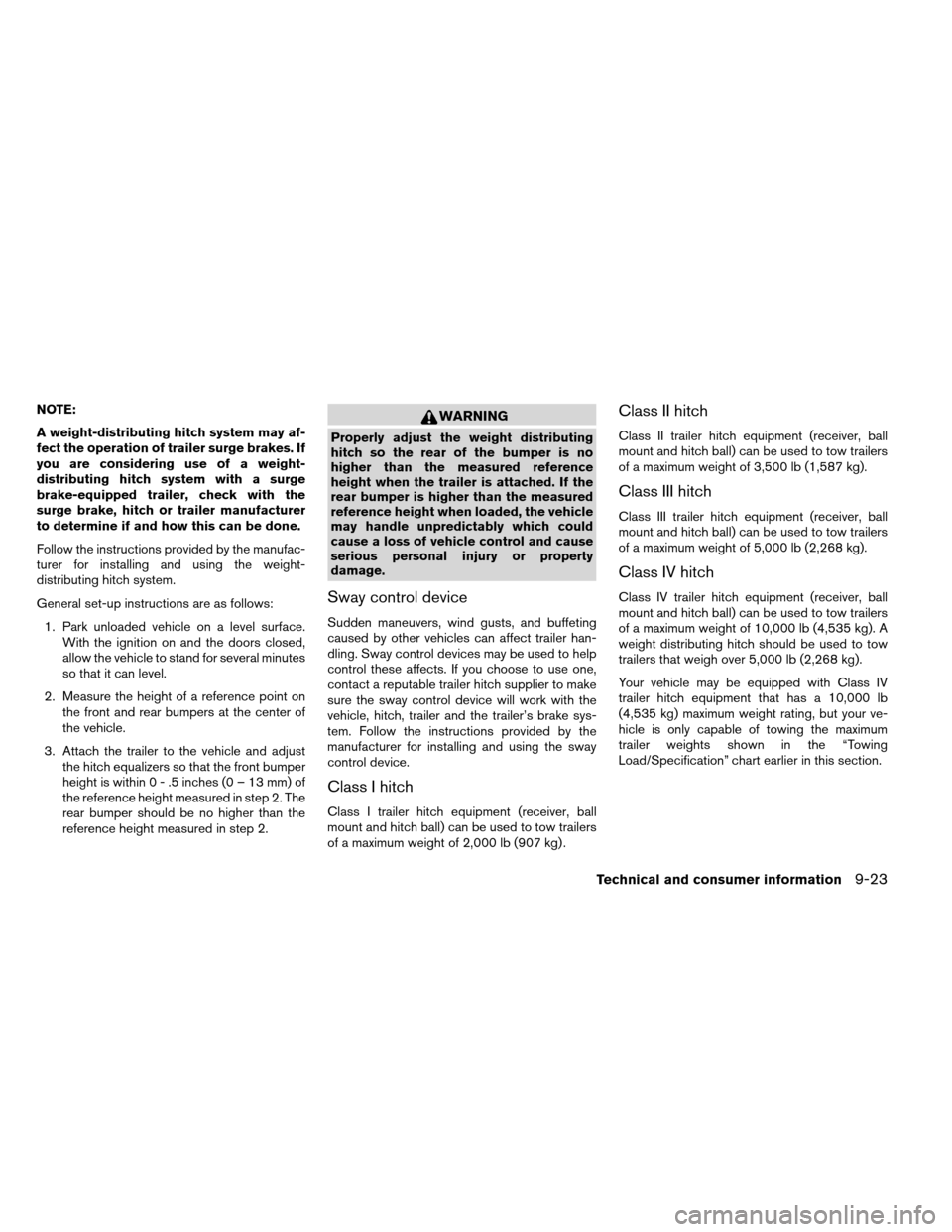

NISSAN ARMADA 2013 1.G Owners Manual NOTE:
A weight-distributing hitch system may af-
fect the operation of trailer surge brakes. If
you are considering use of a weight-
distributing hitch system with a surge
brake-equipped trailer, chec

Page 469 of 489

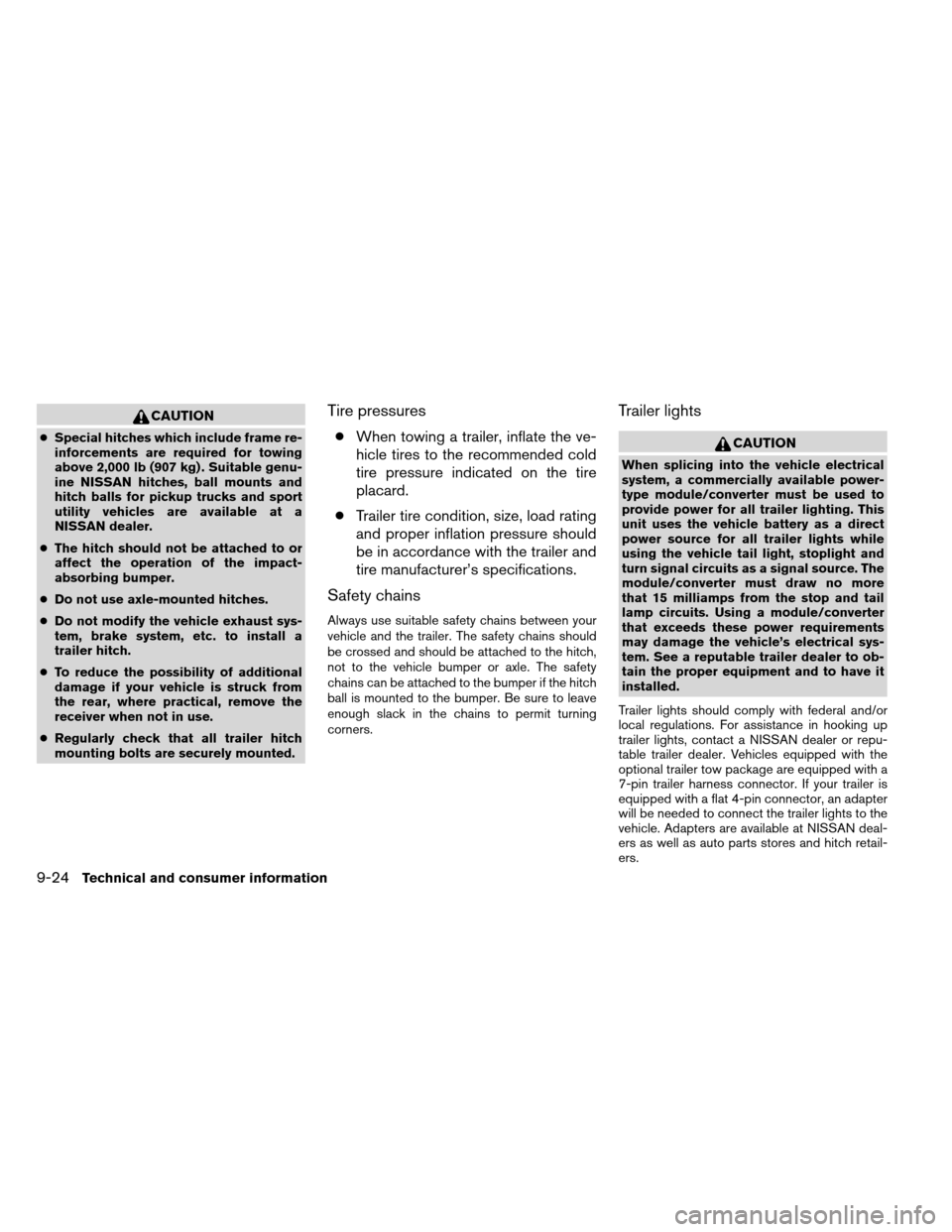

NISSAN ARMADA 2013 1.G Owners Manual CAUTION
●Special hitches which include frame re-
inforcements are required for towing
above 2,000 lb (907 kg) . Suitable genu-
ine NISSAN hitches, ball mounts and
hitch balls for pickup trucks and s

Page 470 of 489

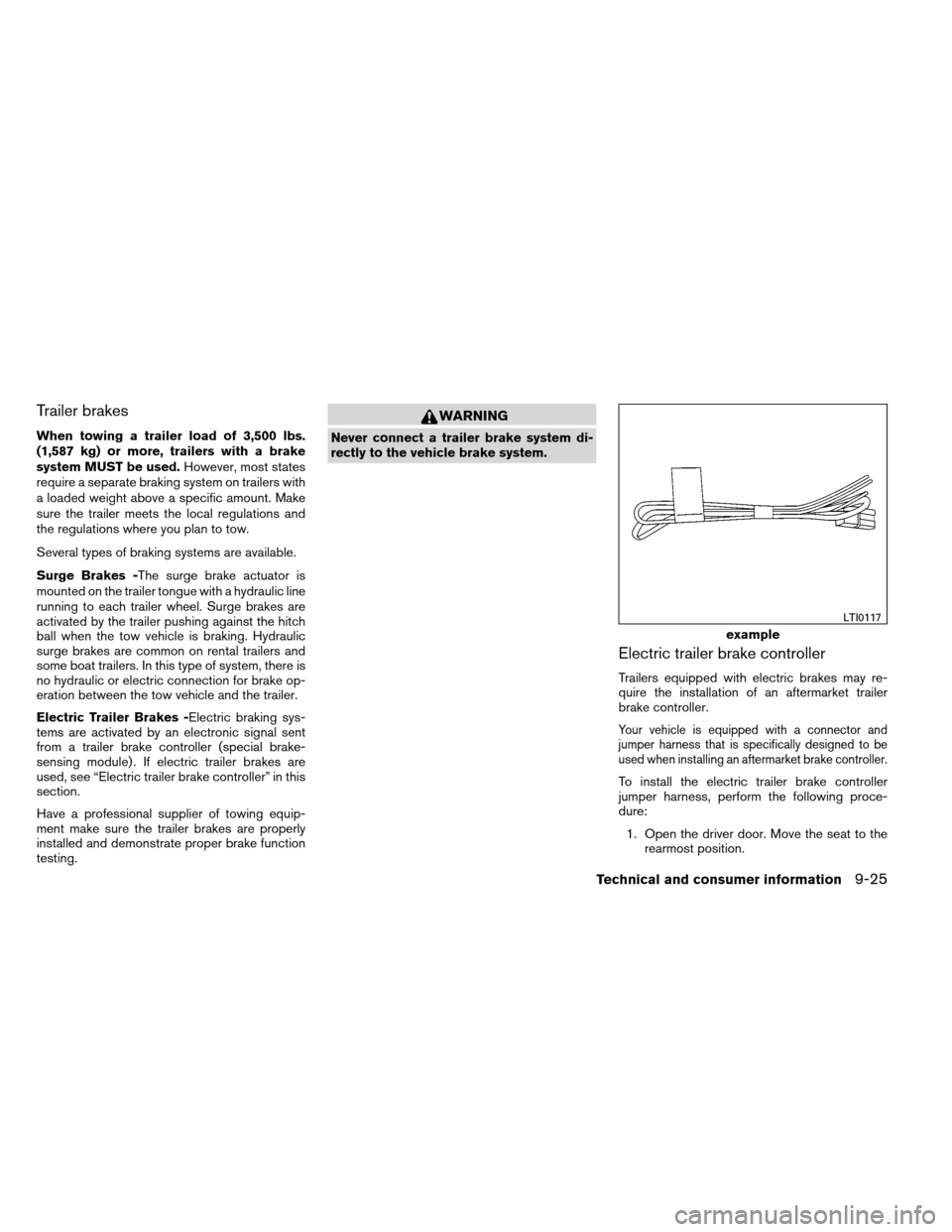

NISSAN ARMADA 2013 1.G Owners Manual Trailer brakes
When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.However, most states
require a separate braking system on trailers with
a loaded w
