NISSAN ARMADA 2015 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: ARMADA, Model: NISSAN ARMADA 2015 1.GPages: 510, PDF Size: 4.18 MB
Page 281 of 510

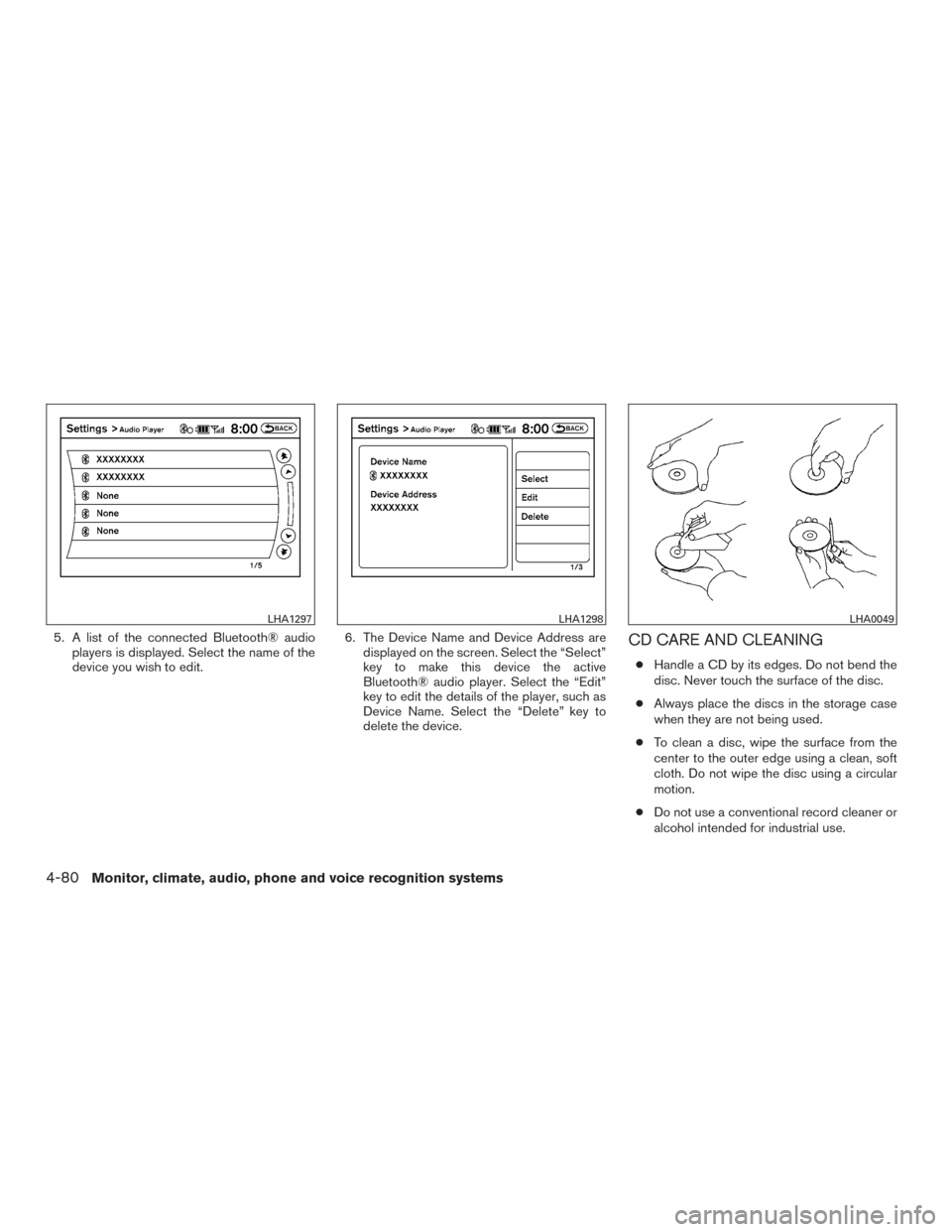

5. A list of the connected Bluetooth® audioplayers is displayed. Select the name of the
device you wish to edit. 6. The Device Name and Device Address are
displayed on the screen. Select the “Select”
key to make this device the active
Bluetooth® audio player. Select the “Edit”
key to edit the details of the player, such as
Device Name. Select the “Delete” key to
delete the device.CD CARE AND CLEANING
●Handle a CD by its edges. Do not bend the
disc. Never touch the surface of the disc.
● Always place the discs in the storage case
when they are not being used.
● To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
● Do not use a conventional record cleaner or
alcohol intended for industrial use.
LHA1297LHA1298LHA0049
4-80Monitor, climate, audio, phone and voice recognition systems
Page 282 of 510

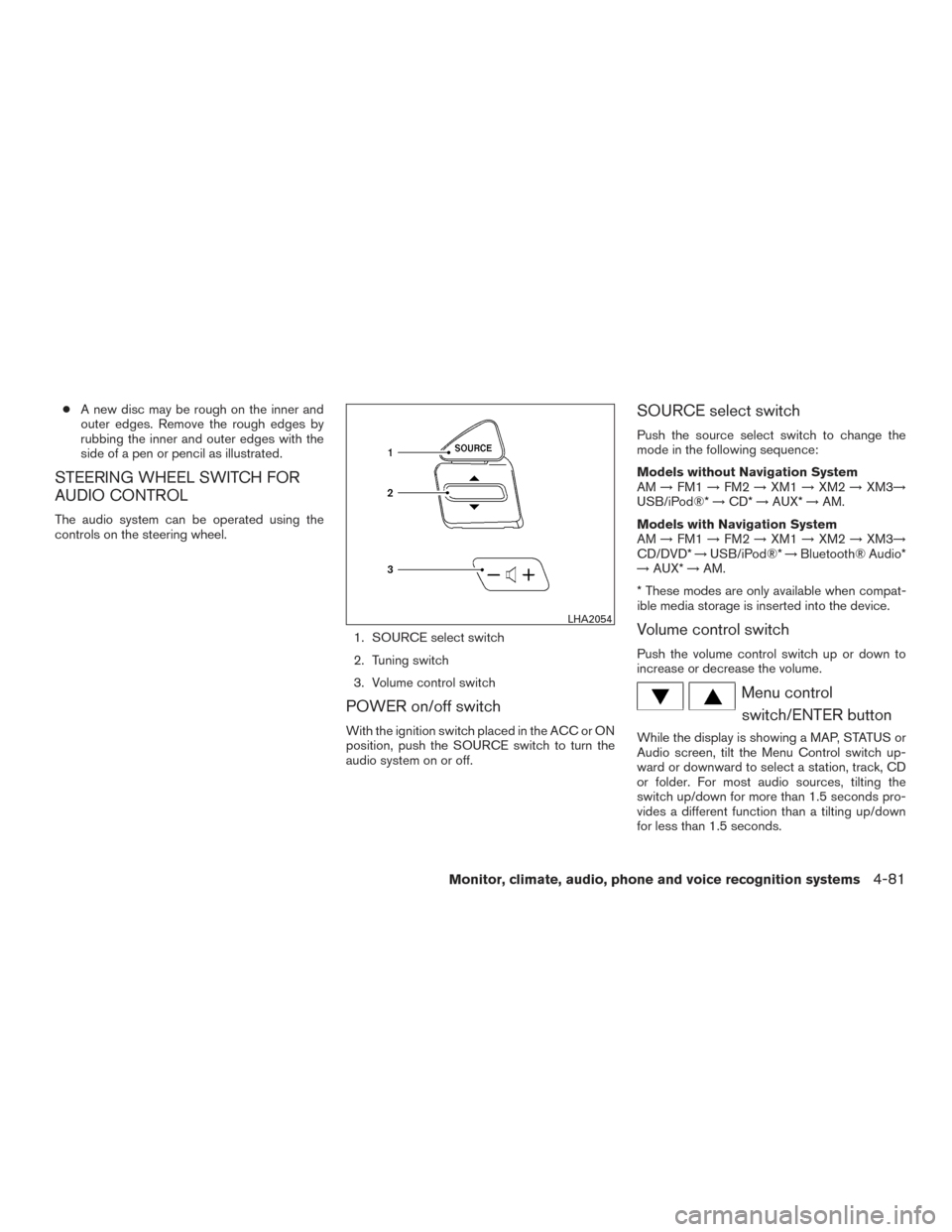

●A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
STEERING WHEEL SWITCH FOR
AUDIO CONTROL
The audio system can be operated using the
controls on the steering wheel.
1. SOURCE select switch
2. Tuning switch
3. Volume control switch
POWER on/off switch
With the ignition switch placed in the ACC or ON
position, push the SOURCE switch to turn the
audio system on or off.
SOURCE select switch
Push the source select switch to change the
mode in the following sequence:
Models without Navigation System
AM→FM1 →FM2 →XM1 →XM2 →XM3→
USB/iPod®* →CD* →AUX* →AM.
Models with Navigation System
AM →FM1 →FM2 →XM1 →XM2 →XM3→
CD/DVD* →USB/iPod®* →Bluetooth® Audio*
→ AUX* →AM.
* These modes are only available when compat-
ible media storage is inserted into the device.
Volume control switch
Push the volume control switch up or down to
increase or decrease the volume.
Menu control switch/ENTER button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Menu Control switch up-
ward or downward to select a station, track, CD
or folder. For most audio sources, tilting the
switch up/down for more than 1.5 seconds pro-
vides a different function than a tilting up/down
for less than 1.5 seconds.
LHA2054
Monitor, climate, audio, phone and voice recognition systems4-81
Page 283 of 510

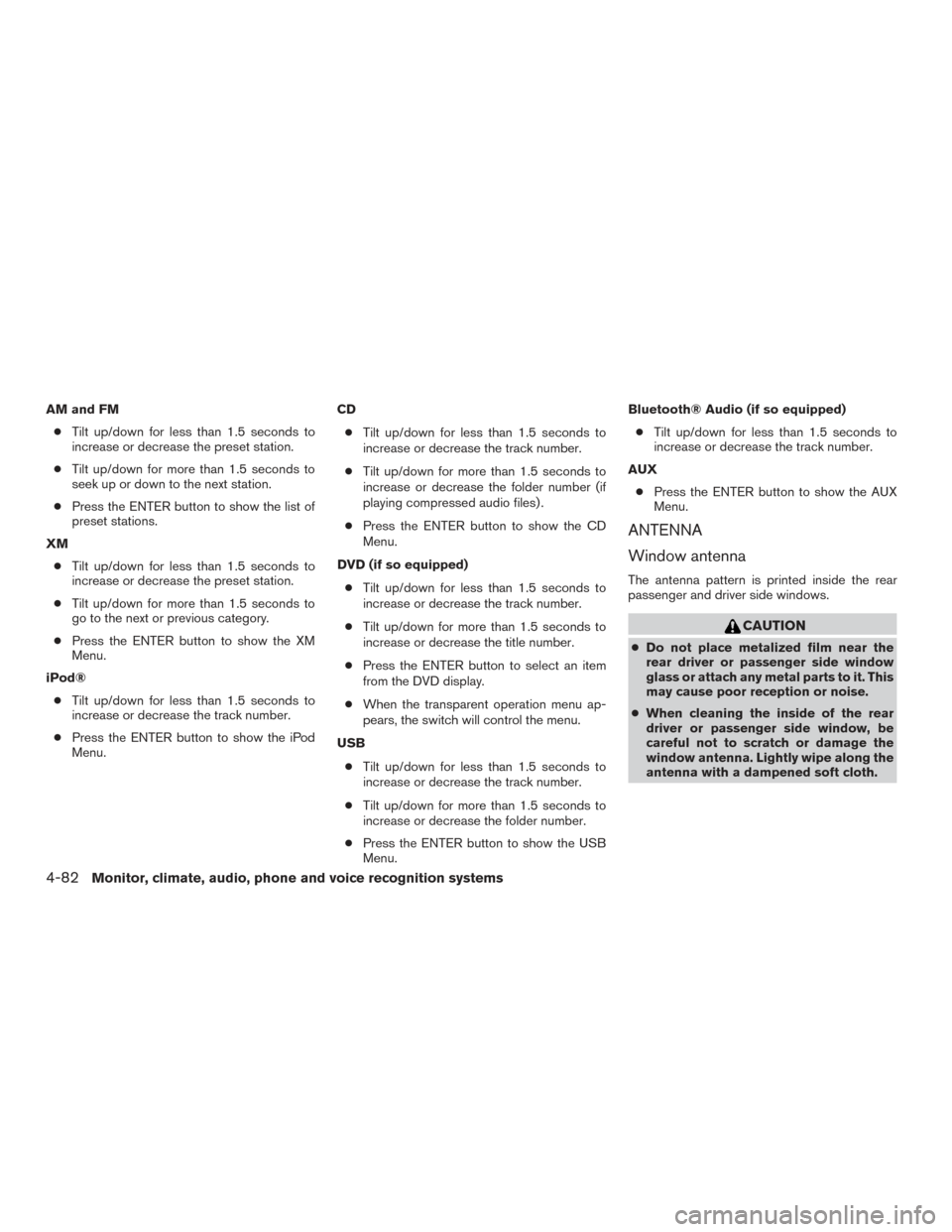

AM and FM● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
● Press the ENTER button to show the list of
preset stations.
XM ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
● Press the ENTER button to show the XM
Menu.
iPod® ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Press the ENTER button to show the iPod
Menu. CD
● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
● Press the ENTER button to show the CD
Menu.
DVD (if so equipped) ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the title number.
● Press the ENTER button to select an item
from the DVD display.
● When the transparent operation menu ap-
pears, the switch will control the menu.
USB ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
● Press the ENTER button to show the USB
Menu. Bluetooth® Audio (if so equipped)
● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
AUX ● Press the ENTER button to show the AUX
Menu.
ANTENNA
Window antenna
The antenna pattern is printed inside the rear
passenger and driver side windows.
CAUTION
● Do not place metalized film near the
rear driver or passenger side window
glass or attach any metal parts to it. This
may cause poor reception or noise.
● When cleaning the inside of the rear
driver or passenger side window, be
careful not to scratch or damage the
window antenna. Lightly wipe along the
antenna with a dampened soft cloth.
4-82Monitor, climate, audio, phone and voice recognition systems
Page 284 of 510

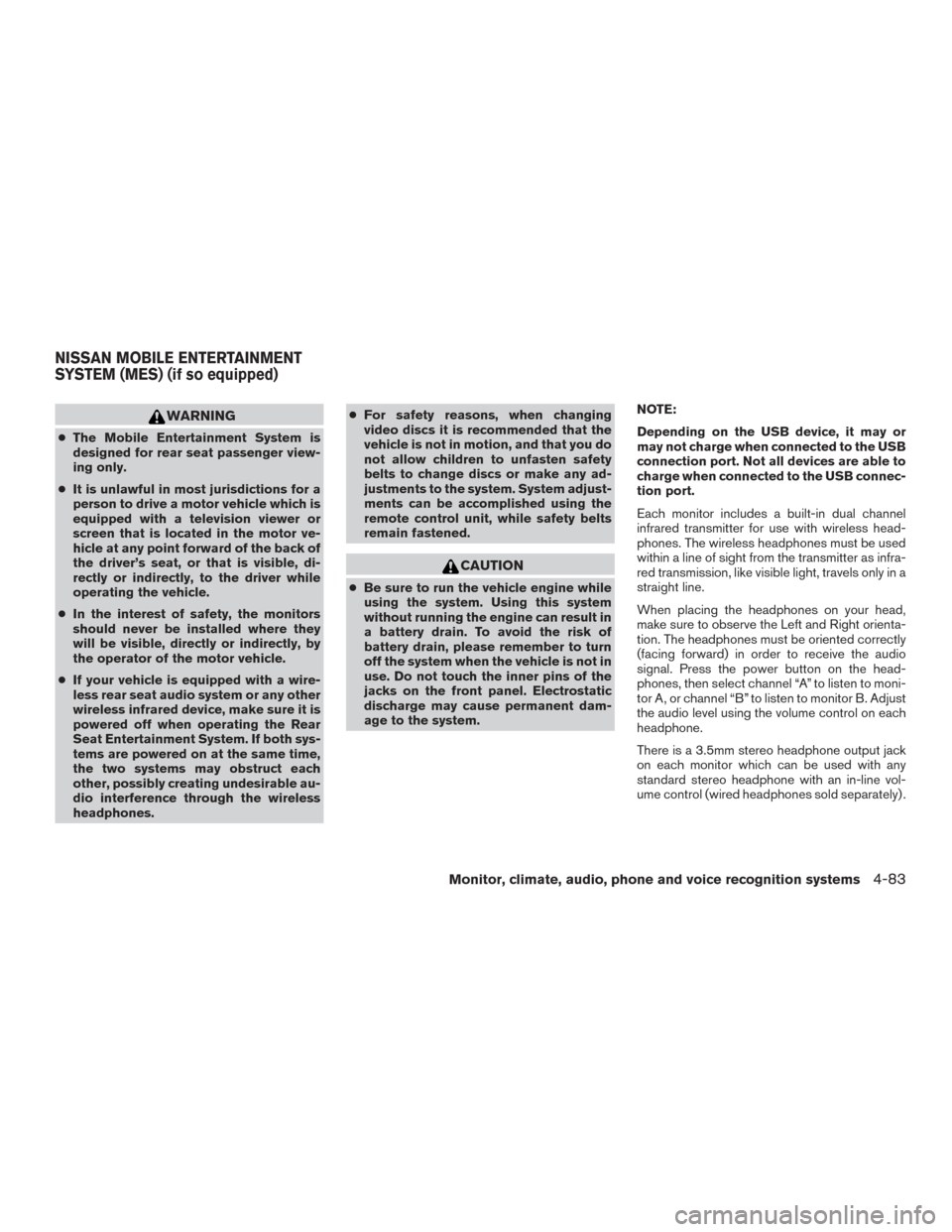

WARNING
●The Mobile Entertainment System is
designed for rear seat passenger view-
ing only.
● It is unlawful in most jurisdictions for a
person to drive a motor vehicle which is
equipped with a television viewer or
screen that is located in the motor ve-
hicle at any point forward of the back of
the driver’s seat, or that is visible, di-
rectly or indirectly, to the driver while
operating the vehicle.
● In the interest of safety, the monitors
should never be installed where they
will be visible, directly or indirectly, by
the operator of the motor vehicle.
● If your vehicle is equipped with a wire-
less rear seat audio system or any other
wireless infrared device, make sure it is
powered off when operating the Rear
Seat Entertainment System. If both sys-
tems are powered on at the same time,
the two systems may obstruct each
other, possibly creating undesirable au-
dio interference through the wireless
headphones. ●
For safety reasons, when changing
video discs it is recommended that the
vehicle is not in motion, and that you do
not allow children to unfasten safety
belts to change discs or make any ad-
justments to the system. System adjust-
ments can be accomplished using the
remote control unit, while safety belts
remain fastened.
CAUTION
● Be sure to run the vehicle engine while
using the system. Using this system
without running the engine can result in
a battery drain. To avoid the risk of
battery drain, please remember to turn
off the system when the vehicle is not in
use. Do not touch the inner pins of the
jacks on the front panel. Electrostatic
discharge may cause permanent dam-
age to the system. NOTE:
Depending on the USB device, it may or
may not charge when connected to the USB
connection port. Not all devices are able to
charge when connected to the USB connec-
tion port.
Each monitor includes a built-in dual channel
infrared transmitter for use with wireless head-
phones. The wireless headphones must be used
within a line of sight from the transmitter as infra-
red transmission, like visible light, travels only in a
straight line.
When placing the headphones on your head,
make sure to observe the Left and Right orienta-
tion. The headphones must be oriented correctly
(facing forward) in order to receive the audio
signal. Press the power button on the head-
phones, then select channel “A” to listen to moni-
tor A, or channel “B” to listen to monitor B. Adjust
the audio level using the volume control on each
headphone.
There is a 3.5mm stereo headphone output jack
on each monitor which can be used with any
standard stereo headphone with an in-line vol-
ume control (wired headphones sold separately) .
NISSAN MOBILE ENTERTAINMENT
SYSTEM (MES) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-83
Page 285 of 510
The system includes a built-in infrared receiver
for use with the included wireless remote control.
For additional information, refer to “Remote con-
trol operation” in this section.
1. Status lights
2. Disc Compartment Slot
3. IR Sensor/Transmitter
4. Monitor Adjustment
5. TFT LCD Panel
6. USB Port7. Audio Video Output Jack
8. Headphone Output Jack
9. Audio Video Input Jacks
10. I/O Port Covers
11. Lever Lock and Release Latch
LHA3804
4-84Monitor, climate, audio, phone and voice recognition systems
Page 286 of 510

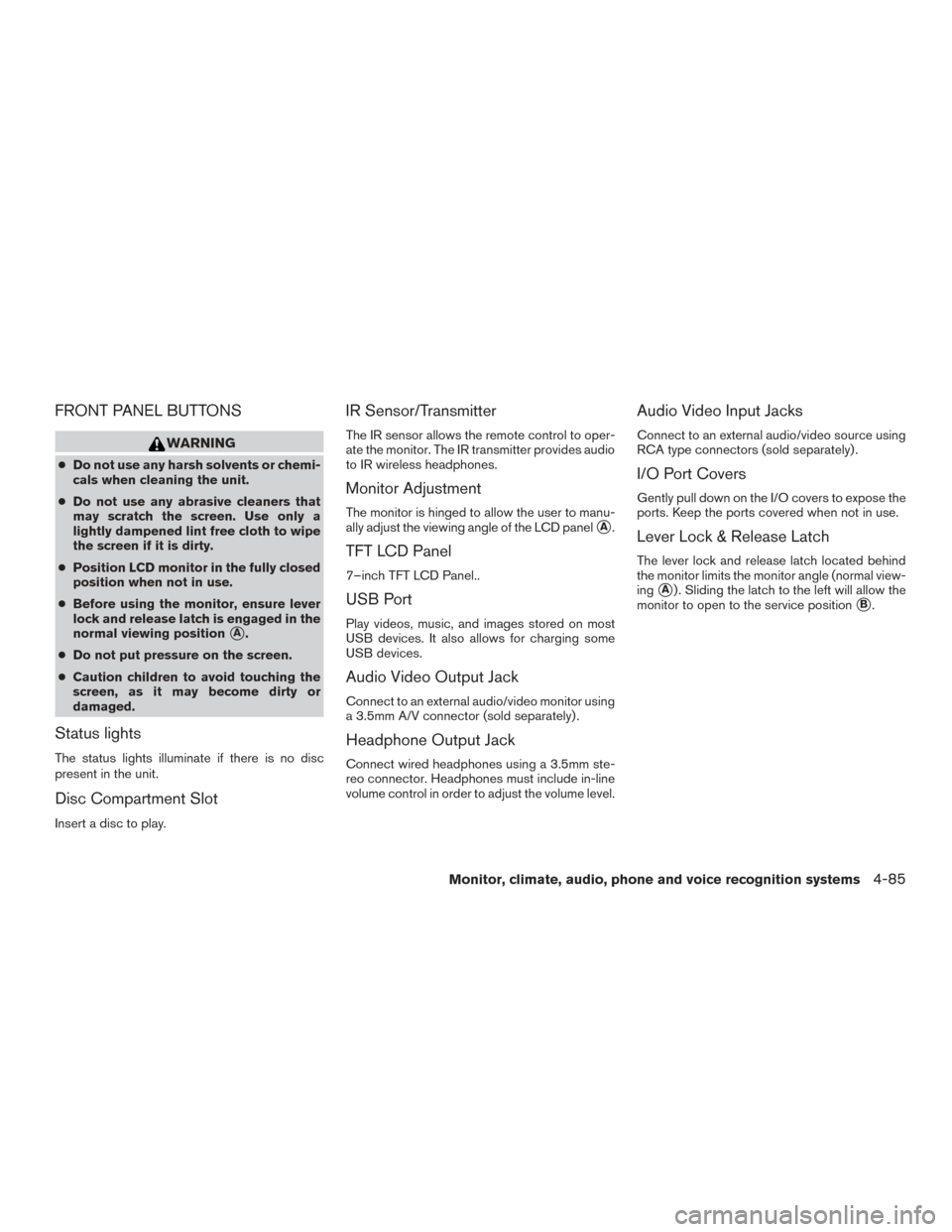

FRONT PANEL BUTTONS
WARNING
●Do not use any harsh solvents or chemi-
cals when cleaning the unit.
● Do not use any abrasive cleaners that
may scratch the screen. Use only a
lightly dampened lint free cloth to wipe
the screen if it is dirty.
● Position LCD monitor in the fully closed
position when not in use.
● Before using the monitor, ensure lever
lock and release latch is engaged in the
normal viewing position
A.
● Do not put pressure on the screen.
● Caution children to avoid touching the
screen, as it may become dirty or
damaged.
Status lights
The status lights illuminate if there is no disc
present in the unit.
Disc Compartment Slot
Insert a disc to play.
IR Sensor/Transmitter
The IR sensor allows the remote control to oper-
ate the monitor. The IR transmitter provides audio
to IR wireless headphones.
Monitor Adjustment
The monitor is hinged to allow the user to manu-
ally adjust the viewing angle of the LCD panel
A.
TFT LCD Panel
7–inch TFT LCD Panel..
USB Port
Play videos, music, and images stored on most
USB devices. It also allows for charging some
USB devices.
Audio Video Output Jack
Connect to an external audio/video monitor using
a 3.5mm A/V connector (sold separately) .
Headphone Output Jack
Connect wired headphones using a 3.5mm ste-
reo connector. Headphones must include in-line
volume control in order to adjust the volume level.
Audio Video Input Jacks
Connect to an external audio/video source using
RCA type connectors (sold separately) .
I/O Port Covers
Gently pull down on the I/O covers to expose the
ports. Keep the ports covered when not in use.
Lever Lock & Release Latch
The lever lock and release latch located behind
the monitor limits the monitor angle (normal view-
ing
A) . Sliding the latch to the left will allow the
monitor to open to the service position
B.
Monitor, climate, audio, phone and voice recognition systems4-85
Page 287 of 510
1. POWER button
2. UP/DOWN/LEFT/RIGHT buttons
3. PLAY button
4. STOP button
5. PAUSE button PLAY button
6. MENU/SELECT button
7. EJECT button
8. SOURCE buttonFRONT PANEL BUTTONS
OPERATION
UP/DOWN/LEFT/RIGHT buttons
These buttons are used to navigate the contents
of the display menus.
POWER buttons
Press this button to turn the monitor on or off.
SOURCE button
Press this button to cycle between monitor A
audio/video sources and monitor B audio/video
sources.
EJECT buttons
Press this button to eject the disc.
PLAY button
Press this button to play the media.
STOP button
Press this button to stop media playback.
PAUSE button
Press this button to pause media playback.
MENU/SELECT button
Press this button to access the DVD OSD menu.
Press the SETUP button on the remote control to
exit the DVD OSD menu. For additional informa-
tion, refer to “How to use the DVD OSD Menu” in
this section.
WIRELESS HEADPHONE
OPERATION
Installing the batteries
LHA3845
4-86Monitor, climate, audio, phone and voice recognition systems
Page 288 of 510
Before attempting to operate the headphones,
install the batteries as described below.1. Remove headphone battery cover
A.
2. Install two “AAA” batteries into the head- phones. Make sure the proper polarity (+ or
–) is observed.
3. Reinstall headphone battery cover.
Headphone operation
Press the power buttonAon the headphones to
turn on and off the headphones. The red LED will
illuminate when the headphone is turned on. Set
the select switch
Bto “A” or “B” for use with the
“A” monitor or “B” monitor respectively. Use the
volume thumb wheel
Cto adjust the volume level
for the headphone audio. NOTE:
If the headphones are accidentally left on
and system is powered off, a battery saver
feature will automatically turn off the head-
phones after approximately 3 minutes.WARNING
●
Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as
shown in the battery compartment.
● Different types of batteries have differ-
ent characteristics. Do not mix different
types.
LHA3846LHA3847LHA3810
Monitor, climate, audio, phone and voice recognition systems4-87
Page 289 of 510
●Do not mix old and new batteries. Mix-
ing old and new batteries will shorten
battery life and/or cause chemical leaks
from the old batteries.
● When batteries fail to function, replace
them immediately.
● Keep the batteries out of the reach of
children. Should the batteries be swal-
lowed, immediately consult a doctor.
Also, when disposing of used batteries,
please comply with governmental regu-
lations or environmental public institu-
tion rules that apply in your
country/area.
● Remove the batteries if the head-
phones are not used for a month or
longer.
REMOTE CONTROL OPERATION
Before attempting to operate your remote con-
trol, install the batteries described below.
1. Turn the remote control face down. Press down on the ridged area of the battery cover
and slide it off. 2. Install two “AAA” batteries. Make sure that
proper polarity (+ or —) is observed.
3. Slide the cover back into place until it clicks.
NOTE:
The remote control will only operate this
device. It is not a universal remote control
and will not control other equipment.
WARNING
● Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as
shown in the battery compartment.
● Different types of batteries have differ-
ent characteristics. Do not mix different
types.
● Do not mix old and new batteries. Mix-
ing old and new batteries will shorten
battery life and/or cause chemical leaks
from the old batteries.
● When batteries fail to function, replace
them immediately.
LHA3848
4-88Monitor, climate, audio, phone and voice recognition systems
Page 290 of 510
●Keep the batteries out of the reach of
children. Should the batteries be swal-
lowed, immediately consult a doctor.
Also, when disposing of used batteries,
please comply with governmental regu-
lations or environmental public institu-
tion rules that apply in your
country/area.
● Remove the batteries if the remote con-
trol is not used for a month or longer.
REMOTE CONTROL BUTTONS
1. SOURCE button
2. SETUP button
3. EJECT button 4. DVD-B button
5. PIX button
6. REPEAT button
7. RIGHT button
8. AUDIO button
9. ANGLE button
10. DISPLAY button
11. RANDOM button
12. 3D button
13. PBC (Video CD only) button
14. ZOOM button
15. NEXT button
16. PREV button
17. FF (Fast forward) button
18. FR (Fast rewind) button
19. STOP button
20. PLAY/PAUSE button
21. Number Keys
22. SUBTITLE button
23. TITLE button
LHA3805
Monitor, climate, audio, phone and voice recognition systems4-89
