height adjustment NISSAN CUBE 2009 Owners Manual

Black plate (17,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSS0792

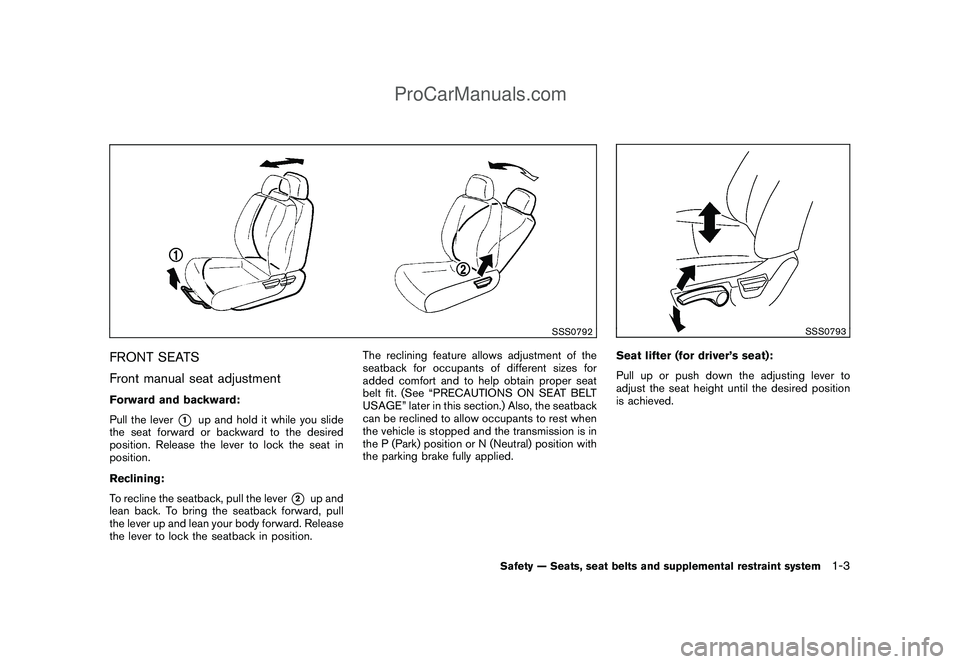

FRONT SEATS
Front manual seat adjustmentForward and backward:
Pull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
To recline the seatback, pull the lever
*2
up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is in
the P (Park) position or N (Neutral) position with
the parking brake fully applied.
SSS0793
Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system
1-3
ProCarManuals.com

Black plate (29,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSS0351A

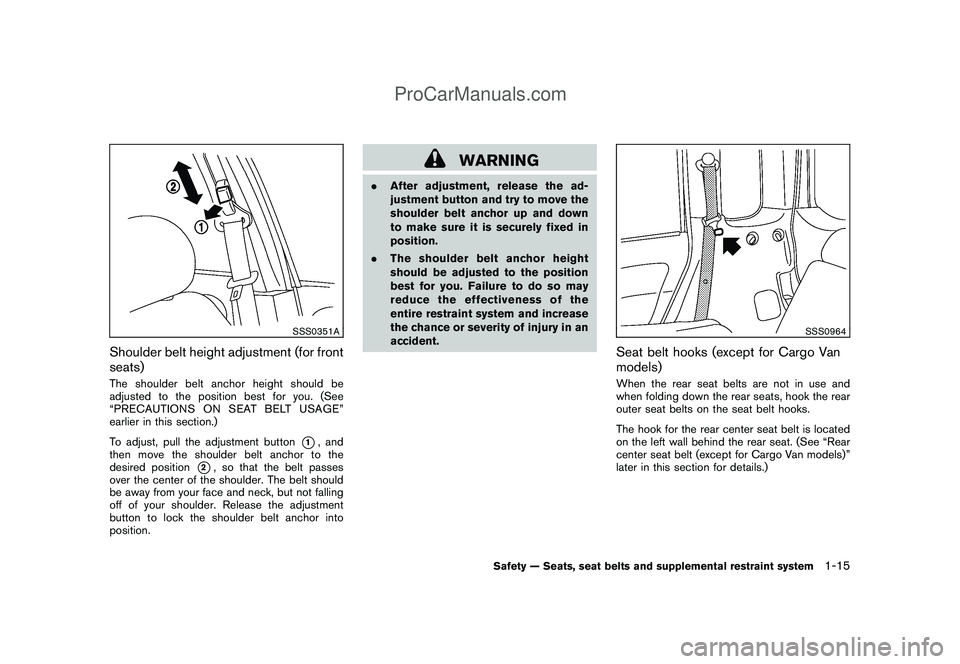

Shoulder belt height adjustment (for front
seats)The shoulder belt anchor height should be
adjusted to the position best for you. (See
“PRECAUTIONS ON SEAT BELT USAGE”
earlier in this section.)
To adjust, pull the adjustment button
*1, and
then move the shoulder belt anchor to the
desired position
*2, so that the belt passes
over the center of the shoulder. The belt should
be away from your face and neck, but not falling
off of your shoulder. Release the adjustment
button to lock the shoulder belt anchor into
position.
WARNING
.After adjustment, release the ad-
justment button and try to move the
shoulder belt anchor up and down
to make sure it is securely fixed in
position.
.The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident.
SSS0964
Seat belt hooks (except for Cargo Van
models)When the rear seat belts are not in use and
when folding down the rear seats, hook the rear
outer seat belts on the seat belt hooks.
The hook for the rear center seat belt is located
on the left wall behind the rear seat. (See “Rear
center seat belt (except for Cargo Van models)”
later in this section for details.)
Safety — Seats, seat belts and supplemental restraint system
1-15
ProCarManuals.com

Black plate (34,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

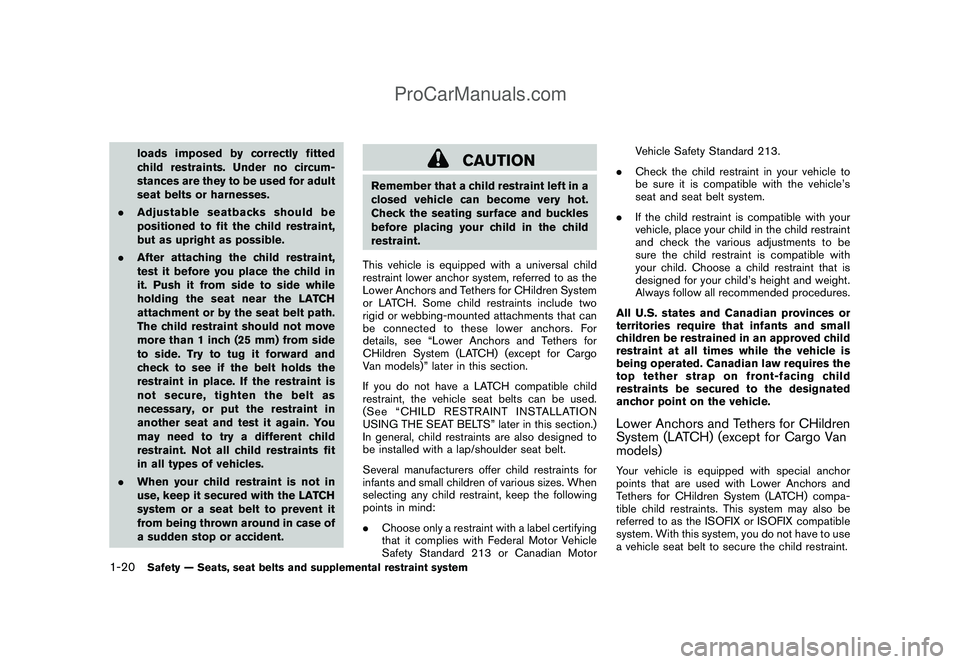

loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts or harnesses.
.Adjustable seatbacks should be
positioned to fit the child restraint,
but as upright as possible.
.After attaching the child restraint,
test it before you place the child in
it. Push it from side to side while
holding the seat near the LATCH
attachment or by the seat belt path.
The child restraint should not move
more than 1 inch (25 mm) from side
to side. Try to tug it forward and
check to see if the belt holds the
restraint in place. If the restraint is
not secure, tighten the belt as
necessary, or put the restraint in
another seat and test it again. You
may need to try a different child
restraint. Not all child restraints fit
in all types of vehicles.
.When your child restraint is not in
use, keep it secured with the LATCH
system or a seat belt to prevent it
from being thrown around in case of
a sudden stop or accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors. For
details, see “Lower Anchors and Tethers for
CHildren System (LATCH) (except for Cargo
Van models)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS” later in this section.)
In general, child restraints are also designed to
be installed with a lap/shoulder seat belt.
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
.Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian MotorVehicle Safety Standard 213.
.Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
.If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on front-facing child
restraints be secured to the designated
anchor point on the vehicle.
Lower Anchors and Tethers for CHildren
System (LATCH) (except for Cargo Van
models)Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compa-
tible child restraints. This system may also be
referred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.
1-20
Safety — Seats, seat belts and supplemental restraint system
ProCarManuals.com

Black plate (5,1)

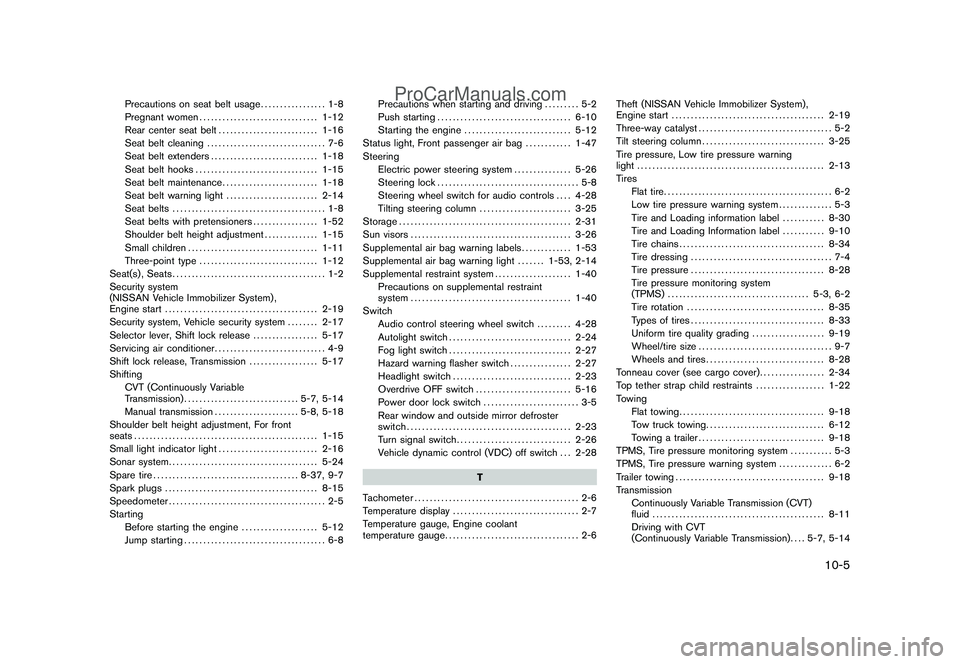

Precautions on seat belt usage................. 1-8
Pregnant women............................... 1-12
Rear center seat belt.......................... 1-16
Seat belt cleaning............................... 7-6
Seat belt extenders............................ 1-18
Seat belt hooks................................ 1-15
Seat belt maintenance......................... 1-18
Seat belt warning light........................ 2-14
Seat belts........................................ 1-8
Seat belts with pretensioners................. 1-52
Shoulder belt height adjustment.............. 1-15
Small children.................................. 1-11
Three-point type............................... 1-12
Seat(s) , Seats........................................ 1-2
Security system
(NISSAN Vehicle Immobilizer System) ,
Engine start........................................ 2-19
Security system, Vehicle security system........ 2-17
Selector lever, Shift lock release................. 5-17
Servicing air conditioner............................. 4-9
Shift lock release, Transmission.................. 5-17
Shifting
CVT (Continuously Variable
Transmission).............................. 5-7, 5-14
Manual transmission...................... 5-8, 5-18
Shoulder belt height adjustment, For front
seats................................................ 1-15
Small light indicator light.......................... 2-16
Sonar system....................................... 5-24
Spare tire...................................... 8-37, 9-7
Spark plugs ........................................ 8-15
Speedometer......................................... 2-5
Starting
Before starting the engine.................... 5-12
Jump starting..................................... 6-8Precautions when starting and driving......... 5-2
Push starting................................... 6-10
Starting the engine............................ 5-12
Status light, Front passenger air bag............ 1-47
Steering
Electric power steering system............... 5-26
Steering lock..................................... 5-8
Steering wheel switch for audio controls.... 4-28
Tilting steering column........................ 3-25
Storage............................................. 2-31
Sun visors.......................................... 3-26
Supplemental air bag warning labels............. 1-53
Supplemental air bag warning light....... 1-53, 2-14
Supplemental restraint system.................... 1-40
Precautions on supplemental restraint
system.......................................... 1-40
Switch
Audio control steering wheel switch......... 4-28
Autolight switch................................ 2-24
Fog light switch................................ 2-27
Hazard warning flasher switch................ 2-27
Headlight switch............................... 2-23
Overdrive OFF switch......................... 5-16
Power door lock switch......................... 3-5
Rear window and outside mirror defroster
switch........................................... 2-23
Turn signal switch.............................. 2-26
Vehicle dynamic control (VDC) off switch . . . 2-28
T
Tachometer........................................... 2-6
Temperature display................................. 2-7
Temperature gauge, Engine coolant
temperature gauge................................... 2-6Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ........................................ 2-19
Three-way catalyst................................... 5-2
Tilt steering column................................ 3-25
Tire pressure, Low tire pressure warning
light................................................. 2-13
Tires
Flat tire............................................ 6-2
Low tire pressure warning system.............. 5-3
Tire and Loading information label........... 8-30
Tire and Loading Information label........... 9-10
Tire chains...................................... 8-34
Tire dressing..................................... 7-4
Tire pressure................................... 8-28
Tire pressure monitoring system
(TPMS)..................................... 5-3, 6-2
Tire rotation.................................... 8-35
Types of tires................................... 8-33
Uniform tire quality grading................... 9-19
Wheel/tire size................................... 9-7
Wheels and tires............................... 8-28
Tonneau cover (see cargo cover)................. 2-34
Top tether strap child restraints.................. 1-22
Towing
Flat towing...................................... 9-18
Tow truck towing............................... 6-12
Towing a trailer................................. 9-18
TPMS, Tire pressure monitoring system........... 5-3
TPMS, Tire pressure warning system.............. 6-2
Trailer towing....................................... 9-18
Transmission
Continuously Variable Transmission (CVT)
fluid............................................. 8-11
Driving with CVT
(Continuously Variable Transmission).... 5-7, 5-14
10-5
