Page 321 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (319,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
ENGINEModelMR18DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, in-line
Bore 6Stroke in (mm)3.30763.193 (84.0 681.1)
Displacement

Page 322 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (320,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
DIMENSIONS AND WEIGHTSOverall length in (mm)156.7 (3,980)*1
156.5 (3,975)*2
157.8 (4,010)*1, *3
157.5 (4,000)*2, *3
Overall width in (mm) 66.7 (1,

Page 323 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (321,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
STI0637

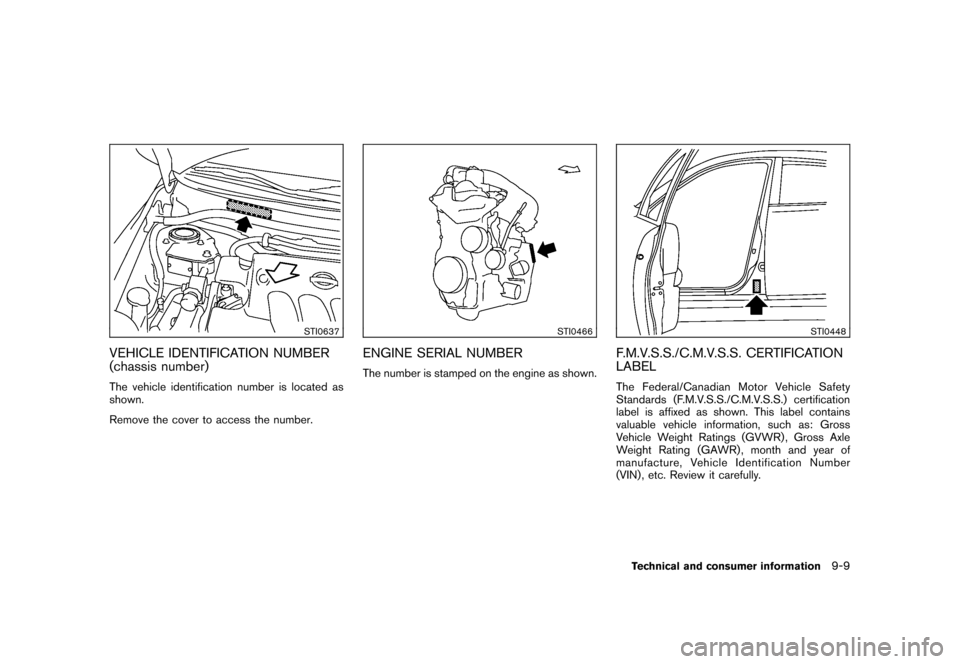

VEHICLE IDENTIFICATION NUMBER
(chassis number)The vehicle identification number is located as
shown.
Remove the cover to access the number

Page 324 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (322,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
STI0638

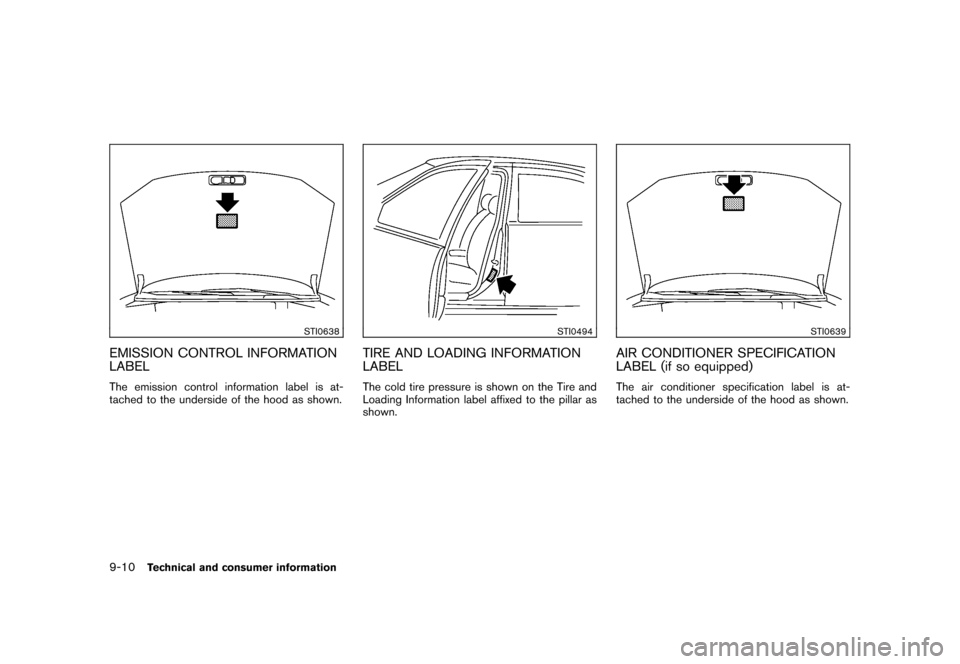

EMISSION CONTROL INFORMATION
LABELThe emission control information label is at-
tached to the underside of the hood as shown.
STI0494
TIRE

Page 325 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (323,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
STI0647

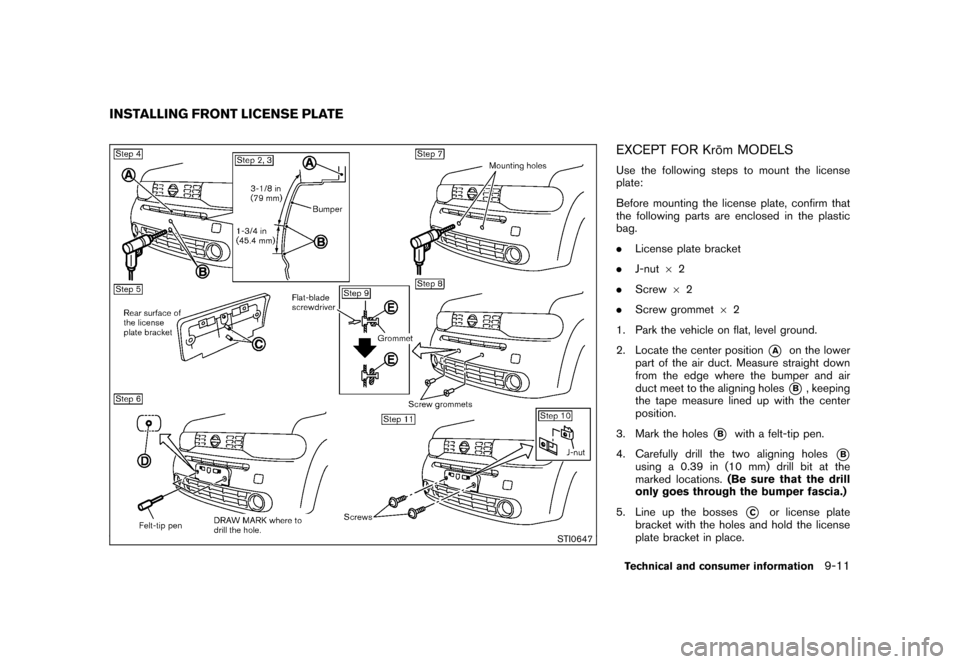

EXCEPT FOR Kro¯
m MODELSUse the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following

Page 326 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (324,1)
Model "Z12-D" EDITED: 2010/ 9/ 27

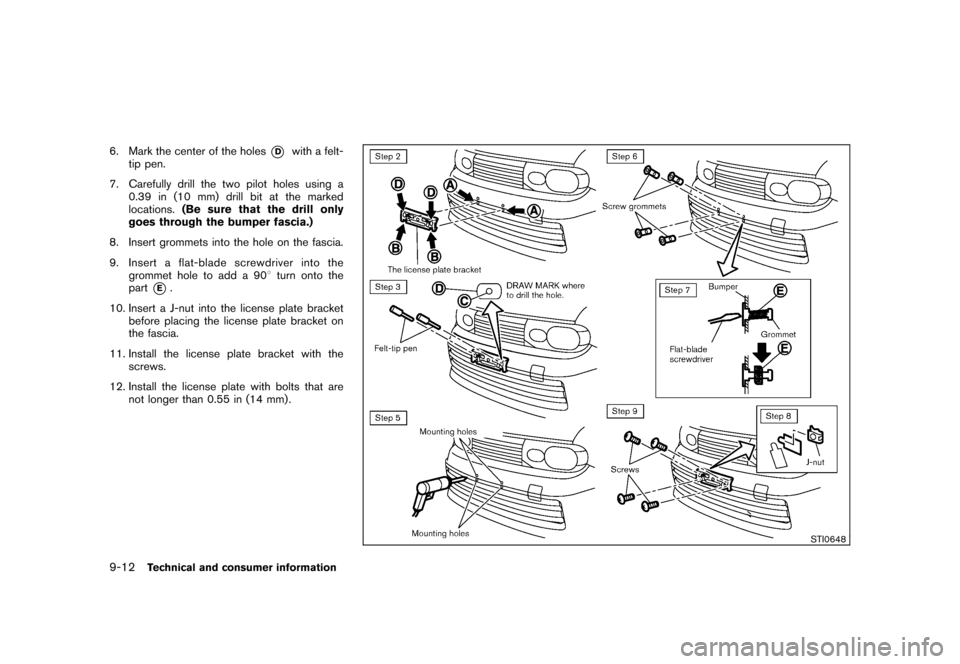

6. Mark the center of the holes
*D
with a felt-
tip pen.
7. Carefully drill the two pilot holes using a 0.39 in (10 mm) drill bit at the marked
lo

Page 327 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (325,1)
Model "Z12-D" EDITED: 2010/ 9/ 27

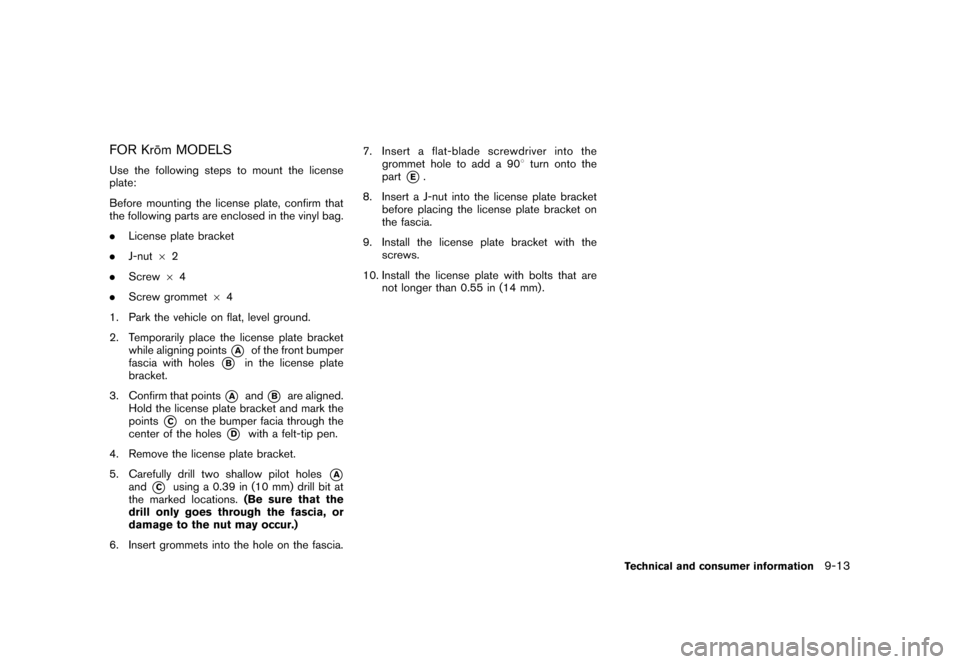

FOR Kro¯
m MODELSUse the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are encl

Page 328 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (326,1)
Model "Z12-D" EDITED: 2010/ 9/ 27

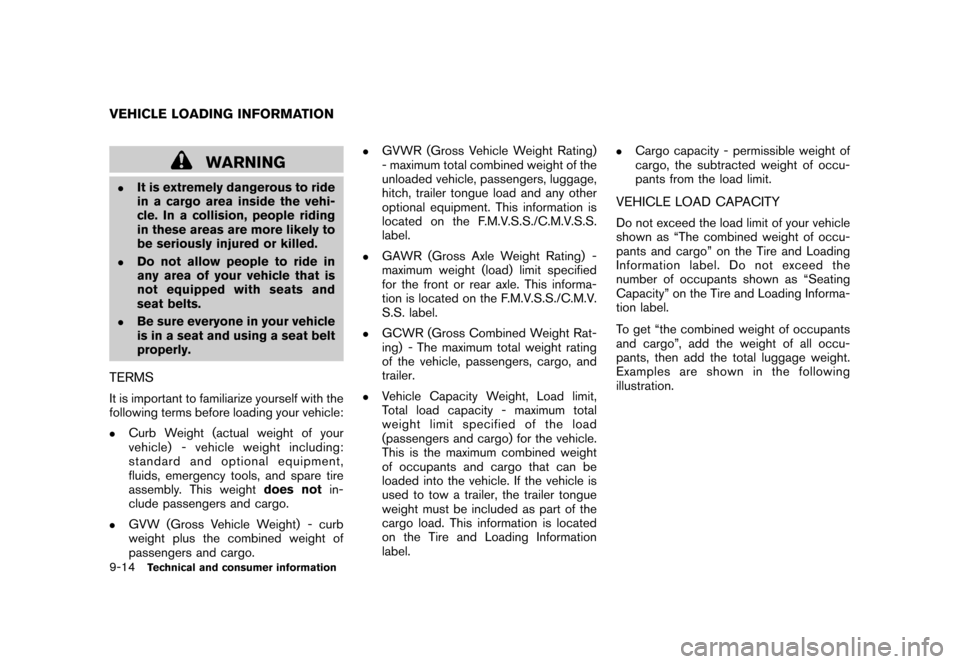

WARNING
.
It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to

Page 329 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (327,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
STI0447

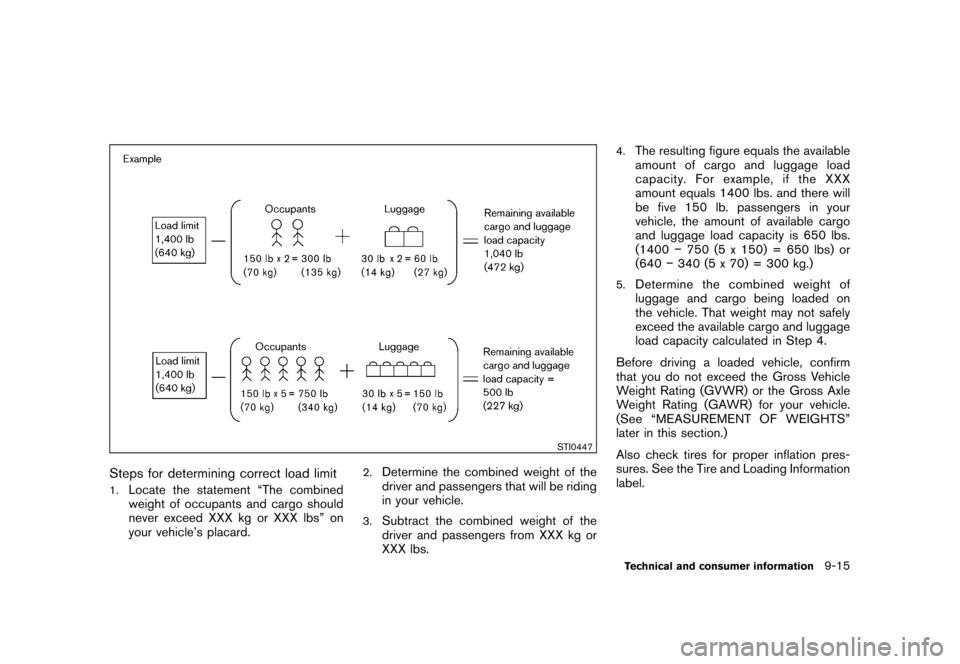

Steps for determining correct load limit1.
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg o

Page 330 of 345

NISSAN CUBE 2011 3.G Owners Manual Black plate (328,1)
Model "Z12-D" EDITED: 2010/ 9/ 27
SIC4141

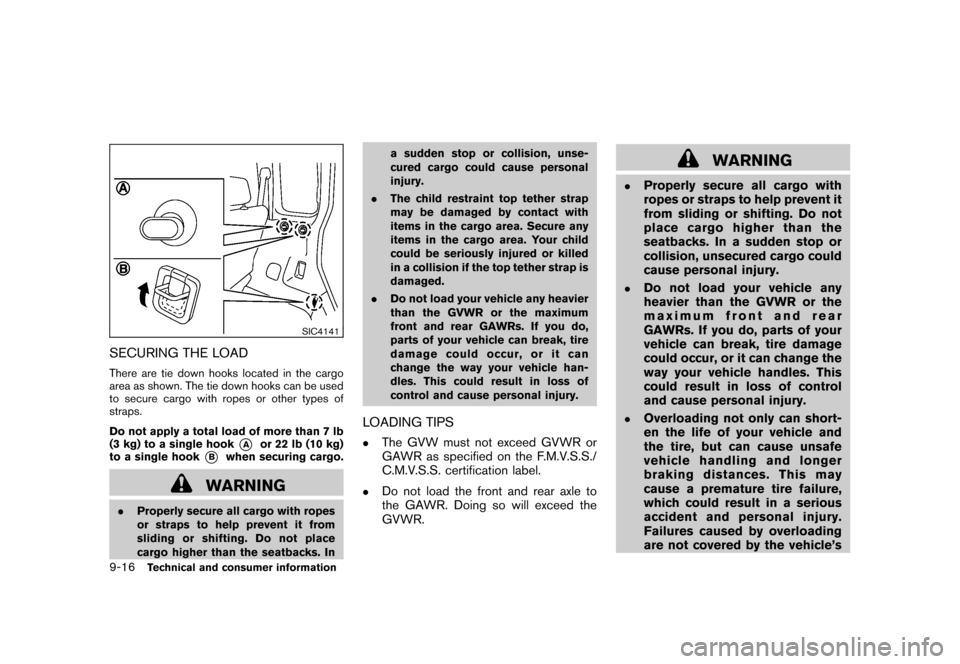

SECURING THE LOADThere are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or
