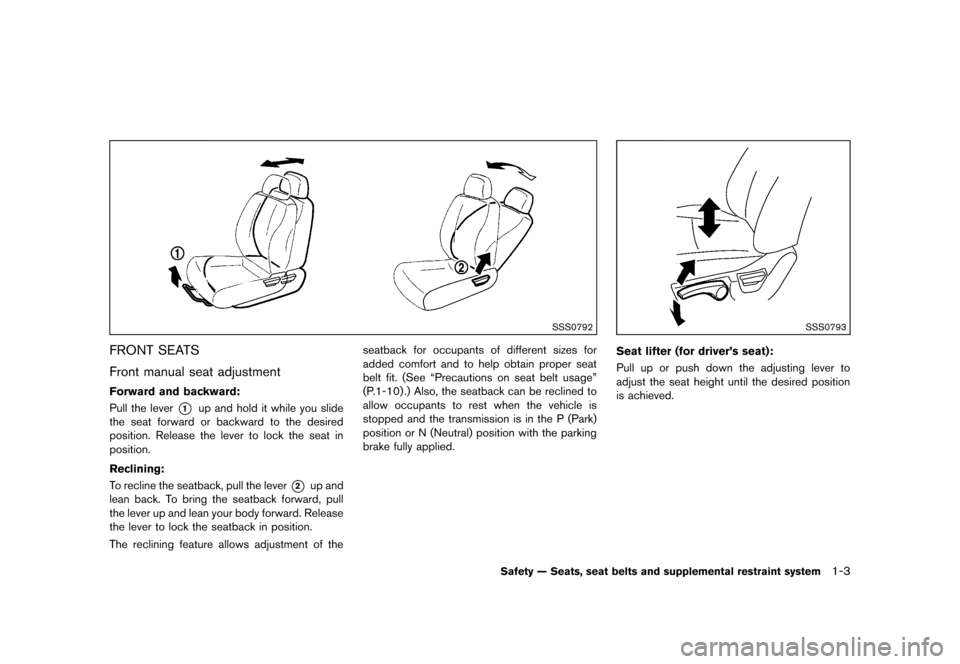

FRONT SEATSGUID-59C4CE25-AF59-4D31-B272-A40AA149A400
Front manual seat adjustmentGUID-31887FF4-3286-4D54-906B-1A5A974F78F7
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SSS0793
Seat lifter (for driver’s seat):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:
Page 22 of 331
Black plate (20,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS0961

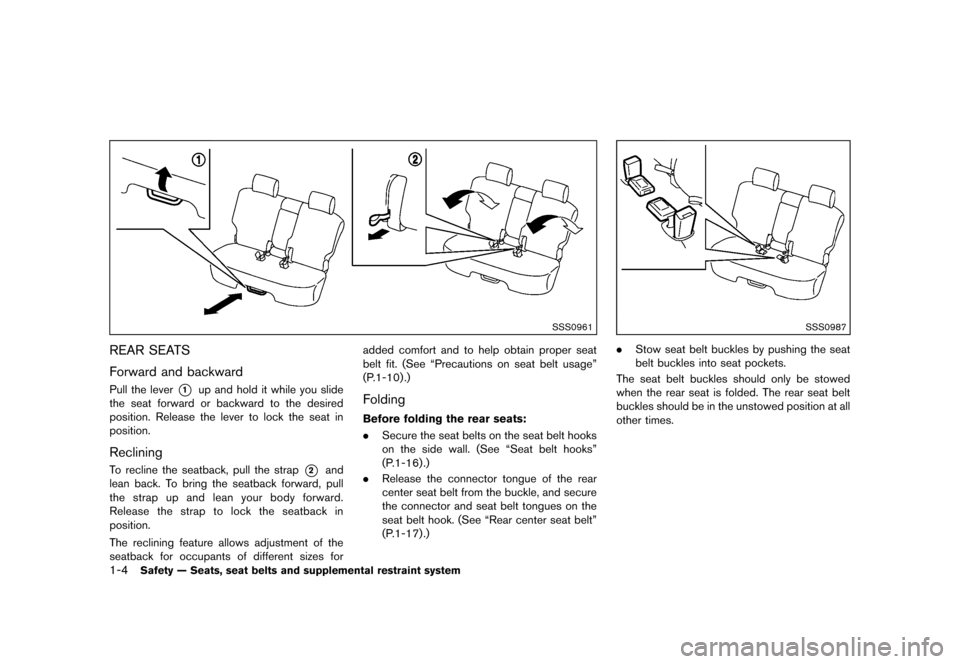

REAR SEATSGUID-985281D5-9700-4ACB-B197-5C3F65F54A11
Forward and backwardGUID-5C0C5546-D8A7-4527-AB31-0B48E96DEEC7Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
RecliningGUID-DBA2FB46-2368-4EA0-A6E4-31441110EF93To recline the seatback, pull the strap*2and
lean back. To bring the seatback forward, pull
the strap up and lean your body forward.
Release the strap to lock the seatback in
position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-10) .)
FoldingGUID-9D2D8EAE-5AE8-42A0-BE1E-89071DF8E45D
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks”
(P.1-16) .)
. Release the connector tongue of the rear
center seat belt from the buckle, and secure
the connector and seat belt tongues on the
seat belt hook. (See “Rear center seat belt”
(P.1-17) .)
SSS0987
.Stow seat belt buckles by pushing the seat
belt buckles into seat pockets.
The seat belt buckles should only be stowed
when the rear seat is folded. The rear seat belt
buckles should be in the unstowed position at all
other times.
Condition:
Page 23 of 331
Black plate (21,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SSS0962

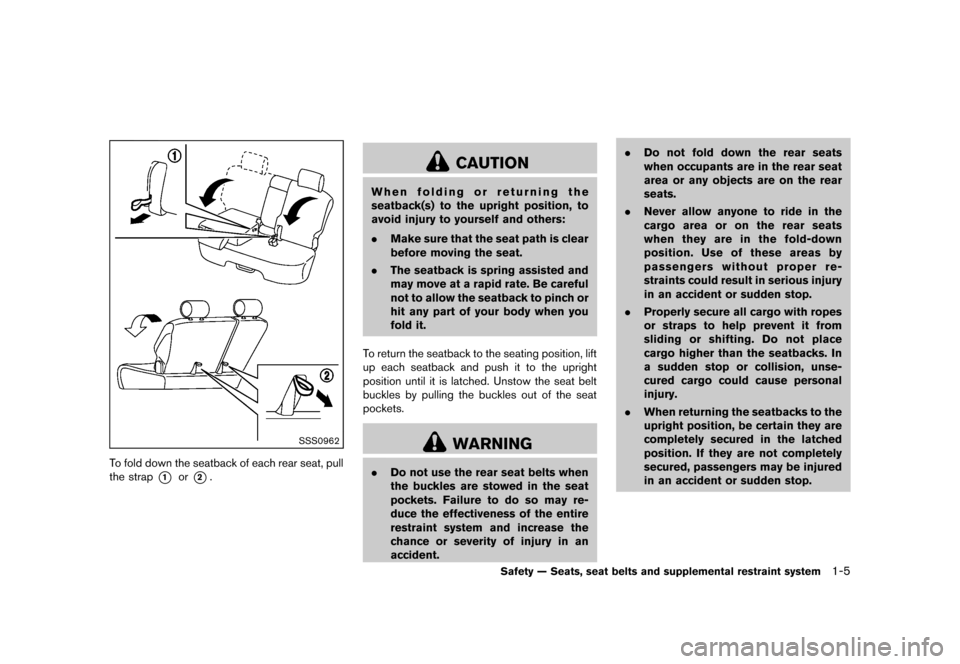

To fold down the seatback of each rear seat, pull
the strap
*1or*2.
CAUTION
When folding or returning the
seatback(s) to the upright position, to
avoid injury to yourself and others:
.Make sure that the seat path is clear
before moving the seat.
. The seatback is spring assisted and
may move at a rapid rate. Be careful
not to allow the seatback to pinch or
hit any part of your body when you
fold it.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched. Unstow the seat belt
buckles by pulling the buckles out of the seat
pockets.
WARNING
. Do not use the rear seat belts when
the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident. .
Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:
Page 24 of 331
Black plate (22,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-6Safety — Seats, seat belts and supplemental restraint system

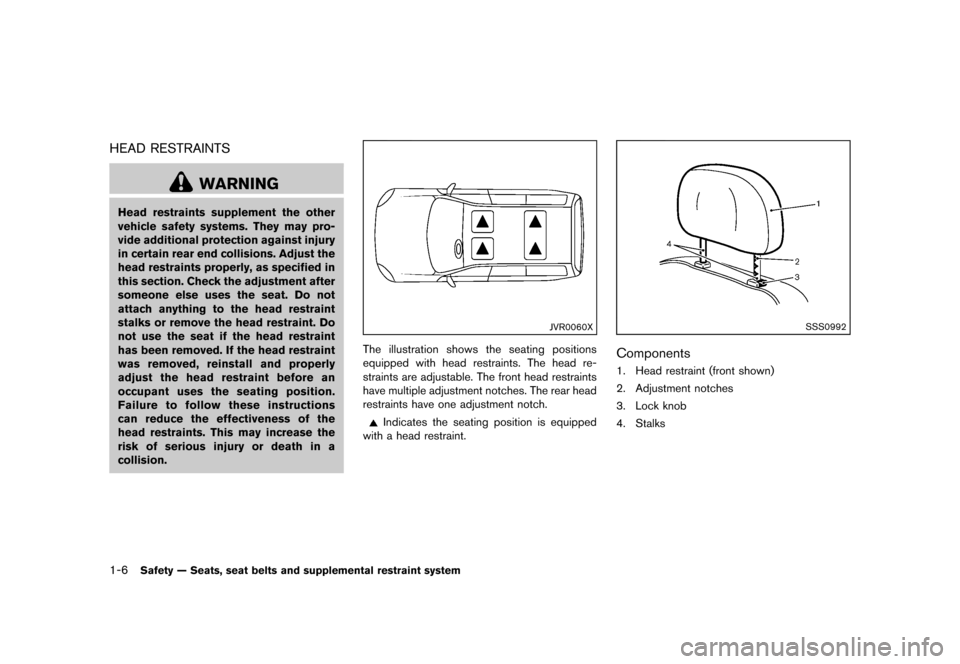

HEAD RESTRAINTSGUID-AB7E0493-5055-4DF6-8271-DE047E41425C
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, reinstall and properly
adjust the head restraint before an
occupant uses the seating position.
Failure to follow these instructions
can reduce the effectiveness of the
head restraints. This may increase the
risk of serious injury or death in a
collision.
JVR0060X
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable. The front head restraints
have multiple adjustment notches. The rear head
restraints have one adjustment notch.
Indicates the seating position is equipped
with a head restraint.
SSS0992
ComponentsGUID-823A4875-3557-4AE1-A23F-17603EEAF4E41. Head restraint (front shown)
2. Adjustment notches
3. Lock knob
4. Stalks
Condition:
Page 25 of 331
Black plate (23,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SSS0997

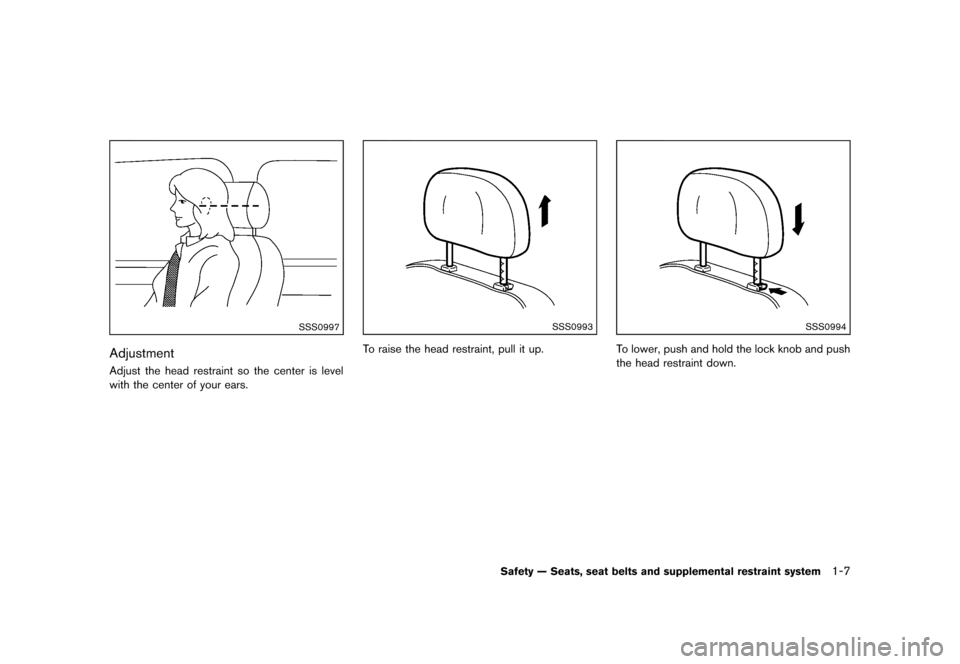

AdjustmentGUID-4CC4419F-5350-4D0D-90F1-3C7779B49656Adjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
Safety — Seats, seat belts and supplemental restraint system1-7
Condition:
Page 26 of 331
Black plate (24,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-8Safety — Seats, seat belts and supplemental restraint system
SSS0995

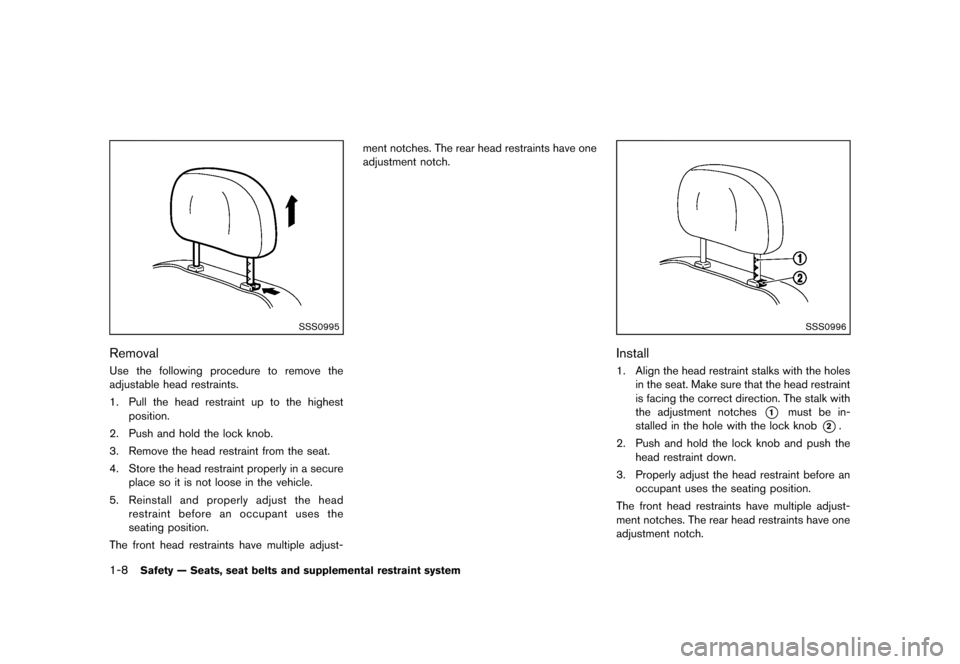

RemovalGUID-3F101663-C7CF-46A2-999A-0E558DAC04DAUse the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint before an occupant uses the
seating position.
The front head restraints have multiple adjust- ment notches. The rear head restraints have one
adjustment notch.
SSS0996
InstallGUID-432A25D5-0171-4074-968D-19AD3C01E4A61. Align the head restraint stalks with the holes
in the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
The front head restraints have multiple adjust-
ment notches. The rear head restraints have one
adjustment notch.
Condition:
Page 27 of 331
Black plate (25,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SSS0508

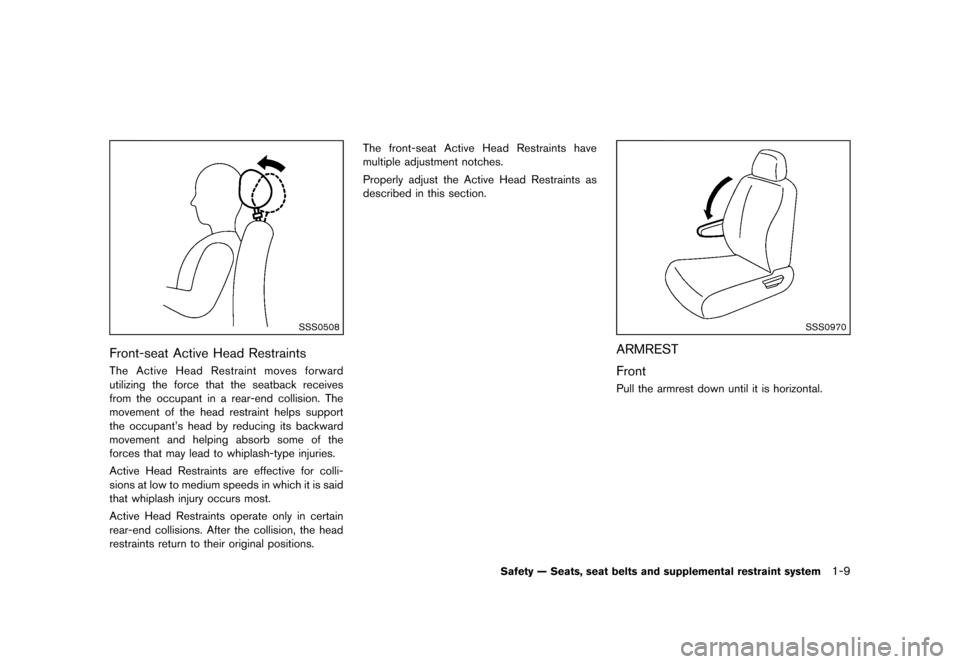

Front-seat Active Head RestraintsGUID-83743EA1-FCD8-46E6-A95F-8901AF00FADCThe Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.The front-seat Active Head Restraints have
multiple adjustment notches.
Properly adjust the Active Head Restraints as
described in this section.
SSS0970
ARMRESTGUID-3C24A76C-56E3-4C71-AD44-C65F06D1BCEA
FrontGUID-9E3E0CF9-881E-40E7-AD84-CA97F288CA02Pull the armrest down until it is horizontal.
Safety — Seats, seat belts and supplemental restraint system1-9
Condition:
Page 28 of 331
Black plate (26,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-10Safety — Seats, seat belts and supplemental restraint system
SSS0963

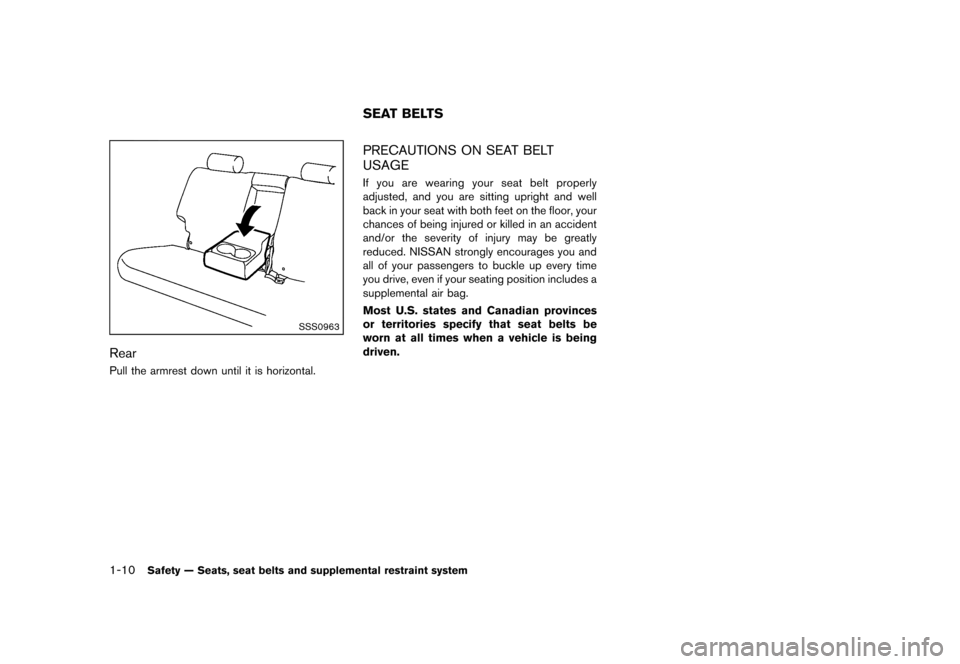

RearGUID-1D3877AE-7246-40A7-8797-410FF7472EA0Pull the armrest down until it is horizontal.
GUID-FADBD40B-53F4-49F4-B308-54E44EE1C03BPRECAUTIONS ON SEAT BELT
USAGE
GUID-62E0374E-724E-40C3-87AD-D39E1330A3C8If you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SEAT BELTS
Condition:
Page 29 of 331
Black plate (27,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

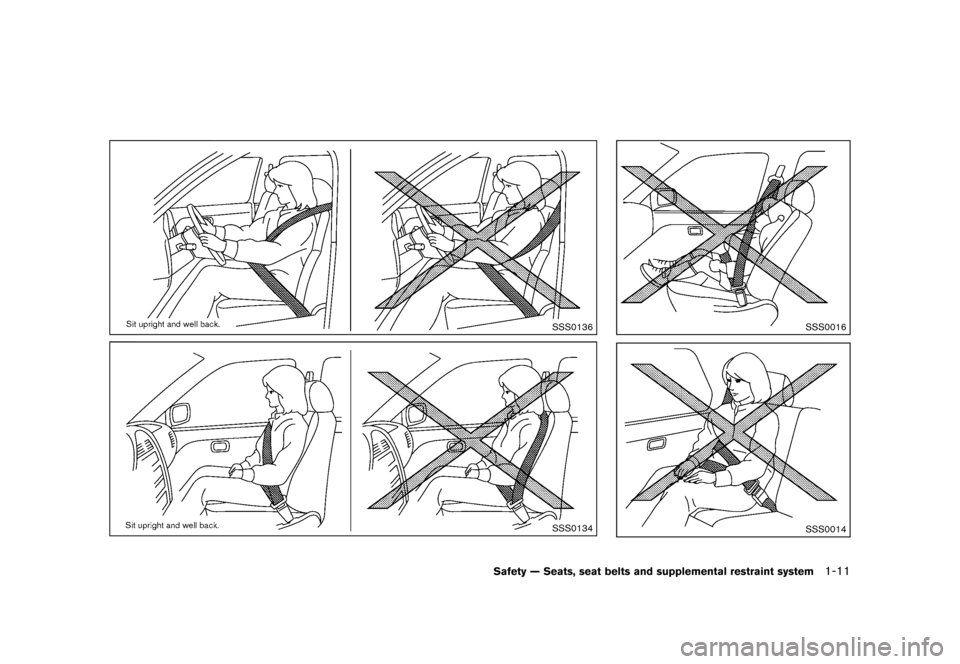

SSS0136
SSS0134
SSS0016
SSS0014
Safety — Seats, seat belts and supplemental restraint system1-11
Condition:
Page 30 of 331
Black plate (28,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
1-12Safety — Seats, seat belts and supplemental restraint system

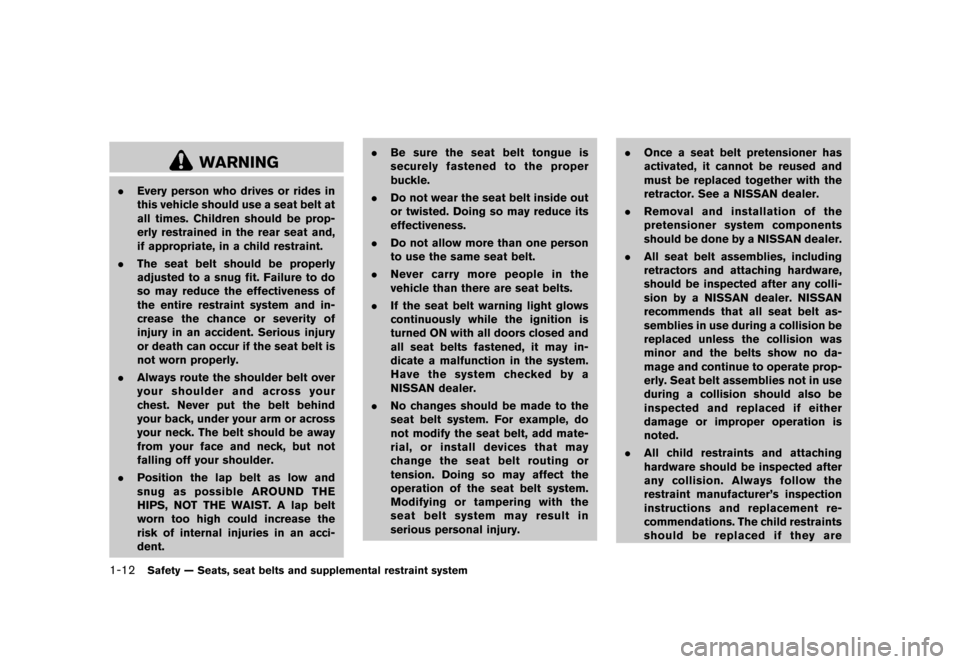

WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are
Condition:
