fuse box NISSAN CUBE 2013 3.G Owners Manual

Black plate (12,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
0-6Illustrated table of contents
GUID-B892323A-AAA8-41EE-A989-C91FFB051CAA
SSI0563
1. Front cup holders (P.2-31)
2. Headlight, fog light and turn signal switch— Headlight (P.2-24)
— Turn signal light (P.2-27)
— Fog light* (P.2-28)
3. Steering wheel — Electric power steering system (P.5-26) — Horn (P.2-28)
— Driver’s supplemental air bag (P.1-40)
4. Wiper and washer switch (P.2-22)
5. Fuse box cover (P.8-22)
6. Outside mirror remote control switch (P.3-25)
7. Vehicle Dynamic Control (VDC) OFF switch (P.5-29) 8. Tilting steering wheel lever (P.3-23)
9. Steering-wheel-mounted controls (left side)
— Audio control (P.4-47)
— Bluetooth
®Hands-Free Phone System con-
trol (P.4-50)
10. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-21)
11. Selector lever or Shift lever
— Continuously Variable Transmission (CVT)
(P.5-15)
— Manual Transmission (MT) (P.5-19)
12. Parking brake (P.5-21)
*: if so equipped
COCKPIT
Condition:

Black plate (74,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

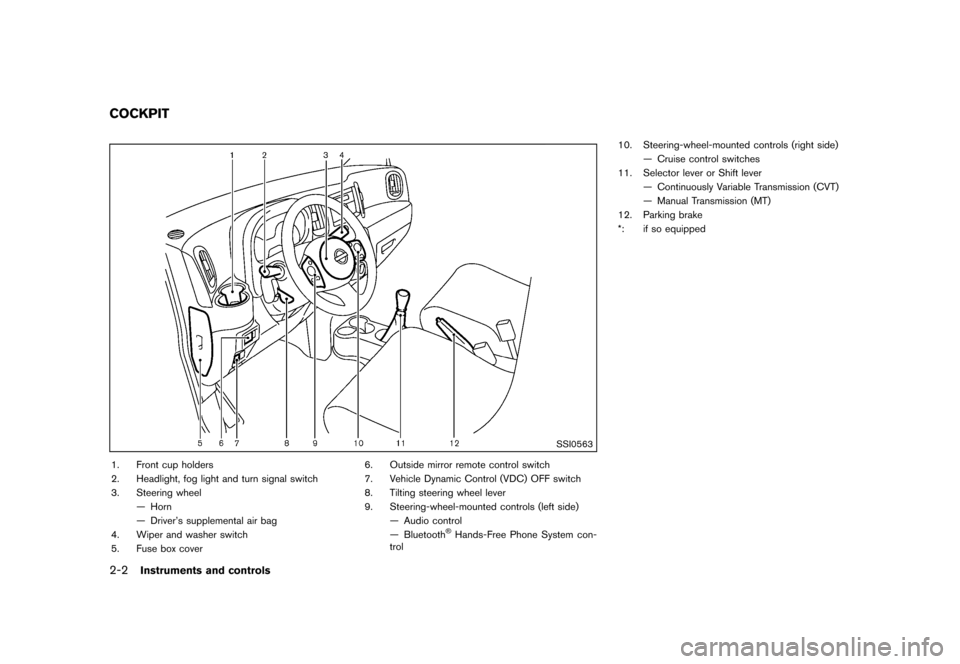

2-2Instruments and controls
GUID-D39D3E05-1287-4630-BB8B-5DBFF20D07E0
SSI0563
1. Front cup holders
2. Headlight, fog light and turn signal switch
3. Steering wheel— Horn
— Driver’s supplemental air bag
4. Wiper and washer switch
5. Fuse box cover 6. Outside mirror remote control switch
7. Vehicle Dynamic Control (VDC) OFF switch
8. Tilting steering wheel lever
9. Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth
®Hands-Free Phone System con-
trol 10. Steering-wheel-mounted controls (right side)
— Cruise control switches
11. Selector lever or Shift lever
— Continuously Variable Transmission (CVT)
— Manual Transmission (MT)
12. Parking brake
*: if so equipped
COCKPIT
Condition:

Black plate (280,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
8-20Maintenance and do-it-yourself
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.For additional information, see the
maintenance log section of your “NISSAN
Service and Maintenance Guide”.
GUID-DD7525EB-FBCE-47BB-84DB-A4DCC38E0B7E
SDI1959
ENGINE COMPARTMENTGUID-7418E363-32CB-4361-A166-BCACA8AC6AFB
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Open the engine hood.
3. Remove the resonator. (See “Engine com-
partment check locations” (P.8-6) .)
4. Remove the fuse/fusible link holder cover by pushing the tab
*1and lifting the cover
from the right side
*2, then the left side
*3.
5. Locate the fuse that needs to be replaced.
6. Remove the fuse using the fuse puller
located in the passenger compartment fuse
box.
FUSES
Condition:

Black plate (282,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

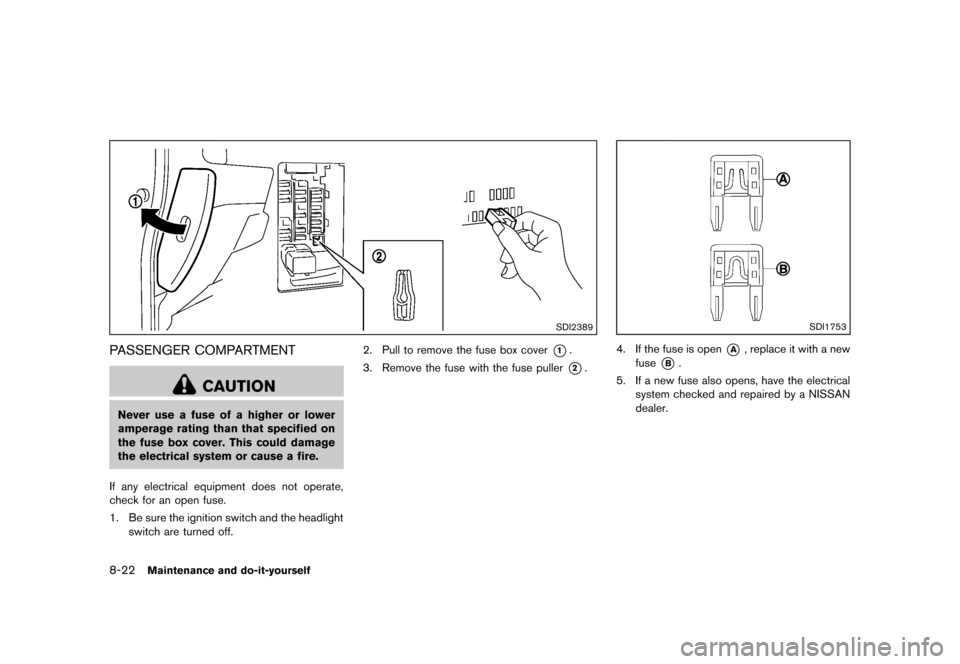

8-22Maintenance and do-it-yourself
SDI2389
PASSENGER COMPARTMENTGUID-8BE260FC-2353-4FF5-B5BB-D600FC5C5442
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Pull to remove the fuse box cover
*1.
3. Remove the fuse with the fuse puller
*2.
SDI1753
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Condition:

Black plate (283,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SDI2705

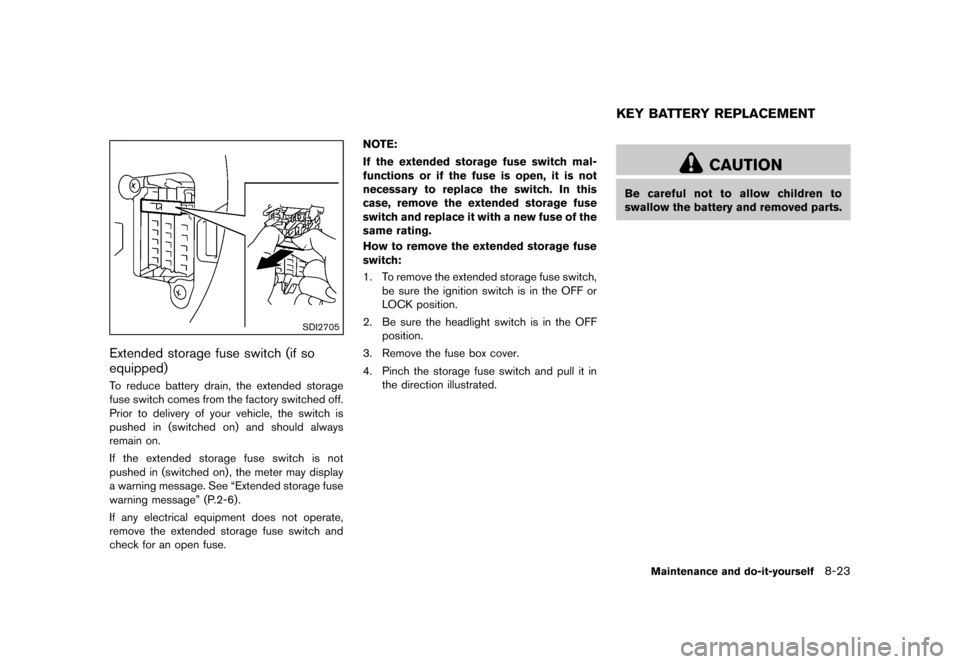

Extended storage fuse switch (if so
equipped)
GUID-514819CC-FBDE-4263-97AB-DD03C1EC8B98To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See “Extended storage fuse
warning message” (P.2-6).
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuse switch,
be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
GUID-D1B5CD3E-B766-430D-A528-FDCF183A5EDF
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
Maintenance and do-it-yourself8-23
KEY BATTERY REPLACEMENT
Condition:

Black plate (322,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
10-2
Checking engine coolant level...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-31
CVT, Driving with CVT (Continuously
Variable Transmission) ...
...................................... 5-8, 5-15
D
Daytime running light system ...
................................... 2-26
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-24
Dimensions and weights ...
............................................. 9-8
Door open warning light ...
............................................ 2-13
Drive belt ...
....................................................................... 8-15
Driving Cold weather driving ...
........................................... 5-30
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Precautions when starting and driving ...
.............. 5-2
E
Economy, Fuel ...
.............................................................. 5-24
Electric power steering system ...
............................... 5-26
Electric power steering warning light ...
.................... 2-13
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-17
Engine Before starting the engine ...
................................. 5-12
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8 Checking engine oil level
...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-11
Engine block heater ...
............................................. 5-31
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-12
Starting the engine ...
.............................................. 5-13
Event Data Recorders (EDR) ...
................................... 9-19
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
................................. 2-6
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter
Air cleaner housing filter ...
.................................... 8-17
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-16
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
......................................... 8-12
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-32 FM-AM-SAT radio with Compact Disc
(CD) player
...
................................................................... 4-39
Fog light switch ...
........................................................... 2-28
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-48
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Distance to empty ...
................................................... 2-9
Fuel economy ...
........................................................ 5-24
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-21
Fuel-filler door ...
....................................................... 3-21
Gauge ...
........................................................................ 2-8
Fuel Efficient Driving Tips ...
......................................... 5-23
Fuses ...
.............................................................................. 8-20
Fusible links ...
.................................................................. 8-21
G
Gas cap ...
......................................................................... 3-21
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-8
Odometer ...
.................................................................. 2-5
Speedometer ...
............................................................ 2-5
Tachometer ...
............................................................... 2-7
Trip computer ...
........................................................... 2-9
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-33
Condition:
