Page 301 of 377

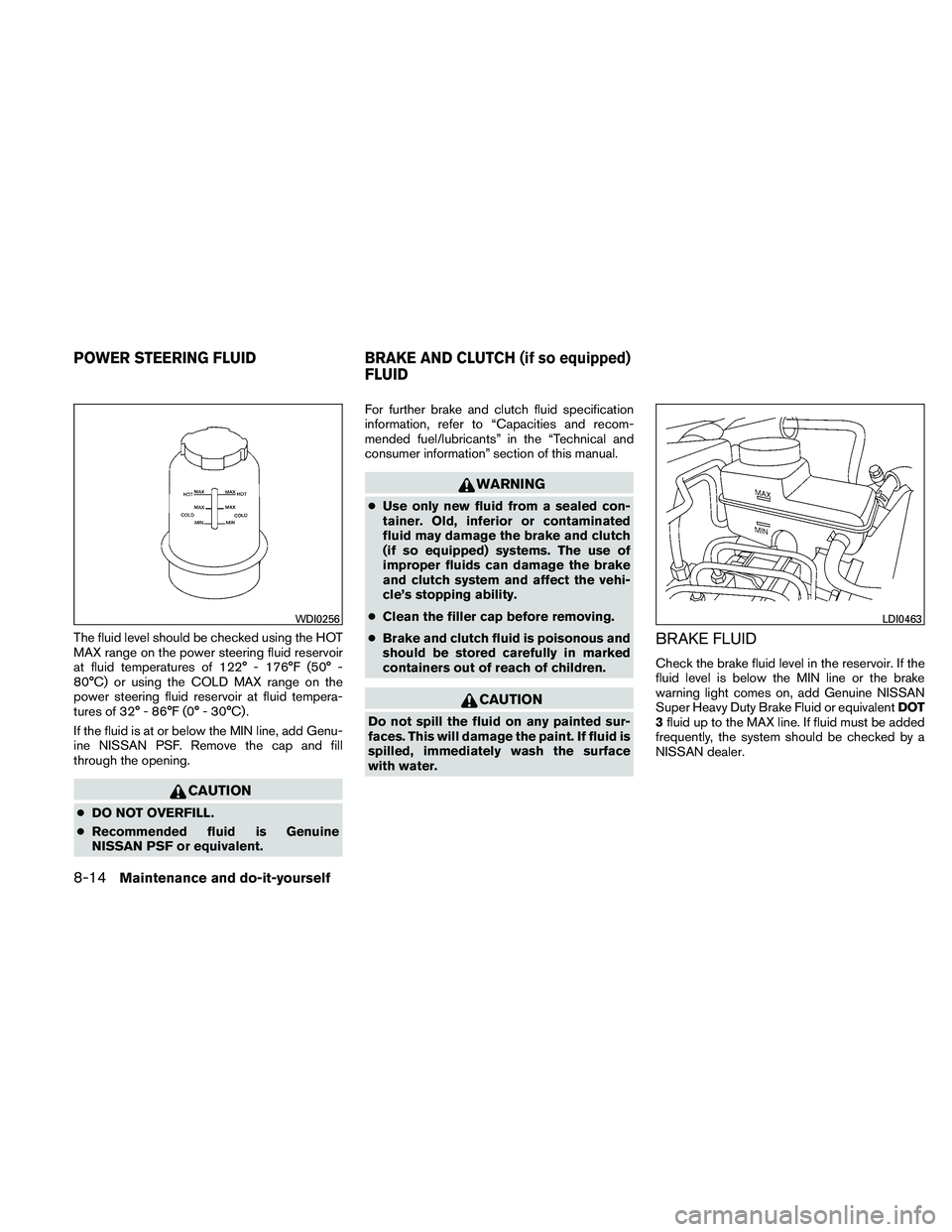

NISSAN FRONTIER 2011  Owner´s Manual The fluid level should be checked using the HOT
MAX range on the power steering fluid reservoir
at fluid temperatures of 122° - 176°F (50° -
80°C) or using the COLD MAX range on the
power steering

Page 302 of 377

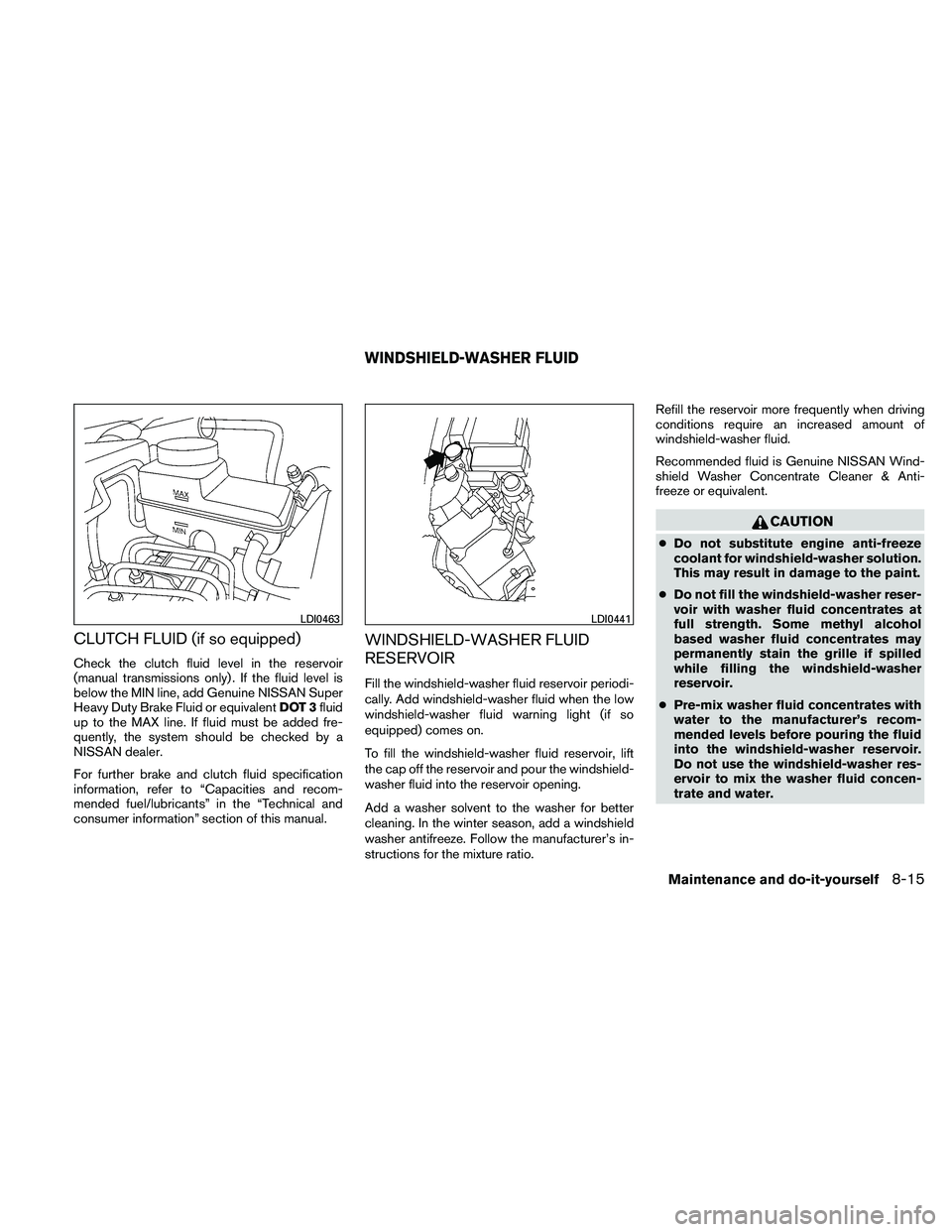

NISSAN FRONTIER 2011  Owner´s Manual CLUTCH FLUID (if so equipped)
Check the clutch fluid level in the reservoir
(manual transmissions only) . If the fluid level is
below the MIN line, add Genuine NISSAN Super
Heavy Duty Brake Fluid or e

Page 303 of 377

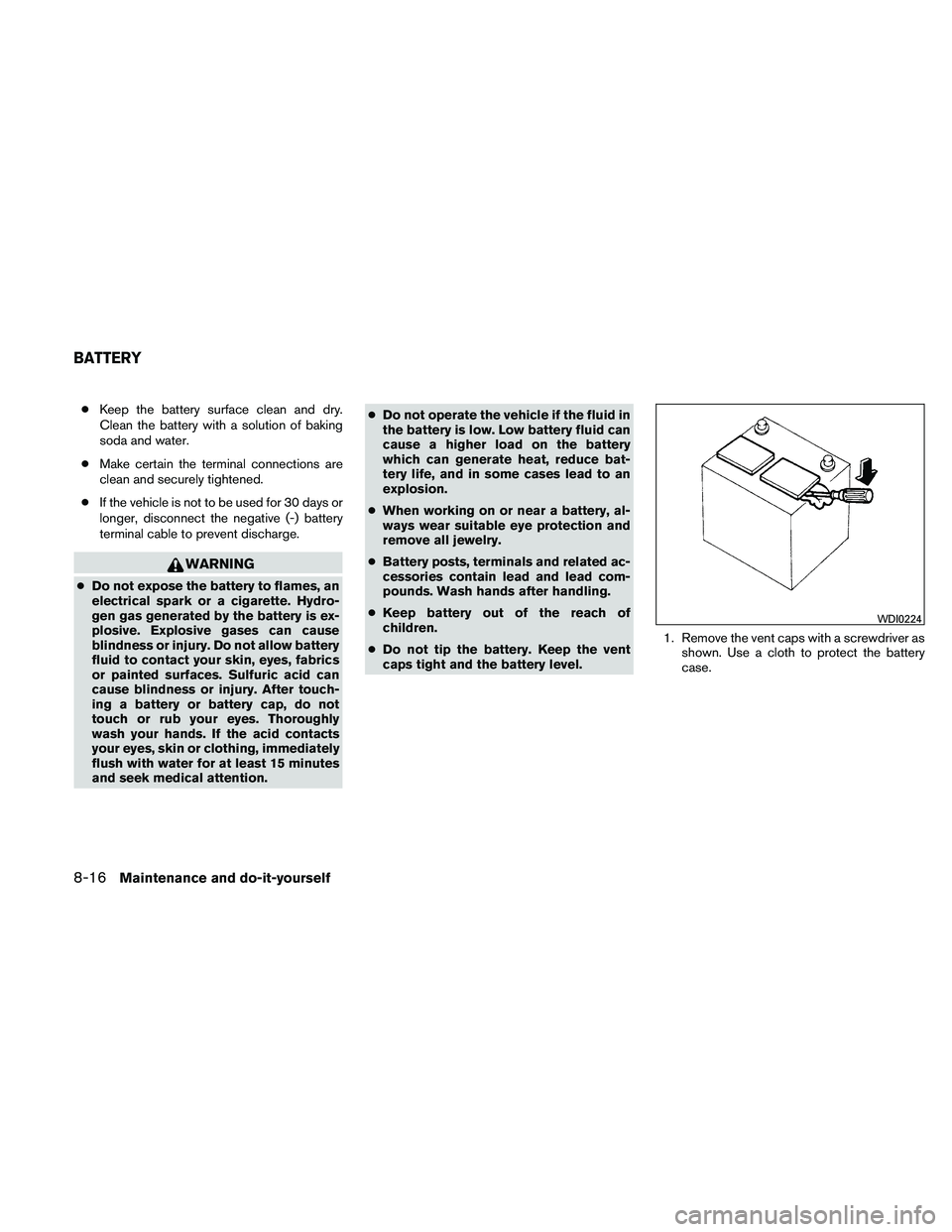

NISSAN FRONTIER 2011  Owner´s Manual ●Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is

Page 304 of 377

NISSAN FRONTIER 2011  Owner´s Manual 2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.Reinstall
the vent caps. Vehi

Page 305 of 377

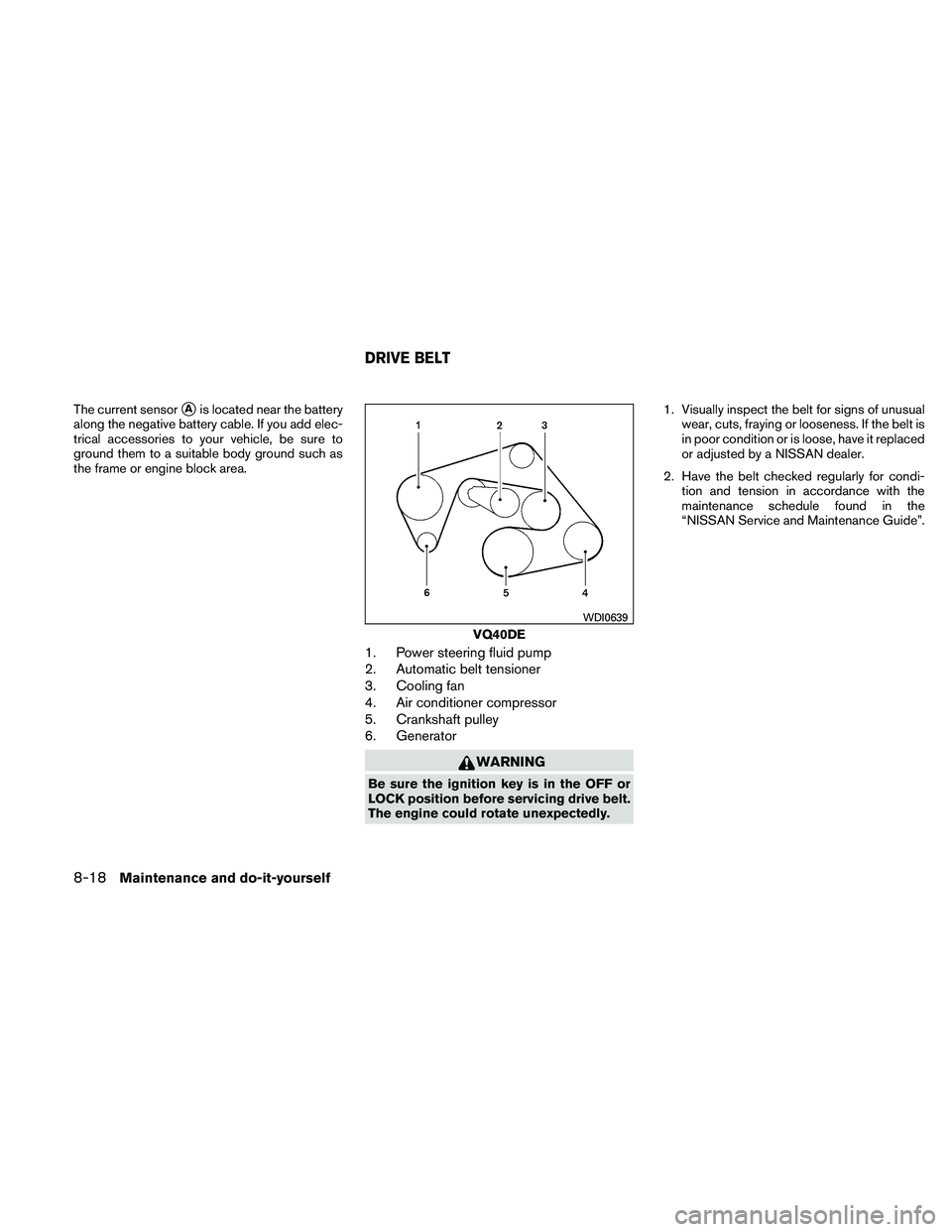

NISSAN FRONTIER 2011  Owner´s Manual The current sensorAis located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the fram

Page 306 of 377

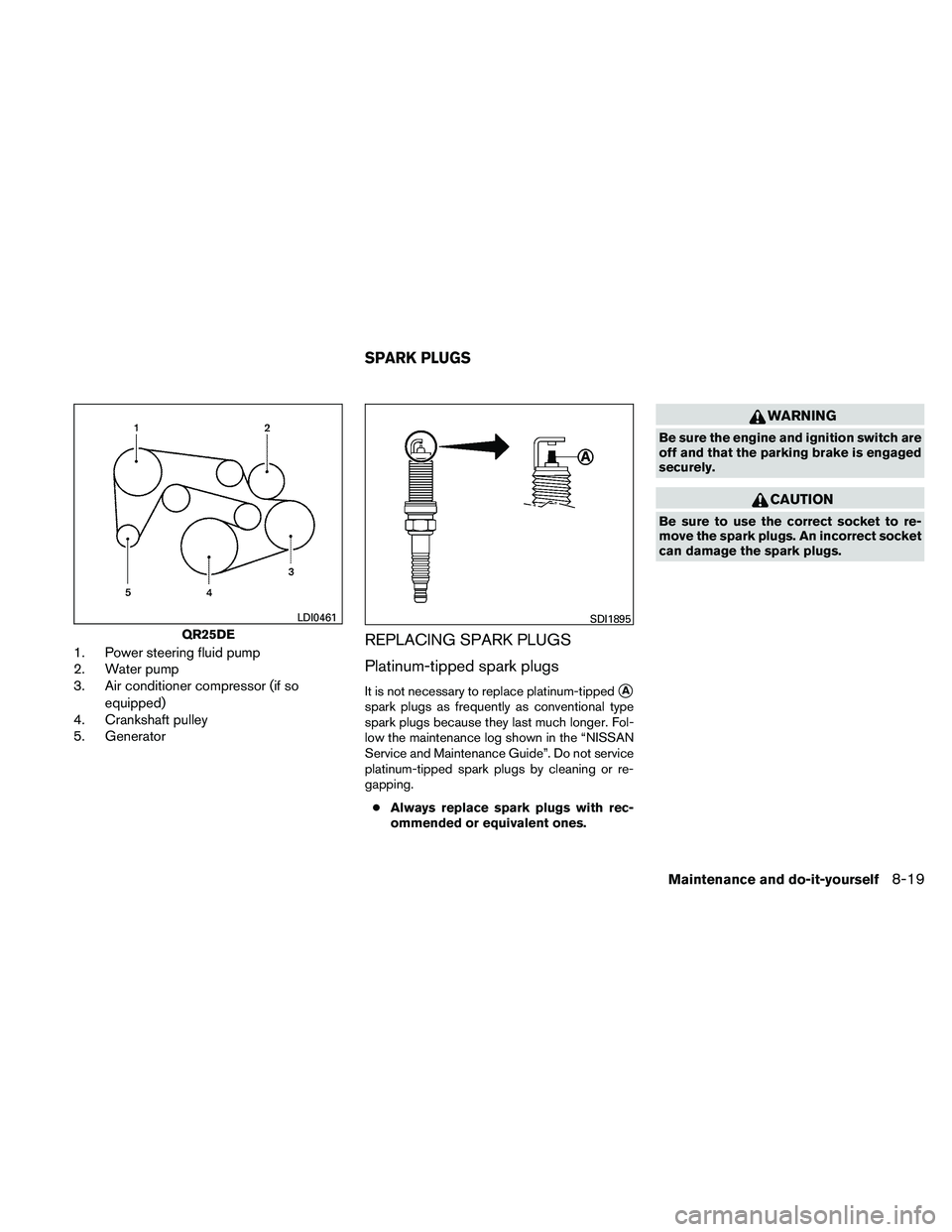

NISSAN FRONTIER 2011  Owner´s Manual 1. Power steering fluid pump
2. Water pump
3. Air conditioner compressor (if soequipped)
4. Crankshaft pulley
5. GeneratorREPLACING SPARK PLUGS
Platinum-tipped spark plugs
It is not necessary to repla

Page 307 of 377

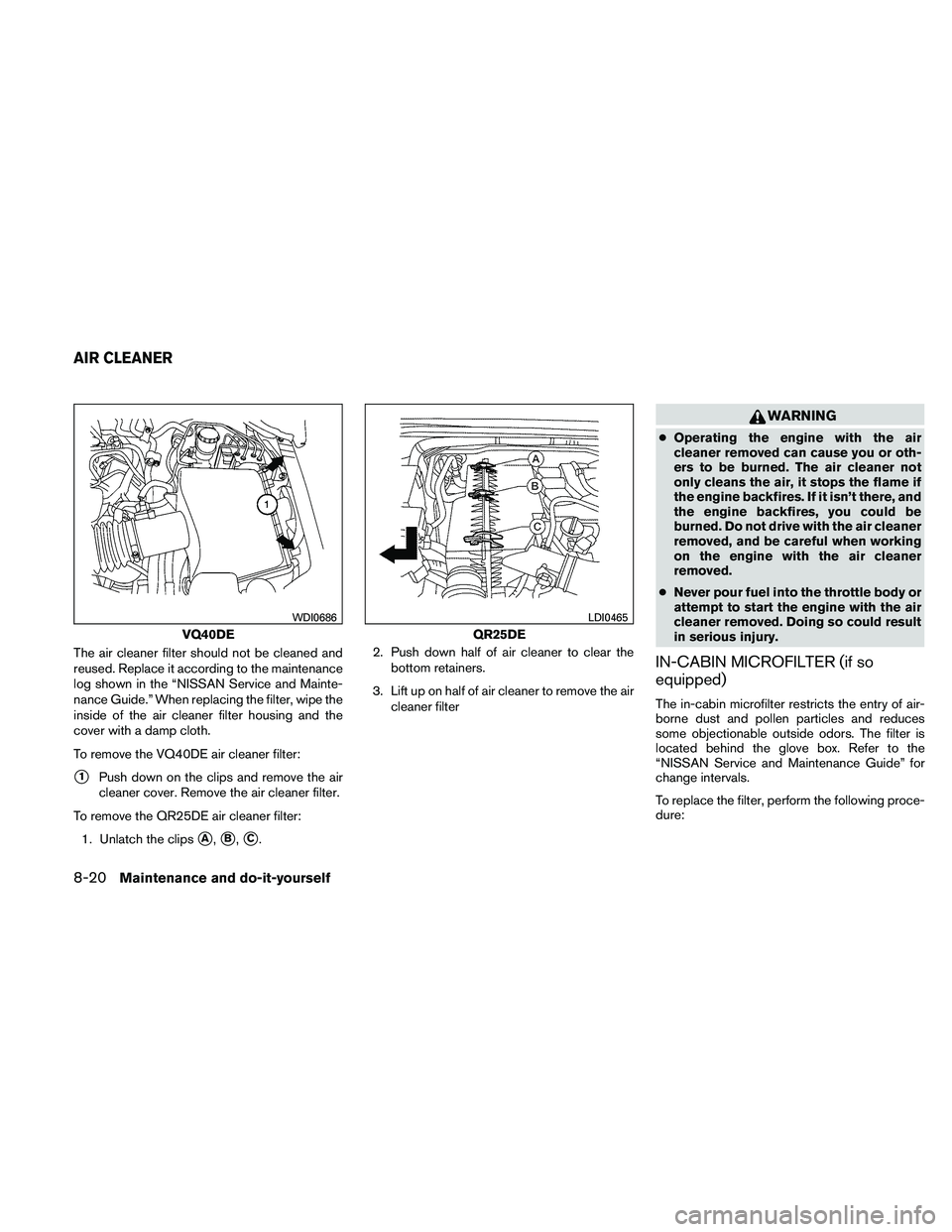

NISSAN FRONTIER 2011  Owner´s Manual The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide.” When replacing the filter, wipe the
insi

Page 308 of 377

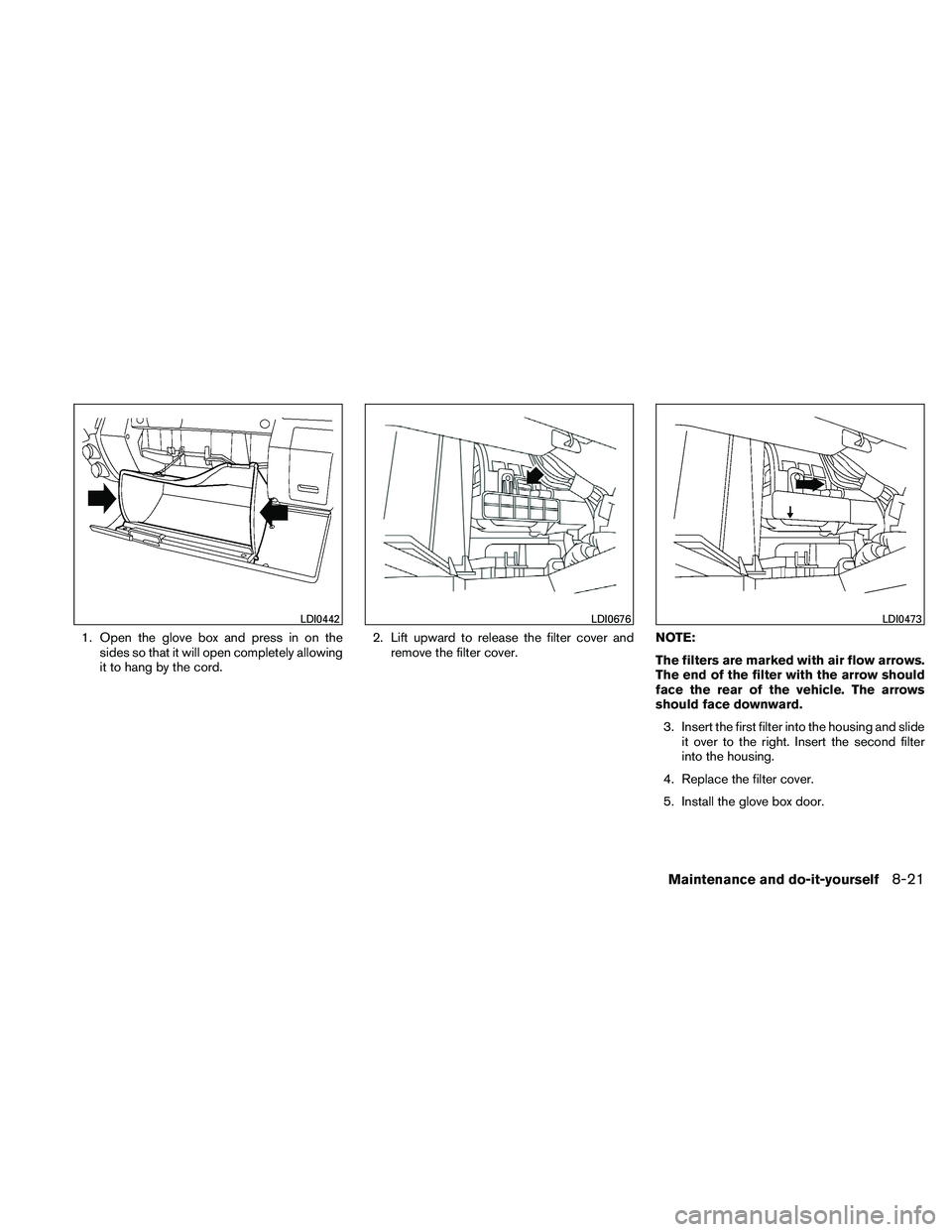

NISSAN FRONTIER 2011  Owner´s Manual 1. Open the glove box and press in on thesides so that it will open completely allowing
it to hang by the cord. 2. Lift upward to release the filter cover and
remove the filter cover. NOTE:
The filter

Page 309 of 377

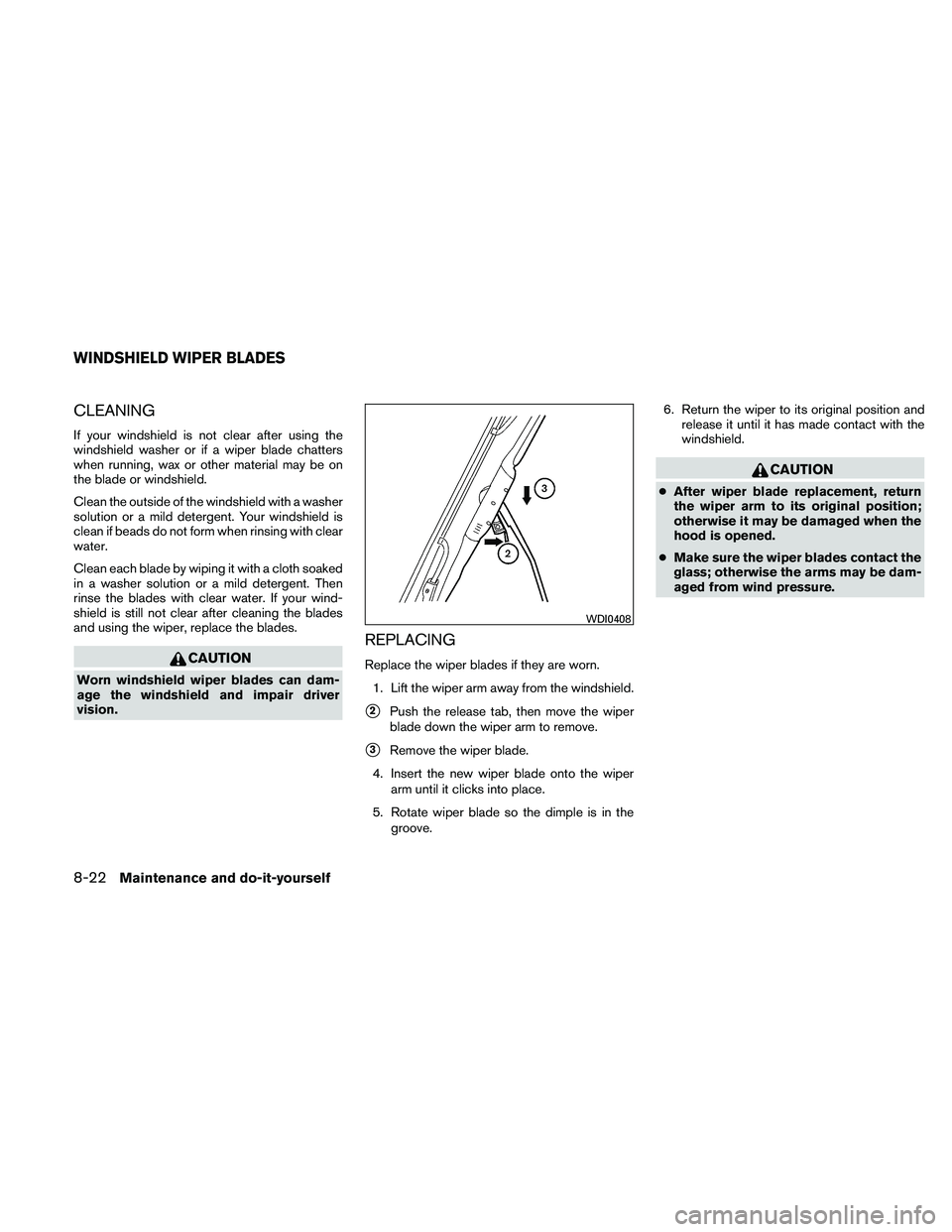

NISSAN FRONTIER 2011  Owner´s Manual CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the

Page 310 of 377

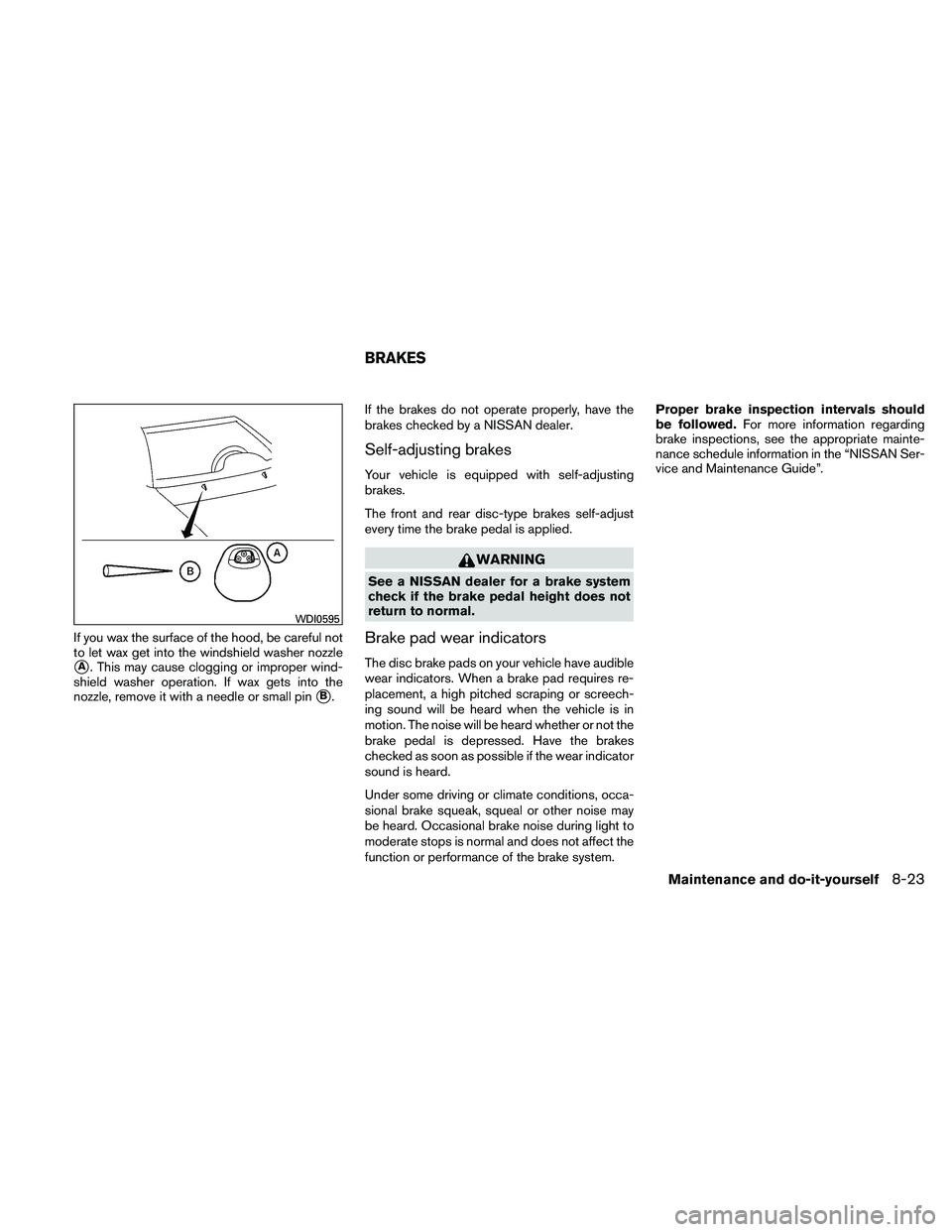

NISSAN FRONTIER 2011  Owner´s Manual If you wax the surface of the hood, be careful not
to let wax get into the windshield washer nozzle
A. This may cause clogging or improper wind-
shield washer operation. If wax gets into the
nozzle,
